figma2lvgl 0.1.2

Generate LVGL C source files from Figma XML exports

figma2lvgl — Figma to LVGL C Code Generator

A code-generation tool that converts Figma UI layouts into LVGL C source files ready to drop into any embedded project.

• Works with any LVGL v9 project (ESP-IDF, Zephyr, bare-metal, etc.)
• Installable via pip — no manual script setup
• Fully cross-platform — Windows, Linux, macOS

---

✨ Key Features

• 📐 Figma XML → Deterministic C code
• 🧵 Thread-safe UI updates via worker queue
• 🧱 Static metadata-driven UI (ui_screen_t, ui_child_t)
• 📦 Generates self-contained ui_src/ folder
• 🔁 Versioned runtime (safe upgrades)
• 🧩 Extensible via template system
• 🎯 Zero dynamic layout parsing at runtime

---

🚀 Installation

pip install figma2lvgl

Prerequisite — LVGLImage.py

Image conversion requires LVGLImage.py from the official LVGL repository. On first run, figma2lvgl will ask to download and cache it automatically. You can also place it manually next to your XML file.

---

📖 Usage

figma2lvgl -x diagram.xml

All arguments:

Argument	Description	Default
-x	Path to Figma XML file	Required
-i	Folder containing PNG images	Same directory as XML
-d	Destination for generated output	Same directory as XML

Examples:

# Minimal — everything next to the XML
figma2lvgl -x /home/user/project/layout.xml

# Full control
figma2lvgl -x layout.xml -i assets/images -d build/output

# Windows
figma2lvgl -x E:\project\layout.xml -i E:\project\images -d E:\project\output

---

📁 Output Layout

Running the tool produces a ui_src/ folder at the destination:

ui_src/
  src/              ← Generated screen .c files
  include/          ← Generated screen .h files
  priv_src/         ← Converted image .c files
  priv_include/     ← Image header (assets.h) + and all struct definition header (ui_defs.h)

Drop ui_src/ into your project and add the source files to your build system manually.

🎨 Designing in Figma

figma2lvgl reads the Figma node name to identify each UI element. Three element types are currently supported:

Exporting XML from Figma

figma2lvgl reads XML exported via the FigML — Figma XML Exporter Plugin.

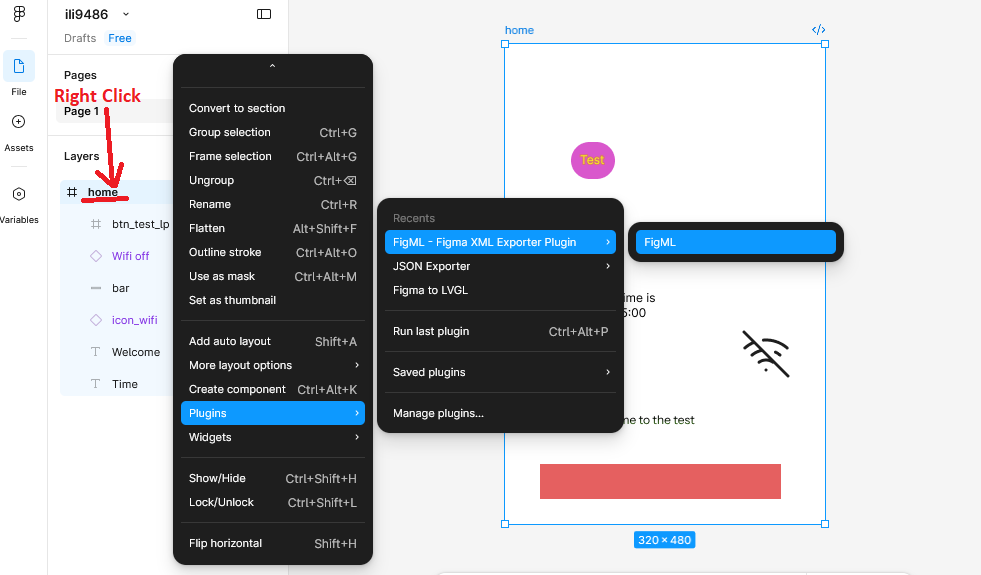

To export your design:

1. Right-click on your frame in Figma
2. Go to Plugins → FigML - Figma XML Exporter Plugin → FigML
3. Export and save the .xml file
4. Pass it to figma2lvgl using -x

Text / Label

Any Text node is automatically mapped to an LVGL label. Just create a text element in Figma — no special naming required.

Figma node type: Text
Figma name:      anything (e.g. "Time", "Welcome", "status_label")
Maps to:         LV_OBJ label


Any node whose name contains icon or image is mapped to an LVGL image. The name must match the PNG filename placed in your images folder.

Figma node type: INSTANCE or FRAME
Figma name:      must contain "icon" or "image" (e.g. "icon_wifi", "image_logo")
Maps to:         LV_OBJ image
Asset required:  icon_wifi.png / image_logo.png in your images folder

Bar

Any node whose name contains bar is mapped to an LVGL bar widget.

Figma node type: RECTANGLE
Figma name:      must contain "bar" (e.g. "bar", "progress_bar", "battery_bar")
Maps to:         LV_OBJ bar

Naming Rules Summary

Element	Figma Type	Name Requirement
Label	Text	any name
Image	any	must contain icon or image
Bar	Rectangle	must contain bar

Note: Names are case-insensitive. Bar, BAR, and bar all work. The Figma frame name becomes the screen name in generated code.

---

Example Figma Files

Display	Link
ILI9486 320x480	Open in Figma
128x32 OLED	Open in Figma

🧠 Architecture Overview

Figma XML
    ↓
Parser
    ↓
Model (Screen + Children)
    ↓
Templates
    ↓
Generated Code (ui_src/)
    ├── src/
    ├── include/
    ├── priv_src/
    └── priv_include/

---

💡 Example Integrations

See the examples/ folder for ready-to-use project setups across different platforms:

examples/
  espidf/
    ili9486/        ← ESP32 + ILI9486 display

More platform examples (STM32, Zephyr, bare-metal) coming soon.

---

🏁 Design Philosophy

• Figma = layout only
• Naming conventions = semantics
• Generator = metadata builder
• Output = portable C, no runtime dependencies beyond LVGL
• All UI updates = thread-safe
