Fullseye

An in-house, numpy-native image-processing operator library and evolutionary pipeline designer. Every operator is reimplemented from published algorithms and open-source libraries (OpenCV, scikit-image, SciPy, Pillow, PyWavelets, SimpleITK, mahotas, kornia/torch), given a single typed interface, and contract-tested (finite, deterministic, sort-typed). On top of the operators sits an evolutionary search that designs pipelines and gates them honestly on a held-out set.

Two ways to use it: apply known operators (most of the time), or evolve a new pipeline when no single operator solves the task. It is pip-installable and works on plain numpy arrays, so other projects can drop it into a vision pipeline directly.

Rendered by Fullseye's numpy renderer (SDF → marching cubes → AO / soft shadows / ACES). More real outputs below.

Install

pip install fullseye        # PyPI (numpy + scipy core)
pip install "fullseye[all]" # + opencv, scikit-image, Pillow, PyWavelets, SimpleITK, kornia/torch, PySide6
# from a checkout: pip install -e .   (per-backend extras: .[opencv] .[skimage] .[gpu] ...)

PyPI: https://pypi.org/project/fullseye/ · Source / issues / operator corpus: GitHub (linked from the PyPI sidebar). After installing, fullseye-rag sets up the Claude Code RAG skill; py -3.11 tools/update_fullseye.py updates a checkout without touching your environment (see docs/AI_RAG_GUIDE.md).

Only numpy and scipy are required; every other backend is optional and only its own operators are affected when it is absent (graceful degradation). GPU is opt-in.

Quickstart (programmatic API)

import fullseye, numpy as np

frame = np.asarray(img, np.float64)                 # gray H×W in [0,1] (H×W×3 for color)
edges = fullseye.apply(frame, "sobel_amp")          # numpy in, numpy out
seg   = fullseye.apply(frame, "otsu")               # image → region (binary {0,1})
n     = fullseye.apply(seg,   "count_obj")          # region → feature → a float
out   = fullseye.run_pipeline(frame, ["gaussian", "sobel_amp", "otsu"])          # shared knobs
out   = fullseye.run_pipeline(frame, [("gaussian",0.3,0.5), ("otsu",0.4,0.5)])   # per-stage knobs
fullseye.list_ops(sort="region"); fullseye.op_names()   # discover

apply(image, name, a=0.5, b=0.5) and run_pipeline take an operator name and two knobs in [0, 1]. Feature operators return a Python float; contour operators a dict.

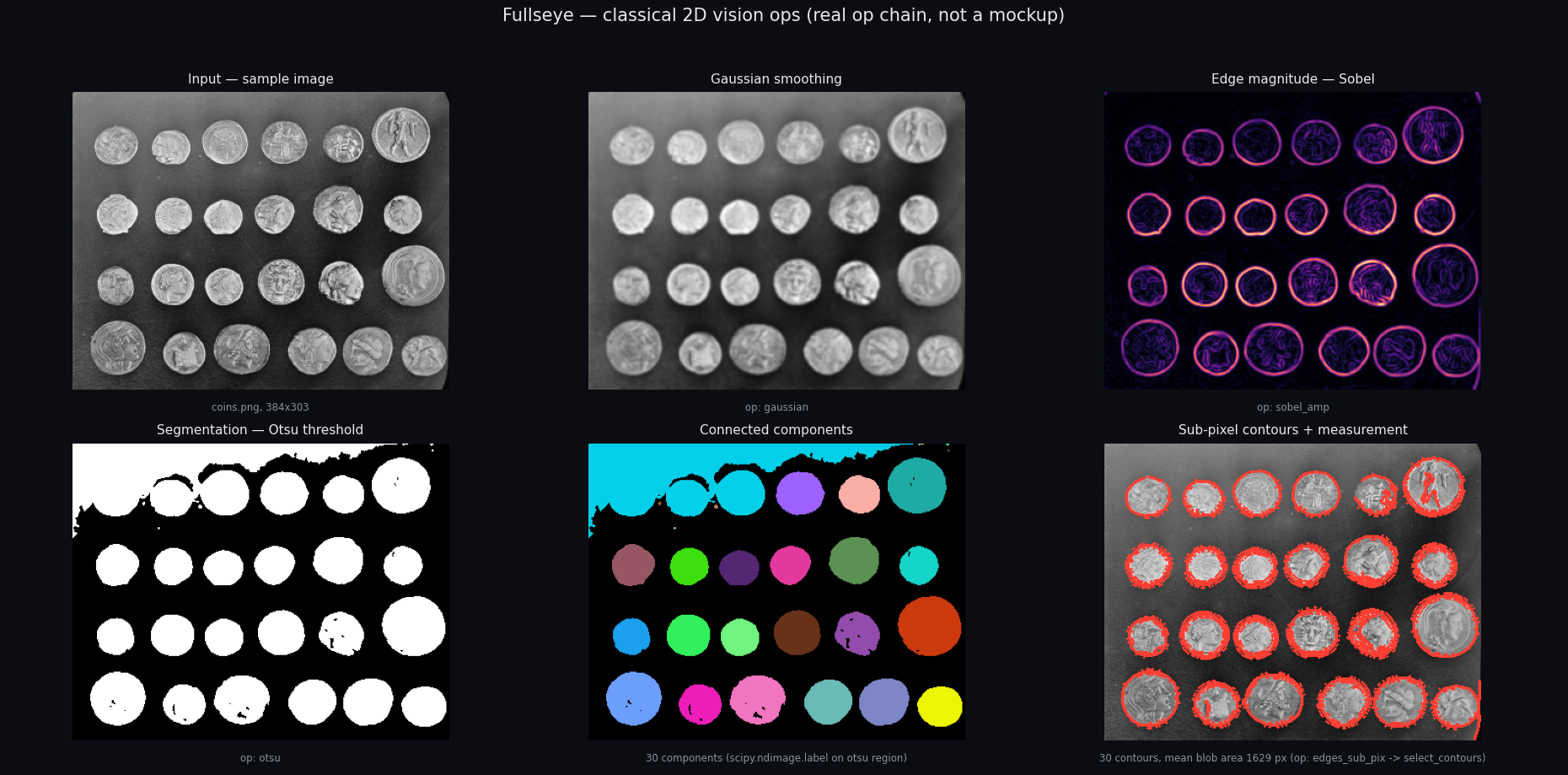

Operator library

~1000 typed operators (measured: 731 distinct 2-D across 46 categories + 265 3-D across 55 categories), covering denoising, smoothing, sharpening, thresholding/segmentation, morphology, edge/corner/blob detection, distance transforms, color-space conversion, texture/shape features, contours, and the 3-D modality (point clouds / meshes / volumes / SDF / 6-DoF pose). Sorts: image (gray [0,1]), color (RGB), region (binary), feature (scalar), contour, volume.

Every operator carries a machine-readable Markdown note under docs/ops/ (call form, type contract, HALCON counterpart, references, author/license/version fingerprint) — a single source of truth that generates the Studio help pages and doubles as a retrieval (RAG) corpus for AI coding assistants: an agent such as Claude Code can look up operators by contract, chain them by sort, and inspect every intermediate result. One command installs the bundled Claude Code skill and pins the corpus path (py -3.11 tools/setup_claude_rag.py — see docs/AI_RAG_GUIDE.md). Coverage against HALCON's 2313 operators is measured, not asserted (py -3.11 imgevolve.py coverage).

py -3.11 imgevolve.py ops --search edge      # search implemented operators
py -3.11 imgevolve.py apply gaussian in.png out.png --a 0.6
py -3.11 imgevolve.py pipeline in.png out.png --ops "gaussian,sobel_amp,otsu"
py -3.11 imgevolve.py coverage               # honest coverage numbers

Adding one operator makes evolution, code generation, the catalog, and the machine-readable index (docs/OP_INDEX.json) follow automatically.

Perception stack (robotics-friendly)

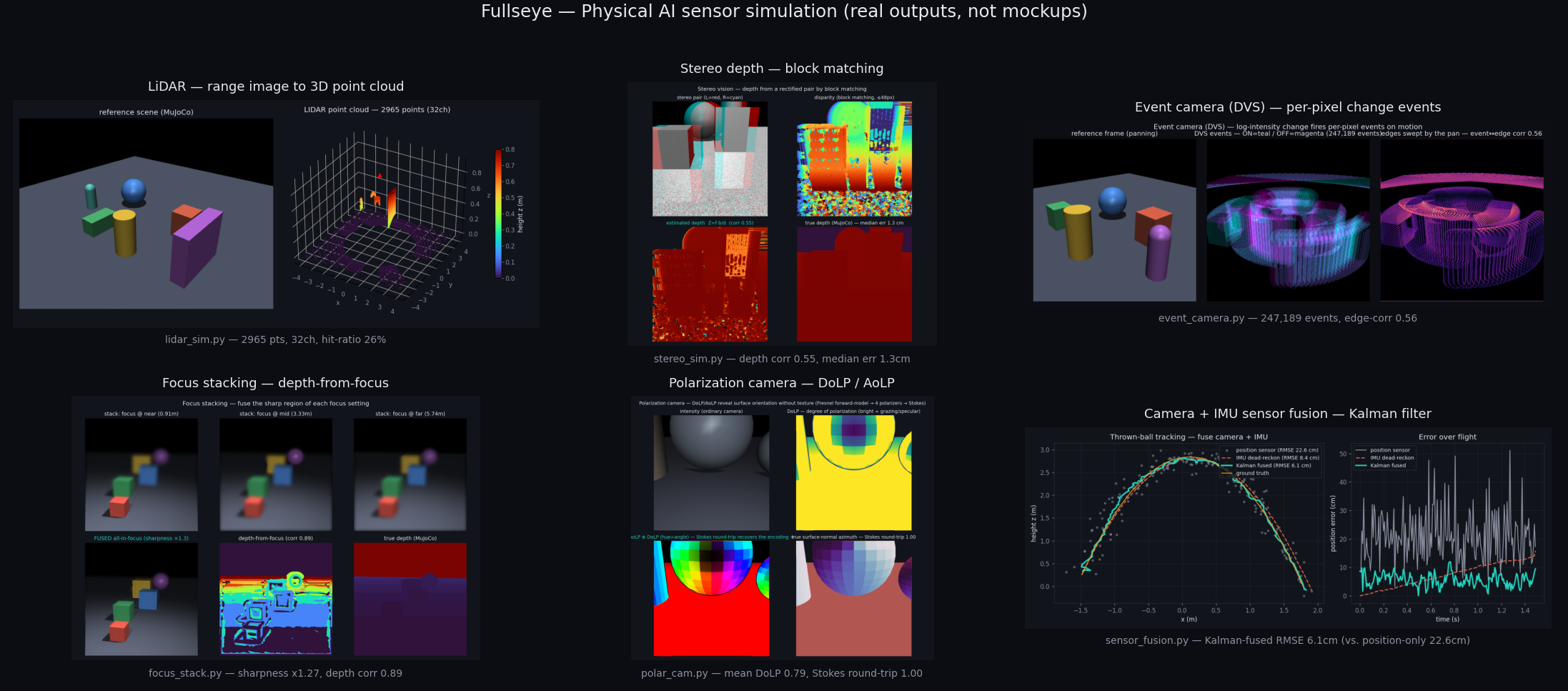

Building blocks that turn frames into geometry and objects — the pieces a robot needs to perceive, measure, and act. A sensor-simulation suite (pseudo-LiDAR, stereo, event camera / DVS, photometric stereo, TSDF fusion, polarization, focus stacking) lets you develop and test perception pipelines without hardware:

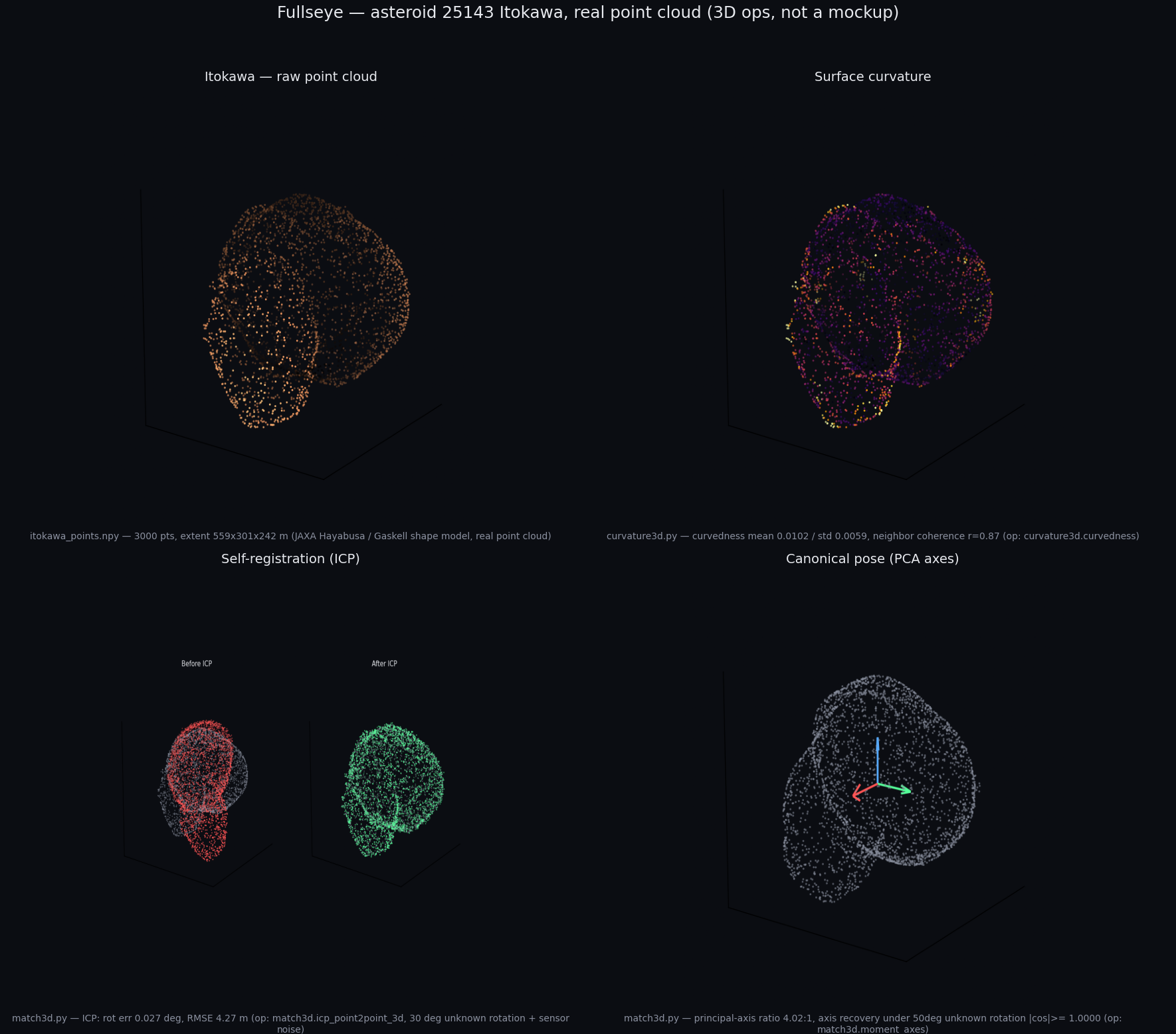

The 3-D side is where Fullseye differentiates most: 265 typed 3-D operators spanning point clouds / meshes / volumes / SDF — 3-D feature descriptors (SHOT, FPFH, spin images), TSDF fusion, fringe projection, photometric stereo, superquadric fitting, medial axis, geodesic distance, visual hull, and boundary-preserving manifold-strict QEM decimation — all pure numpy behind one typed registry. Real data, real numbers (asteroid 25143 Itokawa, JAXA Hayabusa / Gaskell shape model):

import fullseye as fs
disp  = fs.disparity_map(left, right, max_disp=16)         # dense stereo (block matching)
Z     = fs.depth_from_disparity(disp, focal=f, baseline=B) # Z = f·B/d
pts   = fs.reproject_to_points(Z, fx=f, fy=f)              # point cloud (N,3)
grid,_= fs.elevation_map(world_pts, cell=0.05)            # 2.5-D terrain heightmap
ok    = fs.traversability(grid, cell=0.05, max_step=0.1)  # foothold / obstacle mask
objs  = fs.segment_objects(frame, threshold="otsu")       # per-object records (geometry + descriptors)
rgb   = fs.colorize_depth(Z); fs.save_ply("cloud.ply", pts)   # visualise / export (no matplotlib)

Motion, over time — feed it a real clip:

frames = fs.read_frames("clip.mp4", gray=True, step=2)     # (T,H,W) float64 [0,1] (mp4/gif)
for a, b in fs.frame_pairs(frames):
    u, v = fs.optical_flow_lk(a, b)                         # dense flow; also track_points / motion_*

fs.to_float01(x) coerces uint8/uint16/bool/PIL/path inputs to float64 [0,1]; fs.read_frames / iter_frames / write_video / probe handle video I/O (see docs/PERCEPTION_REALDATA.md for measured results on real footage).

Evolutionary pipeline design

When the task is "find an algorithm that maximizes metric M on my data", evolve one. Fitness is measured on the training split only; a held-out split is tracked but never selected on, so the reported generalization is honest rather than a fit to the evaluation set.

py -3.11 baseline.py --problem denoise --workdir out/mine     # honest floor first
py -3.11 evolve.py   --problem denoise --workdir out/mine --gens 40 --pop 24
py -3.11 robust.py   --problem denoise --workdir out/mine --seeds 5   # best-of-N, train-selected

Performance (optional GPU batch backend)

The default per-image path uses scipy/OpenCV. A batched torch fast path (accel.py, --device cuda) accelerates the compute-heavy vectorizable operators. Honest note: on CPU the batch path speeds up heavy operators (≈1.6–2.2×) but loses on trivial pointwise ops (tensor-conversion overhead); the real win is on GPU, where that overhead amortizes over large parallelism.

Fullseye Studio (HDevelop-style IDE)

fullseye-studio (or py -3.11 studio.py from a checkout) opens the visual workbench: operator browser with generated help (2-D and 3-D), pipeline editor with per-stage timing, breakpoints, continue / run-from-line execution control, a variable window with watch expressions and right-click inspection, multi-window graphics scriptable from programs (dev_open_window / dev_set_window / dev_set_window_extents), worked-example galleries, and a tabbed Python Editor that opens any sample as editable, runnable code (F5, subprocess). Combined with the RAG corpus this is aimed at being an integrated environment for Physical-AI perception work: the AI writes and runs the pipeline, and the human inspects what it "sees" in the same windows.

Academic use

Fullseye is designed to be citable and reproducible: per-operator notes carry real literature references (no fabricated DOIs), versions are pinned to the code by a registry fingerprint with a CI drift test, and evaluation follows the honest held-out discipline above. If you use it in academic work, please cite via CITATION.cff.

Documentation map

Everything below lives in the repo — start at the guide that matches what you want to do:

Design principles

• Reimplemented from public knowledge — published algorithms and open-source libraries, unified behind one typed interface; not derived from any proprietary product.
• Honest by construction — held-out data is never used for selection; coverage and benchmark numbers are measured, not asserted; limitations are disclosed, not hidden.
• Optional heavy dependencies — a numpy+scipy core always works; richer backends and GPU are opt-in.

License

Apache-2.0.
