A config-driven inference tool for discrete Bayesian networks, built on fxtensor-salmon.

Overview

fxtensor-bayesnet is a decision-support tool that expresses cause-and-effect relationships between events as conditional probabilities and quantifies their overall impact. Assumptions and probabilities live in a configuration file, so they can be revised quickly without changing any code. It supports comparing multiple scenarios as well as working backwards from observed outcomes to their likely causes. Because the configuration and results can be recorded daily, the rationale behind each judgement and how it changed over time can be tracked continuously.

How it works:

• Each variable is discrete and takes one of a finite set of labels (e.g. Clear / Cloudy / Overcast).
• Variables without parents (roots) get a prior distribution; child variables get a conditional probability table ("parent label combination → child distribution", i.e. a Markov kernel).
• The joint distribution is built by composing states and kernels with fxtensor-salmon's FXTensor. From it the tool computes marginals per scenario, conditioning on observations (Bayesian updating), and root-cause inference via bayesian_inversion.
• On every run, results computed with the library are cross-checked against a direct numpy einsum computation, using unrounded values; any mismatch stops the run (see the 検算 ("checks") field of the results).
• When the joint distribution would exceed 2 million entries, the tool automatically switches to computing over ancestor sets only (same results).
• --plot renders the network structure, scenario comparison, Bayesian updates and day-over-day changes as PNG / SVG (requires matplotlib).

The probabilities in a config are the user's assumptions. The results are consequences of those assumptions; the tool does not validate the assumptions themselves.

Installation

Python 3.8 or later. Install from PyPI:

pip install fxtensor-bayesnet            # core (pulls in numpy and fxtensor-salmon)
pip install "fxtensor-bayesnet[plot]"    # with figures (adds matplotlib)

For development:

git clone https://github.com/salmonsnare/fxtensor-bayesnet.git
cd fxtensor-bayesnet
python3 -m venv .venv
. .venv/bin/activate
pip install -e ".[dev]"     # includes pytest and matplotlib
pytest

Quick start

Example configs live in examples/ (they are not part of the PyPI package, so fetch them from the repository).

curl -o config.json https://raw.githubusercontent.com/salmonsnare/fxtensor-bayesnet/v0.9.1/examples/weather/config.en.json
fxtensor-bayesnet --check                            # defaults to ./config.json
fxtensor-bayesnet --no-write --md --lang en          # Markdown to stdout
fxtensor-bayesnet --no-write --plot --lang en --out-dir out/   # figures only, into out/
# python -m fxtensor_bayesnet ... works the same way

Writing a config

A config is a single JSON file. Minimal example:

{
  "as_of": "2026-10-10",
  "horizon": "Next day",
  "note": "All probabilities are assumptions",
  "variables": {
    "cloud": {"name": "Cloud cover", "labels": ["Clear", "Cloudy"]},
    "rain":  {"name": "Precipitation", "labels": ["None", "Some"]}
  },
  "priors": {
    "cloud": {"p": [0.6, 0.4], "reason": "free-text rationale (optional)"}
  },
  "kernels": {
    "rain": {
      "parents": ["cloud"],
      "reason": "free-text rationale (optional)",
      "cpt": {
        "Clear": [0.95, 0.05],
        "Cloudy": [0.6, 0.4]
      }
    }
  },
  "scenarios": {
    "A: Mostly cloudy": {"cloud": [0.2, 0.8]}
  },
  "observations": [
    {"var": "rain", "label": "Some", "focus": ["cloud"]}
  ],
  "outputs": ["rain"]
}

Writing a cpt:

• Each key joins the parents' labels with |, in parents order (e.g. with parents ["load", "age"]: "High|Old").
• Each value lists probabilities in the child's label order; every row must sum to 1.
• Every combination of parent labels needs a row (missing or extra rows are reported by --check).
• Each variable goes in exactly one of priors or kernels. No cycles. Up to 52 variables.

CLI

fxtensor-bayesnet [--config PATH] [options]

Output files:

• results.json – priors, marginals per scenario, Bayesian updates, checks
• results.md – scenario tables and a summary of the Bayesian updates
• model.mmd – network structure as mermaid (roots, intermediate and output variables colour-coded)

Figures (--plot)

Requires matplotlib (pip install "fxtensor-bayesnet[plot]"). If it is missing, --plot prints installation instructions and exits with code 3 (everything else works without matplotlib).

fxtensor-bayesnet --plot                          # results + figures (network / marginals / updates)
fxtensor-bayesnet --plot --plot-format png svg    # both PNG and SVG
fxtensor-bayesnet --no-write --plot --lang en --out-dir figs/
fxtensor-bayesnet --diff --plot                   # diff + diff.png

A font that can display Japanese (Noto Sans CJK JP, IPAexGothic, Hiragino Sans, Yu Gothic, Meiryo, …) is picked automatically so that Japanese labels render. If none is found, a warning is issued and the default font is used. Set the FXTENSOR_BAYESNET_FONT environment variable to choose a font. SVGs store text as paths, so they don't depend on the viewer's fonts.

Daily workflow

cd my-model/                         # folder containing config.json
# 1. update as_of, priors and (if needed) kernels in config.json
fxtensor-bayesnet --check            # validate
fxtensor-bayesnet --diff             # changes since the previous snapshot (dated before as_of)
fxtensor-bayesnet --snapshot --md    # run, update results.*, record history/<as_of>/
fxtensor-bayesnet --plot --no-write  # refresh figures

Examples

examples/ has two examples (probabilities are illustrative). Each comes as a Japanese config.json and a numerically identical English config.en.json. The figures below were generated from the English configs with python docs/make_images.py and are stored in docs/images/en/ (Japanese versions in docs/images/).

Weather (examples/weather/config.en.json)

• Scenarios: "A: Typhoon approaching", "B: Dry spell"
• Observations: infer the pressure pattern and humidity from rain=Heavy, traffic=Jammed, event=Cancelled

Structure (mermaid; rendered as a diagram on GitHub):

graph TD
  pressure["pressure: Pressure pattern<br/>High pressure/Stationary front/Low approaching"]
  humidity["humidity: Humidity<br/>Low/Medium/High"]
  cloud["cloud: Cloud cover<br/>Clear/Cloudy/Overcast"]
  rain["rain: Precipitation<br/>None/Light/Heavy"]
  event["event: Outdoor event<br/>As planned/Shortened/Cancelled"]
  traffic["traffic: Road traffic<br/>Smooth/Busy/Jammed"]
  pressure --> cloud
  humidity --> cloud
  cloud --> rain
  pressure --> rain
  rain --> event
  rain --> traffic
  classDef root fill:#cfe3f7,stroke:#3b78b5
  class pressure,humidity root
  classDef output fill:#fde2c4,stroke:#d9822b
  class cloud,rain,event,traffic output

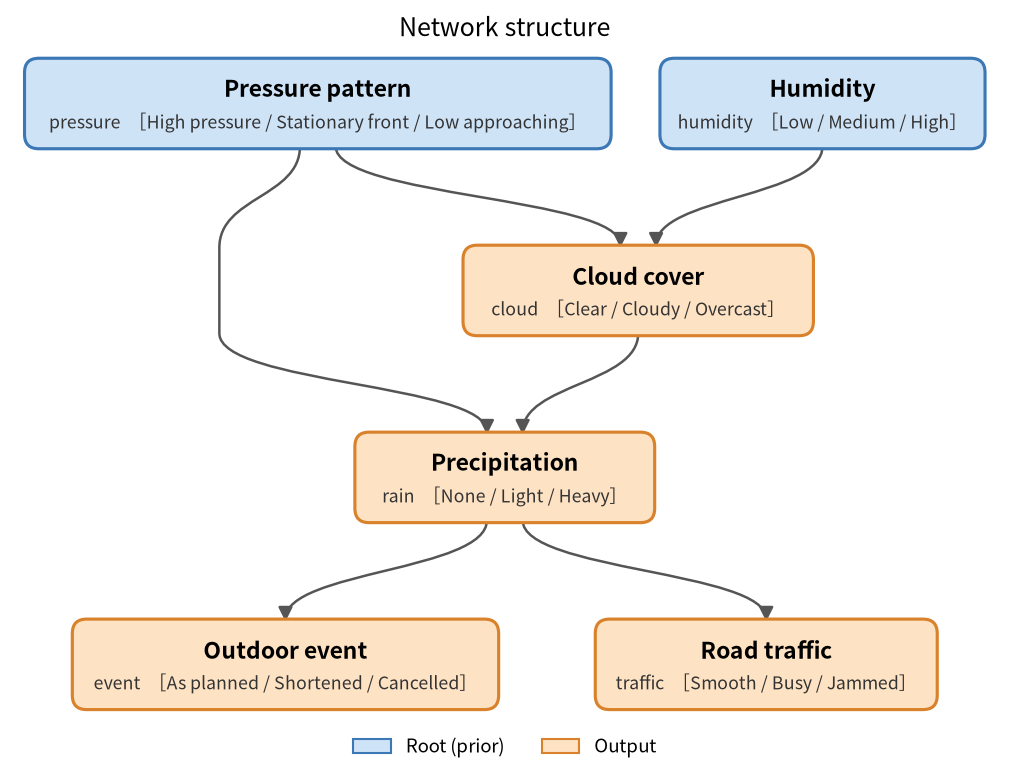

Network structure (network.png from --plot):

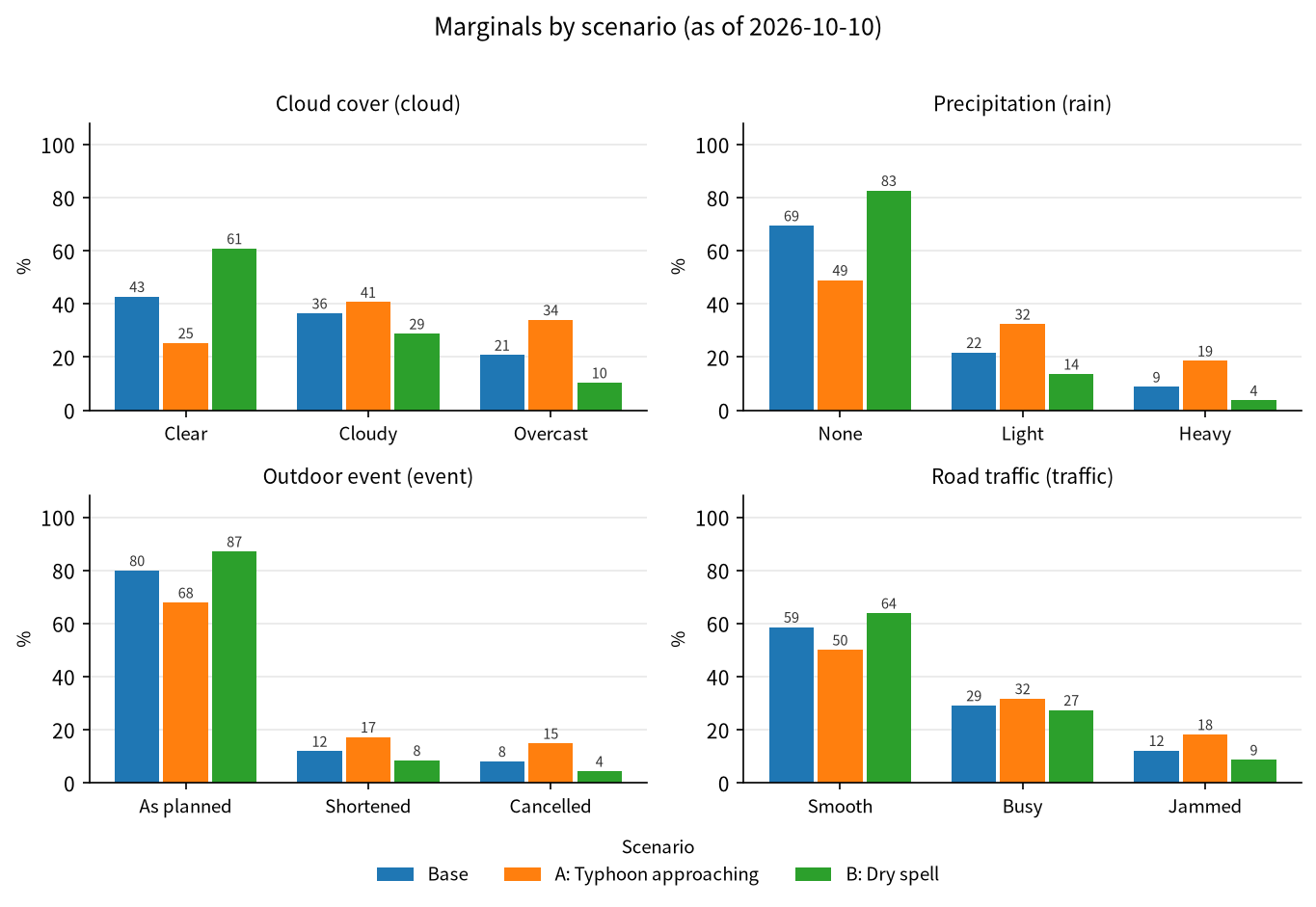

Marginals by scenario (marginals.png):

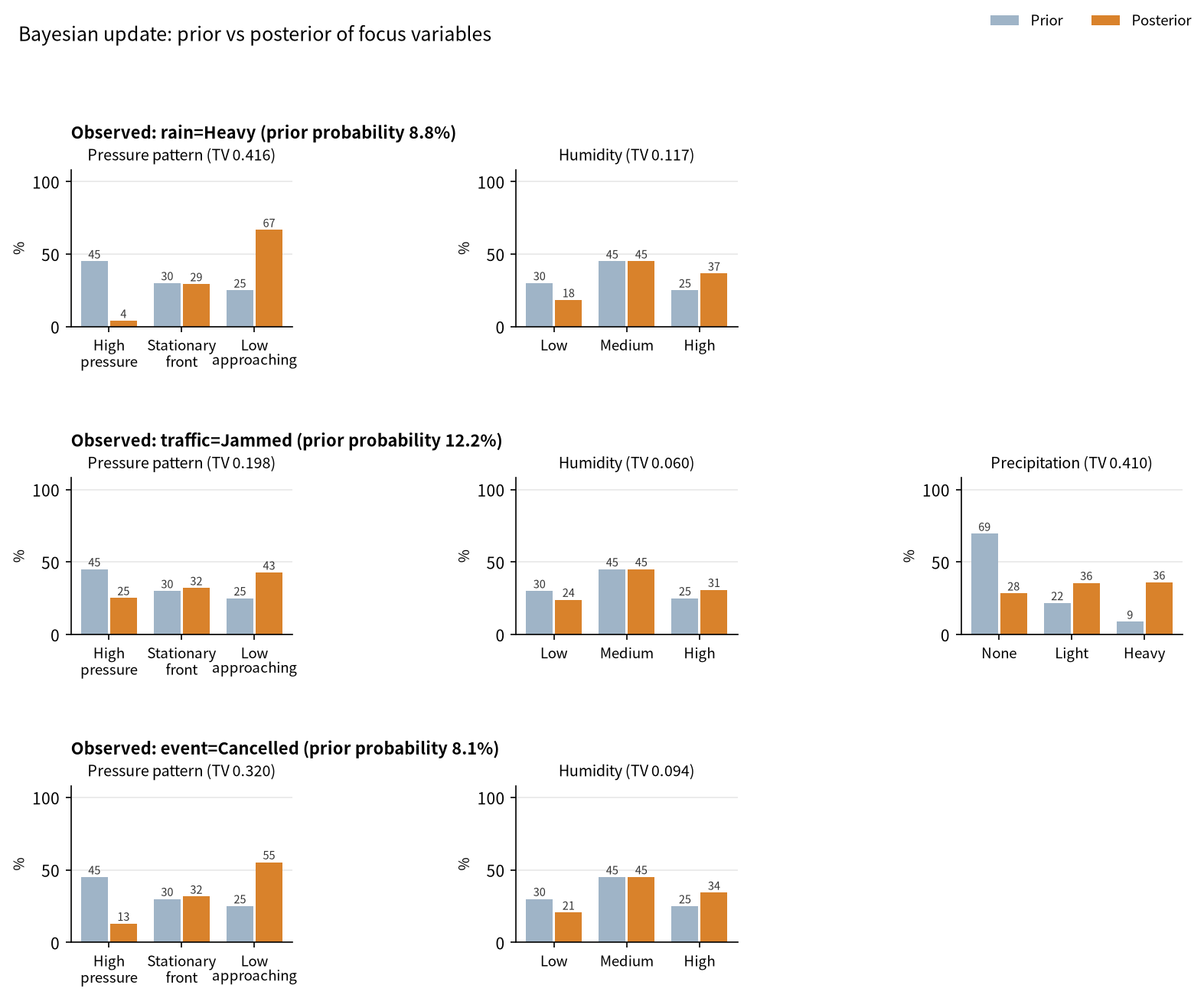

Bayesian update, prior vs posterior (updates.png). For example, observing heavy rain raises "Low approaching" for the pressure pattern from 25% to 67%:

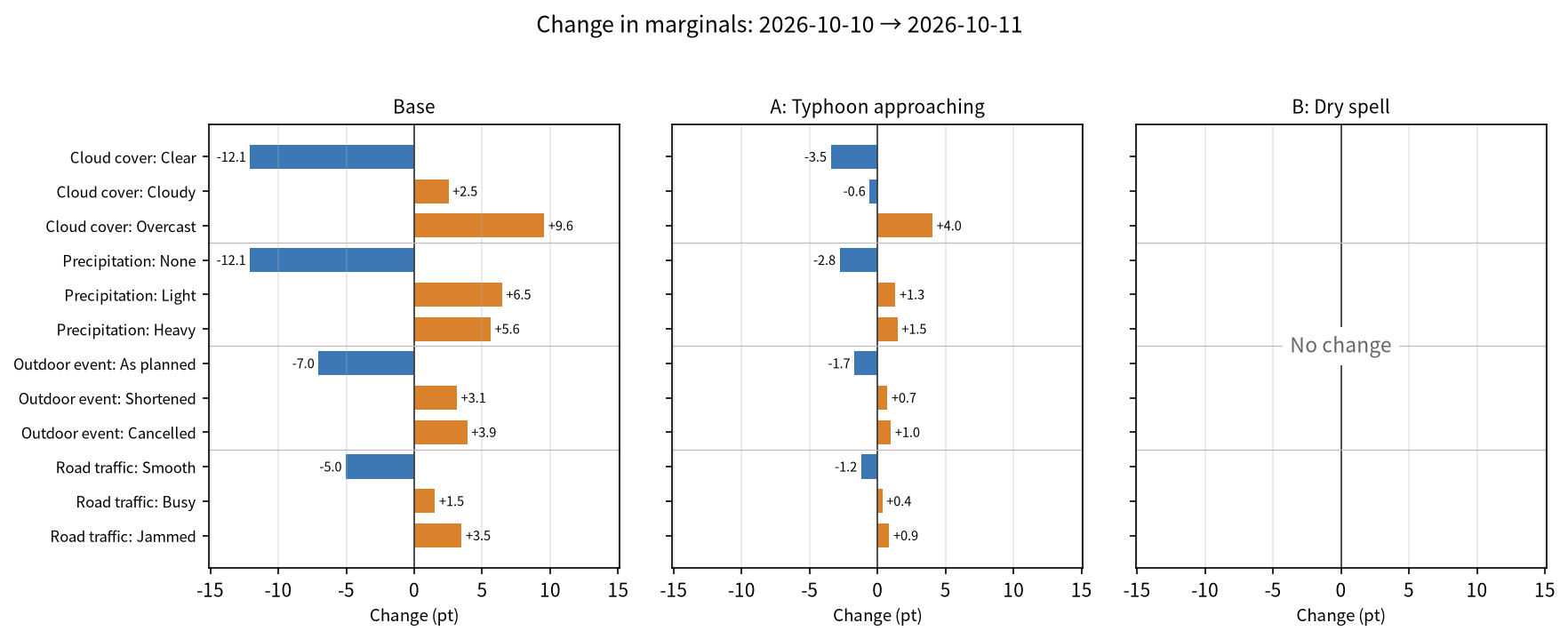

Day-over-day change (diff.png from --diff --plot): the next day, the pressure and humidity priors are revised. Scenarios A and B override the pressure prior (B also humidity), so they change less (B not at all):

Equipment maintenance (examples/maintenance/config.en.json)

• Scenarios: "A: Peak season (high load)", "B: Stronger maintenance"
• Observations: infer load, age and maintenance status from vibration=Abnormal, failure=Shutdown, temp=Elevated

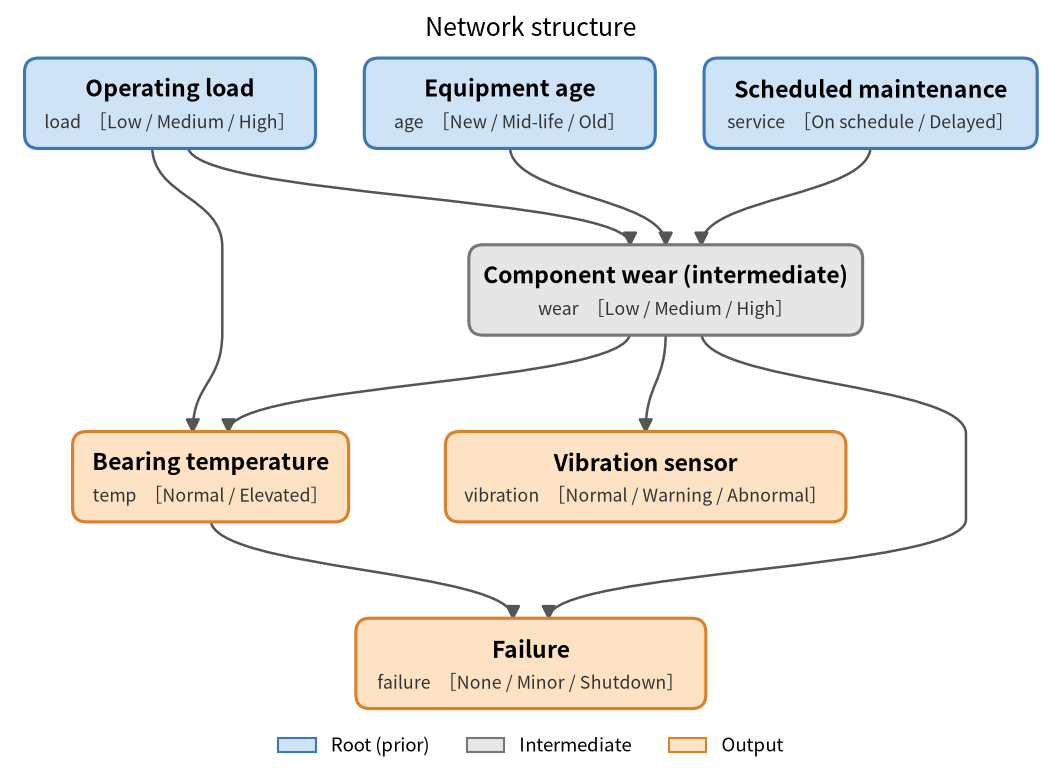

• wear (component wear) is not in outputs, so it is an intermediate variable and drawn in grey

graph TD
  load["load: Operating load<br/>Low/Medium/High"]
  age["age: Equipment age<br/>New/Mid-life/Old"]
  service["service: Scheduled maintenance<br/>On schedule/Delayed"]
  wear["wear: Component wear (intermediate)<br/>Low/Medium/High"]
  vibration["vibration: Vibration sensor<br/>Normal/Warning/Abnormal"]
  temp["temp: Bearing temperature<br/>Normal/Elevated"]
  failure["failure: Failure<br/>None/Minor/Shutdown"]
  load --> wear
  age --> wear
  service --> wear
  wear --> vibration
  wear --> temp
  load --> temp
  wear --> failure
  temp --> failure
  classDef root fill:#cfe3f7,stroke:#3b78b5
  class load,age,service root
  classDef middle fill:#e6e6e6,stroke:#777777
  class wear middle
  classDef output fill:#fde2c4,stroke:#d9822b
  class vibration,temp,failure output

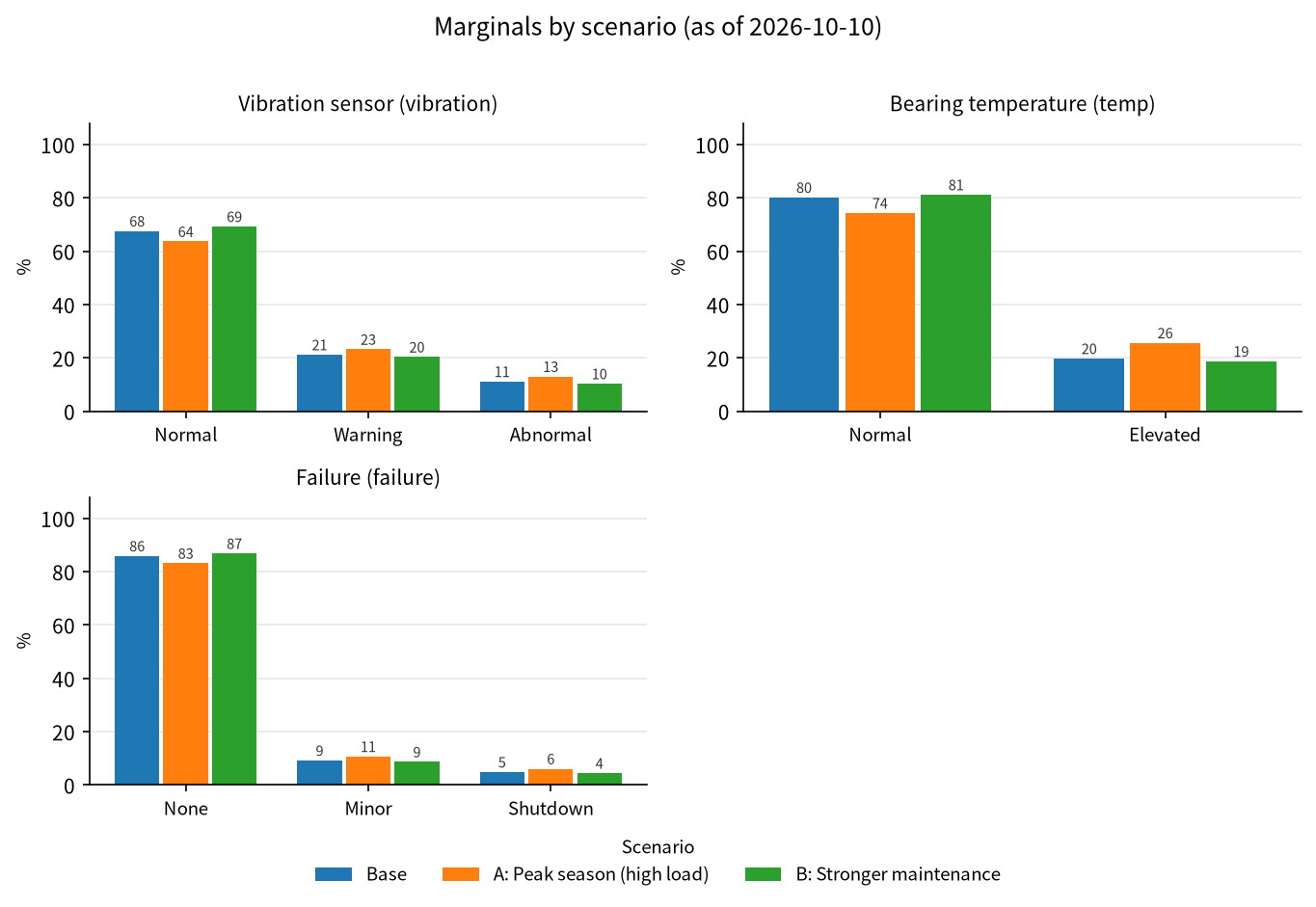

Sample output (maintenance, excerpt of --md --lang en):

## failure (Failure)
| Scenario | None | Minor | Shutdown |
|---|---|---|---|
| Base | 85.9% | 9.2% | 4.9% |
| A: Peak season (high load) | 83.2% | 10.7% | 6.1% |
| B: Stronger maintenance | 86.8% | 8.7% | 4.5% |

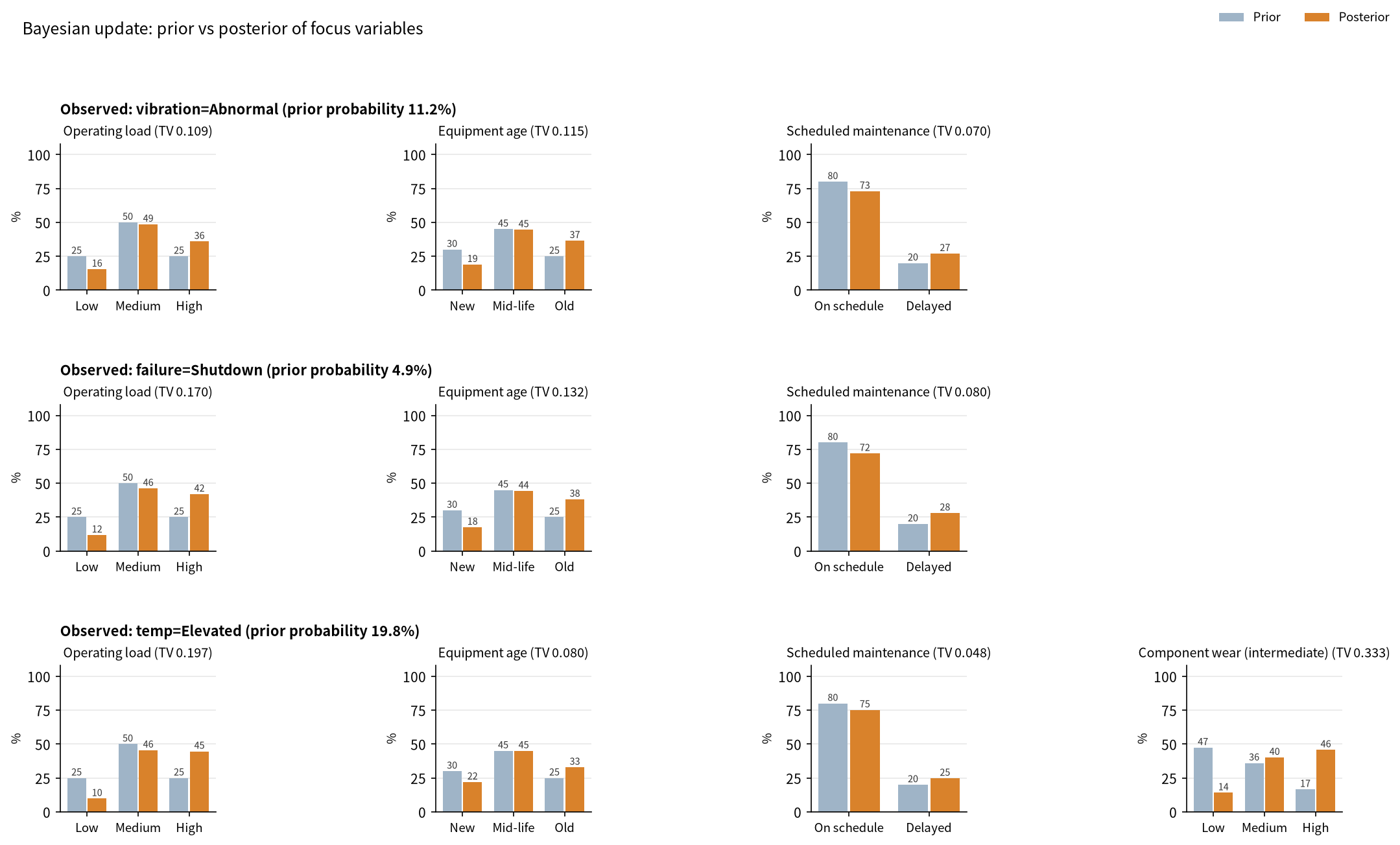

### Observed vibration=Abnormal (prior probability 11.2%)
- wear: Low 8.5% / Medium 32.2% / High 59.3%
- Ranking by movement (TV): age > load > service

Python API

from fxtensor_bayesnet import load_config, run

cfg = load_config("examples/weather/config.en.json")
res = run(cfg)
# result keys are fixed (Japanese): "シナリオ" = scenarios, "周辺" = marginals, "基本" = base
print(res["シナリオ"]["A: Typhoon approaching"]["周辺"]["rain"])

# figures (requires matplotlib)
from fxtensor_bayesnet.plot import plot_all, plot_network
plot_network(cfg, "network.svg", lang="en")
plot_all(res, cfg, "figs", formats=("png",), lang="en")

Layout

src/fxtensor_bayesnet/
  config.py     loading, validation, formatting and hashing of configs
  network.py    building states/kernels with FXTensor; direct einsum computation
  inference.py  marginals per scenario, Bayesian updates, root-cause inference, checks
  report.py     Markdown / mermaid output
  history.py    snapshots and diffs
  plot.py       figures (structure, scenarios, updates, changes; matplotlib optional)
  i18n.py       strings for Markdown and figures (Japanese / English)
  cli.py        command line
tests/          pytest
examples/       example configs (Japanese and English)
docs/images/    README figures (regenerate with docs/make_images.py)

Dependencies

• fxtensor-salmon (MIT License) – fxtensor-salmon>=1.2.2,<2 from PyPI; not vendored.
• numpy
• matplotlib (optional, [plot]) – only for figures

License

MIT License. See LICENSE.

See CHANGELOG.md for the release history.
