gcdrnet 0.1.0

Appearance enhancement for camera-captured document images (GCDRNet, IEEE TAI 2023)

GCDRNet

Inference code and a pip-installable library for our paper Appearance Enhancement for Camera-captured Document Images in the Wild, accepted for IEEE Transactions on Artificial Intelligence.

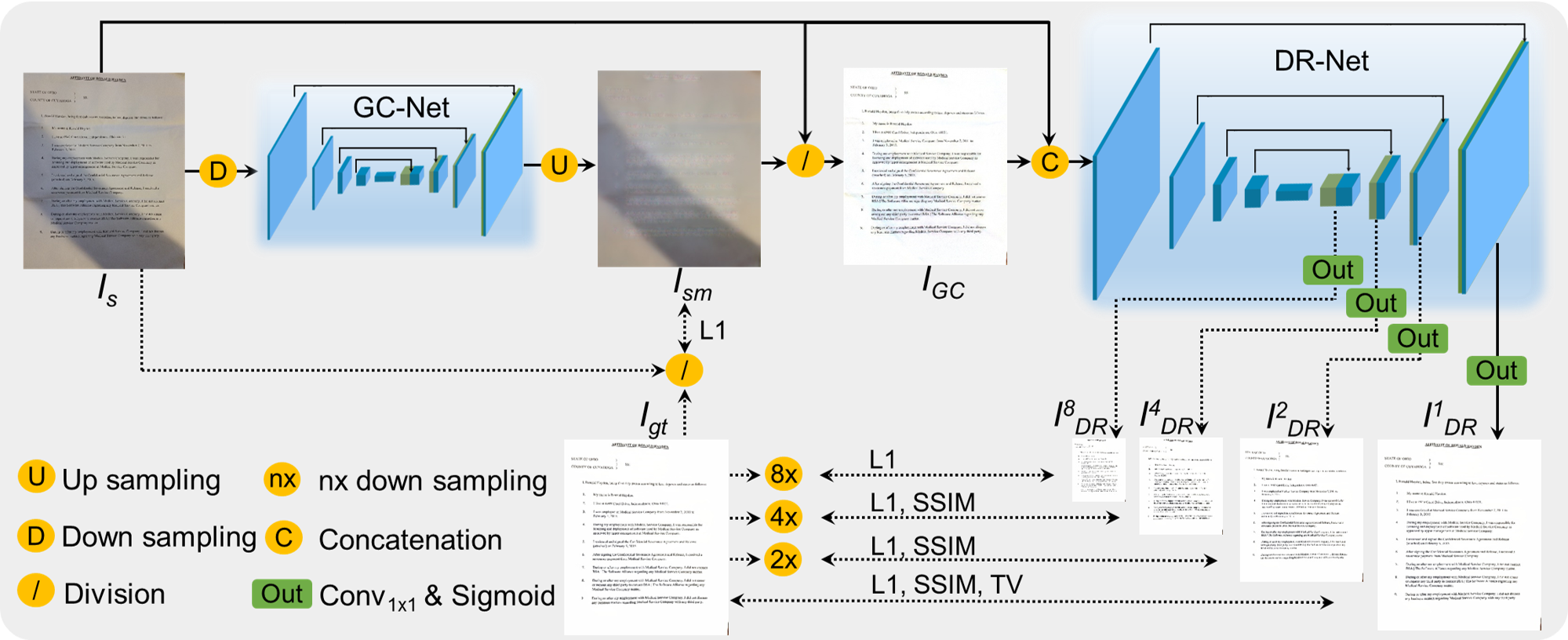

GCDRNet enhances the appearance of camera-captured document images by chaining two networks: GCNet predicts a shadow/illumination map and DRNet restores the shadow-corrected image.

Install

pip install gcdrnet

For GPU support, install a CUDA build of PyTorch from the PyTorch index first (the plain PyPI install gives you the CPU wheels on most platforms):

pip install torch torchvision --index-url https://download.pytorch.org/whl/cu128
pip install gcdrnet

From a clone (development install):

pip install -e ".[dev]"

Tested on Python 3.13 with PyTorch 2.11 + CUDA 12.8; requires Python ≥ 3.10 and PyTorch ≥ 2.6.

Model weights

The weights (~110 MB total) are not bundled in the package. They are resolved lazily the first time you load a model, in this order:

1. an explicit path you pass,
2. $GCDRNET_CHECKPOINTS_DIR or ./checkpoints/<name>/checkpoint.pkl (the repo layout),
3. the on-disk cache ($GCDRNET_CACHE or ~/.cache/gcdrnet),
4. a download from $GCDRNET_GCNET_URL / $GCDRNET_DRNET_URL (default: the GitHub release).

You can always download the weights manually from the paper's link and place them as:

checkpoints/gcnet/checkpoint.pkl
checkpoints/drnet/checkpoint.pkl

or point the library at your own host:

export GCDRNET_GCNET_URL=https://example.com/gcnet.pkl
export GCDRNET_DRNET_URL=https://example.com/drnet.pkl

Library usage

import cv2
from gcdrnet import GCDRNet

# Loads weights (explicit path, ./checkpoints/, cache, or download — in that order)
model = GCDRNet.from_pretrained(device="cuda")

# BGR ndarray in, BGR ndarray out (OpenCV convention)
enhanced = model.enhance(cv2.imread("doc.jpg"))
cv2.imwrite("doc_enhanced.png", enhanced)

# Convenience helpers
model.enhance_file("doc.jpg", "doc_enhanced.png")   # file in, file out
model.enhance_folder("distorted", "enhanced")        # batch a folder

Explicit checkpoint paths:

model = GCDRNet.from_checkpoints(
    gcnet="checkpoints/gcnet/checkpoint.pkl",
    drnet="checkpoints/drnet/checkpoint.pkl",
    device="cpu",
)

One-off call with a lazily-loaded, cached default model:

from gcdrnet import enhance_image
enhanced = enhance_image("doc.jpg")   # ndarray or path in, ndarray out

Inference runs at the image's native resolution, so GPU memory scales with image size (~0.6 GiB per megapixel). Images that do not fit are retried automatically on the CPU (disable with model.enhance(img, cpu_fallback=False)).

Command line

The package installs a gcdrnet console command (equivalent to python -m gcdrnet):

gcdrnet --input ./distorted --output ./enhanced
gcdrnet --input ./distorted --output ./enhanced --device cpu
gcdrnet --gcnet path/to/gcnet.pkl --drnet path/to/drnet.pkl

From a clone without installing, the historical entry point still works:

python infer.py --input ./distorted --output ./enhanced

Runs on the GPU when one is available and falls back to the CPU otherwise.

RealDAE

RealDAE (Real-world Document Image Appearance Enhancement) is a real-world dataset designed explicitly for camera-captured document images in the wild. It contains 600 pairs of degraded camera-captured document images and corresponding manually enhanced ground-truths (aligned at the pixel level). It can be downloaded here. Some examples are illustrated below.

Citation

If you are using our code and data, please cite our paper.

@article{zhang2023appearance,
title={Appearance Enhancement for Camera-captured Document Images in the Wild},
author={Zhang, Jiaxin and Liang, Lingyu and Ding, Kai and Guo, Fengjun and Jin, Lianwen},
journal={IEEE Transactions on Artificial Intelligence},
year={2023}}
