A simple Python package for creating or reading GDSII layout files.

Project Description

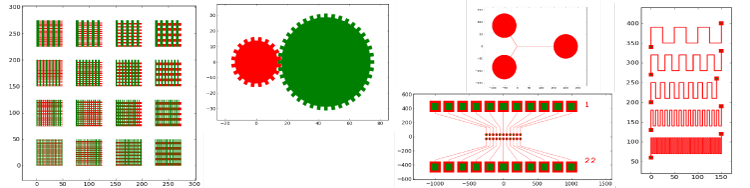

gdsCAD is a simple, but powerful, Python package for creating, reading, and manipulating GDSII layout files. It’s suitable for scripting and interactive use. It excels particularly in generating designs with multiple incrementally adjusted objects. gdsCAD uses matplotlib to visualize everything from individual geometry primitives to the entire layout.

Documentation

Complete documentation can be found at:
http://pythonhosted.org/gdsCAD/#

Download

The package can be downloaded for installation via easy_install at
https://pypi.python.org/pypi/gdsCAD

A Simple Example

Here is a simple example that shows the creation of some text with alignment features. It involves the creation of drawing geometry, Cell and a Layout . The result is saved as a GDSII file, and also displayed to the screen:

import os.path
from gdsCAD import *

# Create some things to draw:
amarks = templates.AlignmentMarks(('A', 'C'), (1,2))
text = shapes.Label('Hello\nworld!', 200, (0, 0))
box = shapes.Box((-500, -400), (1500, 400), 10, layer=2)

# Create a Cell to hold the objects
cell = core.Cell('EXAMPLE')
cell.add([text, box])
cell.add(amarks, origin=(-200, 0))
cell.add(amarks, origin=(1200, 0))

# Create two copies of the Cell
top = core.Cell('TOP')
cell_array = core.CellArray(cell, 1, 2, (0, 850))
top.add(cell_array)

# Add the copied cell to a Layout and save
layout = core.Layout('LIBRARY')
layout.add(top)
layout.save('output.gds')

layout.show()

Recent Changes

  • v0.4.5 (05.02.15)
    • Added to_path and to_boundary conversion methods
    • Added experimental DXFImport
  • v0.4.4 (12.12.14)
    • Added Ellipse boundary (cjermain)
    • Added missing area method to base classes
    • Fixed bug when objects are defined with integers then translated by float (cjermain)
    • Added missing flatten method
  • v0.4.3 (07.10.14)
    • (bugfix) Boundaries to again accept non-numpy point lists
    • Removed deprecated labels attribute from Cell
    • Reduced internal uses of Cell._references
  • v0.4.2 (15.09.14)
    • (bugfix) Boundaries are now closed as they should be (thanks Phil)
    • gdsImport loads all Boundary points (including final closing point) from file
  • v0.4.1 (05.06.14)
    • Allow Boundaries with unlimited number of points via multiple XY entries
  • v0.4.0 (07.05.14)
    • Several performance improvements: Layout saving, reference selection, and bounding boxes should all be faster
    • Layout save now only uniquifies cell names that are not already unique
  • v0.3.7 (14.02.14)
    • More colors for layer numbers greater than six (Matthias Blaicher)
  • v0.3.6 (12.12.13) bugfix
    • Fixed installation to include missing resource files
  • v0.3.5 (11.12.13 PM) bugfix
    • Introduced automatic version numbering
    • git_version module is now included in distribution (Thanks Matthias)
  • v0.3.2 (11.12.13)
    • CellArray spacing can now be non-orthogonal
    • Block will now take cell spacing information from the attribute cell.spacing
  • v0.3.1 (06.12.13)
