GeoSocialX 0.8.0

Map the geography of geotagged social/location data — hotspots, time trends, GeoJSON & maps, dependency-free.

GeoSocialX

GeoSocialX maps the geography of geotagged social & location data. Point it at any source — a CSV, a GeoJSON file, a list of records, geotagged Bluesky records (free/open), or a dump of geotagged X (Twitter) posts — and get coverage stats, hotspots, time trends, GeoJSON, and interactive maps. The analysis core is pure standard library, and reading/analyzing data you already have needs no API key.

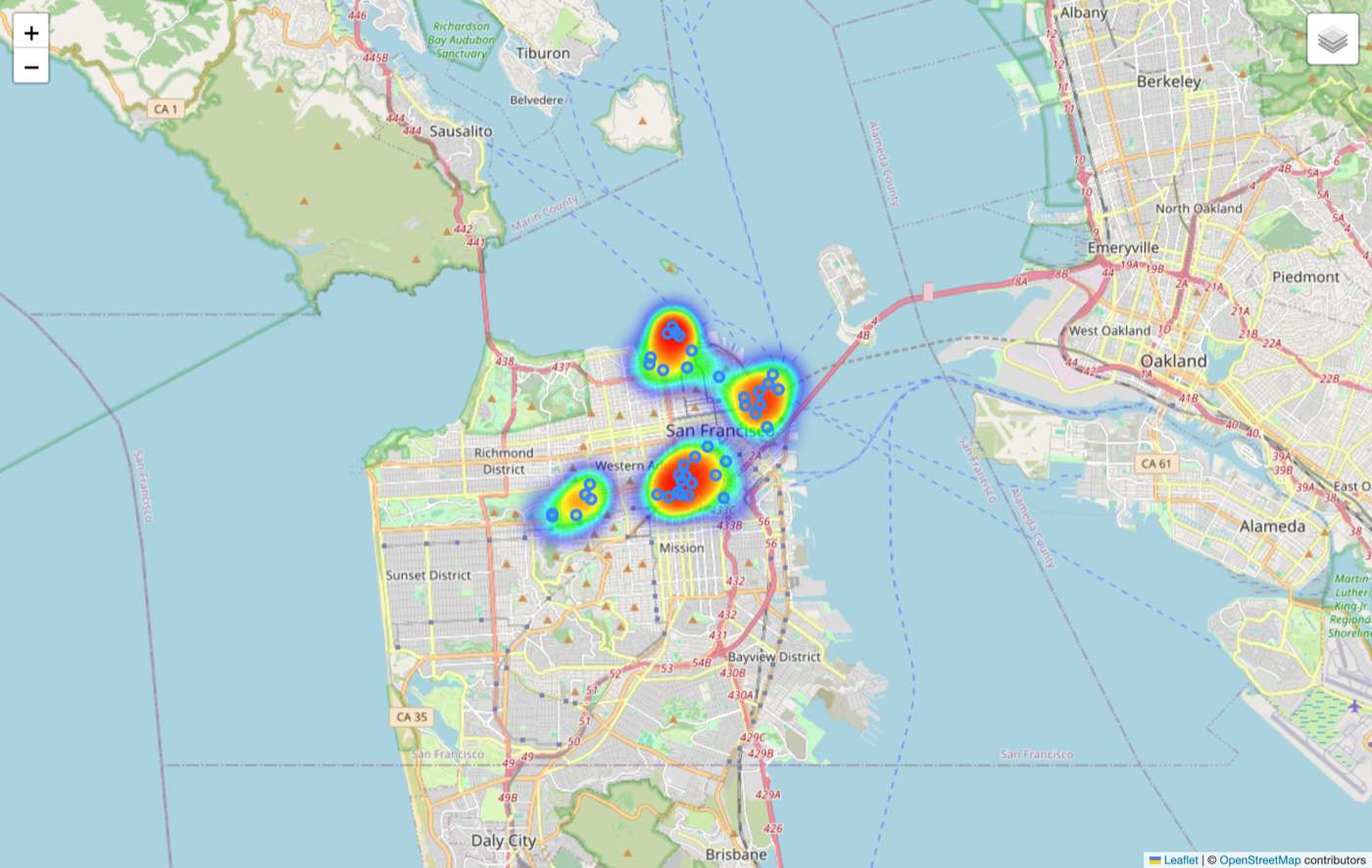

_{Example output: a density heatmap of geotagged posts across San Francisco (from the bundled sample data), rendered with MapVisualizer.to_html_map. See the Quickstart to reproduce it.}

Overview

GeoSocialX turns geotagged records into geospatial insight. The analysis, GeoJSON, and mapping layers all work on a common GeoRecord, which you can read from a CSV, a GeoJSON file, any iterable of dicts, or the bundled sample datasets — all with no API key. Fetching new geotagged records from Bluesky (free, via the AT Protocol) or the X API v2 (paid, via Tweepy) are optional sources among them.

Project status: Alpha (0.7.0). The read → analyze → visualize pipeline is dependency-free (interactive maps use the optional folium extra). Reading, analyzing, visualizing, and fetching from Bluesky are all free; only the X fetch path needs a paid API tier (Basic or higher).

Features

• Read from anywhere: load geotagged records from a CSV (read_csv), a GeoJSON FeatureCollection (read_geojson), any iterable of dicts (read_records), or the bundled sample datasets (load_sample) — no API needed. Malformed / out-of-range coordinates are skipped.
• Geospatial analysis: bounding box, centroid, great-circle (haversine) distances, radius filtering, a lightweight grid-based hotspot finder, and temporal binning — all pure standard library.
• Visualization: export points to GeoJSON (standard library) or render an interactive Leaflet map with markers and a density heatmap (optional folium extra).
• Bluesky / AT Protocol (optional, free): read_bluesky extracts the emerging community.lexicon.location.geo lexicon from any AT Protocol record (check-ins, events, geo markers, post embeds), and BlueskyFetcher fetches them via the free atproto SDK — no paid tier. Geotagged Bluesky data is still sparse (an emerging standard), but it's open and growing.
• X API v2 integration (optional): fetch recent posts within a lat/lon/radius via the point_radius operator; the geocode is validated locally so mistakes fail fast instead of wasting a paid API call. A coverage report shows how many posts carried exact coordinates vs. only a place reference, and place-only posts can be resolved to their bounding-box centroid (each point records its source, "exact" or "place").

Geo coverage caveat (X): point_radius only matches posts that carry geo data, capped at 25 mi / 40 km. Only a small fraction of posts are geotagged with exact coordinates, so results are far sparser than a naïve keyword search — resolving place_id references recovers a coarser but larger share.

Requirements

• Python 3.10 or higher — that's all you need to read, analyze, and visualize data you already have.
• Only to fetch new posts from X: an X Developer account on a paid tier (Basic or higher) and an X API bearer token — recent search is not available on the free tier.

Dependencies

Declared in pyproject.toml:

• tweepy >=4.10 — X API v2 client

Optional extras:

• example — python-dotenv, to load credentials from a .env file (pip install "geosocialx[example]").
• maps — folium, to render interactive Leaflet maps (pip install "geosocialx[maps]"). Not needed for GeoJSON export.
• bluesky — atproto, the AT Protocol SDK, to fetch geotagged Bluesky records (pip install "geosocialx[bluesky]"). Not needed to read AT Protocol records you already have.
• test — coverage, for running the suite with coverage measurement (pip install "geosocialx[test]").

Installation

From PyPI

GeoSocialX is published on PyPI under the distribution name geosocialx (the import name is geosocialx too):

pip install geosocialx

With optional extras (comma-separated):

pip install "geosocialx[example,maps,test]"

From source

git clone https://github.com/JayeshSuryavanshi/GeoSocialX.git
cd GeoSocialX
pip install .           # or:  pip install ".[example,maps,test]"

Quickstart

— run the whole pipeline in your browser, no install and no API key.

Everything except fetching runs on data you already have — no API key. Start with the bundled sample:

from geosocialx import load_sample, GeospatialAnalyzer, MapVisualizer

points = load_sample("sf")  # bundled demo data — no download, no key
a = GeospatialAnalyzer(points)
print(a.summary())  # count, bbox, centroid, span_km, time range
print(a.densest_cells(top=3))  # busiest ~1 km grid cells (hotspots)
print(a.time_bins("day"))  # activity over time, e.g. {'2024-03-01': 13}
MapVisualizer(points).save_geojson("out.geojson")  # open in any GIS or geojson.io

Point it at your own data — a CSV or GeoJSON, no key required:

from geosocialx import read_csv, read_geojson

points = read_csv("places.csv", lon="lng", lat="lat")  # map to your column names
points = read_geojson("points.geojson")  # a GeoJSON FeatureCollection
# ...then feed `points` to GeospatialAnalyzer / MapVisualizer exactly as above.

Only to fetch new geotagged posts from X (needs a paid-tier bearer token — see Configuration):

from geosocialx import XDataFetcher, GeospatialExtractor

fetcher = XDataFetcher(bearer_token="YOUR_BEARER_TOKEN")
tweets = fetcher.fetch_tweets("37.7749,-122.4194,10mi", count=100)  # 10 mi around SF
points = GeospatialExtractor().extract_points(tweets)

…or straight from the shell:

geosocialx --geocode "37.7749,-122.4194,10mi" --count 100 --output tweets.json

Configuration

GeoSocialX needs an X API bearer token, read from the X_BEARER_TOKEN environment variable (loaded from a .env file when the example extra is installed):

X_BEARER_TOKEN=your_bearer_token

Note: .env is git-ignored. Never commit real credentials. The legacy TWITTER_BEARER_TOKEN variable is still read as a fallback.

XDataFetcher can also authenticate in user context with the four OAuth 1.0a credentials (api_key, api_key_secret, access_token, access_token_secret) passed as keyword arguments, but app-only bearer-token auth is the simplest path for recent search. (TwitterDataFetcher remains as a deprecated alias of XDataFetcher.)

Usage

Command line

Installing the package registers a geosocialx console command:

geosocialx --geocode "37.7749,-122.4194,10mi" --count 100 --output tweets.json

This writes the fetched tweets to tweets.json (one JSON object per line) and, when any tweets reference a place, the collected place bounding boxes to tweets.json.places.json. The same entry point is available as python main.py (run either with --help for all options).

Programmatic

from geosocialx import XDataFetcher

fetcher = XDataFetcher(bearer_token="your_bearer_token")

# Fetch up to 100 tweets within 10 miles of San Francisco.
tweets = fetcher.fetch_tweets("37.7749,-122.4194,10mi", count=100)
if tweets is not None:  # None means the API/network call failed
    fetcher.save_tweets_to_file(tweets, "tweets.json")
    fetcher.save_places_to_file("tweets.json.places.json")  # place bboxes, if any

fetch_tweets returns None (and logs the error) if the call fails, so guard with if tweets is not None. save_tweets_to_file raises ValueError if handed None, so it never truncates an existing file on a failed fetch.

Analyze and visualize saved tweets

Once you have a tweets.json (from the step above, or any newline-delimited v2 tweet dump), the rest of the pipeline is offline and needs no API access:

from geosocialx import GeospatialExtractor, GeospatialAnalyzer, MapVisualizer

extractor = GeospatialExtractor()
tweets = extractor.load_tweets("tweets.json")
print(extractor.coverage(tweets))  # e.g. {'total': 100, 'with_point': 12, ...}

# Pass a {place_id: bbox} map (from save_places_to_file) to also resolve
# place-only tweets to their bounding-box centroid; omit it for exact points only.
places = extractor.load_places("tweets.json.places.json")
points = extractor.extract_points(tweets, places=places)

analyzer = GeospatialAnalyzer(points)
print(analyzer.summary())  # count, bounding_box, centroid, span_km
print(analyzer.densest_cells(top=3))  # busiest grid cells

viz = MapVisualizer(points)
viz.save_geojson("tweets.geojson")  # standard library, always available
viz.to_html_map("tweets_map.html")  # interactive map — needs the `maps` extra

A complete, offline version of this that needs no API access or paid tier is in examples/analyze.py; it runs against a committed sample dump:

python examples/analyze.py

Key Modules & Functions

Everything centers on GeoRecord (id, longitude, latitude, text, timestamp, author, source) — the common type the analysis and visualization layers consume, whatever the source. (GeoPoint remains as a backward-compatible alias, and the old tweet_id / created_at / author_id names still work as read-only aliases.)

geosocialx.sources — read from anything

• read_csv(path, *, lon="longitude", lat="latitude", id="id", …) — read a CSV with coordinate columns into GeoRecords; override any column name that differs.
• read_geojson(path_or_dict) — read a GeoJSON FeatureCollection of points (from a file or an already-parsed mapping).
• read_records(rows, *, lon=…, lat=…, …) — map any iterable of dict-like rows.
• load_sample(name="sf") / sample_names() — bundled synthetic datasets ("sf", "nyc") for a keyless one-line demo.

All readers skip malformed or out-of-range coordinates rather than poisoning the results.

geosocialx.bluesky — the open, free source

• read_bluesky(records) — turn AT Protocol records (posts, check-ins, markers, …) into GeoRecords by extracting a community.lexicon.location.geo object from anywhere inside each record.
• BlueskyFetcher(client=None, *, handle=None, app_password=None) — fetch records via the atproto SDK (needs the bluesky extra). search_posts(query, limit) needs a free Bluesky login; list_records(repo, collection, limit) (reading a known repo's records) is public. Both return dicts ready for read_bluesky.

from geosocialx import BlueskyFetcher, read_bluesky, GeospatialAnalyzer

# A free Bluesky account (handle + app password) is needed for post search:
fetcher = BlueskyFetcher(handle="you.bsky.social", app_password="xxxx-xxxx-xxxx-xxxx")
records = fetcher.search_posts("coffee", limit=100)
points = read_bluesky(records)  # only the geotagged ones
print(GeospatialAnalyzer(points).densest_cells(top=3))

Note: location on the AT Protocol is an emerging community standard, so geotagged records are still uncommon — but the source is open, free (a Bluesky account costs nothing — no paid tier like X), and growing.

geosocialx.data_fetcher

XDataFetcher(bearer_token=None, *, api_key=None, api_key_secret=None, access_token=None, access_token_secret=None, wait_on_rate_limit=True)

Builds a Tweepy v2 Client. Pass a bearer_token for app-only auth, or all four OAuth 1.0a credentials as keyword arguments for user-context auth. Raises ValueError if neither is provided. By default it waits out rate limits (429s); pass wait_on_rate_limit=False to fail fast instead.

• fetch_tweets(geocode, count=100, extra_query="-is:retweet", tweet_fields=(...), start_time=None, end_time=None) — Returns a list of tweet dicts within the given area, or None (logging the error) if the API call or network transport fails. geocode is "latitude,longitude,radius" (e.g. "37.7749,-122.4194,10mi", radius ≤ 25mi/40km), validated locally and translated to the v2 point_radius:[longitude latitude radius] operator (note: v2 puts longitude first). start_time/end_time (datetime) optionally narrow the search inside the ~7-day recent-search window. The place bounding boxes referenced by the results are collected into the places attribute.
• save_tweets_to_file(tweets, file_name) — Writes each tweet dict as newline-delimited JSON. Raises ValueError on None rather than truncating the destination.
• save_places_to_file(file_name) — Writes the collected {place_id: bbox} map as JSON.

geosocialx.geospatial_extractor

GeospatialExtractor turns raw v2 tweet dicts into geographic points.

• extract_points(tweets, places=None) — Returns a list of GeoRecord(id, longitude, latitude, text, timestamp, author, source) for every tweet with a usable location (the old .tweet_id / .created_at / .author_id names remain readable as aliases). Tweets with exact coordinates yield source="exact"; if a places map is given, place-only tweets are additionally resolved to their bounding-box centroid as source="place". Malformed or out-of-range coordinates are skipped.
• coverage(tweets) — Returns {total, with_point, place_only, no_geo} so you can see how sparse the geo data is (with_point counts exactly what extract_points keeps as exact points).
• load_tweets(path) / load_places(path) — Load the newline-delimited tweets / {place_id: bbox} map written by the fetcher.

geosocialx.geospatial_analyzer

GeospatialAnalyzer(points) computes spatial statistics with no third-party dependencies.

• count(), bounding_box() → (min_lon, min_lat, max_lon, max_lat), centroid() → (lon, lat).
• haversine_km(lon1, lat1, lon2, lat2) — great-circle distance in km (static).
• points_within(lon, lat, radius_km) — points inside a radius.
• densest_cells(cell_size_deg=0.01, top=5) — busiest grid cells. Cells are equal in degrees, not equal in area (~1.1 km tall but ~1.1·cos(lat) km wide at 0.01°), so it is a within-city hotspot heuristic, not a cross-latitude density estimate.
• time_bins(freq="day"|"hour") — bucket points by their created_at timestamp as {bucket: count} (ordered by bucket), skipping any point without a parseable timestamp.
• summary() — count, bounding_box, centroid, bbox diagonal span_km, and earliest/latest (UTC ISO-8601) when the points carry timestamps.

geosocialx.data_visualization

MapVisualizer(points) renders points to disk.

• to_geojson() / save_geojson(path) — a GeoJSON FeatureCollection (standard library only; each feature carries the point's source).
• to_html_map(path, zoom_start=12, heatmap=True) — an interactive Leaflet map with markers and an optional heatmap layer. Requires the maps extra (folium); raises ImportError with an install hint if it is missing.

Running the tests

The test suite is network-free (Tweepy is mocked):

python -m unittest discover -s tests

With coverage (install the test extra first) and the folium-backed map tests exercised (install the maps extra):

pip install ".[maps,test]"
coverage run -m unittest discover -s tests
coverage report

Project Structure

GeoSocialX/
├── geosocialx/
│   ├── __init__.py              # exports the public API + __version__
│   ├── geo_record.py            # GeoRecord (+ GeoPoint alias), valid_lonlat
│   ├── sources.py               # read_csv / read_geojson / read_records, load_sample
│   ├── data/                    # bundled sample datasets (sf.geojson, nyc.geojson)
│   ├── data_fetcher.py          # XDataFetcher (X API v2 — optional source)
│   ├── geospatial_extractor.py  # GeospatialExtractor (X tweet dicts -> GeoRecord)
│   ├── geospatial_analyzer.py   # GeospatialAnalyzer (pure stdlib)
│   ├── data_visualization.py    # MapVisualizer (GeoJSON + optional folium)
│   ├── cli.py                   # `geosocialx` console entry point
│   └── py.typed                 # PEP 561 marker (ships the type hints)
├── examples/                    # runnable demos + sample data
├── tests/                       # network-free unit tests
├── .github/workflows/ci.yml     # test matrix (3.10–3.13) + lint
├── main.py                      # thin shim over geosocialx.cli
├── pyproject.toml
└── README.md

Citation

If you use GeoSocialX in your work, please cite it — see CITATION.cff (GitHub renders a “Cite this repository” button), or:

@software{geosocialx,
  author  = {Suryavanshi, Jayesh Kishor},
  title   = {{GeoSocialX}: source-agnostic, coverage-honest geospatial analysis of geotagged social data},
  year    = {2026},
  url     = {https://github.com/JayeshSuryavanshi/GeoSocialX},
  version = {0.8.0}
}

A JOSS-style paper draft lives in paper/. A Zenodo DOI will be added here once minted.

License

Released under the MIT License (see the LICENSE file).

Author

Jayesh Kishor Suryavanshi
