grafix 0.0.6

Line-based geometry toolkit with chained effects and real-time preview.

Grafix

Grafix is a Python-based creative coding framework for line-based geometry:

• Generate primitives (G)
• Chain effects (E)
• Real-time interactive rendering (run)

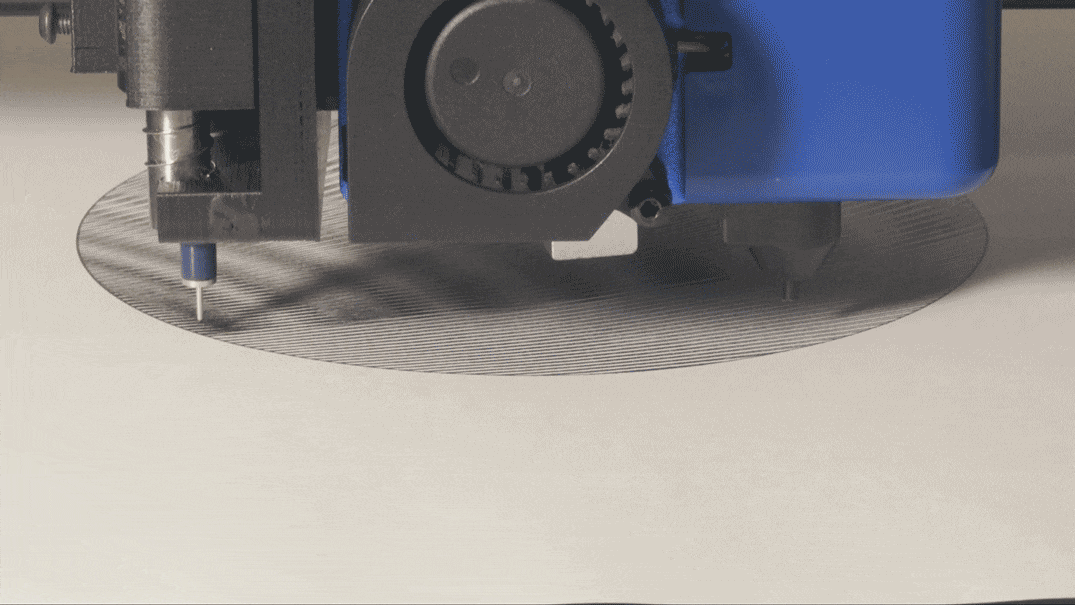

• Export plotter-ready G-code
• Export visuals (SVG / PNG / MP4)

Installation

pip install grafix

Requirements

• Python >= 3.11
• macOS-first (tested on macOS / Apple Silicon).
• Optional external tools:
  • resvg for PNG export (P key / headless PNG export)
  • ffmpeg for MP4 recording (V key)

macOS (Homebrew):

brew install resvg ffmpeg

Quick start

from grafix import E, G, run

CANVAS_SIZE = (148, 210)  # A5 [mm]


def draw(t: float):
    # Coordinates are in canvas units: (0,0)=top-left, +x=right, +y=down.
    # Keyword arguments are discovered at runtime and show up in the Parameter GUI.
    geometry = G.polyhedron()
    effect = E.fill().subdivide().displace().rotate(rotation=(t * 6, t * 5, t * 4))
    return effect(geometry)


if __name__ == "__main__":
    run(draw, canvas_size=CANVAS_SIZE, render_scale=5.0)

Core API

• G: primitive Geometry factories (G.polygon(...), G.grid(...), ...)
• E: Effect chain builders (E.fill(...).rotate(...))
• L: wrap Geometry into Layers (color / thickness) for multi-pen / multi-pass workflows
• P / @preset: reusable components
• cc: MIDI CC(cc[1] -> 0..1) to control parameters with physical controllers
• run(draw): interactive rendering + Parameter GUI

Export & shortcuts

When the draw window is focused:

• S: save SVG
• P: save PNG (requires resvg; also saves the underlying SVG)
• V: start/stop MP4 recording (requires ffmpeg)
• G: save G-code
• Shift+G: save G-code per layer (when your sketch returns multiple Layers)

Outputs are written under paths.output_dir (default: data/output), under per-kind subdirectories (svg/, png/, gcode/, ...).

Examples

Extending

You can register your own primitives and effects via decorators:

import numpy as np

from grafix import effect, primitive

prim_meta = {"r": {"kind": "float", "ui_min": 1.0, "ui_max": 100.0}}
eff_meta = {"amount": {"kind": "float", "ui_min": 0.0, "ui_max": 2.0}}

@primitive(meta=prim_meta)
def user_prim(*, r=10.0) -> tuple[np.ndarray, np.ndarray]:
    coords = ...  # shape (N, 3)
    offsets = ...  # shape (M+1,)
    return coords, offsets


@effect(meta=eff_meta)
def user_eff(g: tuple[np.ndarray, np.ndarray], *, amount=1.0) -> tuple[np.ndarray, np.ndarray]:
    coords, offsets = g
    coords_out = ...
    return coords_out, offsets

Notes:

• Built-in primitives/effects must provide meta=... (enforced).
• User-defined primitives/effects use (coords, offsets) tuples (coords must be shape (N,3)).
• For user-defined ops, meta is optional. If omitted, parameters are not shown in the Parameter GUI.
• User-defined modules need to be imported once to register the ops.

Presets (reusable components)

Use @preset to register a component, and call it via P.<name>(...):

from grafix import P, preset

meta = {
    "n_rows": {"kind": "int", "ui_min": 1, "ui_max": 20},
    "n_cols": {"kind": "int", "ui_min": 1, "ui_max": 20},
}

@preset(meta=meta)
def grid_system_frame(
    *,
    n_rows: int = 5,
    n_cols: int = 8,
    name=None,
    key=None,
):
    ...


P.grid_system_frame()

For IDE completion of P.<name>(...), regenerate stubs after adding/changing presets:

python -m grafix stub

Configuration (config.yaml)

A config.yaml lets you locate external fonts and choose where Grafix writes runtime outputs (.svg, .png, .mp4, .gcode).

Grafix starts from the packaged defaults (grafix/resource/default_config.yaml) and then overlays user config(s).

Load order (later wins):

1. packaged defaults
2. discovered config (0 or 1 file; first found wins)
3. explicit config path (if provided)

Config search (first found wins):

• ./.grafix/config.yaml (project-local)
• ~/.config/grafix/config.yaml (per-user)

You can also pass an explicit config path:

• run(..., config_path="path/to/config.yaml")
• python -m grafix export --config path/to/config.yaml

Paths support ~ and environment variables like $HOME.

To create a project-local config (starting from the packaged defaults):

mkdir -p .grafix
python -c "from importlib.resources import files; print(files('grafix').joinpath('resource','default_config.yaml').read_text())" > .grafix/config.yaml
$EDITOR .grafix/config.yaml

Overlay is a top-level shallow update (no deep merge). If you override export:, keep both export.png and export.gcode blocks from the packaged defaults.

To autoload user presets from a directory:

paths:
  preset_module_dirs:
    - "sketch/presets"

Prompt-to-Physical art (WIP)

I'm experimenting with a fully autonomous LLM loop that creates Grafix sketches end-to-end from a single prompt.

It iterates through:

• ideate
• implement
• render
• critique
• improve

No human intervention, just continuous iteration and unexpected visual evolution. The image below was generated by the LLM in this closed loop.

Headless export (batch rendering)

The loop uses python -m grafix export to render draw(t) without opening any window:

python -m grafix export --callable sketch.main:draw --t 0.0 --canvas 300 300
python -m grafix export --callable sketch.main:draw --t 0.0 1.0 2.0 --canvas 300 300 --out-dir data/output

With an explicit config file:

python -m grafix export --config path/to/config.yaml --callable sketch.main:draw --t 0.0 --canvas 300 300

If you want to use the API directly, Export lives in grafix.api:

from grafix.api import Export

Troubleshooting

• resvg が見つかりません: install resvg and ensure it is on PATH (macOS: brew install resvg)
• ffmpeg が見つかりません: install ffmpeg (macOS: brew install ffmpeg)

Development

# run without installation
PYTHONPATH=src python sketch/main.py

# tests / lint / typecheck
PYTHONPATH=src pytest -q
ruff check .
mypy src/grafix

See: architecture.md and docs/developer_guide.md.
