graph-universe 0.1.2

A library for generating synthetic graph families for inductive generalization experiments of graph learning models.

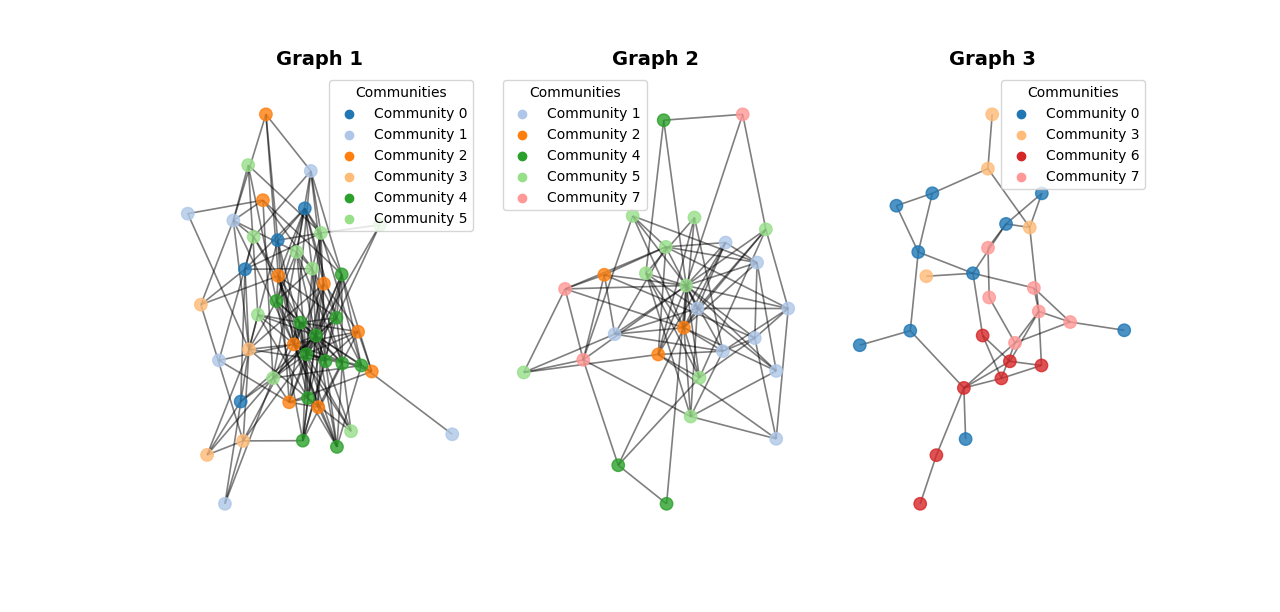

GraphUniverse: Enabling Systematic Evaluation of Inductive Generalization

Generate families of graphs with finely controllable properties for systematic evaluation of inductive graph learning models.

Quick Start | Interactive UI | Validation | Paper Experiments

Key Features

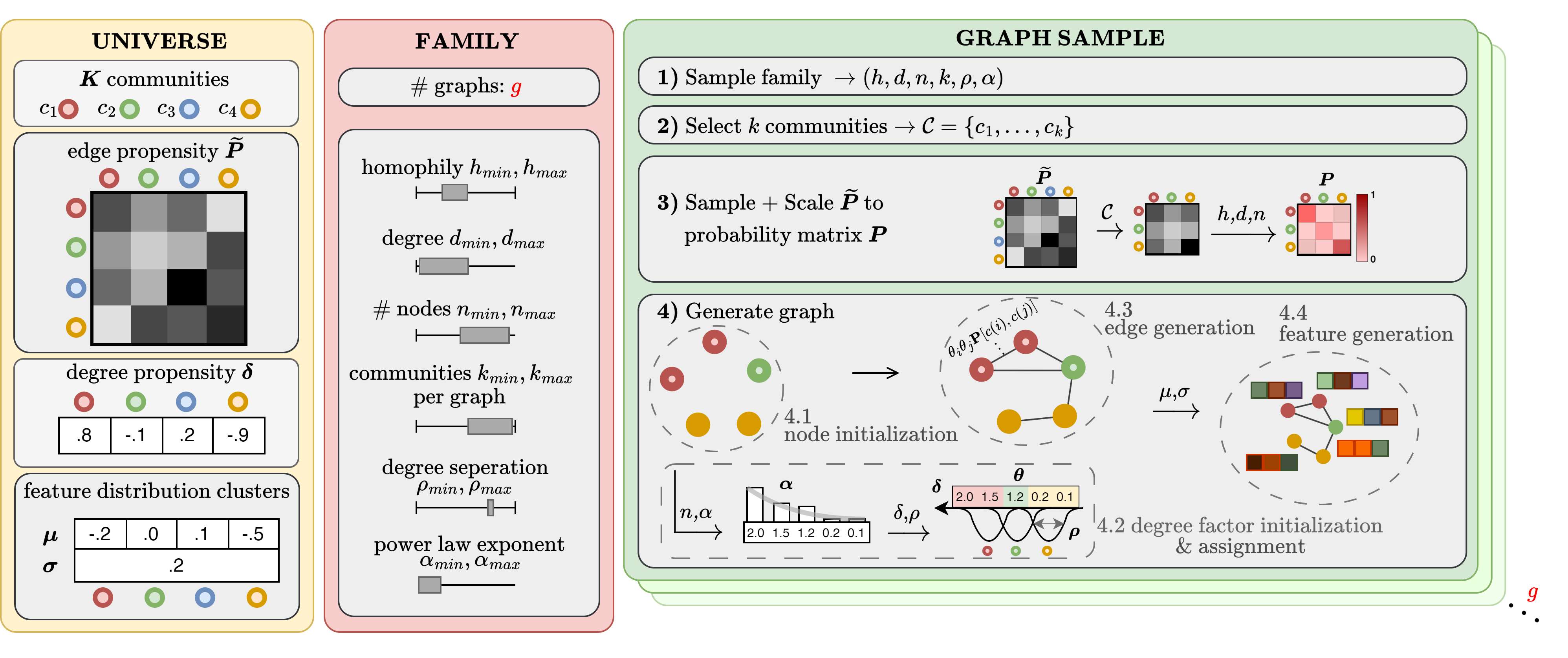

Synthetic graph learning benchmarks are limited to single-graph, transductive settings. GraphUniverse enables the first systematic evaluation of inductive generalization by generating entire families of graphs with:

• Consistent Semantics: Communities maintain stable identities across graphs
• Fine-grained Control: Tune homophily, degree distributions, community structure
• Scalable Generation: Linear scaling, thousands of graphs per minute
• Validated Framework: Comprehensive parameter sensitivity analysis
• Interactive Tool: Web-based exploration and visualization and Downloadable Pyg-dataset object ready to train!

---

Installation

Install from PyPI:

pip install graph-universe

For the interactive UI (streamlit) and visualization tools:

pip install graph-universe[viz]

Optional extras:

• [viz] - Streamlit UI + seaborn visualization tools
• [dev] - Development dependencies (testing, linting)
• [all] - Everything (includes documentation tools)

Install from source:

git clone https://github.com/LouisVanLangendonck/GraphUniverse.git
cd GraphUniverse
pip install -e ".[dev]"

---

Interactive UI

After installing with [viz], launch the interactive dashboard:

graph-universe-ui

Hosted demo: Try it online at graphuniverse.streamlit.app

Launch from Python:

from graph_universe import launch_ui
launch_ui()  # Opens browser, press Ctrl+C to stop

---

Quick Start

Option 1: Python API with Individual Classes

from graph_universe import GraphUniverse, GraphFamilyGenerator

# Create universe with 8 communities and 10-dimensional features
universe = GraphUniverse(K=8, edge_propensity_variance=0.3, feature_dim=10)

# Generate family with full parameter control
family = GraphFamilyGenerator(
    universe=universe,
    n_nodes_range=(35, 50),
    n_communities_range=(2, 6),
    homophily_range=(0.2, 0.8),
    avg_degree_range=(2.0, 10.0),
    power_law_exponent_range=(2.0, 5.0),
    degree_separation_range=(0.1, 0.7),
    seed=42
)

# Generate 30 graphs
family.generate_family(n_graphs=30, show_progress=True)

print(f"Generated {len(family.graphs)} graphs!")

# Convert to PyTorch Geometric format for training
pyg_graphs = family.to_pyg_graphs(task="community_detection")

Option 2: Config-Driven Workflow

Create config.yaml:

universe_parameters:
  K: 10
  edge_propensity_variance: 0.5
  feature_dim: 16
  center_variance: 1.0
  cluster_variance: 0.3
  seed: 42

family_parameters:
  n_graphs: 100
  n_nodes_range: [25, 200]
  n_communities_range: [3, 7]
  homophily_range: [0.1, 0.9]
  avg_degree_range: [2.0, 8.0]
  power_law_exponent_range: [2.0, 3.0]
  degree_separation_range: [0.4, 0.8]
  seed: 42

task: "community_detection"

Then load and generate:

import yaml
from graph_universe import GraphUniverseDataset

with open("config.yaml") as f:
    config = yaml.safe_load(f)

dataset = GraphUniverseDataset(root="./data", parameters=config)
print(f"Generated dataset with {len(dataset)} graphs!")

---

Validation & Analysis

GraphUniverse includes built-in validation to ensure generated graphs match target properties:

# Validate standard graph properties
family_properties = family.analyze_graph_family_properties()
for property_name in ['node_counts', 'avg_degrees', 'homophily_levels']:
    values = family_properties[property_name]
    print(f"{property_name}: mean={np.mean(values):.3f}")

# Analyze within-graph community signals (fits Random Forest per graph)
family_signals = family.analyze_graph_family_signals()
for signal in ['structure_signal', 'feature_signal', 'degree_signal']:
    values = family_signals[signal]
    print(f"{signal}: mean={np.mean(values):.3f}")

# Measure between-graph consistency
family_consistency = family.analyze_graph_family_consistency()
for metric in ['structure_consistency', 'feature_consistency', 'degree_consistency']:
    value = family_consistency[metric]
    print(f"{metric}: {value:.3f}")

---

Documentation & Support

• GitHub Repository: https://github.com/LouisVanLangendonck/GraphUniverse
• PyPI Package: https://pypi.org/project/graph-universe/
• Issue Tracker: https://github.com/LouisVanLangendonck/GraphUniverse/issues
• Changelog: https://github.com/LouisVanLangendonck/GraphUniverse/blob/main/CHANGELOG.md

---

Citation

If you use GraphUniverse in your research, please cite:

@article{van2025graphuniverse,
  title={GraphUniverse: Enabling Systematic Evaluation of Inductive Generalization},
  author={Van Langendonck, Louis and Bern{\'a}rdez, Guillermo and Miolane, Nina and Barlet-Ros, Pere},
  journal={arXiv preprint arXiv:2509.21097},
  year={2025}
}

---

For Researchers & Contributors

The sections below contain resources for reproducing paper experiments and contributing to development.

Reproducing Paper Experiments

Clone the repository to access validation and experiment scripts:

git clone https://github.com/LouisVanLangendonck/GraphUniverse.git
cd GraphUniverse
pip install -e ".[dev]"

Run parameter sensitivity validation (reproduces paper results):

python experiments/validate_parameter_sensitivity.py --n-random-samples 100 --n-graphs 30

Run scalability experiments:

python experiments/scalability_experiment.py

---

License

MIT License - see LICENSE for details.

Copyright (c) 2025 Louis Van Langendonck and Guillermo Bernardez
