graphics-braille 0.1.40.dev1

Create Braille maps for simple Turtle program output

Graphics Braille

We attempt to enable blind individuals to "visualize" simple graphics produced by simple programs using Python's turtle module. Our approach devides the turtle graphics screen into 40 columns by 25 rows. We create a "text map" with a character representing the contents of each column by row square. In addition to turtle's standard graphics window, the following additions are created:

• A "text picture" suitable for a low resolution physical display. This "text picture" is also placed in the Window clipboard to aid in placing the picture in the embosser program
• A audio-draw-window which displays the expected braille - lower resolution(e.g. 40 x 25 braille cell) rendition of the turtle display
• The audio-draw-window supports many keyboard window positioning options, which give audio feedback of the current cursor position. The audio feedback user controlled - spoken text or audio tones.
• The audio-draw-window supports the production of additional windows presenting magnifications of window selections.

Setup (MS Windows)

• pip install from PyPI

  • TestPyPI

    py -m pip install --extra-index-url https://test.pypi.org/simple/ graphics-braille==0.1.29.dev1


  • Standard

  py -m pip install graphics-braille


Installation test (MS Windows)

Enter the following cmd in a cmd window:

py graphics_braille.x_show_square_loop_colors_braille

In a handfull of seconds the following view should present on the screen. If audio is working, one should hear something like "green at row 14 column 20".

Simple test (single process, only wxPython exercised)

Useful for debugging

py -m graphics_braille.wx_braille_display

graphics_braille test Screenshot

Mac / Linux

The following should work but have not been tested.

python3 -m graphics_braille.z_show_square_loop_colors_braille
python3 -m graphics_braille.wx_braille_display

Virtual Environment (venv)

It's optional, but we us it. It's no so hard. As of python3 venv is a standard module and need not be installed. Create the environment, activate the environment, do your stuff, and when done, deactivate.

Creating virtual environment

python -m venv venv
venv\Scripts\activate

Leaving environment

deactivate

Notable text picture modifications

These changes were the results of experiences with and comments from some 8th grade students at the Perkins School for the Blind.

• Non-trailing blanks are replaced with "," characters so as not to be compressed by the braille producing software. The "," characters, while not being "blank" are single dot braille constructs, and are empty view.
• Blank area above and to the left is reduced to facilitate viewers finding graphics objects.

A set of screen shots for a simple program

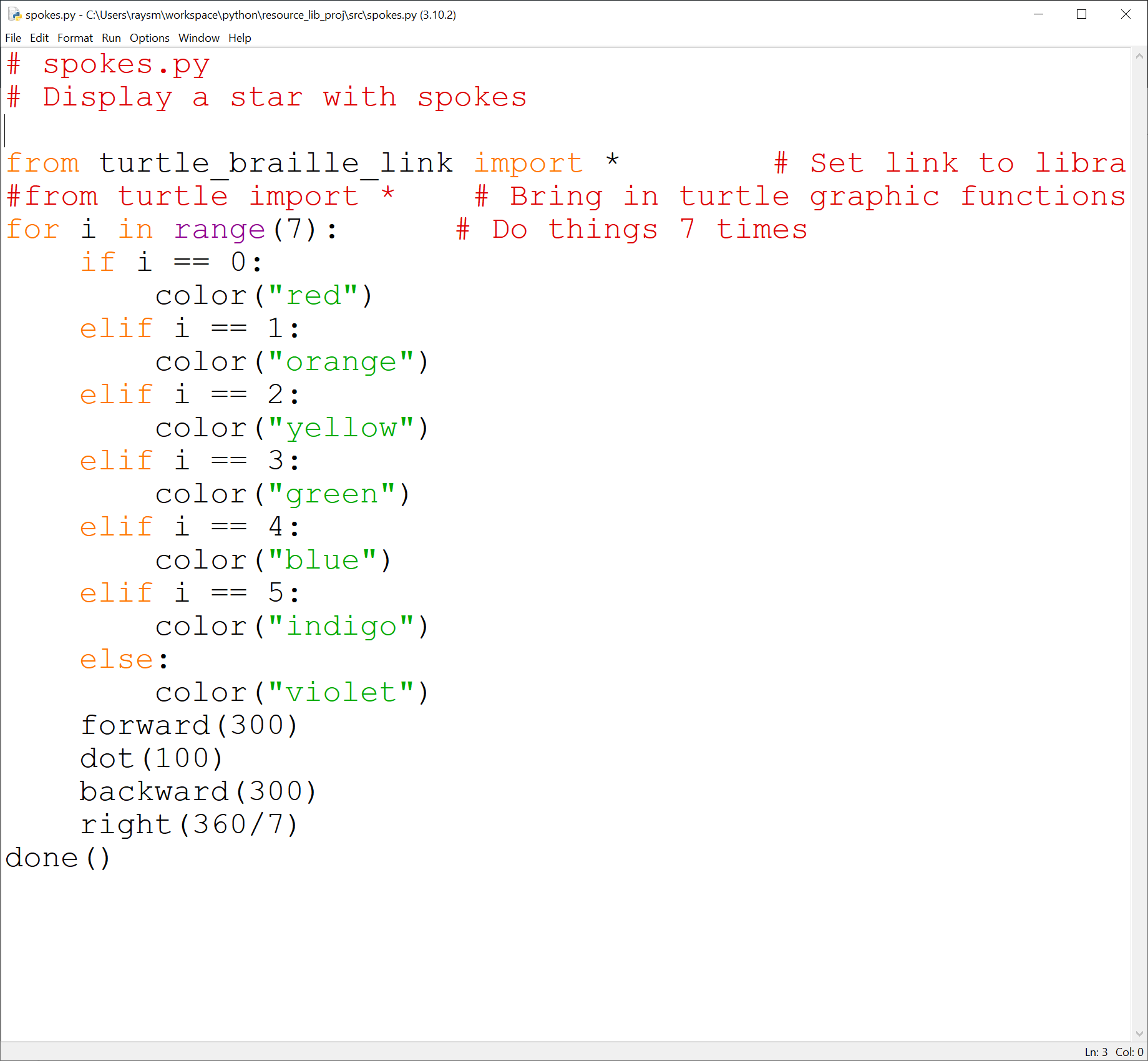

Example User program in IDLE

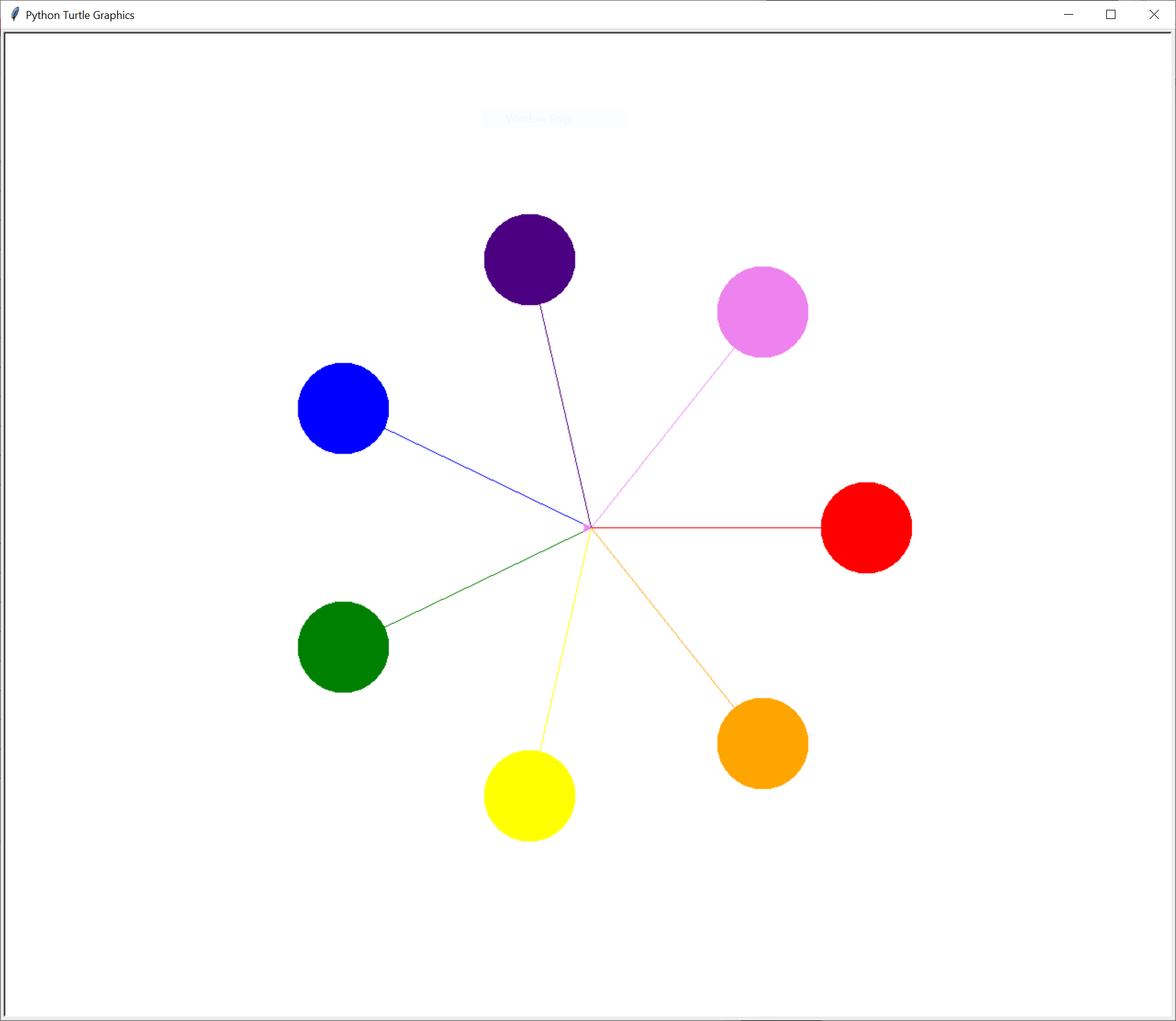

turtle display window

turtle display window - audio feedback

Note that the color of the braille dots is for the implementer's view to empasize the color. Also the rectangles surrounding the dots are to further help the visual image.

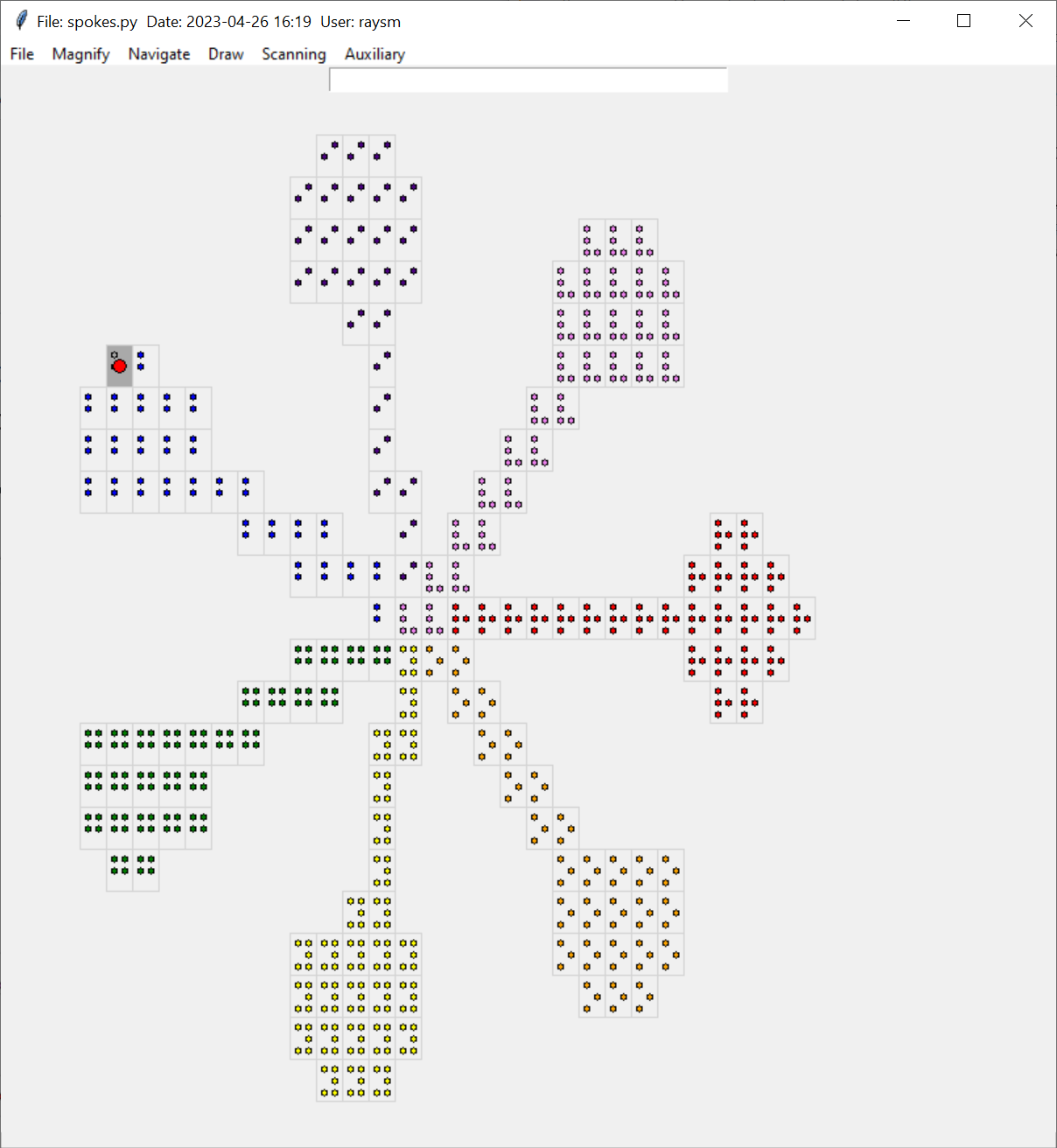

Braille Window - audio feedback - An implementation aid, providing the likely braille view

Keyboard / Menu commands

Keyboard display/positioning commands

        h - say this help message
        Up - Move up through run of same color/space
        Down - Move down through run of same color/space
        Left - Move left through run of same color/space
        Right - Move right through run of same color/space
        DIGIT - Move one square in direction (from current square):
           7-up left    8-up       9-up right
           4-left       5-mark     6-right
           1-down left  2-down     3-down right
              0-erase
        a - move to first(Left if Horizontal, Top if Vertical)
        b - move to second(Right if Horizontal, Bottom if Vertical)
        c<roygbiv> - set color red, orange, ...
        d - pendown - mark when we move

        g - Go to closest figure
        j - jump up to reduced magnification
        k - jump down to magnified region
        m - mark location
        p - Report/Say current position
        r - Horizontal position stuff to left, to Right
        t - Vertical position stuff to Top, to bottom
        u - penup - move with out marking
        w - write out braille
        x - move to original cell (after a/b Horizontal/Vertical)
        z - clear board
        Escape - flush pending report output

File - Program control - Only Exit is functioning

        x - Exit program

Magnify - Magnification Control

        Help - list magnify commands (Alt-m) commands
        h - say this help message
        t - expand magnify selected region left/right
        s - select/mark magnify region
        t - expand magnify selected region up/down top/bottom
        v - view region (make new window)

Magnify supports the creation of a new audio-display-window, enlarging the currently selected region of the current audio-display-window. The selected region is the rectangular region encompasing the currently traversed squares.

###Currently options t is not implemented.

Navigate - Navigation commands from Navigate pulldown menu

        Help - list navigate commands (Alt-n) commands
        h - say this help message
        a - Start reporting position
        b - remove
        z - stop reporting position
        e - echo input on
        o - echo off
        v - visible cells
        i - invisible cells
        r - redraw figure
        s - silent speech
        t - talking speech
        l - log speech
        m - show marked(even if invisible)
        n - no log speech
        p - report position
        u - audio beep
        d - no audio beep
         Escape - flush pending report output

Draw - Free drawing control

        Help - list drawing setup commands (Alt-d) commands
        h - say this help message
        d - Start/enable drawing
        s - stop/disable drawing
        Escape - flush pending report output

Scanning - Audio Window Scanning

        Help - list scanning commands (Alt-s) commands
        h - say this help message
        c - combine wave - faster scan
        d - disable combine wave - viewing in window
        k - toggle skip space
        s - Start scanning mode
        t - Stop scanning mode
        n - no_item_wait
        w - wait for items

Auxiliary - internal tracking / debugging

        Trace - tracing control

Program text printout - targeted for the brailler machine

Supported turtle commands

Because of our post running, screen scanning technique, we support all turtle commands, not requiring animation. That is, we take a static snapshot at the end of the program.

Our implementation has some harsh compromises:

• Our graphics resolution is currently 40 wide by 25 down for a 800 by 800 screen. Note this is further constrained by the fact that our students' shared braille embosser is set to 30 characters wide.
• Colors are represented by braille for the color's first letter(English)
• No motion - yet

TurtleBraille Support Files

• turtle_braille.py - direct outer interface to global turtle commands, and turtle object level commands
• braille_display.py - implements turtle commands in the braille setting and the creation of display braille window and text printout
• turtle_braille_link.py - simple link to support user level replacement of "from turtle import *" with "from turtle_braille_link import *" lines

TurtleBraille Trace / logging support

• select_trace.py
• crs_funs.py
• select_error.py
• select_report.py
• java_properties.py

resource_lib

Common files / support for other projects

Contains files used to support other projects. Provides logging, tracing, properties support.

Brief listing of document files (Docs directory)

• Program_Logging_Tracing.pptx PowerPoint presentation about Logging/Tracing demonstrating the classes SlTrace and TraceControlWindow

Brief listing of source files (src directory) with purpose.

• arrange_control.py: window sizing/placement support
• java_properties.py: simple properties file support
• logging_absolute_minimum.py: smallest example of logging
• logging_tracing_menu.py: TraceControlWindow class example
• logging_tracing_simplest.py: Simple logging/tracing example
• resource_group.py: support to handle a program's resource groups
• select_control.py class SelectControl
  • Base for independent control
  • Provides a singleton which is universally accessible
  • Facilitates
    • setting and retrieving of game controls
    • persistent storage of values
• select_dd_choice.py Dropdown choice one of n text strings - not sure
• select_error.py General local, to our program/game, error class
• select_trace.py class SlTrace
  • trace/logging package
  • derived from smTrace.java (ours)
  • properties file support
• select_window.py Program Level Menu control
• tkMath.py Useful window math thanks to: tkMath from recipe-552745-1.py Ronald Longo
• trace_control_window.py class TraceControlWindow
  • Window support for SlTrace flag manipulation
• variable_control.py class VariableControlWindow
  • Simple Control and Display of program variables
  • Adapted from trace_control_window.py/TraceControl
  • Essentially presents a scrollable list of variable names and values
  • Uses select_control/SelectControl to store and manipulate variable contents
