gridcalc 0.2.0

A terminal spreadsheet powered by Python formulas

gridcalc

A programmable terminal spreadsheet for developers and technical users, with Excel-ish formulas, Python escape hatches, XLSX interop, goal seek, and LP/MIP solving.

Inspired by Serge Zaitsev's kalk.

pip install gridcalc
gridcalc budget.json

---

What it gives you

• Excel-compatible formulas (=IF(A1>=B1, A1*0.05, 0)) and arrays (=SUM(A1:A10 * B1:B10)) without leaving the terminal.
• Multi-sheet workbooks with cross-sheet refs (=Sheet2!A1) and a proper dep graph.
• Three formula modes per file: strict Excel, Excel-plus-py.*, or full Python eval with numpy/pandas.
• xlsx interop via OpenXLSX C++ -- read every sheet's formulas + values; export with cached values.
• Linear & mixed-integer programming built in via lp_solve -- :opt max B4 vars A4:A5 st D4:D6 solves an LP from cells in the sheet. Models persist in the workbook.
• Goal-seek -- :goal B10 = 100 by A1 adjusts a variable so a formula hits a target value.
• Vim-style command line (:w, :e, :q, /search, y/p, visual selection, undo), with system-clipboard copy/paste -- yank pushes values as TSV, paste pulls TSV in from other apps.

Try it on the provided examples:

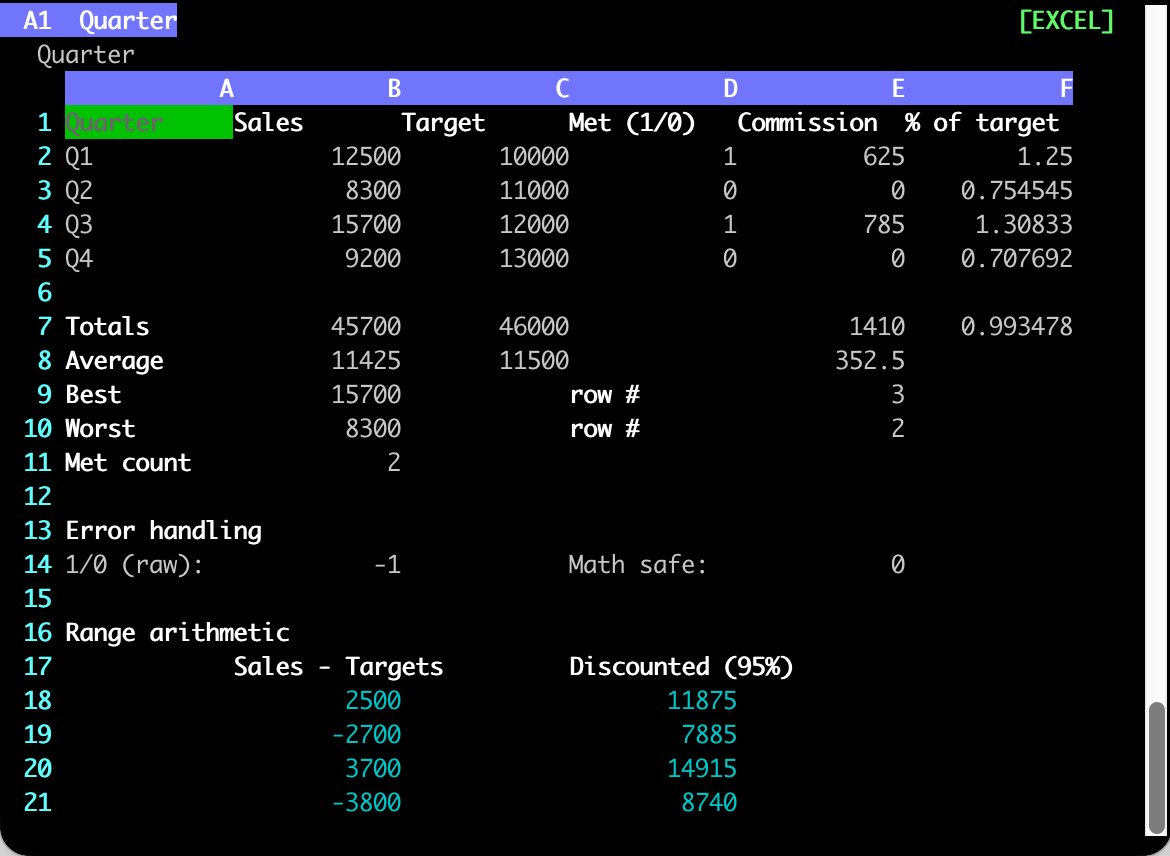

gridcalc example_excel.json          # sales report, named ranges, IF/MATCH
gridcalc example_hybrid.json         # progressive tax via py.* + aggregations
gridcalc example.json                # PYTHON: numpy/pandas, list-comprehensions
gridcalc example_multisheet.json     # 3-sheet budget, cross-sheet formulas
gridcalc example_lp.json             # LP/MIP demo -- type :opt to solve
gridcalc example_goal.json           # goal-seek demo -- :goal B1 = 11 by A1

Install

Two options:

pip install gridcalc            # core: zero third-party runtime deps
pip install 'gridcalc[extras]'  # adds numpy, pandas, pygments

Or with uv: uv tool install 'gridcalc[extras]'.

The core install has zero third-party runtime dependencies on Linux and macOS -- the full 300+ Excel function library (statistical distributions, financial functions, LINEST/TREND regression, ...) works on stdlib alone. (The 3.10 wheel pulls tomli for config-file parsing; 3.11+ uses stdlib tomllib. On Windows only, windows-curses is pulled in because curses is not in the Windows stdlib.)

The [extras] bundle enables, all at once:

• np.array(...) in formulas; LAPACK-backed solvers; faster LINEST.
• pd.DataFrame(...), :pd load/save, DataFrame cell display.
• Pygments syntax-highlight in the load-time trust prompt.

Quick tour

Cells hold a number, a label (any non-=-prefixed string), or a formula (prefixed with =). Arrow keys move; Enter commits and moves down; Tab commits and moves right.

        A          B          C
1  Revenue   Cost       Margin
2  1000      600        =(A2-B2)/A2*100      <- formula
3  1200      700        =(A3-B3)/A3*100
4  Total     =SUM(B2:B3) =AVG(C2:C3)

Press : for the command line. The basics:

Command	Purpose
:w [file]	save (extension .json or .xlsx)
:o file	open
:q, :q!	quit, force-quit
:e	edit the workbook's Python code block in $EDITOR
u, Ctrl-R	undo / redo
v	enter visual selection mode (then y yanks, p pastes)
/text	search (n/N to cycle matches)
>	go to a named cell (e.g. > AA10)

A full command reference lives in the Reference section below.

Modes

Each workbook has one of three evaluation modes, controlling which formulas parse and what's reachable from them:

Mode	Grammar	Python escape hatch	Sandbox	Use case
EXCEL	strict Excel	none	not needed (no eval)	xlsx interop, untrusted files
HYBRID	Excel + py.*	code-block functions reachable as py.foo(...)	code blocks only	most new sheets
PYTHON	Python eval()	full Python expressions	full AST sandbox	numpy/pandas-heavy work

Switch with :mode <name> -- the change is refused if any current formula doesn't parse in the target mode. Files without an explicit mode field load as PYTHON (back-compat). :xlsx load switches to EXCEL automatically.

Formulas

=A1 + B1 * 2                          arithmetic, Excel precedence
=(A1 + A2) / 2                        grouping
=2^10                                 exponent (PYTHON: ** also works)
=50%                                  percent postfix -> 0.5
="hello " & A1                        string concat
=IF(A1 > 0, "pos", "neg")             conditionals
=IFERROR(B1/C1, 0)                    error catch -- #DIV/0!, #VALUE!, #N/A, ...
=SUM(A1:A10)                          range -> 1D array
=SUM(A1:A3 * B1:B3)                   element-wise array arithmetic
=LET(x, SUM(A1:A9), x/COUNT(A1:A9))   local bindings -- compute once, reuse
=FILTER(A1:A9, B1:B9 > 0)             dynamic arrays: FILTER/SORT/UNIQUE
=SUM(revenue)                         named range
=py.margin(A1, B1)                    HYBRID: call a code-block function

Excel error values (#DIV/0!, #N/A, #NAME?, #REF!, #VALUE!, #NUM!, #NULL!) propagate through arithmetic and are catchable with IFERROR/IFNA.

Built-in functions (always available): SUM, AVG, MIN, MAX, COUNT, ABS, SQRT, INT, plus everything in math (sin, cos, log, pi, e, ...).

Excel-compatible library (auto-loaded in EXCEL/HYBRID): IF, IFERROR, AND, OR, NOT, ROUND, AVERAGE, MEDIAN, SUMIF, COUNTIF, AVERAGEIF, LET, VLOOKUP, HLOOKUP, XLOOKUP, XMATCH, INDEX, MATCH, FILTER, SORT, UNIQUE, SEQUENCE, CONCATENATE, LEFT, RIGHT, MID, LEN, TRIM, UPPER, LOWER, SUBSTITUTE, and 280+ others. Dynamic-array functions return whole rows/columns and compose (=INDEX(SORT(A1:B9), 1, 2)).

PYTHON-only extras: the math module, Python builtins (sum, min, max, abs, len), list comprehensions, and -- when the relevant extras are installed -- np.array(...), np.linalg, matrix multiply (@), and pd.DataFrame(...).

Named ranges & custom functions

:name revenue A1:A12       Define a named range (workbook-global)
:names                     List
:unname revenue            Remove

Used directly in formulas: =SUM(revenue), =MAX(revenue - costs).

Open the per-workbook Python code block with :e. Anything defined there becomes callable from formulas:

def margin(rev, cost):
    return (rev - cost) / rev * 100

In HYBRID: =py.margin(A1, B1). In PYTHON: =margin(A1, B1). EXCEL mode forbids code blocks entirely.

Cell references

$A$1 fixes both; $A1 fixes the column; A$1 fixes the row. References adjust automatically on insert/delete/replicate.

Multi-sheet workbooks

:sheet                     List sheets (active marked *)
:sheet Inputs              Switch by name
:sheet 1                   Switch by zero-based index
:sheet add Outputs         Append (does not switch)
:sheet del Tmp             Remove (refused if last sheet)
:sheet rename Old New      Rename, rewriting `Old!` prefixes in formulas
:sheet move Inputs 0       Reorder

Reference cells on other sheets with Sheet!cell:

=Sheet2!A1
=SUM(Sheet2!A1:A10)
=Sheet1!A1 + Sheet2!B1

The dep graph is keyed on (sheet, col, row) so cross-sheet recalc works transparently. Cross-sheet ranges (Sheet1!A1:Sheet2!B5) are not supported (Excel doesn't either).

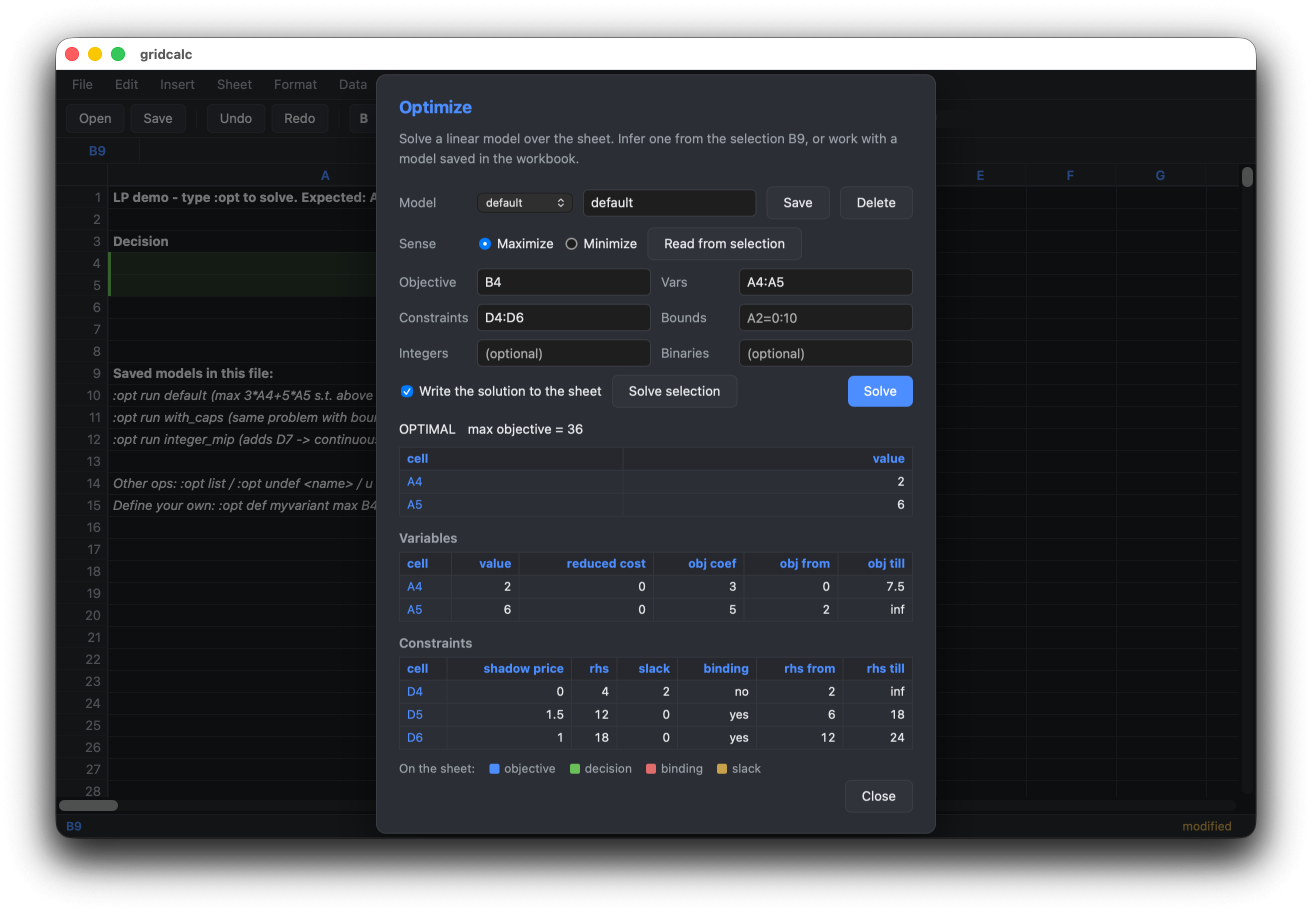

Optimization

:opt solves linear and mixed-integer programs defined by cells in the active sheet, via a vendored copy of lp_solve 5.5. Models are workbook-persistent: define once, save the file, re-run on reopen.

:opt                                                                       Run the saved 'default' model
:opt max|min <cell> vars <cells> st <cells> [bounds <spec>] [int <cells>] [bin <cells>]
                                                                           Solve inline AND save as 'default'
:opt def <name> max|min <cell> ...                                         Save under <name>; does not execute
:opt run [<name>]                                                          Execute a saved model
:opt list                                                                  List saved models
:opt undef <name>                                                          Remove a saved model

The model is sheet-resident: an objective formula in one cell, decision-variable cells holding values, and constraint cells holding comparison formulas like =A1+A2<=10. The constraint cells keep evaluating during recalc, so the sheet shows live feasibility (TRUE/FALSE) before and after the solve.

A worked example (also at examples/example_lp.json):

	A	B	C	D
3	Decision	Objective		Constraints
4	0	=3*A4+5*A5		=A4<=4
5	0			=2*A5<=12
6				=3*A4+2*A5<=18

:opt max B4 vars A4:A5 st D4:D6

Status bar shows opt: OPTIMAL obj=36; A4 and A5 become 2.0 and 6.0; u rolls back.

Clauses (any order after st):

• bounds A1=lo:hi, B2=lo:hi -- per-variable bounds. lo/hi accept inf, +inf, -inf. Default is [0, +inf).
• int <cells> -- decision variables are integer-valued (branch-and-bound).
• bin <cells> -- decision variables are binary ({0,1}); bounds clamped to [0,1].

Cell lists everywhere accept ranges (A1:A5), comma-separated refs (A1,A3,B5), or a mix.

Saved models live under "models": {<name>: ...} in the JSON file and round-trip verbatim (the spec strings the user typed are stored, not pre-resolved coords).

Programmatic access:

from gridcalc.engine import Grid
from gridcalc.opt import solve

g = Grid()
g.jsonload("examples/example_lp.json")
g.recalc()
r = solve(g, objective_cell=(1, 3), decision_vars=[(0, 3), (0, 4)],
          constraint_cells=[(3, 3), (3, 4), (3, 5)], maximize=True)
print(r.status_name, r.objective, r.values)

Goal-seek

For 1-D what-if ("what input makes this output equal X?"), use :goal:

:goal <formula_cell> = <target> by <var_cell> [in <lo>:<hi>]

:goal B10 = 100 by A1                 auto-bracket from A1's current value
:goal B10 = 0 by A1 in -50:50         explicit search bracket

Uses bisection over Grid.recalc(); converges in milliseconds at spreadsheet scale. The variable cell must hold a value (not a formula). On success the variable cell is overwritten; u rolls back. Unlike :opt, goal-seek isn't persisted -- the three args fit on one line, so retyping is faster than naming.

Formatting

:f b                Toggle bold (also Ctrl-B)
:f u                Toggle underline (also Ctrl-U)
:f i                Toggle italic
:f bi               Combine: bold + italic

:f $                Dollar (2 decimal places)
:f %                Percentage (value*100, 2 decimals)
:f I                Integer (truncate)
:f *                Bar chart (asterisks proportional to value)
:f L | R | G | D    Left / right / general / use-global-format

:f ,.2f             Any Python format spec: 1,234.50
:f .1%              15.7%
:f .2e              1.23e+04

:gf <fmt> sets the workbook-wide default format. :width <n> sets column width (4-40). Labels longer than the column width spill into adjacent empty cells, Excel-style.

Import / export

Command	Reads	Writes	Notes
:csv save/load	CSV	CSV	Plain text, fast
:xlsx save/load	.xlsx formulas + values	EXCEL-mode: formulas + cached values; other modes: values only	:xlsx load switches to EXCEL
:pd save/load	CSV/TSV/Excel/JSON/Parquet	same	Uses pandas; row 1 as headers

:xlsx load translates Excel formulas into gridcalc's EXCEL grammar and reads every sheet. INDIRECT and 3D ranges (Sheet1:Sheet3!A1:B2) are deliberately unsupported -- they'd defeat the static dep graph. Functions outside the auto-loaded library produce #NAME?.

File format

JSON, v2. v1 (single sheet, top-level cells) still loads.

{
  "version": 2,
  "mode": "HYBRID",
  "active": "Inputs",
  "code": "def margin(rev, cost):\n    return (rev - cost) / rev * 100\n",
  "names":  { "revenue": "A1:A12", "costs": "B1:B12" },
  "models": { "default": { "sense": "max", "objective": "B4",
                           "vars": "A4:A5", "constraints": "D4:D6" } },
  "sheets": [
    { "name": "Inputs", "cells": [["Rev","Cost"],[1000,600],[1200,700]] },
    { "name": "Summary","cells": [["Total","=SUM(Inputs!A2:A3)"]] }
  ],
  "format": { "width": 10 }
}

• mode: "EXCEL" | "HYBRID" | "PYTHON". Absent → PYTHON.
• sheets (v2): each is {name, cells} with a 2D cells array.
• active (v2): name of the sheet to focus on load.
• names: workbook-global named ranges (sheet-relative when used).
• models: persisted LP/MIP definitions (see Optimization).
• code: per-workbook Python module string, editable via :e.

Configuration

Optional gridcalc.toml (lookup: $PWD then $XDG_CONFIG_HOME/gridcalc/):

sandbox = true             # AST validation of formulas + code blocks
width   = 12               # default column width
format  = "G"              # default cell format

[keys.grid]
next_sheet  = ["Tab", "F4"]
prev_sheet  = ["S-Tab", "F3"]
cursor_left = ["Left", "h"]
cursor_down = ["Down", "j"]
cursor_up   = ["Up", "k"]
cursor_right= ["Right", "l"]

Every TUI context (grid, entry, visual, cmdline, search) is rebindable. User bindings fire before the hardcoded fallback chain, so Tab → next_sheet replaces the default cursor-right meaning. See docs/keybindings.md for the keyspec grammar (Tab, S-Tab, C-x, C-Right, F3, ...) and rejected combinations.

Command reference

File          :w [file]   :wq   :q   :q!   :o file   :e
Edit          :b   :clear   :dr   :dc   :ir   :ic   :m   :r
              :sort [col] [desc]   yank/paste: y/p (syncs system clipboard)
              undo/redo: u / Ctrl-R
Format        :f <spec>   :gf <spec>   :width <n>   Ctrl-B / Ctrl-U
Search        /pattern   n   N
Sheets        :sheet [name|N|add|del|rename|move]
Names         :name <n> [range]   :names   :unname <n>
Modes         :mode [excel|hybrid|python]
Import/export :csv save/load   :xlsx save/load   :pd save/load
Optimization  :opt   :opt def   :opt run   :opt list   :opt undef
              :goal <cell> = <target> by <cell> [in <lo>:<hi>]
View          :view   E   :tv/:th/:tb/:tn (lock title rows/cols)

Limitations

• INDIRECT is unsupported (would defeat the static dep graph).
• LAMBDA and its higher-order helpers (MAP, REDUCE, BYROW, ...) are unsupported; LET is supported. Dynamic-array results are packed into their origin cell rather than spilling into neighbours.
• xlsx export of formulas is EXCEL-mode only -- PYTHON/HYBRID syntax (**, list comprehensions, py.*) isn't strict Excel.
• 3D range refs (Sheet1:Sheet3!A1:B2) are unsupported (returns nan). Workaround: expand manually with +.
• Cross-sheet ranges (Sheet1!A1:Sheet2!B5) are rejected at parse time -- Excel doesn't support them either.
• xlsx dates and styles aren't read or written; date serials arrive as floats.

Development

make build      # rebuild the C++ extensions (_core, _opt)
make test       # unit tests
make test-tty   # PTY-driven curses integration tests (slow, requires xterm-256color)
make lint       # ruff check
make typecheck  # mypy
make qa         # lint + typecheck + test + format

make wheel       # cpXX-cpXX wheel for current Python
make wheel-abi3  # single cp312-abi3 wheel (Python>=3.12)
make sdist       # source distribution
make publish     # upload to PyPI (after make check)

The abi3 build is gated on GRIDCALC_STABLE_ABI=ON (CMake) + wheel.py-api=cp312 (scikit-build-core). Per-version wheels and the abi3 wheel have separate CI workflows under .github/workflows/.

Prior Art

• sc-im: A ncurses spreadsheet program for terminal
• sheets: A terminal based spreadsheet tool
• rustxl: A fast, keyboard-driven spreadsheet with vim-style navigation and Excel-compatible formulas.

License

MIT
