gymkhana 1.2.0

Gym environment for racing, drift, and safety

Gym-Khana

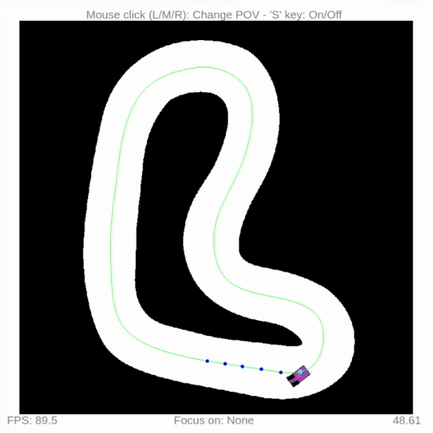

This repository contains a custom gym environment for training Deep Reinforcement Learning policies to race and drift on 1/10 scale or full-size Ackermann vehicles. SB3 and wandb integration included. Based on the f1tenth_gym simulator built by UPenn. For detailed information see the documentation

Table of Contents

• Installation
  • Quickstart
  • Additional Dependencies
• Training
  • Wandb
  • ONNX Policy Conversion
• Configuration
  • Default Gym/RL configurations
  • Callback and Curriculum Learning (CL) configuration
  • Debugging configuration
    • Control debug panel
    • Observation debug overlay
  • gym.make() Options
  • env.reset() Options
• Customization
  • Custom Maps
  • Tire Parameters
• Development
  • Formatting/Linting
  • Documentation
  • Versioning
• Known Issues

Installation

Quickstart

Gym-Khana is available as a PyPI package with only the gym environment, or as a full repository with additional functionality.

Install the gym environment from PyPI with:

pip install gymkhana

Alternatively, to use all features, or for development (training, controllers, analysis, etc.), clone the full repo and install dependencies using poetry:

git clone --recurse-submodules https://github.com/TeoIlie/Gym-Khana.git
cd Gym-Khana
poetry install --all-groups
source $(poetry env info -p)/bin/activate # or instead of sourcing, prefix commands with `poetry run`

Then you're off to the races! 🏎️

You can run a quick waypoint follow example:

cd examples
python3 waypoint_follow.py

Or a simple centerline follow example:

cd examples
python3 controller_example.py

Additional Dependencies

MPC controllers require dependencies that cannot be installed via pip alone. For the reference MPC implementation see the ForzaETH race_stack

acados (build from source) — see the official installation docs and Python interface docs:

# acados (build from source) - ~/software is only an example install directory
git clone https://github.com/acados/acados.git --recurse-submodules ~/software/acados
cd ~/software/acados && mkdir build && cd build
cmake -DACADOS_WITH_QPOASES=ON ..
make install -j$(nproc)

# Environment variables (add to shell profile)
export ACADOS_SOURCE_DIR=~/software/acados
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:~/software/acados/lib

Next, install the acados_template inside your virtual environment, with editable mode. For example, open a shell inside the virtual env with poetry shell and then run the following command:

# Python interface
pip install -e ~/software/acados/interfaces/acados_template

Training

The main racing training script is at train/ppo_race.py. The recovery training script is at train/ppo_recover.py. Both include functionality for:

1. Train (--m t): Train a new model with parallel environments using SubprocVecEnv and train/config params
2. Evaluate (--m e): Evaluate a trained model with visualization
3. Download (--m d): Fetch a model from wandb and evaluate it
4. Continue (--m c): Continue training an existing model from a checkpoint
5. Transfer (--m f): Transfer a pretrained model to a new task, preserving network weights but resetting optimizer, LR schedule, and optionally resetting log_std for fresh exploration, and resetting critic network for fresh value approximation. Useful for transferring learned dynamics knowledge (e.g. racing to recovery).

For example, train a racing model with:

python3 train/ppo_race.py --m t

Detailed usage guidelines are at the top of the training script files.

Wandb

By default, all training models are synced to wandb, with training data for runs saved to /wandb folder.

To login to your account, use wandb login. To create an account, visit https://wandb.ai

ONNX Policy Conversion

To use policies in other packages, such as a ROS2 package for sim-to-real transfer, we provide support for converting an SB3 model to ONNX type. Use train/export_onnx.py for conversion:

python3 train/export_onnx.py --path <SB3 model path>

Run the policy with ONNX using OnnxPolicyRunner defined in gymkhana/inference/onnx_runner.py. For example for a racing policy:

python3 train/ppo_race.py --m x --path <ONNX model path>

Configuration

Default Gym/RL configurations

Default configurations are stored in /train/config/env_config.py, with parameters coming from train/config/rl_config.yaml and train/config/gym_config.yaml. This exposes all necessary Gym env and RL params for training, as well as default functions for getting Gym configs of RL training and testing environments:

1. /train/config/env_config.py::get_drift_test_config()
2. /train/config/env_config.py::get_drift_train_config()
3. /train/config/env_config.py::get_recovery_test_config()
4. /train/config/env_config.py::get_recovery_train_config()

Callback and Curriculum Learning (CL) configuration

Default SB3 callbacks used during training are WandbCallback, CheckpointCallback, and EvalCallback. A custom CurriculumLearningCallback is also available, which gradually expands the recovery state initialization ranges as the agent's success rate improves.

CL is configured in /train/config/gym_config.yaml under the curriculum heading by setting enabled: true. Parameters such as n_stages, success_threshold, and per-state ranges (v_range, beta_range, etc.) can be tuned there.

Note that CL is only supported for recovery training, with the environment training_mode set to "recover". Recovery training is accessed through the training script train/ppo_recover.py.

Debugging configuration

gym.make() configurations:

1. Run with render_mode set to human to visualize the process
2. Set "render_track_lines": True (it is False by default) to render the centerline in green and the raceline in red
3. Rendering track arc-length points s in Frenet coordinates at discrete intervals:
   1. First, "render_arc_length_annotations": True (it is False by default) to render points along the centerline in orange
   2. Optionally, also set "arc_length_annotation_interval" to modify the point spacing (2.0 metres by default)
4. Set "render_lookahead_curvatures": True (it is False by default) to visualize lookahead curvature sampling points ahead of the vehicle in yellow. Optional parameters:
5. Set "debug_frenet_projection" = True to visualize the Frenet coordinates are correct
6. Set "record_obs_min_max" to True/False to record min/max observation values during training, and tweak normalization bounds if necessary, defined in utils.py::calculate_norm_bounds

Control debug panel

Set show_ctr_debug: True in gymkhana/envs/rendering/rendering.yaml to enable a real-time control debug panel below the map (PyQt6 renderer only). The panel shows:

• Actual vehicle state: current steering angle (delta) and longitudinal velocity (v_x) in white
• Control commands: raw steering and throttle commands with their bounds, colour-coded to match their bars (steering in blue, throttle in green)
• Two zero-centered horizontal bar gauges: each bar spans the command's full range with the fill extending from zero toward the current value, making the sign and magnitude of each command instantly visible

The panel tracks the currently followed agent (switched via mouse click), defaulting to the ego agent in map view. It is disabled by default to avoid overhead during training.

Observation debug overlay

Set show_obs_debug: True in gymkhana/envs/rendering/rendering.yaml to overlay all observation values on top of the map in the top-left corner (PyQt6 renderer only). The overlay displays:

• Feature names and values: each observation feature as a key-value pair (e.g., linear_vel_x: 2.3451)
• Array summaries: large arrays like LiDAR scans show count, min, max, and mean; small arrays (e.g., lookahead curvatures) show all values
• Normalization indicator: shows [norm: on] when observation normalization is active; values are always displayed in raw physical units regardless of normalization

Works with all observation types (OriginalObservation, FeaturesObservation, VectorObservation). For multi-agent environments, the overlay shows the followed agent's observations. Disabled by default to avoid overhead during training.

gym.make() Options

1. Set training_mode to define the training goal. This modifies the reset, initialization, track, and reward settings:
   1. "race" (default) is used by train/ppo_race.py for training racing policies
   2. "recover" is used by train/ppo_recover.py to train policies for stabilizing an out-of-control vehicle
2. Set model to std for drifting model with PAC2002 tire model
3. Use control_input ["accl", "steering_angle"] for best RL drift training
4. Use parameter dictionary params as GKEnv.f1tenth_std_vehicle_params() or GKEnv.f1tenth_std_drift_bias_params() for drift parameters on 1/10 scale F1TENTH car
5. Lookahead curvature/width observations can be configured with spacing and number parameters, and when render_lookahead_curvatures": True these will be reflected
   1. lookahead_n_points - Number of lookahead points (default: 10)
   2. lookahead_ds - Spacing between points in meters (default: 0.3m)
   3. sparse_width_obs - False passes all lookahead point width values as observation, True only passes 1st and last. True is useful when track width varies very little (default: False)
6. Set normalize_obs to True/False for normalizing the observation space. Only specific observation types can be normalized
7. Set normalize_act to True/False for normalizing the action space. Supported for all action types
8. Set predictive_collision to True to use TTC collision checking and False for Frenet-based collision checking. Note that this also modifies the reward function.
9. Set wall_deflection to False to treat track edges as boundaries, and True to treat them as walls that cause a collision and halt the vehicle
10. Reward configuration options:
    1. progress_gain: set amount of gain by which to multiply forward progress reward. Must be >= 1
    2. out_of_bounds_penalty: penalty for driving off the track boundary
    3. negative_vel_penalty: penalty for driving backward
    4. max_episode_steps: the maximum number of episode steps
11. Set track_direction to define in which direction to drive around the track:
    1. normal (default): drive around the track in the direction of the waypoints stored in the centerline and raceline files (Note this may be CW or CCW depending on the track map)
    2. reverse: drive around in the opposite direction (For ex, CW instead of CCW)
    3. random: randomly drive in the 'regular' or 'reverse' direction at each reset with a 50% chance, to learn left and right cornering equally when training a policy with RL

env.reset() Options

1. Poses and States can be used to initialize vehicles at specific configurations. Note:

   • Only one of poses or states can be used per reset call (not both)
   • All [x, y, yaw] values are in Cartesian coordinates
   • To use Frenet coordinates, convert first using frenet_to_cartesian() in gymkhana/envs/track/track.py

2. Poses: Reset agents at a specific pose

   # Single agent
   poses = np.array([[x, y, yaw]])
   env.reset(options={"poses": poses})

   # Multiple agents
   poses = np.array([[x1, y1, yaw1],
                     [x2, y2, yaw2]])
   env.reset(options={"poses": poses})


3. States: Reset agents to a full 7-d state (only for model='std')

   # Single agent: [x, y, delta, v, yaw, yaw_rate, slip_angle]
   states = np.array([[x, y, delta, v, yaw, yaw_rate, slip_angle]])
   env.reset(options={"states": states})

   # Front & rear angular wheel velocities are automatically initialized to form the full 9-d state for STD model type


Customization

Custom Maps

Custom maps can be created using the git submodule https://github.com/TeoIlie/F1TENTH_Racetracks stored in folder /maps. Once updated, pull the update submodule with git pull --recurse-submodules

Tire Parameters

• Parameters for the 1/10 scale f1tenth car to be used with the STD model are defined in gymkhana/envs/gymkhana_env.py as f1tenth_std_vehicle_params. They are created as a mix of existing f1tenth params and tire parameters adjusted from the fullscale car.
• In future I may measure these parameters from real data for more accurate fitting
• To maintain a history of parameter choices, and how they compare with the correct behaviour on the fullscale car, tests script tests/model_validation/test_f1tenth_std_params.py creates comparison figures along with parameter YAML file dump ordered by date created inside folder figures/tire_params

Development

Formatting/Linting

Run formatting and auto-fixes manually with ruff check --fix . && ruff format . Fixes also are applied before commits due to .pre-commit-config.yaml file, with pre-commit dependency.

Documentation

• Documentation is supported through ReadTheDocs Sphinx template at https://gym-khana.readthedocs.io
• Tagged versions are available via the version selector in the docs (bottom-left flyout)
• To update documentation modify /docs folder files and test locally, a rebuild will be triggered on push to default branch

cd docs
make clean && make html && firefox _build/html/index.html

Versioning

This project follows Semantic Versioning: MAJOR.MINOR.PATCH

• MAJOR: Breaking changes (incompatible API/config changes)
• MINOR: New features (backward-compatible)
• PATCH: Bug fixes (backward-compatible)

To release a new version:

1. Move items from [Unreleased] to a new version section in CHANGELOG.md
2. Update version in pyproject.toml and __version__ in gymkhana/__init__.py
3. Create and push a matching annotated git tag:

git tag -a v1.2.0 -m "description of release"
git push origin v1.2.0

Pushing the tag automatically publishes to TestPyPI and PyPI via the publish.yml GitHub Actions workflow.

Known Issues

• Library support issues on Windows. You must use Python 3.8 as of 10-2021

• On MacOS Big Sur and above, when rendering is turned on, you might encounter the error:

ImportError: Can't find framework /System/Library/Frameworks/OpenGL.framework.

You can fix the error by installing a newer version of pyglet:

pip3 install pyglet==1.5.11

And you might see an error similar to

gym 0.17.3 requires pyglet<=1.5.0,>=1.4.0, but you'll have pyglet 1.5.11 which is incompatible.

which could be ignored. The environment should still work without error.
