IDSLab

hashtagRR.github.io/IDSLab

IDSLab tests staged (cascade) network intrusion detection systems. You describe a design in one YAML file: which stages it has, which model sits in each, and where each stage sends the flows it judges. IDSLab fits it, makes every choice on validation data, and then tells you on untouched test data whether the design is better than its own first stage alone, and what each stage adds.

Why a cascade needs this

A staged IDS splits detection into steps. A first classifier sees every flow; later stages (a second classifier, an anomaly detector, a type classifier) re-check the flows it sends them, to catch attacks it missed or clear its false alarms. Many published designs report a gain over a single model, and the gain is easy to overstate:

• thresholds or stages are chosen while looking at the test set;
• the cascade is compared with a different single model, not with its own first stage tuned as carefully;
• the same gain could come from moving the first stage's threshold, no extra stage needed;
• nobody checks what each stage contributes, so a stage that does nothing stays in the design.

IDSLab rules these out for any design you can describe, with the same protocol every time, so two designs (or two papers) compare on equal terms.

What a run does

1. You describe the design. Stages, models, decisions and routes:

name: r1-router-gate
dataset: {train: data/train.parquet, test: data/test.parquet, label: label, type: attack_cat}
entry: binary
stages:
  binary:                        # sees every flow
    kind: classifier
    pipeline: [{class: idslab.prep.Encode, params: {categorical: [proto, service]}}]
    candidates: [{class: sklearn.ensemble.RandomForestClassifier}]
    decision: {threshold: 0.5, off: benign}
    routes: {attack: router, benign: BENIGN}
  router:                        # keeps confident attacks, sends the rest to the gate
    kind: classifier
    pipeline: [{class: idslab.prep.Encode, params: {categorical: [proto, service]}}]
    candidates: [{class: sklearn.ensemble.RandomForestClassifier}]
    decision: {grid: [0.5, 0.6, 0.7, 0.8, 0.9], off: attack}
    routes: {attack: ATTACK, benign: gate}
  gate:                          # anomaly detector trained on benign flows only
    kind: detector
    fit_on: benign
    pipeline: [{class: idslab.prep.Encode, params: {categorical: [proto, service]}}]
    candidates: [{class: sklearn.ensemble.IsolationForest}]
    decision: {budget: [0.01, 0.02, 0.05], off: normal}
    routes: {anomalous: ATTACK, normal: BENIGN}

Any acyclic graph works: stages can re-check, clear alarms, name attack types, or feed their scores to later stages. Any model can sit in a stage: scikit-learn, XGBoost, LightGBM, PyOD, PyTorch, your own class, or scores from a model trained elsewhere.

2. It splits the data per seed and locks TEST away.

3. It makes every choice on VAL, one stage at a time: which candidate model, which threshold, and whether the stage stays on at all. Switching a stage off is always an option, and ties go to off.

4. It reads TEST once, for the frozen cascade and for controls built from the same fitted first stage, over several seeds.

What you learn

Every report answers three questions. The figures below are one seed of the design above on the synthetic example data (idslab example).

Does the cascade beat its first stage alone? Here VAL said the extra stages help; TEST says they cost 0.005. The report gives the difference with paired bootstrap intervals and the spread over seeds.

Could a threshold do the same? The frontier gap compares the cascade's detection rate with the best the first stage reaches at the same false alarm rate by moving its threshold. A positive gap means the stages reach a point no threshold can; here the cascade sits just below the first stage's curve.

What does each stage do? Every flow's path is recorded. Here the router passes 73 attacks to the gate, and the gate catches none of them; switching the gate off costs nothing, and the report's stage table says so.

The same run also gives the configuration chosen in every seed, the full selection trace, recall on attack families held out of training, and per-type results when the design names attack types.

Quickstart

Download the code (green Code button, Download ZIP, then extract; or git clone https://github.com/hashtagRR/IDSLab.git) and open a terminal in the folder that holds pyproject.toml. INSTALL.md has step-by-step guides for Windows, macOS and GNU/Linux.

GNU/Linux and macOS

python3 -m venv .venv && .venv/bin/pip install -e .
.venv/bin/idslab example demo                                  # creates demo/: data and three designs
.venv/bin/idslab run demo/r1_router_gate.yaml --out demo/runs  # fit, choose on VAL, report on TEST
.venv/bin/idslab dashboard --workspace demo --open             # optional web UI

Windows (PowerShell): the programs are in .venv\Scripts, and PowerShell needs the leading .\

py -3.12 -m venv .venv; .\.venv\Scripts\pip install -e .
.\.venv\Scripts\idslab example demo                      # creates the demo folder the dashboard opens
.\.venv\Scripts\idslab run demo\r1_router_gate.yaml --out demo\runs
.\.venv\Scripts\idslab dashboard --workspace demo --open   # keep the window open; Ctrl+C stops it

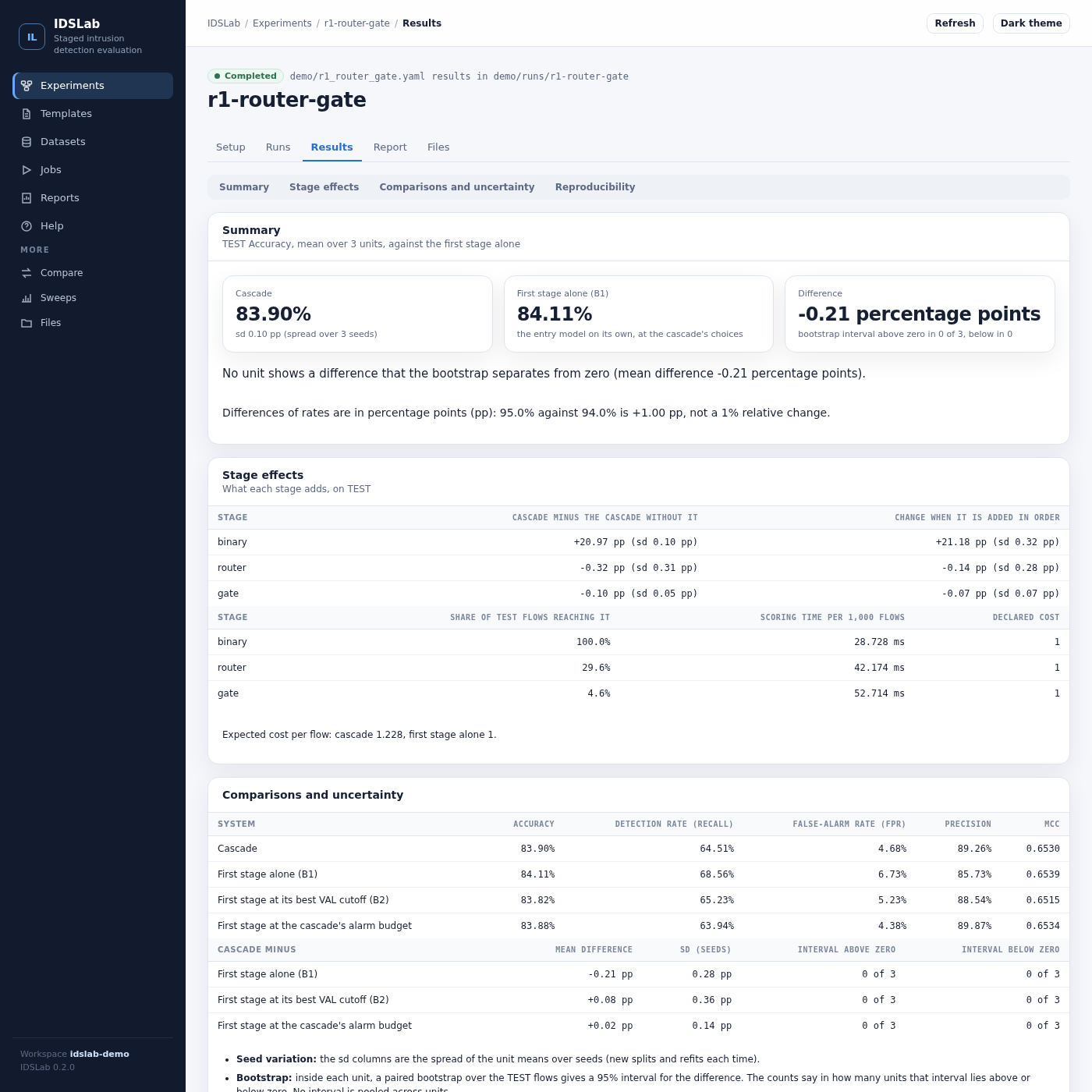

The result is demo/runs/r1-router-gate/report.html, or the same in the dashboard:

Step-by-step Windows setup, optional model libraries and troubleshooting: INSTALL.md.

Documentation

Guide	What it covers
Getting started	a first run on the synthetic data, reading the report, moving to your own data
Example designs	the three reference cascades with diagrams, a custom model adapter, an outside score job
Config reference	every key of a config file, with defaults
Protocol and controls	splits, greedy selection on VAL, the controls and what each reported number means
Models in stages	score contracts, pipelines and search, PyTorch, your own adapter, scores from models trained elsewhere
Outputs	the report pages and every file a run writes
Comparing designs and sweeps	two designs on the same flows, paired per seed; one base config with many variants
Command line	validate, run, report, export-splits, example, compare, sweep, dashboard
Dashboard	the local web UI: pages, jobs, security (source reference)
Architecture	what happens during a run, the modules, and where to extend
Known limitations	what the numbers do and do not show
Design notes	the reasoning behind each protocol rule
Install guide	platform setup, extras, tests and checks
Changelog	what changed in each version
Project site	the project's overview page

Versions

• v0.3.0 (latest): the dashboard redesigned around experiments: a guided setup (data, cascade, evaluation, review and run) sharing one draft with the YAML view, templates, datasets, jobs with real progress, a results page that reads the cascade against the first stage with the per-unit bootstrap, and reports. Clear messages for a missing workspace folder. Results are unchanged; runs from 0.2.0 rerun once.
• v0.2.0: visual pipeline builder; cost objectives and stage cost; greedy_fixed selection; plugins; idslab compare with paired per-seed differences and idslab sweep; fixes for chained score dependencies and external-score freshness. Runs from 0.1.0 rerun.
• v0.1.0: first public release. Any acyclic cascade of classifier, type and detector stages; greedy selection on VAL with an off option; first-stage controls, frontier gap and paired bootstrap; held-out family and natural novelty modes; external scores with provenance checks; Markdown, JSON and HTML reports; the web dashboard.

Citing

If you use IDSLab in published work, please cite the version you used. Every release is archived on Zenodo with its own DOI: 10.5281/zenodo.23435536 opens the latest release, and its list of versions leads to each one's DOI and a ready-made citation. CITATION.cff holds the author and that DOI, and GitHub shows them under "Cite this repository".

License

AGPL-3.0-or-later. See LICENSE.
