ikala-cloud.aws-waf-solution 2.0.12

Cloudfront,ALB and API Gateway with Automated WAF

AWS WAF Solution

This CDK Construct modify and rebuild from Cloudfront with Automated WAF.

The solution use CDK construct to automatically deploy a set of AWS WAF rules design to filter common web-based attacks.Users can select from preconfigured protective features that define the rules included in an AWS WAF web access control list (web ACL). After the solution deploys, AWS WAF begins inspecting web requests to the user’s existing Amazon CloudFront distributions、Application Load Balancers、API Gateway, and blocks them when applicable.

What is difference

• The project is CDK Construct which is handy to integrate into your existing CDK project.
• Support count mode for testing WAF rule, see API.md.
• Support Application Load Balancers and API Gateway (The origin repository doesn't support ALB any more in next release, see issue )
• AWS Shield Advance is optional (The origin repository enforce to enable it)

Support CDKv1 and CDKv2

CDKv2

npm install @ikala-cloud/aws-waf-solution
or
npm install @ikala-cloud/aws-waf-solution@latest
or
npm install @ikala-cloud/aws-waf-solution@^2.0.0

CDKv1

npm install @ikala-cloud/aws-waf-solution@cdkv1
or
npm install @ikala-cloud/aws-waf-solution@^1.0.38

Construct Props

Ref API Reference

CloudFront Usage

# Example automatically generated from non-compiling source. May contain errors.
const envUSEast1 = {
  region: 'us-east-1',
  account: process.env.CDK_DEFAULT_ACCOUNT,
};

const stackTest1 = new cdk.Stack(app, 'TestStackAutomatedWafForCloudFront', { env: envUSEast1 });

new AutomatedWaf(stackTest1, 'AutomatedWaf', {
  waf2Scope: Waf2ScopeOption.CLOUDFRONT,
  resourceNamingPrefix: 'CloudFront_ApiGW',
  errorThreshold: 55,
  requestThreshold: 300,
  blockPeriod: 60,
  logLevel: LogLevel.DEBUG,
});

Notice the WAF region must be us-east-1 for CloudFront.

After deploying, it need to do two things on AWS Management Console.

1. Attach Cloudfront to WAF.

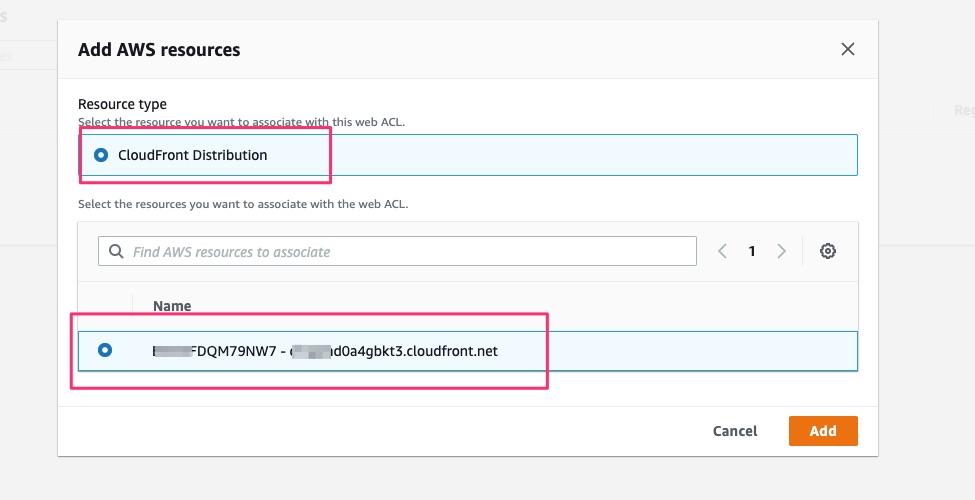

Click add AWS Resources

Select existing CloudFront Distribution.

2. Set S3 bucket on CloudFront standand logging

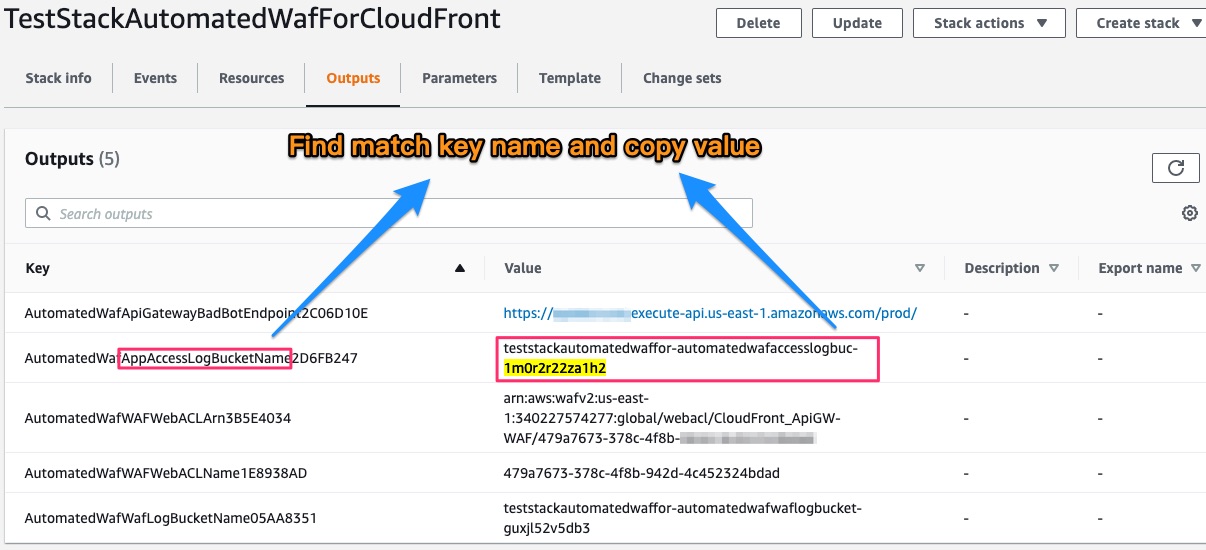

Find S3 bucket name on CloudFormation output

Set CloudFront standard logging on CloudFront Settings

:warning: Log Prefix must be AWSLogs/

Application Load Balancers Usage

# Example automatically generated from non-compiling source. May contain errors.
const env = {
  region: process.env.CDK_DEFAULT_REGION,
  account: process.env.CDK_DEFAULT_ACCOUNT,
};

const stackTest2 = new cdk.Stack(app, 'TestStackAutomatedWafForALB', { env });

const albArn = `arn:aws:elasticloadbalancing:${cdk.Aws.REGION}:${cdk.Aws.ACCOUNT_ID}:loadbalancer/app/ApiNe-Alb16-2VIC9075YQEZ/db92cdc88d2e7c9d`;

new AutomatedWaf(stackTest2, 'AutomatedWaf', {
  waf2Scope: Waf2ScopeOption.REGIONAL,
  associatedResourceArn: albArn,
  resourceNamingPrefix: 'Alb_Api',
  errorThreshold: 50,
  requestThreshold: 300,
  blockPeriod: 60,
  logLevel: LogLevel.DEBUG,
});

After deploying, follow these steps on AWS Management Console. See below:

Find S3 bucket name on CloudFormation output

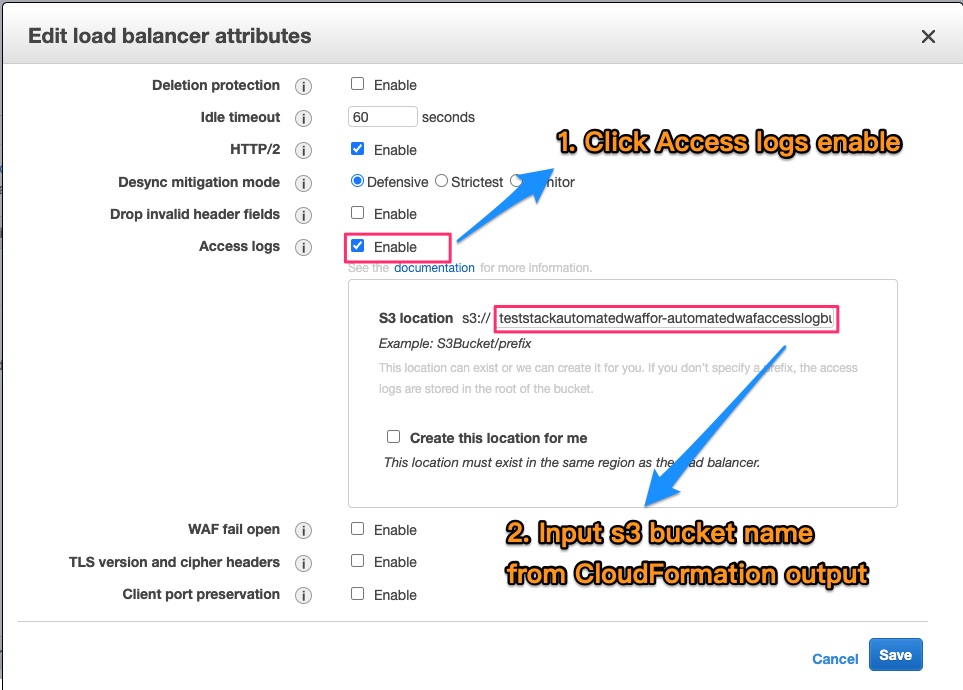

Click Edit Attributes on Basic Configuration of Load Balancers

Enable Access logs and input S3 bucket

API Gateway Usage

# Example automatically generated from non-compiling source. May contain errors.
const env = {
  region: process.env.CDK_DEFAULT_REGION,
  account: process.env.CDK_DEFAULT_ACCOUNT,
};

const stackTest3 = new cdk.Stack(app, 'TestStackAutomatedWafForApiGW', { env });

/**
 * Ref Stage arn in https://docs.aws.amazon.com/apigateway/latest/developerguide/arn-format-reference.html
 */
const restApiArn = `arn:aws:apigateway:${cdk.Aws.REGION}::/restapis/0j90w09yf9/stages/prod`;

new AutomatedWaf(stackTest3, 'AutomatedWaf', {
  waf2Scope: Waf2ScopeOption.REGIONAL,
  associatedResourceArn: restApiArn,
  resourceNamingPrefix: 'ApiGW',
  errorThreshold: 50,
  requestThreshold: 300,
  blockPeriod: 60,
  logLevel: LogLevel.DEBUG,
});

Troubleshooting

If deployment error, the cloudFormation Error event like this

Received response status [FAILED] from custom resource. Message returned: 'HttpFloodLambdaLogParser' (RequestId: b4e08ea2-fe0a-46f8-98aa-6f96d4558579)

If any custom resource deploy error like above, delete the stack and redeploy it that will pass.
