img-phy-sim 1.5

Physical Simulations on Images.

Image-Physics-Simulation

This is a library for 2D Ray-Tracing on an image. For example the Physgen Dataset, see here.

Contents:

• Installation
  • Download Example Data
• Usage
• Ray-Tracing Formats
• Library Overview

> Documentation <

> Optimization Repo <

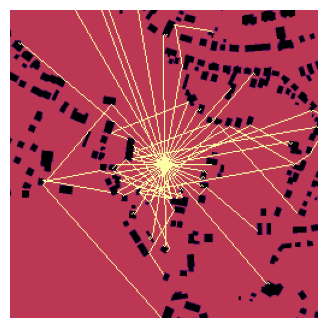

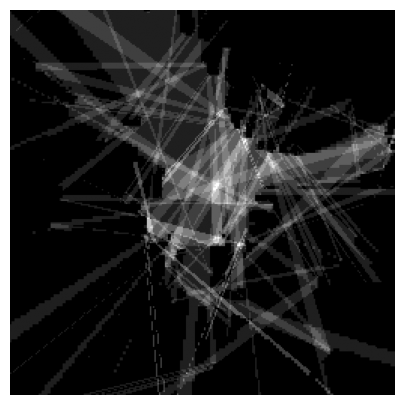

Classical Ray-Beams and ISM

Installation

This repo only need some basic libraries:

• numpy
• matplotlib
• opencv-python
• scikit-image
• joblib
• numba
• shapely

If you want to use the data module then this package needs also:

• torch
• torchvision
• datasets

You can download / clone this repo and run the example notebook via following Python/Anaconda setup:

conda create -n img-phy-sim python=3.13 pip -y
conda activate img-phy-sim
pip install numpy matplotlib opencv-python ipython jupyter shapely datasets==3.6.0 scikit-image joblib shapely numba
pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu126

You can also use this repo via Python Package Index (PyPI) as a package:

pip install img-phy-sim
# or for using `data` module:
pip install img-phy-sim[full]

Here the instructions to use the package version of ips and an anconda setup:

conda create -n img-phy-sim python=3.13 pip -y
conda activate img-phy-sim
pip install img-phy-sim
# or for using `data` module:
pip install img-phy-sim[full]

To run the example code you also need (these packages are included in img-phy-sim[full]):

pip install datasets==3.6.0
pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu126

Download Example Data

You can download Physgen data if wanted via the data.py using following commands:

conda activate img-phy-sim
cd "D:\Informatik\Projekte\Image-Physics-Simulation\img_phy_sim" && D:
python data.py --output_real_path ./datasets/physgen_train_raw/real --output_osm_path ./datasets/physgen_train_raw/osm --variation sound_reflection --input_type osm --output_type standard --data_mode train

python data.py --output_real_path ./datasets/physgen_test_raw/real --output_osm_path ./datasets/physgen_test_raw/osm --variation sound_reflection --input_type osm --output_type standard --data_mode test

python data.py --output_real_path ./datasets/physgen_val_raw/real --output_osm_path ./datasets/physgen_val_raw/osm --variation sound_reflection --input_type osm --output_type standard --data_mode validation

Usage

Here we will show following (always for classical ray-traces and ISM):

1. the basic usage
2. iterative usage
3. saving and loading

→ The example notebook can be helpful 👀

Classical Ray-Tracing:

# calc rays
rays = ips.ray_tracing.trace_beams(rel_position=[0.5, 0.5],
                                   img_src=input_src,
                                   directions_in_degree=ips.math.get_linear_degree_range(start=0, stop=360, step_size=5),
                                   wall_values=None,
                                   wall_thickness=1,
                                   img_border_also_collide=False,
                                   reflexion_order=3,
                                   should_scale_rays=True,
                                   should_scale_img=False)

# show rays on input
ray_img = ips.ray_tracing.draw_rays(rays, detail_draw=False,
                                    output_format="single_image",
                                    img_background=input_, ray_value=2, ray_thickness=1,
                                    img_shape=(256, 256), dtype=float, standard_value=0,
                                    should_scale_rays_to_image=True, original_max_width=None, original_max_height=None,
                                    show_only_reflections=True)
ips.img.imshow(ray_img, size=4)

ISM:

reflection_map = ips.ism.compute_reflection_map(
    source_rel=(0.5, 0.5),
    img=ips.img.open(input_src),
    wall_values=[0],
    wall_thickness=1,
    max_order=1,
    step_px=1,
)

ips.img.imshow(ips.ism.reflection_map_to_img(reflection_map), size=5)

Both formats are also available in a iterative format.

Classical Ray-Tracing:

# compute rays
rays_ = ips.ray_tracing.trace_beams(rel_position=[0.5, 0.5],
                                   img_src=img_src,
                                   directions_in_degree=[22, 56, 90, 146, 234, 285, 320],
                                   wall_values=0.0,
                                   wall_thickness=0,
                                   img_border_also_collide=False,
                                   reflexion_order=2,
                                   should_scale_rays=False,
                                   should_scale_img=True,
                                   iterative_tracking=True,    # IMPORTANT
                                   iterative_steps=None        # IMPORTANT
                                   )
print("\nAccessing works the same, example Ray:", rays_[0][0][:min(len(rays_[0][0])-1, 3)])

# (optional) limit rays to X steps
rays_.reduce_to_x_steps(20)

# (optional) get a given operation
rays_.get_iteration(0)

# export as multiple images
ray_imgs = ips.ray_tracing.draw_rays(rays_, detail_draw=False,
                                    output_format="single_image",
                                    img_background=img, ray_value=2, ray_thickness=1,
                                    img_shape=(256, 256), dtype=float, standard_value=0,
                                    should_scale_rays_to_image=False, original_max_width=None, original_max_height=None)

# show exported images (first 10 imges)
ips.img.advanced_imshow(ray_imgs[:10], title=None, image_width=4, axis=False,
                        color_space="gray", cmap=None, cols=5, save_to=None,
                        hspace=0.2, wspace=0.2,
                        use_original_style=False, invert=False)

ISM:

reflection_map_per_time = ips.ism.compute_reflection_map(
    source_rel=(0.5, 0.5),
    img=ips.img.open(input_src),
    wall_values=[0],
    wall_thickness=1,
    max_order=1,
    step_px=1,
    iterative_tracking=True,
    iterative_steps=6,
)

ips.img.imshow(ips.ism.reflection_map_to_img(reflection_map_per_time[0]), size=5)

len_ = len(reflection_map_per_time)
ips.img.advanced_imshow([reflection_map_per_time[0], reflection_map_per_time[1], reflection_map_per_time[2],
                         reflection_map_per_time[3], reflection_map_per_time[4], reflection_map_per_time[5]],
                        title=None, image_width=4, axis=False,
                        color_space="gray", cmap=None, cols=3, save_to=None,
                        hspace=0.2, wspace=0.2,
                        use_original_style=False, invert=False)

Loading and saving:

Classical Rays

# saving
rays_saved = ips.ray_tracing.trace_beams(rel_position=[0.5, 0.5],
                                        img_src=img_src,
                                        directions_in_degree=ips.math.get_linear_degree_range(start=0, stop=360, step_size=10),
                                        wall_values=None,
                                        wall_thickness=1,
                                        img_border_also_collide=False,
                                        reflexion_order=1,
                                        should_scale_rays=True,
                                        should_scale_img=True)
ips.ray_tracing.print_rays_info(rays_saved)
ips.ray_tracing.save(path="./my_awesome_rays.txt", rays=rays_saved)

# loading
rays_loaded = ips.ray_tracing.open(path="./my_awesome_rays.txt")

Or you export the rays as image and save and load the image:

# compute rays
# ... (as before)

# export rays
# ... (as before)

# saving
ips.img.save(ray_img, "./cache_iterative_saving.png")

# loading
ray_img = ips.img.open("./cache_iterative_saving.png")

ISM

# saving
ips.img.save(reflection_map, "./cache_iterative_saving.png")

# loading
reflection_map = ips.img.open("./cache_iterative_saving.png")

Ray-Tracing Formats

In short:
Pixel-based + stochastic/directed (original approach here) vs. continuous + deterministically constructed (used by noise modelling software).

Classic Ray-Tracing Approach (DDA / Pixel Ray Marching)

• Forward integration: Ray is propagated step by step through a discrete grid (pixel/grid).
• Collision model: A "hit" occurs when the ray enters a wall cell (quantization).
• Reflection: Occurs locally at the collision pixel with a (often quantized) normal/orientation.
• Result: good for "many rays" / field of view, but not deterministic with regard to reflection paths (you need directions/sampling).

Noise Modeling Approach (image source method / geometric acoustics)

• Path construction: Reflection paths are constructed deterministically via mirror sources (virtual sources).
• Continuous geometry: works in $\mathbb{R}^2 / \mathbb{R}^3$ with lines/segments/polygons ("infinity-based" in the sense of continuous space, not raster).
• Validation: Path is then accepted/rejected via visibility/occlusion checks.
• Result: Delivers all specular paths up to order N without angle sampling.

Library Overview

• Img-Phy-Sim (ips)
  • ray_tracing
    • trace_beams: load an image, extract the wall-map and trace multiple beams
    • draw_rays: draw/export the rays as/inside an image
    • trace_and_draw_rays: combines trace_beams and draw_rays in order to get directly an image output
    • print_rays_info: get some interesting informations about your rays
    • save: save your rays as txt file
    • open: load your saved rays txt file
    • get_linear_degree_range: get a range for your beam-directions -> example beams between 0-360 with stepsize 10
    • merge_rays: merge 2 rays to one 'object'
  • ism
    • compute_reflection_map: Evaluates all valid ISM paths from one source to a receiver grid and accumulates path counts
    • reflection_map_to_img: Normalizes the reflection map from 0.0-1.0 to 0.0-255.0
  • img
    • open: load an image via Open-CV
    • save: save an image
    • imshow: show an single image (without much features)
    • advanced_imshow: show multiple images with many options
    • show_image_with_line_and_profile: show an image with a red line + the values of the image on this line
    • plot_image_with_values: plot an image with it's value plotted and averaged to see your image in values
  • math
    • get_linear_degree_range: generate evenly spaced degrees within a range
    • degree_to_vector: convert a degree angle to a 2D unit vector
    • vector_to_degree: convert a 2D vector into its corresponding degree
    • normalize_point: Normalize a 2D point to [0, 1] range
    • denormalize_point: Denormalize a 2D point to pixel coordinates
    • numpy_info: Get statistics about an numpy array
  • eval
    • calc_metrices: calculate F1, Recall and Precision between rays (or optinal an image) and an image
  • data
    • PhysGenDataset(): PyTorch dataset wrapper for PhysGen with flexible input/output configuration
    • resize_tensor_to_divisible_by_14: resize tensors so height and width are divisible by 14
    • get_dataloader: create a PyTorch DataLoader for the PhysGen dataset
    • get_image: retrieve a single dataset sample (optionally as NumPy arrays)
    • save_dataset: export PhysGen inputs and targets as PNG images to disk

That are not all functions but the ones which should be most useful. Check out the documentation for all functions.
