jaxterity 1.0.1

JAX-native robotics layer on top of Jaxonomy: URDF/MJCF import, calibrated actuators and sensors, system identification, whole-body control, and a layered code-as-policies API.

Jaxterity

JAX-native robotics — from a URDF to a calibrated, deployable robot model.

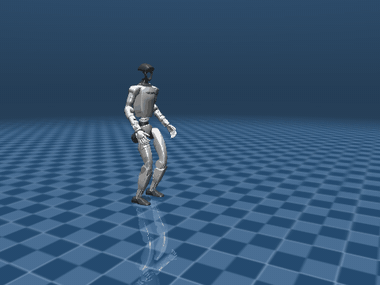

Unitree G1 — humanoid whole-body locomotion

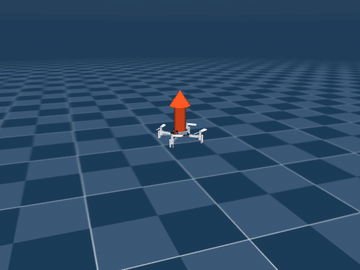

Crazyflie — quadrotor differentiable flight · vmap'd swarms

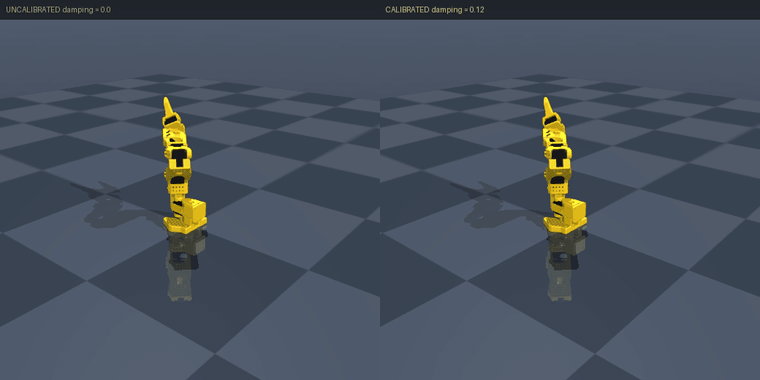

_{SO-101 arm · uncalibrated (overshoots)  ‖  calibrated to real telemetry (settles)}

Jaxterity turns a robot description (URDF/MJCF) into a differentiable simulation, calibrates that simulation against real hardware telemetry so it matches the physical machine, and carries one attested model all the way to embedded deployment. The model you tune is the model you ship — no sim-to-real model swap in the middle.

It is built on MJX (GPU/TPU MuJoCo) for articulated dynamics and on the Jaxonomy simulation engine, so every robot is a JAX program: jit-compilable, vmap-batchable, and differentiable end to end.

Why it's different

• One model, sim to silicon. A calibrated Robot hands off to Jaxility (the deployment compiler, forthcoming) as a single artifact. You design, calibrate, and deploy the same dynamics — not a sim model and a separate shipped model that quietly disagree.
• Calibrated to your actual unit. System identification fits the model to real telemetry — per-joint friction and damping, per-servo thermal behaviour, battery sag — so the simulation tracks the physical robot, down to the serial number. On a real SO-100/LeKiwi arm the identified plant predicts joint torque 16–45% better than the raw URDF on held-out data.
• Differentiable through contact. Calibration, control design, and learning all run on one differentiable model. Forward-mode autodiff differentiates through MJX's joint-limit and contact solver — where naive reverse-mode cannot — so you get exact parameter sensitivities for free.
• Predictive self-check. A per-unit digital twin forecasts off-body state a body-only physics model never sees — servo heat, bus voltage — and vetoes a command that would cook a servo or brown out the battery before it is sent, naming the binding constraint and the time to breach.
• Attested provenance. Every calibrated model carries a content-hash attestation handle: a stable fingerprint over its structure and fitted parameters, so you can prove which model produced which controller.

What's in the box

• Import — URDF/MJCF → a Robot with an MJX-backed differentiable model.
• Calibrate — forward-mode system identification of inertial, friction, and actuator parameters from telemetry, with covariance and provenance.
• Devices — calibrated actuator and sensor models (DC motor, servo, BLDC, harmonic drive, series-elastic; IMU, encoder, force/torque) you can fit and validate.
• Control — whole-body control primitives and a layered, agent-friendly "code-as-policies" API (raw torque → skills → high-level goals).
• Twins & safety — per-unit attested digital twins, a predictive self-check co-processor, a safety monitor (thermal / bus-voltage / torque limits), and pre-flight policy checks.
• Zoo — ready-to-run reference robots (cartpole, SO-100/SO-101 arm, Crazyflie, Unitree G1) with import + dynamics goldens.

Where it sits

Jaxonomy            Jaxterity                       Jaxility
(simulation     →   (this library:              →   (deployment compiler,
 engine)            robotics + calibration)         Arm SoC + attestation)

Jaxterity imports Jaxonomy for the general-purpose simulation primitives (Diagram, simulate, solvers, autodiff) and never re-implements them; it adds everything robot-specific on top.

Install

pip install jaxterity            # core
pip install "jaxterity[all]"     # optional extras (render, data, MCP, …)

Or from a clone, for development:

pip install -e ".[all,dev]"      # contributors / CI

Requires Python 3.11+ and pulls in Jaxonomy (the simulation engine) from PyPI. The render/zoo helpers use MuJoCo; no GPU is required to run the examples.

Quickstart

End-to-end system identification on a real arm — examples/sysid_so101.py: load the open-source SO-101 URDF, simulate it under gentle excitation to generate telemetry, then recover unknown joint damping from that telemetry with forward-mode autodiff (differentiating through MJX's joint-limit constraint solver), and emit a calibrated, attested Robot.

pip install -e ".[mujoco]"
python -m examples.sysid_so101

The whole pipeline in one file

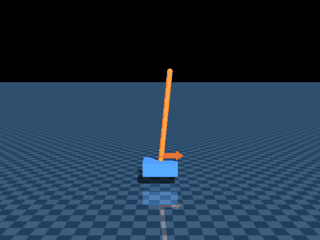

examples/nanojaxterity.py is the Karpathy-style end-to-end demo — top to bottom in a single readable file, no hidden machinery: load the cartpole with its committed calibration, build a fast functional MJX environment, train a small self-contained PPO agent to balance the pole, and check the result against a committed golden.

python -m examples.nanojaxterity

Deployment to embedded targets — the final leg of URDF → calibrate → train → ship — is handled downstream by Jaxility.

For a guided, visual walkthrough with MuJoCo animations, see the notebook examples/calibrate_so101.ipynb, and the tutorials index for one worked example per robot. A short mental model of how MJCF, MJX, and Jaxonomy fit together is in Jaxterity in one picture.

Maturity

1.0 covers a stable core: URDF/MJCF import, MJX-backed differentiable dynamics, forward-mode system identification, the reference zoo, the attestation handle, and the per-unit twin + predictive self-check stack — each backed by CI-green evidence in CLAIMS.md (some fit from real hardware telemetry).

Some subsystems are still filling in and are best treated as preview: the full whole-body-control stack (the primitives are here; the contact scheduler is not complete), the turnkey sysid-recipe catalogue, and complete actuator/sensor family coverage. Embedded deployment is owned by Jaxility, not this repo. Each of these is written down in KNOWN_GAPS.md, kept symmetric with the claims ledger. Read both before depending on a surface.

Development

bash scripts/check.sh   # ruff lint + format, mypy, pytest

License

MIT — see LICENSE.md.
