Project description

JBioSeqTools - python library

JBioSeqTools is the Python library for gene sequence downloading, optimization, structure prediction, vector building, and visualization

drawing

Author: Jakub Kubiś

Institute of Bioorganic Chemistry
Polish Academy of Sciences

Description

JBioSeqTools is the Python library for biological sequence optimization (GC % content & codon frequency), restriction places removal, DNA/RNA structure prediction, and RNAi selection. It also allows the building of many plasmid vectors with the possibility of choosing sequences such as transcript, promoter, enhancer, molecular fluorescent tag, etc. Finally, the user obtains a ready-for-order construct with a whole sequence and visualization.

Used databases:

Installation
Usage

seq_tools - part of the library containing sequence optimization, structure prediction, and visualization
1.1. Import part of library
1.2. Loading metadata
1.3. Downloading reference sequences with gene name
1.4. Downloading sequences with accession numbers
1.5. Creating FASTA format *.FASTA
1.6. Loading FASTA format from file *.FASTA
1.7. Writing to FASTA format *.FASTA
1.8. Conducting Multiple Alignments Analysis (MUSCLE) form FASTA
1.9. Display alignment plot
1.10. Decoding alignment file
1.11. Writing to ALIGN format *.ALIGN
1.12. Extracting consensus parts of alignments
1.13. Passing sequence from an external source
1.14. Clearing junk characters from the sequence
1.15. Checking that the sequence is coding protein (CDS)
1.16. Checking that all bases in sequence are contained in the UPAC code
1.17. Reversing the DNA / RNA sequence: 5' --> 3' and 3' --> 5'
1.18. Complementing the DNA / RNA second strand sequence
1.19. Changing DNA to RNA sequence
1.20. Changing RNA to DNA sequence
1.21. Changing DNA or RNA sequence to amino acid / protein sequence
1.22. Prediction of RNA / DNA sequence secondary structure
1.23. Prediction of RNAi on the provided sequence
1.24. Correcting of RNAi_data for complementarity to the loop sequence
1.25. Correcting of RNAi_data for complementarity to the additional external sequence
1.26. Codon optimization
1.27. Checking susceptibility to restriction enzymes
1.28. Checking and removing susceptibility to restriction enzymes
1.29. Sequence comparison (Interval Fold Change Estimation)
vector_build - part of the library containing building plasmid vectors with optimization elements from seq_tools
2.1. Import part of library
2.2. Creating vector plasmid
2.2.1 Creating expression of the plasmid vector
2.2.2 Creating RNAi / RNAi + expression of the plasmid vector
2.2.3 Creating plasmid vector of in-vitro transcription of mRNA
2.2.4 Creating plasmid vector of in-vitro transcription of RNAi
2.3. Creating sequence for synthesis de novo
2.3.5 Creating sequence prediction of mRNA for de novo synthesis
2.3.6 Creating sequence prediction of RNAi for de novo synthesisi
2.4. Creating vector plasmid from FASTA - display existing or custom editing FASTA file
2.4.1 Loading fasta from the file
2.4.2 Converting the FASTA string to the data frame
2.4.3 Decoding FASTA information
2.4.4 Creating graph of the plasmid vector
2.4.5 Writing FASTA format of the plasmid vector
2.4.6 Converting FASTA format to GeneBank format
2.4.7 Writing GeneBank format of the plasmid vector

Installation

In command line write:

pip install JBioSeqTools

During the first library loading additional requirements will be installed (BLAST, MUSCLE) and metadata downloaded.

Usage

1. seq_tools - part of the library containing sequence optimization, structure prediction, and visualization

1.1. Import part of library

from jbst import seq_tools as st

1.2. Loading metadata

metadata = st.load_metadata()

This function loads the metadata from library repository, which includes such elements like: 'codons', 'vectors', 'linkers', 'regulators', 'fluorescent_tag', 'backbone', 'promoters', 'restriction', 'polya_seq', 'selection_markers', 'rnai', 'capacity', 'utr5', 'utr3'.
These elements are necessary for algorithms, as well as, the database of regulatory genetic sequences for users to project vectors and other genetic therapeutics.

Args:

   Some metadata is not necessary for algorithms of plasmid vector creation, such as:

       linkers (bool) - linkers (sequences between coding sequences) and their  description, Default: True
       loops (bool) - loops (sequences for creating shRNA / siRNA) and their  description, Default: True
       regulators (bool) - regulators (regulatory sequence elements for expression enhancement) and their  description, Default: True
       fluorescent_tag (bool) - fluorescent_tag (sequences coding fluorescent proteins) and their  description, Default: True
       promoters (bool) - promoters (previously described promoter sequences for providing coding and non-coding sequence transcription) and their  description, Default: True
       polya (bool) - signal of polyadenylation sequences and their description, Default: True
       marker (bool) - selection marker sequences for bacterial selection by resistance to antibiotics and their description, Default: True
       utr5 (bool) - 5`UTR sequences and their  description, Default: True
       utr3 (bool) - 3`UTR sequences and their  description, Default: True

  If the user uses external sources for providing these sequences and names, it can be set to False and these metadata will not load and reduce RAM usage.

Returns:
    dict: Dictionary with the crucial set of metadata

1.3. Downloading reference sequences with gene name

data_dict = st.get_sequences_gene(gene_name, species = 'human', max_results = 20)

This function gets sequences from NCBI database based on gene name & species

Args:
    gene_name (str) - name of searching gene in the HGNC nomenclature
    species (str) - specie for which the gene sequence is searching (human / mouse / rat / both* / both2* / multi* / other**). Default: 'human'

        *both - gene sequences for Mus musculus and Homo sapiens
        *both2 - gene sequences for Rattus norvegicus and Homo sapiens
        *multi - gene sequences for Mus musculus, Rattus norvegicus, and Homo sapiens

        **other - the user can provide any species in Latin language via binomial nomenclature eg. Bos taurus, Zea mays, Sus scrofa, Danio rerio, Oryza sativa ...

    max_results (int) - number of maximal amount of results for the provided gene and species. Default: 20
    input_dict (dict) - dictionary of metadata provided by the user

Returns:
    dict: Dictionary including all sequence variants, their names, features, and IDs of provided gene

1.4. Downloading sequences with accession numbers

data_dict = st.get_sequences_accesion(accesion_list)

This function gets sequences from NCBI database based on accession numbers

Args:
   accesion_list (list) - accession numbers or number of searching sequences inside list eg. ['X81403.1', 'KJ890665.1']; ['KJ890665.1']


Returns:
    dict: Dictionary including all sequences from the provided query, their names, features, and IDs

1.5. Creating FASTA format *.FASTA

fasta_string = st.generate_fasta_string(data_dict)

This function trnasform dictionaries from get_sequences_accesion() or get_sequences_gene() into FASTA format.

Args:
   data_dict (dict) - dictionaries from get_sequences_accesion() or get_sequences_gene()


Returns:
    txt: FASTA format of input dictionary

1.6. Loading FASTA format from file *.FASTA

fasta_string = st.load_fasta(path)

This function finds and removes restriction places inside the sequence.

Args:
   path (str) - path to the FASTA file *.FASTA


Returns:
    str: Loaded FASTA file to the string object

1.7. Writing to FASTA format *.FASTA

st.write_fasta(fasta_string, path = None, name = 'fasta_file')

This function saves into FASTA *.fasta

Args:
    fasta_string (str/FASTA) - sequences provided in FASTA format from generate_fasta_string() or loaded from external sources
    path (str | None) - the path to save. If None save it to the current working directory. Default: None
    name (str) - the name of the saving file. Default: 'fasta_file'

1.8. Conducting Multiple Alignments Analysis (MUSCLE) form FASTA

alignment_file = st.MuscleMultipleSequenceAlignment(fasta_string, output = None, gapopen = 10, gapextend = 0.5)

This function conducts alignments of sequences provided in FASTA format

Args:
   fasta_string (str\FASTA) - sequences provided in FASTA format from generate_fasta_string() or loaded from external sources
   gapopen (int | float) -  description under the link provided below. Default: 10
   gapextend (int | float) - description under the link provided below. Default:  0.5
   output (str | None) - path to the TMP alignment file. If None then the current working directory and the TMP file are removed. Default: None

   More information in the source code of the primary function authors:
       - https://www.drive5.com/muscle/

Returns:
    txt: FASTA format of input dictionary

1.9. Display alignment plot

alignment_plot = st.DisplayAlignment(alignment_file, color_scheme="Taylor", wrap_length=80, show_grid=True, show_consensus=True)
alignment_plot.savefig("alignment_plot.svg")

This function makes the graphical presentation of the alignments

Args:
   alignment_file (Bio.Align.MultipleSeqAlignment class) - the output file from MuscleMultipleSequenceAlignment()
   color_scheme (str) - color palette for plotting. Default: "Taylor"
   wrap_length (int) - max number of nucleotides shown in a row on the graph. Default: 80
   show_grid (bool) - show the grid on the graph. Default: True
   show_consensus (bool) - highlight the consensus sequences. Default: True

   More information in the source code of the primary function authors:
       - https://pypi.org/project/pyMSAviz/

Returns:
    graph: The graphical presentation of sequences alignments

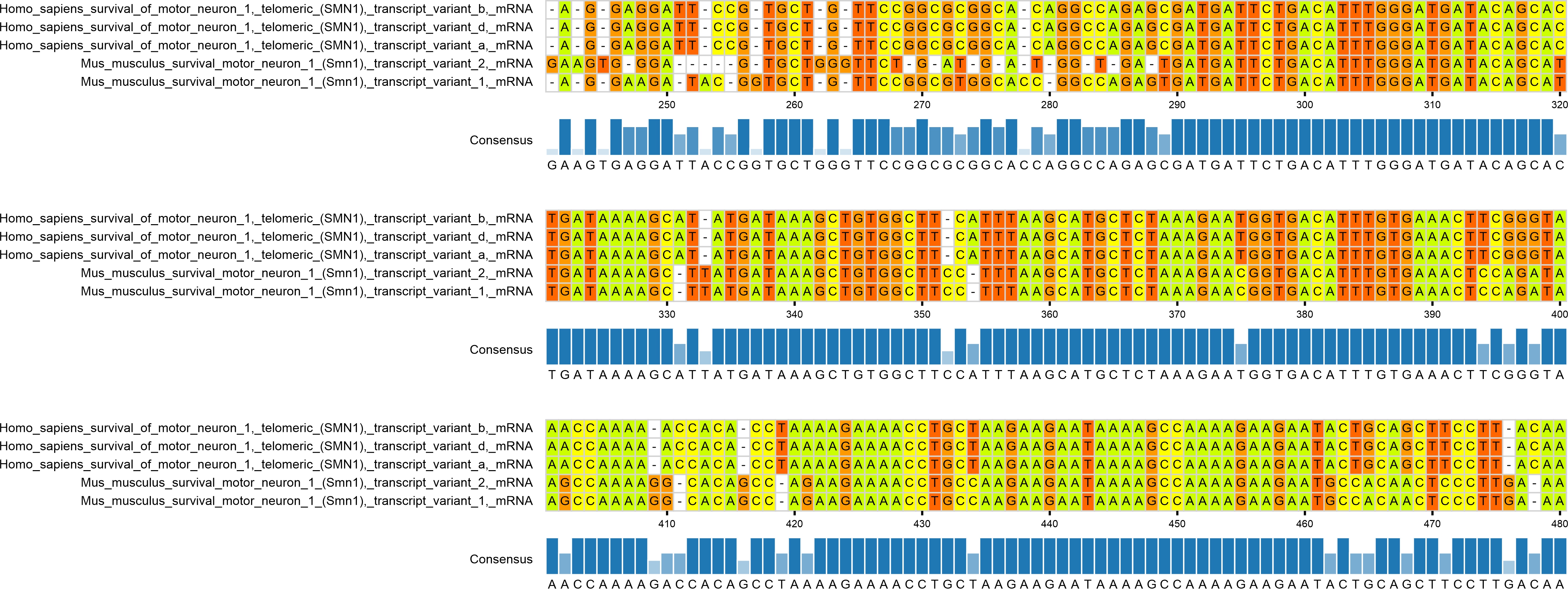

Example of the alignment graph:

drawing

1.10. Decoding alignment file

decoded_alignment_file = st.decode_alignments(alignment_file)

This function decodes the alignment file from MuscleMultipleSequenceAlignment() and converts it to FASTA-ALIGNMENT

Args:
   alignment_file (Bio.Align.MultipleSeqAlignment class) - the output file from MuscleMultipleSequenceAlignment()


Returns:
    txt: FASTA-ALIGNMENT format of input file

Example output:

print(decoded_alignment_file)

Homo_sapiens_survival_of_motor_neuron_1,_telomeric_(SMN1),_transcript_variant_b,_mRNA | -CCACAAATGTGGGAGGGCGATAACCACTCGTAG-AAAGCGTGAGAAGTTACTACAAGC-G-G-TCCTCCC--G-GCCACCG-TACT-G-TT-C--C-----GCTCC-C-AGAAGCC--C--CGGGCGGCGG-AAGTCGTCACTCTTAAGAAGGGACGGGGCCCCACGCTG-CGCACCCGCGGGT-TTGCTATGGCGATGAGCAGCGG-C-GGCAGTGG-TGGC-G-G-CGTCCCGGAGC-A-G-GAGGATT-CCG-TGCT-G-TTCCGGCGCGGCA-CAGGCCAGAGCGATGATTCTGACATTTGGGATGATACAGCACTGATAAAAGCAT-ATGATAAAGCTGTGGCTT-CATTTAAGCATGCTCTAAAGAATGGTGACATTTGTGAAACTTCGGGTAAACCAAAA-ACCACA-CCTAAAAGAAAACCTGCTAAGAAGAATAAAAGCCAAAAGAAGAATACTGCAGCTTCCTT-ACAACAGTGGAAAGTTGGG-GACAAATGTTCTGCCATTTGGTCAGAAGACGGTTGCATTTACCCAGCTACCATTGC-TTCAATTGATTTTAAGAGAGAAACCTGTGTTGTGGTTTACACTGGATATGGAAATAGAGAGGAGCAAAATC-TGTCCGATCTACTTTCCCCAATCTGTGAAGTAGCTAATAATATAGAACA-AA-ATGCTCAAGAGAATGAAAATGAAAGCCAAGTTT-CAACAGATGAA-AGTGAGA-ACT-C-C-AGGTCTC-CT-GGAAATAAATCAGATA-ACATCAAGCCCAAATCTGCTCCATGGAA-CTC-TTTTCTCCCTCCACCACCCCCC-ATGCCAGGGCCAAGACTGGGACCAGGAAAG--A--T--A-A-TT------C-C--C--C-C-A-C-----C-A-C--C--T---C-C-C--A---T---A---T-G-T--C--C-A-----------G------A-T---T-----C-------T--C---T---T----GA-T--------GATG---CTGATGCTTTGGG-AAGTATGTTAATTTCAT-GGTACATGAGTGGCTATCATACTGGCTATTATATGGGTTTCAGACAAAATCAAAAAGAAGGAAGGTGCTCACATTCCTTAAATTAAGG-AGAAATGCTGGCATAGAGCAGCACTAAATGAC-ACCACTAAAGAAACGAT-CAGAC-A-GATCT--GGA-ATGTGAAGCGTTATAGAAGATAACTGGCCTCATTTCTTCAAAATATCAAGTGTTGGGA-AAGAAAAAAGGA-AGTGGAATGGGTAACTCTTCTTGATTAAAAGTTATGTAATAAC-CAAAT-G-C-AATGTGAAATATTTTACTGGACTCTATTTTGAAAAACCATCTGTAAAAGAC-TGGGG-TGGGGGTGGGAGGCCAGCACGGTGGTGAGGCAGTTGAGAAAATTTGAATGTGGATTAG-ATTTTG-AATGATATTG-GATAATTATTGGTAATTTTATGAGCTGTGAG-AAGGGTGTTGTAGTTTATAAAAGACTGTCTTAATTTGCATACTTAAGCATTTAGGAATGAAGTGTTAGAGTGTCTTA-AAATGTTTCAAATGGTTTAA--CAAAATGTATGTGAGGCGTATGTGGCA-AAATGTTACAGAATCTAACTGGTGGACATGGCTGTTCATT-GTACTGTTT----TTTTCTATCTTCTATATG--TTTAAAAGTATATAATAAAAATATTTAATTTTTTTTTAAAAAAAAAAAAAAAAA----AA
Homo_sapiens_survival_of_motor_neuron_1,_telomeric_(SMN1),_transcript_variant_d,_mRNA | ----------------G-------C----------A---------------C--C---C-G-----C------G-G-----G-T--T----T----------GCT-----A----------T--G--G-C-G--A-T-G----------------A----G--C-A-G----CG-----GCG-G-----C-A----G-TG-------G-T--G-----G----C-G-G-CGTCCCGGAGC-A-G-GAGGATT-CCG-TGCT-G-TTCCGGCGCGGCA-CAGGCCAGAGCGATGATTCTGACATTTGGGATGATACAGCACTGATAAAAGCAT-ATGATAAAGCTGTGGCTT-CATTTAAGCATGCTCTAAAGAATGGTGACATTTGTGAAACTTCGGGTAAACCAAAA-ACCACA-CCTAAAAGAAAACCTGCTAAGAAGAATAAAAGCCAAAAGAAGAATACTGCAGCTTCCTT-ACAACAGTGGAAAGTTGGG-GACAAATGTTCTGCCATTTGGTCAGAAGACGGTTGCATTTACCCAGCTACCATTGC-TTCAATTGATTTTAAGAGAGAAACCTGTGTTGTGGTTTACACTGGATATGGAAATAGAGAGGAGCAAAATC-TGTCCGATCTACTTTCCCCAATCTGTGAAGTAGCTAATAATATAGAACA-AA-ATGCTCAAGAGAATGAAAATGAAAGCCAAGTTT-CAACAGATGAA-AGTGAGA-ACT-C-C-AGGTCTC-CT-GGAAATAAATCAGATA-ACATCAAGCCCAAATCTGCTCCATGGAA-CTC-TTTTCTCCCTCCACCACCCCCC-ATGCCAGGGCCAAGACTGGGACCAGGAAAGCCAGGTCTAAAATTCAATGGCCCACCACCGCCA-C-CGC-C-ACCACCAC-CACCCCACTTACTAT-C-ATGCTGGCTG-CCTCCATTTC-CTTCTGGACCACCAATAATTCCC-CCA-CCACCTCCCA--TATGT-CCAGA-T-TCTCTT-GATGATGCTGATGCTTTGGG-AAGTATGTTAATTTCAT-GGTACATGAGTGGCTATCATACTGGCTATTATATGGGTTTCAGACAAAATCAAAAAGAAGGAAGGTGCTCACATTCCTTAAATTAAGG-AGAAATGCTGGCATAGAGCAGCACTAAATGAC-ACCACTAAAGAAACGAT-CAGAC-A-GATCT--GGA-ATGTGAAGCGTTATAGAAGATAACTGGCCTCATTTCTTCAAAATATCAAGTGTTGGGA-AAGAAAAAAGGA-AGTGGAATGGGTAACTCTTCTTGATTAAAAGTTATGTAATAAC-CAAAT-G-C-AATGTGAAATATTTTACTGGACTCTATTTTGAAAAACCATCTGTAAAAGAC-TGGGG-TGGGGGTGGGAGGCCAGCACGGTGGTGAGGCAGTTGAGAAAATTTGAATGTGGATTAG-ATTTTG-AATGATATTG-GATAATTATTGGTAATTTTATGAGCTGTGAG-AAGGGTGTTGTAGTTTATAAAAGACTGTCTTAATTTGCATACTTAAGCATTTAGGAATGAAGTGTTAGAGTGTCTTA-AAATGTTTCAAATGGTTTAA--CAAAATGTATGTGAGGCGTATGTGGCA-AAATGTTACAGAATCTAACTGGTGGACATGGCTGTTCATT-GTACTGTTT----TTTTCTATCTTCTATATG--TTTAAAAGTATATAATAAAAATATTTAATTTTTTTTT------------A-A-AT-T-A-
Homo_sapiens_survival_of_motor_neuron_1,_telomeric_(SMN1),_transcript_variant_a,_mRNA | -CCACAAATGTGGGAGGGCGATAACCACTCGTAG-AAAGCGTGAGAAGTTACTACAAGC-G-G-TCCTCCC--G-GCCACCG-TACT-G-TT-C--C-----GCTCC-C-AGAAGCC--C--CGGGCGGCGG-AAGTCGTCACTCTTAAGAAGGGACGGGGCCCCACGCTG-CGCACCCGCGGGT-TTGCTATGGCGATGAGCAGCGG-C-GGCAGTGG-TGGC-G-G-CGTCCCGGAGC-A-G-GAGGATT-CCG-TGCT-G-TTCCGGCGCGGCA-CAGGCCAGAGCGATGATTCTGACATTTGGGATGATACAGCACTGATAAAAGCAT-ATGATAAAGCTGTGGCTT-CATTTAAGCATGCTCTAAAGAATGGTGACATTTGTGAAACTTCGGGTAAACCAAAA-ACCACA-CCTAAAAGAAAACCTGCTAAGAAGAATAAAAGCCAAAAGAAGAATACTGCAGCTTCCTT-ACAACAGTGGAAAGTTGGG-GACAAATGTTCTGCCATTTGGTCAGAAGACGGTTGCATTTACCCAGCTACCATTGC-TTCAATTGATTTTAAGAGAGAAACCTGTGTTGTGGTTTACACTGGATATGGAAATAGAGAGGAGCAAAATC-TGTCCGATCTACTTTCCCCAATCTGTGAAGTAGCTAATAATATAGAACA-AA-ATGCTCAAGAGAATGAAAATGAAAGCCAAGTTT-CAACAGATGAA-AGTGAGA-ACT-C-C-AGGTCTC-CT-GGAAATAAATCAGATA-ACATCAAGCCCAAATCTGCTCCATGGAA-CTC-TTTTCTCCCTCCACCACCCCCC-ATGCCAGGGCCAAGACTGGGACCAGGAAAGCCAGGTCTAAAATTCAATGGCCCACCACCGCCA-C-CGC-C-ACCACCAC-CACCCCACTTACTAT-C-ATGCTGGCTG-CCTCCATTTC-CTTCTGGACCACCAATAATTCCC-CCA-CCACCTCCCA--TATGT-CCAGA-T-TCTCTT-GATGATGCTGATGCTTTGGG-AAGTATGTTAATTTCAT-GGTACATGAGTGGCTATCATACTGGCTATTATAT--G-----GA-A-A-T----------------G---------C------T--GGCAT--A-G--AGC--A--GCA-C--TAAATGAC-ACCACTAAAGAAACGAT-CAGAC-A-GATCT--GGA-ATGTGAAGCGTTATAGAAGATAACTGGCCTCATTTCTTCAAAATATCAAGTGTTGGGA-AAGAAAAAAGGA-AGTGGAATGGGTAACTCTTCTTGATTAAAAGTTATGTAATAAC-CAAAT-G-C-AATGTGAAATATTTTACTGGACTCTATTTTGAAAAACCATCTGTAAAAGAC-TGGGG-TGGGGGTGGGAGGCCAGCACGGTGGTGAGGCAGTTGAGAAAATTTGAATGTGGATTAG-ATTTTG-AATGATATTG-GATAATTATTGGTAATTTTATGAGCTGTGAG-AAGGGTGTTGTAGTTTATAAAAGACTGTCTTAATTTGCATACTTAAGCATTTAGGAATGAAGTGTTAGAGTGTCTTA-AAATGTTTCAAATGGTTTAA--CAAAATGTATGTGAGGCGTATGTGGCA-AAATGTTACAGAATCTAACTGGTGGACATGGCTGTTCATT-GTACTGTTT----TTTTCTATCTTCTATATG--TTTAAAAGTATATAATAAAAATATTTAATTTTTTTTT------------A-A-A------
Mus_musculus_survival_motor_neuron_1_(Smn1),_transcript_variant_2,_mRNA               | G--AC---T-T-----G----TAACT-CTT-TAGCA--G--T--G---TT-CT-C---CTGTATTTCT-TTAAGTG--A--GTTATTAAATTCCTTCTTTATG-TCCTCTA----CCATCATC-A-TG-T-GAAA-T-G-C-TT-TT-A--A---AT-----CC-A-G--GTC-TA-C--C---TTTT-C-A--G-G-TG-----T-GTTAGG-A-T-GCC--CTG-GAC-T---GG-GCGAAGTG-GGA-----G-TGCTGGGTTCT-G-AT-G-A-T-GG-T-GA-TGATGATTCTGACATTTGGGATGATACAGCATTGATAAAAGC-TTATGATAAAGCTGTGGCTTCC-TTTAAGCATGCTCTAAAGAACGGTGACATTTGTGAAACTCCAGATAAGCCAAAAGG-CACAGCC-AGAAGAAAACCTGCCAAGAAGAATAAAAGCCAAAAGAAGAATGCCACAACTCCCTTGA-AACAGTGGAAAGTT-GGTGACAAGTGTTCTGCTGTTTGGTCAGAAGACGGCTGCATTTACCCAGCTACTATTACGTCC-ATTGACTTTAAGAGAGAAACCTGTGTCGTGGTTTATACTGGATATGGAAACAGAGAGGAGCAAAA-CTTATCTGACCTACTTTCCCCGACCTGTGAAGTAGCTAATAGTACAGAACAGAACA--CTC-AG-G-A-G-A-ATGAAAGTCAAGTTTCC-ACAGACG-ACAGTGA-ACACTCCTCCAGA--TCGCTCAGAAGT-AA--AG-CACACAGCAAGTCCAAAGCTGCTCCGTGG-ACCTCAT-TTCTTCCTCCACCA-CCCCCAATGCCAGGGTCAGGATTAGGACCAGGAAAGCCAGGTCTAAAATTCAACGGCCCGCCGCCGCCGCCTC-CACTACC-CC-CTC-CCCC-CTT-CC-TGCCGTGCTGGATGCCC-CCGTT-CCCTTCAGGACCACCAATAA-TCCCGCCACCC-CCTCCCATCT-C-TCCC-GACTGT--C-TGGATGACACTGATGCCCTGGGCA-GTATGCTAATCTC-TTGGTACATGAGTGGCTACCACACTGGCTACTATATGGGTTTCAGACAAAAT-A-A-A--A--AA---G--------------A--A-GG-A-A-A-G-T-GC-T----CA-C----A-T-ACAA--ATT-AAG-AA-G-TTCAG-CTCTG-TCTCAGGAGATG-G--G-G---T----G-T--C-GG--T-G-T-C--C----C-T---G-GTC-G-ACAAG-----A--ACA--G-A-C-G-T--CTC--CTCG-TC---A-TCA-GT-G-GACTC---TTGGCTAA-GTG-G-TG---T-C--G--TC-A-T-C--A-G-C-ATCT-C------CCC---GCT---G-TGGGA-GTC--CA---T--C----CA-TC-------C-T-AA-GT---C-AGCA----GCA--G--A--GCG-T-G-C-CTGG---------G-GC-GTGAGCA--G-T-T-G--G---A-G-G-GAC---C-------G-A--C-C-AG----T-GG-A-G---TG-T-GCGTGTC--GGAAG-G---C--A-G-TCT-ACCC---A-GT-CGTGA--C-T--G-AGCACAAATG-TGCA-A-T-T----G-T---CAT---T-TTC-TTAGCA-TG-TCAAGATTTT-TA---T-TA-ATGCCTTTAGAA-T-TA-AAT-AAAA-G-TC--C-T-TTTTT----------G-A-A-ATCTTG-
Mus_musculus_survival_motor_neuron_1_(Smn1),_transcript_variant_1,_mRNA               | ----------------G----T--C-A-T--T-G-A--G--T--GA-G---C--C---C-G-G---C-----A--G---C-G---------T-C--C-----G-T-------------------G--G-T----A---G-C--------------A--G-G-CC-ATG--G-CG-A-T-G-G-G-----C-A----G-TG-------G-C-GG-A---G----C-GGG-C-TC-C-GAGC-A-G-GAAGA-TAC-GGTGCT-G-TTCCGGCGTGGCACC-GGCCAGAGTGATGATTCTGACATTTGGGATGATACAGCATTGATAAAAGC-TTATGATAAAGCTGTGGCTTCC-TTTAAGCATGCTCTAAAGAACGGTGACATTTGTGAAACTCCAGATAAGCCAAAAGG-CACAGCC-AGAAGAAAACCTGCCAAGAAGAATAAAAGCCAAAAGAAGAATGCCACAACTCCCTTGA-AACAGTGGAAAGTT-GGTGACAAGTGTTCTGCTGTTTGGTCAGAAGACGGCTGCATTTACCCAGCTACTATTACGTCC-ATTGACTTTAAGAGAGAAACCTGTGTCGTGGTTTATACTGGATATGGAAACAGAGAGGAGCAAAA-CTTATCTGACCTACTTTCCCCGACCTGTGAAGTAGCTAATAGTACAGAACAGAACA--CTC-AG-G-A-G-A-ATGAAAGTCAAGTTTCC-ACAGACG-ACAGTGA-ACACTCCTCCAGA--TCGCTCAGAAGT-AA--AG-CACACAGCAAGTCCAAAGCTGCTCCGTGG-ACCTCAT-TTCTTCCTCCACCA-CCCCCAATGCCAGGGTCAGGATTAGGACCAGGAAAGCCAGGTCTAAAATTCAACGGCCCGCCGCCGCCGCCTC-CACTACC-CC-CTC-CCCC-CTT-CC-TGCCGTGCTGGATGCCC-CCGTT-CCCTTCAGGACCACCAATAA-TCCCGCCACCC-CCTCCCATCT-C-TCCC-GACTGT--C-TGGATGACACTGATGCCCTGGGCA-GTATGCTAATCTC-TTGGTACATGAGTGGCTACCACACTGGCTACTATATGGGTTTCAGACAAAAT-A-A-A--A--AA---G--------------A--A-GG-A-A-A-G-T-GC-T----CA-C----A-T-ACAA--ATT-AAG-AA-G-TTCAG-CTCTG-TCTCAGGAGATG-G--G-G---T----G-T--C-GG--T-G-T-C--C----C-T---G-GTC-G-ACAAG-----A--ACA--G-A-C-G-T--CTC--CTCG-TC---A-TCA-GT-G-GACTC---TTGGCTAA-GTG-G-TG---T-C--G--TC-A-T-C--A-G-C-ATCT-C------CCC---GCT---G-TGGGA-GTC--CA---T--C----CA-TC-------C-T-AA-GT---C-AGCA----GCA--G--A--GCG-T-G-C-CTGG---------G-GC-GTGAGCA--G-T-T-G--G---A-G-G-GAC---C-------G-A--C-C-AG----T-GG-A-G---TG-T-GCGTGTC--GGAAG-G---C--A-G-TCT-ACCC---A-GT-CGTGA--C-T--G-AGCACAAATG-TGCA-A-T-T----G-T---CAT---T-TTC-TTAGCA-TG-TCAAGATTTT-TA---T-TA-ATGCCTTTAGAA-T-TA-AAT-AAAA-G-TC--C-T-TTTTT----------G-A-A-ATCTTG-

1.11. Writing to ALIGN format *.ALIGN

st.write_alignments(decoded_alignment_file, path = None, name = 'alignments_file')

This function saves into FASTA-ALIGNMENT *.align

Args:
   decoded_alignment_file (str/FASTA) - sequences provided in FASTA format from decode_alignments()
   path (str | None) - the path to save. If None save it to the current working directory. Default: None
   name (str) - the name of the saving file. Default: 'alignments_file'

1.12. Extracting consensus parts of alignments

consensuse = st.ExtractConsensuse(alignment_file, refseq_sequences = None)

This function extracts consensus fragments of sequences alignments from alignment_file obtained in the MuscleMultipleSequence Alignment() function

Args:
   alignment_file (Bio.Align.MultipleSeqAlignment class) - the output file from MuscleMultipleSequenceAlignment()
   refseq_sequences (dict | None) - dictionary obtained from get_sequences_gene() or get_sequences_accesion(), which add additional information to results. If None results will be reduced to only consensus sequences.

Returns:
    dict: The dictionary containing consensus fragments

1.13. Passing sequence from an external source

sequence = st.load_sequence()

This function makes it easy to load the genetic sequences to variable


Returns:
    str: Input sequence in a variable

1.14. Clearing junk characters from the sequence

sequence = st.clear_sequence(sequence)

This function clear sequence from special characters, spaces, numbers that may be in the sequence when copied from external sources.

Args:
    sequence (str) - nucleotide sequence provided in UPAC code
    upac_code (list) - list of nucleotides in which the sequence is encoded. Default: ['A','C','T','G','N','M','R','W','S','Y','K','V','H','D','B','U', 'Ψ']

Returns:
    str: The genetic sequence after clearing

1.15. Checking that the sequence is coding protein (CDS)

dec_coding = st.check_coding(sequence)

This function checks that the input sequence belongs to the (CDS) coding sequence. Checkpoints include the start with ATG and include 3-nucleotide repeats.

Args:
    sequence (str) - nucleotide sequence provided in UPAC code

Returns:
    bool: True/False

1.16. Checking that all bases in sequence are contained in the UPAC code

dec_upac = st.check_upac(sequence)

This function checks that the input sequence elements are included in UPAC code.

Args:
    sequence (str) - nucleotide sequence provided in UPAC code
    upac_code (list) - list of nucleotides in which the sequence is encoded. Default: ['A','C','T','G','N','M','R','W','S','Y','K','V','H','D','B','U', 'Ψ']

Returns:
    bool: True/False

1.17. Reversing the DNA / RNA sequence: 5' --> 3' and 3' --> 5'

reversed_sequence = st.reverse(sequence)

This function reverses the input genetic sequence from 5' -> 3' to 3' -> 5' and opposite.

Args:
    sequence (str) - nucleotide sequence provided in UPAC code

Returns:
    str: The genetic sequence after reversing

1.18. Complementing the DNA / RNA second strand sequence

complementary_sequence = st.complement(sequence)

This function makes a complementary sequence to the input genetic sequence on the nucleotide pairs from the extended UPAC code.

Args:
    sequence (str) - nucleotide sequence provided in UPAC code

Returns:
    str: The complementary sequence

1.19. Changing DNA to RNA sequence

rna_sequence = st.dna_to_rna(sequence, enrichment= False)

This function changes the sequence from DNA format to RNA.

Args:
    sequence (str) - nucleotide sequence provided in UPAC code
    enrichment (bool) - If True, the nucleotides in the RNA sequence instead of uracil (U) will be replaced with pseudouridine (Ψ) (True/False). Default: False

Returns:
    str: The RNA sequence

1.20. Changing RNA to DNA sequence

dna_sequence = st.rna_to_dna(rna_sequence)

This function changes the sequence from RNA format to DNA.

Args:
    sequence (str) - nucleotide sequence provided in UPAC code

Returns:
    str: The DNA sequence

1.21. Changing DNA or RNA sequence to amino acid / protein sequence

protein_sequence = st.seuqence_to_protein(dna_sequence, metadata)

This function changes the sequence from (CDS) RNA or DNA format to protein sequence.

Args:
    sequence (str) - nucleotide sequence provided in UPAC code
    metadata (dict) - set of metadata loaded vie load_metadata()

Returns:
    str: The protein sequence

1.22. Prediction of RNA / DNA sequence secondary structure

figure, dot = predict_structure(sequence,
                  anty_sequence = '',
                  height=None,
                  width=None,
                  dis_alpha = 0.35,
                  seq_force = 27,
                  pair_force = 8,
                  show_plot = True)

figure.savefig('predicted_structure.svg')

Predict and visualize the secondary structure of RNA or DNA sequences.

The function uses the ViennaRNA package to fold a nucleotide sequence (or
a sequence with its complementary/antisense strand) and generates a
secondary structure in dot-bracket notation. The structure is visualized
as a network graph where nodes represent nucleotides and edges represent
base pairs and backbone connections.

Args:
    sequence (str): Nucleotide sequence in IUPAC notation (ATGC/U).
    anty_sequence (str, optional): Antisense/complementary sequence.
        If provided, duplex folding is performed instead of single-strand folding.
        Default is '' (single-strand folding).
    height (int | float | None, optional): Height of the figure in inches.
        If None, it is determined automatically based on sequence length.
    width (int | float | None, optional): Width of the figure in inches.
        If None, it is determined automatically based on sequence length.
    dis_alpha (float, optional): Adjustment factor (0–1) controlling the
        attraction of paired nucleotides in the visualization. Default is 0.35.
        - Recommended for short sequences (~25 nt): 0.35 (default).
        - Recommended for longer sequences (e.g. mRNA): ~0.1.

    seq_force (int, optional): Edge weight for base-pair connections
        in the layout algorithm. Default is 27.
    pair_force (int, optional): Edge weight for backbone connections
        in the layout algorithm. Default is 8.
        - Recommended for short sequences (~25 nt): 8 (default).
        - Recommended for longer sequences (e.g. mRNA): ~3.

    show_plot (bool, optional): If True, the plot is displayed.
        If False, the figure is returned without showing. Default is True.

Returns:
    tuple:
        - fig (matplotlib.figure.Figure): Generated Matplotlib figure object.
        - dot_bracket_structure (str): Predicted secondary structure in
          dot-bracket notation (e.g. "..((..))..").

Example of structure prediction graph:

shRNA

drawing

siRNA

drawing

mRNA

drawing

1.23. Prediction of RNAi on the provided sequence

RNAi_data =  st.FindRNAi(sequence, metadata, length = 23, n = 200, max_repeat_len = 3, max_off = 1, species = 'human', output = None, database_name = "refseq_select_rna",  evalue = 1e-3, outfmt =  5, word_size = 7, max_hsps = 20, reward = 1, penalty = -3, gapopen = 5, gapextend = 2, dust = "no", extension = 'xml')

Example of data frame output:

RNAi_name	RNAi_seq	target	e-value	bit_score	alignment_length	target_seq	target_gene_name	species	specificity	complemenatry_regions	complemenatry_pct	RNAi_sense	repeated_motif	repeated_motif_pct	score	GC%
RNAi_66	TGATTTTGTCTGAAACCCATATA	['Homo sapiens survival of motor neuron 1']	[2.07974e-05]	[46.087]	[23]	['TGATTTTGTCTGAAACCCATATA']	['SMN1']	['Homo sapiens']	1	['ATAT', 'TATA']	0.34782608695652173	TATATGGGTTTCAGACAAAATCA	['TTTT']	0.17	0.0	17.04
RNAi_11	TTGATTTTGTCTGAAACCCATAT	['Homo sapiens survival of motor neuron 1']	[2.07974e-05]	[46.087]	[23]	['TTGATTTTGTCTGAAACCCATAT']	['SMN1']	['Homo sapiens']	1	['ATAT']	0.17391304347826086	ATATGGGTTTCAGACAAAATCAA	['TTTTTT']	0.26	-3.0	17.04

Columns explanation:

RNAi_name - name added by algorithms in the course of searching and predicting RNAi's
RNAi_seq - the sequence of RNAi (reverse-complementary to a sequence that should be silenced)
target - name of the targeted sequence
e-value (expect value) - the probability of finding the observed alignment or a better one by random chance
bit_score - statistical measure that provides an indication of the significance of a sequence alignment
alignment_length - size of the alignment complementarity to the blasted sequence
target_seq - part of the blasted sequence complementary to the RNAi_seq (in the same rotation as RNAi)
target_gene_name - list of genes to which the RNAi is complementary
species - list of species to which the gene sequence is complementary
specificity - number of genes to which the RNAi is complementary
complemenatry_regions - complementary part of RNAi inside the RNAi sequence
complemenatry_pct - percent of complementary nucleotides inside RNAi
RNAi_sense - sense strand of RNAi (reverse-complement to the RNAi_seq)
repeated_motif - sequences with repeated sequences of the same nucleotide inside RNAi
repeated_motif_pct - percent of nucleotides from sequences with repeated sequences of the same nucleotide inside RNAi
score - algorithmically given points to particular RNAi sequences based on knowledge from previous works and papers:
-DOI:10.1093/nar/gkn902
-DOI:10.1093/nar/gkh247
-DOI:10.1038/nbt936
-DOI:10.1016/j.bbrc.2004.02.157
GC% - percent content of G and C nucleotides in RNAi sequence (best target between 35-55%)

1.24. Correcting of RNAi_data for complementarity to the loop sequence

RNAi_data = st.loop_complementary_adjustment(RNAi_data, loop_seq, min_length=3)

This function takes output DataFrame from Find RNAi() or remove_specific_to_sequence() reducing the RNAi score on their complementarity to the provided loop sequence.
It allows the choice of RNAi with better biological functionality.

Args:
   RNAi_data (DataFrame) - data frame obtained in the FindRNAi() or remove_specific_to_sequence() function
   loop_seq (str) - sequence of the loop in the UPAC code for siRNA / shRNA creation
   min_length (int) - min value of loop complementary nucleotides. Default: 3


Returns:
    DataFrame: Data frame containing predicted RNA sequence (sense / antisense), target, scores, and statistics corrected by reducing complementary to loop sequence.

Example of data frame output:

RNAi_name	RNAi_seq	target	e-value	bit_score	alignment_length	target_seq	target_gene_name	species	specificity	complemenatry_regions	complemenatry_pct	RNAi_sense	repeated_motif	repeated_motif_pct	score	GC%	sense_loop_complementary	sense_loop_complementary_pct	antisense_loop_complementary	antisense_loop_complementary_pct
RNAi_66	TGATTTTGTCTGAAACCCATATA	['Homo sapiens survival of motor neuron 1']	[2.07974e-05]	[46.087]	[23]	['TGATTTTGTCTGAAACCCATATA']	['SMN1']	['Homo sapiens']	1	['ATAT', 'TATA']	0.34782608695652173	TATATGGGTTTCAGACAAAATCA	['TTTT']	0.17	0.0	17.04	[]	0.0	[]	0.0
RNAi_11	TTGATTTTGTCTGAAACCCATAT	['Homo sapiens survival of motor neuron 1']	[2.07974e-05]	[46.087]	[23]	['TTGATTTTGTCTGAAACCCATAT']	['SMN1']	['Homo sapiens']	1	['ATAT']	0.17391304347826086	ATATGGGTTTCAGACAAAATCAA	['TTTTTT']	0.26	-3.0	17.04	[]	0.0	[]	0.0

Columns explanation:

RNAi_name - name added by algorithms in the course of searching and predicting RNAi's
RNAi_seq - the sequence of RNAi (reverse-complementary to a sequence that should be silenced)
target - name of the targeted sequence
e-value (expect value) - the probability of finding the observed alignment or a better one by random chance
bit_score - statistical measure that provides an indication of the significance of a sequence alignment
alignment_length - size of the alignment complementarity to the blasted sequence
target_seq - part of the blasted sequence complementary to the RNAi_seq (in the same rotation as RNAi)
target_gene_name - list of genes to which the RNAi is complementary
species - list of species to which the gene sequence is complementary
specificity - number of genes to which the RNAi is complementary
complemenatry_regions - complementary part of RNAi inside the RNAi sequence
complemenatry_pct - percent of complementary nucleotides inside RNAi
RNAi_sense - sense strand of RNAi (reverse-complement to the RNAi_seq)
repeated_motif - sequences with repeated sequences of the same nucleotide inside RNAi
repeated_motif_pct - percent of nucleotides from sequences with repeated sequences of the same nucleotide inside RNAi
score - algorithmically given points to particular RNAi sequences based on knowledge from previous works and papers:
-DOI:10.1093/nar/gkn902
-DOI:10.1093/nar/gkh247
-DOI:10.1038/nbt936
-DOI:10.1016/j.bbrc.2004.02.157
GC% - percent content of G and C nucleotides in RNAi sequence (best target between 35-55%)
sense_loop_complementary - part of sense strand RNAi complementary to the loop
sense_loop_complementary_pct - percent of nucleotides from the sense strand of RNAi complementary to the loop
antisense_loop_complementary - part of antisense strand RNAi complementary to the loop
antisense_loop_complementary_pct - percent of nucleotides from the antisense strand of RNAi complementary to the loop

1.25. Correcting of RNAi_data for complementarity to the additional external sequence

RNAi_data = st.remove_specific_to_sequence(RNAi_data, sequence, min_length=4)

This function takes output DataFrame from Find RNAi() or loop_complementary_adjustment() reducing the RNAi score on their complementarity to the provided external genetic sequence. eg sequence after codon optimization which is not included in NCBI ref_seq db.
It allows the choice of RNAi with better biological functionality.

Args:
   RNAi_data (DataFrame) - data frame obtained in the FindRNAi() or loop_complementary_adjustment() function
   sequences (list | str) - nucleotide sequence provided in UPAC code
   min_length (int) - min value of sequence complementary nucleotides. Default: 4


Returns:
    DataFrame: Data frame containing predicted RNA sequence (sense / antisense), target, scores, and statistics corrected by reducing complementary to another sequence.

Example of data frame output:

RNAi_name	RNAi_seq	target	e-value	bit_score	alignment_length	target_seq	target_gene_name	species	specificity	complemenatry_regions	complemenatry_pct	RNAi_sense	repeated_motif	repeated_motif_pct	score	GC%	sense_loop_complementary	sense_loop_complementary_pct	antisense_loop_complementary	antisense_loop_complementary_pct
RNAi_183	TTTGATTTTGTCTGAAACCCATA	['Homo sapiens survival of motor neuron 1']	[2.07974e-05]	[46.087]	[23]	['TTTGATTTTGTCTGAAACCCATA']	['SMN1']	['Homo sapiens']	1	[]	0.0	TATGGGTTTCAGACAAAATCAAA	['TTTTTTT']	0.3	0	17.04	[]	0.0	[]	0.0
RNAi_164	TTTTGATTTTGTCTGAAACCCAT	['Homo sapiens survival of motor neuron 1']	[2.07974e-05]	[46.087]	[23]	['TTTTGATTTTGTCTGAAACCCAT']	['SMN1']	['Homo sapiens']	1	[]	0.0	ATGGGTTTCAGACAAAATCAAAA	['TTTTTTTT']	0.35	1.0	17.04	[]	0.0	[]	0.0

Data reduced by RNAi records with too high complementarity of the provided sequence
Columns explanation as in the paragraphs 1.23 and / or 1.24

1.26. Codon optimization

optimized_data = st.codon_otymization(sequence, metadata, species = 'human')

This function optimize procided genetic sequence.

Args:
   sequence (str) - nucleotide sequence provided in UPAC (ATGC)
   metadata (dict) - set of metadata loaded vie load_metadata()
   species (str) - species for which the codons are optimized in the sequence (human / mouse / rat). Default: 'human'
   GC_pct (int) - desired GC content percentage of the optimized sequence. Default is 58.
   correct_rep (int) - codon repetition threshold for optimization (eg. CCCCCCC, AAAAAAA). Default is 7.


Returns:
    DataFrame: Data frame containing the optimized sequence / input sequence and their statistics

1.27. Checking susceptibility to restriction enzymes

all_restriction_places, reduced_restriction_places_with_indexes = st.check_restriction(sequence, metadata)

This function finds restriction places inside the sequence.

Args:
   sequence (str) - nucleotide sequence provided in UPAC (ATGC)
   metadata (dict) - set of metadata loaded vie load_metadata()


Returns:
    DataFrame: Data frame containing the restriction places and position of its occurrence in the provided genetic sequence
    DataFrame: Data frame containing the parsed information about restriction places and their indexes to mapping to the first DataFrame

1.28. Checking and removing susceptibility to restriction enzymes

repaired_sequence_data = st.sequence_restriction_removal(sequence, metadata, restriction_places = [], species = 'human')

This function finds and removes restriction places inside the sequence.

Args:
   sequence (str) - nucleotide sequence provided in UPAC (ATGC)
   metadata (dict) - set of metadata loaded vie load_metadata()
   restriction_places (list) - list of potential restriction places defined by the user to remove from the sequence. Default: []
       *if the user did not define (empty list []) the potential restriction places to remove, the algorithm checks all possible restriction places, present it to the user (print), and asks him to choose which should be removed by writing IDs in consol.
   species (str) - species for which the codons are exchanged to remove restriction places (human / mouse / rat). Default: 'human'

Returns:
    DataFrame: Data frame containing the sequence before restriction removal and sequence after restriction removal and their statistics

1.29. Sequence comparison (Interval Fold Change Estimation)

comparison = compare_sequences(sequence_1,
                    sequence_name_1,
                    sequence_2,
                    sequence_name_2,
                    sep = 1)

  Compares two character sequences and identifies differences at specified intervals.

  This function compares two input sequences (e.g., DNA, RNA, amino acids) character by character
  or in chunks of length `sep`. It returns a formatted text report showing the number of changes, the
  percentage of positions that differ, and a list of specific changes with their positions.

  Args:
      sequence_1 (str): The first sequence to compare.
      sequence_name_1 (str): A label or name for the first sequence (for display in the report).
      sequence_2 (str): The second sequence to compare.
      sequence_name_2 (str): A label or name for the second sequence (for display in the report).
      sep (int, optional): Comparison step size; the number of characters to compare at a time. Default is 1.

  Returns:
      str: A formatted textual report that includes:
      - Names of the compared sequences,
      - Number and percentage of positions with changes,
      - A table listing the positions and the specific changes in the format: `original -> new`.

2. vector_build - part of the library containing building plasmid vectors with optimization elements from seq_tools

2.1. Import part of library

from jbst import vector_build as vb

2.2. Creating vector plasmid

project = vb.vector_create_on_dict(metadata, input_dict, show_plot=True)

This function change provided by user metadata into three types of vector plasmids:
    -expression (artificial gene expression)
    -RNAi (silencing)
    -invitro transcription (used in mRNA vaccine, mRNA, RNAi, and peptides production)

in three types of delivery systems:
    -AAVs
    -lentiviruses
    -regular plasmid (for liposomes or other delivery systems)


Args:
   metadata (dict) - matadata loaded in the load_metadata() function
   input_dict (dict) - dictionary of metadata provided by the user


Examples:
    -expression vector
    -RNAi vector
    -in-vitro transcription:
        -RNAi
        -mRNA

    Avaiable on https://github.com/jkubis96/JBioSeqTools
    If you have any problem, don't hesitate to contact us!

Args
    show_plot (bool) - if True the plot will be displayed, if False only the graph will be returned to the project. Default: True


Returns:
    dict: Dictionary including all vector data (graphs, sequences, fasta) created based on user definition

2.2.1 Creating expression of the plasmid vector

Empty input dictionary schema:

input_dict = {

    # REQUIRED!
    # name of current project (defined by user)
    'project_name':''

    # REQUIRED!
    # avaiable of vector types (ssAAV / scAAV / lentiviral / regular)
    'vector_type':'',

    # REQUIRED!
    # in this case 'vector_function':'expression'
    'vector_function':'expression',

    # REQUIRED!
    # avaiable options (human / mouse / rat / both (mouse + human) / both2 (rat + human) / multi (mouse + rat + human))
    # 'both / both2 / multi' - creating vector function adjusted for all species taking into consideration most adjustments for Homo sapiens
    'species':'human',

    # list of coding sequences (CDS) provided to make expression from the vector
    # the CSD sequences the user can obtain from ...
    # amount of sequences is not restricted as the user must remember that the length of whole vector is limited
    # excide the relevant vector size can decrease vector working
    # if the user wants to not include any sequences only fluorescent_tag, provide ['']
    # sequences orientation 5' ---> 3' - sense
    'sequences':[''],
    # list of names of coding sequences
    # amount of names should be equal with amount of sequences
    # if provided no sequences, provide ['']
    'sequences_names':[''],

    # REQUIRED!
    # sequence of provided promoter
    # name and sequence the user can take from metadata['promoters'] (load_metadata())
    # for coding sequences the user should choose the promoter of coding genes (metadata['promoters']['type'] == 'coding')
    # sequence orientation 5' ---> 3' - sense
    'promoter_sequence':'',
    # REQUIRED!
    # name of provided promoter sequence
    'promoter_name':'',

    # OPTIONAL!
    # sequence of provided enhancer
    # name and sequence the user can take from metadata['regulators'] (load_metadata())
    # sequence orientation 5' ---> 3' - sense
    'regulator_sequence':'',
    # OPTIONAL!
    # name of provided enhancer sequence
    'regulator_name':'',

    # REQUIRED!
    # sequence of provided polyA signal
    # name and sequence the user can take from metadata['polya_seq'] (load_metadata())
    'polya_sequence':'',
    # REQUIRED!
    # name of provided polyA signal sequence
    'polya_name':'',


    # REQUIRED if more than one sequence of transcripts!
    # sequences of provided linkers
    # number of linkers_sequences should be equal number of sequences (transcripts) - 1. One linker for each pair of sequences.
    # name and sequence the user can take from metadata['linkers'] (load_metadata())
    # if the number of transcript sequences is equal 1 then provide empty list []
    # if the user wants to not provide any linkers between the transcript sequences, provide an empty string '' for each pair of transcripts where the user wants to avoid linker; empty strings '' provide inside the list ['']
    # sequence orientation 5' ---> 3' - sense
    'linkers_sequences':[''],
    # REQUIRED if more than one sequence!
    # names of provided linkers
    # if the number of transcript sequences is equal 1 then provide empty list []
    # if the user wants to not provide any linkers between the transcript sequences, provide an empty string '' for each pair of transcripts where the user wants to avoid linker; empty strings '' provide inside the list ['']
    'linkers_names':[''],

    # OPTIONAL!
    # sequence of provided fluorescent tag
    # name and sequence the user can take from metadata['fluorescent_tag'] (load_metadata())
    # if the user does not need fluorescent tag, provide ''
    # sequence orientation 5' ---> 3' - sense
    'fluorescence_sequence':'',
    # OPTIONAL!
    # name of provided fluorescent tag
    # if the user does not need fluorescent tag, provide ''
    'fluorescence_name':'',

    # WARNING! If the user wants to use an additional promoter for the fluorescent tag expression, provide data for fluorescence_promoter_sequence & fluorescence_polya_sequence!

    # OPTIONAL!
    # sequence of provided fluorescence promoter
    # name and sequence the user can take from metadata['promoters'] (load_metadata())
    # if the user does not need additional promoter for fluorescent tag, provide ''
    # sequence orientation 5' ---> 3' - sense
    'fluorescence_promoter_sequence':'',
    # OPTIONAL!
    # name of provided fluorescence promoter
    # if the user does not need additional promoter for fluorescent tag, provide ''
    'fluorescence_promoter_name':'',

    # OPTIONAL!
    # sequence of provided fluorescence polyA signal
    # name and sequence the user can take from metadata['polya_seq'] (load_metadata())
    # if the user does not need additional promoter for fluorescent tag, provide ''
    # sequence orientation 5' ---> 3' - sense
    'fluorescence_polya_sequence':'',
    # OPTIONAL!
    # name of provided fluorescence polyA signal
    # if the user does not need additional promoter for fluorescent tag, provide ''
    'fluorescence_polya_name':'',


    # WARNING! If provided sequences for transcripts (> 0) and do not need additional promoter for fluorescent tag, provide fluorescence_linker_sequence or provide empty string ''.

    # OPTIONAL!
    # sequence of provided fluorescence tag linker
    # name and sequence the user can take from metadata['linkers'] (load_metadata())
    # if the user has provided additional promoter, so the fluorescence_linker_sequence is not needed, provide ''
    # sequence orientation 5' ---> 3' - sense
    'fluorescence_linker_sequence':'',
    # OPTIONAL!
    # name of provided fluorescence tag linker
    # if the user has provided additional promoter, so the fluorescence_linker_sequence is not needed, provide ''
    'fluorescence_linker_name':'',

    # REQUIRED!
    # sequence of provided selection marker
    # name and sequence the user can take from metadata['selection_markers'] (load_metadata())
    # sequence orientation 5' ---> 3' - sense
    'selection_marker_sequence':'',
    # REQUIRED!
    # name of provided selection marker
    'selection_marker_name':'',

    # OPTIONAL!
    # restriction enzymes protection of transcript sequences
    # enzymes the user can take from metadata['restriction'] (load_metadata())
    # if do not need any restriction places protection, provide an empty list []
    'restriction_list':[],

    # REQUIRED!
    # available options (True / False)
    # decision; if the user wants the transcription sequences optimized based on the provided species
    'optimize':True,

      # REQUIRED; if optimize == True!
    # user-defined percent of GC% content in predicted/optimized sequence
    'transcript_GC':58,

    # REQUIRED; if optimize == True!
    # user-defined maximum number of consecutive repeats of a single nucleotide (A, C, T(U), G) in the predicted/optimized sequence, eg. AAAAAA
    'poly_len':7
}

Example dictionary:


input_dict = {

    'project_name':'test_expression',
    'vector_type':'ssAAV',
    'vector_function':'expression',
    'species':'human',
    'sequences':['ATGGCGATGAGCAGCGGCGGCAGTGGTGGCGGCGTCCCGGAGCAGGAGGATTCCGTGCTGTTCCGGCGCGGCACAGGCCAGAGCGATGATTCTGACATTTGGGATGATACAGCACTGATAAAAGCATATGATAAAGCTGTGGCTTCATTTAAGCATGCTCTAAAGAATGGTGACATTTGTGAAACTTCGGGTAAACCAAAAACCACACCTAAAAGAAAACCTGCTAAGAAGAATAAAAGCCAAAAGAAGAATACTGCAGCTTCCTTACAACAGTGGAAAGTTGGGGACAAATGTTCTGCCATTTGGTCAGAAGACGGTTGCATTTACCCAGCTACCATTGCTTCAATTGATTTTAAGAGAGAAACCTGTGTTGTGGTTTACACTGGATATGGAAATAGAGAGGAGCAAAATCTGTCCGATCTACTTTCCCCAATCTGTGAAGTAGCTAATAATATAGAACAAAATGCTCAAGAGAATGAAAATGAAAGCCAAGTTTCAACAGATGAAAGTGAGAACTCCAGGTCTCCTGGAAATAAATCAGATAACATCAAGCCCAAATCTGCTCCATGGAACTCTTTTCTCCCTCCACCACCCCCCATGCCAGGGCCAAGACTGGGACCAGGAAAGCCAGGTCTAAAATTCAATGGCCCACCACCGCCACCGCCACCACCACCACCCCACTTACTATCATGCTGGCTGCCTCCATTTCCTTCTGGACCACCAATAATTCCCCCACCACCTCCCATATGTCCAGATTCTCTTGATGATGCTGATGCTTTGGGAAGTATGTTAATTTCATGGTACATGAGTGGCTATCATACTGGCTATTATATGTTTCCTGAGGCCTCCCTAAAAGCCGAGCAGATGCCAGCACCATGCTTCCTGTAA',
                 'ATGGCGATGAGCAGCGGCGGCAGTGGTGGCGGCGTCCCGGAGCAGGAGGATTCCGTGCTGTTCCGGCGCGGCACAGGCCAGAGCGATGATTCTGACATTTGGGATGATACAGCACTGATAAAAGCATATGATAAAGCTGTGGCTTCATTTAAGCATGCTCTAAAGAATGGTGACATTTGTGAAACTTCGGGTAAACCAAAAACCACACCTAAAAGAAAACCTGCTAAGAAGAATAAAAGCCAAAAGAAGAATACTGCAGCTTCCTTACAACAGTGGAAAGTTGGGGACAAATGTTCTGCCATTTGGTCAGAAGACGGTTGCATTTACCCAGCTACCATTGCTTCAATTGATTTTAAGAGAGAAACCTGTGTTGTGGTTTACACTGGATATGGAAATAGAGAGGAGCAAAATCTGTCCGATCTACTTTCCCCAATCTGTGAAGTAGCTAATAATATAGAACAAAATGCTCAAGAGAATGAAAATGAAAGCCAAGTTTCAACAGATGAAAGTGAGAACTCCAGGTCTCCTGGAAATAAATCAGATAACATCAAGCCCAAATCTGCTCCATGGAACTCTTTTCTCCCTCCACCACCCCCCATGCCAGGGCCAAGACTGGGACCAGGAAAGCCAGGTCTAAAATTCAATGGCCCACCACCGCCACCGCCACCACCACCACCCCACTTACTATCATGCTGGCTGCCTCCATTTCCTTCTGGACCACCAATAATTCCCCCACCACCTCCCATATGTCCAGATTCTCTTGATGATGCTGATGCTTTGGGAAGTATGTTAATTTCATGGTACATGAGTGGCTATCATACTGGCTATTATATGTTTCCTGAGGCCTCCCTAAAAGCCGAGCAGATGCCAGCACCATGCTTCCTGTAA'],
    'sequences_names':['SMN1','SMN2'],
    'promoter_sequence':'GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT',
    'promoter_name':'TBG',
    'regulator_sequence':'CGATAATCAACCTCTGGATTACAAAATTTGTGAAAGATTGACTGGTATTCTTAACTATGTTGCTCCTTTTACGCTATGTGGATACGCTGCTTTAATGCCTTTGTATCATGCTATTGCTTCCCGTATGGCTTTCATTTTCTCCTCCTTGTATAAATCCTGGTTGCTGTCTCTTTATGAGGAGTTGTGGCCCGTTGTCAGGCAACGTGGCGTGGTGTGCACTGTGTTTGCTGACGCAACCCCCACTGGTTGGGGCATTGCCACCACCTGTCAGCTCCTTTCCGGGACTTTCGCTTTCCCCCTCCCTATTGCCACGGCGGAACTCATCGCCGCCTGCCTTGCCCGCTGCTGGACAGGGGCTCGGCTGTTGGGCACTGACAATTCCGTGGTGTTGTCGGGGAAGCTGACGTCCTTTCCATGGCTGCTCGCCTGTGTTGCCACCTGGATTCTGCGCGGGACGTCCTTCTGCTACGTCCCTTCGGCCCTCAATCCAGCGGACCTTCCTTCCCGCGGCCTGCTGCCGGCTCTGCGGCCTCTTCCGCGTCTTCGCCTTCGCCCTCAGACGAGTCGGATCTCCCTTTGGGCCGCCTCCCCGCATCGG',
    'regulator_name':'WPRE',
    'polya_sequence':'CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA',
    'polya_name':'SV40_late',
    'linkers_sequences':['GGAAGCGGAGAGGGCAGGGGAAGTCTTCTAACATGCGGGGACGTGGAGGAAAATCCCGGCCCC'],
    'linkers_names':['T2A'],
    'fluorescence_sequence':'ATGGTGAGCAAGGGCGAGGAGCTGTTCACCGGGGTGGTGCCCATCCTGGTCGAGCTGGACGGCGACGTAAACGGCCACAAGTTCAGCGTGTCCGGCGAGGGCGAGGGCGATGCCACCTACGGCAAGCTGACCCTGAAGTTCATCTGCACCACCGGCAAGCTGCCCGTGCCCTGGCCCACCCTCGTGACCACCCTGACCTACGGCGTGCAGTGCTTCAGCCGCTACCCCGACCACATGAAGCAGCACGACTTCTTCAAGTCCGCCATGCCCGAAGGCTACGTCCAGGAGCGCACCATCTTCTTCAAGGACGACGGCAACTACAAGACCCGCGCCGAGGTGAAGTTCGAGGGCGACACCCTGGTGAACCGCATCGAGCTGAAGGGCATCGACTTCAAGGAGGACGGCAACATCCTGGGGCACAAGCTGGAGTACAACTACAACAGCCACAACGTCTATATCATGGCCGACAAGCAGAAGAACGGCATCAAGGTGAACTTCAAGATCCGCCACAACATCGAGGACGGCAGCGTGCAGCTCGCCGACCACTACCAGCAGAACACCCCCATCGGCGACGGCCCCGTGCTGCTGCCCGACAACCACTACCTGAGCACCCAGTCCGCCCTGAGCAAAGACCCCAACGAGAAGCGCGATCACATGGTCCTGCTGGAGTTCGTGACCGCCGCCGGGATCACTCTCGGCATGGACGAGCTGTACAAGTAA',
    'fluorescence_name':'EGFP',
    'fluorescence_promoter_sequence':'CTCGACATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGGGTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCCGCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCATAGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGCCCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTACGCCCCCTATTGACGTCAATGACGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTATGGGACTTTCCTACTTGGCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTCGAGGTGAGCCCCACGTTCTGCTTCACTCTCCCCATCTCCCCCCCCTCCCCACCCCCAATTTTGTATTTATTTATTTTTTAATTATTTTGTGCAGCGATGGGGGCGGGGGGGGGGGGGGGGCGCGCGCCAGGCGGGGCGGGGCGGGGCGAGGGGCGGGGCGGGGCGAGGCGGAGAGGTGCGGCGGCAGCCAATCAGAGCGGCGCGCTCCGAAAGTTTCCTTTTATGGCGAGGCGGCGGCGGCGGCGGCCCTATAAAAAGCGAAGCGCGCGGCGGGCGGGAGTCGCTGCGCGCTGCCTTCGCCCCGTGCCCCGCTCCGCCGCCGCCTCGCGCCGCCCGCCCCGGCTCTGACTGACCGCGTTACTCCCACAGGTGAGCGGGCGGGACGGCCCTTCTCCTCCGGGCTGTAATTAGCGCTTGGTTTAATGACGGCTTGTTTCTTTTCTGTGGCTGCGTGAAAGCCTTGAGGGGCTCCGGGAGGGCCCTTTGTGCGGGGGGAGCGGCTCGGGGGGTGCGTGCGTGTGTGTGTGCGTGGGGAGCGCCGCGTGCGGCTCCGCGCTGCCCGGCGGCTGTGAGCGCTGCGGGCGCGGCGCGGGGCTTTGTGCGCTCCGCAGTGTGCGCGAGGGGAGCGCGGCCGGGGGCGGTGCCCCGCGGTGCGGGGGGGGCTGCGAGGGGAACAAAGGCTGCGTGCGGGGTGTGTGCGTGGGGGGGTGAGCAGGGGGTGTGGGCGCGTCGGTCGGGCTGCAACCCCCCCTGCACCCCCCTCCCCGAGTTGCTGAGCACGGCCCGGCTTCGGGTGCGGGGCTCCGTACGGGGCGTGGCGCGGGGCTCGCCGTGCCGGGCGGGGGGTGGCGGCAGGTGGGGGTGCCGGGCGGGGCGGGGCCGCCTCGGGCCGGGGAGGGCTCGGGGGAGGGGCGCGGCGGCCCCCGGAGCGCCGGCGGCTGTCGAGGCGCGGCGAGCCGCAGCCATTGCCTTTTATGGTAATCGTGCGAGAGGGCGCAGGGACTTCCTTTGTCCCAAATCTGTGCGGAGCCGAAATCTGGGAGGCGCCGCCGCACCCCCTCTAGCGGGCGCGGGGCGAAGCGGTGCGGCGCCGGCAGGAAGGAAATGGGCGGGGAGGGCCTTCGTGCGTCGCCGCGCCGCCGTCCCCTTCTCCCTCTCCAGCCTCGGGGCTGTCCGCGGGGGGACGGCTGCCTTCGGGGGGGACGGGGCAGGGCGGGGTTCGGCTTCTGGCGTGTGACCGGCGGCTCTAGAGCCTCTGCTAACCATGTTCATGCCTTCTTCTTTTTCCTACAGCTCCTGGGCAACGTGCTGGTTATTGTGCTGTCTCATCATTTTGGCAAAGAATTG',
    'fluorescence_promoter_name':'CAG',
    'fluorescence_polya_sequence':'CTGTGCCTTCTAGTTGCCAGCCATCTGTTGTTTGCCCCTCCCCCGTGCCTTCCTTGACCCTGGAAGGTGCCACTCCCACTGTCCTTTCCTAATAAAATGAGGAAATTGCATCGCATTGTCTGAGTAGGTGTCATTCTATTCTGGGGGGTGGGGTGGGGCAGGACAGCAAGGGGGAGGATTGGGAAGAGAATAGCAGGCATGCTGGGGA',
    'fluorescence_polya_name':'bGH',
    'fluorescence_linker_sequence':'GGAAGCGGAGAGGGCAGGGGAAGTCTTCTAACATGCGGGGACGTGGAGGAAAATCCCGGCCCC',
    'fluorescence_linker_name':'T2A',
    'selection_marker_sequence':'ATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA',
    'selection_marker_name':'Ampicillin',
    'restriction_list':['RsaI', 'MnlI', 'AciI', 'AluI', 'BmrI'],
    'optimize':True,
    'transcript_GC':58,
    'poly_len':7
}

Output:

# Name of the project
project['project']

# Graph of the designed vector
vector_plot = project['vector']['graph']
vector_plot.savefig('expression_vector.svg')

Example return:

drawing

# Complete FASTA file of the designed vecotr
project['vector']['full_fasta']

Example return:

>test_expression_ssAAV_expression_8780nc
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCTTCTAGACAACTTTGTATAGAAAAGTTGGGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGATCAAGTTTGTACAAAAAAGCAGGCTGCCACCATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGGGAAGCGGAGAGGGCAGGGGAAGTCTTCTAACATGCGGGGACGTGGAGGAAAATCCCGGCCCCATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGTGACAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTACTCGACATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGGGTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCCGCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCATAGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGCCCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTACGCCCCCTATTGACGTCAATGACGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTATGGGACTTTCCTACTTGGCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTCGAGGTGAGCCCCACGTTCTGCTTCACTCTCCCCATCTCCCCCCCCTCCCCACCCCCAATTTTGTATTTATTTATTTTTTAATTATTTTGTGCAGCGATGGGGGCGGGGGGGGGGGGGGGGCGCGCGCCAGGCGGGGCGGGGCGGGGCGAGGGGCGGGGCGGGGCGAGGCGGAGAGGTGCGGCGGCAGCCAATCAGAGCGGCGCGCTCCGAAAGTTTCCTTTTATGGCGAGGCGGCGGCGGCGGCGGCCCTATAAAAAGCGAAGCGCGCGGCGGGCGGGAGTCGCTGCGCGCTGCCTTCGCCCCGTGCCCCGCTCCGCCGCCGCCTCGCGCCGCCCGCCCCGGCTCTGACTGACCGCGTTACTCCCACAGGTGAGCGGGCGGGACGGCCCTTCTCCTCCGGGCTGTAATTAGCGCTTGGTTTAATGACGGCTTGTTTCTTTTCTGTGGCTGCGTGAAAGCCTTGAGGGGCTCCGGGAGGGCCCTTTGTGCGGGGGGAGCGGCTCGGGGGGTGCGTGCGTGTGTGTGTGCGTGGGGAGCGCCGCGTGCGGCTCCGCGCTGCCCGGCGGCTGTGAGCGCTGCGGGCGCGGCGCGGGGCTTTGTGCGCTCCGCAGTGTGCGCGAGGGGAGCGCGGCCGGGGGCGGTGCCCCGCGGTGCGGGGGGGGCTGCGAGGGGAACAAAGGCTGCGTGCGGGGTGTGTGCGTGGGGGGGTGAGCAGGGGGTGTGGGCGCGTCGGTCGGGCTGCAACCCCCCCTGCACCCCCCTCCCCGAGTTGCTGAGCACGGCCCGGCTTCGGGTGCGGGGCTCCGTACGGGGCGTGGCGCGGGGCTCGCCGTGCCGGGCGGGGGGTGGCGGCAGGTGGGGGTGCCGGGCGGGGCGGGGCCGCCTCGGGCCGGGGAGGGCTCGGGGGAGGGGCGCGGCGGCCCCCGGAGCGCCGGCGGCTGTCGAGGCGCGGCGAGCCGCAGCCATTGCCTTTTATGGTAATCGTGCGAGAGGGCGCAGGGACTTCCTTTGTCCCAAATCTGTGCGGAGCCGAAATCTGGGAGGCGCCGCCGCACCCCCTCTAGCGGGCGCGGGGCGAAGCGGTGCGGCGCCGGCAGGAAGGAAATGGGCGGGGAGGGCCTTCGTGCGTCGCCGCGCCGCCGTCCCCTTCTCCCTCTCCAGCCTCGGGGCTGTCCGCGGGGGGACGGCTGCCTTCGGGGGGGACGGGGCAGGGCGGGGTTCGGCTTCTGGCGTGTGACCGGCGGCTCTAGAGCCTCTGCTAACCATGTTCATGCCTTCTTCTTTTTCCTACAGCTCCTGGGCAACGTGCTGGTTATTGTGCTGTCTCATCATTTTGGCAAAGAATTGATGGTGAGCAAGGGCGAGGAGCTGTTCACCGGGGTGGTGCCCATCCTGGTCGAGCTGGACGGCGACGTAAACGGCCACAAGTTCAGCGTGTCCGGCGAGGGCGAGGGCGATGCCACCTACGGCAAGCTGACCCTGAAGTTCATCTGCACCACCGGCAAGCTGCCCGTGCCCTGGCCCACCCTCGTGACCACCCTGACCTACGGCGTGCAGTGCTTCAGCCGCTACCCCGACCACATGAAGCAGCACGACTTCTTCAAGTCCGCCATGCCCGAAGGCTACGTCCAGGAGCGCACCATCTTCTTCAAGGACGACGGCAACTACAAGACCCGCGCCGAGGTGAAGTTCGAGGGCGACACCCTGGTGAACCGCATCGAGCTGAAGGGCATCGACTTCAAGGAGGACGGCAACATCCTGGGGCACAAGCTGGAGTACAACTACAACAGCCACAACGTCTATATCATGGCCGACAAGCAGAAGAACGGCATCAAGGTGAACTTCAAGATCCGCCACAACATCGAGGACGGCAGCGTGCAGCTCGCCGACCACTACCAGCAGAACACCCCCATCGGCGACGGCCCCGTGCTGCTGCCCGACAACCACTACCTGAGCACCCAGTCCGCCCTGAGCAAAGACCCCAACGAGAAGCGCGATCACATGGTCCTGCTGGAGTTCGTGACCGCCGCCGGGATCACTCTCGGCATGGACGAGCTGTACAAGTAAACCCAGCTTTCTTGTACAAAGTGGGAATTCCGATAATCAACCTCTGGATTACAAAATTTGTGAAAGATTGACTGGTATTCTTAACTATGTTGCTCCTTTTACGCTATGTGGATACGCTGCTTTAATGCCTTTGTATCATGCTATTGCTTCCCGTATGGCTTTCATTTTCTCCTCCTTGTATAAATCCTGGTTGCTGTCTCTTTATGAGGAGTTGTGGCCCGTTGTCAGGCAACGTGGCGTGGTGTGCACTGTGTTTGCTGACGCAACCCCCACTGGTTGGGGCATTGCCACCACCTGTCAGCTCCTTTCCGGGACTTTCGCTTTCCCCCTCCCTATTGCCACGGCGGAACTCATCGCCGCCTGCCTTGCCCGCTGCTGGACAGGGGCTCGGCTGTTGGGCACTGACAATTCCGTGGTGTTGTCGGGGAAGCTGACGTCCTTTCCATGGCTGCTCGCCTGTGTTGCCACCTGGATTCTGCGCGGGACGTCCTTCTGCTACGTCCCTTCGGCCCTCAATCCAGCGGACCTTCCTTCCCGCGGCCTGCTGCCGGCTCTGCGGCCTCTTCCGCGTCTTCGCCTTCGCCCTCAGACGAGTCGGATCTCCCTTTGGGCCGCCTCCCCGCATCGGGAATTCCTAGAGCTCGCTGATCAGCCTCGACTGTGCCTTCTAGTTGCCAGCCATCTGTTGTTTGCCCCTCCCCCGTGCCTTCCTTGACCCTGGAAGGTGCCACTCCCACTGTCCTTTCCTAATAAAATGAGGAAATTGCATCGCATTGTCTGAGTAGGTGTCATTCTATTCTGGGGGGTGGGGTGGGGCAGGACAGCAAGGGGGAGGATTGGGAAGAGAATAGCAGGCATGCTGGGGAGGGCCGCCTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCTCTGCCTGCAGGGGCGCCTGATGCGGTATTTTCTCCTTACGCATCTGTGCGGTATTTCACACCGCATACGTCAAAGCAACCATAGTACGCGCCCTGTAGCGGCGCATTAAGCGCGGCGGGGGTGGTGGTTACGCGCAGCGTGACCGCTACACTTGCCAGCGCCTTAGCGCCCGCTCCTTTCGCTTTCTTCCCTTCCTTTCTCGCCACGTTCGCCGGCTTTCCCCGTCAAGCTCTAAATCGGGGGCTCCCTTTAGGGTTCCGATTTAGTGCTTTACGGCACCTCGACCCCAAAAAACTTGATTTGGGTGATGGTTCACGTAGTGGGCCATCGCCCTGATAGACGGTTTTTCGCCCTTTGACGTTGGAGTCCACGTTCTTTAATAGTGGACTCTTGTTCCAAACTGGAACAACACTCAACTCTATCTCGGGCTATTCTTTTGATTTATAAGGGATTTTGCCGATTTCGGTCTATTGGTTAAAAAATGAGCTGATTTAACAAAAATTTAACGCGAATTTTAACAAAATATTAACGTTTACAATTTTATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTTAAGCCAGCCCCGACACCCGCCAACACCCGCTGACGCGCCCTGACGGGCTTGTCTGCTCCCGGCATCCGCTTACAGACAAGCTGTGACCGTCTCCGGGAGCTGCATGTGTCAGAGGTTTTCACCGTCATCACCGAAACGCGCGAGACGAAAGGGCCTCGTGATACGCCTATTTTTATAGGTTAATGTCATGATAATAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAACTGTCAGACCAAGTTTACTCATATATACTTTAGATTGATTTAAAACTTCATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAATCTCATGACCAAAATCCCTTAACGTGAGTTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGATCAAAGGATCTTCTTGAGATCCTTTTTTTCTGCGCGTAATCTGCTGCTTGCAAACAAAAAAACCACCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCAACTCTTTTTCCGAAGGTAACTGGCTTCAGCAGAGCGCAGATACCAAATACTGTTCTTCTAGTGTAGCCGTAGTTAGGCCACCACTTCAAGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCTGCTGCCAGTGGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGGTCGGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGATACCTACAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCGGTAAGCGGCAGGGTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCTTTATAGTCCTGTCGGGTTTCGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGGGGCGGAGCCTATGGAAAAACGCCAGCAACGCGGCCTTTTTACGGTTCCTGGCCTTTTGCTGGCCTTTTGCTCACATGTCCTGCAGGCAG

# The FASTA file is divided into particular elements of the designed vector
project['vector']['fasta']

Example return:

# test_expression_ssAAV_expression_8780nc

>5`ITR
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCT
>backbone_element
TCTAGACAACTTTGTATAGAAAAGTTG
>Promoter : TBG
GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT
>backbone_element
CAAGTTTGTACAAAAAAGCAGGCT
>Kozak_sequence
GCCACC
>SEQ1 : SMN1
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTG
>Linker_1 : T2A
GGAAGCGGAGAGGGCAGGGGAAGTCTTCTAACATGCGGGGACGTGGAGGAAAATCCCGGCCCC
>SEQ2 : SMN2
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGTGA
>PolyA_signal : SV40_late
CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA
>2nd_promoter : CAG
CTCGACATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGGGTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCCGCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCATAGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGCCCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTACGCCCCCTATTGACGTCAATGACGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTATGGGACTTTCCTACTTGGCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTCGAGGTGAGCCCCACGTTCTGCTTCACTCTCCCCATCTCCCCCCCCTCCCCACCCCCAATTTTGTATTTATTTATTTTTTAATTATTTTGTGCAGCGATGGGGGCGGGGGGGGGGGGGGGGCGCGCGCCAGGCGGGGCGGGGCGGGGCGAGGGGCGGGGCGGGGCGAGGCGGAGAGGTGCGGCGGCAGCCAATCAGAGCGGCGCGCTCCGAAAGTTTCCTTTTATGGCGAGGCGGCGGCGGCGGCGGCCCTATAAAAAGCGAAGCGCGCGGCGGGCGGGAGTCGCTGCGCGCTGCCTTCGCCCCGTGCCCCGCTCCGCCGCCGCCTCGCGCCGCCCGCCCCGGCTCTGACTGACCGCGTTACTCCCACAGGTGAGCGGGCGGGACGGCCCTTCTCCTCCGGGCTGTAATTAGCGCTTGGTTTAATGACGGCTTGTTTCTTTTCTGTGGCTGCGTGAAAGCCTTGAGGGGCTCCGGGAGGGCCCTTTGTGCGGGGGGAGCGGCTCGGGGGGTGCGTGCGTGTGTGTGTGCGTGGGGAGCGCCGCGTGCGGCTCCGCGCTGCCCGGCGGCTGTGAGCGCTGCGGGCGCGGCGCGGGGCTTTGTGCGCTCCGCAGTGTGCGCGAGGGGAGCGCGGCCGGGGGCGGTGCCCCGCGGTGCGGGGGGGGCTGCGAGGGGAACAAAGGCTGCGTGCGGGGTGTGTGCGTGGGGGGGTGAGCAGGGGGTGTGGGCGCGTCGGTCGGGCTGCAACCCCCCCTGCACCCCCCTCCCCGAGTTGCTGAGCACGGCCCGGCTTCGGGTGCGGGGCTCCGTACGGGGCGTGGCGCGGGGCTCGCCGTGCCGGGCGGGGGGTGGCGGCAGGTGGGGGTGCCGGGCGGGGCGGGGCCGCCTCGGGCCGGGGAGGGCTCGGGGGAGGGGCGCGGCGGCCCCCGGAGCGCCGGCGGCTGTCGAGGCGCGGCGAGCCGCAGCCATTGCCTTTTATGGTAATCGTGCGAGAGGGCGCAGGGACTTCCTTTGTCCCAAATCTGTGCGGAGCCGAAATCTGGGAGGCGCCGCCGCACCCCCTCTAGCGGGCGCGGGGCGAAGCGGTGCGGCGCCGGCAGGAAGGAAATGGGCGGGGAGGGCCTTCGTGCGTCGCCGCGCCGCCGTCCCCTTCTCCCTCTCCAGCCTCGGGGCTGTCCGCGGGGGGACGGCTGCCTTCGGGGGGGACGGGGCAGGGCGGGGTTCGGCTTCTGGCGTGTGACCGGCGGCTCTAGAGCCTCTGCTAACCATGTTCATGCCTTCTTCTTTTTCCTACAGCTCCTGGGCAACGTGCTGGTTATTGTGCTGTCTCATCATTTTGGCAAAGAATTG
>Fluorescent_tag : EGFP
ATGGTGAGCAAGGGCGAGGAGCTGTTCACCGGGGTGGTGCCCATCCTGGTCGAGCTGGACGGCGACGTAAACGGCCACAAGTTCAGCGTGTCCGGCGAGGGCGAGGGCGATGCCACCTACGGCAAGCTGACCCTGAAGTTCATCTGCACCACCGGCAAGCTGCCCGTGCCCTGGCCCACCCTCGTGACCACCCTGACCTACGGCGTGCAGTGCTTCAGCCGCTACCCCGACCACATGAAGCAGCACGACTTCTTCAAGTCCGCCATGCCCGAAGGCTACGTCCAGGAGCGCACCATCTTCTTCAAGGACGACGGCAACTACAAGACCCGCGCCGAGGTGAAGTTCGAGGGCGACACCCTGGTGAACCGCATCGAGCTGAAGGGCATCGACTTCAAGGAGGACGGCAACATCCTGGGGCACAAGCTGGAGTACAACTACAACAGCCACAACGTCTATATCATGGCCGACAAGCAGAAGAACGGCATCAAGGTGAACTTCAAGATCCGCCACAACATCGAGGACGGCAGCGTGCAGCTCGCCGACCACTACCAGCAGAACACCCCCATCGGCGACGGCCCCGTGCTGCTGCCCGACAACCACTACCTGAGCACCCAGTCCGCCCTGAGCAAAGACCCCAACGAGAAGCGCGATCACATGGTCCTGCTGGAGTTCGTGACCGCCGCCGGGATCACTCTCGGCATGGACGAGCTGTACAAGTAA
>backbone_element
ACCCAGCTTTCTTGTACAAAGTGGGAATTC
>Enhancer : WPRE
CGATAATCAACCTCTGGATTACAAAATTTGTGAAAGATTGACTGGTATTCTTAACTATGTTGCTCCTTTTACGCTATGTGGATACGCTGCTTTAATGCCTTTGTATCATGCTATTGCTTCCCGTATGGCTTTCATTTTCTCCTCCTTGTATAAATCCTGGTTGCTGTCTCTTTATGAGGAGTTGTGGCCCGTTGTCAGGCAACGTGGCGTGGTGTGCACTGTGTTTGCTGACGCAACCCCCACTGGTTGGGGCATTGCCACCACCTGTCAGCTCCTTTCCGGGACTTTCGCTTTCCCCCTCCCTATTGCCACGGCGGAACTCATCGCCGCCTGCCTTGCCCGCTGCTGGACAGGGGCTCGGCTGTTGGGCACTGACAATTCCGTGGTGTTGTCGGGGAAGCTGACGTCCTTTCCATGGCTGCTCGCCTGTGTTGCCACCTGGATTCTGCGCGGGACGTCCTTCTGCTACGTCCCTTCGGCCCTCAATCCAGCGGACCTTCCTTCCCGCGGCCTGCTGCCGGCTCTGCGGCCTCTTCCGCGTCTTCGCCTTCGCCCTCAGACGAGTCGGATCTCCCTTTGGGCCGCCTCCCCGCATCGG
>backbone_element
GAATTCCTAGAGCTCGCTGATCAGCCTCGA
>2nd_polyA_signal : bGH
CTGTGCCTTCTAGTTGCCAGCCATCTGTTGTTTGCCCCTCCCCCGTGCCTTCCTTGACCCTGGAAGGTGCCACTCCCACTGTCCTTTCCTAATAAAATGAGGAAATTGCATCGCATTGTCTGAGTAGGTGTCATTCTATTCTGGGGGGTGGGGTGGGGCAGGACAGCAAGGGGGAGGATTGGGAAGAGAATAGCAGGCATGCTGGGGA
>backbone_element
GGGCCGC
>3`ITR
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCT
>backbone_element
CTGCCTGCAGGGGCGCCTGATGCGGTATTTTCTCCTTACGCATCTGTGCGGTATTTCACACCGCATACGTCAAAGCAACCATAGTACGCGCCCTGTAGCGGCGCATTAAGCGCGGCGGGGGTGGTGGTTACGCGCAGCGTGACCGCTACACTTGCCAGCGCCTTAGCGCCCGCTCCTTTCGCTTTCTTCCCTTCCTTTCTCGCCACGTTCGCCGGCTTTCCCCGTCAAGCTCTAAATCGGGGGCTCCCTTTAGGGTTCCGATTTAGTGCTTTACGGCACCTCGACCCCAAAAAACTTGATTTGGGTGATGGTTCACGTAGTGGGCCATCGCCCTGATAGACGGTTTTTCGCCCTTTGACGTTGGAGTCCACGTTCTTTAATAGTGGACTCTTGTTCCAAACTGGAACAACACTCAACTCTATCTCGGGCTATTCTTTTGATTTATAAGGGATTTTGCCGATTTCGGTCTATTGGTTAAAAAATGAGCTGATTTAACAAAAATTTAACGCGAATTTTAACAAAATATTAACGTTTACAATTTTATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTTAAGCCAGCCCCGACACCCGCCAACACCCGCTGACGCGCCCTGACGGGCTTGTCTGCTCCCGGCATCCGCTTACAGACAAGCTGTGACCGTCTCCGGGAGCTGCATGTGTCAGAGGTTTTCACCGTCATCACCGAAACGCGCGAGACGAAAGGGCCTCGTGATACGCCTATTTTTATAGGTTAATGTCATGATAATAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGT
>Resistance : Ampicillin
ATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA
>backbone_element
CTGTCAGACCAAGTTTACTCATATATACTTTAGATTGATTTAAAACTTCATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAATCTCATGACCAAAATCCCTTAACGTGAGTTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGATCAAAGGATCTTC
>pUC_ori
TTGAGATCCTTTTTTTCTGCGCGTAATCTGCTGCTTGCAAACAAAAAAACCACCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCAACTCTTTTTCCGAAGGTAACTGGCTTCAGCAGAGCGCAGATACCAAATACTGTTCTTCTAGTGTAGCCGTAGTTAGGCCACCACTTCAAGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCTGCTGCCAGTGGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGGTCGGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGATACCTACAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCGGTAAGCGGCAGGGTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCTTTATAGTCCTGTCGGGTTTCGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGGGGCGGAGCCTATGGAAA
>backbone_element
AACGCCAGCAACGCGGCCTTTTTACGGTTCCTGGCCTTTTGCTGGCCTTTTGCTCACATGTCCTGCAGGCAG

Sequences output data:

## genes names
project['transcripts']['sequences']['name']

## proteins sequences
project['transcripts']['sequences']['sequence_aa']

## average codon frequency in the input sequence
project['transcripts']['sequences']['vector_sequence_frequence']

## GC% content in the input sequence
project['transcripts']['sequences']['vector_sequence_GC']

############################################################################

## average codon frequency in the output sequence
project['transcripts']['sequences']['optimized_vector_sequence_frequence']

## GC% content in the output sequence
project['transcripts']['sequences']['optimized_vector_sequence_GC']

# Sequences
# Input sequence
project['transcripts']['sequences']['sequence']
# Predicted structure - input
project['transcripts']['sequences']['sequence_figure']

# Optimized sequence
project['transcripts']['sequences']['vector_sequence']
# Predicted structure - optimized
project['transcripts']['sequences']['optimized_sequence_figure']

Example return:

Otimized sequence structure:

drawing

Input sequence structure:

drawing

Alternative options:

# Sequences results and metadata

# optimized sequence - main
project['transcripts']['sequences']

# optimized sequence - alternatives
project['transcripts']['alternative']

# additional variant 1
project['transcripts']['alternative']['var0]

# additional variant 2
project['transcripts']['alternative']['var1]

Example return:

>Optimized sequence - main
ATGCTGACCAGCGGATTGGTTGTGAGCAACATGTTCAGCTACCACCTGGCCGCCCTGGGATTGATGCCTTCTTTTCAGATGGAGGGCAGGGGCAGAGTGAACCAGTTGGGAGGAGTGTTTATCAACGGCCGGCCTCTGCCTAATCACATCCGGCTGAAAATCGTGGAGTTGGCCGCTCAGGGAGTTAGGCCTTGTGTGATTAGCAGGCAGCTGAGGGTGTCTCACGGATGTGTGAGCAAGATCCTGCAGCGGTACCAGGAGACCGGCTCTATCAGGCCTGGAGTGATTGGCGGCTCTAAACCCAGGGTGGCTACACCTGAAGTGGAAAAGAAGATCGAGCAGTACAAGAAGGACAACCCCGGCATCTTCAGCTGGGAGATCCGGGACCGGCTGCTGAAGGAGGGCATCTGCGACAGAAGCACCGTGCCTTCTGTGTCTAGCATCAGCAGGGTGTTGAGGAGCAGATTTCAGAAGTGCGACAGCGACGACAACGACAACGACAACGACAACGAGGACGACGACGGCGACGACGGCAGCAACAGCAGCGTGGCCGATAGGTCTGTGAACTTCAGCGTGAGCGGCCTGCTGTCTGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGAGCGAGCCCGGACTGTCTGTGAAACGGAAGCAGAGAAGGAGCAGAACAACCTTCACAGCTGAACAGCTGGAGGAACTGGAGAGGGCCTTTGAGAGGACACACTACCCTGATATCTACACCCGGGAAGAGCTGGCTCAGAGAACAAAGTTGACCGAGGCCAGAGTTCAGGTGTGGTTCAGCAACCGGAGGGCCAGATGGAGAAAGCAGATGGGCTCTAACCAGTTGACCGCTCTGAATAGCATCCTGCAGGTGCCCCAGGGAATGGGAACACCTAGCTACATGCTGCACGAGCCCGGATACCCTTTGTCTCACAACGCCGATAACCTGTGGCACAGGTCTAGCATGGCTCAGTCTCTGCAGAGCTTCGGACAGACAATCAAGCCCGAGAACAGCTACGCCGGATTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGACTGCCTACACATAGCAGCAGCGACCCTTTGTCTTCTACCTGGTCTAGCCCTGTGTCTACCTCTGTGCCTGCTCTGGGATATACCCCTTCTAGCGGACACTATCACCACTACAGCGACGTGACCAAGTCTACCCTGCACAGCTACAACGCCCACATCCCCTCTGTGACCAACATGGAGCGGTGCAGCGTGGACGACTCTCTGGTGGCTCTGAGAATGAAAAGCCGGGAGCACAGCGCCGCCCTGTCTTTGATGCAGGTGGCCGATAACAAGATGGCCACCTCTTTCTGA

>Optimized sequence - alternative variant 1
ATGCTGACCAGCGGCCTGGTTGTGAGCAACATGTTCTCTTACCACCTGGCCGCTCTGGGATTAATGCCTTCTTTTCAGATGGAGGGCAGGGGCAGAGTGAATCAGTTAGGAGGAGTGTTTATTAACGGCAGGCCTTTACCTAATCACATTCGGCTGAAAATCGTGGAGTTAGCTGCTCAGGGAGTTAGACCTTGTGTGATCAGCAGGCAGTTGAGAGTGTCTCACGGATGTGTGTCTAAAATCCTGCAGAGATACCAGGAGACAGGCAGCATCAGGCCTGGAGTGATTGGAGGCTCTAAACCCAGAGTGGCTACACCTGAAGTGGAGAAAAAGATCGAGCAATACAAGAAGGACAACCCCGGCATCTTCTCTTGGGAGATCCGGGACAGGTTGCTGAAGGAGGGAATCTGTGATAGGTCTACAGTGCCTTCTGTGTCTAGCATCAGCAGGGTGTTGAGAAGCAGATTCCAGAAATGCGACAGCGACGATAACGACAACGACAACGACAACGAGGACGACGACGGCGATGATGGCTCTAATAGCAGCGTGGCCGATAGATCTGTGAACTTCAGCGTGAGCGGATTGCTGTCTGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGTCTGAGCCTGGACTGTCTGTTAAACGGAAGCAGAGGAGGAGCAGAACAACATTCACAGCCGAGCAGTTGGAGGAACTGGAGAGGGCCTTTGAGAGAACCCACTATCCCGATATCTACACCAGGGAAGAACTGGCTCAGAGAACAAAACTGACCGAGGCCAGAGTTCAGGTGTGGTTTAGCAACCGGAGGGCCAGATGGAGAAAACAGATGGGCAGCAACCAGTTAACAGCCCTGAACAGCATCCTGCAGGTGCCTCAAGGAATGGGAACACCTTCTTATATGCTGCACGAGCCTGGATATCCTTTATCTCATAACGCCGATAACCTGTGGCACAGGTCTTCTATGGCTCAATCTCTGCAGTCTTTCGGACAGACAATTAAGCCCGAGAACTCTTACGCCGGATTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGACTGCCTACACATTCTTCTAGCGACCCTTTATCTTCTACATGGTCTAGCCCTGTGTCTACATCTGTGCCTGCTCTGGGATATACACCTTCTTCTGGCCACTATCACCACTACAGCGACGTGACCAAGAGCACCCTGCATTCTTACAACGCCCACATTCCCAGCGTGACCAACATGGAGCGGTGCTCTGTGGATGACAGCTTAGTGGCTCTGAGAATGAAAAGCAGGGAACACTCTGCTGCTCTGTCTTTAATGCAGGTGGCCGATAATAAGATGGCCACCTCTTTCTGA

>Optimized sequence - alternative variant 2
ATGCTGACCAGCGGATTGGTGGTGAGCAACATGTTCTCTTACCACCTGGCTGCTCTGGGCCTGATGCCCTCTTTCCAGATGGAGGGCCGGGGCAGGGTGAATCAGTTGGGCGGAGTGTTTATCAACGGCCGGCCCCTGCCTAATCACATCCGGCTGAAGATCGTGGAGTTGGCTGCTCAGGGAGTGAGACCCTGCGTGATCAGCCGGCAGTTGAGGGTGTCTCACGGATGTGTGAGCAAGATCCTGCAGAGATACCAGGAGACCGGCAGCATCCGGCCCGGAGTGATTGGCGGCTCTAAGCCCAGGGTGGCTACACCTGAAGTGGAGAAGAAGATCGAGCAGTATAAGAAGGACAACCCCGGCATCTTCTCTTGGGAGATCCGGGACCGGCTGCTGAAGGAGGGCATCTGCGACCGGAGCACCGTGCCCAGCGTGAGCAGCATCAGCCGGGTGCTGCGGAGCCGGTTCCAGAAGTGCGACAGCGACGACAACGACAACGACAACGACAACGAGGACGACGACGGCGACGACGGCAGCAACAGCAGCGTGGCCGACCGGAGCGTGAACTTCAGCGTGAGCGGCCTGCTGAGCGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGAGCGAGCCCGGCCTGAGCGTGAAGCGGAAGCAGCGGCGGAGCCGGACCACCTTCACCGCTGAGCAGTTGGAGGAGTTGGAGCGGGCCTTCGAGCGGACCCACTACCCCGACATCTACACCCGGGAGGAGTTGGCCCAGCGGACCAAGTTGACCGAGGCCCGGGTGCAGGTGTGGTTCAGCAACCGGCGGGCCAGATGGAGGAAACAGATGGGCAGCAACCAGTTGACCGCTCTGAACAGCATCCTGCAGGTGCCCCAGGGCATGGGCACCCCTTCTTACATGCTGCACGAGCCCGGATACCCTTTGAGCCACAACGCCGACAACCTGTGGCACCGGAGCAGCATGGCCCAGAGCCTGCAGTCTTTCGGCCAGACCATCAAGCCCGAGAACTCTTACGCCGGCCTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGCCTGCCCACCCACAGCAGCAGCGACCCCCTGAGCAGCACCTGGAGCAGCCCTGTGTCTACCAGCGTGCCTGCTCTGGGATATACCCCCAGCAGCGGACACTATCACCACTACAGCGACGTGACCAAGAGCACCCTGCACTCTTACAACGCCCACATCCCCAGCGTGACCAACATGGAGCGGTGCAGCGTGGACGACAGCCTGGTGGCCCTGCGGATGAAGAGCCGGGAGCACAGCGCTGCTCTGAGCCTGATGCAGGTGGCCGACAACAAGATGGCCACCTCTTTCTGA

2.2.2 Creating RNAi / RNAi + expression of the plasmid vector

Empty input dictionary schema:

input_dict = {

    # REQUIRED!
    # name of current project (defined by user)
    'project_name':'',

    # REQUIRED!
    # avaiable of vector types (ssAAV / scAAV / lentiviral / regular)
    'vector_type':'ssAAV',

    # REQUIRED!
    # in this case 'vector_function':'rnai'
    'vector_function':'rnai',

    # REQUIRED!
    # avaiable options (human / mouse / rat / both (mouse + human) / both2 (rat + human) / multi (mouse + rat + human))
    # 'both / both2 / multi' - creating vector function adjusted for all species taking into consideration most adjustments for Homo sapiens
    'species':'human',

    # REQUIRED!
    # sequence of provided non-coding promoter
    # for coding sequences the user should choose the promoter of non-coding genes (metadata['promoters']['type'] == 'non-coding')
    # sequence orientation 5' ---> 3' - sense
    'promoter_ncrna_sequence':'',
    # REQUIRED!
    # name of provided promoter sequence
    'promoter_ncrna_name':'',

    # OPTIONAL!
    # sequence of custom RNAi, which can be provided by user
    # if provided, then the algorithm of RNAi estimation is off
    # if empt '' the algorithm share the best possible RNAi based on 'rnai_gene_name'
    # sequence orientation 5' ---> 3' - sense
    'rnai_sequence':'',

    # REQUIRED; if rnai_sequence is empty!
    # length of RNAi (defined by user)
    # recomended range: 20–25
    'rnai_length':20,

    # OPTIONAL; if rnai_sequence is empty!
    # overhang sequence of RNAi sequence 3' end (defined by user)
    # recomended 'UU'
    'overhang_3_prime':'UU',

    # REQUIRED!
    # name of the target gene for the RNAi searching algorithm (gene name for Homo sapien / Mus musculus / Rattus norvegicus)
    # algorithm is working when the rnai_sequence is empty ''
    # if the user defines 'rnai_sequence' this 'rnai_gene_name' is just a name for a user-supplied sequence
    'rnai_gene_name':'',

    # REQUIRED!
    # sequence of the loop to create the structure of the hairpin of shRNA or siRNA depending on the loop sequence
    # algorithm is working when the rnai_sequence is empty ''
    # if the user defines 'rnai_sequence' this 'rnai_gene_name' is just a name for a user-supplied sequence
    # sequence orientation 5' ---> 3' - sense
    'loop_sequence':'',

    # WARNING! If the user wants to add additional CDS sequences to parallel transcript expression with silencing by RNAi in one vector; provide sequences, linkers_sequences, promoter_sequence, etc.

    # list of coding sequences (CDS) provided to make expression from the vector
    # amount of sequences is not restricted as the user must remember that the length of whole vector is limited
    # excide the relevant vector size can decrease vector working
    # if the user wants to not include any sequences only fluorescent_tag, provide ['']
    # sequences orientation 5' ---> 3' - sense
    'sequences':[''],
    # list of names of coding sequences
    # amount of names should be equal with amount of sequences
    # if provided no sequences, provide ['']
    'sequences_names':[''],

    # REQUIRED if more than one sequence of transcripts!
    # sequences of provided linkers
    # number of linkers_sequences should be equal number of sequences (transcripts) - 1. One linker for each pair of sequences.
    # if the number of transcript sequences is equal 1 then provide empty list []
    # if the user wants to not provide any linkers between the transcript sequences, provide an empty string '' for each pair of transcripts where the user wants to avoid linker; empty strings '' provide inside the list ['']
    'linkers_sequences':[''],
    # REQUIRED if transcript sequence occures, if not empty string ''!
    # names of provided linkers
    # if the number of transcript sequences is equal 1 then provide empty list []
    # if the user wants to not provide any linkers between the transcript sequences, provide an empty string '' for each pair of transcripts where the user wants to avoid linker; empty strings '' provide inside the list ['']
    'linkers_names':[''],

    # REQUIRED if transcript sequence occurs or fluorescent tag will be included, if not empty string ''!
    # sequence of provided promoter
    # sequence orientation 5' ---> 3' - sense
    'promoter_sequence':'',
    # REQUIRED if transcript sequence occurs or fluorescent tag will be included, if not empty string ''!
    # name of provided promoter sequence
    'promoter_name':'',

    # OPTIONAL if transcript sequence occures or fluorescent tag will be included, if not empty string ''!
    # sequence of provided enhancer
    # sequence orientation 5' ---> 3' - sense
    'regulator_sequence':'',
    # OPTIONAL if transcript sequence occures or fluorescent tag will be included, if not empty string ''!
    # name of provided enhancer sequence
    'regulator_name':'',

    # REQUIRED if transcript sequence occurs or fluorescent tag will be included, if not empty string ''!
    # sequence of provided polyA signal
    # sequence orientation 5' ---> 3' - sense
    'polya_sequence':'',
    # REQUIRED if transcript sequence occurs or fluorescent tag will be included, if not empty string ''!
    # name of provided polyA singla sequence
    'polya_name':'',

    # OPTIONAL!
    # sequence of provided fluorescent tag
    # if the user does not need fluorescent tag, provide ''
    # sequence orientation 5' ---> 3' - sense
    'fluorescence_sequence':'',
    # OPTIONAL!
    # name of provided fluorescent tag
    # if the user does not need fluorescent tag, provide ''
    'fluorescence_name':'',

    # WARNING! If provided sequences for transcripts (> 0), provide fluorescence_linker_sequence or provide empty string ''.

    # OPTIONAL if transcript sequence occures, if not empty string ''!
    # sequence of provided fluorescence tag linker
    # sequence orientation 5' ---> 3' - sense
    'fluorescence_linker_sequence':'',
    # OPTIONAL if transcript sequence occures, if not empty string ''!
    # name of provided fluorescence tag linker
    'fluorescence_linker_name':'',

    # REQUIRED!
    # sequence of provided selection marker
    # sequence orientation 5' ---> 3' - sense
    'selection_marker_sequence':'',
    # REQUIRED!
    # name of provided selection marker
    'selection_marker_name':'',

    # OPTIONAL!
    # restriction enzymes protection of transcript sequences
    # if the user does not need any restriction places protection, provide empty list []
    'restriction_list':[],

    # REQUIRED!
    # available options (True / False)
    # decision; if the user wants the transcription sequences optimized based on the provided species
    # if the user has omitted the additional transcript sequences, provide False
    'optimize':True,

    # REQUIRED; if optimize == True!
    # user-defined percent of GC% content in predicted/optimized sequence
    'transcript_GC':58,

    # REQUIRED; if optimize == True!
    # user-defined maximum number of consecutive repeats of a single nucleotide (A, C, T(U), G) in the predicted/optimized sequence, eg. AAAAAA
    'poly_len':7
}

Example dictionary:

input_dict = {

    'project_name':'test_RNAi',
    'vector_type':'ssAAV',
    'vector_function':'rnai',
    'species':'human',
    'promoter_ncrna_name':'U6',
    'promoter_ncrna_sequence':'GAGGGCCTATTTCCCATGATTCCTTCATATTTGCATATACGATACAAGGCTGTTAGAGAGATAATTGGAATTAATTTGACTGTAAACACAAAGATATTAGTACAAAATACGTGACGTAGAAAGTAATAATTTCTTGGGTAGTTTGCAGTTTTAAAATTATGTTTTAAAATGGACTATCATATGCTTACCGTAACTTGAAAGTATTTCGATTTCTTGGCTTTATATATCTTGTGGAAAGGACGAAACACC',
    'rnai_sequence':'',
    'rnai_length':20,
    'overhang_3_prime':'UU',
    'rnai_gene_name':'PAX3',
    'loop_sequence':'TAGTGAAGCCACAGATGTAC',
    'sequences':['ATGGCGATGAGCAGCGGCGGCAGTGGTGGCGGCGTCCCGGAGCAGGAGGATTCCGTGCTGTTCCGGCGCGGCACAGGCCAGAGCGATGATTCTGACATTTGGGATGATACAGCACTGATAAAAGCATATGATAAAGCTGTGGCTTCATTTAAGCATGCTCTAAAGAATGGTGACATTTGTGAAACTTCGGGTAAACCAAAAACCACACCTAAAAGAAAACCTGCTAAGAAGAATAAAAGCCAAAAGAAGAATACTGCAGCTTCCTTACAACAGTGGAAAGTTGGGGACAAATGTTCTGCCATTTGGTCAGAAGACGGTTGCATTTACCCAGCTACCATTGCTTCAATTGATTTTAAGAGAGAAACCTGTGTTGTGGTTTACACTGGATATGGAAATAGAGAGGAGCAAAATCTGTCCGATCTACTTTCCCCAATCTGTGAAGTAGCTAATAATATAGAACAAAATGCTCAAGAGAATGAAAATGAAAGCCAAGTTTCAACAGATGAAAGTGAGAACTCCAGGTCTCCTGGAAATAAATCAGATAACATCAAGCCCAAATCTGCTCCATGGAACTCTTTTCTCCCTCCACCACCCCCCATGCCAGGGCCAAGACTGGGACCAGGAAAGCCAGGTCTAAAATTCAATGGCCCACCACCGCCACCGCCACCACCACCACCCCACTTACTATCATGCTGGCTGCCTCCATTTCCTTCTGGACCACCAATAATTCCCCCACCACCTCCCATATGTCCAGATTCTCTTGATGATGCTGATGCTTTGGGAAGTATGTTAATTTCATGGTACATGAGTGGCTATCATACTGGCTATTATATGTTTCCTGAGGCCTCCCTAAAAGCCGAGCAGATGCCAGCACCATGCTTCCTGTAA'],
    'sequences_names':['SMN1'],
    'linkers_sequences':[''],
    'linkers_names':[''],
    'promoter_sequence':'GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT',
    'promoter_name':'TBG',
    'regulator_sequence':'CGATAATCAACCTCTGGATTACAAAATTTGTGAAAGATTGACTGGTATTCTTAACTATGTTGCTCCTTTTACGCTATGTGGATACGCTGCTTTAATGCCTTTGTATCATGCTATTGCTTCCCGTATGGCTTTCATTTTCTCCTCCTTGTATAAATCCTGGTTGCTGTCTCTTTATGAGGAGTTGTGGCCCGTTGTCAGGCAACGTGGCGTGGTGTGCACTGTGTTTGCTGACGCAACCCCCACTGGTTGGGGCATTGCCACCACCTGTCAGCTCCTTTCCGGGACTTTCGCTTTCCCCCTCCCTATTGCCACGGCGGAACTCATCGCCGCCTGCCTTGCCCGCTGCTGGACAGGGGCTCGGCTGTTGGGCACTGACAATTCCGTGGTGTTGTCGGGGAAGCTGACGTCCTTTCCATGGCTGCTCGCCTGTGTTGCCACCTGGATTCTGCGCGGGACGTCCTTCTGCTACGTCCCTTCGGCCCTCAATCCAGCGGACCTTCCTTCCCGCGGCCTGCTGCCGGCTCTGCGGCCTCTTCCGCGTCTTCGCCTTCGCCCTCAGACGAGTCGGATCTCCCTTTGGGCCGCCTCCCCGCATCGG',
    'regulator_name':'WPRE',
    'polya_sequence':'CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA',
    'polya_name':'SV40_late',
    'fluorescence_sequence':'ATGGTGAGCAAGGGCGAGGAGCTGTTCACCGGGGTGGTGCCCATCCTGGTCGAGCTGGACGGCGACGTAAACGGCCACAAGTTCAGCGTGTCCGGCGAGGGCGAGGGCGATGCCACCTACGGCAAGCTGACCCTGAAGTTCATCTGCACCACCGGCAAGCTGCCCGTGCCCTGGCCCACCCTCGTGACCACCCTGACCTACGGCGTGCAGTGCTTCAGCCGCTACCCCGACCACATGAAGCAGCACGACTTCTTCAAGTCCGCCATGCCCGAAGGCTACGTCCAGGAGCGCACCATCTTCTTCAAGGACGACGGCAACTACAAGACCCGCGCCGAGGTGAAGTTCGAGGGCGACACCCTGGTGAACCGCATCGAGCTGAAGGGCATCGACTTCAAGGAGGACGGCAACATCCTGGGGCACAAGCTGGAGTACAACTACAACAGCCACAACGTCTATATCATGGCCGACAAGCAGAAGAACGGCATCAAGGTGAACTTCAAGATCCGCCACAACATCGAGGACGGCAGCGTGCAGCTCGCCGACCACTACCAGCAGAACACCCCCATCGGCGACGGCCCCGTGCTGCTGCCCGACAACCACTACCTGAGCACCCAGTCCGCCCTGAGCAAAGACCCCAACGAGAAGCGCGATCACATGGTCCTGCTGGAGTTCGTGACCGCCGCCGGGATCACTCTCGGCATGGACGAGCTGTACAAGTAA',
    'fluorescence_name':'EGFP',
    'fluorescence_linker_sequence':'GGAAGCGGAGAGGGCAGGGGAAGTCTTCTAACATGCGGGGACGTGGAGGAAAATCCCGGCCCC',
    'fluorescence_linker_name':'T2A',
    'selection_marker_sequence':'ATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA',
    'selection_marker_name':'Ampicillin',
    'restriction_list':['RsaI', 'MnlI', 'AciI', 'AluI', 'BmrI'],
    'optimize':True,
    'transcript_GC':58,
    'poly_len':7
}

Output:

# Name of project
project['project']

# Graph of the designed vector
vector_plot = project['vector']['graph']
vector_plot.savefig('RNAi_vector.svg')

Example return:

drawing

# Complete FASTA file of the designed vecotr
project['vector']['full_fasta']

Example return:

>test_RNAi_ssAAV_rnai_6790nc
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCTATCGATGAGGGCCTATTTCCCATGATTCCTTCATATTTGCATATACGATACAAGGCTGTTAGAGAGATAATTGGAATTAATTTGACTGTAAACACAAAGATATTAGTACAAAATACGTGACGTAGAAAGTAATAATTTCTTGGGTAGTTTGCAGTTTTAAAATTATGTTTTAAAATGGACTATCATATGCTTACCGTAACTTGAAAGTATTTCGATTTCTTGGCTTTATATATCTTGTGGAAAGGACGAAACACCGGGCCTTTCCGTTTCGCCTTCACCTTAGTGAAGCCACAGATGTACAGGTGAAGGCGAAACGGAAAGGCTTTTTTTGAATTCCAACTTTGTATAGAAAAGTTGGGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGATCAAGTTTGTACAAAAAAGCAGGCTGCCACCATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGGGAAGCGGAGAGGGCAGGGGAAGTCTTCTAACATGCGGGGACGTGGAGGAAAATCCCGGCCCCATGGTGAGCAAGGGCGAGGAGCTGTTCACCGGGGTGGTGCCCATCCTGGTCGAGCTGGACGGCGACGTAAACGGCCACAAGTTCAGCGTGTCCGGCGAGGGCGAGGGCGATGCCACCTACGGCAAGCTGACCCTGAAGTTCATCTGCACCACCGGCAAGCTGCCCGTGCCCTGGCCCACCCTCGTGACCACCCTGACCTACGGCGTGCAGTGCTTCAGCCGCTACCCCGACCACATGAAGCAGCACGACTTCTTCAAGTCCGCCATGCCCGAAGGCTACGTCCAGGAGCGCACCATCTTCTTCAAGGACGACGGCAACTACAAGACCCGCGCCGAGGTGAAGTTCGAGGGCGACACCCTGGTGAACCGCATCGAGCTGAAGGGCATCGACTTCAAGGAGGACGGCAACATCCTGGGGCACAAGCTGGAGTACAACTACAACAGCCACAACGTCTATATCATGGCCGACAAGCAGAAGAACGGCATCAAGGTGAACTTCAAGATCCGCCACAACATCGAGGACGGCAGCGTGCAGCTCGCCGACCACTACCAGCAGAACACCCCCATCGGCGACGGCCCCGTGCTGCTGCCCGACAACCACTACCTGAGCACCCAGTCCGCCCTGAGCAAAGACCCCAACGAGAAGCGCGATCACATGGTCCTGCTGGAGTTCGTGACCGCCGCCGGGATCACTCTCGGCATGGACGAGCTGTACAAGTAACGATAATCAACCTCTGGATTACAAAATTTGTGAAAGATTGACTGGTATTCTTAACTATGTTGCTCCTTTTACGCTATGTGGATACGCTGCTTTAATGCCTTTGTATCATGCTATTGCTTCCCGTATGGCTTTCATTTTCTCCTCCTTGTATAAATCCTGGTTGCTGTCTCTTTATGAGGAGTTGTGGCCCGTTGTCAGGCAACGTGGCGTGGTGTGCACTGTGTTTGCTGACGCAACCCCCACTGGTTGGGGCATTGCCACCACCTGTCAGCTCCTTTCCGGGACTTTCGCTTTCCCCCTCCCTATTGCCACGGCGGAACTCATCGCCGCCTGCCTTGCCCGCTGCTGGACAGGGGCTCGGCTGTTGGGCACTGACAATTCCGTGGTGTTGTCGGGGAAGCTGACGTCCTTTCCATGGCTGCTCGCCTGTGTTGCCACCTGGATTCTGCGCGGGACGTCCTTCTGCTACGTCCCTTCGGCCCTCAATCCAGCGGACCTTCCTTCCCGCGGCCTGCTGCCGGCTCTGCGGCCTCTTCCGCGTCTTCGCCTTCGCCCTCAGACGAGTCGGATCTCCCTTTGGGCCGCCTCCCCGCATCGGACCCAGCTTTCTTGTACAAAGTGGTGATGGCCGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTAATCGATAGATCTAGGAACCCCTAGTGATGGAGTTGGCCACTCCCTCTCTGCGCGCTCGCTCGCTCACTGAGGCCGGGCGACCAAAGGTCGCCCGACGCCCGGGCTTTGCCCGGGCGGCCTCAGTGAGCGAGCGAGCGCGCAGCTGCCTGCAGGCAGCTTGGCACTGGCCGTCGTTTTACAACGTCGTGACTGGGAAAACCCTGGCGTTACCCAACTTAATCGCCTTGCAGCACATCCCCCTTTCGCCAGCTGGCGTAATAGCGAAGAGGCCCGCACCGATCGCCCTTCCCAACAGTTGCGCAGCCTGAATGGCGAATGGCGCCTGATGCGGTATTTTCTCCTTACGCATCTGTGCGGTATTTCACACCGCATACGTCAAAGCAACCATAGTACGCGCCCTGTAGCGGCGCATTAAGCGCGGCGGGTGTGGTGGTTACGCGCAGCGTGACCGCTACACTTGCCAGCGCCCTAGCGCCCGCTCCTTTCGCTTTCTTCCCTTCCTTTCTCGCCACGTTCGCCGGCTTTCCCCGTCAAGCTCTAAATCGGGGGCTCCCTTTAGGGTTCCGATTTAGTGCTTTACGGCACCTCGACCCCAAAAAACTTGATTTGGGTGATGGTTCACGTAGTGGGCCATCGCCCTGATAGACGGTTTTTCGCCCTTTGACGTTGGAGTCCACGTTCTTTAATAGTGGACTCTTGTTCCAAACTGGAACAACACTCAACCCTATCTCGGGCTATTCTTTTGATTTATAAGGGATTTTGCCGATTTCGGCCTATTGGTTAAAAAATGAGCTGATTTAACAAAAATTTAACGCGAATTTTAACAAAATATTAACGTTTACAATTTTATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTTAAGCCAGCCCCGACACCCGCCAACACCCGCTGACGCGCCCTGACGGGCTTGTCTGCTCCCGGCATCCGCTTACAGACAAGCTGTGACCGTCTCCGGGAGCTGCATGTGTCAGAGGTTTTCACCGTCATCACCGAAACGCGCGAGACGAAAGGGCCTCGTGATACGCCTATTTTTATAGGTTAATGTCATGATAATAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAACTGTCAGACCAAGTTTACTCATATATACTTTAGATTGATTTAAAACTTCATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAATCTCATGACCAAAATCCCTTAACGTGAGTTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGATCAAAGGATCTTCTTGAGATCCTTTTTTTCTGCGCGTAATCTGCTGCTTGCAAACAAAAAAACCACCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCAACTCTTTTTCCGAAGGTAACTGGCTTCAGCAGAGCGCAGATACCAAATACTGTTCTTCTAGTGTAGCCGTAGTTAGGCCACCACTTCAAGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCTGCTGCCAGTGGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGGTCGGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGATACCTACAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCGGTAAGCGGCAGGGTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCTTTATAGTCCTGTCGGGTTTCGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGGGGCGGAGCCTATGGAAAAACGCCAGCAACGCGGCCTTTTTACGGTTCCTGGCCTTTTGCTGGCCTTTTGCTCACATGTTCTTTCCTGCGTTATCCCCTGATTCTGTGGATAACCGTATTACCGCCTTTGAGTGAGCTGATACCGCTCGCCGCAGCCGAACGACCGAGCGCAGCGAGTCAGTGAGCGAGGAAGCGGAAGAGCGCCCAATACGCAAACCGCCTCTCCCCGCGCGTTGGCCGATTCATTAATGCAGCTGGCACGACAGGTTTCCCGACTGGAAAGCGGGCAGTGAGCGCAACGCAATTAATGTGAGTTAGCTCACTCATTAGGCACCCCAGGCTTTACACTTTATGCTTCCGGCTCGTATGTTGTGTGGAATTGTGAGCGGATAACAATTTCACACAGGAAACAGCTATGACCATGATTACGAATTGCCTGCAGGCAG

# The FASTA file is divided into particular elements of the designed vector
project['vector']['fasta']

Example return:

# test_RNAi_ssAAV_rnai_6790nc

>5`ITR
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCT
>backbone_element
ATCGAT
>Promoter_ncRNA : U6
GAGGGCCTATTTCCCATGATTCCTTCATATTTGCATATACGATACAAGGCTGTTAGAGAGATAATTGGAATTAATTTGACTGTAAACACAAAGATATTAGTACAAAATACGTGACGTAGAAAGTAATAATTTCTTGGGTAGTTTGCAGTTTTAAAATTATGTTTTAAAATGGACTATCATATGCTTACCGTAACTTGAAAGTATTTCGATTTCTTGGCTTTATATATCTTGTGGAAAGGACGAAACACC
>backbone_element
GG
>RNAi : PAX3_RNAi_35_hs
GCCTTTCCGTTTCGCCTTCACCTTAGTGAAGCCACAGATGTACAGGTGAAGGCGAAACGGAAAGGCTT
>Terminator
TTTTT
>backbone_element
GAATTCCAACTTTGTATAGAAAAGTTG
>Promoter : TBG
GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT
>backbone_element
CAAGTTTGTACAAAAAAGCAGGCTGCCACC
>SEQ1 : SMN1
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTG
>Fluorescent_tag_linker : T2A
GGAAGCGGAGAGGGCAGGGGAAGTCTTCTAACATGCGGGGACGTGGAGGAAAATCCCGGCCCC
>Fluorescent_tag : EGFP
ATGGTGAGCAAGGGCGAGGAGCTGTTCACCGGGGTGGTGCCCATCCTGGTCGAGCTGGACGGCGACGTAAACGGCCACAAGTTCAGCGTGTCCGGCGAGGGCGAGGGCGATGCCACCTACGGCAAGCTGACCCTGAAGTTCATCTGCACCACCGGCAAGCTGCCCGTGCCCTGGCCCACCCTCGTGACCACCCTGACCTACGGCGTGCAGTGCTTCAGCCGCTACCCCGACCACATGAAGCAGCACGACTTCTTCAAGTCCGCCATGCCCGAAGGCTACGTCCAGGAGCGCACCATCTTCTTCAAGGACGACGGCAACTACAAGACCCGCGCCGAGGTGAAGTTCGAGGGCGACACCCTGGTGAACCGCATCGAGCTGAAGGGCATCGACTTCAAGGAGGACGGCAACATCCTGGGGCACAAGCTGGAGTACAACTACAACAGCCACAACGTCTATATCATGGCCGACAAGCAGAAGAACGGCATCAAGGTGAACTTCAAGATCCGCCACAACATCGAGGACGGCAGCGTGCAGCTCGCCGACCACTACCAGCAGAACACCCCCATCGGCGACGGCCCCGTGCTGCTGCCCGACAACCACTACCTGAGCACCCAGTCCGCCCTGAGCAAAGACCCCAACGAGAAGCGCGATCACATGGTCCTGCTGGAGTTCGTGACCGCCGCCGGGATCACTCTCGGCATGGACGAGCTGTACAAGTAA
>Enhancer : WPRE
CGATAATCAACCTCTGGATTACAAAATTTGTGAAAGATTGACTGGTATTCTTAACTATGTTGCTCCTTTTACGCTATGTGGATACGCTGCTTTAATGCCTTTGTATCATGCTATTGCTTCCCGTATGGCTTTCATTTTCTCCTCCTTGTATAAATCCTGGTTGCTGTCTCTTTATGAGGAGTTGTGGCCCGTTGTCAGGCAACGTGGCGTGGTGTGCACTGTGTTTGCTGACGCAACCCCCACTGGTTGGGGCATTGCCACCACCTGTCAGCTCCTTTCCGGGACTTTCGCTTTCCCCCTCCCTATTGCCACGGCGGAACTCATCGCCGCCTGCCTTGCCCGCTGCTGGACAGGGGCTCGGCTGTTGGGCACTGACAATTCCGTGGTGTTGTCGGGGAAGCTGACGTCCTTTCCATGGCTGCTCGCCTGTGTTGCCACCTGGATTCTGCGCGGGACGTCCTTCTGCTACGTCCCTTCGGCCCTCAATCCAGCGGACCTTCCTTCCCGCGGCCTGCTGCCGGCTCTGCGGCCTCTTCCGCGTCTTCGCCTTCGCCCTCAGACGAGTCGGATCTCCCTTTGGGCCGCCTCCCCGCATCGG
>backbone_element
ACCCAGCTTTCTTGTACAAAGTGGTGATGGCCGGCCGCTTCGAG
>PolyA_signal : SV40_late
CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA
>backbone_element
ATCGATAGATCT
>3`ITR
AGGAACCCCTAGTGATGGAGTTGGCCACTCCCTCTCTGCGCGCTCGCTCGCTCACTGAGGCCGGGCGACCAAAGGTCGCCCGACGCCCGGGCTTTGCCCGGGCGGCCTCAGTGAGCGAGCGAGCGCGCAG
>backbone_element
CTGCCTGCAGGCAGCTTGGCACTGGCCGTCGTTTTACAACGTCGTGACTGGGAAAACCCTGGCGTTACCCAACTTAATCGCCTTGCAGCACATCCCCCTTTCGCCAGCTGGCGTAATAGCGAAGAGGCCCGCACCGATCGCCCTTCCCAACAGTTGCGCAGCCTGAATGGCGAATGGCGCCTGATGCGGTATTTTCTCCTTACGCATCTGTGCGGTATTTCACACCGCATACGTCAAAGCAACCATAGTACGCGCCCTGTAGCGGCGCATTAAGCGCGGCGGGTGTGGTGGTTACGCGCAGCGTGACCGCTACACTTGCCAGCGCCCTAGCGCCCGCTCCTTTCGCTTTCTTCCCTTCCTTTCTCGCCACGTTCGCCGGCTTTCCCCGTCAAGCTCTAAATCGGGGGCTCCCTTTAGGGTTCCGATTTAGTGCTTTACGGCACCTCGACCCCAAAAAACTTGATTTGGGTGATGGTTCACGTAGTGGGCCATCGCCCTGATAGACGGTTTTTCGCCCTTTGACGTTGGAGTCCACGTTCTTTAATAGTGGACTCTTGTTCCAAACTGGAACAACACTCAACCCTATCTCGGGCTATTCTTTTGATTTATAAGGGATTTTGCCGATTTCGGCCTATTGGTTAAAAAATGAGCTGATTTAACAAAAATTTAACGCGAATTTTAACAAAATATTAACGTTTACAATTTTATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTTAAGCCAGCCCCGACACCCGCCAACACCCGCTGACGCGCCCTGACGGGCTTGTCTGCTCCCGGCATCCGCTTACAGACAAGCTGTGACCGTCTCCGGGAGCTGCATGTGTCAGAGGTTTTCACCGTCATCACCGAAACGCGCGAGACGAAAGGGCCTCGTGATACGCCTATTTTTATAGGTTAATGTCATGATAATAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGT
>Resistance : Ampicillin
ATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA
>backbone_element
CTGTCAGACCAAGTTTACTCATATATACTTTAGATTGATTTAAAACTTCATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAATCTCATGACCAAAATCCCTTAACGTGAGTTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGATCAAAGGATCTTC
>pUC_ori
TTGAGATCCTTTTTTTCTGCGCGTAATCTGCTGCTTGCAAACAAAAAAACCACCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCAACTCTTTTTCCGAAGGTAACTGGCTTCAGCAGAGCGCAGATACCAAATACTGTTCTTCTAGTGTAGCCGTAGTTAGGCCACCACTTCAAGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCTGCTGCCAGTGGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGGTCGGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGATACCTACAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCGGTAAGCGGCAGGGTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCTTTATAGTCCTGTCGGGTTTCGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGGGGCGGAGCCTATGGAAA
>backbone_element
AACGCCAGCAACGCGGCCTTTTTACGGTTCCTGGCCTTTTGCTGGCCTTTTGCTCACATGTTCTTTCCTGCGTTATCCCCTGATTCTGTGGATAACCGTATTACCGCCTTTGAGTGAGCTGATACCGCTCGCCGCAGCCGAACGACCGAGCGCAGCGAGTCAGTGAGCGAGGAAGCGGAAGAGCGCCCAATACGCAAACCGCCTCTCCCCGCGCGTTGGCCGATTCATTAATGCAGCTGGCACGACAGGTTTCCCGACTGGAAAGCGGGCAGTGAGCGCAACGCAATTAATGTGAGTTAGCTCACTCATTAGGCACCCCAGGCTTTACACTTTATGCTTCCGGCTCGTATGTTGTGTGGAATTGTGAGCGGATAACAATTTCACACAGGAAACAGCTATGACCATGATTACGAATTGCCTGCAGGCAG

# Top 1 designed RNAi in shRNA form information
# RNAi name
project['rnai']['name']

# RNAi sequence
project['rnai']['sequence']

# RNAi prediction structure
rnai_prediction = project['rnai']['figure']
rnai_prediction.savefig('rnai_predicted_structure.svg')

Example return:

drawing

# other selected RNAi with statistics

pd.DataFrame(project['rnai']['full_data'])

Examples with structure description presented in:

1.23. Prediction of RNAi on the provided sequence
1.24. Correcting of RNAi_data for complementarity to the loop sequence
1.25. Correcting of RNAi_data for complementarity to the additional external sequence

Sequences output data:

## *if occur user-defined sequences for additional expression in the plasmid vector
## genes names
project['transcripts']['sequences']['name']

## proteins sequences
project['transcripts']['sequences']['sequence_aa']

## average codon frequency in the input sequence
project['transcripts']['sequences']['vector_sequence_frequence']

## GC% content in the input sequence
project['transcripts']['sequences']['vector_sequence_GC']

############################################################################

## average codon frequency in the output sequence
project['transcripts']['sequences']['optimized_vector_sequence_frequence']

## GC% content in the output sequence
project['transcripts']['sequences']['optimized_vector_sequence_GC']

# Sequences
# Input sequence
project['transcripts']['sequences']['sequence']
# Predicted structure - input
project['transcripts']['sequences']['sequence_figure']

# Optimized sequence
project['transcripts']['sequences']['vector_sequence']
# Predicted structure - optimized
project['transcripts']['sequences']['optimized_sequence_figure']

Example return:

Otimized sequence structure:

drawing

Input sequence structure:

drawing

Alternative options:

# Sequences results and metadata

# optimized sequence - main
project['transcripts']['sequences']

# optimized sequence - alternatives
project['transcripts']['alternative']

# additional variant 1
project['transcripts']['alternative']['var0]

# additional variant 2
project['transcripts']['alternative']['var1]

Example return:

>Optimized sequence - main
ATGCTGACCAGCGGATTGGTTGTGAGCAACATGTTCAGCTACCACCTGGCCGCCCTGGGATTGATGCCTTCTTTTCAGATGGAGGGCAGGGGCAGAGTGAACCAGTTGGGAGGAGTGTTTATCAACGGCCGGCCTCTGCCTAATCACATCCGGCTGAAAATCGTGGAGTTGGCCGCTCAGGGAGTTAGGCCTTGTGTGATTAGCAGGCAGCTGAGGGTGTCTCACGGATGTGTGAGCAAGATCCTGCAGCGGTACCAGGAGACCGGCTCTATCAGGCCTGGAGTGATTGGCGGCTCTAAACCCAGGGTGGCTACACCTGAAGTGGAAAAGAAGATCGAGCAGTACAAGAAGGACAACCCCGGCATCTTCAGCTGGGAGATCCGGGACCGGCTGCTGAAGGAGGGCATCTGCGACAGAAGCACCGTGCCTTCTGTGTCTAGCATCAGCAGGGTGTTGAGGAGCAGATTTCAGAAGTGCGACAGCGACGACAACGACAACGACAACGACAACGAGGACGACGACGGCGACGACGGCAGCAACAGCAGCGTGGCCGATAGGTCTGTGAACTTCAGCGTGAGCGGCCTGCTGTCTGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGAGCGAGCCCGGACTGTCTGTGAAACGGAAGCAGAGAAGGAGCAGAACAACCTTCACAGCTGAACAGCTGGAGGAACTGGAGAGGGCCTTTGAGAGGACACACTACCCTGATATCTACACCCGGGAAGAGCTGGCTCAGAGAACAAAGTTGACCGAGGCCAGAGTTCAGGTGTGGTTCAGCAACCGGAGGGCCAGATGGAGAAAGCAGATGGGCTCTAACCAGTTGACCGCTCTGAATAGCATCCTGCAGGTGCCCCAGGGAATGGGAACACCTAGCTACATGCTGCACGAGCCCGGATACCCTTTGTCTCACAACGCCGATAACCTGTGGCACAGGTCTAGCATGGCTCAGTCTCTGCAGAGCTTCGGACAGACAATCAAGCCCGAGAACAGCTACGCCGGATTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGACTGCCTACACATAGCAGCAGCGACCCTTTGTCTTCTACCTGGTCTAGCCCTGTGTCTACCTCTGTGCCTGCTCTGGGATATACCCCTTCTAGCGGACACTATCACCACTACAGCGACGTGACCAAGTCTACCCTGCACAGCTACAACGCCCACATCCCCTCTGTGACCAACATGGAGCGGTGCAGCGTGGACGACTCTCTGGTGGCTCTGAGAATGAAAAGCCGGGAGCACAGCGCCGCCCTGTCTTTGATGCAGGTGGCCGATAACAAGATGGCCACCTCTTTCTGA

>Optimized sequence - alternative variant 1
ATGCTGACCAGCGGCCTGGTTGTGAGCAACATGTTCTCTTACCACCTGGCCGCTCTGGGATTAATGCCTTCTTTTCAGATGGAGGGCAGGGGCAGAGTGAATCAGTTAGGAGGAGTGTTTATTAACGGCAGGCCTTTACCTAATCACATTCGGCTGAAAATCGTGGAGTTAGCTGCTCAGGGAGTTAGACCTTGTGTGATCAGCAGGCAGTTGAGAGTGTCTCACGGATGTGTGTCTAAAATCCTGCAGAGATACCAGGAGACAGGCAGCATCAGGCCTGGAGTGATTGGAGGCTCTAAACCCAGAGTGGCTACACCTGAAGTGGAGAAAAAGATCGAGCAATACAAGAAGGACAACCCCGGCATCTTCTCTTGGGAGATCCGGGACAGGTTGCTGAAGGAGGGAATCTGTGATAGGTCTACAGTGCCTTCTGTGTCTAGCATCAGCAGGGTGTTGAGAAGCAGATTCCAGAAATGCGACAGCGACGATAACGACAACGACAACGACAACGAGGACGACGACGGCGATGATGGCTCTAATAGCAGCGTGGCCGATAGATCTGTGAACTTCAGCGTGAGCGGATTGCTGTCTGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGTCTGAGCCTGGACTGTCTGTTAAACGGAAGCAGAGGAGGAGCAGAACAACATTCACAGCCGAGCAGTTGGAGGAACTGGAGAGGGCCTTTGAGAGAACCCACTATCCCGATATCTACACCAGGGAAGAACTGGCTCAGAGAACAAAACTGACCGAGGCCAGAGTTCAGGTGTGGTTTAGCAACCGGAGGGCCAGATGGAGAAAACAGATGGGCAGCAACCAGTTAACAGCCCTGAACAGCATCCTGCAGGTGCCTCAAGGAATGGGAACACCTTCTTATATGCTGCACGAGCCTGGATATCCTTTATCTCATAACGCCGATAACCTGTGGCACAGGTCTTCTATGGCTCAATCTCTGCAGTCTTTCGGACAGACAATTAAGCCCGAGAACTCTTACGCCGGATTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGACTGCCTACACATTCTTCTAGCGACCCTTTATCTTCTACATGGTCTAGCCCTGTGTCTACATCTGTGCCTGCTCTGGGATATACACCTTCTTCTGGCCACTATCACCACTACAGCGACGTGACCAAGAGCACCCTGCATTCTTACAACGCCCACATTCCCAGCGTGACCAACATGGAGCGGTGCTCTGTGGATGACAGCTTAGTGGCTCTGAGAATGAAAAGCAGGGAACACTCTGCTGCTCTGTCTTTAATGCAGGTGGCCGATAATAAGATGGCCACCTCTTTCTGA

>Optimized sequence - alternative variant 2
ATGCTGACCAGCGGATTGGTGGTGAGCAACATGTTCTCTTACCACCTGGCTGCTCTGGGCCTGATGCCCTCTTTCCAGATGGAGGGCCGGGGCAGGGTGAATCAGTTGGGCGGAGTGTTTATCAACGGCCGGCCCCTGCCTAATCACATCCGGCTGAAGATCGTGGAGTTGGCTGCTCAGGGAGTGAGACCCTGCGTGATCAGCCGGCAGTTGAGGGTGTCTCACGGATGTGTGAGCAAGATCCTGCAGAGATACCAGGAGACCGGCAGCATCCGGCCCGGAGTGATTGGCGGCTCTAAGCCCAGGGTGGCTACACCTGAAGTGGAGAAGAAGATCGAGCAGTATAAGAAGGACAACCCCGGCATCTTCTCTTGGGAGATCCGGGACCGGCTGCTGAAGGAGGGCATCTGCGACCGGAGCACCGTGCCCAGCGTGAGCAGCATCAGCCGGGTGCTGCGGAGCCGGTTCCAGAAGTGCGACAGCGACGACAACGACAACGACAACGACAACGAGGACGACGACGGCGACGACGGCAGCAACAGCAGCGTGGCCGACCGGAGCGTGAACTTCAGCGTGAGCGGCCTGCTGAGCGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGAGCGAGCCCGGCCTGAGCGTGAAGCGGAAGCAGCGGCGGAGCCGGACCACCTTCACCGCTGAGCAGTTGGAGGAGTTGGAGCGGGCCTTCGAGCGGACCCACTACCCCGACATCTACACCCGGGAGGAGTTGGCCCAGCGGACCAAGTTGACCGAGGCCCGGGTGCAGGTGTGGTTCAGCAACCGGCGGGCCAGATGGAGGAAACAGATGGGCAGCAACCAGTTGACCGCTCTGAACAGCATCCTGCAGGTGCCCCAGGGCATGGGCACCCCTTCTTACATGCTGCACGAGCCCGGATACCCTTTGAGCCACAACGCCGACAACCTGTGGCACCGGAGCAGCATGGCCCAGAGCCTGCAGTCTTTCGGCCAGACCATCAAGCCCGAGAACTCTTACGCCGGCCTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGCCTGCCCACCCACAGCAGCAGCGACCCCCTGAGCAGCACCTGGAGCAGCCCTGTGTCTACCAGCGTGCCTGCTCTGGGATATACCCCCAGCAGCGGACACTATCACCACTACAGCGACGTGACCAAGAGCACCCTGCACTCTTACAACGCCCACATCCCCAGCGTGACCAACATGGAGCGGTGCAGCGTGGACGACAGCCTGGTGGCCCTGCGGATGAAGAGCCGGGAGCACAGCGCTGCTCTGAGCCTGATGCAGGTGGCCGACAACAAGATGGCCACCTCTTTCTGA

2.2.3 Creating plasmid vector of in-vitro transcription of mRNA

Empty input dictionary schema:

input_dict = {

    # REQUIRED!
    # name of current project (defined by user)
    'project_name':'',

    # REQUIRED!
    # avaiable of vector types (transcription)
    'vector_type':'transcription',

    # REQUIRED!
    # in this case 'vector_function':'mrna'
    'vector_function':'mrna',

    # REQUIRED!
    # avaiable options (human / mouse / rat / both (mouse + human) / both2 (rat + human) / multi (mouse + rat + human))
    # 'both / both2 / multi' - creating vector function adjusted for all species taking into consideration most adjustments for Homo sapiens
    'species':'human',

    # REQUIRED!
    # list of coding sequences (CDS) provided to make expression from the vector
    # amount of sequences is not restricted as the user must remember that the length of whole vector is limited
    # excide the relevant vector size can decrease vector working
    # sequences orientation 5' ---> 3' - sense
    'sequences':[''],
    # REQUIRED!
    # list of names of coding sequences
    # amount of names should be equal with amount of sequences
    # if provided no sequences, provide ['']
    'sequences_names':[''],

    # REQUIRED if more than one sequence of transcripts!
    # sequences of provided linkers
    # number of linkers_sequences should be equal number of sequences (transcripts) - 1. One linker for each pair of sequences.
    # if the number of transcript sequences is equal 1 then provide empty list []
    # if the user wants to not provide any linkers between the transcript sequences, provide an empty string '' for each pair of transcripts where the user wants to avoid linker; empty strings '' provide inside the list ['']
    # sequence orientation 5' ---> 3' - sense
    'linkers_sequences':[''],
    # REQUIRED if transcript sequence occures, if not empty string ''!
    # names of provided linkers
    # if the number of transcript sequences is equal 1 then provide empty list []
    # if the user wants to not provide any linkers between the transcript sequences, provide an empty string '' for each pair of transcripts where the user wants to avoid linker; empty strings '' provide inside the list ['']
    'linkers_names':[''],

    # REQUIRED!
    # sequence of provided 5`UTR
    # sequence orientation 5' ---> 3' - sense
    'utr5_sequence':'',
    # REQUIRED!
    # name of provided 5`UTR
    'utr5_name':'',

    # REQUIRED!
    # sequence of provided 3`UTR
    # sequence orientation 5' ---> 3' - sense
    'utr3_sequence':'',
    # REQUIRED!
    # name of provided 3`UTR
    'utr3_name':'',

    # REQUIRED!
    # number (integer) of A repeat in the polyA tail
    'polya_tail_x':00,

    # REQUIRED!
    # sequence of provided selection marker
    # sequence orientation 5' ---> 3' - sense
    'selection_marker_sequence':'',
    # REQUIRED!
    # name of provided selection marker
    'selection_marker_name':'',

    # OPTIONAL!
    # restriction enzymes protection of transcript sequences
    # if the user does not need any restriction places protection, provide empty list []
    'restriction_list':[],

    # REQUIRED!
    # available options (True / False)
    # decision; if the user wants the transcription sequences optimized based on the provided species
    'optimize':True

    # REQUIRED; if optimize == True!
    # user-defined percent of GC% content in predicted/optimized sequence
    'transcript_GC':58,

    # REQUIRED; if optimize == True!
    # user-defined maximum number of consecutive repeats of a single nucleotide (A, C, T(U), G) in the predicted/optimized sequence, eg. AAAAAA
    'poly_len':7

}

Example dictionary:

input_dict = {

    'project_name':'test_invitro_transcription_mRNA',
    'vector_type':'transcription',
    'vector_function':'mrna',
    'species':'human',
    'sequences':['ATGGCGATGAGCAGCGGCGGCAGTGGTGGCGGCGTCCCGGAGCAGGAGGATTCCGTGCTGTTCCGGCGCGGCACAGGCCAGAGCGATGATTCTGACATTTGGGATGATACAGCACTGATAAAAGCATATGATAAAGCTGTGGCTTCATTTAAGCATGCTCTAAAGAATGGTGACATTTGTGAAACTTCGGGTAAACCAAAAACCACACCTAAAAGAAAACCTGCTAAGAAGAATAAAAGCCAAAAGAAGAATACTGCAGCTTCCTTACAACAGTGGAAAGTTGGGGACAAATGTTCTGCCATTTGGTCAGAAGACGGTTGCATTTACCCAGCTACCATTGCTTCAATTGATTTTAAGAGAGAAACCTGTGTTGTGGTTTACACTGGATATGGAAATAGAGAGGAGCAAAATCTGTCCGATCTACTTTCCCCAATCTGTGAAGTAGCTAATAATATAGAACAAAATGCTCAAGAGAATGAAAATGAAAGCCAAGTTTCAACAGATGAAAGTGAGAACTCCAGGTCTCCTGGAAATAAATCAGATAACATCAAGCCCAAATCTGCTCCATGGAACTCTTTTCTCCCTCCACCACCCCCCATGCCAGGGCCAAGACTGGGACCAGGAAAGCCAGGTCTAAAATTCAATGGCCCACCACCGCCACCGCCACCACCACCACCCCACTTACTATCATGCTGGCTGCCTCCATTTCCTTCTGGACCACCAATAATTCCCCCACCACCTCCCATATGTCCAGATTCTCTTGATGATGCTGATGCTTTGGGAAGTATGTTAATTTCATGGTACATGAGTGGCTATCATACTGGCTATTATATGTTTCCTGAGGCCTCCCTAAAAGCCGAGCAGATGCCAGCACCATGCTTCCTGTAA'],
    'sequences_names':['SMN1'],
    'linkers_sequences':[''],
    'linkers_names':[''],
    'utr5_sequence':'GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT',
    'utr5_name':'SMN1',
    'utr3_sequence':'CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA',
    'utr3_name':'KIT',
    'polya_tail_x':50,
    'selection_marker_sequence':'ATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA',
    'selection_marker_name':'Ampicillin',
    'restriction_list':['RsaI', 'MnlI', 'AciI', 'AluI', 'BmrI'],
    'optimize':True,
    'transcript_GC':58,
    'poly_len':7
}

Output:

# Name of project
project['project']

# Graph of the designed vector
vector_plot = project['vector']['graph']
vector_plot.savefig('expression_vector.svg')

Example return:

drawing

# Complete FASTA file of the designed vecotr
project['vector']['full_fasta']

Example return:

>test_invitro_transcription_mRNA_Regular_plasmid_mrna_3676nc
TAATACGACTCACTATAGGGGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGATGCCACCATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGTGACAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAATGAAGAGCCGTACGGGCGCGCCTAGGCGCGATTCCGCTTCCTCGCTCACTGACTCGCTGCGCTCGGTCGTTCGGCTGCGGCGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAATGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGGTCTGACAGAATGGTTACGAATTAGTCACTCCGTGGATAGAGTCGCTAGACAGATAAAGCAAGTAGGTATCAACGGACTGAGGGGCAGCACATCTATTGATGCTATGCCCTCCCGAATGGTAGACCGGGGTCACGACGTTACTATGGCGCCGAAGGTGCGAGTGGCCGAGGTCTAAATAGTCGTTATTTGGTCGGTCGGCCTTCCCGGCTCGCGTCTTCACCAGGACGTTGAAATAGGCGGAGGTAGGTCAGATAATTAACAACGGCCCTTCGATCTCATTCATCAAGCGGTCAATTATCAAACGCGTTGCAACAACGGTAACGATGTCCGTAGCACCACAGTGCGAGCAGCAAACCATACCGAAGTAAGTCGAGGCCAAGGGTTGCTAGTTCCGCTCAATGTACTAGGGGGTACAACACGTTTTTTCGCCAATCGAGGAAGCCAGGAGGCTAGCAACAGTCTTCATTCAACCGGCGTCACAATAGTGAGTACCAATACCGTCGTGACGTATTAAGAGAATGACAGTACGGTAGGCATTCTACGAAAAGACACTGACCACTCATGAGTTGGTTCAGTAAGACTCTTATCACATACGCCGCTGGCTCAACGAGAACGGGCCGCAGTTATGCCCTATTATGGCGCGGTGTATCGTCTTGAAATTTTCACGAGTAGTAACCTTTTGCAAGAAGCCCCGCTTTTGAGAGTTCCTAGAATGGCGACAACTCTAGGTCAAGCTACATTGGGTGAGCACGTGGGTTGACTAGAAGTCGTAGAAAATGAAAGTGGTCGCAAAGACCCACTCGTTTTTGTCCTTCCGTTTTACGGCGTTTTTTCCCTTATTCCCGCTGTGCCTTTACAACTTATGAGTAACTCTTCCTTTTTCAATATTATTGAAGCATTTATCAGGGTTATTGTCTCATGAGCGGATACATATTTGAATGTATTTAGAAAAATAAACAAATAGGGGTTCCGCGCACATTTCCCCGAAAAGTGCCACCTGACGTCTAAGAAACCATTATTATCATGACATTAACCTATAAAAATAGGCGTATCACGAGGCCCTTTCGTC

# The FASTA file is divided into particular elements of the designed vector
project['vector']['fasta']

Example return:

#test_invitro_transcription_mRNA_Regular_plasmid_mrna_3676nc

>T7
TAATACGACTCACTATAGG
>5`UTR : SMN1
GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT
>Kozak_sequence
GCCACC
>SEQ1 : SMN1
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGTGA
>3`UTR : KIT
CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA
>PolyA_tail : x 50
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
>backbone_element
T
>SapI
GAAGAGC
>BsiWI
CGTACG
>AscI
GGCGCGCC
>backbone_element
TAGGCGCGATTCCGCTTCCTCGCTCACTGACTCGCTGCGCTCGGTCGTTCGGCTGCGGCGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTT
>pUC_ori
TTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAA
>backbone_element
GAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAATGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGGTCTGACAG
>Resistance : Ampicillin
AATGGTTACGAATTAGTCACTCCGTGGATAGAGTCGCTAGACAGATAAAGCAAGTAGGTATCAACGGACTGAGGGGCAGCACATCTATTGATGCTATGCCCTCCCGAATGGTAGACCGGGGTCACGACGTTACTATGGCGCCGAAGGTGCGAGTGGCCGAGGTCTAAATAGTCGTTATTTGGTCGGTCGGCCTTCCCGGCTCGCGTCTTCACCAGGACGTTGAAATAGGCGGAGGTAGGTCAGATAATTAACAACGGCCCTTCGATCTCATTCATCAAGCGGTCAATTATCAAACGCGTTGCAACAACGGTAACGATGTCCGTAGCACCACAGTGCGAGCAGCAAACCATACCGAAGTAAGTCGAGGCCAAGGGTTGCTAGTTCCGCTCAATGTACTAGGGGGTACAACACGTTTTTTCGCCAATCGAGGAAGCCAGGAGGCTAGCAACAGTCTTCATTCAACCGGCGTCACAATAGTGAGTACCAATACCGTCGTGACGTATTAAGAGAATGACAGTACGGTAGGCATTCTACGAAAAGACACTGACCACTCATGAGTTGGTTCAGTAAGACTCTTATCACATACGCCGCTGGCTCAACGAGAACGGGCCGCAGTTATGCCCTATTATGGCGCGGTGTATCGTCTTGAAATTTTCACGAGTAGTAACCTTTTGCAAGAAGCCCCGCTTTTGAGAGTTCCTAGAATGGCGACAACTCTAGGTCAAGCTACATTGGGTGAGCACGTGGGTTGACTAGAAGTCGTAGAAAATGAAAGTGGTCGCAAAGACCCACTCGTTTTTGTCCTTCCGTTTTACGGCGTTTTTTCCCTTATTCCCGCTGTGCCTTTACAACTTATGAGTA
>backbone_element
ACTCTTCCTTTTTCAATATTATTGAAGCATTTATCAGGGTTATTGTCTCATGAGCGGATACATATTTGAATGTATTTAGAAAAATAAACAAATAGGGGTTCCGCGCACATTTCCCCGAAAAGTGCCACCTGACGTCTAAGAAACCATTATTATCATGACATTAACCTATAAAAATAGGCGTATCACGAGGCCCTTTCGTC

## genes names
project['transcripts']['sequences']['name']

## proteins sequences
project['transcripts']['sequences']['sequence_aa']

## average codon frequency in the input sequence
project['transcripts']['sequences']['vector_sequence_frequence']

## GC% content in the input sequence
project['transcripts']['sequences']['vector_sequence_GC']

############################################################################

## average codon frequency in the output sequence
project['transcripts']['sequences']['optimized_vector_sequence_frequence']

## GC% content in the output sequence
project['transcripts']['sequences']['optimized_vector_sequence_GC']

Sequences output data:

# Sequences
# Input sequence
project['transcripts']['sequences']['sequence']
# Predicted structure - input
project['transcripts']['sequences']['sequence_figure']

# Optimized sequence
project['transcripts']['sequences']['vector_sequence']
# Predicted structure - optimized
project['transcripts']['sequences']['optimized_sequence_figure']

Example return:

Otimized sequence structure:

drawing

Input sequence structure:

drawing

Alternative options:

# Sequences results and metadata

# optimized sequence - main
project['transcripts']['sequences']

# optimized sequence - alternatives
project['transcripts']['alternative']

# additional variant 1
project['transcripts']['alternative']['var0]

# additional variant 2
project['transcripts']['alternative']['var1]

Example return:

>Optimized sequence - main
ATGCTGACCAGCGGATTGGTTGTGAGCAACATGTTCAGCTACCACCTGGCCGCCCTGGGATTGATGCCTTCTTTTCAGATGGAGGGCAGGGGCAGAGTGAACCAGTTGGGAGGAGTGTTTATCAACGGCCGGCCTCTGCCTAATCACATCCGGCTGAAAATCGTGGAGTTGGCCGCTCAGGGAGTTAGGCCTTGTGTGATTAGCAGGCAGCTGAGGGTGTCTCACGGATGTGTGAGCAAGATCCTGCAGCGGTACCAGGAGACCGGCTCTATCAGGCCTGGAGTGATTGGCGGCTCTAAACCCAGGGTGGCTACACCTGAAGTGGAAAAGAAGATCGAGCAGTACAAGAAGGACAACCCCGGCATCTTCAGCTGGGAGATCCGGGACCGGCTGCTGAAGGAGGGCATCTGCGACAGAAGCACCGTGCCTTCTGTGTCTAGCATCAGCAGGGTGTTGAGGAGCAGATTTCAGAAGTGCGACAGCGACGACAACGACAACGACAACGACAACGAGGACGACGACGGCGACGACGGCAGCAACAGCAGCGTGGCCGATAGGTCTGTGAACTTCAGCGTGAGCGGCCTGCTGTCTGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGAGCGAGCCCGGACTGTCTGTGAAACGGAAGCAGAGAAGGAGCAGAACAACCTTCACAGCTGAACAGCTGGAGGAACTGGAGAGGGCCTTTGAGAGGACACACTACCCTGATATCTACACCCGGGAAGAGCTGGCTCAGAGAACAAAGTTGACCGAGGCCAGAGTTCAGGTGTGGTTCAGCAACCGGAGGGCCAGATGGAGAAAGCAGATGGGCTCTAACCAGTTGACCGCTCTGAATAGCATCCTGCAGGTGCCCCAGGGAATGGGAACACCTAGCTACATGCTGCACGAGCCCGGATACCCTTTGTCTCACAACGCCGATAACCTGTGGCACAGGTCTAGCATGGCTCAGTCTCTGCAGAGCTTCGGACAGACAATCAAGCCCGAGAACAGCTACGCCGGATTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGACTGCCTACACATAGCAGCAGCGACCCTTTGTCTTCTACCTGGTCTAGCCCTGTGTCTACCTCTGTGCCTGCTCTGGGATATACCCCTTCTAGCGGACACTATCACCACTACAGCGACGTGACCAAGTCTACCCTGCACAGCTACAACGCCCACATCCCCTCTGTGACCAACATGGAGCGGTGCAGCGTGGACGACTCTCTGGTGGCTCTGAGAATGAAAAGCCGGGAGCACAGCGCCGCCCTGTCTTTGATGCAGGTGGCCGATAACAAGATGGCCACCTCTTTCTGA

>Optimized sequence - alternative variant 1
ATGCTGACCAGCGGCCTGGTTGTGAGCAACATGTTCTCTTACCACCTGGCCGCTCTGGGATTAATGCCTTCTTTTCAGATGGAGGGCAGGGGCAGAGTGAATCAGTTAGGAGGAGTGTTTATTAACGGCAGGCCTTTACCTAATCACATTCGGCTGAAAATCGTGGAGTTAGCTGCTCAGGGAGTTAGACCTTGTGTGATCAGCAGGCAGTTGAGAGTGTCTCACGGATGTGTGTCTAAAATCCTGCAGAGATACCAGGAGACAGGCAGCATCAGGCCTGGAGTGATTGGAGGCTCTAAACCCAGAGTGGCTACACCTGAAGTGGAGAAAAAGATCGAGCAATACAAGAAGGACAACCCCGGCATCTTCTCTTGGGAGATCCGGGACAGGTTGCTGAAGGAGGGAATCTGTGATAGGTCTACAGTGCCTTCTGTGTCTAGCATCAGCAGGGTGTTGAGAAGCAGATTCCAGAAATGCGACAGCGACGATAACGACAACGACAACGACAACGAGGACGACGACGGCGATGATGGCTCTAATAGCAGCGTGGCCGATAGATCTGTGAACTTCAGCGTGAGCGGATTGCTGTCTGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGTCTGAGCCTGGACTGTCTGTTAAACGGAAGCAGAGGAGGAGCAGAACAACATTCACAGCCGAGCAGTTGGAGGAACTGGAGAGGGCCTTTGAGAGAACCCACTATCCCGATATCTACACCAGGGAAGAACTGGCTCAGAGAACAAAACTGACCGAGGCCAGAGTTCAGGTGTGGTTTAGCAACCGGAGGGCCAGATGGAGAAAACAGATGGGCAGCAACCAGTTAACAGCCCTGAACAGCATCCTGCAGGTGCCTCAAGGAATGGGAACACCTTCTTATATGCTGCACGAGCCTGGATATCCTTTATCTCATAACGCCGATAACCTGTGGCACAGGTCTTCTATGGCTCAATCTCTGCAGTCTTTCGGACAGACAATTAAGCCCGAGAACTCTTACGCCGGATTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGACTGCCTACACATTCTTCTAGCGACCCTTTATCTTCTACATGGTCTAGCCCTGTGTCTACATCTGTGCCTGCTCTGGGATATACACCTTCTTCTGGCCACTATCACCACTACAGCGACGTGACCAAGAGCACCCTGCATTCTTACAACGCCCACATTCCCAGCGTGACCAACATGGAGCGGTGCTCTGTGGATGACAGCTTAGTGGCTCTGAGAATGAAAAGCAGGGAACACTCTGCTGCTCTGTCTTTAATGCAGGTGGCCGATAATAAGATGGCCACCTCTTTCTGA

>Optimized sequence - alternative variant 2
ATGCTGACCAGCGGATTGGTGGTGAGCAACATGTTCTCTTACCACCTGGCTGCTCTGGGCCTGATGCCCTCTTTCCAGATGGAGGGCCGGGGCAGGGTGAATCAGTTGGGCGGAGTGTTTATCAACGGCCGGCCCCTGCCTAATCACATCCGGCTGAAGATCGTGGAGTTGGCTGCTCAGGGAGTGAGACCCTGCGTGATCAGCCGGCAGTTGAGGGTGTCTCACGGATGTGTGAGCAAGATCCTGCAGAGATACCAGGAGACCGGCAGCATCCGGCCCGGAGTGATTGGCGGCTCTAAGCCCAGGGTGGCTACACCTGAAGTGGAGAAGAAGATCGAGCAGTATAAGAAGGACAACCCCGGCATCTTCTCTTGGGAGATCCGGGACCGGCTGCTGAAGGAGGGCATCTGCGACCGGAGCACCGTGCCCAGCGTGAGCAGCATCAGCCGGGTGCTGCGGAGCCGGTTCCAGAAGTGCGACAGCGACGACAACGACAACGACAACGACAACGAGGACGACGACGGCGACGACGGCAGCAACAGCAGCGTGGCCGACCGGAGCGTGAACTTCAGCGTGAGCGGCCTGCTGAGCGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGAGCGAGCCCGGCCTGAGCGTGAAGCGGAAGCAGCGGCGGAGCCGGACCACCTTCACCGCTGAGCAGTTGGAGGAGTTGGAGCGGGCCTTCGAGCGGACCCACTACCCCGACATCTACACCCGGGAGGAGTTGGCCCAGCGGACCAAGTTGACCGAGGCCCGGGTGCAGGTGTGGTTCAGCAACCGGCGGGCCAGATGGAGGAAACAGATGGGCAGCAACCAGTTGACCGCTCTGAACAGCATCCTGCAGGTGCCCCAGGGCATGGGCACCCCTTCTTACATGCTGCACGAGCCCGGATACCCTTTGAGCCACAACGCCGACAACCTGTGGCACCGGAGCAGCATGGCCCAGAGCCTGCAGTCTTTCGGCCAGACCATCAAGCCCGAGAACTCTTACGCCGGCCTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGCCTGCCCACCCACAGCAGCAGCGACCCCCTGAGCAGCACCTGGAGCAGCCCTGTGTCTACCAGCGTGCCTGCTCTGGGATATACCCCCAGCAGCGGACACTATCACCACTACAGCGACGTGACCAAGAGCACCCTGCACTCTTACAACGCCCACATCCCCAGCGTGACCAACATGGAGCGGTGCAGCGTGGACGACAGCCTGGTGGCCCTGCGGATGAAGAGCCGGGAGCACAGCGCTGCTCTGAGCCTGATGCAGGTGGCCGACAACAAGATGGCCACCTCTTTCTGA

2.2.4 Creating plasmid vector of in-vitro transcription of RNAi

Empty input dictionary schema:

input_dict = {

    # REQUIRED!
    # name of current project (defined by user)
    'project_name':'',

    # REQUIRED!
    # avaiable of vector types (transcription)
    'vector_type':'transcription',

    # REQUIRED!
    # in this case 'vector_function':'rnai'
    'vector_function':'rnai',

    # REQUIRED!
    # avaiable options (human / mouse / rat / both (mouse + human) / both2 (rat + human) / multi (mouse + rat + human))
    # 'both / both2 / multi' - creating vector function adjusted for all species taking into consideration most adjustments for Homo sapiens
    'species':'human',

    # OPTIONAL!
    # sequence of custom RNAi, which can be provided by user
    # if provided, then the algorithm of RNAi estimation is off
    # if empt '' the algorithm share the best possible RNAi based on 'rnai_gene_name'
    # sequence orientation 5' ---> 3' - sense
    'rnai_sequence':'',

    # REQUIRED; if rnai_sequence is empty!
    # length of RNAi (defined by user)
    # recomended range: 20–25
    'rnai_length':20,

    # OPTIONAL; if rnai_sequence is empty!
    # overhang sequence of RNAi sequence 3' end (defined by user)
    # recomended 'UU'
    'overhang_3_prime':'UU',

    # REQUIRED!
    # name of the target gene for the RNAi searching algorithm (gene name for Homo sapien / Mus musculus / Rattus norvegicus)
    # algorithm is working when the rnai_sequence is empty ''
    # if the user defines 'rnai_sequence' this 'rnai_gene_name' is just a name for a user-supplied sequence
    'rnai_gene_name':'',

    # REQUIRED!
    # sequence of the loop to create the structure of the hairpin of shRNA or siRNA depending on the loop sequence
    # algorithm is working when the rnai_sequence is empty ''
    # if the user defines 'rnai_sequence' this 'rnai_gene_name' is just a name for a user-supplied sequence
    # sequence orientation 5' ---> 3' - sense
    'loop_sequence':'',

    # REQUIRED!
    # sequence of provided selection marker
    # sequence orientation 5' ---> 3' - sense
    'selection_marker_sequence':'',
    # REQUIRED!
    # name of provided selection marker
    'selection_marker_name':''
}

Example dictionary:

input_dict = {

    'project_name':'test_invitro_transcription_RNAi',
    'vector_type':'transcription',
    'vector_function':'rnai',
    'species':'human',
    'rnai_sequence':'',
    'rnai_length':20,
    'overhang_3_prime':'UU',
    'rnai_gene_name':'KIT',
    'loop_sequence':'TAGTGAAGCCACAGATGTAC',
    'selection_marker_sequence':'ATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA',
    'selection_marker_name':'Ampicillin'
}

Output:

# Name of project
project['project']

# Graph of the designed vector
vector_plot = project['vector']['graph']
vector_plot.savefig('expression_vector.svg')

Example return:

drawing

# Complete FASTA file of the designed vecotr
project['vector']['full_fasta']

Example return:

>test_invitro_transcription_mRNA_Regular_plasmid_mrna_3676nc
TAATACGACTCACTATAGGGGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGATGCCACCATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGTGACAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAATGAAGAGCCGTACGGGCGCGCCTAGGCGCGATTCCGCTTCCTCGCTCACTGACTCGCTGCGCTCGGTCGTTCGGCTGCGGCGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAATGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGGTCTGACAGAATGGTTACGAATTAGTCACTCCGTGGATAGAGTCGCTAGACAGATAAAGCAAGTAGGTATCAACGGACTGAGGGGCAGCACATCTATTGATGCTATGCCCTCCCGAATGGTAGACCGGGGTCACGACGTTACTATGGCGCCGAAGGTGCGAGTGGCCGAGGTCTAAATAGTCGTTATTTGGTCGGTCGGCCTTCCCGGCTCGCGTCTTCACCAGGACGTTGAAATAGGCGGAGGTAGGTCAGATAATTAACAACGGCCCTTCGATCTCATTCATCAAGCGGTCAATTATCAAACGCGTTGCAACAACGGTAACGATGTCCGTAGCACCACAGTGCGAGCAGCAAACCATACCGAAGTAAGTCGAGGCCAAGGGTTGCTAGTTCCGCTCAATGTACTAGGGGGTACAACACGTTTTTTCGCCAATCGAGGAAGCCAGGAGGCTAGCAACAGTCTTCATTCAACCGGCGTCACAATAGTGAGTACCAATACCGTCGTGACGTATTAAGAGAATGACAGTACGGTAGGCATTCTACGAAAAGACACTGACCACTCATGAGTTGGTTCAGTAAGACTCTTATCACATACGCCGCTGGCTCAACGAGAACGGGCCGCAGTTATGCCCTATTATGGCGCGGTGTATCGTCTTGAAATTTTCACGAGTAGTAACCTTTTGCAAGAAGCCCCGCTTTTGAGAGTTCCTAGAATGGCGACAACTCTAGGTCAAGCTACATTGGGTGAGCACGTGGGTTGACTAGAAGTCGTAGAAAATGAAAGTGGTCGCAAAGACCCACTCGTTTTTGTCCTTCCGTTTTACGGCGTTTTTTCCCTTATTCCCGCTGTGCCTTTACAACTTATGAGTAACTCTTCCTTTTTCAATATTATTGAAGCATTTATCAGGGTTATTGTCTCATGAGCGGATACATATTTGAATGTATTTAGAAAAATAAACAAATAGGGGTTCCGCGCACATTTCCCCGAAAAGTGCCACCTGACGTCTAAGAAACCATTATTATCATGACATTAACCTATAAAAATAGGCGTATCACGAGGCCCTTTCGTC

# The FASTA file is divided into particular elements of the designed vector
project['vector']['fasta']

Example return:

#test_invitro_transcription_mRNA_Regular_plasmid_mrna_3676nc

>T7
TAATACGACTCACTATAGG
>5`UTR : SMN1
GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT
>Kozak_sequence
GCCACC
>SEQ1 : SMN1
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGTGA
>3`UTR : KIT
CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA
>PolyA_tail : x 50
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
>backbone_element
T
>SapI
GAAGAGC
>BsiWI
CGTACG
>AscI
GGCGCGCC
>backbone_element
TAGGCGCGATTCCGCTTCCTCGCTCACTGACTCGCTGCGCTCGGTCGTTCGGCTGCGGCGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTT
>pUC_ori
TTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAA
>backbone_element
GAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAATGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGGTCTGACAG
>Resistance : Ampicillin
AATGGTTACGAATTAGTCACTCCGTGGATAGAGTCGCTAGACAGATAAAGCAAGTAGGTATCAACGGACTGAGGGGCAGCACATCTATTGATGCTATGCCCTCCCGAATGGTAGACCGGGGTCACGACGTTACTATGGCGCCGAAGGTGCGAGTGGCCGAGGTCTAAATAGTCGTTATTTGGTCGGTCGGCCTTCCCGGCTCGCGTCTTCACCAGGACGTTGAAATAGGCGGAGGTAGGTCAGATAATTAACAACGGCCCTTCGATCTCATTCATCAAGCGGTCAATTATCAAACGCGTTGCAACAACGGTAACGATGTCCGTAGCACCACAGTGCGAGCAGCAAACCATACCGAAGTAAGTCGAGGCCAAGGGTTGCTAGTTCCGCTCAATGTACTAGGGGGTACAACACGTTTTTTCGCCAATCGAGGAAGCCAGGAGGCTAGCAACAGTCTTCATTCAACCGGCGTCACAATAGTGAGTACCAATACCGTCGTGACGTATTAAGAGAATGACAGTACGGTAGGCATTCTACGAAAAGACACTGACCACTCATGAGTTGGTTCAGTAAGACTCTTATCACATACGCCGCTGGCTCAACGAGAACGGGCCGCAGTTATGCCCTATTATGGCGCGGTGTATCGTCTTGAAATTTTCACGAGTAGTAACCTTTTGCAAGAAGCCCCGCTTTTGAGAGTTCCTAGAATGGCGACAACTCTAGGTCAAGCTACATTGGGTGAGCACGTGGGTTGACTAGAAGTCGTAGAAAATGAAAGTGGTCGCAAAGACCCACTCGTTTTTGTCCTTCCGTTTTACGGCGTTTTTTCCCTTATTCCCGCTGTGCCTTTACAACTTATGAGTA
>backbone_element
ACTCTTCCTTTTTCAATATTATTGAAGCATTTATCAGGGTTATTGTCTCATGAGCGGATACATATTTGAATGTATTTAGAAAAATAAACAAATAGGGGTTCCGCGCACATTTCCCCGAAAAGTGCCACCTGACGTCTAAGAAACCATTATTATCATGACATTAACCTATAAAAATAGGCGTATCACGAGGCCCTTTCGTC

# Top 1 designed RNAi in shRNA form information
# RNAi name
project['rnai']['name']

# RNAi sequence
project['rnai']['sequence']

# RNAi prediction structure
rnai_prediction = project['rnai']['figure']
rnai_prediction.savefig('rnai_predicted_structure.svg')

Example return:

drawing

# other selected RNAi with statistics

pd.DataFrame(project['rnai']['full_data'])

Examples with structure description presented in:

1.23. Prediction of RNAi on the provided sequence
1.24. Correcting of RNAi_data for complementarity to the loop sequence
1.25. Correcting of RNAi_data for complementarity to the additional external sequence

2.3. Creating sequence for synthesis de novo

project = vb.create_sequence_from_dict(metadata, input_dict, show_plot=True)

This function change provided by user metadata into two types of predicted sequences:
        -expression (artificial gene - mRNA)
        -RNAi (silencing - siRNA/shRNA)


Args:
   metadata (dict) - matadata loaded in the load_metadata() function
   input_dict (dict) - dictionary of metadata provided by the user


Examples:
    -expression (mRNA)
    -RNAi (siRNA/shRNA)


    Avaiable on https://github.com/jkubis96/JBioSeqTools
    If you have any problem, don't hesitate to contact us!

Args
    show_plot (bool) - if True the plot will be displayed, if False only the graph will be returned to the project. Default: True


Returns:
    dict: Dictionary including all vector data (graphs, sequences, fasta) created based on user definition

2.3.1 Creating sequence prediction of mRNA for de novo synthesis

Empty input dictionary schema:


input_dict = {

    # REQUIRED!
    # name of current project (defined by user)
    'project_name':'',

    # REQUIRED!
    # avaiable options (human / mouse / rat / both (mouse + human) / both2 (rat + human) / multi (mouse + rat + human))
    # 'both / both2 / multi' - creating vector function adjusted for all species taking into consideration most adjustments for Homo sapiens
    'species':'',

    # REQUIRED!
    # string of coding sequence (CDS) provided to optimize sequence
    # sequences orientation 5' ---> 3' - sense
    'sequences':[''],
    # REQUIRED!
    # name of coding sequence
    'sequence_name':'',

    # OPTIONAL!
    # restriction enzymes protection of transcript sequence
    # if the user does not need any restriction places protection, provide empty list []
    'restriction_list':[],

    # REQUIRED!
    # available options (True / False)
    # decision; if the user wants the transcription sequence optimized based on the provided species
    'optimize':True,

    # REQUIRED; if optimize == True!
    # user-defined percent of GC% content in predicted/optimized sequence
    'transcript_GC':58,

    # REQUIRED; if optimize == True!
    # user-defined maximum number of consecutive repeats of a single nucleotide (A, C, T(U), G) in the predicted/optimized sequence, eg. AAAAAA
    'poly_len':7

}

Example dictionary:

input_dict = {

    'project_name':'test_mRNA',
    'species':'human',
    'sequence':'ATGTTAACTAGTGGACTTGTAGTAAGCAACATGTTCTCCTATCATCTCGCAGCCTTGGGACTCATGCCGTCATTCCAGATGGAAGGGCGAGGTCGAGTTAATCAGCTAGGAGGTGTTTTCATTAATGGACGGCCACTGCCCAACCATATACGACTGAAGATTGTCGAGCTAGCGGCCCAGGGCGTCCGTCCGTGCGTCATCAGTAGACAGCTGCGGGTGTCACATGGCTGTGTCAGTAAAATACTCCAACGATATCAAGAAACCGGAAGTATCCGACCTGGGGTTATTGGCGGAAGTAAACCAAGGGTCGCAACTCCGGAAGTTGAGAAAAAGATAGAACAATACAAAAAAGATAATCCGGGAATTTTCAGTTGGGAGATTCGGGATCGGCTGCTGAAGGAGGGGATTTGTGACCGCAGCACCGTGCCAAGTGTGAGCTCCATCAGTCGAGTATTACGGAGCAGGTTCCAGAAATGTGATTCTGATGACAATGACAATGACAATGACAATGAGGACGACGATGGCGATGACGGCAGTAACAGTAGTGTGGCAGACAGGTCTGTTAACTTCTCTGTCAGCGGTCTGCTGTCCGACAATAAAAGCGACAAAAGCGACAACGATTCCGATTGTGAATCAGAGCCGGGGCTATCTGTAAAACGGAAGCAACGCCGCAGTCGAACTACTTTCACCGCGGAGCAGTTGGAGGAACTGGAAAGAGCCTTTGAACGAACTCACTATCCGGATATATATACGCGAGAGGAATTAGCACAAAGAACAAAGCTAACCGAGGCAAGAGTCCAAGTATGGTTTAGTAACCGAAGAGCGAGATGGCGGAAACAGATGGGTAGCAATCAGCTGACAGCCTTGAACAGTATATTACAAGTGCCACAGGGTATGGGAACGCCCTCTTATATGCTGCACGAGCCTGGGTATCCACTCTCACATAATGCAGACAATCTTTGGCATAGATCGTCTATGGCCCAGTCATTACAGTCATTTGGTCAGACAATAAAACCAGAGAATTCCTACGCCGGTCTTATGGAAAACTATTTATCTCATTCATCACAGCTTCATGGTCTTCCTACACATAGTTCATCCGATCCCCTCTCATCCACTTGGTCATCTCCCGTGTCCACTTCCGTTCCTGCGCTAGGATACACGCCATCTAGTGGCCATTACCATCATTACTCTGATGTCACCAAAAGTACTCTTCATTCATATAACGCTCATATTCCTTCAGTCACAAACATGGAGAGATGTTCAGTTGATGACAGTTTGGTTGCTTTACGTATGAAGTCACGTGAGCATTCCGCCGCTCTCAGTTTGATGCAGGTGGCAGACAACAAAATGGCTACCTCATTTTGA',
    'sequence_name':'SMN1',
    'restriction_list':['RsaI', 'MnlI', 'AciI', 'AluI', 'BmrI'],
    'optimize':True,
    'transcript_GC':58,
    'poly_len':7

}

Output:

# Name of project
project['project']

# Sequences
# Input sequence
project['transcripts']['sequences']['sequence']
# Predicted structure - input
project['transcripts']['sequences']['sequence_figure']

# Optimized sequence
project['transcripts']['sequences']['optimized_sequence']
# Predicted structure - optimized
project['transcripts']['sequences']['optimized_sequence_figure']

Example return:

Otimized sequence structure:

drawing

Input sequence structure:

drawing

Alternative options:

# Sequences results and metadata

# optimized sequence - main
project['transcripts']['sequences']

# optimized sequence - alternatives
project['transcripts']['alternative']

# additional variant 1
project['transcripts']['alternative']['var0]

# additional variant 2
project['transcripts']['alternative']['var1]

Example return:

>Optimized sequence - main
ATGCTGACCAGCGGATTGGTTGTGAGCAACATGTTCAGCTACCACCTGGCCGCCCTGGGATTGATGCCTTCTTTTCAGATGGAGGGCAGGGGCAGAGTGAACCAGTTGGGAGGAGTGTTTATCAACGGCCGGCCTCTGCCTAATCACATCCGGCTGAAAATCGTGGAGTTGGCCGCTCAGGGAGTTAGGCCTTGTGTGATTAGCAGGCAGCTGAGGGTGTCTCACGGATGTGTGAGCAAGATCCTGCAGCGGTACCAGGAGACCGGCTCTATCAGGCCTGGAGTGATTGGCGGCTCTAAACCCAGGGTGGCTACACCTGAAGTGGAAAAGAAGATCGAGCAGTACAAGAAGGACAACCCCGGCATCTTCAGCTGGGAGATCCGGGACCGGCTGCTGAAGGAGGGCATCTGCGACAGAAGCACCGTGCCTTCTGTGTCTAGCATCAGCAGGGTGTTGAGGAGCAGATTTCAGAAGTGCGACAGCGACGACAACGACAACGACAACGACAACGAGGACGACGACGGCGACGACGGCAGCAACAGCAGCGTGGCCGATAGGTCTGTGAACTTCAGCGTGAGCGGCCTGCTGTCTGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGAGCGAGCCCGGACTGTCTGTGAAACGGAAGCAGAGAAGGAGCAGAACAACCTTCACAGCTGAACAGCTGGAGGAACTGGAGAGGGCCTTTGAGAGGACACACTACCCTGATATCTACACCCGGGAAGAGCTGGCTCAGAGAACAAAGTTGACCGAGGCCAGAGTTCAGGTGTGGTTCAGCAACCGGAGGGCCAGATGGAGAAAGCAGATGGGCTCTAACCAGTTGACCGCTCTGAATAGCATCCTGCAGGTGCCCCAGGGAATGGGAACACCTAGCTACATGCTGCACGAGCCCGGATACCCTTTGTCTCACAACGCCGATAACCTGTGGCACAGGTCTAGCATGGCTCAGTCTCTGCAGAGCTTCGGACAGACAATCAAGCCCGAGAACAGCTACGCCGGATTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGACTGCCTACACATAGCAGCAGCGACCCTTTGTCTTCTACCTGGTCTAGCCCTGTGTCTACCTCTGTGCCTGCTCTGGGATATACCCCTTCTAGCGGACACTATCACCACTACAGCGACGTGACCAAGTCTACCCTGCACAGCTACAACGCCCACATCCCCTCTGTGACCAACATGGAGCGGTGCAGCGTGGACGACTCTCTGGTGGCTCTGAGAATGAAAAGCCGGGAGCACAGCGCCGCCCTGTCTTTGATGCAGGTGGCCGATAACAAGATGGCCACCTCTTTCTGA

>Optimized sequence - alternative variant 1
ATGCTGACCAGCGGCCTGGTTGTGAGCAACATGTTCTCTTACCACCTGGCCGCTCTGGGATTAATGCCTTCTTTTCAGATGGAGGGCAGGGGCAGAGTGAATCAGTTAGGAGGAGTGTTTATTAACGGCAGGCCTTTACCTAATCACATTCGGCTGAAAATCGTGGAGTTAGCTGCTCAGGGAGTTAGACCTTGTGTGATCAGCAGGCAGTTGAGAGTGTCTCACGGATGTGTGTCTAAAATCCTGCAGAGATACCAGGAGACAGGCAGCATCAGGCCTGGAGTGATTGGAGGCTCTAAACCCAGAGTGGCTACACCTGAAGTGGAGAAAAAGATCGAGCAATACAAGAAGGACAACCCCGGCATCTTCTCTTGGGAGATCCGGGACAGGTTGCTGAAGGAGGGAATCTGTGATAGGTCTACAGTGCCTTCTGTGTCTAGCATCAGCAGGGTGTTGAGAAGCAGATTCCAGAAATGCGACAGCGACGATAACGACAACGACAACGACAACGAGGACGACGACGGCGATGATGGCTCTAATAGCAGCGTGGCCGATAGATCTGTGAACTTCAGCGTGAGCGGATTGCTGTCTGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGTCTGAGCCTGGACTGTCTGTTAAACGGAAGCAGAGGAGGAGCAGAACAACATTCACAGCCGAGCAGTTGGAGGAACTGGAGAGGGCCTTTGAGAGAACCCACTATCCCGATATCTACACCAGGGAAGAACTGGCTCAGAGAACAAAACTGACCGAGGCCAGAGTTCAGGTGTGGTTTAGCAACCGGAGGGCCAGATGGAGAAAACAGATGGGCAGCAACCAGTTAACAGCCCTGAACAGCATCCTGCAGGTGCCTCAAGGAATGGGAACACCTTCTTATATGCTGCACGAGCCTGGATATCCTTTATCTCATAACGCCGATAACCTGTGGCACAGGTCTTCTATGGCTCAATCTCTGCAGTCTTTCGGACAGACAATTAAGCCCGAGAACTCTTACGCCGGATTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGACTGCCTACACATTCTTCTAGCGACCCTTTATCTTCTACATGGTCTAGCCCTGTGTCTACATCTGTGCCTGCTCTGGGATATACACCTTCTTCTGGCCACTATCACCACTACAGCGACGTGACCAAGAGCACCCTGCATTCTTACAACGCCCACATTCCCAGCGTGACCAACATGGAGCGGTGCTCTGTGGATGACAGCTTAGTGGCTCTGAGAATGAAAAGCAGGGAACACTCTGCTGCTCTGTCTTTAATGCAGGTGGCCGATAATAAGATGGCCACCTCTTTCTGA

>Optimized sequence - alternative variant 2
ATGCTGACCAGCGGATTGGTGGTGAGCAACATGTTCTCTTACCACCTGGCTGCTCTGGGCCTGATGCCCTCTTTCCAGATGGAGGGCCGGGGCAGGGTGAATCAGTTGGGCGGAGTGTTTATCAACGGCCGGCCCCTGCCTAATCACATCCGGCTGAAGATCGTGGAGTTGGCTGCTCAGGGAGTGAGACCCTGCGTGATCAGCCGGCAGTTGAGGGTGTCTCACGGATGTGTGAGCAAGATCCTGCAGAGATACCAGGAGACCGGCAGCATCCGGCCCGGAGTGATTGGCGGCTCTAAGCCCAGGGTGGCTACACCTGAAGTGGAGAAGAAGATCGAGCAGTATAAGAAGGACAACCCCGGCATCTTCTCTTGGGAGATCCGGGACCGGCTGCTGAAGGAGGGCATCTGCGACCGGAGCACCGTGCCCAGCGTGAGCAGCATCAGCCGGGTGCTGCGGAGCCGGTTCCAGAAGTGCGACAGCGACGACAACGACAACGACAACGACAACGAGGACGACGACGGCGACGACGGCAGCAACAGCAGCGTGGCCGACCGGAGCGTGAACTTCAGCGTGAGCGGCCTGCTGAGCGACAACAAGAGCGACAAGAGCGACAACGACAGCGACTGCGAGAGCGAGCCCGGCCTGAGCGTGAAGCGGAAGCAGCGGCGGAGCCGGACCACCTTCACCGCTGAGCAGTTGGAGGAGTTGGAGCGGGCCTTCGAGCGGACCCACTACCCCGACATCTACACCCGGGAGGAGTTGGCCCAGCGGACCAAGTTGACCGAGGCCCGGGTGCAGGTGTGGTTCAGCAACCGGCGGGCCAGATGGAGGAAACAGATGGGCAGCAACCAGTTGACCGCTCTGAACAGCATCCTGCAGGTGCCCCAGGGCATGGGCACCCCTTCTTACATGCTGCACGAGCCCGGATACCCTTTGAGCCACAACGCCGACAACCTGTGGCACCGGAGCAGCATGGCCCAGAGCCTGCAGTCTTTCGGCCAGACCATCAAGCCCGAGAACTCTTACGCCGGCCTGATGGAGAACTACCTGAGCCACAGCAGCCAGTTGCACGGCCTGCCCACCCACAGCAGCAGCGACCCCCTGAGCAGCACCTGGAGCAGCCCTGTGTCTACCAGCGTGCCTGCTCTGGGATATACCCCCAGCAGCGGACACTATCACCACTACAGCGACGTGACCAAGAGCACCCTGCACTCTTACAACGCCCACATCCCCAGCGTGACCAACATGGAGCGGTGCAGCGTGGACGACAGCCTGGTGGCCCTGCGGATGAAGAGCCGGGAGCACAGCGCTGCTCTGAGCCTGATGCAGGTGGCCGACAACAAGATGGCCACCTCTTTCTGA

2.3.2 Creating plasmid vector of in-vitro transcription of RNAi

Empty input dictionary schema:

input_dict = {

    # REQUIRED!
    # name of current project (defined by user)
    'project_name':'',

    # REQUIRED!
    # avaiable options (human / mouse / rat / both (mouse + human) / both2 (rat + human) / multi (mouse + rat + human))
    # 'both / both2 / multi' - creating vector function adjusted for all species taking into consideration most adjustments for Homo sapiens
    'species':'human',

    # REQUIRED!
    # type of RNAi (defined by user)
    # avaiable options 'sh' - for shRNA and 'sirna' for siRNA
    'rnai_type':'',

    # OPTIONAL!
    # sequence of custom RNAi, which can be provided by user
    # if provided, then the algorithm of RNAi estimation is off
    # if empt '' the algorithm share the best possible RNAi based on 'rnai_gene_name'
    # sequence orientation 5' ---> 3' - sense
    'rnai_sequence':'',

    # REQUIRED; if rnai_sequence is empty!
    # length of RNAi (defined by user)
    # recomended range: 20–25
    'rnai_length':20,

    # OPTIONAL; if rnai_sequence is empty!
    # overhang sequence of RNAi sequence 3' end (defined by user)
    # recomended 'UU'
    'overhang_3_prime':'UU',

    # REQUIRED!
    # name of the target gene for the RNAi searching algorithm (gene name for Homo sapien / Mus musculus / Rattus norvegicus)
    # algorithm is working when the rnai_sequence is empty ''
    # if the user defines 'rnai_sequence' this 'rnai_gene_name' is just a name for a user-supplied sequence
    'rnai_gene_name':'',

    # REQUIRED, if rnai_type = 'sh'!
    # sequence of the loop to create the structure of the hairpin of shRNA
    # sequence orientation 5' ---> 3' - sense
    'loop_sequence':''
}

Example dictionary:

# siRNA

input_dict = {

    'project_name':'test_siRNA',
    'species':'human',
    'rnai_type':'sirna',
    'rnai_sequence':'',
    'rnai_length':20,
    'overhang_3_prime':'UU',
    'rnai_gene_name':'KIT',
    'loop_sequence':''
}


# shRNA

input_dict = {

    'project_name':'test_shRNA',
    'species':'human',
    'rnai_type':'sh',
    'rnai_sequence':'',
    'rnai_length':20,
    'overhang_3_prime':'UU',
    'rnai_gene_name':'KIT',
    'loop_sequence':'TAGTGAAGCCACAGATGTAC'
}

Output:

# Name of project
project['project']

# Top 1 designed RNAi
# RNAi name
project['rnai']['name']

# RNAi sequence
project['rnai']['sequence']

# RNAi prediction structure
rnai_prediction = project['rnai']['figure']
rnai_prediction.savefig('rnai_predicted_structure.svg')

Example return:

shRNA

drawing

siRNA

drawing

# other selected RNAi with statistics

pd.DataFrame(project['rnai']['full_data'])

Examples with structure description presented in:

1.23. Prediction of RNAi on the provided sequence
1.24. Correcting of RNAi_data for complementarity to the loop sequence

2.4. Creating vector plasmid from FASTA - display existing or custom editing FASTA file

FASTA stucture for prepare custom vector


	>name1
	CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACC

	>name2
	TCTAGACAACTTTGTATAGAAAAGTTG

	>name3
	GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTAC

	Header explanation:
		name1,2,3,... - the name of the sequence element

FASTA file can be prepared in any text editor without any additional tools. The user must only remember that the file extension should be *.fasta!
User can also modify previously obtained plasmid vector fasta file obtained in vector_create_on_dict() function. Read above!

2.4.1 Loading fasta from the file

fasta_string = vb.load_fasta(path)

This function finds and removes restriction places inside the sequence.

Args:
   path (str) - path to the FASTA file *.FASTA


Returns:
    str: Loaded FASTA file to the string object

2.4.2 Converting the FASTA string to the data frame

df_fasta = vb.decode_fasta_to_dataframe(fasta_string)

This function decodes the FASTA file from the string to the data frame


Args:
   fasta_file (str) - FASTA file (string) loaded by load_fasta() from external source

Returns:
    DataFrame: Data frame containing in separate columns FASTA headers and sequences

2.4.3 Decoding FASTA information

df_fasta = vb.extract_fasta_info(df_fasta)

This function extracts the necessary information from headers for vector plotting using plot_vector()

For decoding headers the FASTA structure should be:

    >name1
    CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACC

    >name2
    TCTAGACAACTTTGTATAGAAAAGTTG

    >name3
    GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTAC

    Header explanation:
        name1,2,3,... - the name of the sequence element


Args:
   df_fasta (DataFrame) - FASTA data frame obtained from decode_fasta_to_dataframe()
   ommit_pattern (str) - string pattern. Any header containing this pattern will be marked as
                         False for visibility, meaning that the corresponding part of the plasmid
                         vector sequence will not be displayed.


Returns:
    DataFrame: Data frame with additional columns of decoded headers for plot_vector() function

2.4.4 Creating graph of the plasmid vector

graph = vb.plot_vector(df_fasta, title = None, title_size = 20, show_plot = True)

This function displays a plot of the vector plasmid provided in the DataFrame of the FASTA file derived from load_fasta(path) -> decode_fasta_to_dataframe(fasta) -> extract_fasta_info(df_fasta) pipeline.


Args:
    df_fasta (DataFrame) - dataframe obtained from load_fasta(path) -> decode fasta to_dataframe(fasta) -> extract_fasta_info(df_fasta) pipeline which prepare decoded FASTA file of vector plasmid.
        *dedicated FASTA structure:

    >name1
    CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACC

    >name2
    TCTAGACAACTTTGTATAGAAAAGTTG

    >name3
    GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTAC

    Header explanation:
        name1,2,3,... - the name of the sequence element


   title (str | None) - a title that will display in the middle of the plasmid vector. Default: None
   title_size (int | float) - font size of the title. Default: 20
   show_plot (bool) - if True the plot will be displayed, if False only the graph will be returned to the variable. Default: True


Returns:
    Graph: The vector plot based on the provided DataFrame FASTA data

Full pipeline example:

# Exaple FASTA file is loaded from the library repository

import pkg_resources
from jbst import vector_build as vb

fasta_string = vb.load_fasta(pkg_resources.resource_filename("jbst", "tests/fasta_vector_test.fasta"))

Example FASTA file content:

# test_expression_ssAAV_expression_8717nc

>5`ITR
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCT
>backbone_element
TCTAGACAACTTTGTATAGAAAAGTTG
>Promoter:TBG
GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT
>backbone_element
CAAGTTTGTACAAAAAAGCAGGCT
>Kozak_sequence
GCCACC
>SEQ1:SMN1
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTG
>SEQ2:SMN2
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGTGA
>PolyA_signal:SV40_late
CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA
>2nd_promoter:CAG
CTCGACATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGGGTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCCGCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCATAGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGCCCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTACGCCCCCTATTGACGTCAATGACGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTATGGGACTTTCCTACTTGGCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTCGAGGTGAGCCCCACGTTCTGCTTCACTCTCCCCATCTCCCCCCCCTCCCCACCCCCAATTTTGTATTTATTTATTTTTTAATTATTTTGTGCAGCGATGGGGGCGGGGGGGGGGGGGGGGCGCGCGCCAGGCGGGGCGGGGCGGGGCGAGGGGCGGGGCGGGGCGAGGCGGAGAGGTGCGGCGGCAGCCAATCAGAGCGGCGCGCTCCGAAAGTTTCCTTTTATGGCGAGGCGGCGGCGGCGGCGGCCCTATAAAAAGCGAAGCGCGCGGCGGGCGGGAGTCGCTGCGCGCTGCCTTCGCCCCGTGCCCCGCTCCGCCGCCGCCTCGCGCCGCCCGCCCCGGCTCTGACTGACCGCGTTACTCCCACAGGTGAGCGGGCGGGACGGCCCTTCTCCTCCGGGCTGTAATTAGCGCTTGGTTTAATGACGGCTTGTTTCTTTTCTGTGGCTGCGTGAAAGCCTTGAGGGGCTCCGGGAGGGCCCTTTGTGCGGGGGGAGCGGCTCGGGGGGTGCGTGCGTGTGTGTGTGCGTGGGGAGCGCCGCGTGCGGCTCCGCGCTGCCCGGCGGCTGTGAGCGCTGCGGGCGCGGCGCGGGGCTTTGTGCGCTCCGCAGTGTGCGCGAGGGGAGCGCGGCCGGGGGCGGTGCCCCGCGGTGCGGGGGGGGCTGCGAGGGGAACAAAGGCTGCGTGCGGGGTGTGTGCGTGGGGGGGTGAGCAGGGGGTGTGGGCGCGTCGGTCGGGCTGCAACCCCCCCTGCACCCCCCTCCCCGAGTTGCTGAGCACGGCCCGGCTTCGGGTGCGGGGCTCCGTACGGGGCGTGGCGCGGGGCTCGCCGTGCCGGGCGGGGGGTGGCGGCAGGTGGGGGTGCCGGGCGGGGCGGGGCCGCCTCGGGCCGGGGAGGGCTCGGGGGAGGGGCGCGGCGGCCCCCGGAGCGCCGGCGGCTGTCGAGGCGCGGCGAGCCGCAGCCATTGCCTTTTATGGTAATCGTGCGAGAGGGCGCAGGGACTTCCTTTGTCCCAAATCTGTGCGGAGCCGAAATCTGGGAGGCGCCGCCGCACCCCCTCTAGCGGGCGCGGGGCGAAGCGGTGCGGCGCCGGCAGGAAGGAAATGGGCGGGGAGGGCCTTCGTGCGTCGCCGCGCCGCCGTCCCCTTCTCCCTCTCCAGCCTCGGGGCTGTCCGCGGGGGGACGGCTGCCTTCGGGGGGGACGGGGCAGGGCGGGGTTCGGCTTCTGGCGTGTGACCGGCGGCTCTAGAGCCTCTGCTAACCATGTTCATGCCTTCTTCTTTTTCCTACAGCTCCTGGGCAACGTGCTGGTTATTGTGCTGTCTCATCATTTTGGCAAAGAATTG
>Fluorescent_tag:EGFP
ATGGTGAGCAAGGGCGAGGAGCTGTTCACCGGGGTGGTGCCCATCCTGGTCGAGCTGGACGGCGACGTAAACGGCCACAAGTTCAGCGTGTCCGGCGAGGGCGAGGGCGATGCCACCTACGGCAAGCTGACCCTGAAGTTCATCTGCACCACCGGCAAGCTGCCCGTGCCCTGGCCCACCCTCGTGACCACCCTGACCTACGGCGTGCAGTGCTTCAGCCGCTACCCCGACCACATGAAGCAGCACGACTTCTTCAAGTCCGCCATGCCCGAAGGCTACGTCCAGGAGCGCACCATCTTCTTCAAGGACGACGGCAACTACAAGACCCGCGCCGAGGTGAAGTTCGAGGGCGACACCCTGGTGAACCGCATCGAGCTGAAGGGCATCGACTTCAAGGAGGACGGCAACATCCTGGGGCACAAGCTGGAGTACAACTACAACAGCCACAACGTCTATATCATGGCCGACAAGCAGAAGAACGGCATCAAGGTGAACTTCAAGATCCGCCACAACATCGAGGACGGCAGCGTGCAGCTCGCCGACCACTACCAGCAGAACACCCCCATCGGCGACGGCCCCGTGCTGCTGCCCGACAACCACTACCTGAGCACCCAGTCCGCCCTGAGCAAAGACCCCAACGAGAAGCGCGATCACATGGTCCTGCTGGAGTTCGTGACCGCCGCCGGGATCACTCTCGGCATGGACGAGCTGTACAAGTAA
>backbone_element
ACCCAGCTTTCTTGTACAAAGTGGGAATTC
>Enhancer:WPRE
CGATAATCAACCTCTGGATTACAAAATTTGTGAAAGATTGACTGGTATTCTTAACTATGTTGCTCCTTTTACGCTATGTGGATACGCTGCTTTAATGCCTTTGTATCATGCTATTGCTTCCCGTATGGCTTTCATTTTCTCCTCCTTGTATAAATCCTGGTTGCTGTCTCTTTATGAGGAGTTGTGGCCCGTTGTCAGGCAACGTGGCGTGGTGTGCACTGTGTTTGCTGACGCAACCCCCACTGGTTGGGGCATTGCCACCACCTGTCAGCTCCTTTCCGGGACTTTCGCTTTCCCCCTCCCTATTGCCACGGCGGAACTCATCGCCGCCTGCCTTGCCCGCTGCTGGACAGGGGCTCGGCTGTTGGGCACTGACAATTCCGTGGTGTTGTCGGGGAAGCTGACGTCCTTTCCATGGCTGCTCGCCTGTGTTGCCACCTGGATTCTGCGCGGGACGTCCTTCTGCTACGTCCCTTCGGCCCTCAATCCAGCGGACCTTCCTTCCCGCGGCCTGCTGCCGGCTCTGCGGCCTCTTCCGCGTCTTCGCCTTCGCCCTCAGACGAGTCGGATCTCCCTTTGGGCCGCCTCCCCGCATCGG
>backbone_element
GAATTCCTAGAGCTCGCTGATCAGCCTCGA
>2nd_polyA_signal:bGH
CTGTGCCTTCTAGTTGCCAGCCATCTGTTGTTTGCCCCTCCCCCGTGCCTTCCTTGACCCTGGAAGGTGCCACTCCCACTGTCCTTTCCTAATAAAATGAGGAAATTGCATCGCATTGTCTGAGTAGGTGTCATTCTATTCTGGGGGGTGGGGTGGGGCAGGACAGCAAGGGGGAGGATTGGGAAGAGAATAGCAGGCATGCTGGGGA
>backbone_element
GGGCCGC
>3`ITR
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCT
>backbone_element
CTGCCTGCAGGGGCGCCTGATGCGGTATTTTCTCCTTACGCATCTGTGCGGTATTTCACACCGCATACGTCAAAGCAACCATAGTACGCGCCCTGTAGCGGCGCATTAAGCGCGGCGGGGGTGGTGGTTACGCGCAGCGTGACCGCTACACTTGCCAGCGCCTTAGCGCCCGCTCCTTTCGCTTTCTTCCCTTCCTTTCTCGCCACGTTCGCCGGCTTTCCCCGTCAAGCTCTAAATCGGGGGCTCCCTTTAGGGTTCCGATTTAGTGCTTTACGGCACCTCGACCCCAAAAAACTTGATTTGGGTGATGGTTCACGTAGTGGGCCATCGCCCTGATAGACGGTTTTTCGCCCTTTGACGTTGGAGTCCACGTTCTTTAATAGTGGACTCTTGTTCCAAACTGGAACAACACTCAACTCTATCTCGGGCTATTCTTTTGATTTATAAGGGATTTTGCCGATTTCGGTCTATTGGTTAAAAAATGAGCTGATTTAACAAAAATTTAACGCGAATTTTAACAAAATATTAACGTTTACAATTTTATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTTAAGCCAGCCCCGACACCCGCCAACACCCGCTGACGCGCCCTGACGGGCTTGTCTGCTCCCGGCATCCGCTTACAGACAAGCTGTGACCGTCTCCGGGAGCTGCATGTGTCAGAGGTTTTCACCGTCATCACCGAAACGCGCGAGACGAAAGGGCCTCGTGATACGCCTATTTTTATAGGTTAATGTCATGATAATAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGT
>Resistance:Ampicillin
ATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA
>backbone_element
CTGTCAGACCAAGTTTACTCATATATACTTTAGATTGATTTAAAACTTCATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAATCTCATGACCAAAATCCCTTAACGTGAGTTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGATCAAAGGATCTTC
>pUC_ori
TTGAGATCCTTTTTTTCTGCGCGTAATCTGCTGCTTGCAAACAAAAAAACCACCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCAACTCTTTTTCCGAAGGTAACTGGCTTCAGCAGAGCGCAGATACCAAATACTGTTCTTCTAGTGTAGCCGTAGTTAGGCCACCACTTCAAGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCTGCTGCCAGTGGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGGTCGGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGATACCTACAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCGGTAAGCGGCAGGGTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCTTTATAGTCCTGTCGGGTTTCGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGGGGCGGAGCCTATGGAAA
>backbone_element
AACGCCAGCAACGCGGCCTTTTTACGGTTCCTGGCCTTTTGCTGGCCTTTTGCTCACATGTCCTGCAGGCAG

df_fasta = vb.decode_fasta_to_dataframe(fasta_string)

df_fasta = vb.extract_fasta_info(df_fasta)

graph = vb.plot_vector(df_fasta, title = None, title_size = 20, show_plot = True)

graph.savefig('example_graph.svg)

Output:

drawing

2.4.5 Writing FASTA format of the plasmid vector

vb.write_fasta(fasta_string, path = None, name = 'fasta_file')

This function saves into FASTA *.fasta

Args:
    fasta_string (str/FASTA) - sequences provided in FASTA format from generate_fasta_string() or loaded from external sources
    path (str | None) - the path to save. If None save it to the current working directory. Default: None
    name (str) - the name of the saving file. Default: 'fasta_file'

2.4.6 Converting FASTA format to GeneBank format

gb_format = vb.get_genebank(df_fasta,
                     name = 'viral_vector',
                     definition = 'Synthetic viral plasmid vector')

Generate a GenBank (.gb) file based on a FASTA DataFrame.

This function takes a DataFrame containing parsed FASTA data from a plasmid vector
and converts it into a GenBank-formatted file. It is designed to work with
outputs generated by the pipeline:
`load_fasta(path) -> decode_fasta_to_dataframe(fasta) -> extract_fasta_info(df_fasta)`.

Args:
    df_fasta (DataFrame) - dataframe obtained from load_fasta(path) -> decode fasta_to_dataframe(fasta) -> extract_fasta_info(df_fasta) pipeline which prepare decoded FASTA file of vector plasmid.
        *dedicated FASTA structure:

    >name1
    CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACC

    >name2
    TCTAGACAACTTTGTATAGAAAAGTTG

    >name3
    GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTAC

    Header explanation:
        name1,2,3,... - the name of the sequence element


   name (str) - name of the GenBank data. Default is 'viral_vector'.

   definition (str) - description of the plasmid/vector for the GenBank `DEFINITION` field.
                      Default is 'Synthetic viral plasmid vector'.

Returns:
    Str: The GeneBank text format based on the provided DataFrame FASTA data

Full pipeline example:

# Exaple FASTA file is loaded from the library repository

import pkg_resources
from jbst import vector_build as vb

fasta_string = vb.load_fasta(pkg_resources.resource_filename("jbst", "tests/fasta_vector_test.fasta"))

Example FASTA file content:

# test_expression_ssAAV_expression_8717nc

>5`ITR
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCT
>backbone_element
TCTAGACAACTTTGTATAGAAAAGTTG
>Promoter:TBG
GGGCTGGAAGCTACCTTTGACATCATTTCCTCTGCGAATGCATGTATAATTTCTACAGAACCTATTAGAAAGGATCACCCAGCCTCTGCTTTTGTACAACTTTCCCTTAAAAAACTGCCAATTCCACTGCTGTTTGGCCCAATAGTGAGAACTTTTTCCTGCTGCCTCTTGGTGCTTTTGCCTATGGCCCCTATTCTGCCTGCTGAAGACACTCTTGCCAGCATGGACTTAAACCCCTCCAGCTCTGACAATCCTCTTTCTCTTTTGTTTTACATGAAGGGTCTGGCAGCCAAAGCAATCACTCAAAGTTCAAACCTTATCATTTTTTGCTTTGTTCCTCTTGGCCTTGGTTTTGTACATCAGCTTTGAAAATACCATCCCAGGGTTAATGCTGGGGTTAATTTATAACTAAGAGTGCTCTAGTTTTGCAATACAGGACATGCTATAAAAATGGAAAGAT
>backbone_element
CAAGTTTGTACAAAAAAGCAGGCT
>Kozak_sequence
GCCACC
>SEQ1:SMN1
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTG
>SEQ2:SMN2
ATGGCTATGTCTAGCGGAGGCTCTGGAGGAGGAGTTCCTGAACAGGAGGACTCTGTGCTGTTCCGGAGGGGCACAGGACAAAGCGATGACAGCGACATCTGGGACGACACAGCTCTGATTAAGGCCTACGACAAGGCCGTGGCCAGCTTCAAGCACGCCCTGAAGAACGGCGACATCTGCGAGACCAGCGGAAAGCCTAAAACCACCCCTAAGAGAAAGCCTGCTAAAAAGAACAAGAGCCAGAAGAAGAACACCGCTGCCAGCCTGCAGCAGTGGAAGGTGGGCGACAAGTGCAGCGCCATTTGGAGCGAGGACGGATGTATCTACCCTGCCACAATCGCCAGCATCGACTTCAAGCGGGAGACCTGCGTGGTGGTGTATACCGGCTACGGCAACAGGGAAGAGCAGAACCTGAGCGACCTGCTGAGCCCTATTTGCGAGGTGGCCAATAACATCGAGCAGAACGCCCAGGAGAACGAGAACGAGAGCCAGGTGAGCACCGACGAGAGCGAGAACAGCCGGAGCCCCGGCAATAAGAGCGACAACATCAAGCCCAAGAGCGCCCCCTGGAACTCTTTCCTGCCCCCCCCCCCCCCCATGCCTGGACCTAGATTGGGACCTGGAAAACCTGGACTGAAATTCAACGGCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCATTTGCTGTCTTGTTGGCTGCCCCCCTTCCCTTCTGGACCCCCCATTATCCCCCCCCCCCCCCCCATCTGTCCTGATTCTCTGGACGACGCCGATGCTTTGGGCTCTATGCTGATCTCTTGGTATATGAGCGGCTACCACACCGGCTACTACATGTTCCCCGAGGCCAGCCTGAAGGCCGAGCAGATGCCCGCTCCTTGTTTTCTGTGA
>PolyA_signal:SV40_late
CAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAAGCAAGTAAAACCTCTACAAATGTGGTA
>2nd_promoter:CAG
CTCGACATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGGGTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCCGCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCATAGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGCCCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTACGCCCCCTATTGACGTCAATGACGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTATGGGACTTTCCTACTTGGCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTCGAGGTGAGCCCCACGTTCTGCTTCACTCTCCCCATCTCCCCCCCCTCCCCACCCCCAATTTTGTATTTATTTATTTTTTAATTATTTTGTGCAGCGATGGGGGCGGGGGGGGGGGGGGGGCGCGCGCCAGGCGGGGCGGGGCGGGGCGAGGGGCGGGGCGGGGCGAGGCGGAGAGGTGCGGCGGCAGCCAATCAGAGCGGCGCGCTCCGAAAGTTTCCTTTTATGGCGAGGCGGCGGCGGCGGCGGCCCTATAAAAAGCGAAGCGCGCGGCGGGCGGGAGTCGCTGCGCGCTGCCTTCGCCCCGTGCCCCGCTCCGCCGCCGCCTCGCGCCGCCCGCCCCGGCTCTGACTGACCGCGTTACTCCCACAGGTGAGCGGGCGGGACGGCCCTTCTCCTCCGGGCTGTAATTAGCGCTTGGTTTAATGACGGCTTGTTTCTTTTCTGTGGCTGCGTGAAAGCCTTGAGGGGCTCCGGGAGGGCCCTTTGTGCGGGGGGAGCGGCTCGGGGGGTGCGTGCGTGTGTGTGTGCGTGGGGAGCGCCGCGTGCGGCTCCGCGCTGCCCGGCGGCTGTGAGCGCTGCGGGCGCGGCGCGGGGCTTTGTGCGCTCCGCAGTGTGCGCGAGGGGAGCGCGGCCGGGGGCGGTGCCCCGCGGTGCGGGGGGGGCTGCGAGGGGAACAAAGGCTGCGTGCGGGGTGTGTGCGTGGGGGGGTGAGCAGGGGGTGTGGGCGCGTCGGTCGGGCTGCAACCCCCCCTGCACCCCCCTCCCCGAGTTGCTGAGCACGGCCCGGCTTCGGGTGCGGGGCTCCGTACGGGGCGTGGCGCGGGGCTCGCCGTGCCGGGCGGGGGGTGGCGGCAGGTGGGGGTGCCGGGCGGGGCGGGGCCGCCTCGGGCCGGGGAGGGCTCGGGGGAGGGGCGCGGCGGCCCCCGGAGCGCCGGCGGCTGTCGAGGCGCGGCGAGCCGCAGCCATTGCCTTTTATGGTAATCGTGCGAGAGGGCGCAGGGACTTCCTTTGTCCCAAATCTGTGCGGAGCCGAAATCTGGGAGGCGCCGCCGCACCCCCTCTAGCGGGCGCGGGGCGAAGCGGTGCGGCGCCGGCAGGAAGGAAATGGGCGGGGAGGGCCTTCGTGCGTCGCCGCGCCGCCGTCCCCTTCTCCCTCTCCAGCCTCGGGGCTGTCCGCGGGGGGACGGCTGCCTTCGGGGGGGACGGGGCAGGGCGGGGTTCGGCTTCTGGCGTGTGACCGGCGGCTCTAGAGCCTCTGCTAACCATGTTCATGCCTTCTTCTTTTTCCTACAGCTCCTGGGCAACGTGCTGGTTATTGTGCTGTCTCATCATTTTGGCAAAGAATTG
>Fluorescent_tag:EGFP
ATGGTGAGCAAGGGCGAGGAGCTGTTCACCGGGGTGGTGCCCATCCTGGTCGAGCTGGACGGCGACGTAAACGGCCACAAGTTCAGCGTGTCCGGCGAGGGCGAGGGCGATGCCACCTACGGCAAGCTGACCCTGAAGTTCATCTGCACCACCGGCAAGCTGCCCGTGCCCTGGCCCACCCTCGTGACCACCCTGACCTACGGCGTGCAGTGCTTCAGCCGCTACCCCGACCACATGAAGCAGCACGACTTCTTCAAGTCCGCCATGCCCGAAGGCTACGTCCAGGAGCGCACCATCTTCTTCAAGGACGACGGCAACTACAAGACCCGCGCCGAGGTGAAGTTCGAGGGCGACACCCTGGTGAACCGCATCGAGCTGAAGGGCATCGACTTCAAGGAGGACGGCAACATCCTGGGGCACAAGCTGGAGTACAACTACAACAGCCACAACGTCTATATCATGGCCGACAAGCAGAAGAACGGCATCAAGGTGAACTTCAAGATCCGCCACAACATCGAGGACGGCAGCGTGCAGCTCGCCGACCACTACCAGCAGAACACCCCCATCGGCGACGGCCCCGTGCTGCTGCCCGACAACCACTACCTGAGCACCCAGTCCGCCCTGAGCAAAGACCCCAACGAGAAGCGCGATCACATGGTCCTGCTGGAGTTCGTGACCGCCGCCGGGATCACTCTCGGCATGGACGAGCTGTACAAGTAA
>backbone_element
ACCCAGCTTTCTTGTACAAAGTGGGAATTC
>Enhancer:WPRE
CGATAATCAACCTCTGGATTACAAAATTTGTGAAAGATTGACTGGTATTCTTAACTATGTTGCTCCTTTTACGCTATGTGGATACGCTGCTTTAATGCCTTTGTATCATGCTATTGCTTCCCGTATGGCTTTCATTTTCTCCTCCTTGTATAAATCCTGGTTGCTGTCTCTTTATGAGGAGTTGTGGCCCGTTGTCAGGCAACGTGGCGTGGTGTGCACTGTGTTTGCTGACGCAACCCCCACTGGTTGGGGCATTGCCACCACCTGTCAGCTCCTTTCCGGGACTTTCGCTTTCCCCCTCCCTATTGCCACGGCGGAACTCATCGCCGCCTGCCTTGCCCGCTGCTGGACAGGGGCTCGGCTGTTGGGCACTGACAATTCCGTGGTGTTGTCGGGGAAGCTGACGTCCTTTCCATGGCTGCTCGCCTGTGTTGCCACCTGGATTCTGCGCGGGACGTCCTTCTGCTACGTCCCTTCGGCCCTCAATCCAGCGGACCTTCCTTCCCGCGGCCTGCTGCCGGCTCTGCGGCCTCTTCCGCGTCTTCGCCTTCGCCCTCAGACGAGTCGGATCTCCCTTTGGGCCGCCTCCCCGCATCGG
>backbone_element
GAATTCCTAGAGCTCGCTGATCAGCCTCGA
>2nd_polyA_signal:bGH
CTGTGCCTTCTAGTTGCCAGCCATCTGTTGTTTGCCCCTCCCCCGTGCCTTCCTTGACCCTGGAAGGTGCCACTCCCACTGTCCTTTCCTAATAAAATGAGGAAATTGCATCGCATTGTCTGAGTAGGTGTCATTCTATTCTGGGGGGTGGGGTGGGGCAGGACAGCAAGGGGGAGGATTGGGAAGAGAATAGCAGGCATGCTGGGGA
>backbone_element
GGGCCGC
>3`ITR
CTGCGCGCTCGCTCGCTCACTGAGGCCGCCCGGGCAAAGCCCGGGCGTCGGGCGACCTTTGGTCGCCCGGCCTCAGTGAGCGAGCGAGCGCGCAGAGAGGGAGTGGCCAACTCCATCACTAGGGGTTCCT
>backbone_element
CTGCCTGCAGGGGCGCCTGATGCGGTATTTTCTCCTTACGCATCTGTGCGGTATTTCACACCGCATACGTCAAAGCAACCATAGTACGCGCCCTGTAGCGGCGCATTAAGCGCGGCGGGGGTGGTGGTTACGCGCAGCGTGACCGCTACACTTGCCAGCGCCTTAGCGCCCGCTCCTTTCGCTTTCTTCCCTTCCTTTCTCGCCACGTTCGCCGGCTTTCCCCGTCAAGCTCTAAATCGGGGGCTCCCTTTAGGGTTCCGATTTAGTGCTTTACGGCACCTCGACCCCAAAAAACTTGATTTGGGTGATGGTTCACGTAGTGGGCCATCGCCCTGATAGACGGTTTTTCGCCCTTTGACGTTGGAGTCCACGTTCTTTAATAGTGGACTCTTGTTCCAAACTGGAACAACACTCAACTCTATCTCGGGCTATTCTTTTGATTTATAAGGGATTTTGCCGATTTCGGTCTATTGGTTAAAAAATGAGCTGATTTAACAAAAATTTAACGCGAATTTTAACAAAATATTAACGTTTACAATTTTATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTTAAGCCAGCCCCGACACCCGCCAACACCCGCTGACGCGCCCTGACGGGCTTGTCTGCTCCCGGCATCCGCTTACAGACAAGCTGTGACCGTCTCCGGGAGCTGCATGTGTCAGAGGTTTTCACCGTCATCACCGAAACGCGCGAGACGAAAGGGCCTCGTGATACGCCTATTTTTATAGGTTAATGTCATGATAATAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGT
>Resistance:Ampicillin
ATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGAAGCCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA
>backbone_element
CTGTCAGACCAAGTTTACTCATATATACTTTAGATTGATTTAAAACTTCATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAATCTCATGACCAAAATCCCTTAACGTGAGTTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGATCAAAGGATCTTC
>pUC_ori
TTGAGATCCTTTTTTTCTGCGCGTAATCTGCTGCTTGCAAACAAAAAAACCACCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCAACTCTTTTTCCGAAGGTAACTGGCTTCAGCAGAGCGCAGATACCAAATACTGTTCTTCTAGTGTAGCCGTAGTTAGGCCACCACTTCAAGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCTGCTGCCAGTGGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGGTCGGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGATACCTACAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCGGTAAGCGGCAGGGTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCTTTATAGTCCTGTCGGGTTTCGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGGGGCGGAGCCTATGGAAA
>backbone_element
AACGCCAGCAACGCGGCCTTTTTACGGTTCCTGGCCTTTTGCTGGCCTTTTGCTCACATGTCCTGCAGGCAG

df_fasta = vb.decode_fasta_to_dataframe(fasta_string)

df_fasta = vb.extract_fasta_info(df_fasta)

gb_format = vb.get_genebank(df_fasta,
                     name = 'viral_vector',
                     definition = ' Synthetic viral plasmid vector')

Output:

LOCUS       viral_vector   8717 bp    DNA     circular     11-JUL-2025
DEFINITION   Synthetic viral plasmid vector.
FEATURES             Location/Qualifiers
     misc_feature    1..130
                     /note="5`ITR"
     misc_feature    158..617
                     /note="Promoter:TBG"
     misc_feature    642..647
                     /note="Kozak_sequence"
     misc_feature    648..1532
                     /note="SEQ1:SMN1"
     misc_feature    1533..2420
                     /note="SEQ2:SMN2"
     misc_feature    2421..2642
                     /note="PolyA_signal:SV40"
     misc_feature    2643..4375
                     /note="2nd_promoter:CAG"
     misc_feature    4376..5095
                     /note="Fluorescent_tag:EGFP"
     misc_feature    5126..5723
                     /note="Enhancer:WPRE"
     misc_feature    5754..5961
                     /note="2nd_polyA_signal:bGH"
     misc_feature    5969..6098
                     /note="3`ITR"
     misc_feature    7026..7886
                     /note="Resistance:Ampicillin"
     misc_feature    8057..8645
                     /note="pUC_ori"

ORIGIN
        1 ctgcgcgctc gctcgctcac tgaggccgcc cgggcaaagc ccgggcgtcg ggcgaccttt
       61 ggtcgcccgg cctcagtgag cgagcgagcg cgcagagagg gagtggccaa ctccatcact
      121 aggggttcct tctagacaac tttgtataga aaagttgggg ctggaagcta cctttgacat
      181 catttcctct gcgaatgcat gtataatttc tacagaacct attagaaagg atcacccagc
      241 ctctgctttt gtacaacttt cccttaaaaa actgccaatt ccactgctgt ttggcccaat
      301 agtgagaact ttttcctgct gcctcttggt gcttttgcct atggccccta ttctgcctgc
      361 tgaagacact cttgccagca tggacttaaa cccctccagc tctgacaatc ctctttctct
      421 tttgttttac atgaagggtc tggcagccaa agcaatcact caaagttcaa accttatcat
      481 tttttgcttt gttcctcttg gccttggttt tgtacatcag ctttgaaaat accatcccag
      541 ggttaatgct ggggttaatt tataactaag agtgctctag ttttgcaata caggacatgc
      601 tataaaaatg gaaagatcaa gtttgtacaa aaaagcaggc tgccaccatg gctatgtcta
      661 gcggaggctc tggaggagga gttcctgaac aggaggactc tgtgctgttc cggaggggca
      721 caggacaaag cgatgacagc gacatctggg acgacacagc tctgattaag gcctacgaca
      781 aggccgtggc cagcttcaag cacgccctga agaacggcga catctgcgag accagcggaa
      841 agcctaaaac cacccctaag agaaagcctg ctaaaaagaa caagagccag aagaagaaca
      901 ccgctgccag cctgcagcag tggaaggtgg gcgacaagtg cagcgccatt tggagcgagg
      961 acggatgtat ctaccctgcc acaatcgcca gcatcgactt caagcgggag acctgcgtgg
     1021 tggtgtatac cggctacggc aacagggaag agcagaacct gagcgacctg ctgagcccta
     1081 tttgcgaggt ggccaataac atcgagcaga acgcccagga gaacgagaac gagagccagg
     1141 tgagcaccga cgagagcgag aacagccgga gccccggcaa taagagcgac aacatcaagc
     1201 ccaagagcgc cccctggaac tctttcctgc cccccccccc ccccatgcct ggacctagat
     1261 tgggacctgg aaaacctgga ctgaaattca acggcccccc cccccccccc cccccccccc
     1321 ccccccattt gctgtcttgt tggctgcccc ccttcccttc tggacccccc attatccccc
     1381 cccccccccc catctgtcct gattctctgg acgacgccga tgctttgggc tctatgctga
     1441 tctcttggta tatgagcggc taccacaccg gctactacat gttccccgag gccagcctga
     1501 aggccgagca gatgcccgct ccttgttttc tgatggctat gtctagcgga ggctctggag
     1561 gaggagttcc tgaacaggag gactctgtgc tgttccggag gggcacagga caaagcgatg
     1621 acagcgacat ctgggacgac acagctctga ttaaggccta cgacaaggcc gtggccagct
     1681 tcaagcacgc cctgaagaac ggcgacatct gcgagaccag cggaaagcct aaaaccaccc
     1741 ctaagagaaa gcctgctaaa aagaacaaga gccagaagaa gaacaccgct gccagcctgc
     1801 agcagtggaa ggtgggcgac aagtgcagcg ccatttggag cgaggacgga tgtatctacc
     1861 ctgccacaat cgccagcatc gacttcaagc gggagacctg cgtggtggtg tataccggct
     1921 acggcaacag ggaagagcag aacctgagcg acctgctgag ccctatttgc gaggtggcca
     1981 ataacatcga gcagaacgcc caggagaacg agaacgagag ccaggtgagc accgacgaga
     2041 gcgagaacag ccggagcccc ggcaataaga gcgacaacat caagcccaag agcgccccct
     2101 ggaactcttt cctgcccccc ccccccccca tgcctggacc tagattggga cctggaaaac
     2161 ctggactgaa attcaacggc cccccccccc cccccccccc cccccccccc catttgctgt
     2221 cttgttggct gccccccttc ccttctggac cccccattat cccccccccc ccccccatct
     2281 gtcctgattc tctggacgac gccgatgctt tgggctctat gctgatctct tggtatatga
     2341 gcggctacca caccggctac tacatgttcc ccgaggccag cctgaaggcc gagcagatgc
     2401 ccgctccttg ttttctgtga cagacatgat aagatacatt gatgagtttg gacaaaccac
     2461 aactagaatg cagtgaaaaa aatgctttat ttgtgaaatt tgtgatgcta ttgctttatt
     2521 tgtaaccatt ataagctgca ataaacaagt taacaacaac aattgcattc attttatgtt
     2581 tcaggttcag ggggaggtgt gggaggtttt ttaaagcaag taaaacctct acaaatgtgg
     2641 tactcgacat tgattattga ctagttatta atagtaatca attacggggt cattagttca
     2701 tagcccatat atggagttcc gcgttacata acttacggta aatggcccgc ctggctgacc
     2761 gcccaacgac ccccgcccat tgacgtcaat aatgacgtat gttcccatag taacgccaat
     2821 agggactttc cattgacgtc aatgggtgga gtatttacgg taaactgccc acttggcagt
     2881 acatcaagtg tatcatatgc caagtacgcc ccctattgac gtcaatgacg gtaaatggcc
     2941 cgcctggcat tatgcccagt acatgacctt atgggacttt cctacttggc agtacatcta
     3001 cgtattagtc atcgctatta ccatggtcga ggtgagcccc acgttctgct tcactctccc
     3061 catctccccc ccctccccac ccccaatttt gtatttattt attttttaat tattttgtgc
     3121 agcgatgggg gcgggggggg ggggggggcg cgcgccaggc ggggcggggc ggggcgaggg
     3181 gcggggcggg gcgaggcgga gaggtgcggc ggcagccaat cagagcggcg cgctccgaaa
     3241 gtttcctttt atggcgaggc ggcggcggcg gcggccctat aaaaagcgaa gcgcgcggcg
     3301 ggcgggagtc gctgcgcgct gccttcgccc cgtgccccgc tccgccgccg cctcgcgccg
     3361 cccgccccgg ctctgactga ccgcgttact cccacaggtg agcgggcggg acggcccttc
     3421 tcctccgggc tgtaattagc gcttggttta atgacggctt gtttcttttc tgtggctgcg
     3481 tgaaagcctt gaggggctcc gggagggccc tttgtgcggg gggagcggct cggggggtgc
     3541 gtgcgtgtgt gtgtgcgtgg ggagcgccgc gtgcggctcc gcgctgcccg gcggctgtga
     3601 gcgctgcggg cgcggcgcgg ggctttgtgc gctccgcagt gtgcgcgagg ggagcgcggc
     3661 cgggggcggt gccccgcggt gcgggggggg ctgcgagggg aacaaaggct gcgtgcgggg
     3721 tgtgtgcgtg ggggggtgag cagggggtgt gggcgcgtcg gtcgggctgc aaccccccct
     3781 gcacccccct ccccgagttg ctgagcacgg cccggcttcg ggtgcggggc tccgtacggg
     3841 gcgtggcgcg gggctcgccg tgccgggcgg ggggtggcgg caggtggggg tgccgggcgg
     3901 ggcggggccg cctcgggccg gggagggctc gggggagggg cgcggcggcc cccggagcgc
     3961 cggcggctgt cgaggcgcgg cgagccgcag ccattgcctt ttatggtaat cgtgcgagag
     4021 ggcgcaggga cttcctttgt cccaaatctg tgcggagccg aaatctggga ggcgccgccg
     4081 caccccctct agcgggcgcg gggcgaagcg gtgcggcgcc ggcaggaagg aaatgggcgg
     4141 ggagggcctt cgtgcgtcgc cgcgccgccg tccccttctc cctctccagc ctcggggctg
     4201 tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg gcttctggcg
     4261 tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct ttttcctaca
     4321 gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag aattgatggt
     4381 gagcaagggc gaggagctgt tcaccggggt ggtgcccatc ctggtcgagc tggacggcga
     4441 cgtaaacggc cacaagttca gcgtgtccgg cgagggcgag ggcgatgcca cctacggcaa
     4501 gctgaccctg aagttcatct gcaccaccgg caagctgccc gtgccctggc ccaccctcgt
     4561 gaccaccctg acctacggcg tgcagtgctt cagccgctac cccgaccaca tgaagcagca
     4621 cgacttcttc aagtccgcca tgcccgaagg ctacgtccag gagcgcacca tcttcttcaa
     4681 ggacgacggc aactacaaga cccgcgccga ggtgaagttc gagggcgaca ccctggtgaa
     4741 ccgcatcgag ctgaagggca tcgacttcaa ggaggacggc aacatcctgg ggcacaagct
     4801 ggagtacaac tacaacagcc acaacgtcta tatcatggcc gacaagcaga agaacggcat
     4861 caaggtgaac ttcaagatcc gccacaacat cgaggacggc agcgtgcagc tcgccgacca
     4921 ctaccagcag aacaccccca tcggcgacgg ccccgtgctg ctgcccgaca accactacct
     4981 gagcacccag tccgccctga gcaaagaccc caacgagaag cgcgatcaca tggtcctgct
     5041 ggagttcgtg accgccgccg ggatcactct cggcatggac gagctgtaca agtaaaccca
     5101 gctttcttgt acaaagtggg aattccgata atcaacctct ggattacaaa atttgtgaaa
     5161 gattgactgg tattcttaac tatgttgctc cttttacgct atgtggatac gctgctttaa
     5221 tgcctttgta tcatgctatt gcttcccgta tggctttcat tttctcctcc ttgtataaat
     5281 cctggttgct gtctctttat gaggagttgt ggcccgttgt caggcaacgt ggcgtggtgt
     5341 gcactgtgtt tgctgacgca acccccactg gttggggcat tgccaccacc tgtcagctcc
     5401 tttccgggac tttcgctttc cccctcccta ttgccacggc ggaactcatc gccgcctgcc
     5461 ttgcccgctg ctggacaggg gctcggctgt tgggcactga caattccgtg gtgttgtcgg
     5521 ggaagctgac gtcctttcca tggctgctcg cctgtgttgc cacctggatt ctgcgcggga
     5581 cgtccttctg ctacgtccct tcggccctca atccagcgga ccttccttcc cgcggcctgc
     5641 tgccggctct gcggcctctt ccgcgtcttc gccttcgccc tcagacgagt cggatctccc
     5701 tttgggccgc ctccccgcat cgggaattcc tagagctcgc tgatcagcct cgactgtgcc
     5761 ttctagttgc cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg
     5821 tgccactccc actgtccttt cctaataaaa tgaggaaatt gcatcgcatt gtctgagtag
     5881 gtgtcattct attctggggg gtggggtggg gcaggacagc aagggggagg attgggaaga
     5941 gaatagcagg catgctgggg agggccgcct gcgcgctcgc tcgctcactg aggccgcccg
     6001 ggcaaagccc gggcgtcggg cgacctttgg tcgcccggcc tcagtgagcg agcgagcgcg
     6061 cagagaggga gtggccaact ccatcactag gggttcctct gcctgcaggg gcgcctgatg
     6121 cggtattttc tccttacgca tctgtgcggt atttcacacc gcatacgtca aagcaaccat
     6181 agtacgcgcc ctgtagcggc gcattaagcg cggcgggggt ggtggttacg cgcagcgtga
     6241 ccgctacact tgccagcgcc ttagcgcccg ctcctttcgc tttcttccct tcctttctcg
     6301 ccacgttcgc cggctttccc cgtcaagctc taaatcgggg gctcccttta gggttccgat
     6361 ttagtgcttt acggcacctc gaccccaaaa aacttgattt gggtgatggt tcacgtagtg
     6421 ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg ttctttaata
     6481 gtggactctt gttccaaact ggaacaacac tcaactctat ctcgggctat tcttttgatt
     6541 tataagggat tttgccgatt tcggtctatt ggttaaaaaa tgagctgatt taacaaaaat
     6601 ttaacgcgaa ttttaacaaa atattaacgt ttacaatttt atggtgcact ctcagtacaa
     6661 tctgctctga tgccgcatag ttaagccagc cccgacaccc gccaacaccc gctgacgcgc
     6721 cctgacgggc ttgtctgctc ccggcatccg cttacagaca agctgtgacc gtctccggga
     6781 gctgcatgtg tcagaggttt tcaccgtcat caccgaaacg cgcgagacga aagggcctcg
     6841 tgatacgcct atttttatag gttaatgtca tgataataat ggtttcttag acgtcaggtg
     6901 gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt atttttctaa atacattcaa
     6961 atatgtatcc gctcatgaga caataaccct gataaatgct tcaataatat tgaaaaagga
     7021 agagtatgag tattcaacat ttccgtgtcg cccttattcc cttttttgcg gcattttgcc
     7081 ttcctgtttt tgctcaccca gaaacgctgg tgaaagtaaa agatgctgaa gatcagttgg
     7141 gtgcacgagt gggttacatc gaactggatc tcaacagcgg taagatcctt gagagttttc
     7201 gccccgaaga acgttttcca atgatgagca cttttaaagt tctgctatgt ggcgcggtat
     7261 tatcccgtat tgacgccggg caagagcaac tcggtcgccg catacactat tctcagaatg
     7321 acttggttga gtactcacca gtcacagaaa agcatcttac ggatggcatg acagtaagag
     7381 aattatgcag tgctgccata accatgagtg ataacactgc ggccaactta cttctgacaa
     7441 cgatcggagg accgaaggag ctaaccgctt ttttgcacaa catgggggat catgtaactc
     7501 gccttgatcg ttgggaaccg gagctgaatg aagccatacc aaacgacgag cgtgacacca
     7561 cgatgcctgt agcaatggca acaacgttgc gcaaactatt aactggcgaa ctacttactc
     7621 tagcttcccg gcaacaatta atagactgga tggaggcgga taaagttgca ggaccacttc
     7681 tgcgctcggc ccttccggct ggctggttta ttgctgataa atctggagcc ggtgagcgtg
     7741 gaagccgcgg tatcattgca gcactggggc cagatggtaa gccctcccgt atcgtagtta
     7801 tctacacgac ggggagtcag gcaactatgg atgaacgaaa tagacagatc gctgagatag
     7861 gtgcctcact gattaagcat tggtaactgt cagaccaagt ttactcatat atactttaga
     7921 ttgatttaaa acttcatttt taatttaaaa ggatctaggt gaagatcctt tttgataatc
     7981 tcatgaccaa aatcccttaa cgtgagtttt cgttccactg agcgtcagac cccgtagaaa
     8041 agatcaaagg atcttcttga gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa
     8101 aaaaaccacc gctaccagcg gtggtttgtt tgccggatca agagctacca actctttttc
     8161 cgaaggtaac tggcttcagc agagcgcaga taccaaatac tgttcttcta gtgtagccgt
     8221 agttaggcca ccacttcaag aactctgtag caccgcctac atacctcgct ctgctaatcc
     8281 tgttaccagt ggctgctgcc agtggcgata agtcgtgtct taccgggttg gactcaagac
     8341 gatagttacc ggataaggcg cagcggtcgg gctgaacggg gggttcgtgc acacagccca
     8401 gcttggagcg aacgacctac accgaactga gatacctaca gcgtgagcta tgagaaagcg
     8461 ccacgcttcc cgaagggaga aaggcggaca ggtatccggt aagcggcagg gtcggaacag
     8521 gagagcgcac gagggagctt ccagggggaa acgcctggta tctttatagt cctgtcgggt
     8581 ttcgccacct ctgacttgag cgtcgatttt tgtgatgctc gtcagggggg cggagcctat
     8641 ggaaaaacgc cagcaacgcg gcctttttac ggttcctggc cttttgctgg ccttttgctc
     8701 acatgtcctg caggcag
//

2.4.7 Writing GeneBank format of the plasmid vector

vb.write_genebank(gb_format, path = None, name = 'viral_vector')

This function saves into GeneBank format *.gb

Args:
    fasta_string (str/GeneBank) - sequences provided in GeneBank format from get_genebank()
    path (str | None) - the path to save. If None save it to the current working directory. Default: None
    name (str) - the name of the saving file. Default: 'viral_vector'

Have fun JBS

Project details

These details have not been verified by PyPI

Release history Release notifications | RSS feed

This version

2.1.4.post1

Mar 20, 2026

2.1.4

Feb 12, 2026

2.1.3

Jan 27, 2026

2.1.2

Jan 27, 2026

2.1.1

Dec 19, 2025

2.0.8

May 23, 2024

2.0.7

May 23, 2024

2.0.6

May 23, 2024

2.0.5

May 22, 2024

2.0.4

May 22, 2024

2.0.3

Mar 19, 2024

2.0.2

Nov 29, 2023

2.0.0

Nov 28, 2023

1.0.6

Dec 11, 2022

Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Source Distribution

jbioseqtools-2.1.4.post1.tar.gz (477.8 kB view details)

Uploaded Mar 20, 2026 Source

Built Distribution

If you're not sure about the file name format, learn more about wheel file names.

The dropdown lists show the available interpreters, ABIs, and platforms. Enable javascript to be able to filter the list of wheel files.

jbioseqtools-2.1.4.post1-py3-none-any.whl (432.6 kB view details)

Uploaded Mar 20, 2026 Python 3

File details

Details for the file jbioseqtools-2.1.4.post1.tar.gz.

File metadata

Download URL: jbioseqtools-2.1.4.post1.tar.gz
Upload date: Mar 20, 2026
Size: 477.8 kB
Tags: Source
Uploaded using Trusted Publishing? No
Uploaded via: twine/6.2.0 CPython/3.11.9

File hashes

Hashes for jbioseqtools-2.1.4.post1.tar.gz
Algorithm	Hash digest
SHA256	`db205598089b3975086f18bb971c8fd6467f35b0e4e343f17dd1d4c3a03d9987`
MD5	`b377981e50eebfe45da7610f6d1cbb9c`
BLAKE2b-256	`4568dc83f39912aff32125d5c6cfb2888d6c13a583e05d189629341a54dcf16d`

See more details on using hashes here.

File details

Details for the file jbioseqtools-2.1.4.post1-py3-none-any.whl.

File metadata

Download URL: jbioseqtools-2.1.4.post1-py3-none-any.whl
Upload date: Mar 20, 2026
Size: 432.6 kB
Tags: Python 3
Uploaded using Trusted Publishing? No
Uploaded via: twine/6.2.0 CPython/3.11.9

File hashes

Hashes for jbioseqtools-2.1.4.post1-py3-none-any.whl
Algorithm	Hash digest
SHA256	`a20881e47eb9566122dfb4f9746ba878eddc6a53b0c2f0c56966a80a32c00596`
MD5	`33677b0b202f73da7fe7b992d7ebaa88`
BLAKE2b-256	`1a13440ab320f3382e621c8f2176fa9538a8e6f1cff5218f82a694d161f28234`

See more details on using hashes here.

jbioseqtools 2.1.4.post1

Navigation

Verified details

Maintainers

Unverified details

Meta

Classifiers

Project description

JBioSeqTools - python library

JBioSeqTools is the Python library for gene sequence downloading, optimization, structure prediction, vector building, and visualization

Author: Jakub Kubiś

Description

Table of contents

Installation

In command line write:

Usage

1. seq_tools - part of the library containing sequence optimization, structure prediction, and visualization

1.1. Import part of library

1.2. Loading metadata

1.3. Downloading reference sequences with gene name

1.4. Downloading sequences with accession numbers

1.5. Creating FASTA format *.FASTA

1.6. Loading FASTA format from file *.FASTA

1.7. Writing to FASTA format *.FASTA

1.8. Conducting Multiple Alignments Analysis (MUSCLE) form FASTA

1.9. Display alignment plot

Example of the alignment graph:

1.10. Decoding alignment file

Example output:

1.11. Writing to ALIGN format *.ALIGN

1.12. Extracting consensus parts of alignments

1.13. Passing sequence from an external source

1.14. Clearing junk characters from the sequence

1.15. Checking that the sequence is coding protein (CDS)

1.16. Checking that all bases in sequence are contained in the UPAC code

1.17. Reversing the DNA / RNA sequence: 5' --> 3' and 3' --> 5'

1.18. Complementing the DNA / RNA second strand sequence

1.19. Changing DNA to RNA sequence

1.20. Changing RNA to DNA sequence

1.21. Changing DNA or RNA sequence to amino acid / protein sequence

1.22. Prediction of RNA / DNA sequence secondary structure

Example of structure prediction graph:

1.23. Prediction of RNAi on the provided sequence

Example of data frame output:

1.24. Correcting of RNAi_data for complementarity to the loop sequence

Example of data frame output:

1.25. Correcting of RNAi_data for complementarity to the additional external sequence

Example of data frame output:

1.26. Codon optimization

1.27. Checking susceptibility to restriction enzymes

1.28. Checking and removing susceptibility to restriction enzymes

1.29. Sequence comparison (Interval Fold Change Estimation)

2. vector_build - part of the library containing building plasmid vectors with optimization elements from seq_tools

2.1. Import part of library

2.2. Creating vector plasmid

2.2.1 Creating expression of the plasmid vector

Empty input dictionary schema:

Example dictionary:

Output:

2.2.2 Creating RNAi / RNAi + expression of the plasmid vector

Empty input dictionary schema:

Example dictionary:

Output:

Examples with structure description presented in:

2.2.3 Creating plasmid vector of in-vitro transcription of mRNA

Empty input dictionary schema:

Example dictionary:

Output:

2.2.4 Creating plasmid vector of in-vitro transcription of RNAi

Empty input dictionary schema:

Example dictionary:

Output:

Examples with structure description presented in:

2.3. Creating sequence for synthesis de novo

2.3.1 Creating sequence prediction of mRNA for de novo synthesis

Empty input dictionary schema:

Example dictionary:

Output:

2.3.2 Creating plasmid vector of in-vitro transcription of RNAi

Empty input dictionary schema:
