KDRAW: Topological Centerline SVG Vectorizer

📸 Visual Documentation & Evidence

💻 Running the Vectorizer

To convert a text image into optimized single-line vectors using custom configuration:

python main.py input.jpg output_centerline.svg --centerline --no-adaptive --morph-close 5 --min-spur 1 --upscale 8 --morph-close 5

Here is the visual evidence of the conversion from the high-resolution raster image (input.jpg) to the thinned centerline stroke paths (output_centerline.svg).

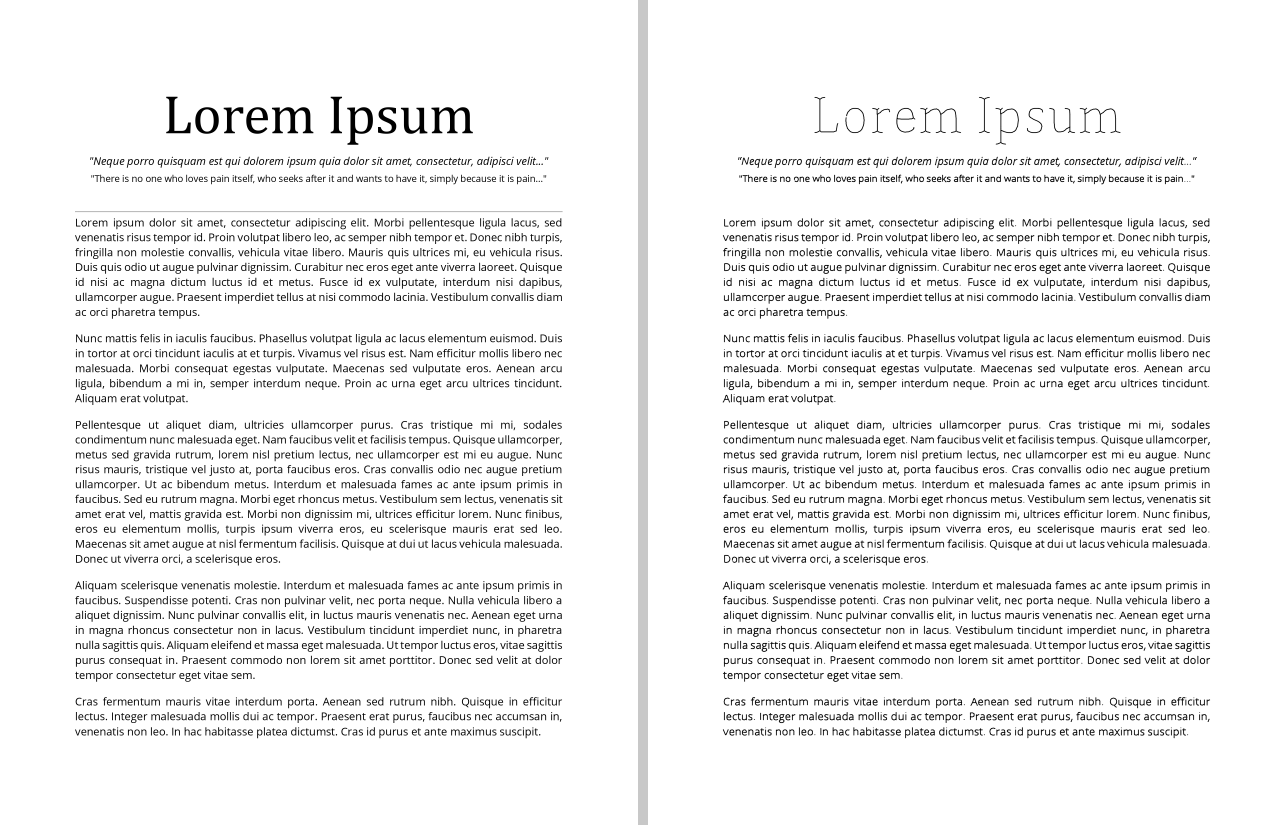

1. Full-Page Comparison (Input vs. SVG Output)

Below is the full-page overview comparison. The left shows the original raster text (input.jpg) and the right shows the generated thinned centerline paths (output_centerline.svg).

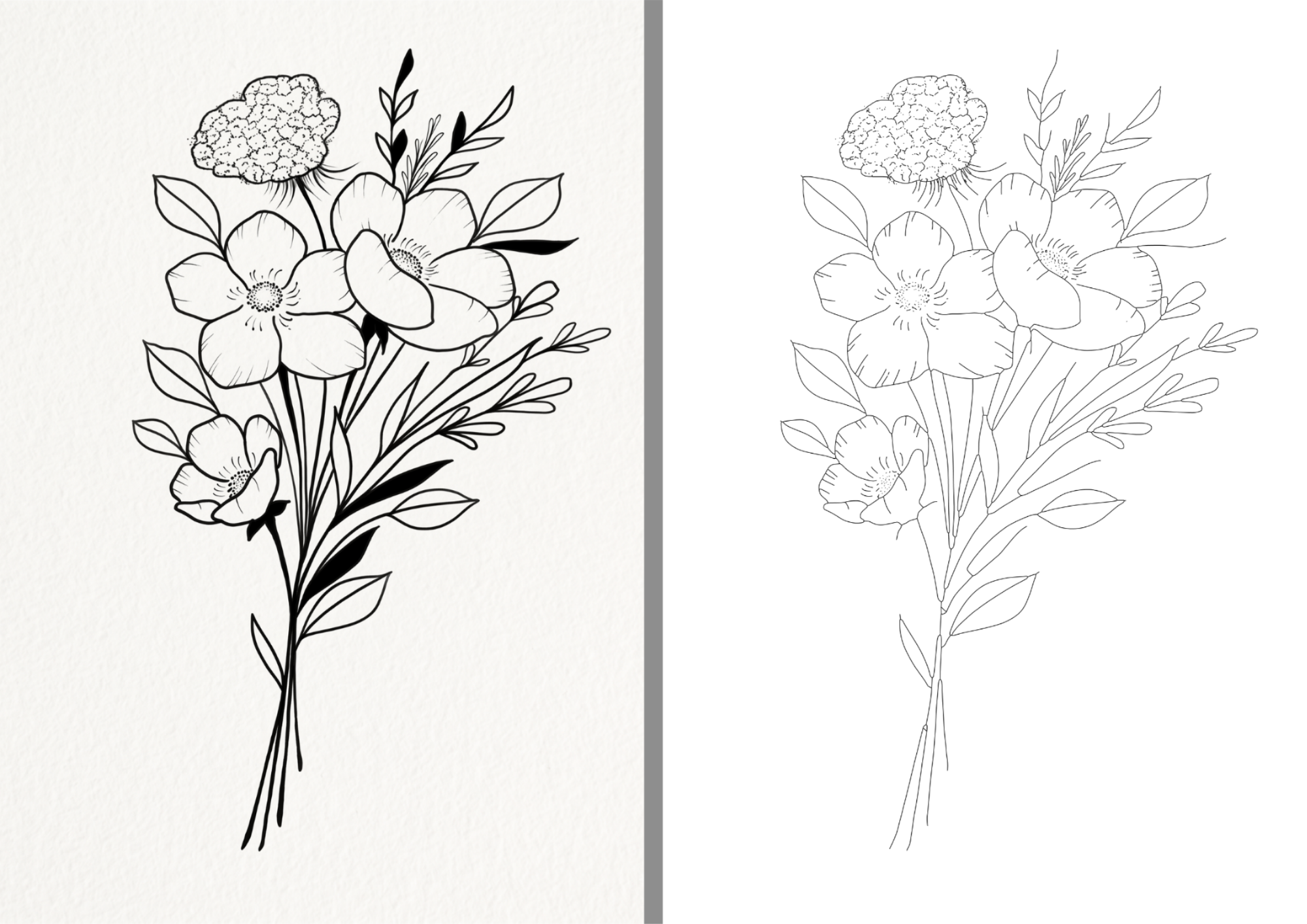

1.1 Full-Page Comparison Drawing (Input vs. SVG Output)

Below is the full-page drawing overview comparison. The left shows the original raster drawing (input_draw.png) and the right shows the generated thinned centerline paths (output_centerline.svg).

2. Zoomed-In Details & Loop Preservation

To prevent plotters from bleeding ink and closing loops, KDRAW's pre-smoothing keeps character loops (a, e, o, u) perfectly open. The left shows the input pixels and the right shows the single-line thinned paths.

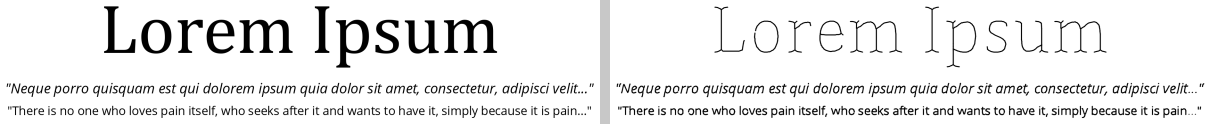

Region 0: Title and Introduction Text

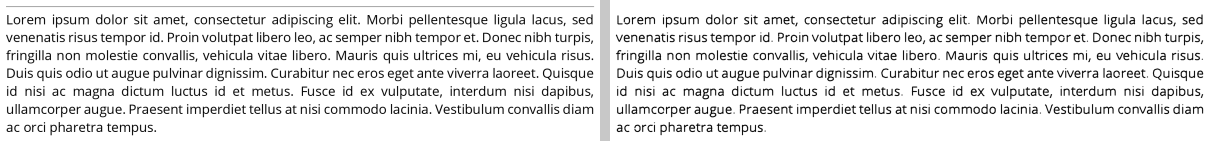

Region 1: Body Details (Dots of i & Colons)

Observe how the dots of the letter i and colons are preserved as independent, clean path strokes rather than being merged or pruned:

2.1 Zoomed-In Details & Loop Preservation

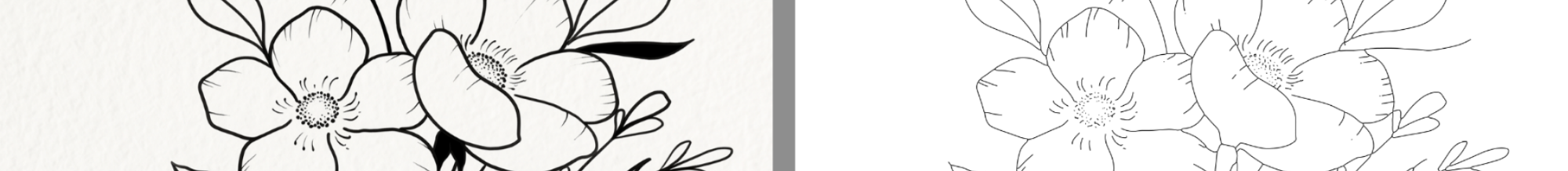

Observe how the lines are preserved as independent, clean path strokes rather than being merged or pruned:

⚡ Key Highlights & Core Capabilities

• 🧩 Graph-Based Skeleton Tracing: Represents the skeleton as a topological graph of nodes (junctions/endpoints) and edges. Prevents junction distortion and splits.
• 🔎 4x Upscaled Anti-Aliasing: Interpolates and smooths low-resolution input images before skeletonization to eliminate pixel-level wiggles.
• 🛡️ Isolated Path Safety (i-Dot Preservation): Distinguishes between side spurs (noise) and isolated paths, ensuring colons, periods, and the dots of i are never pruned.
• 🌀 Chaikin Curve Fitting: Corner-cutting curve smoothing that rounds out characters organic-style without coordinate shrinkage.
• 🏎️ TSP Pen-Travel Optimization: Solves the Travelling Salesperson Problem (TSP) on the path sequence to save up to 98% of pen-up travel distance.

🛠️ The Visual Pipeline

graph TD
    A[Raster Image input.jpg] --> B[4x Cubic Upscaling]
    B --> C[Gaussian Blur 9x9]
    C --> D[Otsu Binarization]
    D --> E[Morphological Closing 5x5]
    E --> F[Skeletonization]
    F --> G[Graph Extraction & Pruning]
    G --> H[Chaikin Path Smoothing]
    H --> I[TSP Sort & Max-Join]
    I --> J[Stroke SVG output.svg]

📖 Complete Code Logic & Detailed Algorithms

Below is the exhaustive pseudocode and logic breakdown of every helper and processing routine in the KDRAW engine (main.py and the kdraw package).

1. get_hex_color(val, has_alpha)

Input: Packed 32-bit pixel value val, transparency flag has_alpha
Output: Hex color string (#RRGGBB) or CSS RGBA string (rgba(...))

Color Channel Extraction

Given a packed ARGB pixel:

\text{val}
=
(A \ll 24)
+
(R \ll 16)
+
(G \ll 8)
+
B

Extract each channel using bitwise operations:

A
=
(\text{val} \gg 24)
\;\&\;
255

R
=
(\text{val} \gg 16)
\;\&\;
255

G
=
(\text{val} \gg 8)
\;\&\;
255

B
=
\text{val}
\;\&\;
255

where:

0 \le A,R,G,B \le 255

Alpha Normalization

When transparency is enabled, convert the alpha channel to the CSS opacity range:

\alpha
=
\frac{A}{255}

with:

0 \le \alpha \le 1

Output Selection

If transparency is present:

\text{has\_alpha}
\land
A < 255

return:

\text{rgba}(R,G,B,\alpha)

Otherwise return:

\#RRGGBB

where:

RRGGBB
=
\text{hex}(R)
\;||\;
\text{hex}(G)
\;||\;
\text{hex}(B)

and (||) denotes string concatenation.

2. smooth_paths_laplacian(path, iterations, weight)

Input: Curve coordinate array path, iteration count iterations, smoothing weight w
Output: Laplacian-smoothed coordinate array

Laplacian Smoothing Model

For each vertex ( \mathbf{p}_i ), compute the local neighborhood average:

\mathbf{m}_i
=
\frac{
\mathbf{p}_{i-1}
+
\mathbf{p}_{i+1}
}{2}

The updated position is a weighted blend between the original point and its neighborhood mean:

\mathbf{p}_i'
=
(1-w)\mathbf{p}_i
+
w\mathbf{m}_i

Substituting the neighborhood average:

\mathbf{p}_i'
=
(1-w)\mathbf{p}_i
+
w
\left(
\frac{
\mathbf{p}_{i-1}
+
\mathbf{p}_{i+1}
}{2}
\right)

where:

0 \le w \le 1

Interpretation

Special cases:

w = 0
\quad\Rightarrow\quad
\mathbf{p}_i' = \mathbf{p}_i

(No smoothing)

w = 1
\quad\Rightarrow\quad
\mathbf{p}_i'
=
\frac{
\mathbf{p}_{i-1}
+
\mathbf{p}_{i+1}
}{2}

(Complete neighborhood averaging)

For intermediate values:

0 < w < 1

the vertex moves proportionally toward the average of its neighboring vertices, reducing local curvature and noise while preserving the overall shape.

• Logic:
  1. If path has less than 3 points, return original path.

2. smooth_paths_laplacian(path, iterations, w)

Input: Coordinate array path, iteration count iterations, smoothing weight w
Output: Laplacian-smoothed coordinate array

Algorithm

1. If the path contains fewer than 3 points, return the original path.

2. Determine whether the path is closed:

\text{is\_closed}
=
\left\|
\mathbf{p}_0 - \mathbf{p}_{n-1}
\right\|
< 1.0

3. Repeat for each smoothing iteration:

   • Create a temporary copy of the coordinate array.
   • Apply the update rules below.

Closed Path

For each vertex ( \mathbf{p}_i ) (excluding the duplicated endpoint):

\mathbf{p}_i'
=
(1-w)\mathbf{p}_i
+
w
\left(
\frac{\mathbf{p}_{i-1} + \mathbf{p}_{i+1}}{2}
\right)

with cyclic indexing:

\mathbf{p}_{i-1}
=
\mathbf{p}_{(i-1)\bmod n}

\mathbf{p}_{i+1}
=
\mathbf{p}_{(i+1)\bmod n}

Maintain closure after updating:

\mathbf{p}_{n-1}
=
\mathbf{p}_0

Open Path

Keep endpoints fixed and update interior vertices:

i = 1, 2, \ldots, n-2

\mathbf{p}_i'
=
(1-w)\mathbf{p}_i
+
w
\left(
\frac{\mathbf{p}_{i-1} + \mathbf{p}_{i+1}}{2}
\right)

3. smooth_paths_chaikin(path, iterations)

Input: Coordinate array path, iteration count iterations
Output: Chaikin corner-cut smoothed coordinate array

Algorithm

1. If the path contains fewer than 3 points, return the original path.

2. Repeat for each iteration.

Closed Path

For every segment:

[\mathbf{p}_i,\mathbf{p}_{i+1}]

Generate:

\mathbf{q}
=
0.75\,\mathbf{p}_i
+
0.25\,\mathbf{p}_{i+1}

\mathbf{r}
=
0.25\,\mathbf{p}_i
+
0.75\,\mathbf{p}_{i+1}

Append the first generated point to the end of the sequence to preserve closure.

Open Path

Preserve endpoints:

\mathbf{p}_0
\qquad\text{and}\qquad
\mathbf{p}_{n-1}

For each interior segment:

[\mathbf{p}_i,\mathbf{p}_{i+1}]

Generate:

\mathbf{q}
=
0.75\,\mathbf{p}_i
+
0.25\,\mathbf{p}_{i+1}

\mathbf{r}
=
0.25\,\mathbf{p}_i
+
0.75\,\mathbf{p}_{i+1}

Resulting point sequence:

[
\mathbf{p}_0,\,
\mathbf{q}_1,\,
\mathbf{r}_1,\,
\mathbf{q}_2,\,
\mathbf{r}_2,\,
\dots,\,
\mathbf{p}_{n-1}
]

Chaikin Corner-Cutting Rule

For a segment connecting points ( \mathbf{A} ) and ( \mathbf{B} ):

\mathbf{Q}
=
\frac{3}{4}\mathbf{A}
+
\frac{1}{4}\mathbf{B}

\mathbf{R}
=
\frac{1}{4}\mathbf{A}
+
\frac{3}{4}\mathbf{B}

Repeated application progressively removes sharp corners and converges toward a smooth curve.

4. optimize_paths(contours, max_join_dist)

• Input: List of curves contours, pen-down merging threshold max_join_dist
• Output: Sorted and merged curves list, original travel distance, optimized travel distance
• Logic:
  1. Convert all contours to NumPy float arrays. Calculate baseline sequential pen travel.
  2. Implement a greedy Travelling Salesperson (TSP) heuristic:
     • Pop the first contour as the active path.
     • While remaining contours exist:
       • Find the distances from the active path's endpoint to the start and endpoints of all remaining contours.
       • Identify the closest coordinate point.
       • If the closest point belongs to the end of a contour, reverse that contour.
       • If the distance to the closest contour is (\le max_join_dist), extend the active path coordinates directly with the closest contour coordinates (merging).
       • Otherwise, append the active path to the optimized list and set the closest contour as the new active path.
     • Append the final active path.

5. build_and_prune_graph(skel_bool, min_spur_length, collapse_dist)

• Input: Binary skeleton image skel_bool, spur limit min_spur_length, merge radius collapse_dist
• Output: List of cleaned, continuous centerline coordinate paths
• Logic:
  1. Retrieve skeleton coordinates: pixels = set(zip(*np.where(skel_bool))).
  2. Compute 8-connected adjacency dictionary: adj = {p: get_neighbors(p, pixels) for p in pixels}.
  3. Classify pixels:
     • endpoints (neighbors == 1)
     • junctions (neighbors >= 3)
     • regular (neighbors == 2)
  4. Cluster contiguous junction pixels using BFS. Each connected component of junction pixels forms a singular "super-junction" node.
  5. Assign node IDs to all endpoints and junction clusters. Build pixel_to_node map.
  6. Trace edges:
     • For each node:
       • If a neighbor is a regular pixel, trace along regular pixels (BFS) until hitting any node. Create a stroke edge.
       • If a neighbor is directly in another node, create a direct node-to-node edge of length 2 (essential for preserving i-dots).
  7. Locate isolated cycles (loops with no nodes, degree-2 only like in the letter o). Convert to closed loop edges.
  8. Perform iterative topology reductions:
     • Spur Check: If an edge connects an endpoint (degree 1) to a junction (degree >= 3), and its pixel length is (< min_spur_length), delete the edge.
     • Isolated Check: If an edge connects two endpoints directly (degree 1 to 1), it is an isolated dot. Protect it from spur pruning.
     • Junction Collapse: If an edge connects two junction nodes and is shorter than collapse_dist, merge the two junction nodes and update all matching edge node IDs.
  9. Clean up: For any node left with degree 2 (exactly two edges), merge the paths of the two edges into a single edge.

6. convert_centerline(...)

• Input: File paths and all tuning thresholds (upscale_factor, blur_size, etc.)
• Output: Stroke-only SVG file containing centerline paths
• Logic:
  1. Load input image. If upscale_factor > 1, upscale using cv2.resize with bicubic interpolation.
  2. Apply Gaussian blur of size blur_size (only odd dimensions allowed).
  3. Binarize:
     • If use_adaptive: Apply local adaptive Gaussian thresholding using cv2.adaptiveThreshold with block_size and subtraction constant c_val.
     • Else: Apply Otsu's thresholding using cv2.threshold.
  4. Morphological filters: Apply closing and opening operations using an elliptical structuring element on the binary mask.
  5. Thin binary mask to a single-pixel centerline using morphological skeletonize (Zhang-Suen/Lee).
  6. Call build_and_prune_graph to trace skeleton pixels into a clean set of coordinate paths.
  7. Downscale coordinate values by upscale_factor to match original image dimensions.
  8. For each path:
     • If the path has only 2 points, bypass simplification.
     • Otherwise, simplify coordinates using RDP (cv2.approxPolyDP) with tolerance epsilon.
  9. Apply smoothing: If smooth_iters > 0, call smooth_paths_chaikin or smooth_paths_laplacian for smooth_iters iterations.
  10. Decimate coordinates post-smoothing using RDP with a tight tolerance smooth_decimate.
  11. Call optimize_paths with max_join to minimize travel sequence.
  12. Format and write paths into SVG XML nodes containing <path d="..." fill="none" stroke="black" ... />.
