keras-cv-attention-models 1.1.14

Tensorflow keras computer vision attention models. https://github.com/leondgarse/keras_cv_attention_models

Keras_cv_attention_models

• General Usage
  • Basic
  • Layers
  • Model surgery
  • ImageNet Training
  • Progressive training
  • Visualizing
  • TFLite Conversion
• Models
  • AotNet
  • BEIT
  • BotNet
  • CMT
  • CoaT
  • CoAtNet
  • CoTNet
  • EfficientNet
  • GMLP
  • HaloNet
  • LeViT
  • MLP mixer
  • NFNets
  • RegNetY
  • RegNetZ
  • ResMLP
  • ResNeSt
  • ResNetD
  • ResNetQ
  • ResNeXt
  • VOLO
• Other implemented tensorflow or keras models

---

Roadmap and todo list

---

General Usage

Basic

• Currently recommended TF version is tensorflow==2.8.0rc0. Expecially for training or TFLite conversion.
• Default import

  import os
  import tensorflow as tf
  import numpy as np
  import pandas as pd
  import matplotlib.pyplot as plt
  from tensorflow import keras


• Install as pip package:

  pip install -U keras-cv-attention-models
  # Or
  pip install -U git+https://github.com/leondgarse/keras_cv_attention_models


  Refer to each sub directory for detail usage.
• Basic model prediction

  from keras_cv_attention_models import volo
  mm = volo.VOLO_d1(pretrained="imagenet")

  """ Run predict """
  import tensorflow as tf
  from tensorflow import keras
  from skimage.data import chelsea
  img = chelsea() # Chelsea the cat
  imm = keras.applications.imagenet_utils.preprocess_input(img, mode='torch')
  pred = mm(tf.expand_dims(tf.image.resize(imm, mm.input_shape[1:3]), 0)).numpy()
  pred = tf.nn.softmax(pred).numpy()  # If classifier activation is not softmax
  print(keras.applications.imagenet_utils.decode_predictions(pred)[0])
  # [('n02124075', 'Egyptian_cat', 0.9692954),
  #  ('n02123045', 'tabby', 0.020203391),
  #  ('n02123159', 'tiger_cat', 0.006867502),
  #  ('n02127052', 'lynx', 0.00017674894),
  #  ('n02123597', 'Siamese_cat', 4.9493494e-05)]


• Exclude model top layers by set num_classes=0

  from keras_cv_attention_models import resnest
  mm = resnest.ResNest50(num_classes=0)
  print(mm.output_shape)
  # (None, 7, 7, 2048)


• Reload own model weights by set pretrained="xxx.h5". Better if reloading model with different input_shape and with weights shape not matching.

  import os
  from keras_cv_attention_models import coatnet
  pretrained = os.path.expanduser('~/.keras/models/coatnet0_imagenet.h5')
  mm = coatnet.CoAtNet1(input_shape=(384, 384, 3), pretrained=pretrained)


Layers

• attention_layers is __init__.py only, which imports core layers defined in model architectures. Like RelativePositionalEmbedding from botnet, outlook_attention from volo.

from keras_cv_attention_models import attention_layers
aa = attention_layers.RelativePositionalEmbedding()
print(f"{aa(tf.ones([1, 4, 14, 16, 256])).shape = }")
# aa(tf.ones([1, 4, 14, 16, 256])).shape = TensorShape([1, 4, 14, 16, 14, 16])

Model surgery

• model_surgery including functions used to change model parameters after built.

from keras_cv_attention_models import model_surgery
mm = keras.applications.ResNet50()  # Trainable params: 25,583,592

# Replace all ReLU with PReLU. Trainable params: 25,606,312
mm = model_surgery.replace_ReLU(mm, target_activation='PReLU')

# Fuse conv and batch_norm layers. Trainable params: 25,553,192
mm = model_surgery.convert_to_fused_conv_bn_model(mm)

ImageNet Training

• Init Imagenet dataset using tensorflow_datasets #9.
• It took me weeks figuring out what is wrong in training, that should use LAMB with excluding batch norm layers on weight decay...
• aotnet.AotNet50 default parameters set is a typical ResNet50 architecture with Conv2D use_bias=False and padding like PyTorch.
• Default params for train_script.py is like A3 configuration from ResNet strikes back: An improved training procedure in timm with batch_size=256, input_shape=(160, 160).

  # Not sure about how useful is resize_antialias, default behavior for timm using `bicubic`
  CUDA_VISIBLE_DEVICES='0' TF_XLA_FLAGS="--tf_xla_auto_jit=2" ./train_script.py --seed 0 --resize_antialias -s aotnet50


  # Evaluation using input_shape (224, 224).
  # `antialias` usage should be same with training.
  CUDA_VISIBLE_DEVICES='1' ./eval_script.py -m aotnet50_epoch_103_val_acc_0.7674.h5 -i 224 --central_crop 0.95 --antialias
  # >>>> Accuracy top1: 0.78466 top5: 0.94088


• Plot. Other training detail can be found ImageNet Training #11.

Progressive training

• EfficientNetV2B0 cifar10 basic test. Refer to PDF 2104.00298 EfficientNetV2: Smaller Models and Faster Training.

# Normally training input_shape 224, magnitude 15, dropout 0.4
CUDA_VISIBLE_DEVICES='1' TF_XLA_FLAGS="--tf_xla_auto_jit=2" ./train_script.py \
-m efficientnet.EfficientNetV2B0 --pretrained imagenet -d cifar10 --lr_decay_steps 36 \
-s effv2b0_cifar10_224_magnitude_15_dropout_0.4 \
--epochs -1 \
--input_shape 224 \
--additional_model_kwargs '{"dropout": 0.4}' \
--magnitude 15 \
--batch_size 240 \
--seed 0 \

# 4 stages progressive training input_shape [128, 160, 192, 224]
CUDA_VISIBLE_DEVICES='1' TF_XLA_FLAGS="--tf_xla_auto_jit=2" ./progressive_train_script.py \
-m efficientnet.EfficientNetV2B0 --pretrained imagenet -d cifar10 --lr_decay_steps 36 \
-s effv2b0_cifar10_224_progressive \
--progressive_epochs 10 20 30 -1 \
--progressive_input_shapes 128 160 192 224 \
--progressive_dropouts 0.1 0.2 0.3 0.4 \
--progressive_magnitudes 5 8 12 15 \
--progressive_batch_sizes 240 \
--seed 0 \

Plot

Visualizing

• Visualizing is for visualizing convnet filters or attention map scores.

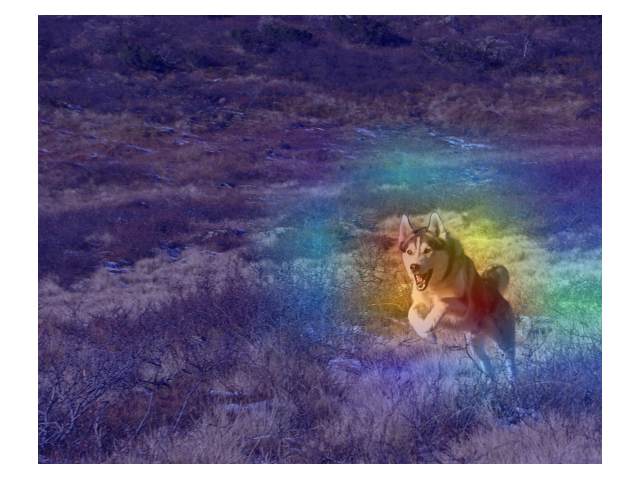

• make_and_apply_gradcam_heatmap is for Grad-CAM class activation visualization.

  from keras_cv_attention_models import visualizing, resnest
  mm = resnest.ResNest50()
  url = 'https://upload.wikimedia.org/wikipedia/commons/b/bc/Free%21_%283987584939%29.jpg'
  img = plt.imread(keras.utils.get_file('aa.jpg', url))
  superimposed_img, heatmap, preds = visualizing.make_and_apply_gradcam_heatmap(mm, img, layer_name="auto")



• plot_attention_score_maps is model attention score maps visualization.

  from keras_cv_attention_models import visualizing, botnet
  url = 'https://upload.wikimedia.org/wikipedia/commons/b/bc/Free%21_%283987584939%29.jpg'
  img = plt.imread(keras.utils.get_file('aa.jpg', url))
  _ = visualizing.plot_attention_score_maps(botnet.BotNetSE33T(), img)




TFLite Conversion

• Currently TFLite not supporting Conv2D with groups>1 / gelu / tf.image.extract_patches / tf.transpose with len(perm) > 4. Some operations could be supported in tf-nightly version. May try if encountering issue. More discussion can be found Converting a trained keras CV attention model to TFLite #17.
• tf.nn.gelu(inputs, approximate=True) activation works for TFLite. Define model with activation="gelu/approximate" or activation="gelu/app" will set approximate=True for gelu. Should better decide before training, or there may be accuracy loss.
• model_surgery.convert_groups_conv2d_2_split_conv2d converts model Conv2D with groups>1 layers to SplitConv using split -> conv -> concat:

  from keras_cv_attention_models import regnet, model_surgery
  from keras_cv_attention_models.imagenet import eval_func

  bb = regnet.RegNetZD32()
  mm = model_surgery.convert_groups_conv2d_2_split_conv2d(bb)  # converts all `Conv2D` using `groups` to `SplitConv2D`
  test_inputs = np.random.uniform(size=[1, *mm.input_shape[1:]])
  print(np.allclose(mm(test_inputs), bb(test_inputs)))
  # True

  converter = tf.lite.TFLiteConverter.from_keras_model(mm)
  open(mm.name + ".tflite", "wb").write(converter.convert())
  print(np.allclose(mm(test_inputs), eval_func.TFLiteModelInterf(mm.name + '.tflite')(test_inputs), atol=1e-7))
  # True


• model_surgery.convert_gelu_and_extract_patches_for_tflite converts model gelu activation to gelu approximate=True, and tf.image.extract_patches to a Conv2D version:

  from keras_cv_attention_models import cotnet, model_surgery
  from keras_cv_attention_models.imagenet import eval_func

  mm = cotnet.CotNetSE50D()
  mm = model_surgery.convert_groups_conv2d_2_split_conv2d(mm)
  mm = model_surgery.convert_gelu_and_extract_patches_for_tflite(mm)
  converter = tf.lite.TFLiteConverter.from_keras_model(mm)
  open(mm.name + ".tflite", "wb").write(converter.convert())
  test_inputs = np.random.uniform(size=[1, *mm.input_shape[1:]])
  print(np.allclose(mm(test_inputs), eval_func.TFLiteModelInterf(mm.name + '.tflite')(test_inputs), atol=1e-7))
  # True


• model_surgery.prepare_for_tflite is just a combination of above 2 functions:

  from keras_cv_attention_models import beit, model_surgery

  mm = beit.BeitBasePatch16()
  mm = model_surgery.prepare_for_tflite(mm)
  converter = tf.lite.TFLiteConverter.from_keras_model(mm)
  open(mm.name + ".tflite", "wb").write(converter.convert())


• Not supporting VOLO / HaloNet models converting, cause they need a longer tf.transpose perm.

---

Models

AotNet

• Keras AotNet is just a ResNet / ResNetV2 like framework, that set parameters like attn_types and se_ratio and others, which is used to apply different types attention layer. Works like byoanet / byobnet from timm.
• Default parameters set is a typical ResNet architecture with Conv2D use_bias=False and padding like PyTorch.

from keras_cv_attention_models import aotnet
# Mixing se and outlook and halo and mhsa and cot_attention, 21M parameters.
# 50 is just a picked number that larger than the relative `num_block`.
attn_types = [None, "outlook", ["bot", "halo"] * 50, "cot"],
se_ratio = [0.25, 0, 0, 0],
model = aotnet.AotNet50V2(attn_types=attn_types, se_ratio=se_ratio, stem_type="deep", strides=1)
model.summary()

BEIT

• Keras BEIT is for PDF 2106.08254 BEIT: BERT Pre-Training of Image Transformers.

Model	Params	Image resolution	Top1 Acc	Download
BeitBasePatch16	86.53M	224	85.240	beit_base_patch16_224.h5
	86.74M	384	86.808	beit_base_patch16_384.h5
BeitLargePatch16	304.43M	224	87.476	beit_large_patch16_224.h5
	305.00M	384	88.382	beit_large_patch16_384.h5
	305.67M	512	88.584	beit_large_patch16_512.h5

BotNet

• Keras BotNet is for PDF 2101.11605 Bottleneck Transformers for Visual Recognition.

Model	Params	Image resolution	Top1 Acc	Download
BotNet50	21M	224
BotNet101	41M	224
BotNet152	56M	224
BotNet26T	12.5M	256	79.246	botnet26t_imagenet.h5
BotNextECA26T	10.59M	256	79.270	botnext_eca26t_imagenet.h5
BotNetSE33T	13.7M	256	81.2	botnet_se33t_imagenet.h5

CMT

• Keras CMT is for PDF 2107.06263 CMT: Convolutional Neural Networks Meet Vision Transformers.

Model	Params	Image resolution	Top1 Acc
CMTTiny	9.5M	160	79.2
CMTXS	15.2M	192	81.8
CMTSmall	25.1M	224	83.5
CMTBig	45.7M	256	84.5

CoaT

• Keras CoaT is for PDF 2104.06399 CoaT: Co-Scale Conv-Attentional Image Transformers.

Model	Params	Image resolution	Top1 Acc	Download
CoaTLiteTiny	5.7M	224	77.5	coat_lite_tiny_imagenet.h5
CoaTLiteMini	11M	224	79.1	coat_lite_mini_imagenet.h5
CoaTLiteSmall	20M	224	81.9	coat_lite_small_imagenet.h5
CoaTTiny	5.5M	224	78.3	coat_tiny_imagenet.h5
CoaTMini	10M	224	81.0	coat_mini_imagenet.h5

CoAtNet

• Keras CoAtNet is for PDF 2106.04803 CoAtNet: Marrying Convolution and Attention for All Data Sizes.

Model	Params	Image resolution	Top1 Acc	ImageNet
CoAtNet0 (Self trained)	23.8M	160	80.19	coatnet0_imagenet.h5
CoAtNet0	25M	224	81.6
CoAtNet1	42M	224	83.3
CoAtNet2	75M	224	84.1
CoAtNet2, ImageNet-21k pretrain	75M	224	87.1
CoAtNet3	168M	224	84.5
CoAtNet3, ImageNet-21k pretrain	168M	224	87.6
CoAtNet3, ImageNet-21k pretrain	168M	512	87.9
CoAtNet4, ImageNet-21k pretrain	275M	512	88.1
CoAtNet4, ImageNet-21K + PT-RA-E150	275M	512	88.56

JFT pre-trained models accuracy

Model	Image resolution	Reported Params	self-defined Params	Top1 Acc
CoAtNet3	384	168M	162.96M	88.52
CoAtNet3	512	168M	163.57M	88.81
CoAtNet4	512	275M	273.10M	89.11
CoAtNet5	512	688M	680.47M	89.77
CoAtNet6	512	1.47B	1.340B	90.45
CoAtNet7	512	2.44B	2.422B	90.88

CoTNet

• Keras CoTNet is for PDF 2107.12292 Contextual Transformer Networks for Visual Recognition.

Model	Params	Image resolution	FLOPs	Top1 Acc	Download
CotNet50	22.2M	224	3.3	81.3	cotnet50_224.h5
CoTNeXt50	30.1M	224	4.3	82.1
CotNetSE50D	23.1M	224	4.1	81.6	cotnet_se50d_224.h5
CotNet101	38.3M	224	6.1	82.8	cotnet101_224.h5
CoTNeXt-101	53.4M	224	8.2	83.2
CotNetSE101D	40.9M	224	8.5	83.2	cotnet_se101d_224.h5
CotNetSE152D	55.8M	224	17.0	84.0	cotnet_se152d_224.h5
CotNetSE152D	55.8M	320	26.5	84.6	cotnet_se152d_320.h5

EfficientNet

• Keras EfficientNet includes implementation of PDF 2104.00298 EfficientNetV2: Smaller Models and Faster Training.

V2 Model	Params	Top1	Input	ImageNet21K	ImageNet21k-ft1k	ImageNet
EffV2B0	7.1M	78.7	224	v2b0-21k.h5	v2b0-21k-ft1k.h5	v2b0-imagenet.h5
EffV2B1	8.1M	79.8	240	v2b1-21k.h5	v2b1-21k-ft1k.h5	v2b1-imagenet.h5
EffV2B2	10.1M	80.5	260	v2b2-21k.h5	v2b2-21k-ft1k.h5	v2b2-imagenet.h5
EffV2B3	14.4M	82.1	300	v2b3-21k.h5	v2b3-21k-ft1k.h5	v2b3-imagenet.h5
EffV2T	13.6M	82.5	320			v2t-imagenet.h5
EffV2S	21.5M	84.9	384	v2s-21k.h5	v2s-21k-ft1k.h5	v2s-imagenet.h5
EffV2M	54.1M	86.2	480	v2m-21k.h5	v2m-21k-ft1k.h5	v2m-imagenet.h5
EffV2L	119.5M	86.9	480	v2l-21k.h5	v2l-21k-ft1k.h5	v2l-imagenet.h5
EffV2XL	206.8M	87.2	512	v2xl-21k.h5	v2xl-21k-ft1k.h5

V1 Model	Params	Top1	Input	noisy_student	ImageNet
EffV1B0	5.3M	78.8	224	v1-b0-noisy_student.h5	v1-b0-imagenet.h5
EffV1B1	7.8M	81.5	240	v1-b1-noisy_student.h5	v1-b1-imagenet.h5
EffV1B2	9.1M	82.4	260	v1-b2-noisy_student.h5	v1-b2-imagenet.h5
EffV1B3	12.2M	84.1	300	v1-b3-noisy_student.h5	v1-b3-imagenet.h5
EffV1B4	19.3M	85.3	380	v1-b4-noisy_student.h5	v1-b4-imagenet.h5
EffV1B5	30.4M	86.1	456	v1-b5-noisy_student.h5	v1-b5-imagenet.h5
EffV1B6	43.0M	86.4	528	v1-b6-noisy_student.h5	v1-b6-imagenet.h5
EffV1B7	66.3M	86.9	600	v1-b7-noisy_student.h5	v1-b7-imagenet.h5
EffV1L2	480.3M	88.4	800	v1-l2-noisy_student.h5

GMLP

• Keras GMLP includes implementation of PDF 2105.08050 Pay Attention to MLPs.

Model	Params	Image resolution	Top1 Acc	ImageNet
GMLPTiny16	6M	224	72.3
GMLPS16	20M	224	79.6	gmlp_s16_imagenet.h5
GMLPB16	73M	224	81.6

HaloNet

• Keras HaloNet is for PDF 2103.12731 Scaling Local Self-Attention for Parameter Efficient Visual Backbones.

Model	Params	Image resolution	Top1 Acc	Download
HaloNetH0	5.5M	256	77.9
HaloNetH1	8.1M	256	79.9
HaloNetH2	9.4M	256	80.4
HaloNetH3	11.8M	320	81.9
HaloNetH4	19.1M	384	83.3
- 21k	19.1M	384	85.5
HaloNetH5	30.7M	448	84.0
HaloNetH6	43.4M	512	84.4
HaloNetH7	67.4M	600	84.9
HaloNextECA26T	10.7M	256	79.50	halonext_eca26t_imagenet.h5
HaloNet26T	12.5M	256	79.13	halonet26t_imagenet.h5
HaloNetSE33T	13.7M	256	80.99	halonet_se33t_imagenet.h5
HaloRegNetZB	11.68M	224	81.042	haloregnetz_b_imagenet.h5
HaloNet50T	22.7M	256	81.70	halonet50t_imagenet.h5
HaloBotNet50T	22.6M	256	82.0	halobotnet50t_imagenet.h5

LeViT

• Keras LeViT is for PDF 2104.01136 LeViT: a Vision Transformer in ConvNet’s Clothing for Faster Inference.

Model	Params	Image resolution	Top1 Acc	ImageNet
LeViT128S	7.8M	224	76.6	levit128s_imagenet.h5
LeViT128	9.2M	224	78.6	levit128_imagenet.h5
LeViT192	11M	224	80.0	levit192_imagenet.h5
LeViT256	19M	224	81.6	levit256_imagenet.h5
LeViT384	39M	224	82.6	levit384_imagenet.h5

MLP mixer

• Keras MLP mixer includes implementation of PDF 2105.01601 MLP-Mixer: An all-MLP Architecture for Vision.
• Models Top1 Acc is Pre-trained on JFT-300M model accuray on ImageNet 1K from paper.

Model	Params	Top1 Acc	ImageNet	Imagenet21k	ImageNet SAM
MLPMixerS32	19.1M	68.70
MLPMixerS16	18.5M	73.83
MLPMixerB32	60.3M	75.53			b32_imagenet_sam.h5
MLPMixerB16	59.9M	80.00	b16_imagenet.h5	b16_imagenet21k.h5	b16_imagenet_sam.h5
MLPMixerL32	206.9M	80.67
MLPMixerL16	208.2M	84.82	l16_imagenet.h5	l16_imagenet21k.h5
- input 448	208.2M	86.78
MLPMixerH14	432.3M	86.32
- input 448	432.3M	87.94

NFNets

• Keras NFNets is for PDF 2102.06171 High-Performance Large-Scale Image Recognition Without Normalization.

Model	Params	Image resolution	Top1 Acc	Download
NFNetL0	35.07M	288	82.75	nfnetl0_imagenet.h5
NFNetF0	71.5M	256	83.6	nfnetf0_imagenet.h5
NFNetF1	132.6M	320	84.7	nfnetf1_imagenet.h5
NFNetF2	193.8M	352	85.1	nfnetf2_imagenet.h5
NFNetF3	254.9M	416	85.7	nfnetf3_imagenet.h5
NFNetF4	316.1M	512	85.9	nfnetf4_imagenet.h5
NFNetF5	377.2M	544	86.0	nfnetf5_imagenet.h5
NFNetF6 SAM	438.4M	576	86.5	nfnetf6_imagenet.h5
NFNetF7	499.5M	608
ECA_NFNetL0	24.14M	288	82.58	eca_nfnetl0_imagenet.h5
ECA_NFNetL1	41.41M	320	84.01	eca_nfnetl1_imagenet.h5
ECA_NFNetL2	56.72M	384	84.70	eca_nfnetl2_imagenet.h5
ECA_NFNetL3	72.04M	448

RegNetY

• Keras RegNetY is for PDF 2003.13678 Designing Network Design Spaces.

Model	Params	Image resolution	Top1 Acc	Download
RegNetY040	20.65M	224	81.5	regnety_040_imagenet.h5
RegNetY080	39.18M	224	82.2	regnety_080_imagenet.h5
RegNetY160	83.59M	224	82.0	regnety_160_imagenet.h5
RegNetY320	145.05M	224	82.5	regnety_320_imagenet.h5

RegNetZ

• Keras RegNetZ includes implementation of Github timm/models/byobnet.py.

Model	Params	Image resolution	Top1 Acc	Download
RegNetZB16	9.72M	224	79.868	regnetz_b16_imagenet.h5
RegNetZC16	13.46M	256	82.164	regnetz_c16_imagenet.h5
RegNetZD32	27.58M	256	83.422	regnetz_d32_imagenet.h5
RegNetZD8	23.37M	256	83.5	regnetz_d8_imagenet.h5
RegNetZE8	57.70M	256	84.5	regnetz_e8_imagenet.h5

ResMLP

• Keras ResMLP includes implementation of PDF 2105.03404 ResMLP: Feedforward networks for image classification with data-efficient training

Model	Params	Image resolution	Top1 Acc	ImageNet
ResMLP12	15M	224	77.8	resmlp12_imagenet.h5
ResMLP24	30M	224	80.8	resmlp24_imagenet.h5
ResMLP36	116M	224	81.1	resmlp36_imagenet.h5
ResMLP_B24	129M	224	83.6	resmlp_b24_imagenet.h5
- imagenet22k	129M	224	84.4	resmlp_b24_imagenet22k.h5

ResNeSt

• Keras ResNeSt is for PDF 2004.08955 ResNeSt: Split-Attention Networks.

Model	Params	Image resolution	Top1 Acc	Download
resnest50	28M	224	81.03	resnest50.h5
resnest101	49M	256	82.83	resnest101.h5
resnest200	71M	320	83.84	resnest200.h5
resnest269	111M	416	84.54	resnest269.h5

ResNetD

• Keras ResNetD includes implementation of PDF 1812.01187 Bag of Tricks for Image Classification with Convolutional Neural Networks

Model	Params	Image resolution	Top1 Acc	Download
ResNet50D	25.58M	224	80.530	resnet50d.h5
ResNet101D	44.57M	224	83.022	resnet101d.h5
ResNet152D	60.21M	224	83.680	resnet152d.h5
ResNet200D	64.69	224	83.962	resnet200d.h5

ResNetQ

• Keras ResNetQ includes implementation of Github timm/models/resnet.py

Model	Params	Image resolution	Top1 Acc	Download
ResNet51Q	35.7M	224	82.36	resnet51q.h5

ResNeXt

• Keras ResNeXt includes implementation of PDF 1611.05431 Aggregated Residual Transformations for Deep Neural Networks
• SWSL means Semi-Weakly Supervised ResNe*t from Github facebookresearch/semi-supervised-ImageNet1K-models. Please note the CC-BY-NC 4.0 license on theses weights, non-commercial use only.

Model	Params	Image resolution	Top1 Acc	Download
ResNeXt50 (32x4d)	25M	224	79.768	resnext50_imagenet.h5
- SWSL	25M	224	82.182	resnext50_swsl.h5
ResNeXt50D (32x4d + deep)	25M	224	79.676	resnext50d_imagenet.h5
ResNeXt101 (32x4d)	42M	224	80.334	resnext101_imagenet.h5
- SWSL	42M	224	83.230	resnext101_swsl.h5
ResNeXt101W (32x8d)	89M	224	79.308	resnext101_imagenet.h5
- SWSL	89M	224	84.284	resnext101w_swsl.h5

VOLO

• Keras VOLO is for PDF 2106.13112 VOLO: Vision Outlooker for Visual Recognition.

Model	Params	Image resolution	Top1 Acc	Download
volo_d1	27M	224	84.2	volo_d1_224.h5
volo_d1 ↑384	27M	384	85.2	volo_d1_384.h5
volo_d2	59M	224	85.2	volo_d2_224.h5
volo_d2 ↑384	59M	384	86.0	volo_d2_384.h5
volo_d3	86M	224	85.4	volo_d3_224.h5
volo_d3 ↑448	86M	448	86.3	volo_d3_448.h5
volo_d4	193M	224	85.7	volo_d4_224.h5
volo_d4 ↑448	193M	448	86.8	volo_d4_448.h5
volo_d5	296M	224	86.1	volo_d5_224.h5
volo_d5 ↑448	296M	448	87.0	volo_d5_448.h5
volo_d5 ↑512	296M	512	87.1	volo_d5_512.h5

---

Other implemented tensorflow or keras models

• Github faustomorales/vit-keras
• Github rishigami/Swin-Transformer-TF
• Github tensorflow/resnet_rs
• Github google-research/big_transfer
• perceiver_image_classification

---
