leo-cub

leo-cub is an experimental Rust library and command-line tool for reading, validating, browsing, and modifying Leo Editor outlines.

The installed command is cub; the Rust library namespace is leo.

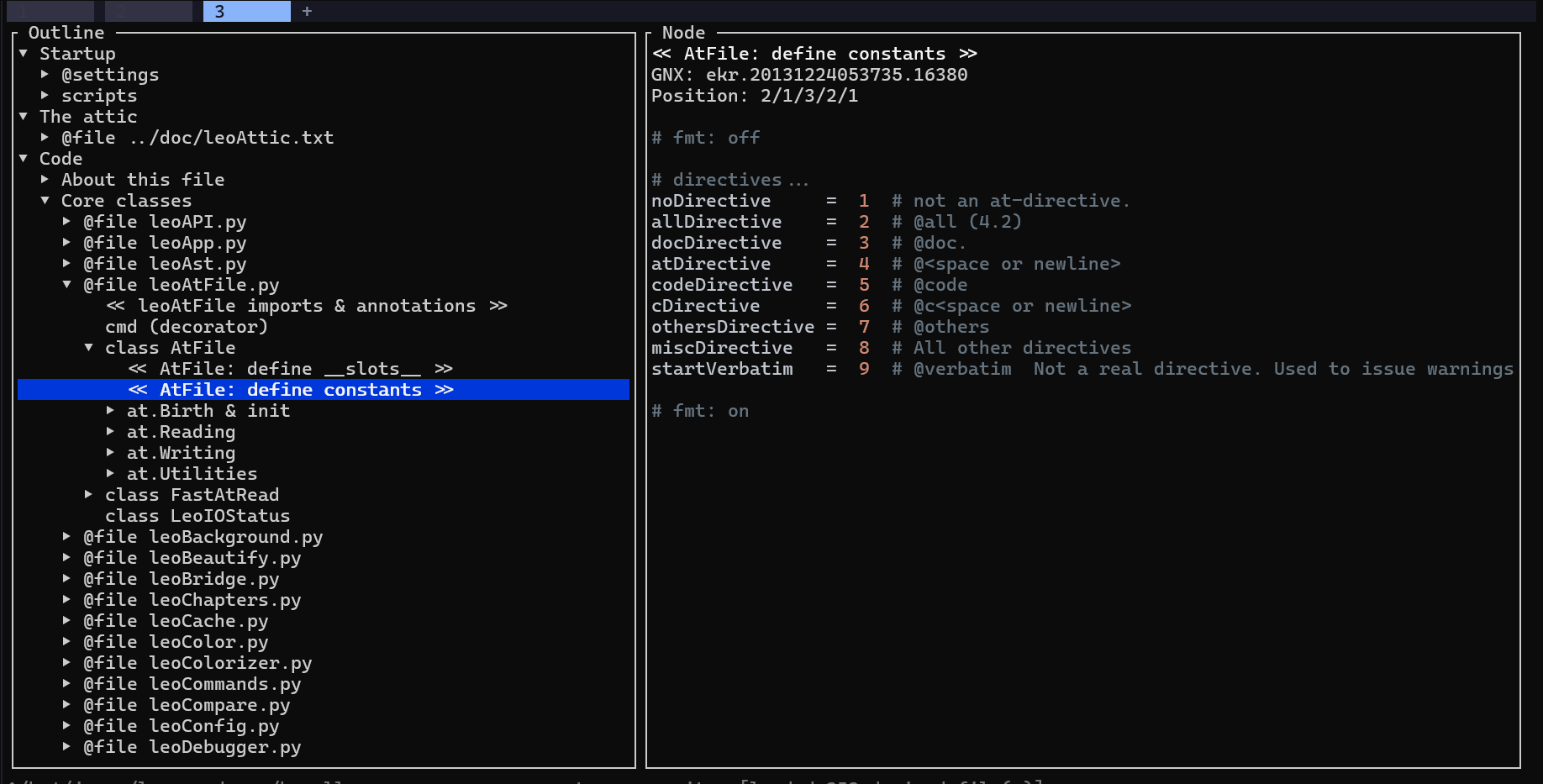

Screenshot

Why

Leo outlines are not ordinary XML trees. A GNX identifies shared vnode content, while an outline position identifies one occurrence of that vnode. Cloned nodes can therefore appear in several places. leo-cub keeps those concepts separate and exposes transactional operations intended for scripts and AI tools.

Current features

• Parse and validate .leo XML outlines.
• Preserve XML outside the rewritten <vnodes> and <tnodes> sections.
• Represent clone identity separately from outline positions.
• Apply atomic JSON operation batches with optional text preconditions.
• Parse Leo 5 thin derived-file sentinels.
• Reconstruct @file, @thin, and @file-thin hierarchies and bodies.
• Resolve ancestor @path directives in the TUI.
• Browse outlines with a small Ratatui interface.
• Highlight node bodies with Syntect, using @language, @rst ancestors, or source extensions, including bundled reStructuredText syntax support.
• Open a derived node's full source file at its sentinel line using $VISUAL or $EDITOR.

Install

The recommended installation method is uv:

uv tool install leo-cub

This installs the cub command. You can also use pip install leo-cub, or download the appropriate archive from the latest GitHub release.

Termux

The PyPI release includes an Android API 24 ARM64 wheel suitable for current 64-bit Termux installations:

uv tool install leo-cub

Installation from source

From the repository root, install the cub command with Cargo:

cargo install --path .

Install the bundled local agent skill after installing the command:

cub install-skills

This writes ~/.claude/skills/leo-cub/SKILL.md and overwrites an existing copy, so it is safe to rerun after upgrading.

TUI

cub tui outline.leo

The browser resolves external thin files in memory. Outline headlines highlight Leo directives, external-file names, and section-reference markers. A red * marks each node changed since the outline was loaded or last saved; saving or reloading clears the markers.

TUI keybindings

Browsing and display

Outline editing

Headline editing

Use --no-derived to display only the hierarchy physically present in the .leo XML file.

For source navigation, cub recognizes common position arguments for Vim, Neovim, Nano, Emacs, VS Code, Microsoft Edit, Helix, and Kakoune. Other editors receive the file path without a line argument.

Demo flow

Starting in a project containing README.md and a src/ directory, create a new outline with destinations for source code, documentation, and tasks:

cub new project.leo --headline "Project"
cub add project.leo \
  "Project/Source" \
  "Project/Documentation" \
  "Project/Tasks/Backlog"

Import the source tree below Project/Source, preserving its directory structure, then import the README as an editable node below the documentation branch:

cub import project.leo src \
  --recursive --mode auto --paths \
  --parent "Project/Source"
cub import project.leo README.md \
  --mode edit \
  --parent "Project/Documentation"

Finally, inspect the resulting tree and validate the file:

cub inspect project.leo
cub validate project.leo

@auto source nodes are reconstructed from their files when inspected or opened, while the @edit README node stores its text in the outline.

Headless commands

cub new outline.leo
cub new notes.leo --headline "Notes"
cub add outline.leo "Project/Tasks/First task" "Project/Notes"
cub inspect outline.leo
cub inspect outline.leo src/main.rs
cub inspect outline.leo --gnx ekr.20260811210000.1
cub inspect outline.leo --position 0/2/1
cub inspect outline.leo --search 'render_(compact|json)'
cub inspect outline.leo --search TODO --search FIXME
cub inspect outline.leo src/main.rs --format json
cub validate outline.leo
cub import outline.leo src --recursive --mode auto --paths
cub import outline.leo README.md --mode edit --no-paths
cub import outline.leo README.md --parent "Project/Notes"
cub sync outline.leo
cub sync outline.leo src/main.rs --dry-run
cub sync outline.leo --gnx ekr.20260811210000.1
cub diff before.leo after.leo
cub inspect-derived path/to/derived.py --summary
cub apply outline.leo operations.json --dry-run

new creates a valid outline with one empty root node. It refuses to overwrite an existing file.

add creates nodes from slash-separated headline paths and reuses shared or existing prefixes. import --parent accepts either an exact GNX or a unique slash-separated headline path. Paths with duplicate matching siblings are rejected as ambiguous.

import creates Leo external-file nodes in auto, edit, or clean mode. Markdown, Python, Rust, C#, Go, JavaScript/JSX, and TypeScript/TSX @auto files are expanded transiently with Tree-sitter when they are loaded by inspect or the TUI; the generated tree is not stored in the .leo file. Unsupported source types remain available as a plain root node. Markdown also supports Leo's @auto-md and @auto-markdown headlines and leo-noheader markers. Directory imports are recursive only with --recursive and preserve their layout with @path nodes by default. Use --no-paths to put all imported files directly below the destination, --parent GNX_OR_PATH to choose that destination, and --dry-run to validate without saving.

inspect uses a compact text format containing position paths, GNXs, headlines, and bodies. Repeated clone content is shown as =GNX. Use --format json for structured output in scripts. --search accepts a Rust regular expression and searches headlines and body lines. Search results include line-numbered excerpts with two surrounding lines instead of printing entire matching bodies. Repeat --search to match any of several expressions. Thin external files are scanned first and reconstructed only when they may contain a search or GNX match.

An operation batch is a JSON object:

{
  "operations": [
    {
      "op": "set-body",
      "node": "ekr.20260811210000.1",
      "expected": "old body",
      "body": "new body"
    }
  ]
}

Operations are applied to a copy and committed only if the complete batch is valid. expected provides optimistic conflict detection for headline and body edits.

Status and safety

This project is early and the file format support is incomplete. In particular, it does not yet write thin derived files, dynamically interpret every @comment/@delims change, or fully reconstruct all doc-part forms. Keep backups and use --dry-run when testing write operations on important outlines.

The TUI overlays derived files without modifying either the outline or external source files. Derived descendants are read-only in the outline editor; use o to edit their full external source. Unsaved outline changes require a second q before they are discarded.

License

MIT
