local-ai-agent-orchestrator 3.1.1

LAO — Pilot Mode plus planner→coder→verifier→reviewer orchestration over LM Studio / OpenAI-compatible APIs: structured tools, permissions, skills, hierarchical memory, optional MCP, SQLite state, and optional per-plan Git.

Local AI Agent Orchestrator (LAO)

LAO (v3.1.0+) is a local coding factory for LM Studio and other OpenAI-compatible servers: a planner → coder → verifier → reviewer pipeline for long-running work, plus Pilot Mode—an interactive, agentic chat on your terminal that can run workspace tools, inspect the queue, create plans, switch projects, and hand control back to autopilot when you type /resume. Everything is backed by SQLite, memory-aware model swapping, optional per-plan Git, and a unified TTY experience (Rich + prompt_toolkit). v3.1.0 adds structured tool contracts, permissions, a mechanical verifier, skills, hierarchical memory, conversation compaction, optional MCP, lao doctor, and more (see What is new in v3.1.0 and CHANGELOG.md).

Resource	Link
PyPI	pypi.org/project/local-ai-agent-orchestrator
Website	lao.keyhan.info
Repository	github.com/KEYHAN-A/local-ai-agent-orchestrator
Issues	GitHub Issues
License	GPL-3.0-only
Changelog	CHANGELOG.md

---

Table of contents

• Installation
• Features
• What is new in v3.1.0
• LAO Pilot Mode
• Project commands and multi-repo workflows
• Why the OpenAI SDK (not LangChain / CrewAI)?
• Requirements
• Prerequisites (LM Studio)
• Quick start
• Configuration overview
• CLI reference
• Workspaces, paths, and resume behavior
• Git traceability
• Architecture
• Documentation
• Security
• Contributing
• Releases

---

Installation

From PyPI (recommended)

pip install local-ai-agent-orchestrator
pip install -U local-ai-agent-orchestrator   # upgrade

The CLI entry point is lao (also local-ai-agent-orchestrator).

One-line installer (curl)

The canonical script in git is scripts/install.sh. It prefers pipx when available (isolated app environment), otherwise pip install --user.

Short URL (GitHub Pages):

curl -fsSL https://lao.keyhan.info/install.sh | bash

That bootstrap is a tiny script that downloads the same implementation from GitHub main—so there is only one full installer to maintain.

Direct from GitHub (easy to audit against the repo):

curl -fsSL https://raw.githubusercontent.com/KEYHAN-A/local-ai-agent-orchestrator/main/scripts/install.sh | bash

Trust trade-off: piping to bash always means you trust the host and transport. Many people prefer the raw.githubusercontent.com URL because the path maps cleanly to main/scripts/install.sh in this repository. The lao.keyhan.info URL is the same behavior after one redirect through the small bootstrap.

Optional environment variables: LAO_VERSION (pin a release, e.g. 3.1.0), LAO_PACKAGE (override PyPI name).

Homebrew ecosystem

LAO is a Python package on PyPI. Homebrew does not replace PyPI here; the usual approach on macOS is to use Homebrew’s pipx and install LAO into an isolated environment:

brew install pipx
pipx ensurepath
pipx install local-ai-agent-orchestrator
# later: pipx upgrade local-ai-agent-orchestrator

A first-party Homebrew formula in homebrew-core is possible but requires vendoring every Python dependency with fixed URLs and checksums (no PyPI access during brew install). If you want a custom tap (brew install yourname/tap/lao), generate or hand-maintain a formula with something like homebrew-pypi-poet or follow Homebrew’s Python guide.

npm

LAO is implemented in Python, not JavaScript. Publishing an npm package that only shells out to pip would be confusing to npm users and fragile across machines. Use pip, pipx, or the curl installer above instead.

Editable install (development)

git clone https://github.com/KEYHAN-A/local-ai-agent-orchestrator.git
cd local-ai-agent-orchestrator
python -m venv .venv
source .venv/bin/activate   # Windows: .venv\Scripts\activate
pip install -e .

Without installing the package

python main.py health

(main.py adds src/ for you.)

---

Features

What is new in v3.1.0

This release is a reliability and quality milestone: fewer “looks done but is not” outcomes, clearer operator control, and better fit with how serious local agent stacks are run today.

Area	Highlights
Correctness	Mechanical verifier between coder and reviewer (claimed files exist, Python/JSON/YAML parse, workspace path checks, TODO ledger completion). Coder retries without burning reviewer attempts when checks fail.
Tools	tools/ package with a Tool dataclass registry: JSON-schema validation, auto-generated OpenAI tool list, centralized dispatch with audit logging (tool_audit table).
Safety	permissions modes (auto, confirm, plan_only, bypass) and wildcard rules (Bash(…), FileWrite(…), …). enter_plan_mode / exit_plan_mode block mutations until an explicit plan is approved.
Guidance	Skills (bundled + .lao/skills/), hierarchical memory (LAO_MEMORY.md, ~/.lao/MEMORY.md), conversation compaction instead of naive tail-trimming.
Interop	Optional MCP client (factory.yaml: mcp_servers) and lao mcp-server (stdio) for other agents. lao doctor for grouped diagnostics. Hooks (hooks.py). Optional OpenTelemetry spans on tool calls.
Determinism	Per-role temperature, top_p, seed, repetition_penalty in YAML; lao run --seed, --permission-mode, --output-style (terse / narrative / json).

Full detail: CHANGELOG.md → v3.1.0. Configuration keys: docs/CONFIGURATION.md (Reliability & Quality section).

End-to-end pipeline

• Planner (architect): Decomposes a master plan into a JSON array of micro-tasks (title, description, file paths, dependencies). Large plans are chunked to fit the planner context; completed chunks are resumed instead of recomputed. When the model supports it, architect output can be constrained with JSON schema response mode (with regex fallback for older servers).
• Task queue: SQLite (WAL) stores plans, tasks, run logs, structured review findings, per-task TODOs, memory facts, and tool audit rows. Dependency-aware scheduling: tasks wait on prerequisites; dependents of failed tasks are failed with explicit feedback.
• Coder: OpenAI-style chat with tool calling (when the model supports it): file_read, file_write, file_patch, list_dir, shell_exec, find_relevant_files, task_todo_set / task_todo_get, enter_plan_mode / exit_plan_mode, memory_*, skill_list / skill_run, and more (see tools/ package). Work runs inside the active plan workspace (see below).
• Verifier (v3.1.0+): Deterministic checks on coder output before the reviewer LLM runs; failures enqueue rework with structured hints.
• Reviewer: Single completion that must yield structured JSON (verdict, findings, summary). Feeds back into queue state (approve, rework, or fail after max attempts). Optional JSON schema mode when supported.

State, recovery, and operator tools

• Resume by default: On startup, tasks stuck in transient phases are reset (coding → pending, review → coded) via recover_interrupted().
• Plan deduplication: Identical plan content is hashed; resubmitting the same text does not spawn a second decomposition.
• lao retry-failed: Moves failed tasks back to pending for another pass. lao reset-failed is a deprecated alias.

Models and memory

• Role-specific models in factory.yaml (planner, coder, reviewer, pilot, optional embedder).
• ModelManager loads/unloads via LM Studio’s HTTP API so only one large LLM tends to sit in VRAM at a time.
• Memory gate: After unload, waits until freed memory (via vm_stat on macOS) meets configured thresholds before loading the next model.
• LLM retries: Configurable timeouts, attempts, and exponential backoff for transient API errors.

Semantic context (embedder)

• When configured, embedding search (find_relevant_files) can rank files before coding so the coder prompt includes short excerpts from likely-relevant paths (implemented in tools/search.py).

Quality gates and validation

• Post-coder validation (placeholder text, selected code smells, optional validation_build_cmd / validation_lint_cmd when set in config) produces findings; severity drives gating when quality_gate_mode is standard or strict.
• Per-plan quality_report.json summarizes runs and findings for traceability (see reporting module and docs).

Reviewer robustness (local models)

• Chain-of-thought stripping: <think>…</think>-style blocks are removed before parsing reviewer output (R1 / Qwen-style models).
• JSON verdict parsing: Accepts raw JSON, JSON inside markdown code fences, or a JSON object embedded in surrounding prose—so APPROVED inside a fenced block is not misread as a rejection.

Optional Git traceability

• When enabled, each plan’s project directory can be a Git repo: LAO_PLAN.md, LAO_TASKS.json, phase commits with subjects like lao(coder): task #42 …, and LAO_REVIEW.log appended after review. Disable globally in YAML or per run with --no-git.

Operator experience

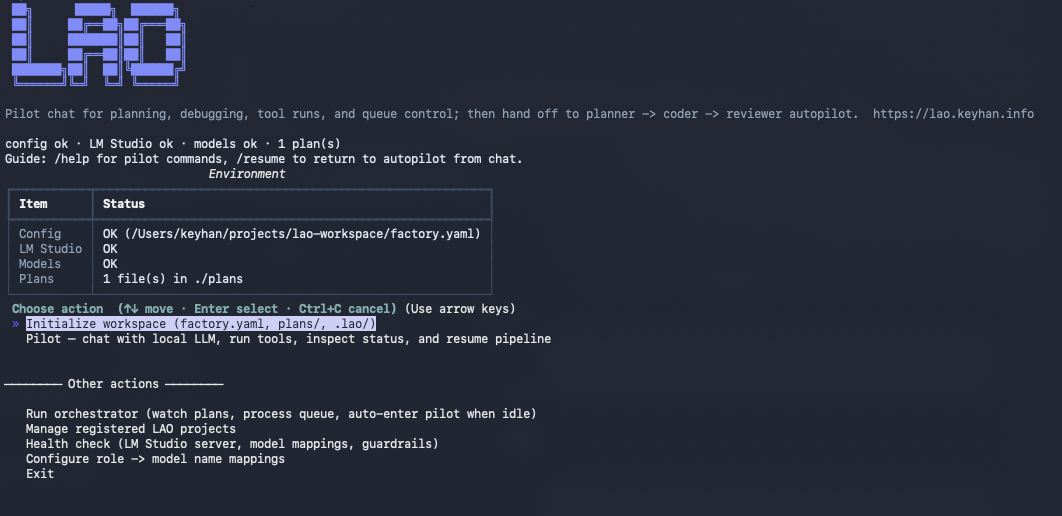

• lao (no subcommand): Interactive home on a TTY—environment status, grouped menu (initialize workspace + pilot first, then other actions; Exit last).
• lao init: Scaffold factory.yaml / factory.example.yaml, .lao/, plans/, optional workspace README.md.
• lao configure-models: Interactive remap of model keys to match lms ls / LM Studio.
• lao run: Orchestrator loop with unified TTY UI when idle transitions into Pilot Mode (configurable). --plain yields classic timestamped logs (CI, pipes, debugging).

---

LAO Pilot Mode (v3.0.4+)

Pilot Mode is the interactive layer when the pipeline is idle—or when you run lao pilot / choose Pilot from the home menu. The Pilot uses the same OpenAI tools pattern as the coder (read/write/patch files, shell, semantic search) and adds pipeline controls (pipeline_status, create_plan, retry_failed, resume_pipeline, project_status, …).

• Unified UI: Scrollback for chat and activity, compact status line (phase / model / task), slash hints (/help, /status, /resume, /clear, /exit, /project …).
• Project awareness: lao projects (list, scan, add, use, needs-action, remove) and in-chat /project to list, scan, switch workspace, or show status. Registry stored at ~/.lao/projects.json. Intent phrases and paths can trigger a workspace switch before the tool loop.
• Guardrails: Repeated tool errors back off and ask for a clearer path; absolute paths like /Users/... are not mis-parsed as slash commands.
• Exiting chat: Double Ctrl+C exits the prompt; Ctrl+D (EOF) also ends input.

Screenshots

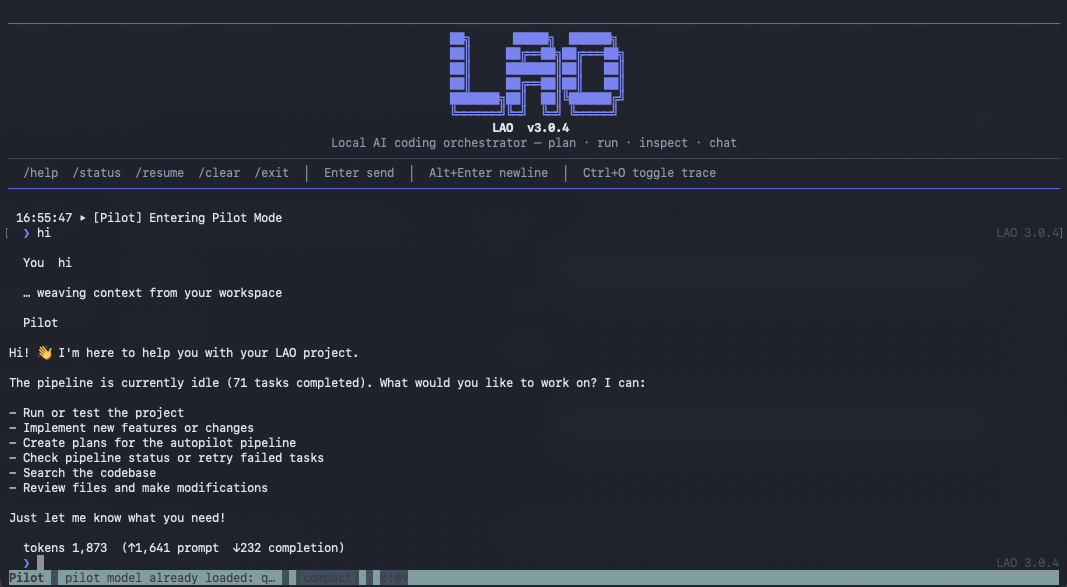

Pilot Mode

(Images are also in-repo under docs/assets/ for the site and offline viewing.)

Operator flow (autopilot + pilot)

flowchart LR
  home["lao home"] --> init["lao init"]
  home --> pilotEntry["lao pilot"]
  home --> run["lao run"]
  run --> work["Planner Coder Reviewer"]
  work --> idle{Queue idle?}
  idle -->|yes| pilot["Pilot chat"]
  idle -->|no| work
  pilot --> resume["/resume or tool"]
  resume --> work
  pilot --> home2["Exit"]

Full release notes: CHANGELOG.md (latest: v3.1.0; Pilot highlights in v3.0.4).

---

Project commands and multi-repo workflows

If you start LAO from a parent directory (no factory.yaml in the current folder), use lao projects scan (or the home menu Scan for LAO projects) to discover repos that have factory.yaml, plans/*.md, or .lao/state.db. lao projects use <name-or-path> re-binds configuration to that project. In Pilot chat, /project use … performs the same switch for the session.

---

Why the OpenAI SDK (not LangChain / CrewAI)?

LAO calls the OpenAI Python SDK directly against your local server to avoid heavy multi-agent framework scaffolding and extra token overhead on small local context windows.

---

Requirements

• Python 3.10+
• LM Studio — install the desktop application, then enable the local server (Developer → server; default URL matches lao init / factory.yaml). You can point LAO at another OpenAI-compatible HTTP endpoint for chat, but automated load/unload and the memory gate use LM Studio’s REST API (see Prerequisites below).
• Model keys in factory.yaml that match what the server exposes (use lao health or lms ls)
• git on PATH if you use Git traceability, with user.name / user.email configured
• Apple Silicon: if large models fail to load, relax LM Studio Model Loading Guardrails (Developer → Server Settings)

Full reference: docs/CONFIGURATION.md.

---

Prerequisites (LM Studio)

1. Install LM Studio and open the app.
2. Start the local server so LAO can reach it (default http://127.0.0.1:1234 unless you changed it). Download or load the models you plan to use; role keys in factory.yaml must match what LM Studio exposes (lao health, lms ls, or the UI).
3. Memory-aware model switching (unload other LLMs → wait for memory to settle → load the next model) is implemented against LM Studio’s HTTP load/unload API (ModelManager). For that behavior, keep LM Studio running with the server enabled.

---

Quick start

lao                  # interactive home (TTY) — init, pilot, run, projects, …
lao init             # scaffold config, .lao/, plans/

lao health           # LM Studio reachability + configured model keys
lao doctor           # grouped diagnostics (LM Studio, models, git, disk, schema, …)
lao run              # watch plans/, run pipeline; enters Pilot when idle (TTY)
lao pilot            # jump straight into Pilot chat (after health check)
lao skills list      # bundled + user skills (Markdown workflows)
lao memory show      # project + user memory prelude (LAO_MEMORY.md, ~/.lao/MEMORY.md)

# Parent folder without factory.yaml: discover and register projects
lao projects scan
lao projects use my-repo

# Alternative: one plan, one pass
lao --plan plans/my_project.md --single-run run

Drop new *.md files into your configured plans/ directory (by default next to factory.yaml). plans/README.md is never ingested as a plan.

---

Configuration overview

Configuration lives in factory.yaml (or path from LAO_CONFIG / --config). Typical areas:

Area	Purpose
lm_studio_base_url, openai_api_key	Server endpoint and API key (LM Studio often uses a placeholder key).
paths.plans, paths.database	Where plans are scanned and where SQLite lives (default .lao/state.db).
memory_gate.*	Release fraction, swap growth limits, settle timeout, poll interval.
orchestration.*	Load timeouts, max_task_attempts, watch interval, LLM timeouts/retries, phase_gated, coder_batch_size, reviewer_batch_size, max_context_utilization, quality_gate_mode, pilot_mode_enabled, optional validation_build_cmd / validation_lint_cmd.
git.*	Enable/disable traceability, plan snapshot filename, optional commit trailers; optional worktrees for speculative coder attempts.
models.*	Per-role key, context_length, max_completion, supports_tools, temperature, top_p, seed, repetition_penalty, supports_json_schema, size hints for memory accounting. Roles include pilot, analyst, embedder.
permissions.*	mode (auto / confirm / plan_only / bypass) and allow / deny wildcard rules for tools (see docs/CONFIGURATION.md).
verifier_enabled, compaction_*	Toggle mechanical verifier and conversation compaction (see docs/CONFIGURATION.md).
skills_*, memory_*, mcp_servers, output_style, otel.*, hooks.*	Skills, hierarchical memory, MCP servers, reply shape, telemetry, and user hooks (see docs/CONFIGURATION.md).

Environment variables (including LM_STUDIO_BASE_URL, OPENAI_API_KEY, TOTAL_RAM_GB, WORKSPACE_ROOT, PLANS_DIR, DB_PATH) are documented in .env.example.

Throughput and LM Studio model swaps

• Same model key across roles: If planner, coder, and reviewer in models.* all use the same LM Studio key, LAO does not unload/reload when switching roles (only ensure_loaded calls that already match the loaded instance). Use separate keys when you want different model capabilities; use one key when you care most about avoiding swap latency.
• Phase batching: With orchestration.phase_gated: true (default), LAO runs waves of up to coder_batch_size then reviewer_batch_size tasks before switching models, which cuts swap frequency versus phase_gated: false (coder → reviewer every task). For large backlogs, raising those batch sizes trades slightly later first review within a wave for fewer load cycles. CLI: lao run --phase-gated --batch-size N sets the coder batch size for that run (see factory.yaml for reviewer batch size).
• What the numbers mean: At the end of a TTY session, the LAO run finished table includes run-log model_key changes (from SQLite) and LM Studio swap cycles / loads / unloads (from ModelManager). LAO_QUALITY.md (and quality_report.json → efficiency) document the same distinction after a plan run produces a quality report.

---

CLI reference

Commands

Command	Description
lao	Interactive home: environment status and grouped actions (TTY).
lao run	Watch plans/, run architect/coder/reviewer loop until interrupted; on TTY, Pilot Mode when idle unless --no-pilot.
lao pilot	Enter Pilot Mode immediately (LM Studio must be reachable).
lao projects	Manage known workspaces: list (default), scan, add, use, remove, needs-action. Optional --root, --tag on add.
lao init	Onboarding scaffold: factory.example.yaml, .lao/, plans/, optional README.md. Flags: --skip-readme, --no-interactive.
lao health	Check server reachability and that configured model keys exist.
lao doctor	Grouped diagnostics: LM Studio, models, RAM budget, git, embedder, validators, disk, SQLite schema.
lao mcp-server	Run LAO as a minimal MCP server over stdio (expose curated tools to other agents).
lao skills	list (default) or show <name> — bundled and user-defined Markdown skills.
lao memory	show (default), edit "<fact>", or forget "<substring>" — project and user memory files.
lao status	SQLite queue summary and token totals.
lao configure-models	Interactive update of role model keys (planner, coder, reviewer, embedder, pilot) in factory.yaml.
lao preflight	Plan context diagnostics: --plan PATH (required).
lao benchmark	Core reliability benchmark suite; writes report under config dir.
lao kpi	KPI snapshot for tracking.
lao dashboard	Operator dashboard snapshot.
lao report	Quality report schema: check or migrate (--file optional).
lao retry-failed	Reset failed tasks to pending for another attempt.
lao reset-failed	Deprecated alias for retry-failed.

lao run accepts --plan PATH (single plan) and --single-run (one scheduler pass then exit).

Global flags

Flag	Description
--config PATH	Path to factory.yaml (default: ./factory.yaml if present).
--lm-studio-url URL	Override LM Studio base URL.
--ram-gb N	Total RAM in GB (logged; reserved for future tuning).
--workspace, --plans-dir, --db	Override workspace, plans directory, and SQLite path.
--planner-model, --coder-model, --reviewer-model, --embedder-model, --pilot-model	Override model keys without editing YAML.
--plain	Classic scrolling log instead of the unified TTY experience.
--no-git	Disable Git snapshots/commits for this run (overrides factory.yaml).
--no-pilot	Disable Pilot Mode during lao run (legacy idle behavior).
--pilot-only	Jump straight into Pilot Mode (works with lao run as well as lao pilot).
--phase-gated	Enable role-batched phase execution (coder/reviewer waves) for this run.
--batch-size N	Coder batch size override for this run.
--max-context-utilization RATIO	Planner context utilization hint (0–1).
--quality-gate	Override quality gate: strict, standard, or off.
--permission-mode	auto, confirm, plan_only, or bypass (overrides permissions.mode for this run).
--seed	Override seed on every role model for this run (determinism experiments).
--output-style	terse, narrative, or json — shapes free-form system addenda for this run.

---

Workspaces, paths, and resume behavior

• Per-plan project directory: For a plan file plans/MyPlan.md, the default workspace is <config_dir>/MyPlan/ (same stem as the plan), i.e. next to your plans/ folder after lao init. The coder’s file tools operate inside that directory (with safety checks).
• Fallback: If a plan has no normal stem, .lao/_misc/ can be used as a fallback workspace (see configuration docs).
• State database: Default .lao/state.db unless overridden.
• Resume: Restarting lao run continues from SQLite; interrupted phases are recovered automatically.

On a TTY, lao run uses the unified LAO shell (status + activity + pilot when idle). Use --plain for logs suitable for CI or redirection.

---

Git traceability

When git.enabled is true (default), LAO uses <config_dir>/<plan-stem>/ as the Git working tree:

1. Plan snapshot: LAO_PLAN.md committed when appropriate (lao(plan): …).
2. After architect: LAO_TASKS.json (lao(architect): …).
3. After coder: staged changes (lao(coder): task #…).
4. After reviewer: LAO_REVIEW.log updated (lao(reviewer): …).

Disable with git.enabled: false or lao --no-git run. Existing .git directories are respected (no forced re-init).

---

Architecture

Module-level detail: docs/ARCHITECTURE.md.

Pipeline overview

flowchart LR
  plansMd["plans/*.md"] --> register[Register_and_hash]
  register --> plannerLLM[Planner_LLM]
  plannerLLM --> sqliteQ[("SQLite_queue")]
  sqliteQ --> coderLLM[Coder_LLM]
  coderLLM --> verifier[Mechanical_verifier]
  verifier --> reviewerLLM[Reviewer_LLM]
  reviewerLLM --> sqliteQ
  coderLLM -.->|optional| gitTrace[Git_traceability]
  reviewerLLM -.->|optional| gitTrace

Model loading and memory gate

flowchart TB
  subgraph roles [Phases_need_models]
    direction LR
    rolePlanner[planner] --> roleCoder[coder] --> roleReviewer[reviewer]
  end
  rolePlanner --> mm[ModelManager_ensure_loaded]
  roleCoder --> mm
  roleReviewer --> mm
  mm --> unload[Unload_other_LLMs]
  unload --> gate[Memory_gate]
  gate --> load[LM_Studio_load_API]

---

Documentation

Doc	Description
docs/ARCHITECTURE.md	Components, execution flow, resume, Git, model swapping
docs/CONFIGURATION.md	factory.yaml, paths, orchestration, Git
docs/CONTRIBUTING.md	How to contribute
docs/PYPI_PUBLISH.md	Maintainer: publishing to PyPI
lao.keyhan.info	Project site (from docs/index.html)

---

Security

LAO can execute shell commands and write files in the configured workspace as driven by the coder and your plan. Run only in trusted directories, use --no-git or disable tools if you need a read-only mental model, and review factory.yaml before production use. This project is GPL-3.0-only; dependencies have their own licenses.

---

Contributing

Issues and pull requests are welcome. See docs/CONTRIBUTING.md for guidelines.

---

Releases

• Latest changes: see CHANGELOG.md (full history from v1.0.0).
• Install the latest build: pip install -U local-ai-agent-orchestrator
• GitHub Releases: github.com/KEYHAN-A/local-ai-agent-orchestrator/releases

Recent highlights (v3.1.0): Verifier phase, structured tool registry, permissions, TODO ledger, skills, hierarchical memory, compaction, MCP client/server, lao doctor, hooks, optional OpenTelemetry, per-role determinism knobs — see CHANGELOG.md. v3.0.12 fixed analyst defaults in lao init. v3.0.9 added validation inference, LAO_QUALITY.md, Pilot /gates. LAO Pilot Mode (v3.0.4+): interactive agentic chat, project registry (lao projects, /project), grouped home menu.
