make-drawio-png

日本語版 README はこちら → README.ja.md

A Python library that implements the .drawio.png file format — the re-editable PNG format used by draw.io / diagrams.net.

With this library you can generate .drawio.png files programmatically, without opening draw.io at all. The generated files are indistinguishable from those exported by draw.io itself.

What is the .drawio.png format?

A .drawio.png file is simultaneously:

• a standard PNG image — viewable in any image viewer, browser, or AI agent
• a fully editable draw.io source — open it in draw.io to restore and edit the diagram

This is achieved by embedding the diagram XML inside a PNG tEXt chunk (keyword=mxfile, value=URL-encoded UTF-8 XML), following the draw.io open-source specification. draw.io reads that chunk to restore the diagram; image viewers see only the PNG pixel data.

Use cases

• AI agents / Bob: generate diagrams as code, embed them in Markdown docs, preview as PNG
• CI/CD pipelines: produce architecture diagrams from .drawio XML without a GUI
• Documentation automation: keep diagrams as re-editable sources alongside rendered images

---

Install

pip install make-drawio-png

Note for Windows users — read the PATH section below before installing.

---

Usage

CLI

# embed only — re-editable but 1×1 placeholder image (no draw.io needed)
python -m make_drawio_png architecture.drawio

# render + embed — visually rendered AND re-editable (requires draw.io desktop)
python -m make_drawio_png --render architecture.drawio

# explicit output path
python -m make_drawio_png --render flow.drawio docs/images/flow.drawio.png

Windows / Bob shell users: Use python -m make_drawio_png instead of the make-drawio-png command — it works without any PATH changes. See the PATH guide below.

Python API

from make_drawio_png import drawio_export, drawio_to_png

# Recommended: render + embed (requires draw.io desktop)
drawio_export("architecture.drawio")
# → architecture.drawio.png  (rendered + re-editable)

# Zero dependencies: embed only (re-editable, 1×1 placeholder image)
drawio_to_png("architecture.drawio")
# → architecture.drawio.png  (re-editable, no visual content)

draw.io desktop (required for --render / drawio_export)

winget install JGraph.Draw   # Windows
brew install --cask drawio   # macOS
snap install drawio          # Linux

The CLI is auto-detected after installation. Set DRAWIO_PATH to override the location.

---

Windows — Python PATH guide

On Windows, pip install places the make-drawio-png CLI script in a Scripts directory that is not always in PATH by default.
The table below shows where scripts land depending on how you install:

Install command	Scripts directory	In PATH by default?
pip install make-drawio-png (system-wide)	%LOCALAPPDATA%\Python\pythoncore-X.Y-64\Scripts	❌ usually not
pip install --user make-drawio-png	%APPDATA%\Python\PythonXYZ\Scripts	❌ usually not
pip install make-drawio-png (venv active)	<venv>\Scripts	✅ while venv is active

Checking your Scripts path

python -c "import sysconfig; print(sysconfig.get_path('scripts'))"
# e.g. C:\Users\you\AppData\Local\Python\pythoncore-3.14-64\Scripts

python -c "import sysconfig; print(sysconfig.get_path('scripts','nt_user'))"
# e.g. C:\Users\you\AppData\Roaming\Python\Python314\Scripts

Adding Scripts to PATH (one-time setup)

# Append to your user PATH permanently
$scripts = python -c "import sysconfig; print(sysconfig.get_path('scripts'))"
[System.Environment]::SetEnvironmentVariable(
    "PATH",
    "$([System.Environment]::GetEnvironmentVariable('PATH','User'));$scripts",
    "User"
)
# → restart your terminal / shell after this

Workaround: use python -m instead of the CLI

If you don't want to touch PATH at all, call the module directly:

python -m make_drawio_png architecture.drawio

This always works regardless of PATH because Python itself is on PATH.

---

Bob / Claude Code shell

When using IBM Bob or Claude Code on Windows, the shell inherits the same PATH as the process that launched Bob/Claude — there is no separate Python environment.

Scenario	python3 resolves to	make-drawio-png CLI available?
Launched from a terminal where Python Scripts is in PATH	your Python installation	✅
Launched from Windows start menu / system tray	system PATH (Scripts likely missing)	❌ use python -m
Launched inside an active venv	venv Python + Scripts	✅

Recommended practice for Bob/Claude Code users:

Always invoke via python -m so the PATH question is irrelevant:

# In Bob's execute_command tool
python3 -m make_drawio_png "<path>.drawio"

Or reference the script by its absolute path after installation:

import subprocess, sysconfig, pathlib
scripts = pathlib.Path(sysconfig.get_path("scripts"))
subprocess.run([scripts / "make-drawio-png", "architecture.drawio"])

---

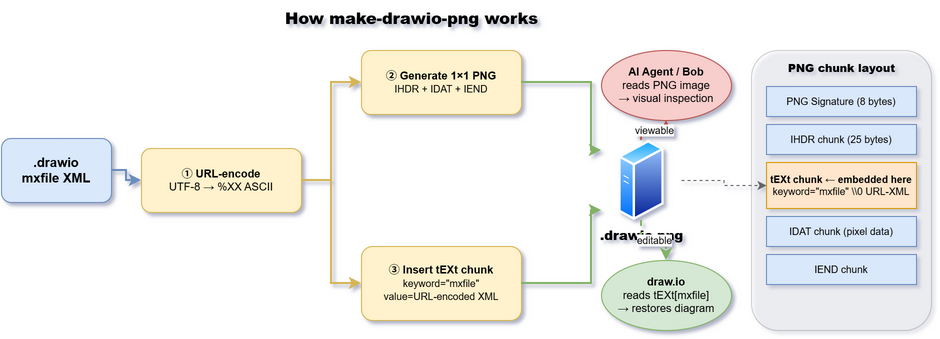

How it works

The .drawio.png file is both a valid PNG image and a re-editable draw.io source. draw.io reads the embedded tEXt[mxfile] chunk to restore the full diagram; image viewers and AI agents see only the PNG pixel data.

PNG chunk layout

PNG Signature  (8 bytes)
IHDR chunk     (25 bytes)
tEXt chunk     (keyword="mxfile" \x00 URL-encoded-XML)   ← diagram XML here
IDAT chunk     (compressed pixel data)
IEND chunk

---

Requirements

• Python ≥ 3.9
• No external dependencies (uses only struct, zlib, urllib.parse from stdlib)

---

License

MIT © 2026 Shoichiro Sakaigawa
