MaLaC-HD

MaLaC-HD (MApping LAnguage Compiler for Health Data) is a tool that you can use to convert mappings between different health data formats to executable code. It can also be used as a library to dynamically execute mappings — see the library / API guide.

[TOC]

Contributing and Support

Please read CONTRIBUTING.md for contributing to cdeHealth projects which are hosted in the cdeHealth group on GitLab.com. Please read CODE_OF_CONDUCT.md to make participation in our community a harassment-free experience for everyone.

Getting Started

These instructions will get you a copy of the project up and running.

Installation

Install malac-hd and its dependencies via pip, e.g. with CDA support:

pip install malac-hd[cda]

... or, if you want to build from source:

git clone https://gitlab.com/cdehealth/malac/models.git
pip install -e models/fhir

git clone https://gitlab.com/cdehealth/malac/utils.git
pip install -e utils

git clone https://gitlab.com/cdehealth/malac/transformer.git
pip install -e transformer/fhir

git clone https://gitlab.com/cdehealth/malac-hd.git
pip install -e malac-hd

... and if you need to transform to or from cda:

git clone https://gitlab.com/cdehealth/malac/models.git
pip install -e models/cda

Using MaLaC-HD

with malac-hd --help you will get an overview:

____________________ MaLaC-HD 1.9.1 started ____________________
usage: malac-hd [-h] -m MAPPING [-co CONVERT_OUTPUT] [-ti TRANSFORM_INPUT] [-to TRANSFORM_OUTPUT] [-sr SUPPORTING_RESOURCE [SUPPORTING_RESOURCE ...]] [-s]

You are using the MApping LAnguage Compiler for Health Data, short MaLaC-HD.
We differentiate between two modes, CONVERTING and TRANSFORMING.
The CONVERSION is done by compiling a given mapping to python code, that itself can be run with its own argument handling for TRANSFORMING input files.
Additionally, the TRANSFORMATION can also be be done by MaLaC-HD directly after CONVERSION, i.e. for direct testing purposes.

options:
  -h, --help            show this help message and exit
  -m MAPPING, --mapping MAPPING
                        the mapping file path, the conversion/mapping rule language is detected by file ending, right now FML maps (*.map), FHIR R4 (*.4.fhir.xml) StructureMaps and ConceptMaps can be given as mappings
  -co CONVERT_OUTPUT, --convert_output CONVERT_OUTPUT
                        the conversion python file path, if not given, saved in the working directory with the map-file name
  -ti TRANSFORM_INPUT, --transform_input TRANSFORM_INPUT
                        the transformation input file path, the ressource type is detected by its root node inside the xml
  -to TRANSFORM_OUTPUT, --transform_output TRANSFORM_OUTPUT
                        the transformation output file path, the ressource type is detected by its root node inside the xml
  -sr SUPPORTING_RESOURCE [SUPPORTING_RESOURCE ...], --supporting-resource SUPPORTING_RESOURCE [SUPPORTING_RESOURCE ...]
                        additional FHIR resources that support the mapping (currently ConceptMaps), resolved by canonical URL when translate() references a map not defined inline. Each value is a directory of JSON/XML resources, an npm package .tgz, or a single .json/.xml file. If not given, the MALAC_HD_SUPPORTING_RESOURCES environment variable is used instead
  -s, --silent          do not print the converted python mapping to console

Supply ConceptMaps that a mapping's translate() calls reference by canonical URL, without inlining them into the map source:

malac-hd -m my-map.map -co my-map.py -sr path/to/conceptmaps/ another-conceptmap.json

A source may be a directory of JSON/XML resources, a single .json/.xml file or an npm package .tgz; plain .zip archives and http(s)/git URLs are not supported yet and report a clear error. Every resource found is indexed by its resourceType and canonical url, so a mixed FHIR package or IG output directory can be passed as is — but only ConceptMaps are consumed at the moment. Other resource types (e.g. supporting StructureMaps and StructureDefinitions) are loaded and ignored; they can start being used later without a new flag.

Example Usage

Convert an FML map to Python and directly execute it:

malac-hd -m tests/fml/r4/aut_lab/CdaToBundle.4.map -co cdaToBundle.py -ti tests/structuremap/r4/aut_lab/Lab_Allgemeiner_Laborbefund.at.cda.xml -to bundle.4.fhir.xml

Execute the generated Python code:

python cdaToBundle.py -s tests/structuremap/r4/aut_lab/Lab_Allgemeiner_Laborbefund.at.cda.xml -t bundle.4.fhir.xml

The input files for the example are included in the source.

Reading from stdin and writing to stdout

The generated script also accepts - for --source and/or --target to read from stdin and write to stdout, so transformations can be chained together in a shell pipeline. Because there is no file extension to detect the format from, a stream must be accompanied by an explicit format flag, -st/--source-type and -tt/--target-type (xml or json); for real file paths the format is still detected from the extension. Progress messages are written to stderr, so stdout carries only the transformed payload.

cat patient.xml | python step1.py -s - -t - -st xml -tt xml | python step2.py -s - -t - -st xml -tt json > result.json

(JSON is only available where the mapping's source/target model supports it; FHIR models do, XML-only models such as CDA do not.)

Using MaLaC-HD as a library

MaLaC-HD can also be driven from Python: convert a mapping to code and run transformations programmatically, without the command-line tool. See the library / API guide for runnable examples.

Model package plugins

Model packages that are not part of the malac.models.* distributions (for example, project-specific logical models) can be registered without modifying MaLaC-HD. A plugin is any Python module that exposes list_i_o_modules: a dict mapping canonical URL prefixes (the uses URL up to the last path segment) to the Python module holding the model classes — the same contract malac.models.fhir and malac.models.cda fulfil:

# my_models_plugin.py
from malac.models.fhir import r5

list_i_o_modules = {
    "http://example.org/fhir/StructureDefinition": r5,
}

Plugins are given as importable module names or as paths to Python files, either on the command line:

malac-hd -m map.5.map -co map.py -mod my_models_plugin.py other.models

or through the MALAC_HD_MODELS environment variable (comma- or os.pathsep-separated), or programmatically via malac.hd.load_model_packages([...]). Loading failures of explicitly requested plugins raise immediately instead of being swallowed.

Why?

When having parallel operations of some sort or another, there is one requirement that is challenging in the context of standardized APIs: mapping data, to make it accessible to the different worlds at least.

There are many methods to map from one semi-structured data format to another. Most of the time, when a mapping requirement reveals, it is solved by a quick small script. After some time, that script needs technical or rule updates. As the rules are directly coded, they can only be altered by someone having knowledge about the mapping content, the mapping rules and the mapping technology.

To divide these concerns, HL7 FHIR created resources for mapping purposes, like the StructureMap for transformation and ConceptMap for translation. Additionally, a more human-readable metalanguage for creating such StructureMap and ConceptMap resources was created, called FHIR Mapping Language, or in short FML. Interestingly enough, FML is not restricted to FHIR as a source or target for the mapping. It could also be used i.e. to map from HL7 CDA to OHDSI OMOP CDM.

Current FML or StructureMap/ConceptMap tools are quite slow in the transformation/translation of the content to be mapped, as both steps, the processing of the rules and the transformation/translation itself are done every time. As a gold standard and sparring partner for this project, the Canadian open source project HAPI with its Suisse extension matchbox has been used. Additionally, we got notice about an Italian project speeding up matchbox, but couldn't find any public references.

We can't use current tools to map data synchronously, as nearly all mapping executions need more time than the dorethy threshold of 0.4 seconds, resulting in the user's perception of "it got stuck". Also, the practical but restricted FHIR mapping language does not offer any possibilities to extend it with further functions, in contrast to the StructureMap and ConceptMap resources themselves, that could be easily extended.

How?

Focusing on but not restricting to the health information technology world, a partnership was created out of the experts in the CDA2FHIR HL7 Austria Working Group, to solve this issue. On one side with expertise in research and on the other side with expertise in EHRs.

By applying the MVP concept of build-measure-learn-repeat, the first versions were created and tested against already existing FML-mappings in the HL7 community and matchbox as a mapping tool.

As the partners are themselves heavy users of the resulting MVPs, using them immediately after release, quick iterations of four months are planned.

What?

MaLaC-HD is intended to focus on transformation speed and easy extensibility after compilation/conversion. This is achieved by separation of

• the processing from FML to StructureMap/ConceptMap,
• the conversion from StructureMap/ConceptMap to python code,
• the execution of the translation itself from source to target. It uses the mappings and requirements of some preliminary projects (i.e. https://github.com/HL7Austria/CDA2FHIR) as testing data.

MaLaC-HD is not limited to the use of FML or StructureMap/ConceptMap for the translation, but has already implemented a conversion from StructureMap/ConceptMaps to python code. It can be used to transform/translate different input formats to different output formats, using some conversion/mapping rule language and the XSD or JSON schemas of the input and output format. It also makes it easier to develop new conversion or mapping rule languages, further input formats and/or extensions.

Detailed Workflow

The processing and conversion from FML/StructureMap/ConceptMap to Python code is handled in different components of MaLaC-HD. The following graph shows which components are responsible and in what order they are called.

Our pipeline is able to directly process FML code, but can also convert StructureMap or ConceptMap resources to Python. For the FML to StructureMap/ConceptMap conversion and the ConceptMap to Python conversion, individual generators/parsers for the supported FHIR versions exist. Even though they share a lot of code, they contain specific logic for each FHIR version. For the StructureMap to Python conversion, only a generator for the latest FHIR version exists. Legacy StructureMaps are internally transformed to the latest version to ensure backwards compatibility. As this is the most complex step in the conversion, this allows us to simplify things by only having a single codebase.

Pursued Objectives

The development of MaLaC-HD focuses on the following three main objectives and their respective sub-objectives:

• The compilation of the conversion/mapping rules by MaLaC-HD and the resulting mapping of these rules in a common programming language must be easily readable and directly related to the conversion/mapping rules.
  • The conversion/mapping rules must be ballotable so that they can be queried and discussed for completeness and correctness as part of a guideline or even as a standalone part in a community, such as the HL7 community.
• MaLaC-HD must not be dependent on any conversion rule language in order to be able to easily process conversion/mapping rules that can be mapped in different conversion rule languages.
  • In particular, the limits of the respective conversion rule language require simple narrative extensibility in order to draw attention to the fact that further code must be added manually in the respective generated code by means of placeholders.
• The result of compiling the conversion/mapping rules must be trimmed for speed and stability so as not to add any obstructive delays.
  • The compiled conversion/mapping rules should be executable as stand-alone program code without MaLaC-HD.

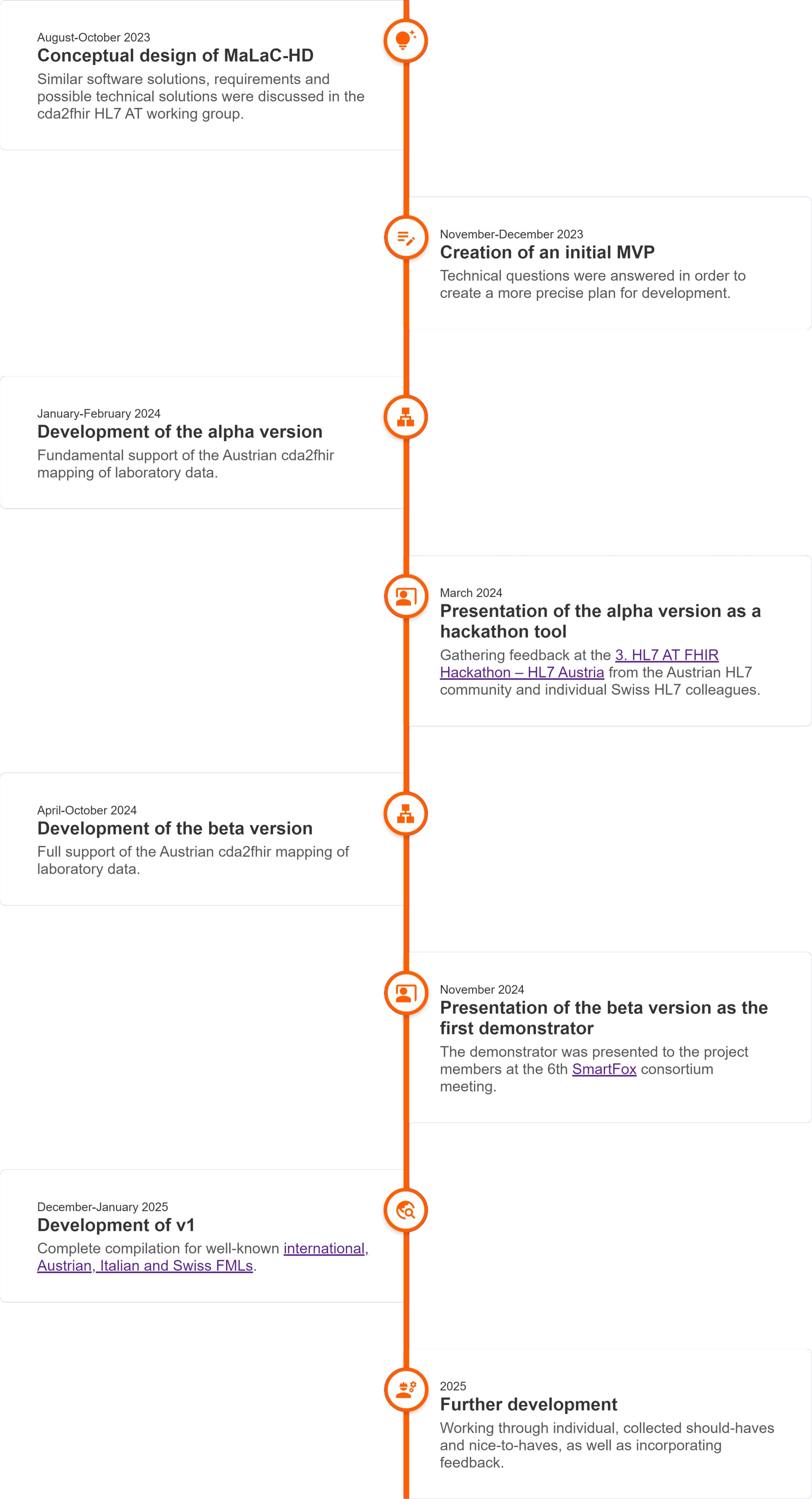

Timeline

Authors and acknowledgment

We want to thank

• ELGA GmbH with their CDA2FHIR projects and
• AIT Austrian Institute of Technology GmbH with their SmartFOX project.

Additionally, we want to thank

• Dave Kuhlman with his open source implementation of generateDS, making quick serializations of new data structures from their XSD schemas possible.

License

This is a LGPL licensed project, with a small addition that any usage of this project or the results of this project should contain a malac icon which is visible to the consumer. Multiple versions of the malac icon can be found in the images directory. Changing the color of any malac_simple version is allowed if the icon itself is still visible on your background.
