mdsview 0.2.0

Browse, plot, and compare MITgcm MDS binary output from the CLI or an optional GUI.

Browse, plot, and compare MITgcm MDS (.data/.meta) binary output. Use the CLI on a cluster or the optional GUI on your laptop.

MITgcm (MIT General Circulation Model) is a widely used ocean and climate model. A typical run writes out many 3-D fields (temperature, salinity, sea surface height, velocities) at regular time steps, often from MPI jobs on a cluster. The default binary format is MDS: each field is a .meta file (dimensions, precision, iteration) plus a .data file (raw array, usually big-endian float32). Tiled MPI output adds more filename suffixes but the same basic layout.

After a run you usually have a directory with hundreds or thousands of these file pairs and no built-in viewer. MITgcm ships MITgcmutils for reading and writing MDS in Python, but you still need scripts to list what's there, pick an iteration and level, plot a slice, or subtract two snapshots. mdsview fills that gap: catalog a run folder without loading .data, plot 2-D slices with grid coordinates, diff two times or two variables (DiD), and export figures or new MDS files from the terminal on a headless node or from a local GUI.

For huge LLC runs or lazy xarray loading, use xmitgcm. mdsview targets quick inspection of run directories.

Install

pip install mdsview
pip install "mdsview[gui]"    # optional desktop GUI

From source:

git clone https://github.com/rhettadam/mdsview.git
cd mdsview
pip install -e .
pip install -e ".[gui]"

On Windows, if mdsview is not on PATH:

python -m mdsview.cli info -d C:\path\to\run

Requires Python 3.9+, NumPy, matplotlib, MITgcmutils, cmocean, Pillow. GUI needs CustomTkinter.

Quick start

mdsview info -d /path/to/run
mdsview plot -v T -i 480 -l 4 -d /path/to/run
mdsview plot -v T -i 480 -l 4 --save-figure t.png --no-show -d /path/to/run   # headless
mdsview gui -d /path/to/run

-d FOLDER is the run directory (default: .). -v NAME is the field prefix (T, S, Eta, …). Most commands accept --json. Run mdsview COMMAND --help for options.

Sample data

Synthetic run directories for testing without MITgcm:

mdsview generate-sample -o sample_data --preset demo

See sample_data/SAMPLE_README.txt after generation. Other presets and options: mdsview generate-sample --help.

CLI

info

List variables or show metadata. Reads .meta only, safe with thousands of snapshots.

mdsview info
mdsview info -v T
mdsview info -v T --show-meta
mdsview info -v T --json

plot

One 2-D slice. With --level, reads a single horizontal slab, not the full volume.

mdsview plot -v T -i 480 -l 4
mdsview plot -v Eta -i last
mdsview plot -v T -i 0 -l 10 --cmap haline --vmin 0 --vmax 30 --save-figure out.png --no-show
mdsview plot -v T -i 0 --no-coords    # index axes, not XC/YC

diff

field(LATER) − field(EARLIER). Default is one slice; --save-field without --level loads full volumes.

mdsview diff -v T --later 2520 --earlier 0 -l 20
mdsview diff -v T --later 2520 --earlier 0 -l 20 --plot --save-figure diff.png --no-show
mdsview diff -v T --later 2520 --earlier 0 --save-field T_diff
mdsview diff -v T 480 0 -l 4          # positional iters also work

dod

Difference-of-differences: (B@t1 − A@t1) − (B@t2 − A@t2). Stats stream level-by-level; full 3-D output uses a memmap temp file.

mdsview dod -a T -b S --time1 0 --time2 2520
mdsview dod -a T -b S --time1 0 --time2 2520 -l 20 --plot --save-figure dod.png --no-show
mdsview dod -a T -b S --time1 0 --time2 2520 --save-field DiD_TS
mdsview dod -a UVEL -b VVEL --time1 0 --time2 120 --rec 0

combine

Stack iterations into one array. Loads every listed iteration; use for small tests only.

mdsview combine -v T --iterations 0,360,720 --save-field T_stack

generate-sample

Create synthetic .data/.meta for tests. See Sample data.

Plot options

Used by plot, diff, and dod:

• -l, --level K: vertical index (0 = top)
• --cmap: default thermal (plot) or balance (diff/dod); matplotlib + cmocean names
• --vmin, --vmax
• --save-figure FILE, --no-show

Diff/dod plots use a symmetric diverging scale. Full list: mdsview/colormaps.py.

GUI

pip install "mdsview[gui]"
mdsview gui -d /path/to/run

Run directory at the top. Left icons switch panels; controls sit beside the plot. Stats (min, mean, max, std) update with each field.

Lists every variable in the run. Selecting one shows metadata below; double-click or Plot selected opens it in Field.

Pick variable, iteration, and level. Sliders auto-refresh the plot. Footer controls step through time or export a GIF.

Preview XC/YC (or other grid files) and optionally overlay grid lines on field plots.

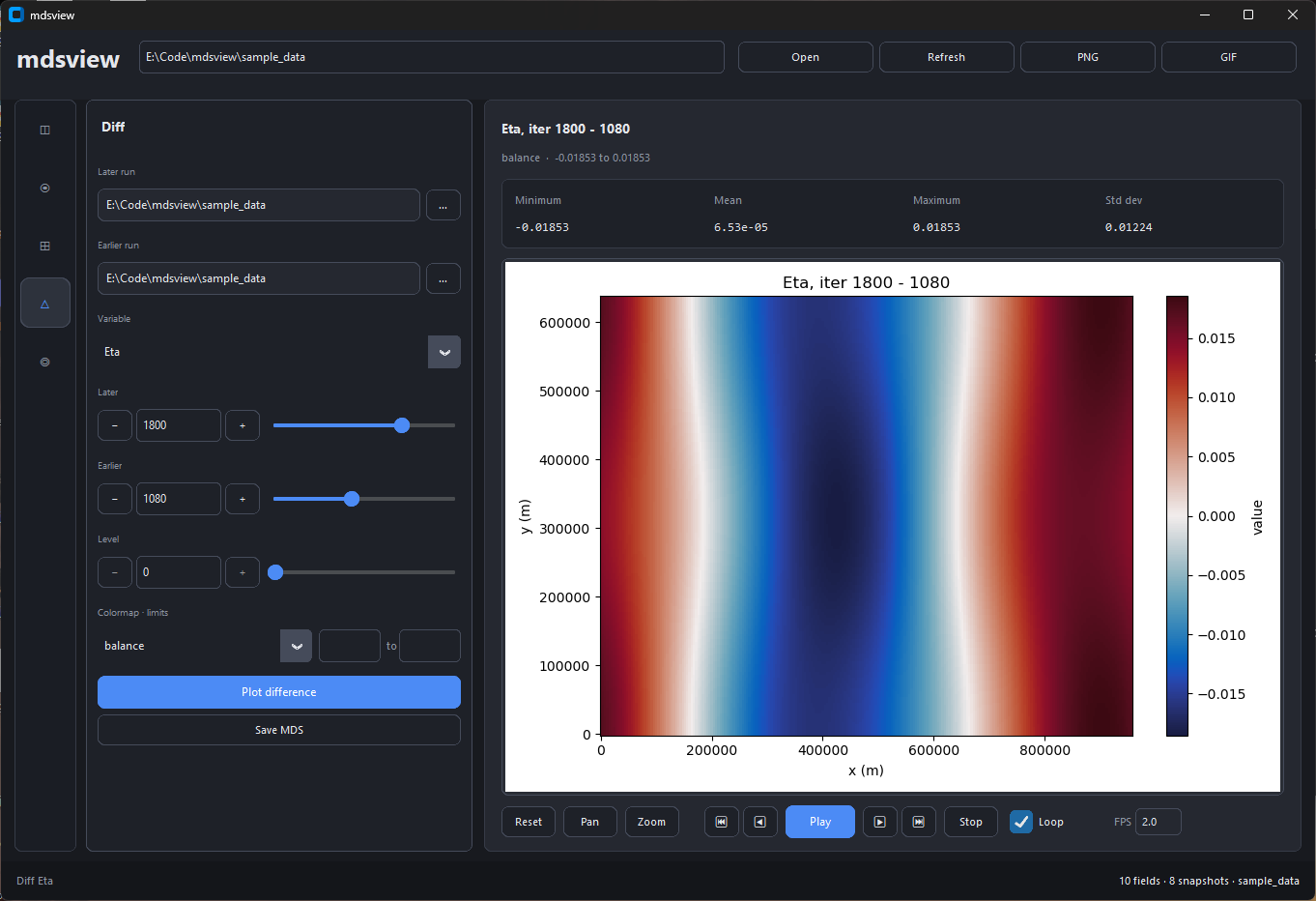

Subtract an earlier snapshot from a later one. Later and earlier can live in different run directories.

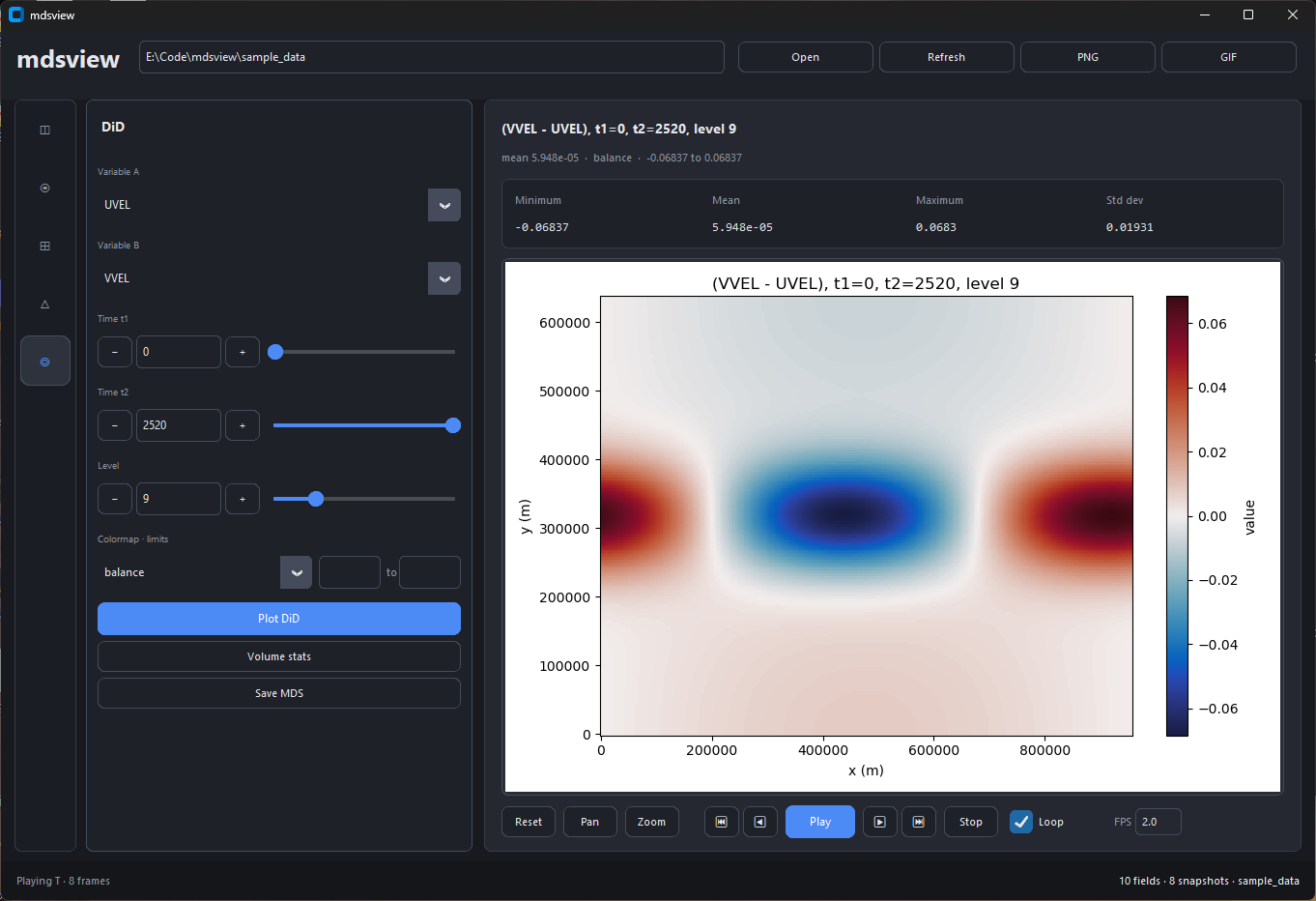

Plot or export the difference-of-differences between two variables at two times. Volume stats runs the same streaming calculation as mdsview dod without --plot.

Top bar: Open (Ctrl+O), Refresh (Ctrl+R), PNG (Ctrl+S), GIF (export dialog). Matplotlib pan/zoom sits under the plot.

HPC / batch

CLI uses the Agg backend by default (no display). Use --save-figure and --no-show:

mdsview info -d /scratch/run001
mdsview plot -v T -i last -l 20 -d /scratch/run001 --save-figure t.png --no-show
mdsview dod -a T -b S --time1 0 --time2 2520 --json -d /scratch/run001

Exit codes: 0 ok, 1 error, 2 bad args, 130 interrupt. Errors go to stderr. Tracebacks: MDSVIEW_DEBUG=1.

Memory

• info: .meta filenames only
• plot / diff with -l: one slab per snapshot
• dod stats: level-by-level
• dod / diff --save-field (no level): full volume; combine: all listed iters in RAM

Python API

from mdsview import io, ops, plotting

slab = io.read_level_slice("/path/to/run", "T", 480, level=4)
diff2d, meta = ops.diff_slice("/path/to/run", "T", later=480, earlier=0, level=4)
plotting.plot_field("/path/to/run", "T", 480, level=4, save="t.png", show=False)

Limitations

• Standard MDS only, not pkg/mnc tiles (use gluemnc first)
• dod --rec for multi-record files; other commands may need extending
• No 3-D volume rendering; LLC unfolding is partial (needs XC/YC in the run dir)

PyPI release

# bump version in mdsview/__init__.py and pyproject.toml
pip install build twine
python -m build
twine upload --repository testpypi dist/*
twine upload dist/*

Add screenshots under docs/images/ before publishing.

License

MIT License. See LICENSE. Copyright (c) 2026 Rhett R. Adam.
