midiexplorer 0.0.1a2

Yet another MIDI monitor, analyzer, debugger and manipulation tool.

MIDI Explorer

Yet another MIDI monitor, analyzer, debugger and manipulation tool.

The intent is to be specifications compliant to help debugging, reverse-engineering and developing products based on the MIDI protocol while learning everything there is to know in the process.

Language is currently Python to help with rapid prototyping and fast iteration. It may change at any time as I see fit.

Table of Contents

• Status
• Installation
• Features / TODO list
• Prior art
• Legal notice
  • License
  • Dependencies & License Acknowledgment
  • Trademarks

Status

Basic features implemented.

First alpha released!

Testers welcome ;)

Installation

Install Python 3.10

From python.org (recommended) or your favorite package manager.

Install PipX

Follow the instructions for your operating system.

Microsoft Windows

In a terminal

py -m pip install --user pipx
py -m pipx ensurepath

Close and reopen your terminal.

Mac OS X / Linux

python3 -m pip install --user pipx

Install MIDI Explorer

pipx install midiexplorer

Features / TODO list

• Platform support
  • (WIP) Microsoft Windows
    • WinMM aka Windows Multimedia MME API
      • via mido's RtMidi backend
    • WinRt aka UWP Windows Runtime API
      • RtMidi related issue
  • (WIP) Apple Mac OS X
    • Core MIDI
      • via mido's RtMidi backend
    • JACK MIDI (Should work but untested ATM)
  • (WIP) GNU/Linux
    • (WIP) ALSA
      • Sequencer API
        • via mido's RtMidi backend
      • RawMidi API
      • JACK MIDI (Should work but untested ATM)
    • OSS?
• Documentation
  • Developers
    • Comments
    • Docstrings (PEP257)
    • Type Hinting (PEP484)
  • Users
    • Sphinx
      • autodoc
      • Read The Docs
• Linting
  • Code style checks? (PEP8 pycodestyle)
  • Docstrings? (darglint)
  • Typechecking? (mypy)
• Unit tests? (pytest)
  • Coverage
• Packaging
  • (WIP) PyPi
    • Using Hatch
  • PyInstaller
• Continuous Integration? (GitHub Actions workflow)
• (WIP) MIDI protocols
  • v1.0
    • using a modified mido
  • v2.0

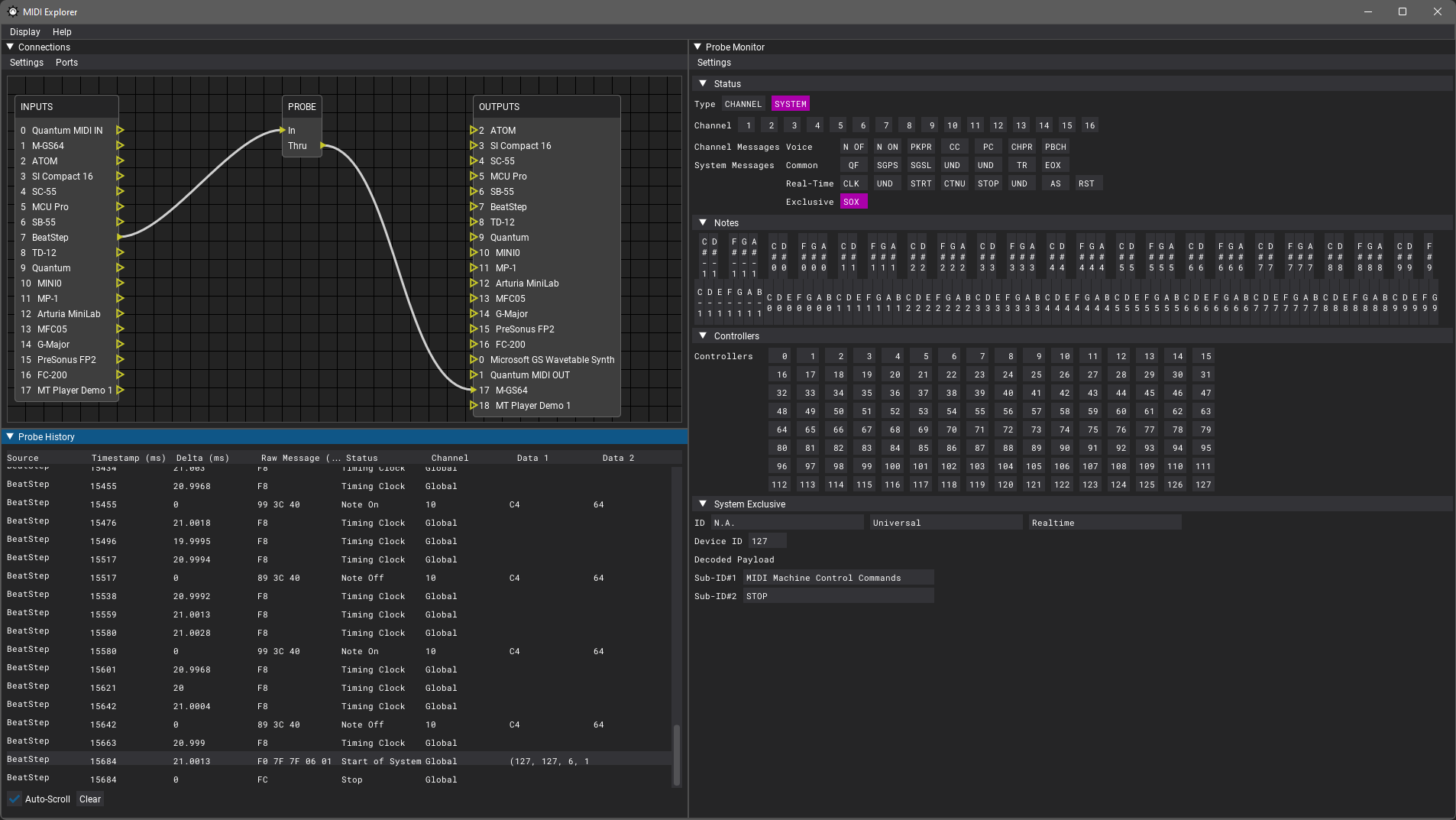

• (WIP) Interactive GUI
  • Icons
  • About window
  • Fonts
  • Custom theme
  • Node editor window
    • Inputs
    • Outputs
    • Modules
  • Probe data window
  • Generator data window
  • Log window
  • (WIP) Actions
    • Toggle fullscreen (F11)
    • Toggle log (F12)
    • Save state (Buggy at the moment)
• (WIP) I/O management
  • Select backend?
  • (WIP) List MIDI I/O
    • USB / IEEE-1394 (OS level)
    • Bluetooth Low Energy (BLE-MIDI)
      • Requires WinRt MIDI for Microsoft Windows
    • RTP-MIDI / IETF RFC 6295
      • Requires rtpMIDI for Microsoft Windows
    • Virtual
      • Requires loopMIDI for Microsoft Windows
  • Input reading modes
    • Polling
    • Callback
  • Sort by ID/Name
  • (WIP) Connections
    • Port to probe
    • Probe to port
    • Port to port
    • Port to any module
    • Any module to port
    • Module to module
  • (WIP) Refresh
    • Manual
    • Auto with reconnect
  • Virtual ports
    • Add/Remove
  • Save state
• (WIP) Modules (Plugins?)
  • Instances management (Add/Remove)
  • Virtual Debug Probe
    • Activity monitor
      • Settings
        • Colors
          • Live
          • Selected
        • Persistence
        • Note-On with velocity set to 0 is Note-Off (Per specification)
        • Display EOX as either a System Common or a System Exclusive message
        • Notation
          • English Alphabetical
          • Syllabic
          • German Alphabetical
      • Message type
        • Channel
        • System
      • Channel
      • Controllers
      • (WIP) Notes
        • Keyboard
        • Staff
      • Patches
        • GM (General MIDI)
          • Level 1 (1991)
          • Level 2 (1999)
          • Lite (2001)
        • Proprietary
          • Roland
            • LA (Linear Arithmetic) (MT-32…) (1987)
            • GS (General Standard) (Sound Canvas…) (1991)
          • Yamaha
            • XG (EXtended General MIDI)
              • Level 1 (1994)
              • Level 2 (1997)
              • Level 3 (1998)
              • Lite (2002)
      • (WIP) SysEx
        • Basic decoding
          • (Manufacturer) ID
          • Device ID
          • Raw payload
        • Universal System Exclusive
          • Sub-IDs
          • Sample dump standard
          • Device inquiry
          • File dump
          • MIDI tuning
          • General MIDI system messages
          • MIDI Time Code (MTC)
          • MIDI Show Control (MSC)
          • Notation information
          • Device Control
          • MIDI Machine Control (MMC)
    • Read raw input
    • History: table decode input
      • Decode to monitor upon selection
    • Timing
      • Hardware
        • retrieved using a modified mido RtMidi backend
      • System
    • Thru support
    • Color code
      • Per source
      • Per channel
      • Per message type
  • Splitter
  • Merger
  • Generator
    • Generate raw output
    • Buffer/Clipboard any message (raw or decoded) to output
  • Translator/Filter
  • Standard MIDI File (SMF)
    • Analyzer
    • Player
    • Recorder
  • Protocol analyzers/decoders
    • HUI
    • LCU
    • MCU
    • Others?
  • Trigger/Response (Protocol emulator)
    • HUI
    • LCU
    • MCU
    • Others?
  • Performance analyzer
    • Round trip latency
    • Jitter
    • Bandwidth
    • Correctness
    • Stresser/Fuzzer
  • Hardware toolbox
• (WIP) Logging
  • GUI
  • To file
    • Overwrite
    • Append

Prior art

• MIDI-OX (Win)
• Snoize MIDI Monitor (Mac)
• Midi View (Win/Mac)
• OBD Software Midi Monitor 2002 (Win)
• Morson PocketMIDI (Win/Mac/iOS)
• Drumstick MIDI Monitor aka KMidiMon (Linux)

Legal notice

License

Author: ©2021-2022 Raphaël Doursenaud.

This software is released under the terms of the GNU General Public License, version 3.0 or later (GPL-3.0-or-later).

See LICENSE.

Logo and icons released under the Creative Commons Attribution-Share Alike 4.0 International.

Dependencies & License Acknowledgment

• Python v3.10
  Used under the terms of the PSF License Agreement.
• RtMidi
  Copyright (c) 2003-2021 Gary P. Scavone
  Used under the terms of the MIT License.
• via python-rtmidi
  Copyright (c) 2012 - 2021 Christopher Arndt
  Used under the terms of the MIT License.
• via mido
  Copyright (c) 2013-infinity Ole Martin Bjørndalen
  Used under the terms of the MIT License.
• Dear ImGui
  Copyright (c) 2014-2022 Omar Cornut
  Used under the terms of the MIT License.
• via Dear PyGui
  Copyright (c) 2021 Dear PyGui, LLC
  Used under the terms of the MIT License.

Fonts

• Roboto
  Copyright (c) 2015 The Roboto Project Authors
  Used under the terms of the Apache License, Version 2.0.
• Roboto Mono
  Copyright (c) 2015 The Roboto Mono Project Authors
  Used under the terms of the Apache License, Version 2.0.

Logo and icons

Composite work based upon:

• MIDI connector
  Copyright Fred the Oyster
  Used under the terms of the Creative Commons Attribution-Share Alike 4.0 International license.
• Steering Wheel
  Copyright Spider
  Used under the terms of the Creative Commons Attribution 4.0 International license.

Trademarks

MIDI is a trademark of the MIDI Manufacturers Association (MMA) in the United States of America.

This is not a registered trademark in the European Union and France where I reside.

Other

Other trademarks are property of their respective owners and used fairly for descriptive and nominative purposes only.
