mofstructure

A Python toolkit for topology, porosity and building-unit analysis of metal-organic frameworks

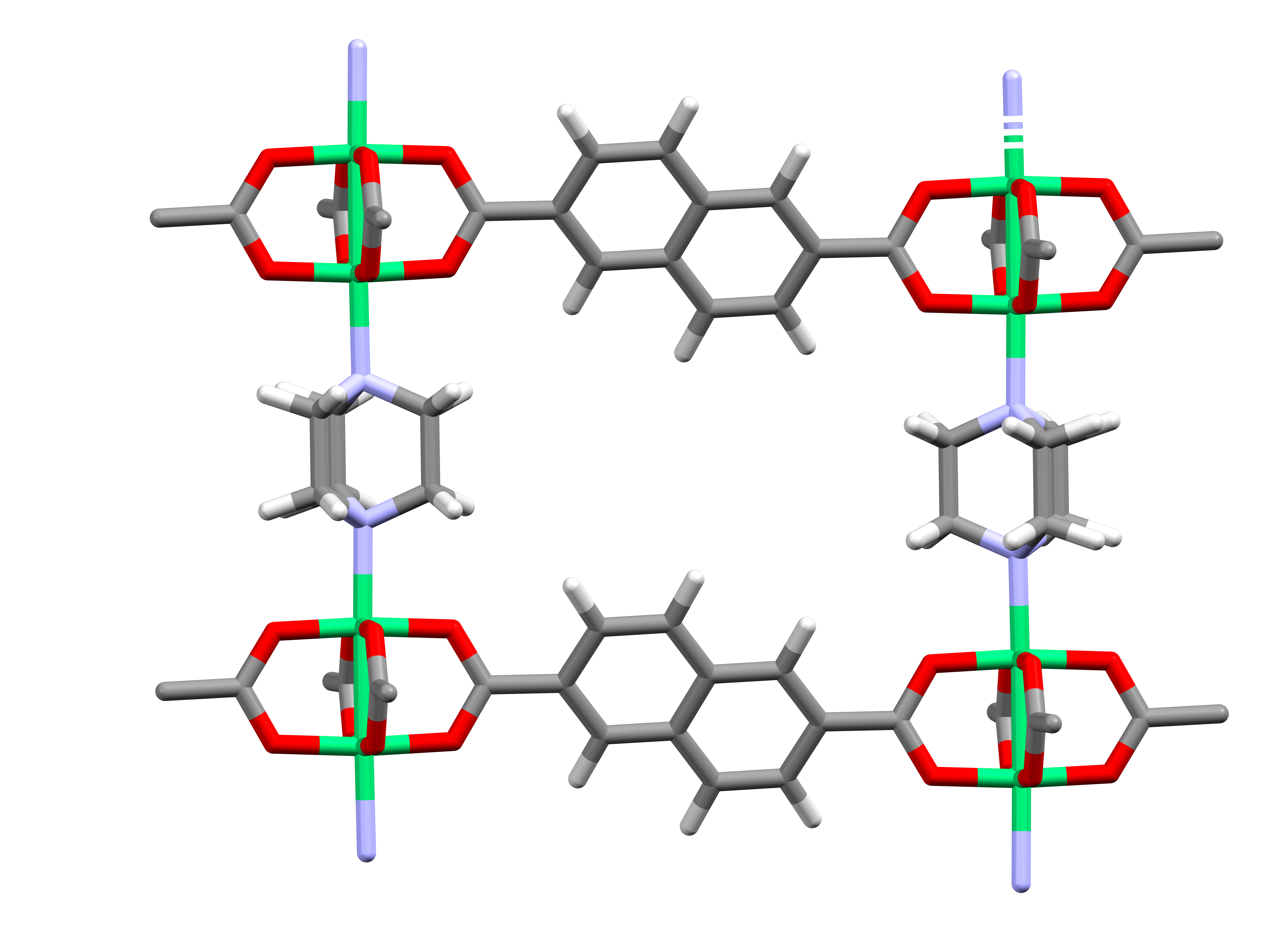

mofstructure takes a crystal structure and answers the questions that usually follow: what is it built from, how porous is it, and what net does it form. It works on metal-organic frameworks, and also on covalent organic frameworks and zeolites, from CIF or any other format ASE can read.

from mofstructure import structure

mof = structure.MOFstructure(filename='UiO-66.cif')

mof.get_porosity()                 # PLD, LCD, surface area, void fraction
mof.get_sbu()                      # metal and organic secondary building units
mof.get_topology()                 # RCSR net symbol, dimensionality, TD10
mof.get_oms()                      # open metal sites

Contents

• Features
• Installation
• Requirements
• Command line
• Python API
• Output reference
• Documentation
• Contributing
• Citation
• License
• Author

Features

Installation

From PyPI:

pip install mofstructure

From source, for the development version:

git clone https://github.com/bafgreat/mofstructure.git
cd mofstructure
pip install .

Requirements

Python 3.10 or newer. Dependencies install automatically, with two things worth knowing about:

• Java is required for topology only. Systre runs on the JVM, and the jar ships with the package. mofstructure looks for a JRE that you configure explicitly, then for jdk4py, then for java on your PATH. Every other feature works without it.
• RDKit is optional. OpenBabel handles the cheminformatics by default; install rdkit only if you want the alternative code path.

Command line

Each command accepts a single structure file or a folder of them.

Deconstruct one structure

mofstructure structure.cif                       # writes to ./MOF_building_units
mofstructure structure.cif path/to/results

Build a database from a folder

mofstructure_database cif_folder                 # writes to ./MOFDb
mofstructure_database cif_folder -s path/to/results
mofstructure_database cif_folder -t              # include topology

Results land in MOFDb/Structure_Data as JSON, one file per analysis, plus a CSV summary of the porosity. Structures already present are skipped, so an interrupted run resumes where it stopped. Delete the output folder to force a recomputation.

Individual analyses

Use these when you only need one thing and want it to run fast.

mofstructure_building_units cif_folder           # deconstruction only
mofstructure_porosity cif_folder                 # porosity only
mofstructure_oms cif_folder                      # open metal sites only

mofstructure_porosity accepts a custom probe radius, cycle count and radii file:

mofstructure_porosity cif_folder -pr 1.5 -ns 20000 -rf rad.rad

Topology from the command line

mofstructure_topology structure.cif
mofstructure_topology net.cgd
mofstructure_topology ./folder

The net depends on how you define a node, and several definitions are available. The same framework can legitimately give a different net under each — for a rod MOF like MIL-53, all_node gives rna and single_node gives bpq (matching CrystalNets), while sbus collapses the rod to pcu.

mofstructure_topology structure.cif --method all_node      # every branch point a node
mofstructure_topology ./folder --method single_node        # organic groups merged
mofstructure_topology ./folder --method sbus               # each SBU one node
mofstructure_topology ./folder --method ligand_cluster     # complete ligands and metal clusters
mofstructure_topology ./folder --method all                # all methods, one record each

ligand_cluster constructs a bipartite incidence net from the same deconstruction as get_ligands, so its vertices are exactly the complete ligands and metal clusters that deconstruction returns and every atom belongs to one of them. An edge records coordination of a ligand to a particular periodic image of a cluster. Multiple donor bonds to the same cluster image count as one incidence, so chelation does not artificially increase the topological degree.

A ditopic ligand stays a vertex, which subdivides the edge it makes, and RCSR lists no subdivided nets — UiO-66 comes back as UNKNOWN even though the net is right. That is deliberate: the point of this method is how the ligands meet the clusters, not the RCSR symbol, and the topology hash still identifies the net. Pass collapse_ditopic=True to ligand_cluster_graph or cgd_ligand_cluster to splice ditopic ligands into edges instead, which recovers the nameable net (fcu for UiO-66, pcu for MIL-53, tbo either way for HKUST-1).

To ask what the ligands do rather than what the net is called, use the fingerprint, which is read straight from the deconstruction and needs no Systre:

from mofstructure import structure

mof = structure.MOFstructure(filename='UiO-66.cif')
print(mof.get_ligand_cluster_fingerprint())

It counts each ligand and cluster species per metal-cluster unit, with how many clusters each ligand bridges and at what denticity, and it does not change when the atoms are listed in another order, when the cell origin moves, or when the same crystal is given as a supercell. That makes it sensitive to defects: a missing linker lowers a cluster's connectivity, a linker hanging by one end is listed under terminal with its own formula (which is what tells it apart from a coordinated solvent), and a carboxylate that has dropped from bridging to monodentate shows in the denticity histogram even though the net is unchanged.

Use --method all to compute every method at once. Each structure gets a single record holding every net — nested under a topologies key in the JSON, and one column group per method in the CSV — so the output drops straight into a database:

mofstructure_topology ./folder --method all

For large datasets, write results to disk in batches:

mofstructure_topology ./folder --flush-every 100

Python API

MOFstructure is the single entry point. Guests are removed internally, so a structure containing solvent needs no preparation.

from mofstructure import structure

mof = structure.MOFstructure(filename='UiO-66.cif')
# or pass an ASE atoms object directly
# mof = structure.MOFstructure(ase_atoms=atoms)

guest_free = mof.remove_guest()

Porosity

import pandas as pd

pores = mof.get_porosity(probe_radius=1.86, number_of_steps=5000, high_accuracy=True)
pd.DataFrame(pores, index=[0]).to_csv('pore.csv')

A structure that Zeo++ cannot analyse returns an empty dictionary rather than raising, so a batch job is never interrupted by one difficult framework.

Building units

metal_sbus, organic_sbus = mof.get_sbu(wrap_system=True, cheminfo=True, add_dummy=False)
organic_ligands = mof.get_ligands(wrap_system=True, cheminfo=True, add_dummy=False)

With cheminfo=True, OpenBabel identifiers are attached to each fragment's .info dictionary:

for i, sbu in enumerate(metal_sbus):
    smi = sbu.info['smi']
    inchi = sbu.info['inchi']
    inchikey = sbu.info['inchikey']
    n_points = len(sbu.info['point_of_extension'])   # SBUs only
    sbu_type = sbu.info['sbu_type']                  # metal SBUs only
    sbu.write(f'metal_sbu_{i}.cif')

add_dummy=True marks the points of extension with dummy atoms, which makes the cut positions explicit and easy to cap with hydrogen. Use it for SBUs only, never when deconstructing into ligands and clusters.

Ligand names

Building units carry identifiers but not names. To name a ligand, look it up from its SMILES against the database that ships with the package:

from mofstructure.filetyper import load_iupac_names
from mofstructure.mofdeconstructor import lookup_iupac_name

iupac_names = load_iupac_names()

_, ligands = mof.get_ligands()
for ligand in ligands:
    print(lookup_iupac_name(ligand.info['smi'], iupac_names))
# terephthalic acid

lookup_iupac_name saturates the open valences left by deconstruction and matches on InChIKey and canonical SMILES, so the fragment does not have to be the neutral parent molecule. It returns None for a ligand that is not in the database. mofstructure_database does this for you and stores the result in the ligand_names field of ligands_data.json.

Topology from Python

topology = mof.get_topology()
print(topology['topology'], topology['dimension'])

For finer control, drive Systre directly:

from ase.io import read
from mofstructure.systre import identify_topology

identify_topology('net.cgd', input_is_cgd=True)      # from a CGD file
identify_topology('UiO-66.cif', method='all_node')   # from a structure file
identify_topology(read('UiO-66.cif'))                # from ASE atoms

Drawing the net

draw_topology traces the net over the real framework and returns an interactive plotly figure — nodes at the real building-unit positions, edges following the connectivity. Needs the optional plotly extra (pip install mofstructure[draw]).

fig = mof.draw_topology(method='all_node', filename='net.html')
fig.show()   # or open net.html in a browser

The interactive, axis-free molecular view overlays the underlying net on the framework and shows the unit-cell boundary. Every connection ends at a visible centre, including connections to neighbouring periodic images. The default green centre-to-centre network is generated by the selected topology method, so its nodes and contractions visibly change between sbus, all_node, single_node and ligand_cluster. Framework atoms, framework bonds and each centre class can be toggled independently in the legend. The view shows this method-specific network by default; set show_topology=True to add the abstract blue topology edges and topology node markers. Set show_linker_sbu=False, show_structure=False or show_unit_cell=False to hide individual layers.

Open metal sites

print(mof.get_oms())

Output reference

get_topology() returns:

get_porosity() returns:

Custom atomic radii can be supplied through a .rad file, one element per line. The extension must be .rad or the defaults are used silently:

Mg 0.66
O 1.84

Documentation

Full documentation is at docs. Release history is in CHANGELOG.md.

Contributing

Issues and pull requests are welcome. See CONTRIBUTING.md for development setup and what to include in a report.

Most problems are specific to one framework rather than general, so please attach the structure file when reporting one. A CIF that reproduces the problem is worth more than any description of it.

Roadmap

• SBU deconstruction and topological analysis of covalent organic frameworks.

Citation

If mofstructure contributes to your work, please cite:

@article{wonanke2026fairmofs,
  title={FAIR-MOFs: Structure-centred synthesis inference from three-dimensional
         structures of metal-organic frameworks},
  author={Wonanke, Dinga and Heine, Thomas and Longa, Antonio and others},
  year={2026},
  doi={10.21203/rs.3.rs-8375247/v1}
}

License

Released under the MIT License. See LICENSE.

Author

mofstructure is developed by Dinga Wonanke.
