Apriltag Camera Calibration Board Generator
Why? There didn't really seem to be an easy way to do this IMHO.
This library is able to produce both generation 2 and 3 apriltags all via python ( no C/C++ library compiling and linking).
However, you will need another library (like cv2.aruco
) to decode the tags ... see below for more info.
Install
pip install moms_apriltag
Examples / Usage
See the jupyter notebooks in docs/jupyter
folder for how to use this.
This package create a simple numpy image that can then be saved
to a PNG or JPEG image and printed. For circular or custom tags,
there is a toRGBA()
function to save the tag to a png
using
any image library that can accept numpy
array images.

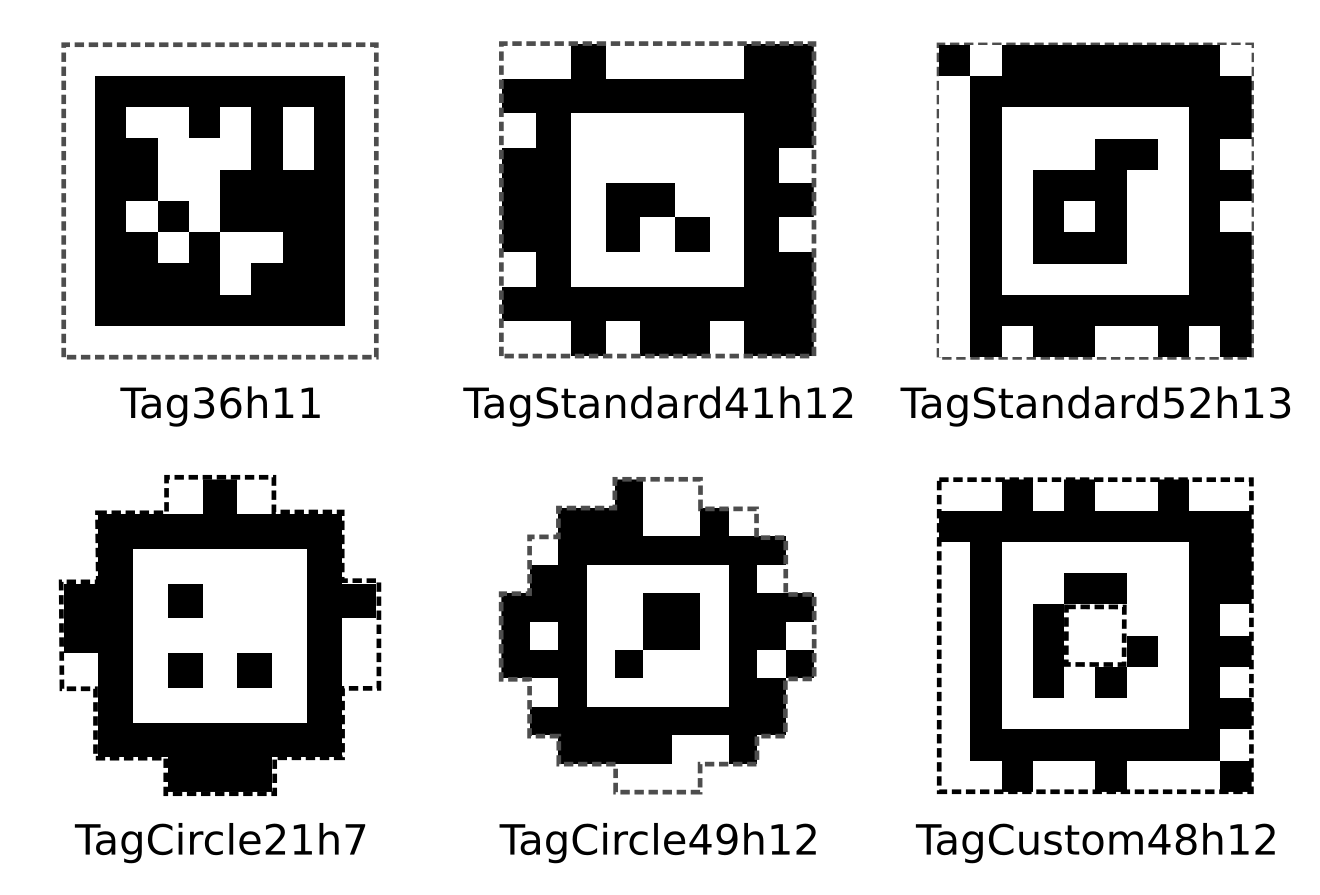

Supported families are shown in the table below in the image and table:
Family | Generation | Hamming | Size | Data Bits | Unique Tags |
---|---|---|---|---|---|
tag16h5 |
2 | 5 | 4x4 | 16 | 30 |
tag25h9 |
2 | 9 | 5x5 | 25 | 35 |
tag36h10 |
2 | 10 | 5x5 | 36 | 2,320 |
tag36h11 |
2 | 11 | 5x5 | 36 | 587 |
tagCircle21h7 |
3 | 7 | 9x9 | 36 | 38 |
tagCircle49h12 |
3 | 12 | 11x11 | 49 | 65,535 |
tagCustom48h12 |
3 | 12 | 10x10 | 48 | 42,211 |
tagStandard41h12 |
3 | 12 | 9x9 | 41 | 2,115 |
tagStandard52h13 |
3 | 13 | 10x10 | 52 | 48,714 |
#!/usr/bin/env python3
from moms_apriltag import ApriltagBoard
import imageio
board = ApriltagBoard.create(4,6,"tag25h9", 0.02)
tgt = board.board
filename = "apriltag_target.png"
imageio.imwrite(filename, tgt)
# for AprilTag v2
from moms_apriltag import TagGenerator2
from matplotlib import pyplot as plt
tg = TagGenerator2("tag16h5")
tag = tg.generate(4)
plt.imshow(tag, cmap="gray)
# for AprilTag v3
from moms_apriltag import TagGenerator3
from matplotlib import pyplot as plt
tg = TagGenerator3("tagStandard41h12")
tag = tg.generate(137)
plt.imshow(tag, cmap="gray)
Apriltags using opencv-contrib-python
for Camera Calibration Target Detection
This library uses the builtin cv2.aruco
module that can detect:
DICT_APRILTAG_16H5
DICT_APRILTAG_25h9
DICT_APRILTAG_36h10
DICT_APRILTAG_36h11
Decoders
cv2.aruco
for calibration is built in, but it can decode generation 2 tags only.
- pupil labs (tested): https://github.com/pupil-labs/apriltags can decode generation 2 and 3 tags
- WillB97 (untested): https://github.com/WillB97/pyapriltags can decode generation 2 and 3 tags
Todo
- change the way the board is created, do a fixed scale size and add a margin with text saying the orientation, family, size, and maybe in the small squares next to the tags, put the number of the tag (number is for the lower left apriltag). I think this would help debugging and understanding what is going on
- insert stereo calibration code using pupil labs?
- move the
opencv_camera
calibration code withapriltags
here - refactor board code
- enable apriltag v3 markers in board
