MonaLisa - Image recreation using genetic algorithms

Introduction

This project is a simple implementation of a genetic algorithm to recreate an image using polygons.

For more information about genetic algorithms, see Genetic Algorithms.

Install

The installation can be done via:

pip install monailisa

Usage

Once, the package is download via pip, you can use via:

monailisa <imgObjectifPath> <nbSubject> <nbGeneration> [imgTemporaryPath]

with:

• imgObjectifPath (str) : Being the objectif of the generation.
• nbSubject (int: 0-inf) : Being the number of individuals used in each generation.
• nbGeneration (int: 0-inf): Being the total of generation.
• imgTemporaryPath (optional, str): Used to continue a previous launch, the argument is the previous result image.

Alternative:

Also, you can use tox to test the program in a venv via the repository:

$ git clone https://github.com/nathan-hoche/MonaLisa
$ cd MonaLisa
$ tox -e venv -- monailisa <imgObjectifPath> <nbSubject> <nbGeneration> [imgTemporaryPath]

First Version

This version is based on this paper by Sebastian Charmot.

The first version of the algorithme is based on the following steps:

1. Generate a random population of polygons
2. Compute the fitness of each individual
3. Select the best individual
4. Apply crossover between the best individual and the population (with stocking the previous best individual)
5. Apply mutation to the population (except the previous best individual), which consists in adding a random polygon to all individuals
6. Repeat from step 2, x times to upgrade the image

The result of this different steps are shown below.

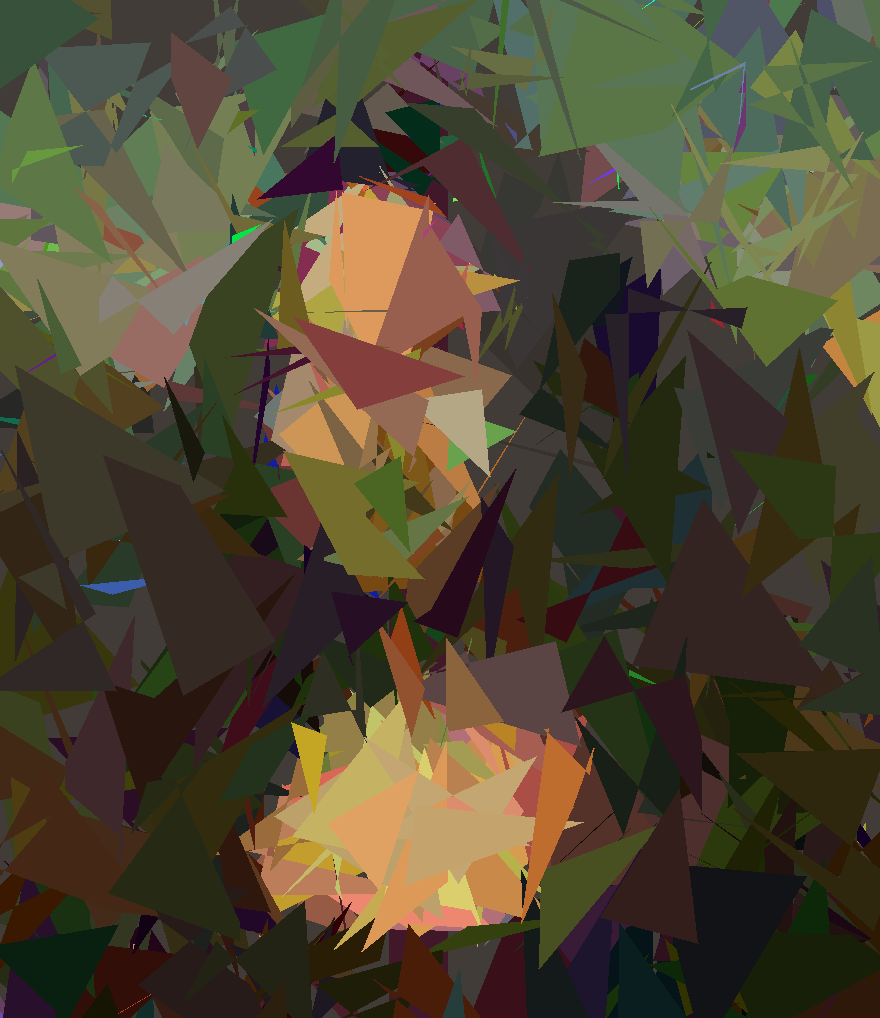

image	485 generations	1000 generations

image	500 generations

But After the 1000th generation, the algorithm has a low probability to improve the image anymore, due to the size of the polygons. The algorithm is stuck in a local minimum.

Second Version

The main problem of the first version is the precision of the polygons. As the polygons are represented by a list of points, the more points are far from others, less the polygon is precies. To solve this problem, I decide to search on progressively reduce the size of the polygons. So the algorithm is based on the following steps:

1. Generate a random population of polygons
2. Compute the fitness of each individual
3. Select the best individual
4. Equilibrate the limit size of the polygons, when the process is stuck (the fitness is not increasing), we will reduce the limit size of the polygons and when the process is not stuck, we will increase the limit size of the polygons.
5. Apply crossover between the best individual and the population (with stocking the previous best individuals)
6. Apply mutation to the population (except the previous best individuals), which consists in adding a random polygon to all individuals
7. Repeat from step 2, x times to upgrade the image

image	200 generations	1000 generations	2000 generations	3000 generations	4000 generations	5000 generations

In comparison with the first version:

First version	Second version

And for the result on 5000 generations:

Objectif	Result

With this version, the algorithm is able to improve the image without being stuck. Now, the algorithm is able to recreate the image with a precision of 1 pixel.

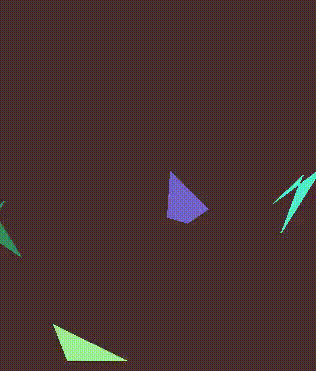

Gif Result:

	Monalisa	Logo
Number of step	10000	10000
Result
