mosaic-multigrid 6.7.0

MMG: Mosaic Multi-Grid A research-grade multi-agent gridworld environments for reproducible RL experiments

mosaic_multigrid

Multi-agent gridworld environments for reproducible RL experiments.

A maintained fork of gym-multigrid by Arnaud Fickinger (2020), modernized to the Gymnasium API with Numba JIT-accelerated observations, reproducible seeding.

Design Philosophy: Best of Both Worlds

mosaic_multigrid = gym-multigrid game design + INI multigrid modern infrastructure

We kept the challenging partial observability (view_size=3) that makes Soccer/Collect interesting for competitive multi-agent research, while adopting modern API and optimizations from INI multigrid standards.

What We Kept from gym-multigrid (Fickinger 2020)

1. Partial observability - view_size=3 for SoccerGame4HEnv10x15N2 and CollectGameEnv (challenging team coordination)
2. Game mechanics - Ball passing, stealing, scoring, team rewards
3. Research continuity - Comparable with original papers

What We Adopted from INI multigrid (2022+)

• Gymnasium 1.0+ API - Modern 5-tuple dict-keyed observations
• 3-channel encoding - [type, color, state] format (not 6-channel)
• Agent class design - Separate from WorldObj, cleaner architecture
• pygame rendering - Modern window system (not matplotlib)
• Modular structure - ~20 focused modules (not 1442-line monolith)

What We Built (Our Contributions)

1. Reproducibility fix - Fixed critical global RNG bug
2. Numba JIT optimization - 10-100x faster observation generation
3. Comprehensive tests - 130+ tests covering all functionality
4. Framework adapters - PettingZoo Parallel, AEC (Environment Agent Cycle) integration
5. Observation wrappers - FullyObs, ImgObs, OneHot, SingleAgent, TeamObs (SMAC-style)
6. TeamObs environments - SMAC-style teammate awareness for team coordination research

---

What Changed from Upstream: The Full Story

Showing how we combined the best of both packages:

Aspect	gym-multigrid (Fickinger 2020)	INI multigrid (Oguntola 2023)	mosaic_multigrid (This Fork)
API	Old Gym 4-tuple, list-based	Gymnasium 5-tuple, dict-keyed	Gymnasium 5-tuple, dict-keyed (from INI)
Actions	8 (still=0..done=7)	7 (left=0..done=6)	8 actions, noop=0..done=7 (noop restored for AEC compatibility)
Observations	(3, 3, 6) dict (Soccer)	(7, 7, 3) dict (default)	(3, 3, 3) dict (Soccer)
Encoding	6 channels	3 channels [type, color, state]	3 channels (from INI)
view_size	3 (Soccer/Collect)	7 (default)	3 (KEPT from gym-multigrid) for competitive challenge
Game Logic	Soccer, Collect, team rewards	Exploration tasks (no team games)	Soccer, Collect (from gym-multigrid)
reset()	List[obs]	(Dict[obs], Dict[info])	(Dict[obs], Dict[info]) (from INI)
step()	(List[obs], ndarray, bool, dict)	(Dict, Dict, Dict, Dict, Dict)	5-tuple per-agent dicts (from INI)
Render	render(mode='human') param	render_mode constructor param	render_mode constructor (from INI)
Seeding	env.seed(42) + broken global RNG	reset(seed=42) + self.np_random	Fixed seeding (from INI) + bug fix (ours)
Window	matplotlib	pygame	pygame (from INI)
Performance	Pure Python loops	Pure Python	Numba JIT (ours, 10-100× faster)
Structure	1442-line monolith	Modular package	~20 focused modules (from INI)
Dependencies	gym>=0.9.6, numpy	gymnasium, numpy, pygame	+ numba, aenum (optimizations)
Tests	Basic test script	Unknown	130 comprehensive tests (ours)
PettingZoo	None	Parallel only (ParallelEnv)	Parallel + AEC (ours) via pettingzoo.utils.conversions
Use Case	Multi-agent team research	Single-agent exploration	Multi-agent competitive with modern API

Observation Space Notation: The format is (height, width, channels) where:

• gym-multigrid: (3, 3, 6) = 3×3 grid with 6-channel encoding for Soccer/Collect
• INI multigrid: (7, 7, 3) = 7×7 grid with 3-channel [type, color, state] encoding (default)
• mosaic_multigrid: (3, 3, 3) = 3×3 grid (kept from gym-multigrid) + 3-channel encoding (from INI)

Legend:

• Bold in the mosaic_multigrid column = What we adopted or built
• Items from gym-multigrid: view_size=3, Soccer/Collect game mechanics
• Items from INI multigrid: Gymnasium API, 3-channel encoding, pygame, modular structure
• Our contributions: Reproducibility fix, Numba JIT, comprehensive tests, PettingZoo adapters

Bugs Fixed

1. Reproducibility bug (critical): step() used np.random.permutation() (global RNG) for action ordering. Now uses self.np_random.random(size=N).argsort() to respect environment seeding.
2. No render_mode: Constructor now accepts render_mode='rgb_array' or render_mode='human', following Gymnasium convention.
3. Legacy 4-tuple: step() returns Gymnasium 5-tuple (obs, rewards, terminated, truncated, info) with per-agent dicts.

Included Environments

SoccerGame (IndAgObs -- Recommended)

Team-based competitive environment with FIFA-style field rendering. Agents score by dropping the ball at the opposing team's goal. Features teleport passing, stealing with dual cooldown, ball respawn, and first-to-2-goals termination.

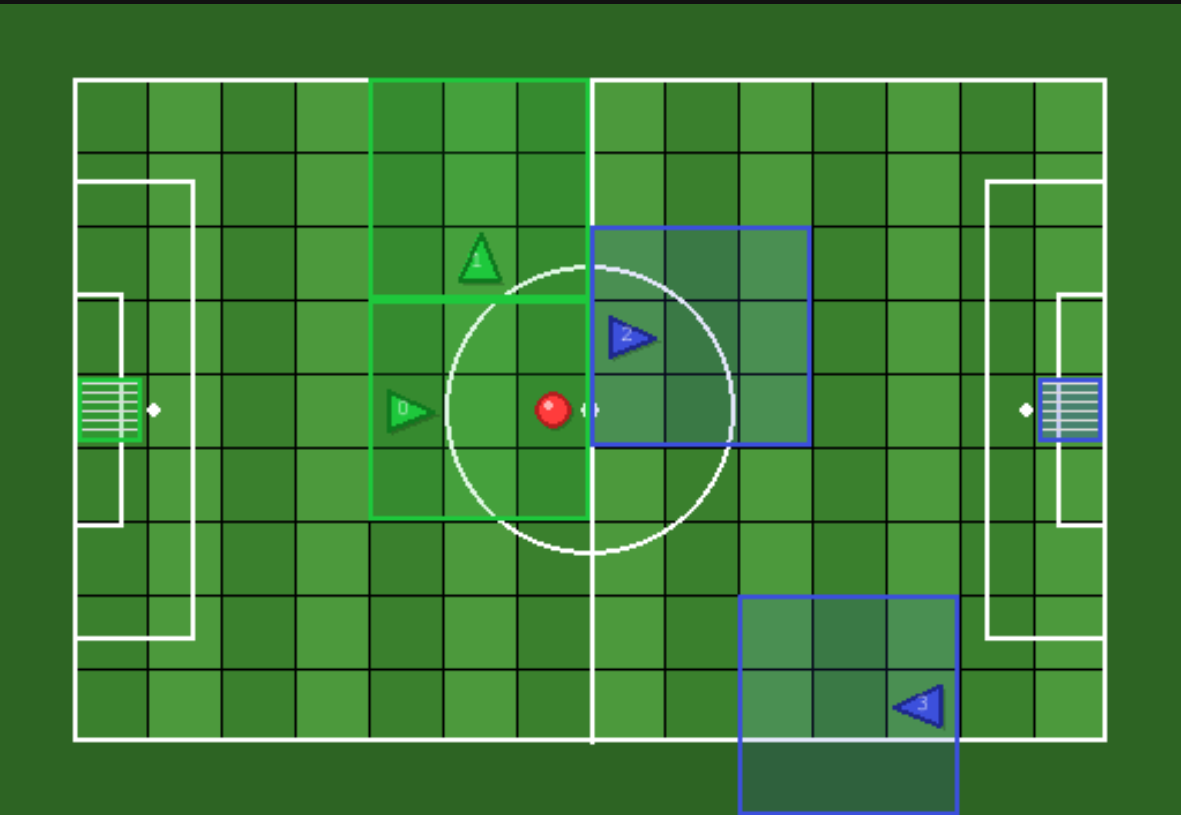

Recommended variant: SoccerGame4HIndAgObsEnv16x11N2 -- 4 agents (2v2), 16x11 grid (FIFA ratio), 1 ball, positive-only shared team reward, goal_scored_by tracking in info dict.

CollectGame (Individual Competition)

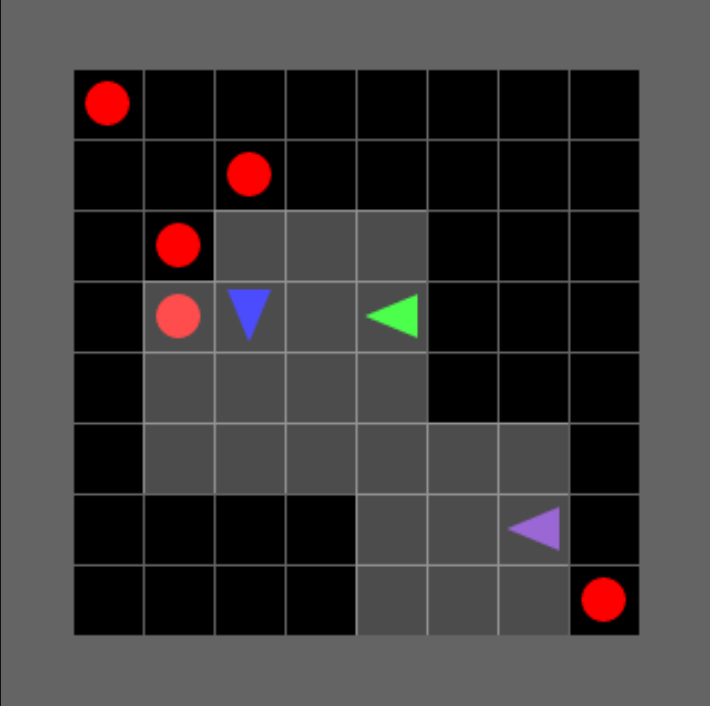

Individual competitive collection. 3 agents compete individually to collect the most balls.

Default variant: CollectGame3HEnv10x10N3 — 3 agents, 10×10 grid, 5 wildcard balls, zero-sum.

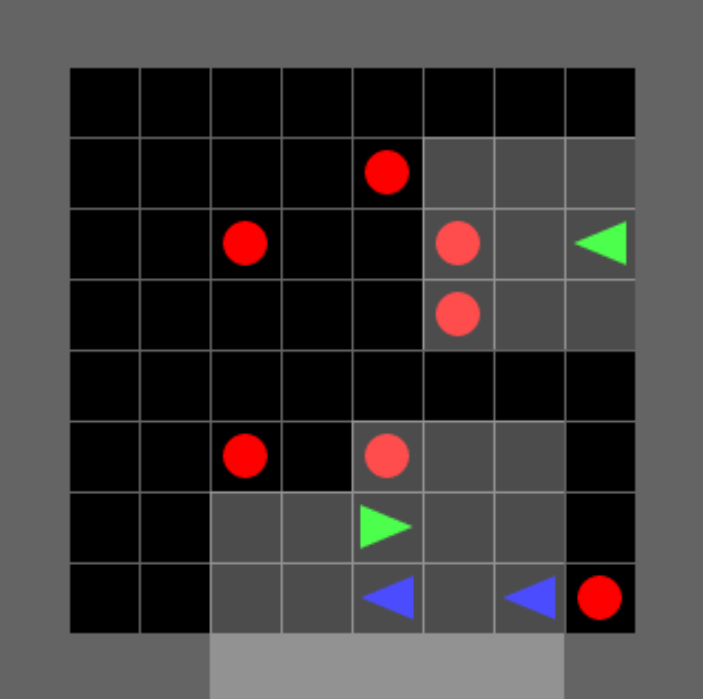

Enhanced variant: CollectGame3HEnhancedEnv10x10N3 — Natural termination when all balls collected (35× faster).

Collect 2v2 Game (Team-Based Collection)

Team-based competitive collection. 4 agents in 2 teams (2v2) compete to collect the most balls. Similar to Soccer but without goals — agents earn points directly by picking up balls. 7 balls ensures no draws!

Default variant: CollectGame4HEnv10x10N2 — 4 agents (2v2), 10×10 grid, 7 wildcard balls.

Soccer 1v1 (IndAgObs)

1v1 variant of the Soccer environment on the same 16x11 FIFA-style grid. Two agents (one per team) compete head-to-head. Teleport passing is a no-op (no teammates), making this a purely individual duel of ball control, stealing, and scoring. First to 2 goals wins.

IndAgObs variant: SoccerGame2HIndAgObsEnv16x11N2 -- 2 agents (1v1), 16x11 grid, 1 ball, zero_sum=True, max_steps=300.

Collect 1v1 (Team-Based Collection)

1v1 variant of the team-based Collect environment. Two agents on separate teams compete to collect 3 wildcard balls on a 10x10 grid. 3 balls (odd number) ensures no draws. Natural termination when all balls are collected.

IndAgObs variant (recommended): CollectGame2HIndAgObsEnv10x10N2 -- 2 agents (1v1), 10x10 grid, 3 balls, zero-sum, max_steps=200. Base variant: CollectGame2HIndAgObsEnv10x10N2 — same configuration, IndAgObs variant recommended.

Solo Environments (New in v6.0.0)

Single-agent variants of Soccer and Basketball with no opponent on the field. Designed for curriculum pre-training where the agent learns ball pickup, navigation, and scoring mechanics before facing an opponent.

Why solo training? Training IPPO on the full 1v1 or 2v2 game suffers from five compounding problems:

1. Sparse reward: on a 14x9 playable field, a random agent has negligible probability of completing the 6-step scoring chain (navigate to ball, face, pickup, navigate to goal, face, drop) in 200 steps
2. Non-stationarity: the opponent's policy changes during training, so the agent's "environment" keeps shifting
3. Observation poverty: view_size=3 covers only 7% of the soccer field; the agent spends most steps seeing empty floor
4. Zero-sum curriculum mismatch: Collect uses zero_sum=True (rewards in [-1, +1]) while Soccer uses zero_sum=False (rewards in [0, +1]); hot-swapping corrupts the critic baseline
5. Under-training: with ~26 scoring events in 4M steps, the gradient signal is too weak for reliable policy improvement

Solo variants address problems 1-2 directly (no opponent means higher scoring probability and no non-stationarity) and partially address problem 3 (no one to steal the ball, so the agent can practice the scoring chain repeatedly).

view_size is a runtime kwarg, no separate gymnasium IDs needed:

# Default: 3x3 partial view
env = gym.make('MosaicMultiGrid-Soccer-Solo-Green-IndAgObs-v1')

# Override: 7x7 partial view (38.9% field coverage on 16x11)
env = gym.make('MosaicMultiGrid-Soccer-Solo-Green-IndAgObs-v1', view_size=7)

Checkpoint deployment note: Green solo produces agent_0 with team_index=1 directly deployable as agent_0 in a 2-player game. Blue solo also produces agent_0 (only agent) but with team_index=2's checkpoint key remapping is needed when deploying as agent_1.

Inherited mechanics that become inert in solo:

• Teleport: passing resulktno teammates, drops to ground instead
• Stealing: no opponents on the field
• Steal cooldown: never triggered
• First-to-2-goals termination: still works (agent can score twice to end early)

BasketballGame (3v3 -- New in v4.0.0)

Team-based competitive basketball on a 19x11 grid (17x9 playable area). Agents score by dropping the ball at the opposing team's basket (goal on the baseline). Features teleport passing, stealing with dual cooldown, ball respawn, first-to-2-goals termination, and basketball-court rendering with three-point arcs, paint rectangles, and center circle.

IndAgObs variant: BasketballGame6HIndAgObsEnv19x11N3 — 6 agents (3v3), 19x11 grid, 1 ball, positive-only rewards, event tracking. TeamObs variant: Basketball3v3TeamObsEnv — IndAgObs + SMAC-style teammate awareness (2 teammates per agent).

---

Registered Environments (v6.5.0)

All environments use v6.5.0 defaults: scoring +15.0, max_steps=300, zero_sum=True, ball provenance tracking, pass-chain cap, timeout penalty −1.0, proximity reward.

50 environments across 4 sports. Naming scheme: MosaicMultiGrid-<Sport>-[Team-]<Format>-[ObsVariant-]v1

• Sport: S Soccer · BB Basketball · AF AmericanFootball · C Collect
• Team: G Green-only · B Blue-only — omitted for symmetric matchups
• Format: NvM (e.g. 1v0, 1v1, 2v2, 3v3)
• ObsVariant: IndAgObs · TeamObs — omitted for solo (1v0 / 0v1) envs

---

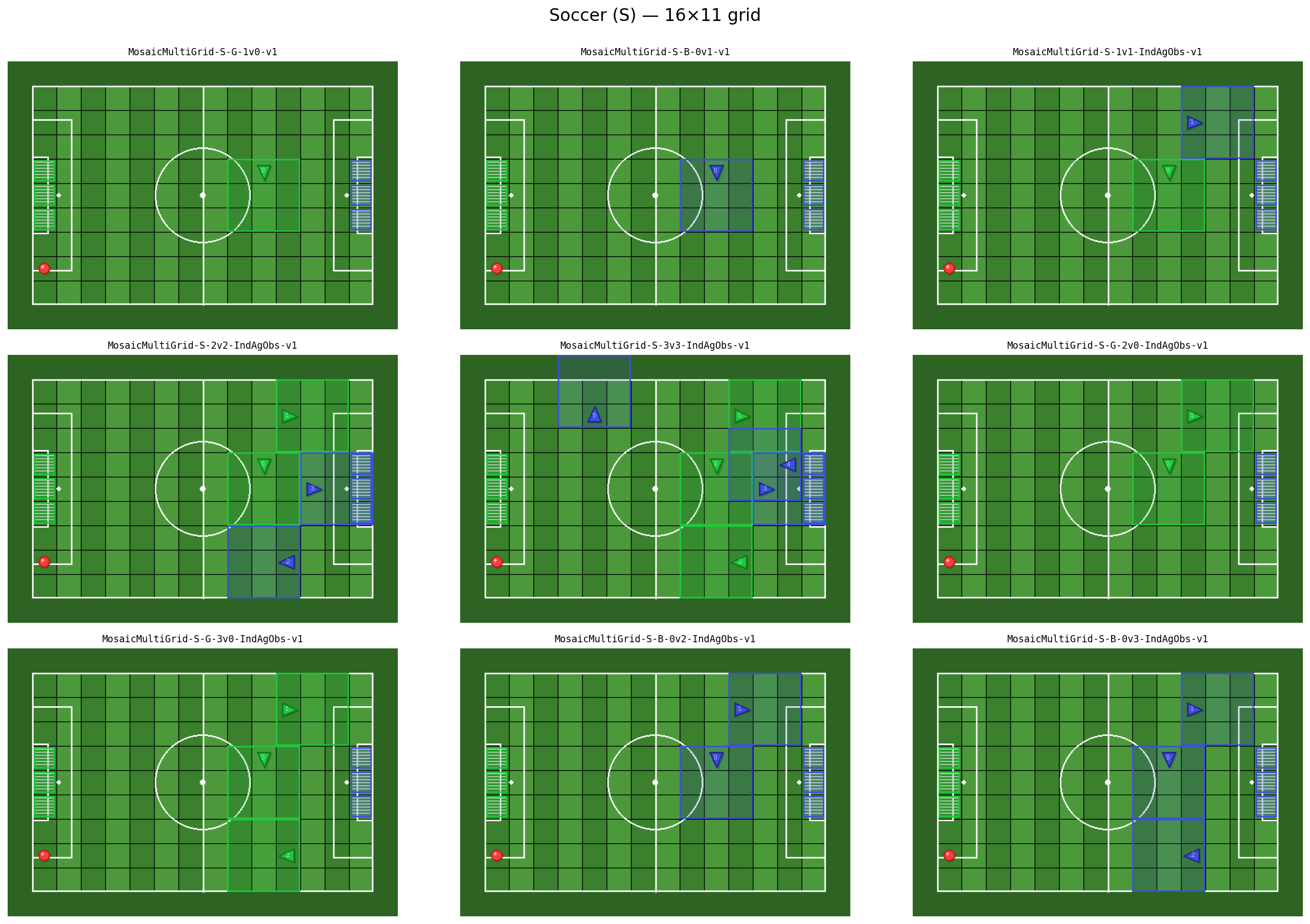

Soccer (S) — 16×11 grid

Environment ID	Agents	Description
MosaicMultiGrid-S-G-1v0-v1	1	Solo Green — curriculum pre-training
MosaicMultiGrid-S-B-0v1-v1	1	Solo Blue — curriculum pre-training
MosaicMultiGrid-S-1v1-IndAgObs-v1	2	1v1 competitive
MosaicMultiGrid-S-2v2-IndAgObs-v1	4	2v2 competitive, independent 3×3 views
MosaicMultiGrid-S-2v2-TeamObs-v1	4	2v2 + SMAC teammate awareness
MosaicMultiGrid-S-3v3-IndAgObs-v1	6	3v3 competitive
MosaicMultiGrid-S-3v3-TeamObs-v1	6	3v3 + SMAC teammate awareness
MosaicMultiGrid-S-G-2v0-IndAgObs-v1	2	2 Green agents, cooperative
MosaicMultiGrid-S-G-2v0-TeamObs-v1	2	2 Green + teammate obs
MosaicMultiGrid-S-G-3v0-IndAgObs-v1	3	3 Green agents, cooperative
MosaicMultiGrid-S-G-3v0-TeamObs-v1	3	3 Green + teammate obs
MosaicMultiGrid-S-B-0v2-IndAgObs-v1	2	2 Blue agents, cooperative
MosaicMultiGrid-S-B-0v2-TeamObs-v1	2	2 Blue + teammate obs
MosaicMultiGrid-S-B-0v3-IndAgObs-v1	3	3 Blue agents, cooperative
MosaicMultiGrid-S-B-0v3-TeamObs-v1	3	3 Blue + teammate obs

---

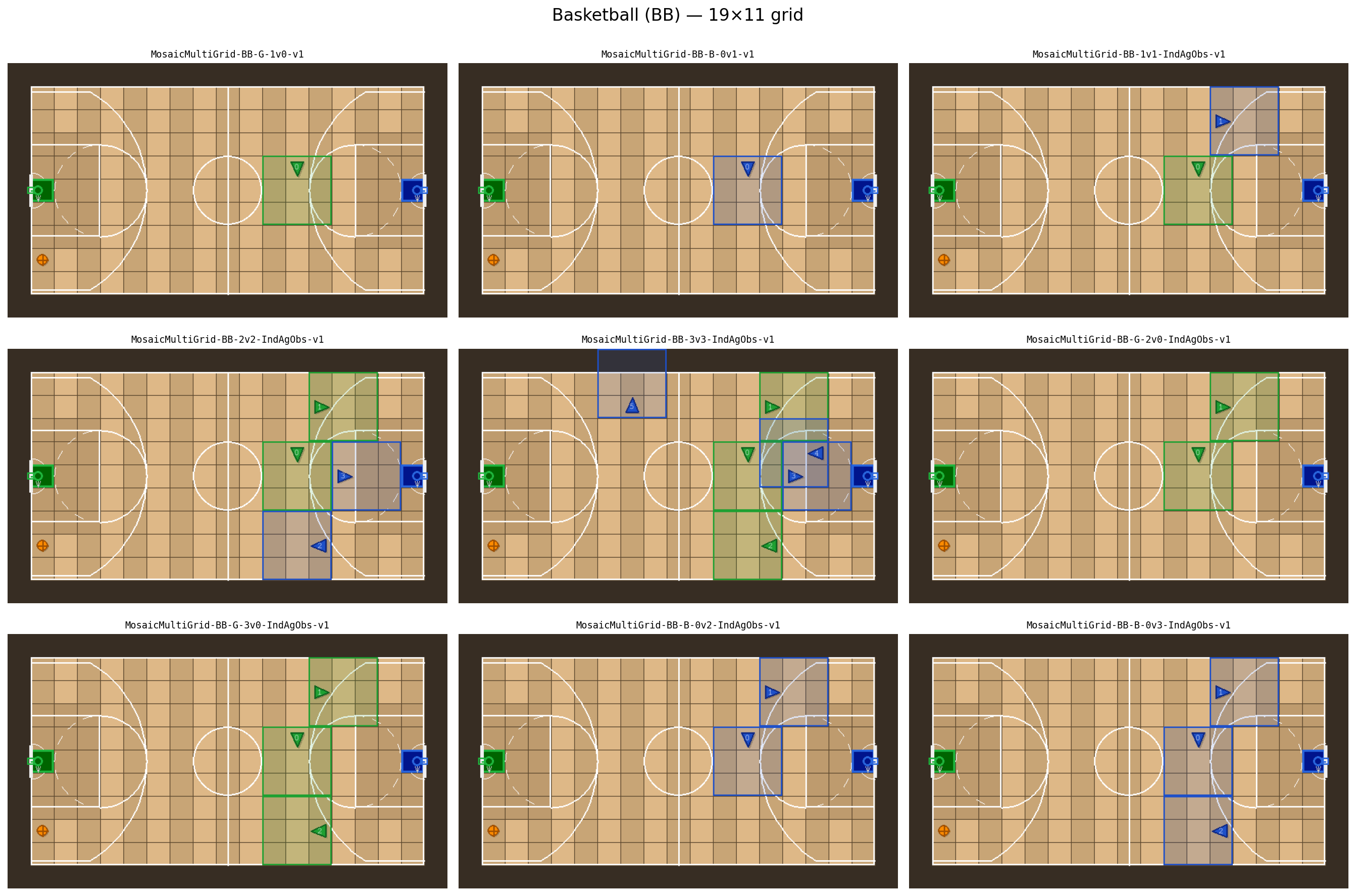

Basketball (BB) — 19×11 grid

Environment ID	Agents	Description
MosaicMultiGrid-BB-G-1v0-v1	1	Solo Green — curriculum pre-training
MosaicMultiGrid-BB-B-0v1-v1	1	Solo Blue — curriculum pre-training
MosaicMultiGrid-BB-1v1-IndAgObs-v1	2	1v1 competitive
MosaicMultiGrid-BB-1v1-TeamObs-v1	2	1v1 + teammate obs
MosaicMultiGrid-BB-2v2-IndAgObs-v1	4	2v2 competitive
MosaicMultiGrid-BB-2v2-TeamObs-v1	4	2v2 + teammate obs
MosaicMultiGrid-BB-3v3-IndAgObs-v1	6	3v3 competitive
MosaicMultiGrid-BB-3v3-TeamObs-v1	6	3v3 + teammate obs
MosaicMultiGrid-BB-G-2v0-IndAgObs-v1	2	2 Green, cooperative
MosaicMultiGrid-BB-G-2v0-TeamObs-v1	2	2 Green + teammate obs
MosaicMultiGrid-BB-G-3v0-IndAgObs-v1	3	3 Green, cooperative
MosaicMultiGrid-BB-G-3v0-TeamObs-v1	3	3 Green + teammate obs
MosaicMultiGrid-BB-B-0v2-IndAgObs-v1	2	2 Blue, cooperative
MosaicMultiGrid-BB-B-0v2-TeamObs-v1	2	2 Blue + teammate obs
MosaicMultiGrid-BB-B-0v3-IndAgObs-v1	3	3 Blue, cooperative
MosaicMultiGrid-BB-B-0v3-TeamObs-v1	3	3 Blue + teammate obs

---

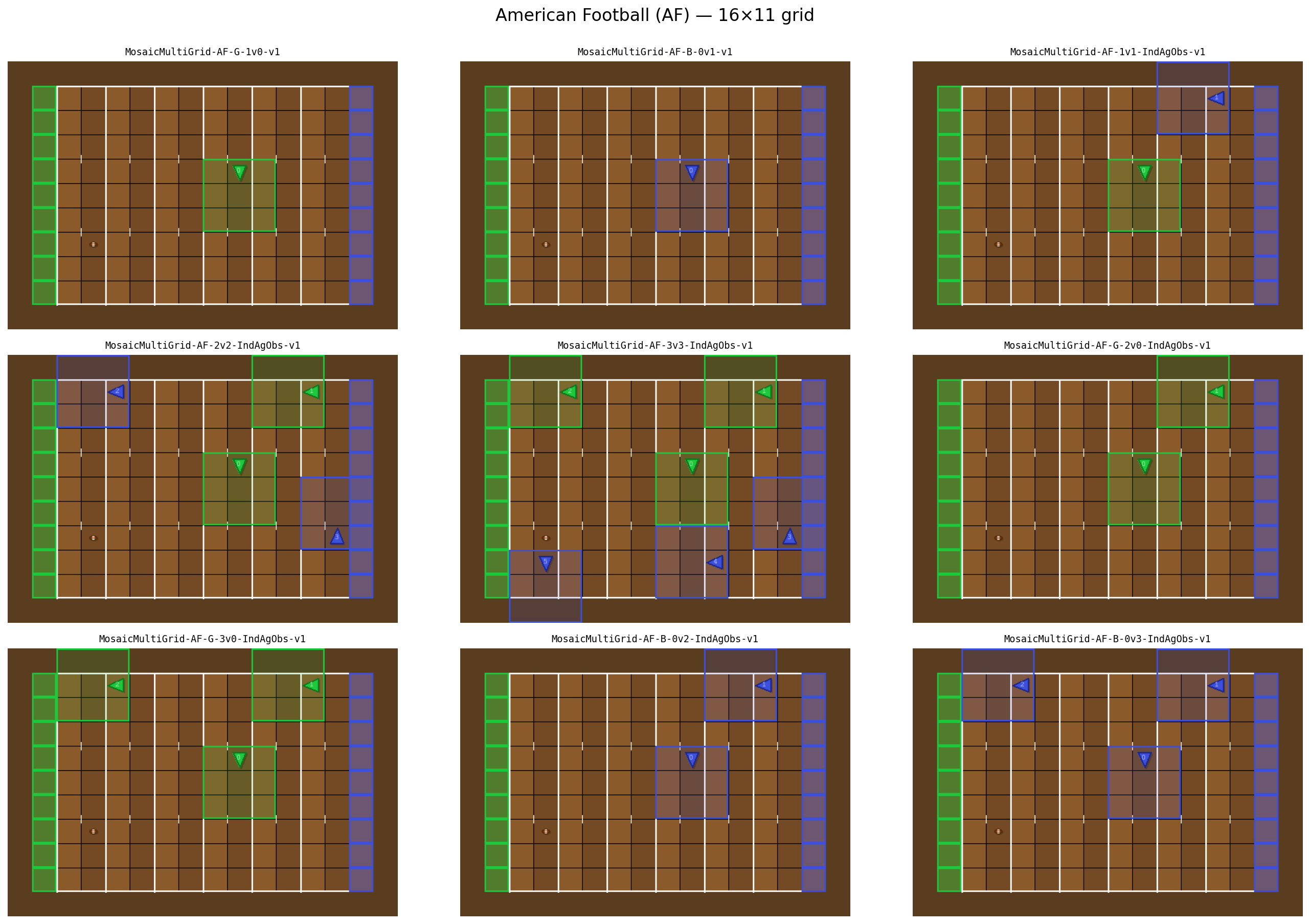

American Football (AF) — 16×11 grid

Environment ID	Agents	Description
MosaicMultiGrid-AF-G-1v0-v1	1	Solo Green — curriculum pre-training
MosaicMultiGrid-AF-B-0v1-v1	1	Solo Blue — curriculum pre-training
MosaicMultiGrid-AF-1v1-IndAgObs-v1	2	1v1 competitive
MosaicMultiGrid-AF-2v2-IndAgObs-v1	4	2v2 competitive, independent 3×3 views
MosaicMultiGrid-AF-2v2-TeamObs-v1	4	2v2 + SMAC teammate awareness
MosaicMultiGrid-AF-3v3-IndAgObs-v1	6	3v3 competitive
MosaicMultiGrid-AF-3v3-TeamObs-v1	6	3v3 + teammate obs
MosaicMultiGrid-AF-G-2v0-IndAgObs-v1	2	2 Green, cooperative
MosaicMultiGrid-AF-G-2v0-TeamObs-v1	2	2 Green + teammate obs
MosaicMultiGrid-AF-G-3v0-IndAgObs-v1	3	3 Green, cooperative
MosaicMultiGrid-AF-G-3v0-TeamObs-v1	3	3 Green + teammate obs
MosaicMultiGrid-AF-B-0v2-IndAgObs-v1	2	2 Blue, cooperative
MosaicMultiGrid-AF-B-0v2-TeamObs-v1	2	2 Blue + teammate obs
MosaicMultiGrid-AF-B-0v3-IndAgObs-v1	3	3 Blue, cooperative
MosaicMultiGrid-AF-B-0v3-TeamObs-v1	3	3 Blue + teammate obs

---

Collect (C) — 10×10 grid

Environment ID	Agents	Description
MosaicMultiGrid-C-IndAgObs-v1	3	3-agent individual competition
MosaicMultiGrid-C-1v1-IndAgObs-v1	2	1v1 team collection, 3 balls (no draws)
MosaicMultiGrid-C-2v2-IndAgObs-v1	4	2v2 team collection, 7 balls (no draws)
MosaicMultiGrid-C-2v2-TeamObs-v1	4	2v2 + SMAC-style teammate awareness

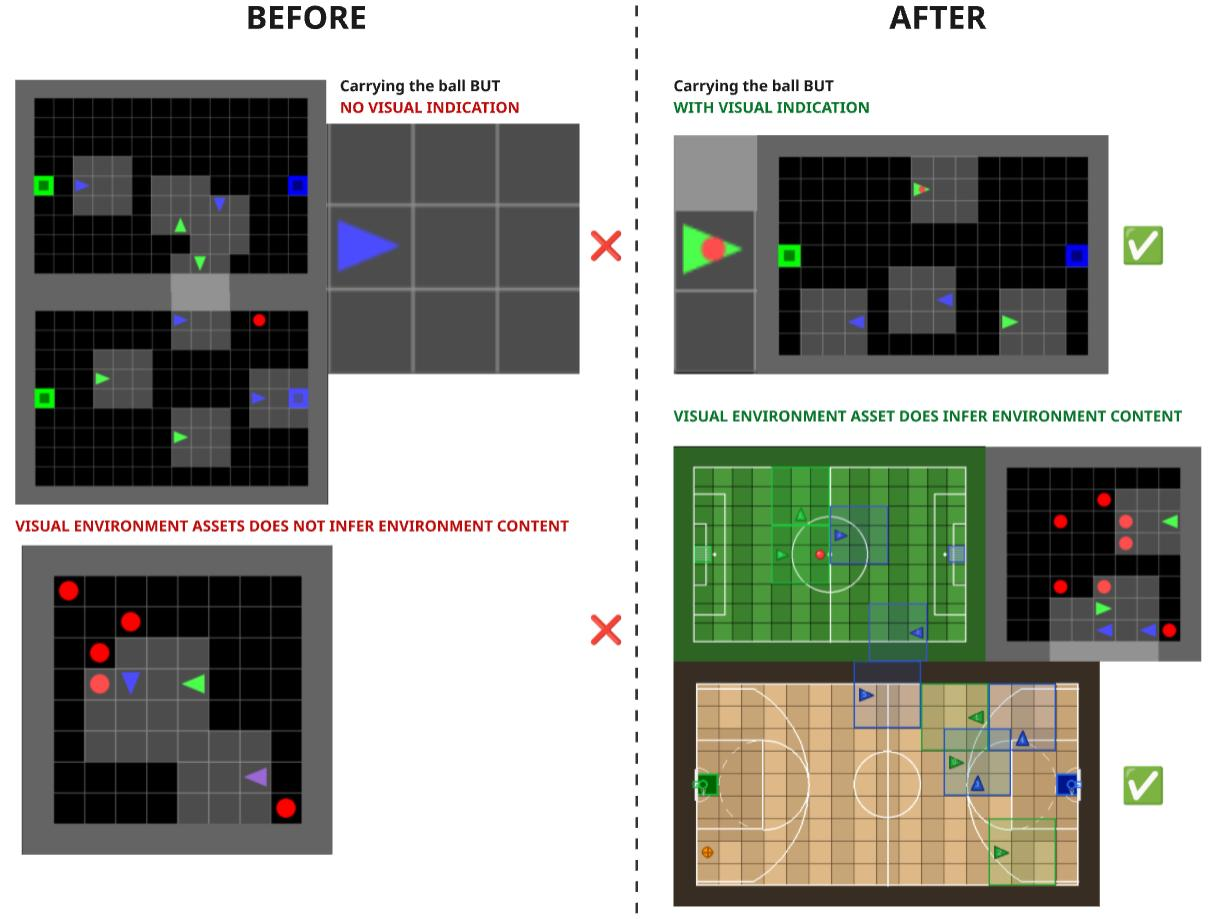

Critical Bugs Fixed

Soccer Environment:

• Bug: Ball disappears after scoring and never respawns -> FIXED: Ball respawns at random location
• Bug: No natural termination (always runs 10,000 steps) -> FIXED: First team to 2 goals wins
• Bug: Agents can't see who is carrying ball -> FIXED: STATE channel encoding + visual overlay
• Bug: Infinite stealing exploit (no cooldown) -> FIXED: 10-step dual cooldown for both stealer and victim

Collect Environment:

• Bug: No termination signal when all balls collected (wastes 95% of computation) -> FIXED: termination signal emitted when done
• Result: 35× faster training (300 vs 10,000 steps per episode)

TeamObs Environments (v4.0.0) -- SMAC-Style Teammate Awareness

For team coordination research, TeamObs variants add structured teammate features to each agent's observation dict. This follows the standard MARL observation augmentation pattern established by SMAC (Samvelyan et al., 2019).

Why TeamObs?

On a 16x11 field (Soccer) or 10x10 field (Collect) with view_size=3, each agent sees only 7-9% of the grid. Teammates are almost never visible in the 3x3 local window. Without TeamObs:

• Passing is blind (teleport to random teammate, no position knowledge)
• Agents cannot coordinate coverage (both may search the same area)
• Team strategies are limited to independent exploration

With TeamObs, each agent receives its local view unchanged, plus:

Feature	Shape	Description
teammate_positions	(N, 2) int64	Relative (dx, dy) from self to each teammate
teammate_directions	(N,) int64	Direction each teammate faces (0-3)
teammate_has_ball	(N,) int64	1 if teammate carries ball, 0 otherwise

Where N = number of teammates per agent (1 in 2v2 environments, 2 in 3v3 Basketball).

Design Rationale

This follows the observation augmentation pattern from:

Samvelyan, M., Rashid, T., de Witt, C. S., et al. (2019). "The StarCraft Multi-Agent Challenge." CoRR, abs/1902.04043.

In SMAC, each agent receives its local view plus structured ally features (relative positions, health, unit type). We adapt this for gridworld environments. Teammate features are environment-level observation augmentation -- the RL algorithm decides what to do with the extra information.

Not applicable to: MosaicMultiGrid-Collect-IndAgObs-v1 (3 agents, each on its own team with agents_index=[1,2,3], so N=0 teammates).

Documentation

• FOOTBALL.md: Full Soccer environment analysis, reward shaping, TeamObs design rationale, SMAC citation
• BASKETBALL.md: Basketball 3v3 environment, reward ladder, court layout
• AMERICAN_FOOTBALL.md: American Football environments, end zone scoring, reward shaping

---

Installation

From PyPI (recommended)

pip install mosaic-multigrid

From source

git clone https://github.com/Abdulhamid97Mousa/mosaic_multigrid.git
cd mosaic_multigrid
pip install -e .

Partial Observability

Agents have limited field of view! We use view_size=3 (from gym-multigrid) for competitive team games. This creates challenging coordination problems where agents can't see the entire field.

Why view_size=3?

We kept the small view size from gym-multigrid for research continuity:

• Challenging - Forces team coordination and communication
• Realistic - Agents can't see everything (fog of war)
• Research proven - Comparable with Fickinger et al. (2020)

We adopted modern infrastructure from INI multigrid:

• Gymnasium API, 3-channel encoding, pygame rendering, Numba JIT

Visual Comparison

Agent View Size

Each agent has limited perception - they only see a local grid around them, not the entire environment.

Default View: 3×3 (mosaic_multigrid — Competitive)

Each agent sees only a 3×3 local window around itself. Coverage: 9 cells. Forward: 2 tiles. Sides: 1 tile each.
Note: With view_size=3, agents typically cannot see the ball, goals, or teammates — forcing team coordination strategies.

View Rotation

The view rotates with the agent! The agent is always at the bottom-center, facing "up" in its own reference frame.

Configurable View Size

from mosaic_multigrid.envs import SoccerGameEnv

# Default: 3×3 (competitive challenge)
env = SoccerGameEnv(view_size=3, ...)
obs, _ = env.reset()
print(obs[0]['image'].shape)  # (3, 3, 3)

# Match INI multigrid: 7×7 (easier)
env = SoccerGameEnv(view_size=7, ...)
obs, _ = env.reset()
print(obs[0]['image'].shape)  # (7, 7, 3)

Observation Format (Enhanced Multi-Agent Encoding)

• obs[agent_id]['image'] shape: (view_size, view_size, 3)
  • Channel 0: Object TYPE (wall, ball, goal, agent, etc.)
  • Channel 1: Object COLOR (red, blue, green team colors, etc.)
  • Channel 2: Object STATE - Context-dependent encoding:
    • For doors: 0=open, 1=closed, 2=locked (standard MiniGrid)
    • For agents: 0-3 OR 100-103
      • 0-3: Agent direction (right/down/left/up) when NOT carrying ball
      • 100-103: Agent direction + ball carrying flag (e.g., 101 = down + has ball)
    • For other objects: 0 (unused)
• obs[agent_id]['direction']: int (0=right, 1=down, 2=left, 3=up)
• obs[agent_id]['mission']: Mission string

The agent is always at the bottom-center of its view, looking forward. The view rotates with the agent's direction.

Ball Carrying Observability Enhancement

Key Feature: Agents can now see when other agents are carrying the ball!

This solves a critical observability limitation in the original 3-channel encoding:

# Example: Red agent observing Green agent with ball
obs[red_agent]['image'][1, 0, :] = [Type.agent, Color.green, 101]
#                                                              ↑
#                                    STATE=101 means: facing DOWN + HAS BALL!

# Decoding:
has_ball = (state >= 100)      # True
direction = state % 100         # 1 (down)

Why this works:

• Soccer and Collect have NO doors (door states 0-2 are unused)
• We repurpose the unused STATE channel space with offset 100
• No conflicts: door states (0-2), agent direction (0-3), agent+ball (100-103) are all separate
• Zero memory overhead - still 3 channels, still uint8 values

Before this fix:

• Agents could NOT see if others had the ball
• Required memory architectures (LSTM) to track ball possession
• Made stealing/defense strategies nearly impossible

After this fix:

• Agents CAN see who has the ball in their view
• Enables reactive defense strategies without memory
• Faster training, better decision-making

See:See PARTIAL_OBSERVABILITY.md for detailed visual diagrams and comparison with INI multigrid.

Reproducibility

# Same seed → identical trajectories (reproducibility bug is fixed)
for trial in range(2):
    env = SoccerGame4HEnv10x15N2(render_mode='rgb_array')
    obs, _ = env.reset(seed=42)
    for step in range(100):
        actions = {i: 2 for i in range(4)}  # all forward
        obs, *_ = env.step(actions)
    # obs will be identical across trials

Episode Termination & Truncation

Understanding when and how episodes end is crucial for training RL agents. Following the Gymnasium API standard, MOSAIC multigrid distinguishes between terminated (natural end condition achieved) and truncated (time limit reached).

Terminology

• Terminated: Episode ends naturally when the goal/objective is achieved (e.g., reaching a goal cell, achieving a win condition)
• Truncated: Episode ends due to reaching the maximum step limit without achieving the objective
• max_steps: Maximum number of environment steps before truncation (default: 10,000 for all MOSAIC games)

Environment-Specific Criteria

Soccer Enhanced (MosaicMultiGrid-Soccer-2v2-IndAgObs-v1) RECOMMENDED

Criterion	Condition
Terminated	When any team scores 2 goals (first-to-win)
Truncated	When max_steps >= 200 (configurable)
Winning Condition	First team to score goals_to_win (default: 2) wins
Scoring Mechanism	Drop ball at opponent's ObjectGoal: +1 shared to scoring team (positive-only, no penalty to opponents)
Event Tracking	goal_scored_by, passes_completed, steals_completed in info dict for credit assignment
Ball Respawn	Ball respawns at random location after each goal
Episode Length	Variable (terminates when team wins, or truncates at 200 steps)
Cooldown	10-step dual cooldown on stealing (both stealer and victim)

Design rationale: Enhanced Soccer provides natural termination when a team wins, significantly reducing training time (~50x faster). Ball respawns after each goal to keep gameplay continuous. Rewards are positive-only (following SMAC convention), with goal_scored_by and passes_completed metadata for credit assignment and assist chain analysis.

env = gym.make('MosaicMultiGrid-Soccer-2v2-IndAgObs-v1')
obs, _ = env.reset(seed=42)

for step in range(200):
    actions = {i: agent_policy(obs[i]) for i in range(4)}
    obs, rewards, terminated, truncated, info = env.step(actions)

    if terminated[0]:  #Team scored 2 goals!
        # Determine winner from final rewards
        team1_total = sum(rewards[i] for i in [0, 1])
        team2_total = sum(rewards[i] for i in [2, 3])
        winner = "Team 1 (Green)" if team1_total > 0 else "Team 2 (Red)"
        print(f"{winner} wins! Episode finished in {step} steps")
        break

    if truncated[0]:  # Time limit reached
        print(f"Time limit reached. Determine winner by cumulative score.")
        break

---

Collect (MosaicMultiGrid-Collect-IndAgObs-v1)

Criterion	Condition
Terminated	When all 5 balls are collected
Truncated	When max_steps = 300 (configurable)
Winning Condition	Agent with highest cumulative reward when episode ends
Scoring Mechanism	Pickup wildcard ball (index=0): +1 to agent, -1 to all other agents (zero-sum)
Episode Length	Variable (100-300 steps typically, terminates when all balls collected)
Training Speedup	35× faster than original (300 vs 10,000 steps)

Design rationale: Enhanced Collect terminates naturally when all balls are collected, eliminating the bug where episodes ran for 10,000 steps with nothing to do. This creates a 35× training speedup and provides clear termination signals for RL agents.

env = gym.make('MosaicMultiGrid-Collect-IndAgObs-v1')
obs, _ = env.reset(seed=42)
cumulative_rewards = {i: 0 for i in range(3)}

for step in range(300):
    actions = {i: agent_policy(obs[i]) for i in range(3)}
    obs, rewards, terminated, truncated, info = env.step(actions)

    for i in range(3):
        cumulative_rewards[i] += rewards[i]

    if terminated[0]:  #All 5 balls collected!
        winner = max(cumulative_rewards, key=cumulative_rewards.get)
        print(f"Agent {winner} wins! Episode finished in {step} steps")
        print(f"Final scores: {cumulative_rewards}")
        break

---

Collect 2v2 (MosaicMultiGrid-Collect-2v2-IndAgObs-v1) RECOMMENDED

Criterion	Condition
Terminated	When all 7 balls are collected
Truncated	When max_steps = 400 (configurable)
Winning Condition	Team with highest cumulative score when episode ends
Scoring Mechanism	Pickup wildcard ball: +1 to entire team, -1 to opponent team (zero-sum)
Episode Length	Variable (150-400 steps typically)
Ball Count	7 balls (ODD number prevents draws!)
Team Assignment	agents_index=[1, 1, 2, 2] → Team 1 (agents 0,1) vs Team 2 (agents 2,3)

env = gym.make('MosaicMultiGrid-Collect-2v2-IndAgObs-v1')
obs, _ = env.reset(seed=42)

for step in range(400):
    actions = {i: agent_policy(obs[i]) for i in range(4)}
    obs, rewards, terminated, truncated, info = env.step(actions)

    if terminated[0]:  #All 7 balls collected!
        team1_score = sum(rewards[i] for i in [0, 1])
        team2_score = sum(rewards[i] for i in [2, 3])
        winner = "Team 1 (Green)" if team1_score > team2_score else "Team 2 (Red)"
        print(f"{winner} wins!")
        break

---

Soccer 1v1 (MosaicMultiGrid-Soccer-1v1-IndAgObs-v1)

Criterion	Condition
Terminated	When any agent scores 2 goals (first-to-win)
Truncated	When max_steps >= 200 (configurable)
Winning Condition	First agent to score goals_to_win (default: 2) wins
Scoring Mechanism	Drop ball at opponent's goal: +1 to scorer (positive-only, no penalty to opponent)
Ball Respawn	Ball respawns at random location after each goal
Episode Length	Variable (terminates when agent wins, or truncates at 200 steps)
Passing	Teleport pass is a no-op (no teammates) -- drop always places ball on ground

env = gym.make('MosaicMultiGrid-Soccer-1v1-IndAgObs-v1')
obs, _ = env.reset(seed=42)

for step in range(200):
    actions = {i: agent_policy(obs[i]) for i in range(2)}
    obs, rewards, terminated, truncated, info = env.step(actions)

    if terminated[0]:  # An agent scored 2 goals!
        winner = "Agent 0 (Green)" if rewards[0] > 0 else "Agent 1 (Red)"
        print(f"{winner} wins! Episode finished in {step} steps")
        break

    if truncated[0]:  # Time limit reached
        print(f"Time limit reached. Determine winner by cumulative score.")
        break

---

Collect 1v1 (MosaicMultiGrid-Collect-1v1-IndAgObs-v1)

Criterion	Condition
Terminated	When all 3 balls are collected
Truncated	When max_steps = 200 (configurable)
Winning Condition	Agent with highest cumulative reward when episode ends
Scoring Mechanism	Pickup wildcard ball: +1 to agent, -1 to opponent (zero-sum)
Episode Length	Variable (terminates when all 3 balls collected, or truncates at 200 steps)
Ball Count	3 balls (ODD number prevents draws!)
Team Assignment	agents_index=[1, 2] -- each agent is its own team

env = gym.make('MosaicMultiGrid-Collect-1v1-IndAgObs-v1')
obs, _ = env.reset(seed=42)
cumulative_rewards = {i: 0 for i in range(2)}

for step in range(200):
    actions = {i: agent_policy(obs[i]) for i in range(2)}
    obs, rewards, terminated, truncated, info = env.step(actions)

    for i in range(2):
        cumulative_rewards[i] += rewards[i]

    if terminated[0]:  # All 3 balls collected!
        winner = max(cumulative_rewards, key=cumulative_rewards.get)
        print(f"Agent {winner} wins! Episode finished in {step} steps")
        print(f"Final scores: {cumulative_rewards}")
        break

Comparison with MiniGrid

MiniGrid environments typically use both termination and truncation:

• Terminated: When agent reaches the green goal square (step_on_goal = True)
• Truncated: When max_steps reached (default varies: 100-1000 steps)
• Episode length: Variable (ends as soon as goal is reached)

MOSAIC multigrid uses natural termination (v6.5.0+):

• Terminated: When a team scores goals_to_win (default: 2) — episode ends early
• Truncated: When max_steps = 300 (configurable) is reached without a winner
• Episode length: Variable — early termination on win, timeout penalty −1.0 discourages stalling
• Rationale: Natural termination gives a clear win signal; timeout penalty prevents "do nothing" Nash equilibria

Implementation Details (base.py)

def step(self, actions):
    self.step_count += 1
    rewards = self.handle_actions(actions)
    observations = self.gen_obs()

    # Termination: check agent-level terminated flags
    # (Never set in Soccer/Collect - always False)
    terminations = dict(enumerate(self.agent_states.terminated))

    # Truncation: check time limit
    truncated = self.step_count >= self.max_steps
    truncations = dict(enumerate(repeat(truncated, self.num_agents)))

    return observations, rewards, terminations, truncations, info

Soccer and Collect environments never call on_success() or on_failure() callbacks, so agent.state.terminated remains False throughout the episode. Only truncation ends the episode.

Configuring max_steps

from mosaic_multigrid.envs import SoccerGame4HIndAgObsEnv16x11N2

# Default: 300 steps
env = SoccerGame4HIndAgObsEnv16x11N2()

# Custom: 500 steps for longer episodes
env = SoccerGame4HIndAgObsEnv16x11N2(max_steps=500)

# Via gym.make with kwargs
env = gym.make('MosaicMultiGrid-Soccer-2v2-IndAgObs-v1', max_steps=500)

Core Design Decisions

Agent-not-in-grid: Agents are NOT stored on the grid (following multigrid-ini). Agent positions are tracked via AgentState.pos. The observation generator inserts agents into the observation grid dynamically. This avoids grid corruption when agents overlap.

numpy subclass pattern: WorldObj(np.ndarray) and AgentState(np.ndarray) — domain objects ARE their numerical encoding. No serialization overhead.

team_index separation: agent.index (unique identity) vs agent.team_index (team membership).

Numba JIT: All observation generation functions use @nb.njit(cache=True). Enum values are extracted to plain int constants at module level because Numba cannot access Python enum attributes.

Action Space

Action Enum Comparison

Action	Upstream (Fickinger 2020)	mosaic_multigrid (this fork)	multigrid-ini (Oguntola 2023)
noop	still	0	--
still	0	--	--
left	1	1	0
right	2	2	1
forward	3	3	2
pickup	4	4	3
drop	5	5	4
toggle	6	6	5
done	7	7	6
Total	8	8	7

Why noop was added (AEC + Parallel API compatibility):

In AEC (Agent-Environment Cycle) mode, only one agent acts per physics step. All other agents must still submit a valid action so the environment can advance, but they must not change state. Without a dedicated no-op:

• The previous action 0 was left (turn left).
• Non-acting agents would silently rotate on every step — corrupting the episode and invalidating any comparison between AEC and Parallel results.

noop=0 is the fix. This design is directly inspired by MeltingPot (Google DeepMind), which uses NOOP=0 for the same reason. The done action (index 7) signals intentional task completion and is semantically different — both cause no physical movement, but only noop should be used by non-acting agents in AEC mode.

Migration note (v1 → v2): All action indices shifted up by 1. Any pre-trained policy or hardcoded action index from v1 will need updating: left=0→1 right=1→2 forward=2→3 pickup=3→4 drop=4→5 toggle=5→6 done=6→7

Observation Space

Each agent receives a partial observation dict:

{
    'image': np.ndarray,     # (view_size, view_size, 3) — [Type, Color, State] per cell
    'direction': int,        # Agent facing direction (0=right, 1=down, 2=left, 3=up)
    'mission': str,          # Mission string
}

The default view_size=3 gives each agent a 3x3 partial view (matching our competitive game design). Each cell encodes 3 values (Type index, Color index, State index), down from 6 in the original.

Wrappers

Wrapper	Description
FullyObsWrapper	Full grid observation instead of partial agent view
ImgObsWrapper	Returns only the image array (drops direction/mission)
OneHotObsWrapper	One-hot encodes the observation image (Numba JIT)
SingleAgentWrapper	Unwraps multi-agent dict for single-agent use

Framework Adapters

PettingZoo

mosaic_multigrid supports both PettingZoo stepping paradigms:

• Parallel API (docs): All agents submit actions simultaneously via a single step(actions_dict) call. This is the native mode for mosaic_multigrid.
• AEC API (docs): Agents take turns sequentially via agent_iter(). Internally, this converts the Parallel env using PettingZoo's parallel_to_aec() utility -- actions are buffered until every agent has acted, then forwarded to the underlying parallel env in one batch.

For background on PettingZoo's multi-agent API design, see Terry et al. (2021).

Parallel API (simultaneous stepping)

from mosaic_multigrid.envs import SoccerGame4HEnv10x15N2
from mosaic_multigrid.pettingzoo import to_pettingzoo_env

PZParallel = to_pettingzoo_env(SoccerGame4HEnv10x15N2)
env = PZParallel(render_mode='rgb_array')
obs, infos = env.reset(seed=42)

while env.agents:
    actions = {agent: env.action_space(agent).sample() for agent in env.agents}
    obs, rewards, terms, truncs, infos = env.step(actions)

env.close()

AEC API (sequential turn-based stepping)

from mosaic_multigrid.envs import SoccerGame4HEnv10x15N2
from mosaic_multigrid.pettingzoo import to_pettingzoo_aec_env

PZAec = to_pettingzoo_aec_env(SoccerGame4HEnv10x15N2)
env = PZAec(render_mode='rgb_array')
env.reset(seed=42)

for agent in env.agent_iter():
    obs, reward, term, trunc, info = env.last()
    action = None if term or trunc else env.action_space(agent).sample()
    env.step(action)

env.close()

Both APIs pass PettingZoo's official parallel_api_test and aec_api_test validators (32 tests total).

Install with:

pip install mosaic-multigrid[pettingzoo]  # requires pettingzoo >= 1.22

Ray RLlib

from mosaic_multigrid.rllib import to_rllib_env

env_cls = to_rllib_env('MosaicMultiGrid-Soccer-2v2-IndAgObs-v1')
# Returns an RLlib MultiAgentEnv class (adds __all__ keys to terminated/truncated)

Requirements

• Python >= 3.9
• gymnasium >= 0.26
• numpy >= 1.18
• numba >= 0.53
• pygame >= 2.2
• aenum >= 1.3

Optional:

• ray[rllib] >= 2.0 (for RLlib adapter)
• pettingzoo >= 1.22 (for PettingZoo adapter)

Tests

pip install -e ".[dev]"
pytest tests/ -v

94 tests covering: Action enum, Type/Color/State/Direction enums, WorldObj encode/decode, Grid operations, AgentState vectorized ops, Agent team_index, Mission/MissionSpace, MultiGridEnv reset/step/render, pickup/drop mechanics, Numba JIT observations, rendering dimensions, and reproducibility.

Citation

If you use this environment, please cite the relevant works:

@misc{gym_multigrid,
  author = {Fickinger, Arnaud},
  title = {Multi-Agent Gridworld Environment for OpenAI Gym},
  year = {2020},
  publisher = {GitHub},
  journal = {GitHub repository},
  howpublished = {\url{https://github.com/ArnaudFickinger/gym-multigrid}},
}

@article{oguntola2023theory,
  title = {Theory of Mind as Intrinsic Motivation for Multi-Agent Reinforcement Learning},
  author = {Oguntola, Ini and Campbell, Joseph and Stepputtis, Simon and Sycara, Katia},
  journal = {arXiv preprint arXiv:2307.01158},
  year = {2023},
  url = {https://github.com/ini/multigrid},
}

@misc{mosaic_multigrid,
  author = {Mousa, Abdulhamid},
  title = {mosaic\_multigrid: Research-Grade Multi-Agent Gridworld Environments},
  year = {2026},
  publisher = {GitHub},
  journal = {GitHub repository},
  howpublished = {\url{https://github.com/Abdulhamid97Mousa/mosaic_multigrid}},
}

@article{terry2021pettingzoo,
  title = {PettingZoo: Gym for Multi-Agent Reinforcement Learning},
  author = {Terry, J. K and Black, Benjamin and Grammel, Nathaniel and Jayakumar, Mario
            and Hari, Ananth and Sullivan, Ryan and Santos, Luis S and Dieffendahl, Clemens
            and Horsch, Caroline and Perez-Vicente, Rodrigo and Williams, Niall L
            and Lokesh, Yashas and Ravi, Praveen},
  journal = {Advances in Neural Information Processing Systems},
  volume = {34},
  pages = {2242--2254},
  year = {2021},
  url = {https://pettingzoo.farama.org/},
}

License

Apache License 2.0 -- see LICENSE for details.

Original work: MiniGrid (Copyright 2020 Maxime Chevalier-Boisvert), MultiGrid extension (Copyright 2020 Arnaud Fickinger), INI multigrid (Copyright 2023 Ini Oguntola et al.).

This fork: Copyright 2026 Abdulhamid Mousa.
