mouse-pupil-analysis

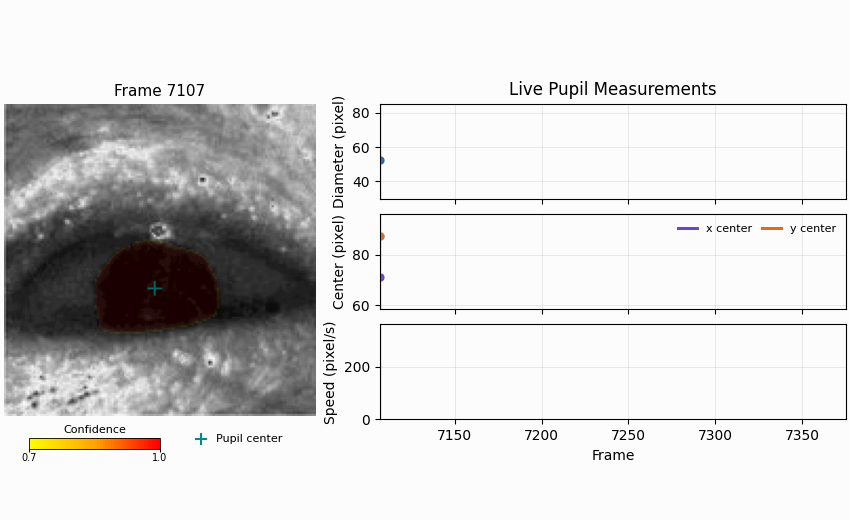

Left: confidence-colored pupil mask and estimated center. Right: pupil diameter, center, and speed over time.

Measure mouse pupil diameter from a video or a folder of frames, in one command. A trained UNet ships inside the package, so there is no model to download. It targets the low-contrast, low-resolution frames that rodent eye cameras actually produce. With --calculate_velocity, it also tracks pupil center, speed, and per-frame segmentation quality.

Contents

• Install
• Usage
• Output
• Python API
• Sample data
• Installation options
• FAQ
• Citation
• Development
• License

Install

pip install mouse-pupil-analysis

Python 3.10 or newer. The trained checkpoint ships with the package, so that is the entire install. See Installation options if you need a particular PyTorch CPU or accelerator build.

Usage

Analyze a video:

run-pupil-analysis --video_path movie.avi

Or analyze a folder of PNG frames:

run-pupil-analysis --image_dir movie_frames/

To save confidence overlays on the original images:

run-pupil-analysis --video_path data/mouse1.avi --output_mask_dir data/predicted_masks_mouse1

To track the pupil center and its speed:

run-pupil-analysis \
  --video_path movie.avi \
  --calculate_velocity \
  --acquisition_fps 33.3333333333

Velocity timing. With video input, --acquisition_fps is optional: when it is omitted, the program uses the frame rate encoded in the video. A PNG directory has no such metadata, so velocity mode requires --acquisition_fps and otherwise reports an error. For scientifically meaningful speeds, always provide the camera's actual acquisition rate; a video header may not represent experimental time.

Video frames are sampled at 5 fps by default; velocity mode analyzes every encoded frame instead. Inference uses CUDA when available.

To extract PNG frames from a video without analyzing them:

extract-frames --video_path data/mouse1.avi --out_dir data/frames_mouse1

Output

Results land next to the input by default, in <video_stem>_result/ for a video and <image_dir>_result/ for a frame directory. For example,

movie.avi
movie_frames/
    ...
movie_result/
    movie_pupil_analysis.csv

The result files contain:

Segmentation visibility and quality are written for every run. Timestamp, center, speed, and tracking_status are added in velocity mode:

No column is calibrated; see the FAQ before comparing recordings. Segmentation-to-velocity method documents how the center and quality fields are derived.

Python API

Everything the CLI does is available from Python, which is usually more convenient inside a notebook or a larger analysis script. The returned result includes a DataFrame, so there is no need to read the CSV back in.

from mouse_pupil_analysis import analyze_video

result = analyze_video("data/mouse1.avi")
print(result.analysis_table.head())
print(result.csv_path, result.plot_path)

Velocity mode and every CLI flag are keyword arguments:

result = analyze_video(
    "data/mouse1.avi",
    calculate_velocity=True,
    acquisition_fps=33.3333333333,
    output_mask_dir="data/masks_mouse1",
)

usable = result.analysis_table.query("tracking_status != 'invalid'")
print(f"{len(usable)} of {len(result.analysis_table)} frames usable")

To start from frames you already extracted, use analyze_frames instead:

from mouse_pupil_analysis import analyze_frames

result = analyze_frames(
    "data/mouse1_frames",
    calculate_velocity=True,
    acquisition_fps=97,
)

result is an AnalysisResult with these fields:

For repeated runs with shared settings, build an AnalysisConfig once and pass it to run_analysis:

from pathlib import Path

from mouse_pupil_analysis import AnalysisConfig, run_analysis

for video in Path("data").glob("*.avi"):
    run_analysis(AnalysisConfig(video_path=video, pred_thresh=0.75))

Library code logs rather than prints, so it stays quiet by default. To see the same progress messages the CLI shows:

import logging
logging.basicConfig(level=logging.INFO)

Sample data

A clone of the repository carries real images and hand-labeled masks under sample_data/, so you can exercise the whole pipeline before pointing it at your own recordings:

git clone https://github.com/yzhaoinuw/mouse-pupil-analysis.git
cd mouse-pupil-analysis

run-pupil-analysis \
  --image_dir sample_data/velocity_frames \
  --result_dir results/sample_velocity \
  --output_mask_dir results/sample_velocity/overlays \
  --calculate_velocity \
  --acquisition_fps 97

Those are 31 consecutive frames acquired at 97 Hz. The fixture also holds full-size frames from two recordings and labeled image/mask pairs arranged by recording session. The sample-data guide covers the fixture-specific commands and provenance.

Installation options

Virtual environments

Recommended but not required, for example with Miniconda:

conda create -n mouse_pupil_analysis python=3.12
conda activate mouse_pupil_analysis
pip install mouse-pupil-analysis

PyTorch builds

PyTorch installation depends on your operating system and hardware. To choose a CPU-only or accelerated build, use the official PyTorch selector first, then install this package with pip install mouse-pupil-analysis. The pipeline uses CUDA when torch.cuda.is_available(); otherwise it runs on the CPU.

FAQ

The pupil mask looks wrong. What do I check first?

Start with framing. The eye should be roughly centered and fill most of the frame. Every image is resized with its aspect ratio preserved and center-padded to the model's 148 x 148 input, so crop a wide scene with a small eye before analyzing it. If the framing is right, write the confidence overlays and look at them:

run-pupil-analysis --video_path movie.avi --output_mask_dir movie_overlays

Each overlay shades the pupil pixels that passed the threshold, from yellow (just over the threshold) through orange to red (near-certain). Inference normally uses the calibration stored with the checkpoint. If the mask spills past the pupil, override it with a higher --pred_thresh; if it catches only part of the pupil, try a lower value.

pupil_visibility and the status/reason columns distinguish a clean segmentation from an empty, low-confidence, border-touching, or low-circularity candidate. A narrow visible sliver may be marked partially_visible_or_uncertain; a fully hidden pupil is not reconstructed.

How do I improve or fine-tune the model on my data?

Follow the training guide.

What should I pass for --acquisition_fps?

The rate your camera actually acquired at. Velocity mode derives timestamps from the source-frame index and this value, not from the frame rate stored in the video container, which often is not experimental time. With --image_dir there is no container to fall back on, so the flag is required; with --video_path it defaults to the container rate.

Can I compare diameters or speeds between recordings?

Only when the optics and working distance match, or after applying your own per-recording scale factor. Nothing reported here is calibrated, and converting to millimeters needs a scale factor this package cannot infer.

Within the CSV, prefer pupil_diameter_input_pixels. It inverts the resize-and-pad geometry back to the scale of the image you supplied: the source video frame with --video_path, or whatever you prepared with --image_dir. estimated_pupil_diameter is measured in the 148 x 148 model image, so it is not comparable across recordings that differ in resolution or cropping; it is kept for continuity with earlier results. If your frames were already 148 x 148, the two columns are identical. Center and speed use the same input-image scale.

Why are center_x_pixels and speed_pixels_per_second empty for some frames?

Because the pipeline neither publishes nor interpolates values it cannot stand behind. Center and speed are empty when segmentation is rejected, and speed is additionally empty when either adjacent frame is invalid or when the two source frames are not consecutive. A warning frame remains usable, such as extra foreground components when the selected pupil component is still acceptable; quality_reason names the check that fired.

Citation

If you use this software in a paper or other scholarly work, please cite the exact version you ran, so your analysis stays reproducible against that code:

Zhao, Y. (2026). mouse-pupil-analysis: Automated mouse pupil segmentation, diameter, and pupil-center velocity analysis using UNet (v0.2.0). Zenodo. https://doi.org/10.5281/zenodo.21897796

Every release is archived on Zenodo under its own version DOI. The concept DOI in the badge above always resolves to the newest version, so use it only when you mean the project as a whole rather than a specific analysis.

GitHub's "Cite this repository" button generates BibTeX from CITATION.cff, and CHANGELOG.md records what changed between versions.

Development

git clone https://github.com/yzhaoinuw/mouse-pupil-analysis.git
cd mouse-pupil-analysis
pip install -e ".[dev]"

Run the same checks CI runs before submitting a change:

ruff check .
black --check .
pytest

From a source checkout, model training and fine-tuning can also be run with terminal arguments:

python training/run_train.py --help

License

MIT. See LICENSE.
