mpl-animator 0.1.12

Turn any static matplotlib script into an animated GIF or MP4 by sweeping one or more variables

mpl-animator

Turn any static matplotlib script into an animated GIF or MP4 by sweeping a variable — no rewriting required.

Install

pip install mpl-animator

Or just drop mpl_animator.py into your project and use it directly.

Usage

# Sweeps f from 3→60, writes wave_static_animated.gif
mpl-animator wave_static.py --var f --range "3,60"

# MP4 instead (requires ffmpeg)
mpl-animator plot.py --var t --range "0,2*pi" --format mp4

# Multiple variables at once
mpl-animator orbit.py --var azim spin elev --range "0,360" "0,6.28" "20,40" --ping-pong

# Discrete values instead of a range
mpl-animator plot.py --var n --values "5,10,50,200,1000"

# Save the generated .py script too (useful for --sequential re-runs)
mpl-animator plot.py --var t --range "0,1" --save-script

The GIF lands in your current directory as <script>_animated.gif. Pass --out for a custom path.

What it does

1. Parses your script's AST to find everything that depends on the animated variable
2. Splits code into static (runs once) and dynamic (recalculated per frame)
3. Renders frames in parallel across all CPU cores, then stitches to GIF or MP4

No annotations. No rewriting. Point and shoot.

Examples

Wave & spectrum

# wave_static.py
import numpy as np
import matplotlib.pyplot as plt

f   = 10.0                          # <- animate this
t   = np.linspace(0, 1, 1000)
y   = np.sin(2*np.pi*f*t) + 0.4*np.sin(2*np.pi*2*f*t)
freqs    = np.fft.rfftfreq(len(t), d=t[1]-t[0])
spectrum = np.abs(np.fft.rfft(y))

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(9, 6))
ax1.plot(t, y, 'royalblue', lw=1.5);  ax1.set_title(f"Signal  f = {f:.1f} Hz")
ax2.plot(freqs, spectrum, 'tomato', lw=1.5);  ax2.set_title("Frequency Spectrum")
plt.tight_layout(); plt.show()

mpl-animator examples/wave_static.py --var f --range "3,60" --frames 60 --fps 20

---

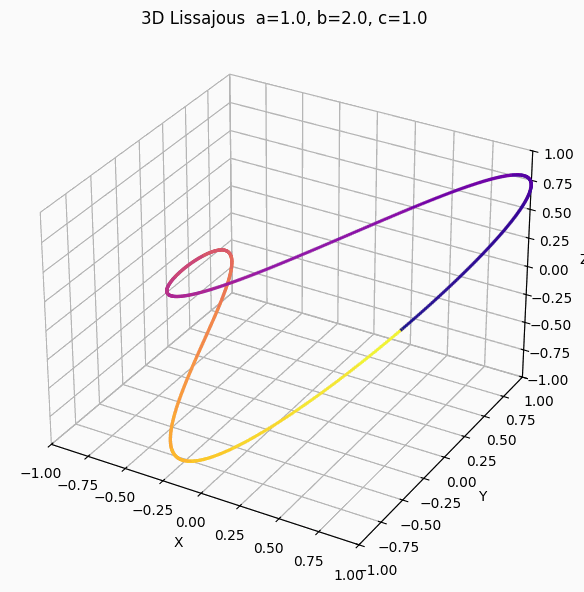

3D Lissajous

examples/lissajous_3d_static.py

mpl-animator examples/lissajous_3d_static.py --var a --range "1,6" --frames 80 --fps 20

---

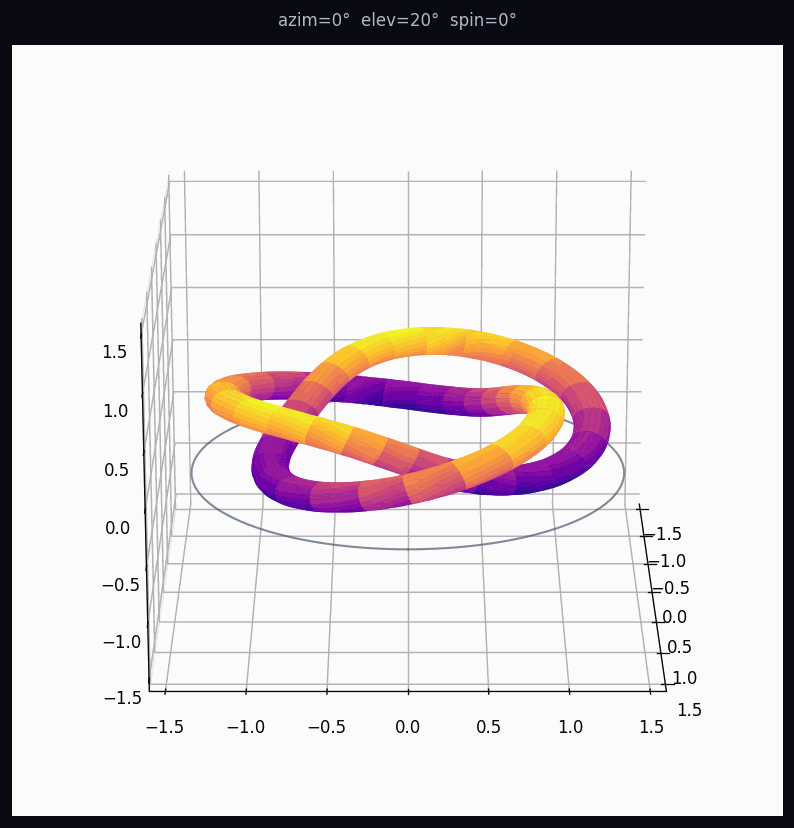

Cinematic orbit (3 variables)

examples/orbit_static.py — camera orbits 360°, object spins a full turn, camera cranes up:

mpl-animator examples/orbit_static.py \
    --var azim spin elev \
    --range "0,360" "0,6.28318" "20,40" \
    --frames 90 --fps 25 --dpi 120 --ping-pong

---

Library API

from mpl_animator import animate

src = open("my_plot.py").read()

# Returns the generated animation script as a string
code = animate(src, var="t", range_str="0,6.28", frames=60, fps=25)

# Multi-variable
code = animate(src, var=["azim", "spin"], range_str=["0,360", "0,6.28"], frames=90, ping_pong=True)

# Explicit values
code = animate(src, var="n", values="5,10,50,200,1000")

Options

Flag	Default	Description
--var	t	Variable(s) to animate
--range	0,1	start,end per variable (math expressions ok)
--values	—	Explicit values instead of a range
--frames	120	Frame count
--fps	25	Frames per second
--format	gif	gif or mp4
--out	auto	Output filename
--dpi	100	Render DPI
--workers	auto	Parallel workers (0 = cpu_count)
--loop	0	GIF loops (0 = forever)
--ping-pong	off	Play forward then reversed
--reverse	off	Sweep end → start
--save-script	off	Save the generated .py alongside the GIF

Tests

pytest tests/test_animator.py   # 208 unit + integration tests
pytest tests/test_gallery.py    # 276 tests across all matplotlib gallery examples
pytest tests/ -m slow           # tests that generate actual GIF/MP4 files

Validated against all 510 official matplotlib gallery examples.

Known limitations

• Accumulating scripts — re-runs from scratch each frame; not suitable for scripts that build state iteratively
• __main__ guards — variables assigned inside if __name__ == "__main__": may not partition correctly
• Variable domain safety — no awareness of valid domains; bad ranges cause per-frame errors (skipped gracefully)

---

Author: Basem Rajjoub · Built with Claude Code
