mpl-wrap 0.1.0

Matplotlib helper library for plotting wrapped, angular, or periodic data.

mpl_wrap

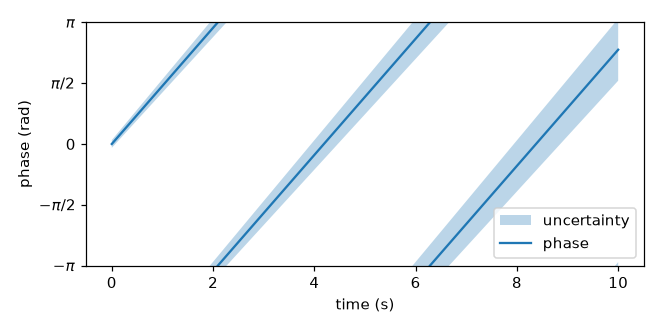

Matplotlib helper functions for plotting wrapped, angular, or periodic data: angles, phases, times of day, longitudes, and anything else that repeats or rotates.

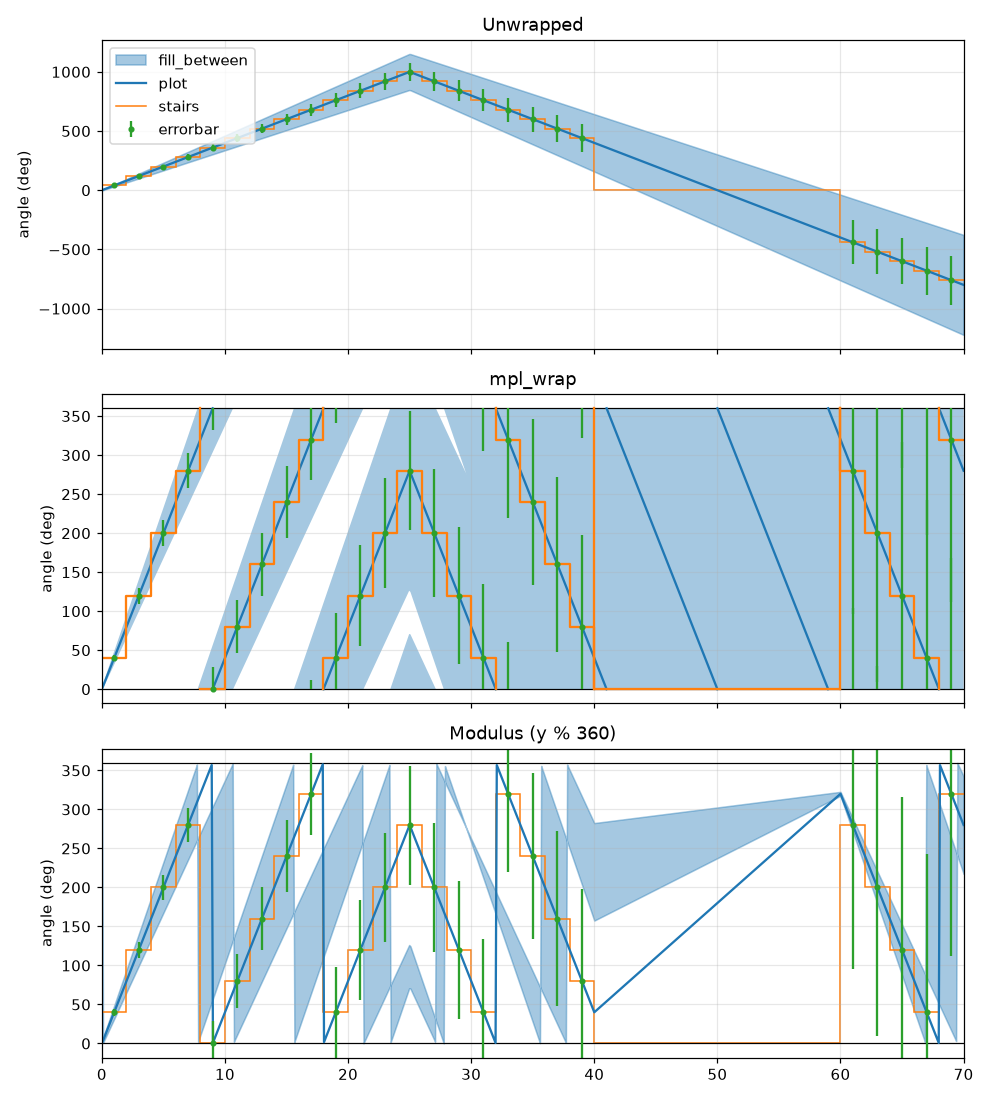

Manually plotting this data can be tricky. Using a modulus such as y % 360 is simple, but introduces a few problems:

• Line jumps at the crossing points, and lines that stop short of the wrap boundaries at the crossing points
• Aliasing when data spans multiple crossings, obscuring the real underlying behavior
• Completely broken rendering for fill_between

mpl_wrap solves these issues, and provides simple functions to make plotting wrapped data easy.

Installation

pip install mpl_wrap

Or install from source:

git clone https://github.com/scottshambaugh/mpl_wrap.git
cd mpl_wrap
uv sync --group dev

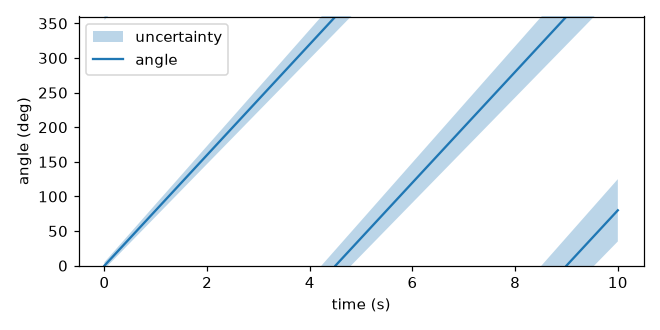

Basic Usage

import numpy as np
import matplotlib.pyplot as plt
from mpl_wrap import set_wrap, plot_wrapped, fill_between_wrapped, errorbar_wrapped

t = np.linspace(0, 10, 500)
angle = 80.0 * t  # degrees
width = 5.0 + 4.0 * t  # degrees

fig, ax = plt.subplots()
set_wrap(ax, wrapy=(0, 360))  # helpers on ax now wrap y into (0, 360)
fill_between_wrapped(ax, t, angle - width, angle + width, alpha=0.3, label='uncertainty')
plot_wrapped(ax, t, angle, label='angle')
ax.set(xlabel="time (s)", ylabel="angle (deg)")
ax.legend()

The helpers mirror their matplotlib counterparts, taking the target Axes as the first argument plus optional wrapx / wrapy (min, max) windows:

mpl_wrap	mirrors
plot_wrapped(ax, x, y, ...)	ax.plot
scatter_wrapped(ax, x, y, ...)	ax.scatter
fill_between_wrapped(ax, x, y1, y2)	ax.fill_between
stairs_wrapped(ax, values, edges)	ax.stairs
errorbar_wrapped(ax, x, y, yerr, xerr)	ax.errorbar

Passing wrapx=False / wrapy=False disables wrapping for a single call (or clears the stored window when passed to set_wrap), and wrapx=True / wrapy=True requires the stored window. set_wrap also sets the axis limits to the window by default. Opt out with set_lims=False, or pass seam_lines=True to mark the window edges with lines.

You must pass the original unwrapped data for these to work. If your data is already wrapped, np.unwrap may be able to recover that if it's sampled at a high enough rate.

API

The helpers are free functions, and are also available as methods on an AxesWrap axes. These three are equivalent:

from mpl_wrap import set_wrap, plot_wrapped, wrap_axes

# 1. Free functions, on any existing axes
fig, ax = plt.subplots()
set_wrap(ax, wrapy=(0, 360))
plot_wrapped(ax, t, angle)

# 2. Methods on an AxesWrap axes, created with the "wrap" projection
fig, ax = plt.subplots(subplot_kw={"projection": "wrap"})
ax.set_wrap(wrapy=(0, 360))
ax.plot_wrapped(t, angle)

# 3. Methods on an existing axes, upgraded in place from Axes to AxesWrap
fig, ax = plt.subplots()
wrap_axes(ax, wrapy=(0, 360))
ax.plot_wrapped(t, angle)

The data processing is also exposed on its own: wrap_line and wrap_points take data plus windows and return the wrapped arrays without plotting anything (also available as AxesWrap methods).

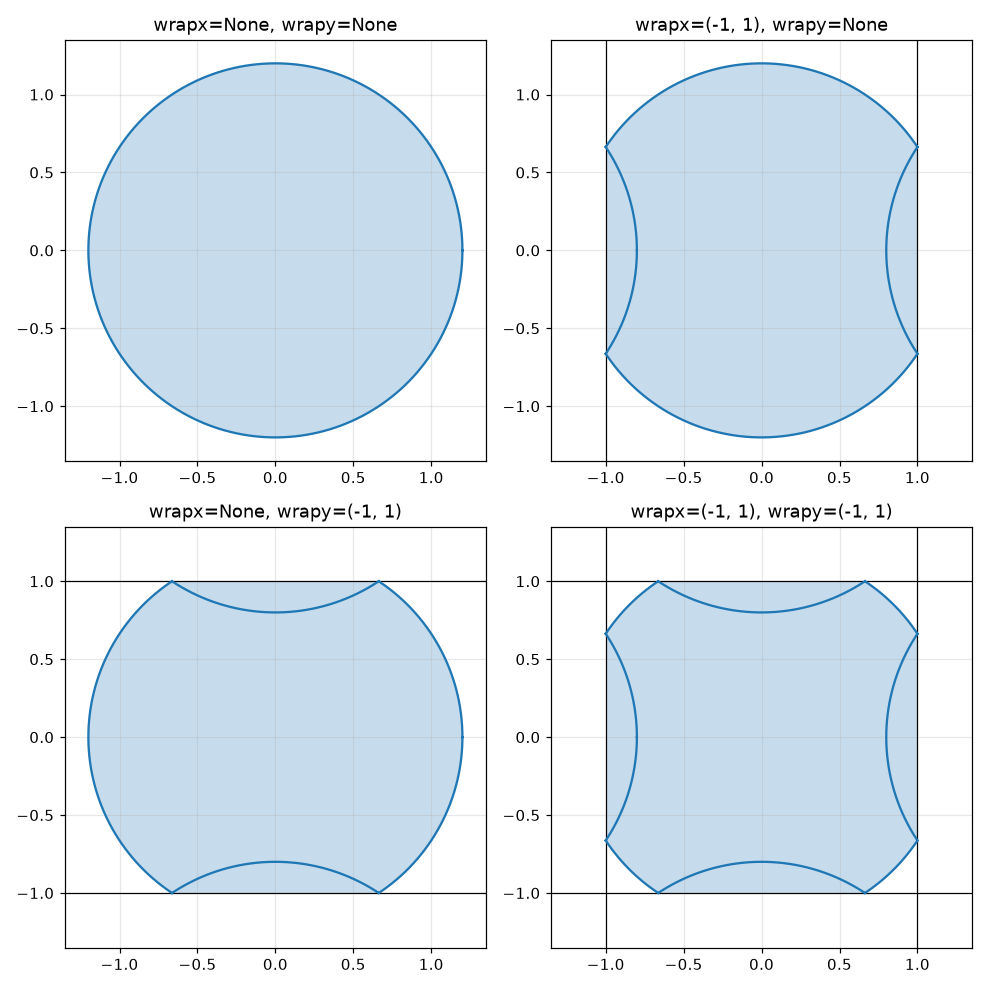

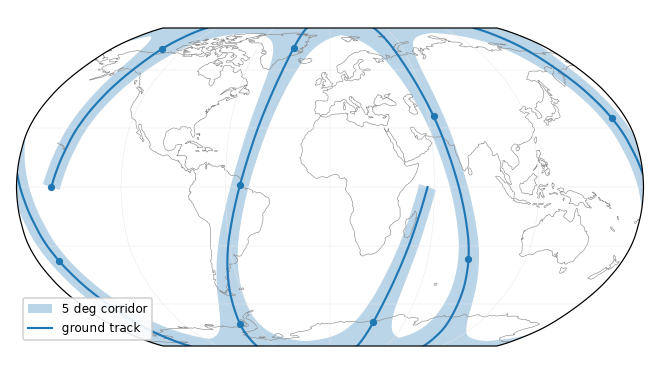

Wrapping x, y, or both

Both axes can be wrapped independently or together:

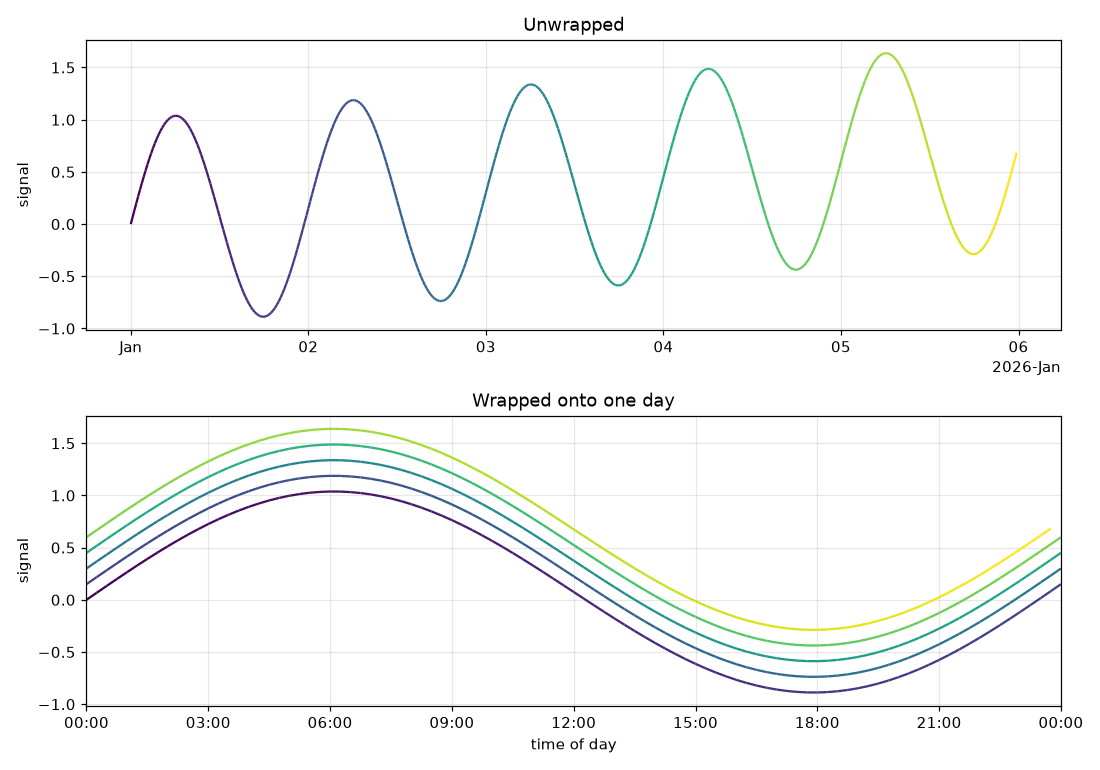

Datetime axes

Datetime data and windows work on either axis. Here a five-day series is wrapped to show a time-of-day view:

set_wrap(ax, wrapx=(t0, t0 + np.timedelta64(1, "D")))
plot_wrapped(ax, times, signal)
