mujoco-robot 0.1.1

A general Python interface class for robot simulations using MuJoCo.

MuJoCo Robot

A general Python interface for robot simulations using MuJoCo. Its public API mirrors pybullet_robot so that controllers written against that backend can be run here with minimal changes. MujocoRobot is a single object to load, introspect, control, and read state from a robot, implemented directly on MjModel + MjData.

Installation

Requires Python >= 3.10 and mujoco >= 3.2.

pip install mujoco_robot
pip install "mujoco_robot[ik]"   # optional whole-body IK backend (mink)

From source:

git clone https://github.com/justagist/mujoco_robot && cd mujoco_robot
pip install -e .

Quickstart

import numpy as np
from mujoco_robot import MujocoRobot
from mujoco_robot.utils.robot_loader_utils import get_mjcf_from_awesome_robot_descriptions

robot = MujocoRobot(
    mjcf_path=get_mjcf_from_awesome_robot_descriptions("panda_mj_description"),
    ee_names=["hand"],
    run_async=False,   # step manually
    render=True,       # launch the passive viewer (needs a display)
)
robot.set_position_control_mode()

target = robot.get_actuated_joint_positions()
target[0] += 0.5
while robot.is_viewer_running():
    robot.set_joint_positions(target)
    robot.step()

Features

• Load an MJCF/URDF file, or wrap an existing (model, data); assemble a world (ground, light, props, force-torque sensors) with the MjSpec helpers in mujoco_robot.utils.model_builder.
• Introspect: name<->id maps for bodies, joints, actuators, sites, geoms, and sensors, with per-joint qpos/dof addressing.
• Lifecycle: manual step() or a background stepping thread, an optional passive viewer, joint/base resets, and place-on-ground.
• State: joint, base, and link/site pose and velocity (quaternions as [x, y, z, w]), the geometric Jacobian, gravity-compensation torques, and a get_robot_states snapshot.
• Control: position control via the model's actuators, and torque/impedance control via data.qfrc_applied, with a PVT-PD command and position/torque mode switching.
• Contacts and force-torque sensing, plus cosmetics / domain-randomisation helpers (transparency, per-geom collision, dynamics editing).
• Inverse kinematics: differential_ik for a single frame (from mujoco_robot.ik import differential_ik); mink for whole-body (optional [ik]).

Examples

Runnable demos in examples/ (each takes --headless to run without the viewer):

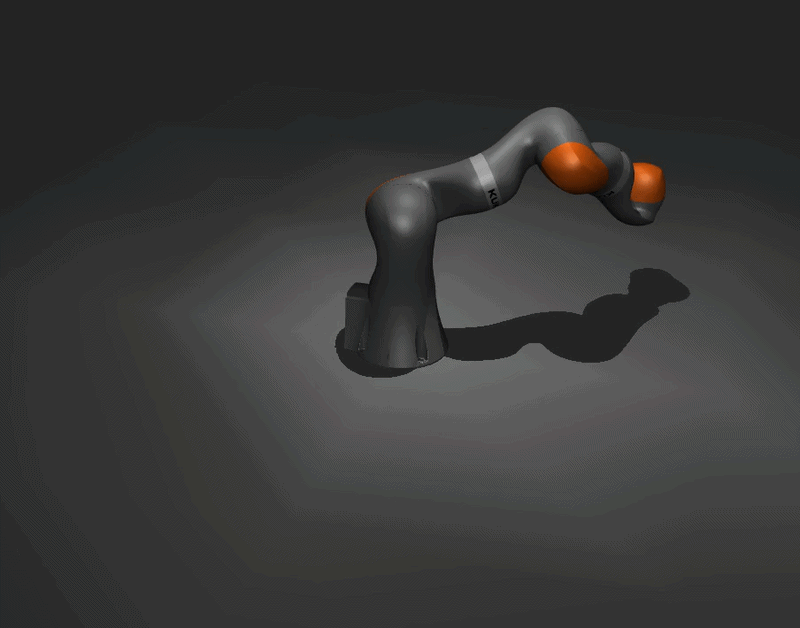

Joint Position Control

KUKA iiwa14 follows a joint-space sinusoid (position control).

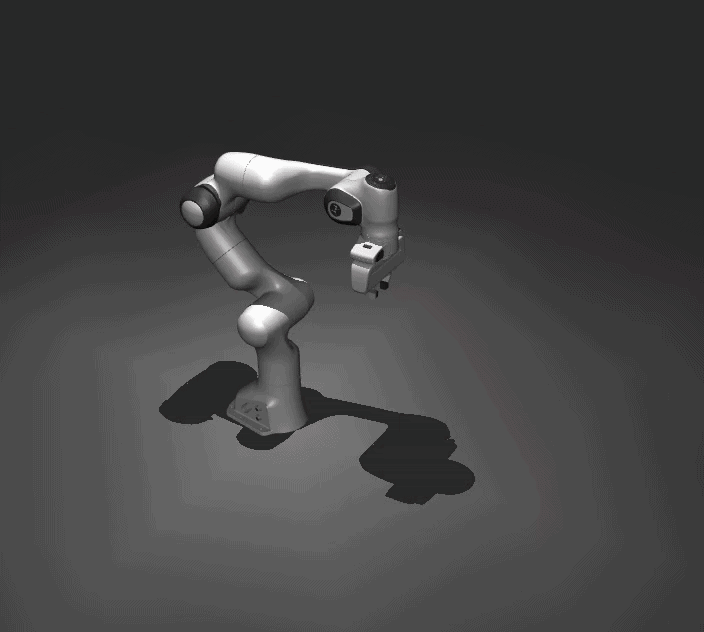

Task Space Control

Panda traces a circle with Cartesian impedance control.

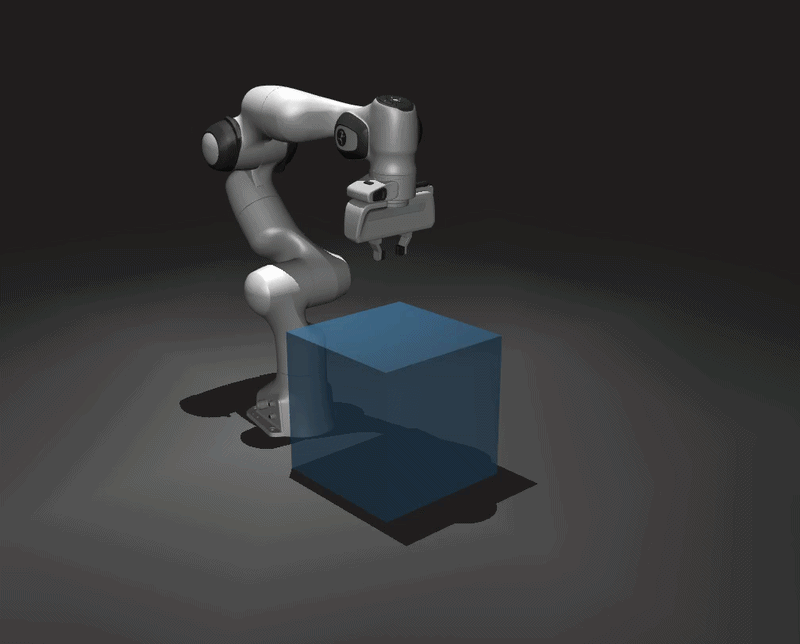

Measuring Contact Forces using FT Sensor

Contact wrench visualised as the robot presses on a block.

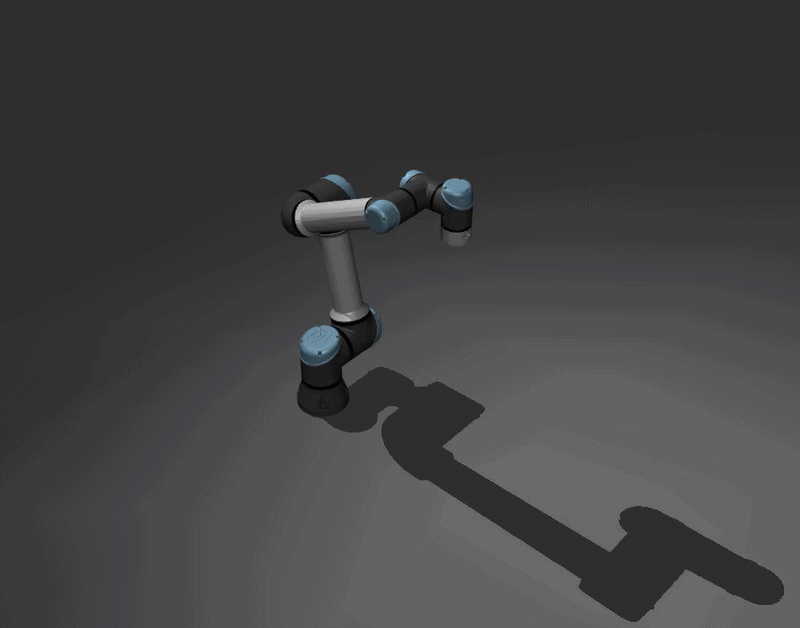

Single arm Inverse Kinematics

UR5e tracks a moving target with differential_ik.

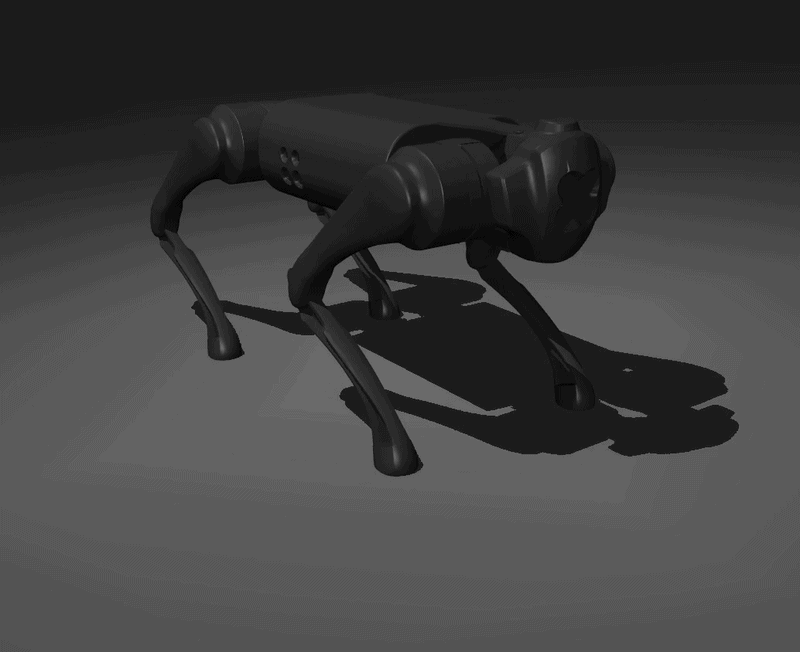

Whole body IK (via mink -- needs pip install "mujoco_robot[ik]")

Go1 whole-body squat demo by doing IK for all four feet and body simultaneously.

Design notes

• Quaternions: the external API uses [x, y, z, w] (scipy convention); values are converted to MuJoCo's [w, x, y, z] only at the boundary.
• Angles: joint positions, velocities, and limits are in radians (a compiled model always stores radians, regardless of the MJCF compiler angle setting).
• Control: writes data.ctrl when the model has actuators, otherwise falls back to data.qfrc_applied with a Python PD loop.
• Fixed vs floating base: a structural free joint (added via MjSpec), not a load-time flag.
• Sensors: force-torque sensors are declared up front (ft_sensor_links); the toggle only gates reading, since MuJoCo sensors are compile-time.

Development

pip install -e ".[dev]"   # test + lint + build tooling
ruff check .
pytest -q

License

MIT (c) Saif Sidhik
