napari-colocalisation 0.1.1

Colocalisation analysis of multi-channel images

napari-colocalisation

⚠️ Under construction — pre-alpha. APIs, UI, and outputs may change without notice. Not recommended for production analysis yet; use at your own risk and please report rough edges via the issue tracker.

Interactive intensity-colocalisation analysis for napari. Pick two channels (or one multi-channel image), optionally restrict the analysis to a region drawn as shapes or labels, choose your metric, and get a results table plus an intensity-vs-intensity scatter plot — all without leaving napari.

Features

• Three correlation metrics: Pearson (PCC), Spearman rank (SRCC), and Manders' coefficients M1/M2 (MCC).
• Pairwise or all-to-all mode: analyse two grayscale layers, or every channel pair within a single multi-channel layer.
• 2D and 3D support natively (no time-series for now).
• Region-restricted analysis via a Shapes or Labels layer — each non-zero region is reported on its own row.
• Manders thresholds: choose Costes auto (iterative regression-based) or Manual.
• Interactive results: in-widget table, scatter plot of the selected row, multi-row selection that highlights all matching shapes/labels in the viewer.
• CSV export of the current table.

Installation

pip install napari-colocalisation

If napari isn't already installed, install both at once:

pip install "napari-colocalisation[all]"

For the latest development version:

pip install git+https://github.com/DBI-INFRA/napari-colocalisation.git

Quick start

1. Launch napari.

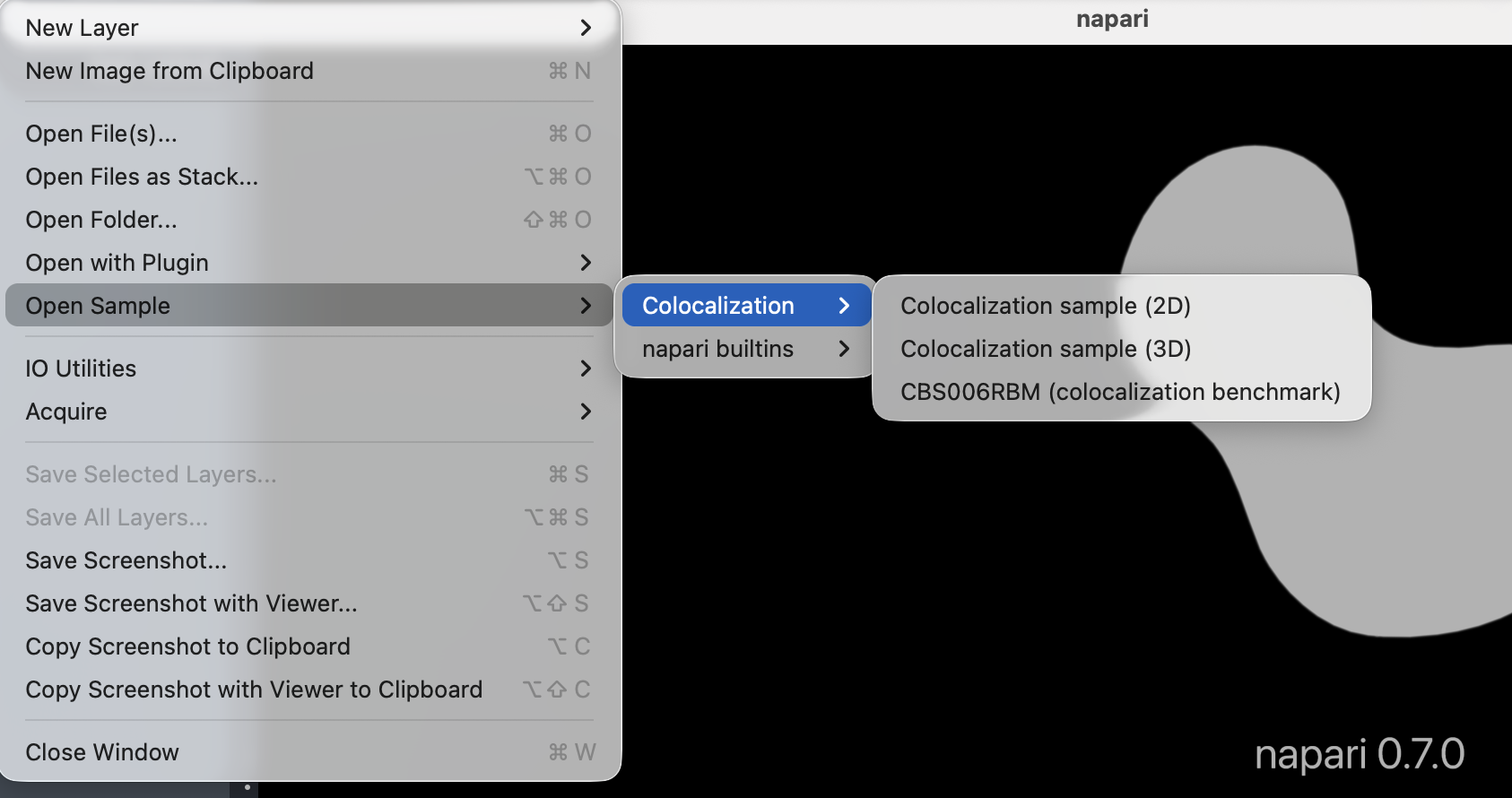

2. Load sample data: File → Open Sample → napari-colocalisation → Colocalisation sample (2D) (a 3D sample is also provided).

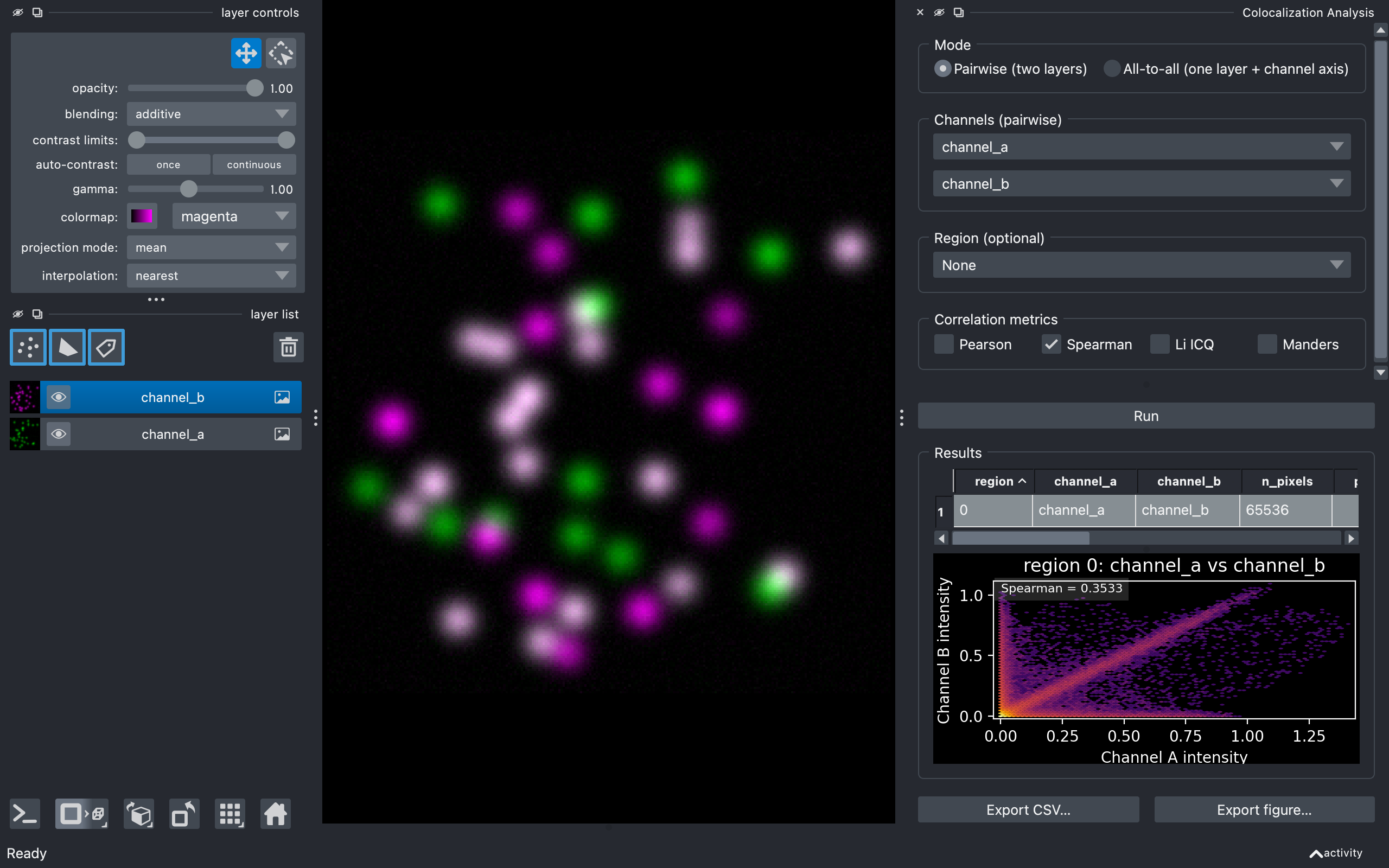

3. Open the widget: Plugins → Colocalisation Analysis. Two image layers channel_a and channel_b are auto-selected for pairwise mode.

4. Click Run. The results table populates with a single row (the whole image), and the scatter plot below shows the intensity pairs with the metric values overlaid.

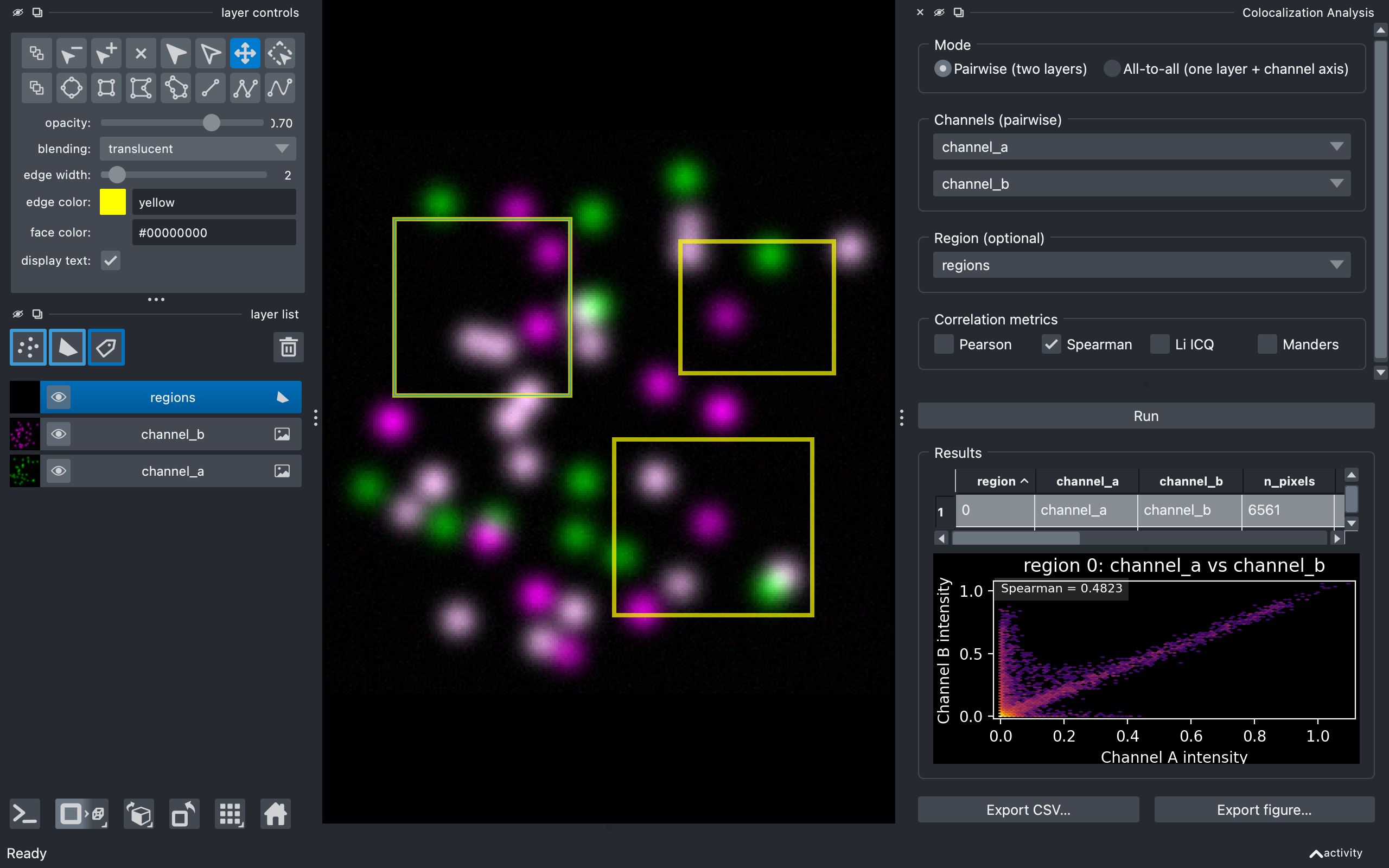

5. (Optional) Add a Shapes layer, draw a few rectangles or polygons, set Region to Shapes and pick the layer. Re-run — the table now has one row per shape, and clicking a row highlights the matching shape in the viewer.

See docs/usage.md for the full walkthrough.

Documentation

• Usage guide — every control in the widget, in order.
• Metrics — what PCC, SRCC and MCC mean, when to use which, and how the Costes auto-threshold works.
• Python API — calling the pure-compute layer (pearson, spearman, manders, costes_threshold, analyse_pairwise, analyse_all_to_all) from scripts or notebooks.

Related projects

• Coloc 2 — the reference ImageJ colocalisation plugin; this plugin follows it in spirit.
• scikit-image colocalization metrics — the underlying implementations of PCC and Manders.

Contributing

Contributions are welcome. Run the test suite with:

pip install -e . --group dev
python -m pytest tests/ -v

Pre-commit hooks (ruff lint + format, napari-plugin-checks) ship with the repo:

pre-commit install
pre-commit run --all-files

Please keep test coverage at or above the current level when submitting a PR.

License

Distributed under the terms of the MIT licence; napari-colocalisation is free and open-source software.

Issues

Found a bug or have a feature request? Please open an issue.
