plugin for PRAM data annotation and processing

Project description


License PyPI Python Version tests codecov napari hub

Plugin for PRAM data annotation and processing.


This napari plugin was generated with Cookiecutter using @napari's cookiecutter-napari-plugin template.


Open napari-pram toolbox:

On the toolbar, select [Plugins] > napari-pram: Open PRAM's toolbox

Load PRAM image and annotations:

Press Command/Control + O:

  • Select *.json files for annotations (from either VGG Annotator or napari-pram)
  • Select *.png files for PRAM image


  • Press Annotate
  • Click the plus-in-circle icon on the top-left panel and start editing

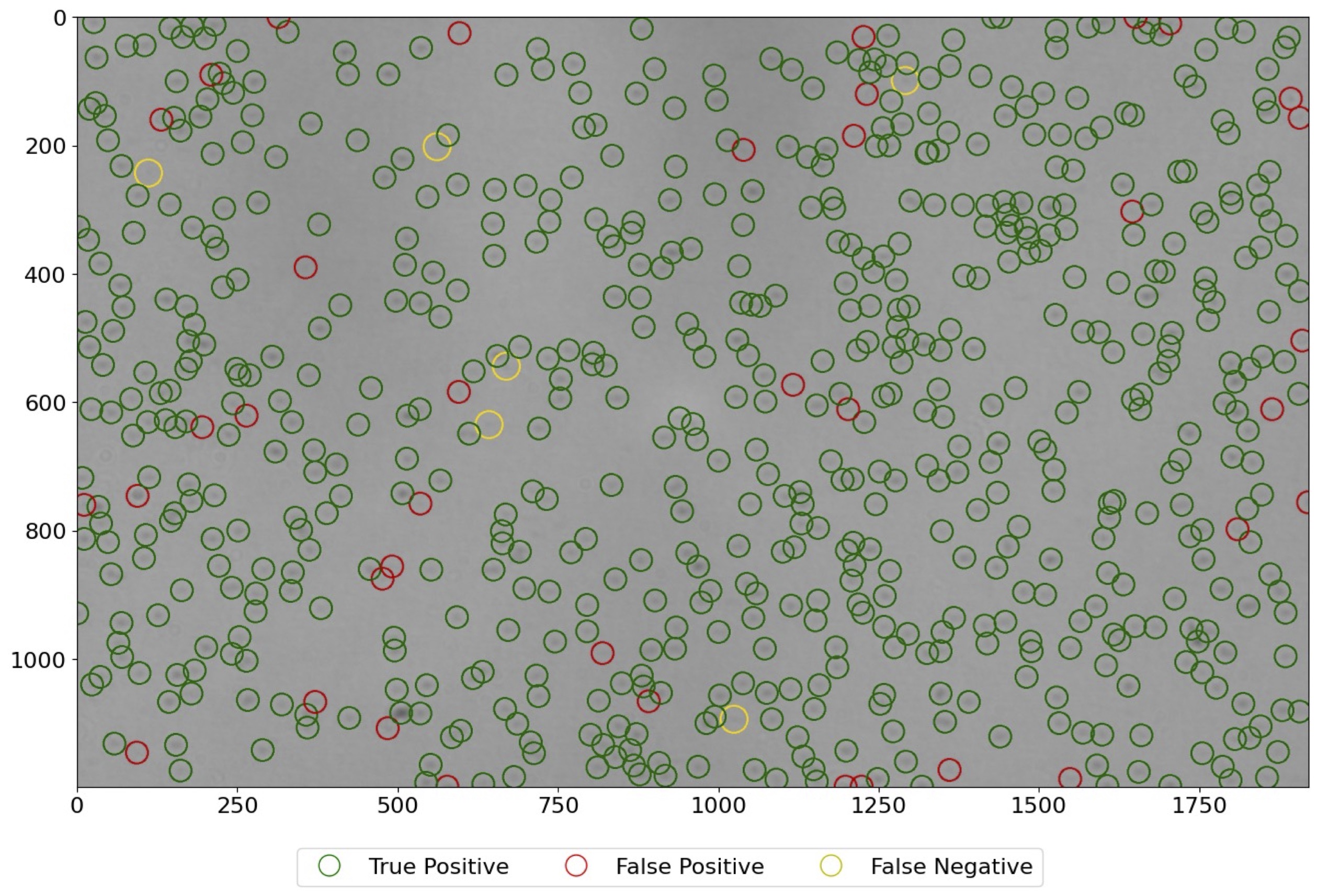

Run PRAM particles detector

  • Select a proper threshold between 1 (ultra sensitive) - 10 (less sensitive)
  • Press Run Detector


  • Press Evaluate
  • Hide/Unhide true positive/ false postive/false negative layers

Load new image

  • Press Clear All to remove all layers

Export to JSON

  • Press Save to File to export all annotations, predictions from the algorithm to a JSON file


Following this tutorial to install napari.

Alternatively, you can follow my instructions as follows:

You will need a python environment. I recommend Conda. Create a new environment, for example:

conda create --name napari-env python=3.7 pip

Activate the new environment:

conda activate napari-env

Install napari via pip:

pip install napari[all]

Then you can finally install our plugin napari-pram via pip:

pip install napari-pram

Alternatively, the plugin can be installed using napari-GUI

[Plugins] > Install/Uninstall Plugins and search for napari-pram


Contributions are very welcome. Tests can be run with tox, please ensure the coverage at least stays the same before you submit a pull request.


Distributed under the terms of the MIT license, "napari-pram" is free and open source software


If you encounter any problems, please [file an issue] along with a detailed description.
