napari-stress 0.0.12

Interactive surface analysis in napari for measuring mechanical stresses in biological tissues

napari-stress

This plugin provides tools for the analysis of surfaces in Napari, such as utilities to determine and refine the surface-representation of objects using a ray-casting approach and calculate the curvature of surfaces. It re-implements code in Napari that was written for Gross et al. (2021): STRESS, an automated geometrical characterization of deformable particles for in vivo measurements of cell and tissue mechanical stresses and has been made open source in this repository.

Usage

Functionality in this repository is divided in two groups: Recipes and plugins.

Recipes

Receipes are workflows for processing images, points and surface data step-by-step.

Recipe	Description

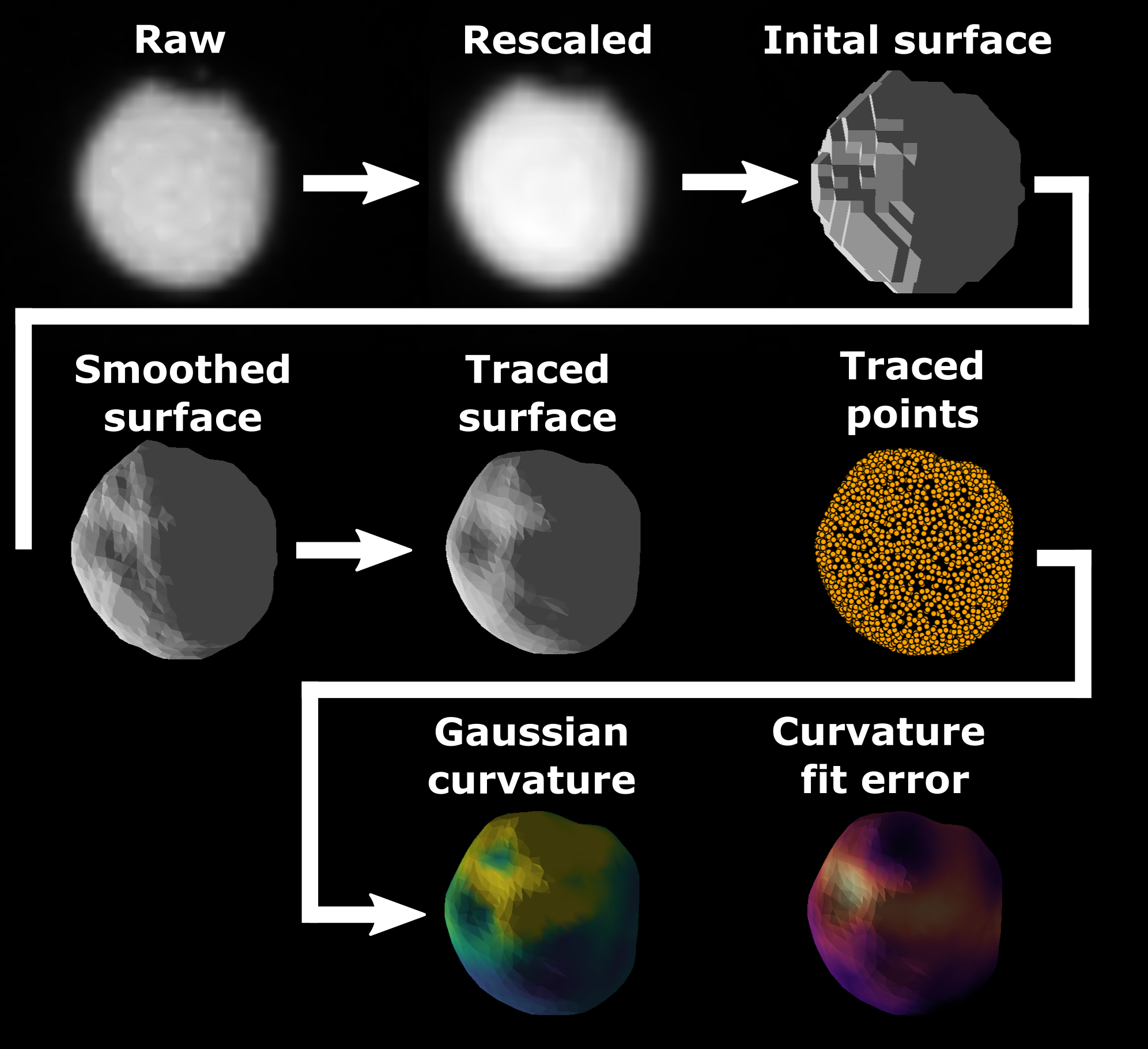

	Confocal data (.tif), 3D+t: Interactive tutorial on how to extract surfaces from intensity image data
	Confocal data (.tif), 3D+t: Jupyter notebook for processing single channel data and extracting gaussian curvature.

Plugins

All functions in napari-stress are documented separately for interactive usage from the napari viewer as well as Jupyter notebooks.

Function	Links

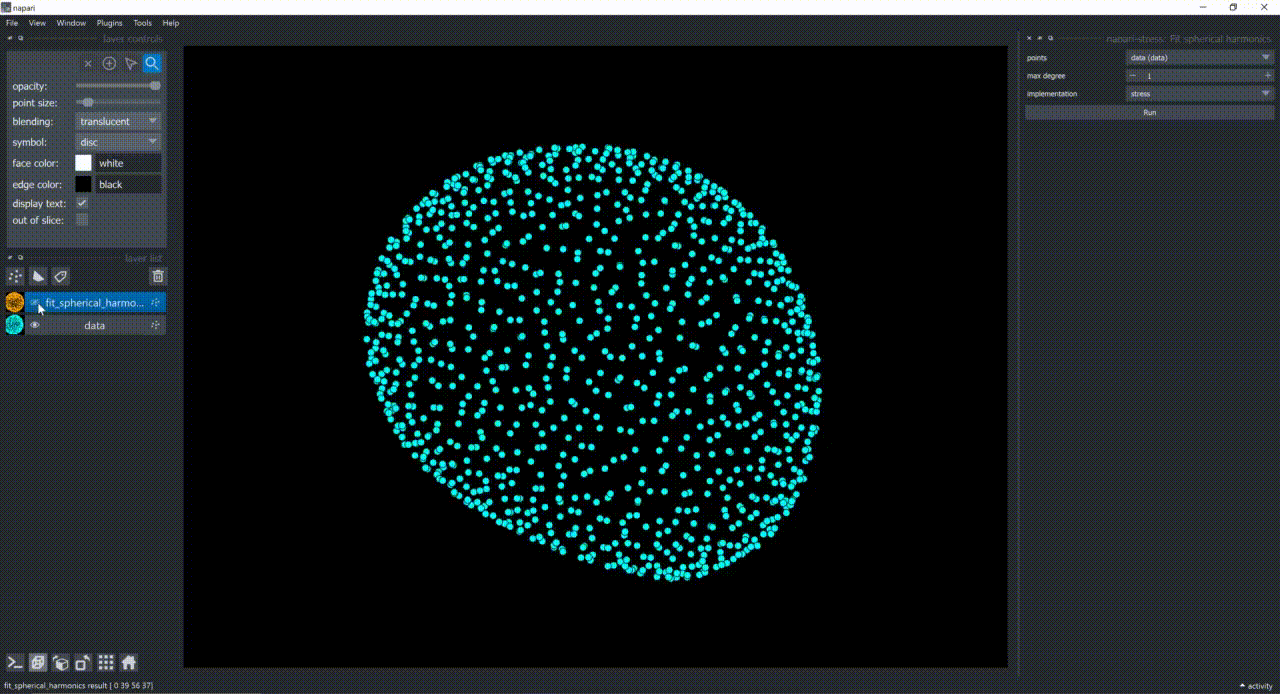

	Fit spherical harmonics: Interactive Code

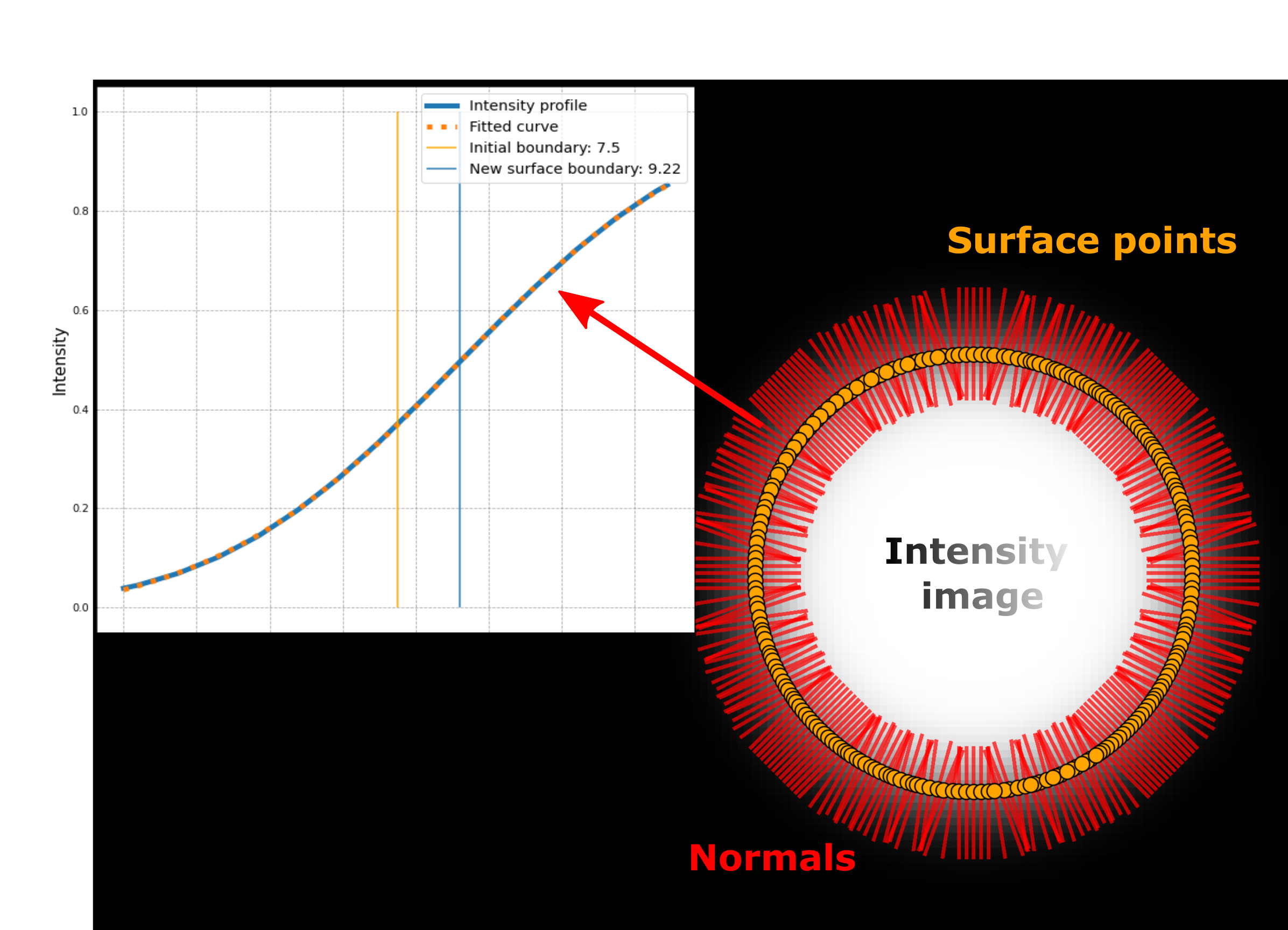

	Surface tracing: Code

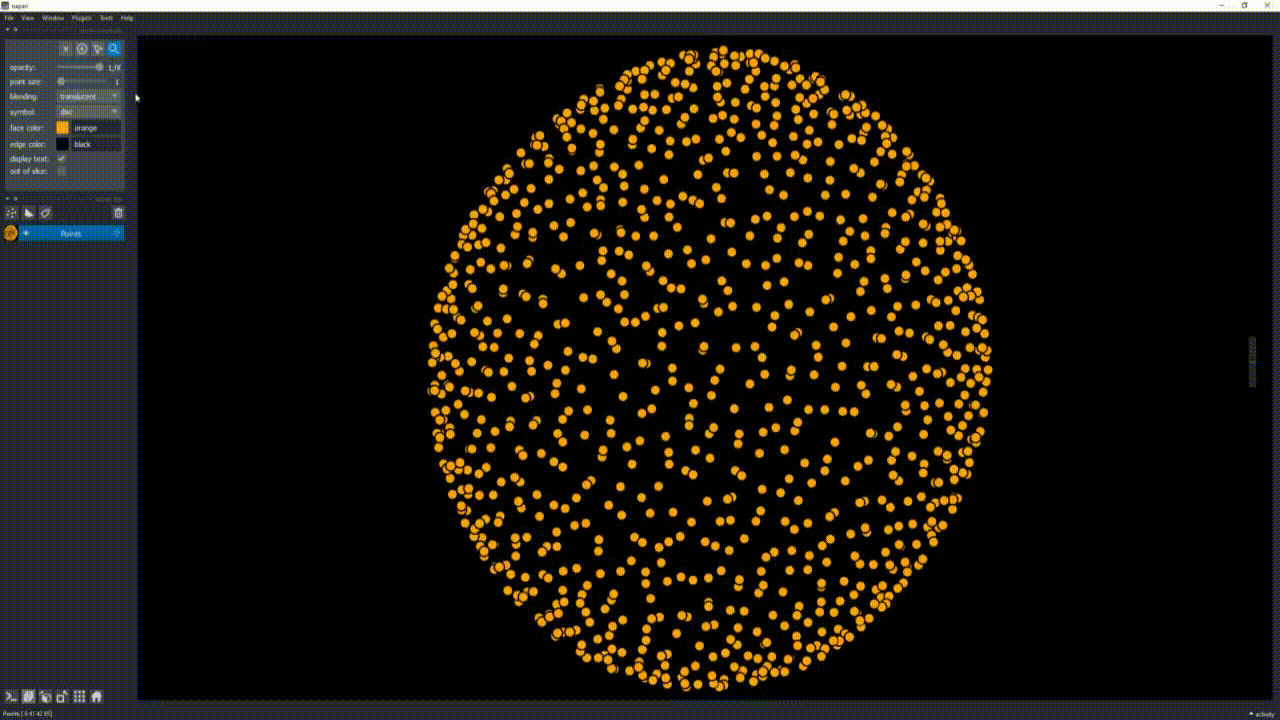

	Reconstruct surface: Code

Utilities

Data to be used for this plugin is typically of the form [TZYX] (e.g., 3D + time). Napari-stress offers convenient ways to use functions from other repositories (which are often made for 3D data) on timelapse data with the frame_by_frame function and the TimelapseConverter class. Both are described in more detail in this notebook.

Installation

Create a new conda environment with the following command. If you have never used conda before, please read this guide first.

conda create -n napari-stress Python=3.9 napari jupyterlab -c conda-forge
conda activate napari-stress

You can then install napari-stress using pip:

pip install napari-stress

Issues

To report bugs, request new features or get in touch, please open an issue or tag @EL_Pollo_Diablo on image.sc.

See also

There are other napari plugins with similar / overlapping functionality

• morphometrics
• napari-pymeshlab
• napari-process-points-and-surfaces

Contributing

Contributions are very welcome. Tests can be run with pytest, please ensure the coverage at least stays the same before you submit a pull request.

License

Distributed under the terms of the BSD-3 license, "napari-stress" is free and open source software

Acknowledgements

This project was supported by the Deutsche Forschungsgemeinschaft under Germany’s Excellence Strategy – EXC2068 - Cluster of Excellence "Physics of Life" of TU Dresden.
