nested-grid-plotter 2.1.1

🚀 Quick start

To install nested-grid-plotter functionality, see the installation instructions.

For a deep overview of nested-grid-plotter functionality, see the user guide.

You can also refer to the API reference guide for an exhaustive list of all what is possible with nested-grid-plotter.

🎯 Motivations

NestedGridPlotter is based on matplotlib and intends to simplify the plotting of nestedgrid by providing a objected oriented class.

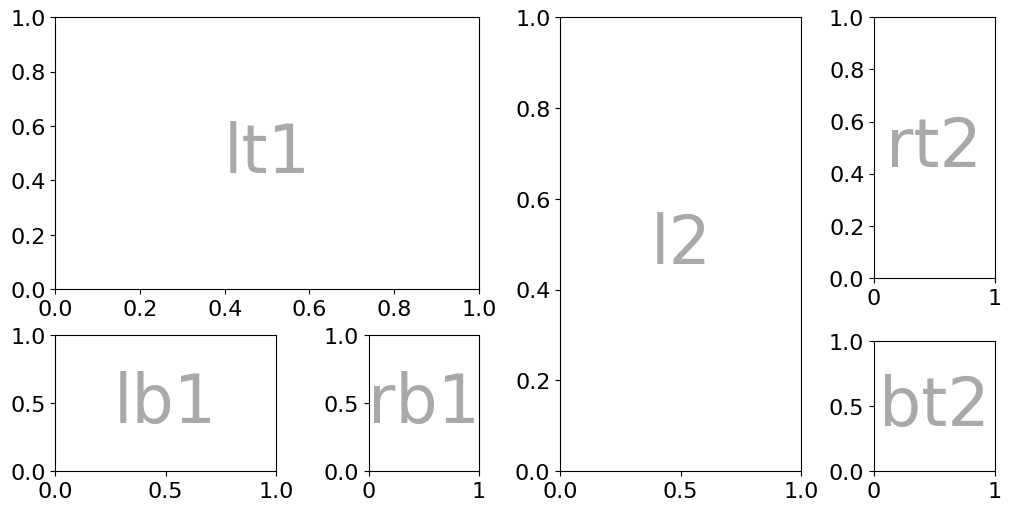

import nested_grid_plotter as ngp

plotter = ngp.NestedGridPlotter(
    ngp.Figure(
        constrained_layout=True,  # Always use this to prevent overlappings
        figsize=(10, 5),
    ),
    builder=ngp.SubfigsBuilder(
        nrows=1,
        ncols=2,
        sub_builders={
            "the_left_sub_figure": ngp.SubplotsMosaicBuilder(
                mosaic=[["lt1", "lt1"], ["lb1", "rb1"]],
                gridspec_kw=dict(height_ratios=[2, 1], width_ratios=[2, 1]),
                sharey=False,
            ),
            "the_right_sub_figure": ngp.SubplotsMosaicBuilder(
                mosaic=[["l2", "rt2"], ["l2", "bt2"]],
                gridspec_kw=dict(height_ratios=[2, 1], width_ratios=[2, 1]),
                sharey=False,
            ),
        },
    ),
)
plotter.identify_axes()  # Helper to add the name of the axis on the plot
plotter.fig

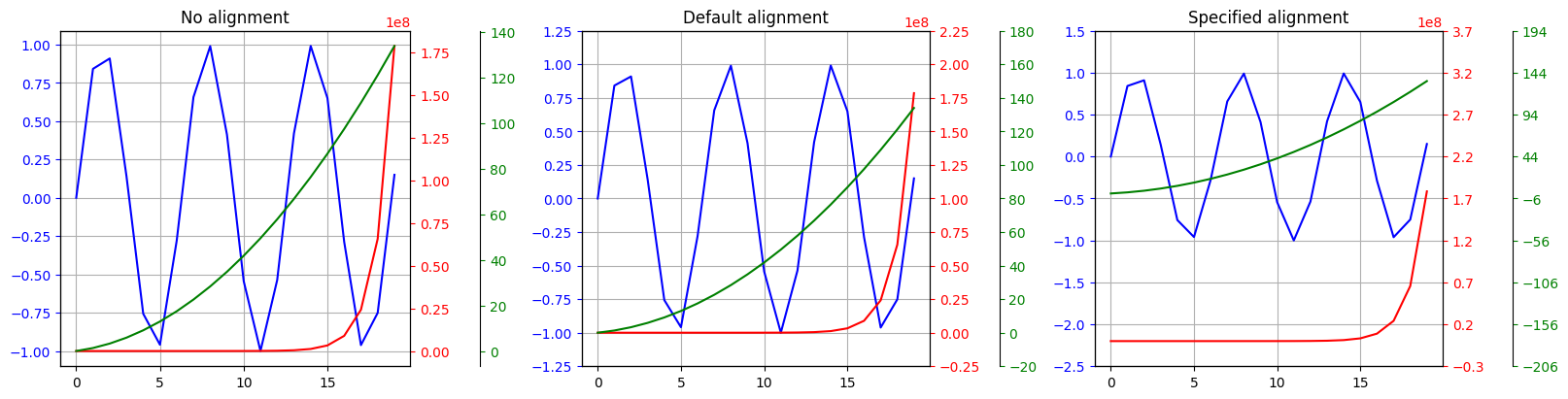

It provide multiple utilities such as grid alignment:

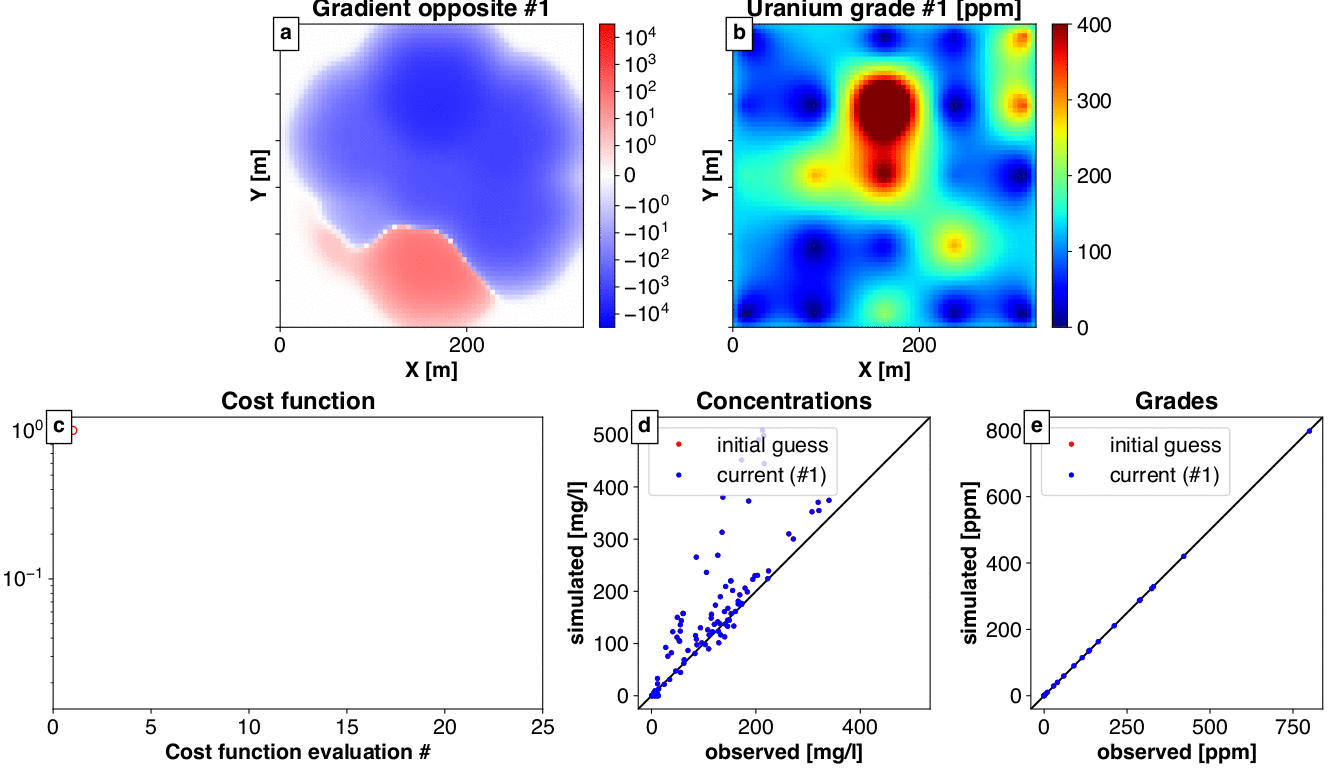

As well as wrapper for complex plots and animations.

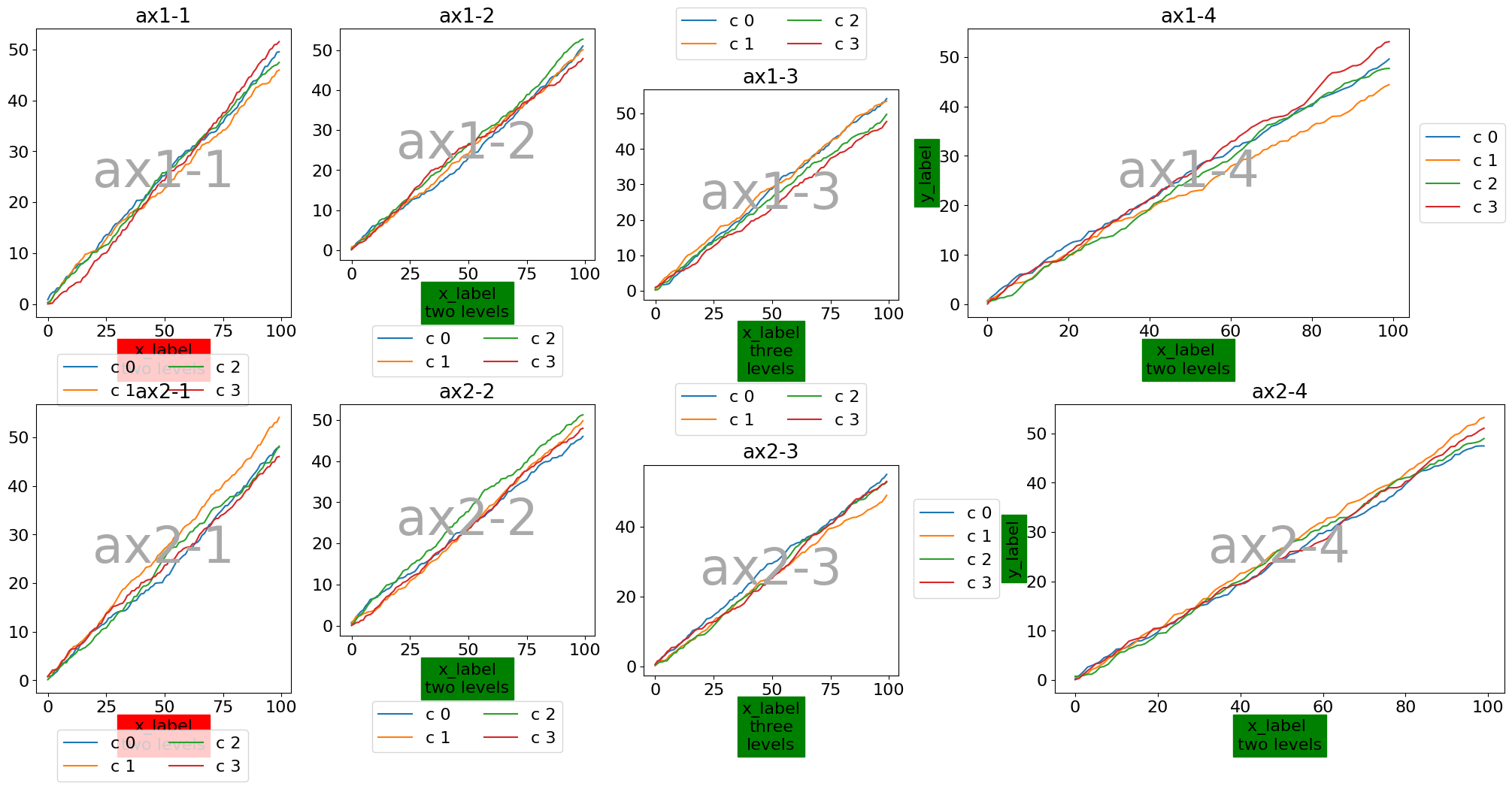

It also allows to make legend positioning and gathering flexible and simpler with some automatic placement solvers:

The complete and up to date documentation can be found here: https://nested_grid_plotter.readthedocs.io.

In addition to simplifying the matplotlib workflow, our focus are:

• To provide understandable, modern code using the high-level language python, while using typing, explicit function names and standardized formatting thanks to Ruff and ty;

• To provide detailed and explicit documentation;

• To offer totally free code, including for commercial use, thanks to the BSD 3-Clause License;
