NetBox Device View plugin

NetBox Device View Plugin

Renders a visual CSS grid representation of a device's physical ports and interfaces directly on the NetBox device detail page.

Requirements

• Python 3.12+
• NetBox 3.5+ (see COMPATIBILITY.md)

Installation

Install from PyPI into the NetBox virtual environment:

source /opt/netbox/venv/bin/activate
pip install netbox-device-view

To ensure the plugin is reinstalled on future NetBox upgrades, add it to local_requirements.txt:

echo netbox-device-view >> /opt/netbox/local_requirements.txt

Run the migration and collect static files:

cd /opt/netbox/netbox
python manage.py migrate netbox_device_view
python manage.py collectstatic --no-input

Configuration

Enable the plugin in your NetBox configuration.py:

PLUGINS = ["netbox_device_view"]

PLUGINS_CONFIG = {
    "netbox_device_view": {
        # Show the port grid inline on the main device tab (default: False)
        # When False, the grid is only shown on a dedicated "Device View" tab
        "show_on_device_tab": False,
        # Where to render the grid when show_on_device_tab is True (default: "bottom")
        # "bottom" — below main device content (full_width_page)
        # "top"    — above main device content (alerts area)
        "device_tab_position": "bottom",
    },
}

How It Works

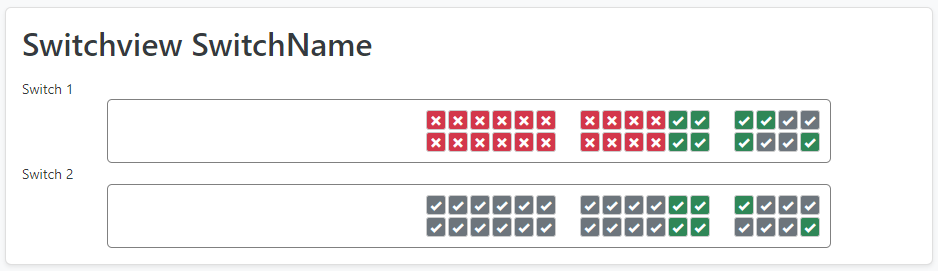

For each Device Type you create a DeviceView object (at Plugins → Device Views → Add) containing a CSS grid-template-areas definition. When you visit a device of that type, the plugin renders every interface and port as a clickable cell in the grid.

Port/Interface name → CSS grid-area name

The plugin derives a stylename for each interface and port, which must match the area names in your CSS:

Interface name	Stylename
GigabitEthernet0/0/1	gigabitethernet0-1
TenGigabitEthernet1/1/4	tengigabitethernet1-4
GigabitEthernet0/1	gigabitethernet-1
Management0	management-0
eth0	eth-0
1 (numeric only)	p1

Rules:

• Names are lowercased
• For the 3-part Cisco format Type{dev}/{module}/{port}, stylename is type{module}-{port}
• For the 2-part format Type{dev}/{port}, stylename is type-{port}
• All other names: non-alphanumeric/dot characters are replaced with -
• Purely numeric stylenames are prefixed with p
• Virtual and LAG interfaces are skipped

CSS layout format

The grid_template_area field stores raw CSS. The grid has 32 columns and uses 20 px cells.

Placeholder names:

• x — leading empty cell
• z — trailing empty cell
• s0–s99 — interior spacer cells

Example for a Cisco C9300-24T with an optional 8x 10G module (more in the examples/ folder):

/* C9300-24T */
.deviceview.area {
	grid-template-areas:
	"x x x x x x x x x x x x x x gigabitethernet0-1 gigabitethernet0-3 gigabitethernet0-5 gigabitethernet0-7 gigabitethernet0-9 gigabitethernet0-11 s0 gigabitethernet0-13 gigabitethernet0-15 gigabitethernet0-17 gigabitethernet0-19 gigabitethernet0-21 gigabitethernet0-23 z z z z z"
	"x x x x x x x x x x x x x x gigabitethernet0-2 gigabitethernet0-4 gigabitethernet0-6 gigabitethernet0-8 gigabitethernet0-10 gigabitethernet0-12 s0 gigabitethernet0-14 gigabitethernet0-16 gigabitethernet0-18 gigabitethernet0-20 gigabitethernet0-22 gigabitethernet0-24 z z z z z";
}

/* C9300-24T with C9300-NM-8X */
.deviceview.moduleC9300-NM-8X.area {
	grid-template-areas:
	"x x x x x x x x x x x x x x gigabitethernet0-1 gigabitethernet0-3 gigabitethernet0-5 gigabitethernet0-7 gigabitethernet0-9 gigabitethernet0-11 s0 gigabitethernet0-13 gigabitethernet0-15 gigabitethernet0-17 gigabitethernet0-19 gigabitethernet0-21 gigabitethernet0-23 s1 tengigabitethernet1-1 tengigabitethernet1-3 tengigabitethernet1-5 tengigabitethernet1-7"
	"x x x x x x x x x x x x x x gigabitethernet0-2 gigabitethernet0-4 gigabitethernet0-6 gigabitethernet0-8 gigabitethernet0-10 gigabitethernet0-12 s0 gigabitethernet0-14 gigabitethernet0-16 gigabitethernet0-18 gigabitethernet0-20 gigabitethernet0-22 gigabitethernet0-24 s1 tengigabitethernet1-2 tengigabitethernet1-4 tengigabitethernet1-6 tengigabitethernet1-8";
}

Module variants

If a device has an installed module, an additional CSS class matching the module model is added. Define a separate rule to override the layout when that module is present (see the example above).

Virtual Chassis

For virtual chassis devices, each member's CSS areas are scoped with a .d{vc_position} suffix automatically. Define per-member layouts using those suffixes:

/* Member at vc_position 1 */
.deviceview.area.d1 {
    grid-template-areas: "gigabitethernet0-1 gigabitethernet0-2";
}

/* Member at vc_position 2 */
.deviceview.area.d2 {
    grid-template-areas: "gigabitethernet0-1 gigabitethernet0-2";
}

More ready-made layouts for Cisco C2960X, C8300, C9200, C9300, generic patch panels, and Ubiquiti switches are in the examples/ folder.

Troubleshooting

Tab not showing / badge count is zero No DeviceView exists for this device's type. Go to Plugins → Device Views → Add and create one.

A port is not appearing in the grid The port's stylename is not referenced in the CSS. Check what stylename the plugin derives: it follows the rules in the table above. Add a corresponding area name to your grid-template-areas.

Layout looks wrong after adding a module Add a .deviceview.module{ModelName}.area rule to your CSS that includes the new module ports.

Virtual chassis ports missing Ensure your CSS uses .area.d{vc_position} scoped selectors. Each VC member needs its own rule.
