NetBox Map

A NetBox plugin for interactive floor plan visualization, site maps, rack utilization, and cable tracing.

Other plugins: NetBox Ping | Website | Demo

Features

Floor Plans

• Canvas-based editor with drag-and-drop tile placement, pan/zoom, and configurable grids
• 12 tile types -- rack, aisle, wall, column, door, cooling, power, empty, reserved, access point, camera, printer
• Tile orientation (0/90/180/270°) -- text rotates to match, so narrow vertical tiles stay readable
• Link tiles to NetBox objects (racks, devices, power panels, power feeds, ports)
• Background image upload for blueprints or photos
• PDF export with all visible tiles, labels, and FOV cones

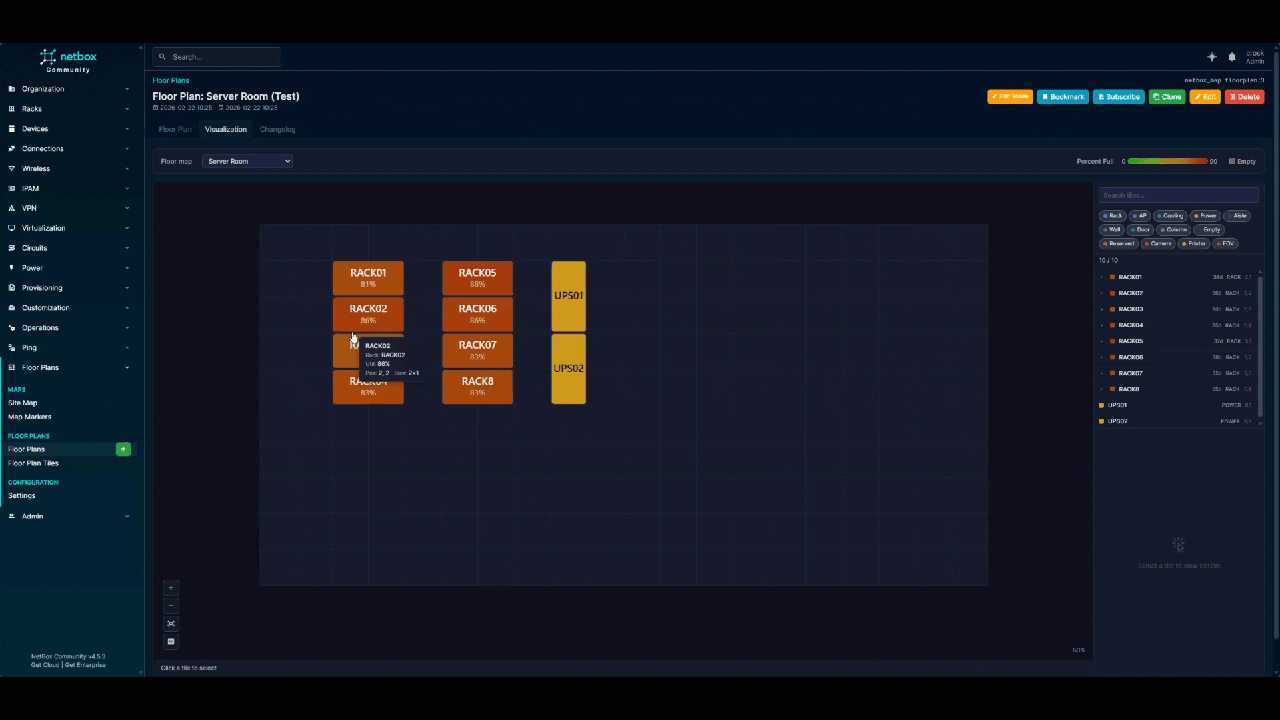

Rack Visualization

• Utilization heatmap -- color gradient from green (0%) to red (90%+) directly on tiles
• Expand racks in the sidebar to see all devices sorted by U-position
• Full rack elevation SVG (front/rear) in the detail panel
• Search across device names and IPs inside racks

Cable Tracing

• Full cable trace for devices, rear ports, and front ports
• Unified traces through patch panels (Server:eth0 → Cable → FrontPort → RearPort → Cable → Switch:Gig1/0/3)
• "Show on map" buttons to zoom to devices that exist on the floor plan
• Rack device traces -- expand a rack, click the cable icon on any device

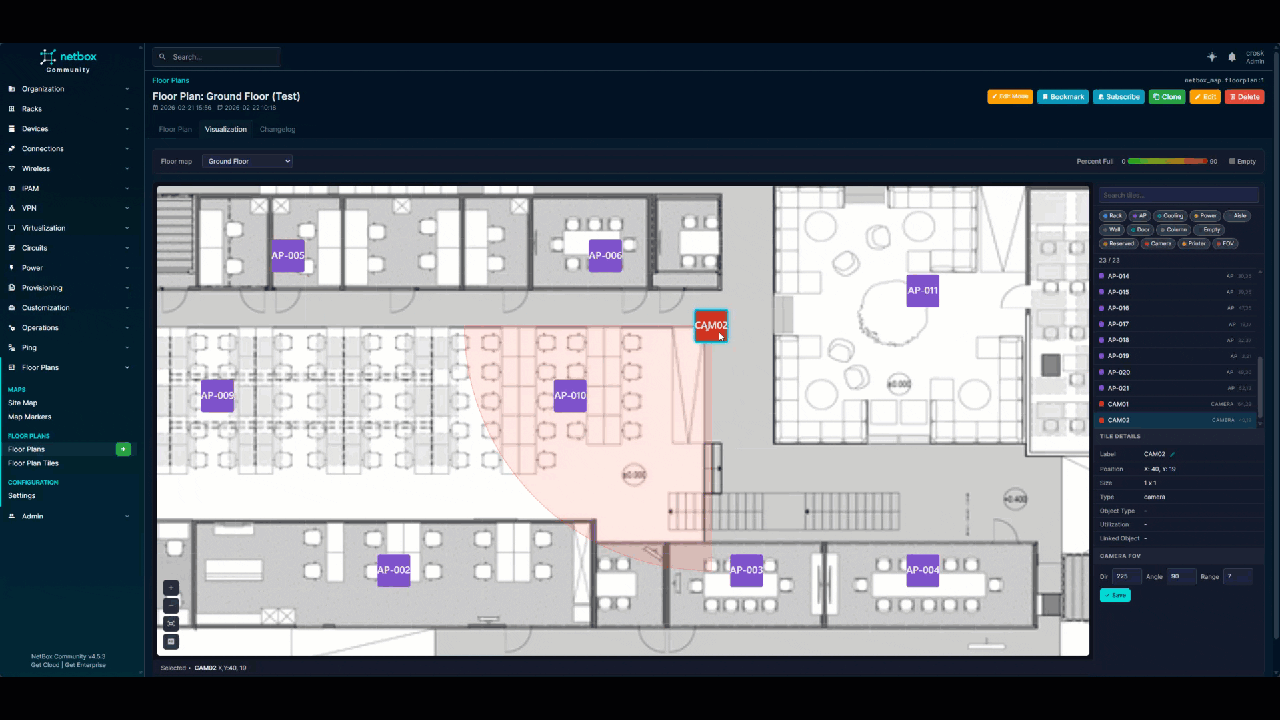

Camera FOV

• Configurable direction (0-360°), angle (10-360°), and distance (1-50 cells)
• Live preview of semi-transparent FOV cones on the canvas
• Toggle all FOV cones on/off

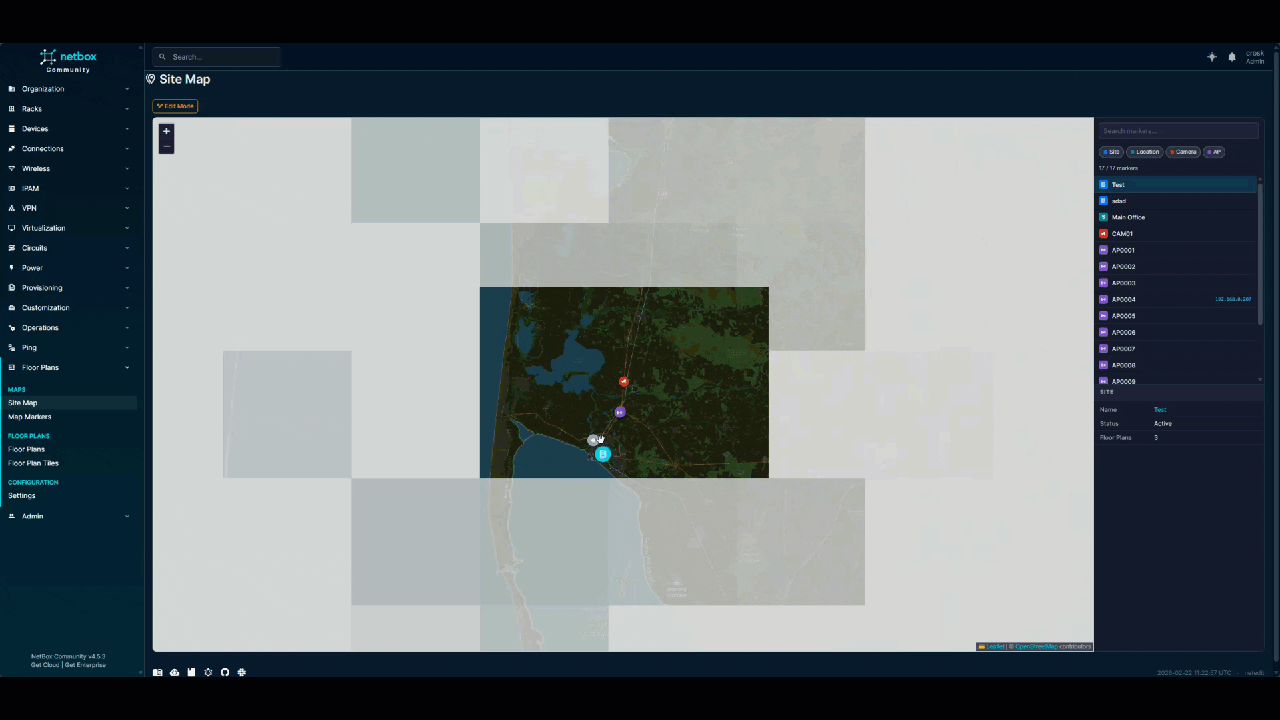

Global Site Map

• Leaflet.js geographic map with OpenStreetMap tiles
• Sites, locations, floor plan tiles, and standalone markers on one map
• Edit mode -- place sites, locations, and markers by clicking the map
• Drag to reposition, auto-saves coordinates
• GPS sync -- automatically writes lat/lng to device records when placed on the map

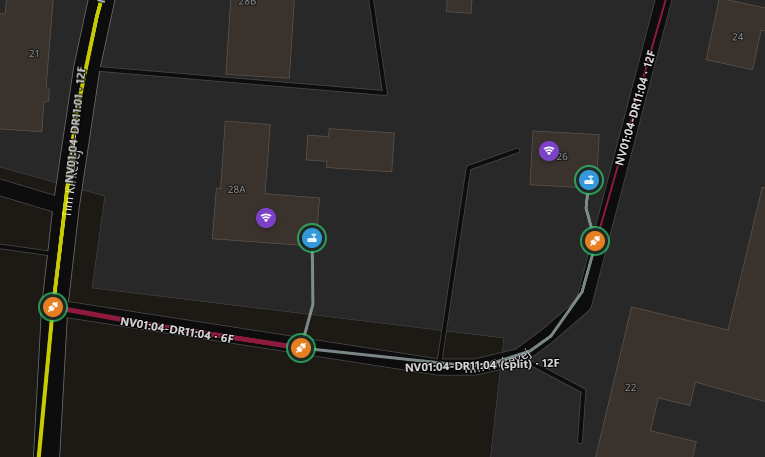

• Early fiber/cable path support (experimental -- expect breaking changes in future releases)

Settings (Web UI)

• Configure detail panel fields per object type from the browser
• Toggle MAC address display, custom fields, GPS sync
• No file editing or restarts needed

Integration

• Site detail page panel with floor plan links
• Device detail page "Map Locations" tab
• Global search indexing for floor plans, tiles, and markers
• Change logging on all models
• REST API with full CRUD, filtering, and search
• Dark mode support

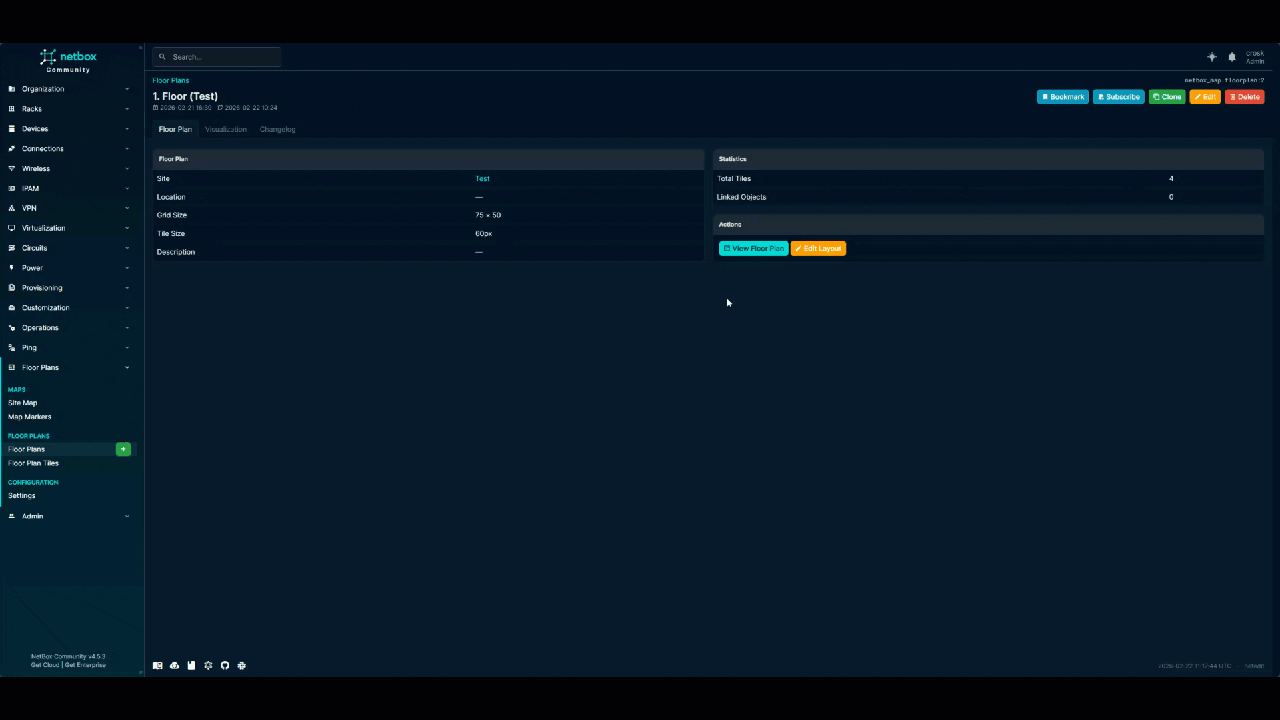

Screenshots

Installation

source /opt/netbox/venv/bin/activate
pip install netbox-map

Or from source:

source /opt/netbox/venv/bin/activate
pip install git+https://github.com/DenDanskeMine/netbox-map.git

Add to configuration.py:

PLUGINS = [
    'netbox_map',
]

Apply migrations and restart:

cd /opt/netbox/netbox
python3 manage.py migrate
python3 manage.py collectstatic --no-input
sudo systemctl restart netbox

GPS Sync

When enabled, placing a device on a map automatically writes lat/lng to the device record. Clearing the tile/marker clears the GPS if no other map references remain.

Maps URL Deep-Linking

Point NetBox's built-in Map button to this plugin instead of Google Maps:

1. Go to Admin > Configuration > Miscellaneous
2. Set Maps URL to: https://your-netbox-url/plugins/map/sitemap/?q=
3. Save

Now clicking the Map button on any Site or Device opens the plugin's site map centered on that location.

REST API

Endpoint	Description
/api/plugins/netbox-map/floorplans/	Floor plan CRUD
/api/plugins/netbox-map/floorplan-tiles/	Tile CRUD
/api/plugins/netbox-map/location-coordinates/	Location coordinates
/api/plugins/netbox-map/map-markers/	Map marker CRUD

All endpoints support filtering, pagination, and brief mode.

Requirements

• NetBox 4.5.0+
• Python 3.12+

Development

git clone https://github.com/DenDanskeMine/netbox-map.git
cd netbox-map
pip install -e .

License

Apache License 2.0 -- see LICENSE.

Support

Open an issue on GitHub.
