nextion-tools

Tools for Nextion HMI displays: the Nextion Editor's project files, the TFTs it compiles, and an emulator of the display itself for testing the firmware that drives one.

Try it

git clone https://github.com/jamesmulcahy/nextion-tools
cd nextion-tools
pip install -e ".[images]"
python demo/run.py

Then open http://127.0.0.1:8080/ and use the panel with your mouse.

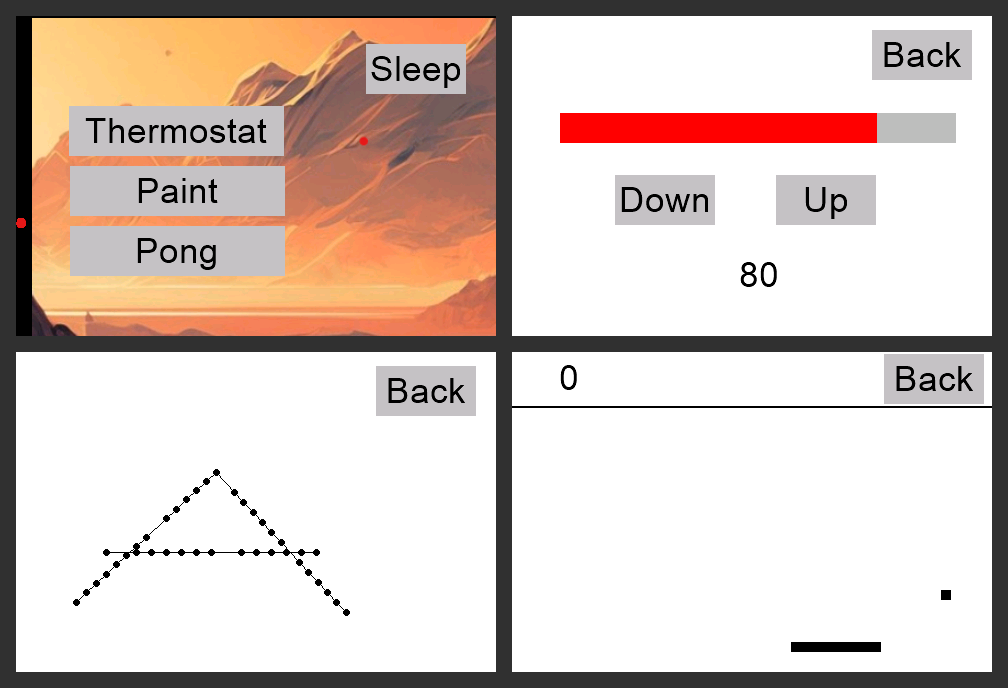

That is an emulated Nextion display running a project made in the Nextion Editor (demo/demo.HMI), with its own touch handling, scripts and timers, and a small Python program (demo/companion.py) as the microcontroller behind it: the menu's buttons change page, the thermostat's bar turns red near the top, Paint draws where you drag, and Pong plays against a paddle that follows the pointer. The same companion drives a real display flashed with demo/demo.tft. See The demo and demo/README.md.

pip install nextion-tools            # hmi, tft, crc and the emulator: no dependencies
pip install nextion-tools[images]    # fonts, pictures, rendering and the viewer: numpy and Pillow
pip install nextion-tools[serial]    # the emulator on a real serial port: pyserial

from nextion_tools.hmi import Project

project = Project.load("gui.HMI")
home = project.page("home")                 # KeyError if there is none; find_page() gives None
print(home.id, [(c.id, c.name, c.kind, c.rect) for c in home.components])
print(home.component("tm0").events["timer"])
print(project.program)                      # Program.s, line by line

The format notes are in the module docstrings, and were checked against files the Editor saved.

The demo

demo/ holds a small project made in the Nextion Editor (demo.HMI, and demo.tft compiled from it) and companion.py, a Python program that plays the MCU. python demo/run.py runs the whole thing (the emulated display, the companion and the browser viewer) in one process, and takes --http PORT and --rotation 90 (the screen as the LCD itself holds it). python demo/companion.py --serial /dev/ttyUSB0 --fps 8 drives a real display running demo.tft, which needs the serial extra. demo/README.md has what each page does and what the project turned up. Nextion and the Nextion Editor are ITEAD's; this project is not affiliated with them.

The emulator

An emulated Nextion HMI display, for testing the firmware that drives one. Point the MCU's UART at it (QEMU's -serial tcp:, a pty, or a real serial port). It executes what it is sent, keeps a model of what the screen would show, replies as a real display does, and lets a test act as the user.

from nextion_tools.emu import Display, TcpServer
from nextion_tools.hmi import Project

display = Display(TcpServer(port=4000), hmi=Project.load("gui.HMI"))  # qemu ... -serial tcp:127.0.0.1:4000
display.wait_for_page("home")
display.press("h_ceiling")                  # a finger on it, by name or id: display.press(22)
display.wait_for_value("home.room.txt", "Kitchen")
assert not display.errors                   # nothing the display would have rejected

Or from a shell, to watch what firmware sends:

python -m nextion_tools.emu --tcp 4000
python -m nextion_tools.emu --pty                 # prints /dev/pts/N
python -m nextion_tools.emu --serial /dev/ttyUSB0 # needs pyserial: pip install nextion-tools[serial]
python -m nextion_tools.emu --tcp 4000 --hmi gui.HMI   # with the project's pages and code
python -m nextion_tools.emu.script gui.HMI        # can every event of this HMI be run?

What it models

Replies follow what an NX4832T035 (the Sonoff NSPanel's display) was measured to do, which differs from Nextion's documentation in places:

bkcmd starts at 2, as on a display that has just powered on, and power_cycle() puts it back.

Ideal or flow model. By default every instruction executes the moment it arrives, so tests see exactly what the firmware meant to draw. With flow_model=True the display behaves as the real one does:

• input arrives at line rate (QEMU's UART does not pace writes);
• it waits in a buffer of 1088 bytes;
• the display stalls on page changes, ref and delay;
• a burst that overruns the buffer during a stall loses commands (display.lost), and the display sends 0x24 when it resumes.

tests/emu/test_calibration.py replays the hardware measurements against the model, so it cannot drift from them unnoticed.

TFT uploads (whmi-wri, whmi-wris): the display acknowledges 4096-byte chunks, answers v1.2's first chunk with a jump, and keeps the image in display.flash. It can be told to misbehave: slow, dropped or duplicated acks, jumps, stray bytes, a power cycle mid-upload.

The HMI. Given the project (hmi=Project.load(...), read straight from the Nextion Editor's .HMI), the display knows what exists and resolves names as the real one does:

• comp.attr without a page means the current page;
• page.comp.attr reaches another page only for a global component;
• the attribute must be one the component has, and a literal must suit it (text or number);
• page and component ids, for page N and touch events, are the HMI's;
• get answers the HMI's value for anything not yet assigned (display.value(key));
• loading a page resets its local components;
• the display starts on page 0.

Anything that does not resolve fails with 1a and is recorded in display.errors. On a real display running bkcmd=0, that is a label that is silently never drawn. Without an HMI every name is accepted. resolver= overrides the HMI with a function of your own.

The TFT's own code. With an HMI, the display also runs the code in it (emu/script.py):

• Program.s at boot(): its globals, then page 0, whose load code may print a banner;
• each page's unload, load and loadend on a page change, whoever asked for it;
• the current page's timers, every tim ms while en is set, on the display's clock;
• touches. touch_down(x, y) / touch_move / touch_up are a finger on the screen, and press(name), slide(name, value), drag, swipe and tap are built on them. The touch lands on the visible component drawn last at that point (else the page). It sends the 0x65 edges the component's sendkey asks for, then runs the component's down / up (and a slider's slide), then the page's touch capture's, with tch0..3 and the capture's val set as the display sets them. With sendxy=1 each press and release is also reported with its coordinates (0x67).
• sleep: with sleep=1 the screen is dark and touches reach nothing; with thup=1 the first one wakes the display (0x87) and is used up doing it.

All of an HMI's code is compiled when the display loads it, and code outside what the interpreter supports is refused then (UnsupportedCode, naming the event and line). python -m nextion_tools.emu.script gui.HMI lists what an HMI uses and what it cannot run. An override (overrides={"page.component.event": fn}, logged at startup) runs Python instead of an event's code; scripts=False turns the code off, and touches are then bare 0x65 frames (send_touch_event). A statement that fails when it runs (an unknown name, say) is reported as an instruction would be (1a, display.errors, display.script_errors), and the code carries on.

For tests that need timers to fire exactly, pass clock=ManualClock(), then clock.advance(s) and display.tick(). expire_timer(name) runs a timer out now, whatever the clock.

Observed on a real NSPanel: assigning en=1 to a running timer restarts its countdown (tapping keeps NSPanel Manager's screensaver off, and each tap runs sleep_display.en=1). The Editor's Debug simulator does not restart it, so it is not a guide to this. Assigning tim restarts it too, which is not observed either way.

Not measured on hardware yet, so each is a choice (see emu/script.py and display.py):

• the order on a touch: the 0x65 frame, then the component's code, then the touch capture's;
• && and || stop at the first operand that decides; a failed condition skips its if;
• an expression mixing +/- with *// is refused, since precedence is not known;
• page ends the event that ran it;
• a slider's value is linear in the touch position, ignoring the thumb's width;
• whether a failed statement in event code sends 1a at bkcmd 2 and 3 (assumed yes);
• sendxy and sleep follow Nextion's instruction set: 0x67 on press and release only (whether a drag streams them is not known), its order before the 0x65 frame, and the waking touch going nowhere.

What the screen shows. display.snapshot() draws the current page as a numpy array, and display.save_png(path) saves it (both need [images]). They draw from the HMI and what the display holds now: pictures, crop pictures, text in the HMI's own fonts, buttons in their pressed or second state, sliders, progress bars, hidden components left out, and the drawing instructions sent since the page was shown (fill, cls, pic, xstr, line, draw, cir, cirs). A sleeping display is black. See render.py for what is and is not drawn.

In a browser. python -m nextion_tools.emu.viewer --hmi gui.HMI --tcp 4000 runs a display and serves it on http://127.0.0.1:8080/. A press on the screen is a finger going down there, a drag moves it, and the side panel shows the page, the last instructions, rejected ones, and the input buffer when the flow model is on. Viewer(display) attaches one to a display a test or rig already has.

Orientation. A page's coordinates are the view of someone looking at a panel mounted as its TFT intends (NSPanel's US pages are 320 x 480, its EU pages 480 x 320), and touches use the same frame, so pictures and the viewer are upright by default. Display(rotation=90) turns snapshots and the viewer clockwise, and maps clicks back, to show a panel as it actually hangs. render.native_rotation(tft.orientation(data)) gives the rotation that shows the LCD's own frame, the one a TFT stores its pictures in: a TFT made at 90 holds them turned 90 degrees clockwise (demo/demo.tft). Project.direction is the same setting, read from the HMI. Fonts from recent Editors are stored turned that way too, and are read upright.

Not modelled (yet)

• Pixel-exact rendering. Pictures and glyphs are exact; borders, the Editor's compressed pictures (drawn from the file they were imported from) and some component types are not.
• Drawing instructions in event code (xstr, fill, ...) and click, tsw, loops: the HMIs tested do not use them, so they are refused rather than guessed at.

Tests

pip install -e ".[images,serial,test]"
python -m pytest

Most tests build small projects in code (tests/hmi_builder.py), and some use the demo's files, which the Editor made. The rest need NSPanel Manager's project and TFT, and are skipped unless given them:

NEXTION_TOOLS_HMI=path/to/gui.HMI NEXTION_TOOLS_TFT=path/to/gui.tft python -m pytest

License

MIT; see LICENSE.
