nnscope

Watch your NumPy neural network learn. Add one line to the training loop of a network you wrote yourself, and nnscope shows it live in your browser: every weight, every gradient, every activation, the loss, and plain-language hints about what is going on. Afterwards you get a standalone HTML replay you can scrub through, share, or export as images.

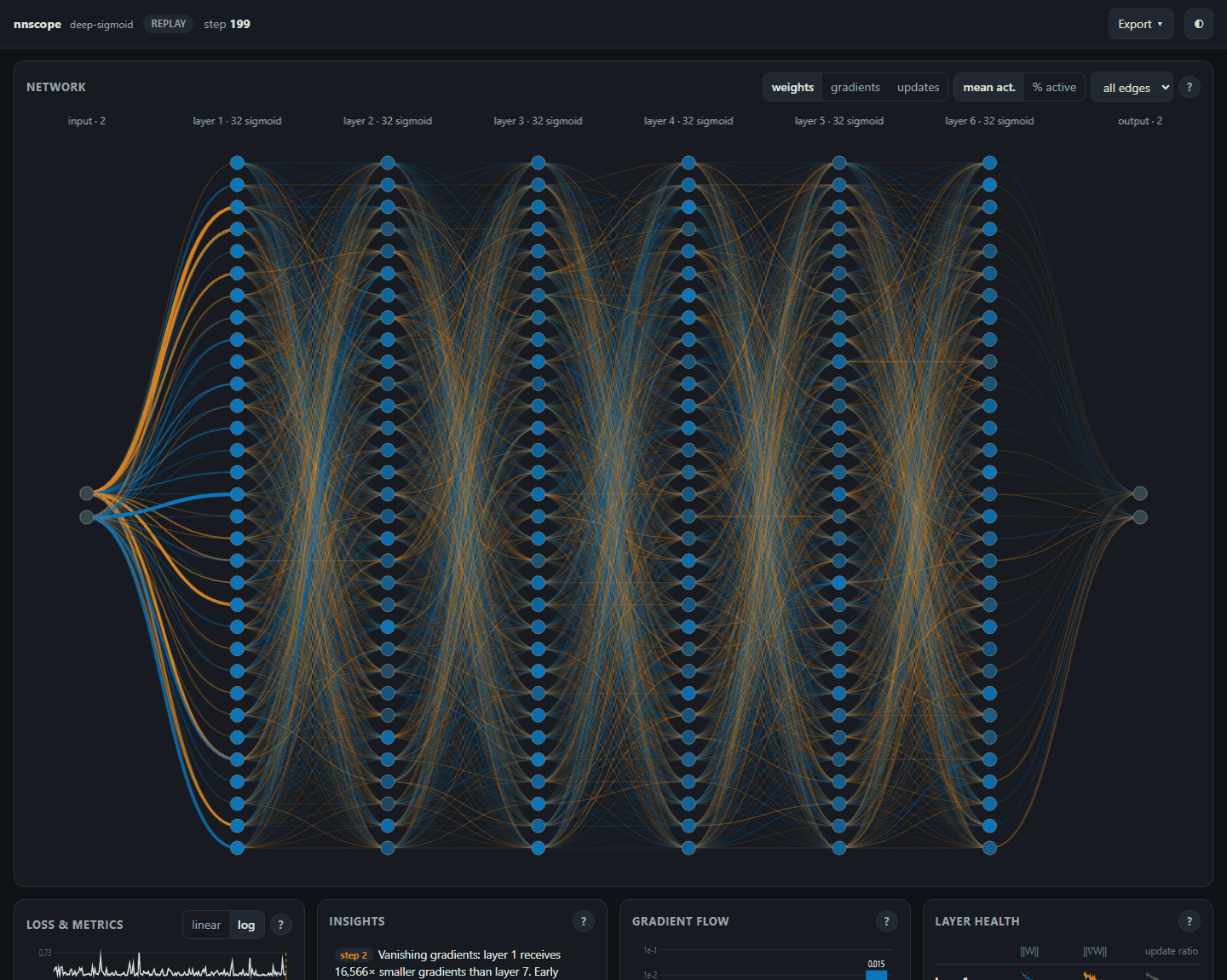

It was built for students implementing neural networks from scratch (forward pass, backprop and SGD in NumPy) who want to see what their code does: gradients flowing backwards, ReLUs dying, sigmoids saturating, a hidden layer slowly learning to separate the classes.

• Zero setup: depends only on NumPy. The dashboard is one self-contained HTML file served by Python's standard library.
• Works with your code: auto-detects common NumPy model layouts, or pass plain arrays.
• Live and replay: a live view while training, then save_html() for an offline replay with a timeline slider.
• Explains itself: every panel has a (?) with the math behind it, and an insights feed diagnoses common problems.
• Responsive: works on a phone (the network turns vertical), light and dark themes.

Install

pip install nnscope            # NumPy is the only dependency
pip install "nnscope[png]"     # optional: PNG snapshots from Python via matplotlib

Quickstart

import nnscope

scope = nnscope.Scope("my-mlp")                    # opens http://127.0.0.1:8765 in your browser
for epoch in range(epochs):
    ...                                             # your own forward pass, backprop and SGD step
    scope.log(epoch, model=model, loss=train_loss, metrics={"test_loss": test_loss})

scope.save_html("run.html")                         # standalone replay, no server needed
scope.snapshot("run.svg")                           # network structure + loss curve as an image
scope.wait()                                        # keep the live page up until Ctrl+C

In a Jupyter notebook, scope.show() puts the live dashboard inline. Use nnscope.Scope(..., live=False) to only record (for save_html / snapshot).

Connecting your network

nnscope never runs your network; it only reads arrays you already have.

1. A model object (auto-detected). Any object with a .layers list whose dense layers expose weights and biases, optionally with their gradients:

Layers without weights are recognised as activations by class name (ReLU, Tanh, Sigmoid, LeakyReLU, …), so the graph shows relu, tanh, … on each layer. CS231n-style parameter dicts ({"W1": …, "b1": …} plus a matching grads dict) and lists of (W, b) pairs work too.

2. Plain arrays. No model object needed:

scope.log(step, weights=[W1, W2], biases=[b1, b2], grads=[dW1, dW2], loss=loss)

Both x @ W (W is (in, out)) and W @ x (W is (out, in)) conventions are detected from how the shapes chain. Force one with Scope(layout="in_out") or layout="out_in" if a network is ambiguous (e.g. every layer square).

Optional extras for richer views:

scope.log(step, model=model, loss=loss,
          activations=[a1, a2],     # per-layer outputs on a batch → activation statistics
          deltas=[d1, d2, d3],      # per-layer ∂L/∂z on a batch → shown in the gradient-flow panel
          latent=z, labels=y)       # features of any layer → latent-space scatter

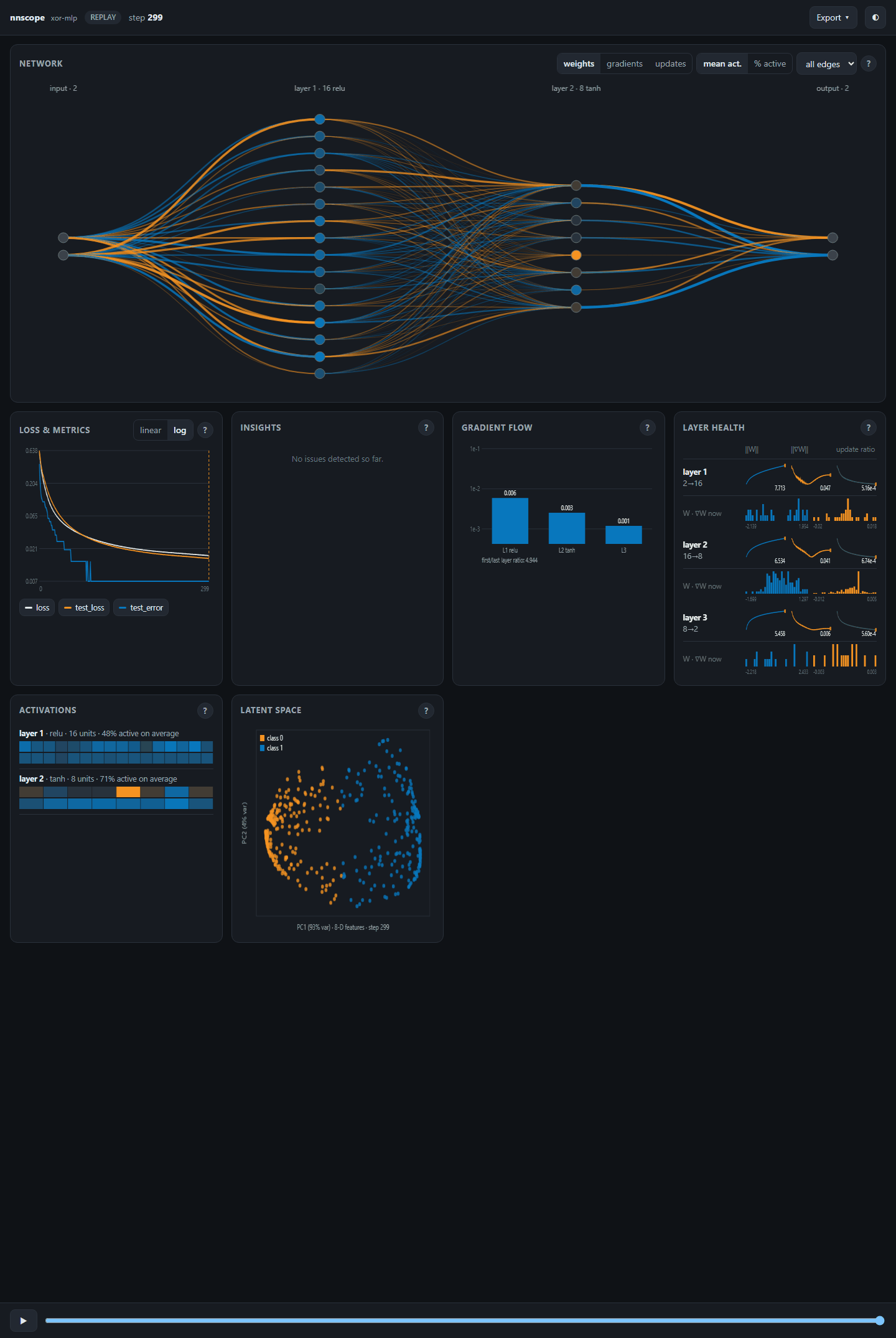

How to read the dashboard

Use the timeline at the bottom (or ← → and space) to replay training. Export saves the network (SVG/PNG), the loss curve, the whole dashboard (PNG) or the raw run data (JSON).

Examples

The examples/ folder uses a tiny homework-style NumPy MLP (_mlp.py). Run them from that folder; add --no-open to skip opening a browser tab, or --headless to only write runs/*.html and runs/*.svg.

API

nnscope.Scope(name="run", *, live=True, port=8765, host="127.0.0.1", open_browser=True, max_neurons=32,
              snapshot_every=None, max_snapshots=300, max_records=5000, layout="auto", latent_points=1000, quiet=False)

• log(step=None, *, model=None, loss=None, metrics=None, weights=None, biases=None, grads=None, bias_grads=None, activations=None, deltas=None, latent=None, labels=None, snapshot=None)
• save_html(path): standalone replay. snapshot(path, step=None): .svg (no dependencies) or .png (matplotlib).
• show(height=820): Jupyter IFrame. wait(): serve until Ctrl+C. close(); also usable as a context manager.
• data(): everything recorded so far as a JSON-serialisable dict.

Keeping it light. Scalars are recorded at every log; full snapshots (edges, histograms, latent points) are thinned adaptively so a run keeps at most max_snapshots of them. Layers wider than max_neurons draw an evenly spaced subset (statistics always use all neurons). The live stream batches updates to about 10 per second.

Limitations. Dense (fully-connected) layers only for now; convolutional layers are not drawn. The server binds to localhost by default.

Development

uv sync --dev
uv run --dev pytest

License

MIT
