ntermqt 0.1.12

Modern SSH terminal widget for PyQt6 with credential vault and jump host support

nterm

A modern SSH terminal for network engineers

PyQt6 terminal widget with encrypted credential vault, jump host chaining, YubiKey/FIDO2 support, and legacy device compatibility.

Built for managing hundreds of devices through bastion hosts with hardware security keys.

---

Features

Terminal

• xterm.js rendering via QWebEngineView — full VT100/ANSI support
• 12 built-in themes: Catppuccin, Dracula, Nord, Solarized, Gruvbox, Enterprise variants
• Hybrid themes: dark UI chrome with light terminal for readability
• Custom YAML themes with independent terminal and UI colors
• Tab or window per session — pop sessions to separate windows
• Session capture to file (clean text, ANSI stripped)
• Unicode, emoji, box-drawing characters

Authentication

• SSH Agent with YubiKey/FIDO2 hardware keys
• Password, key file, keyboard-interactive, certificate auth
• Multiple auth methods with automatic fallback
• RSA SHA-1 fallback for legacy devices (OpenSSH < 7.2)
• Legacy crypto support for old Juniper/Cisco gear

Connection Management

• Jump host chaining (unlimited hops)
• Auto-reconnection with exponential backoff
• Connection profiles in YAML/JSON
• Pattern-based credential resolution

Credential Vault

• AES-256 encryption with PBKDF2 (480,000 iterations)
• Pattern matching — map credentials to hosts by wildcard or tag
• Cross-platform keychain: macOS Keychain, Windows Credential Locker, Linux Secret Service
• Full PyQt6 management UI

Scripting API

• Query device inventory and credentials programmatically
• Built-in IPython console with API pre-loaded
• Platform-aware commands - one API, correct syntax everywhere
• Interactive REPL with quick commands and structured output
• Foundation for MCP tools and agentic workflows

---

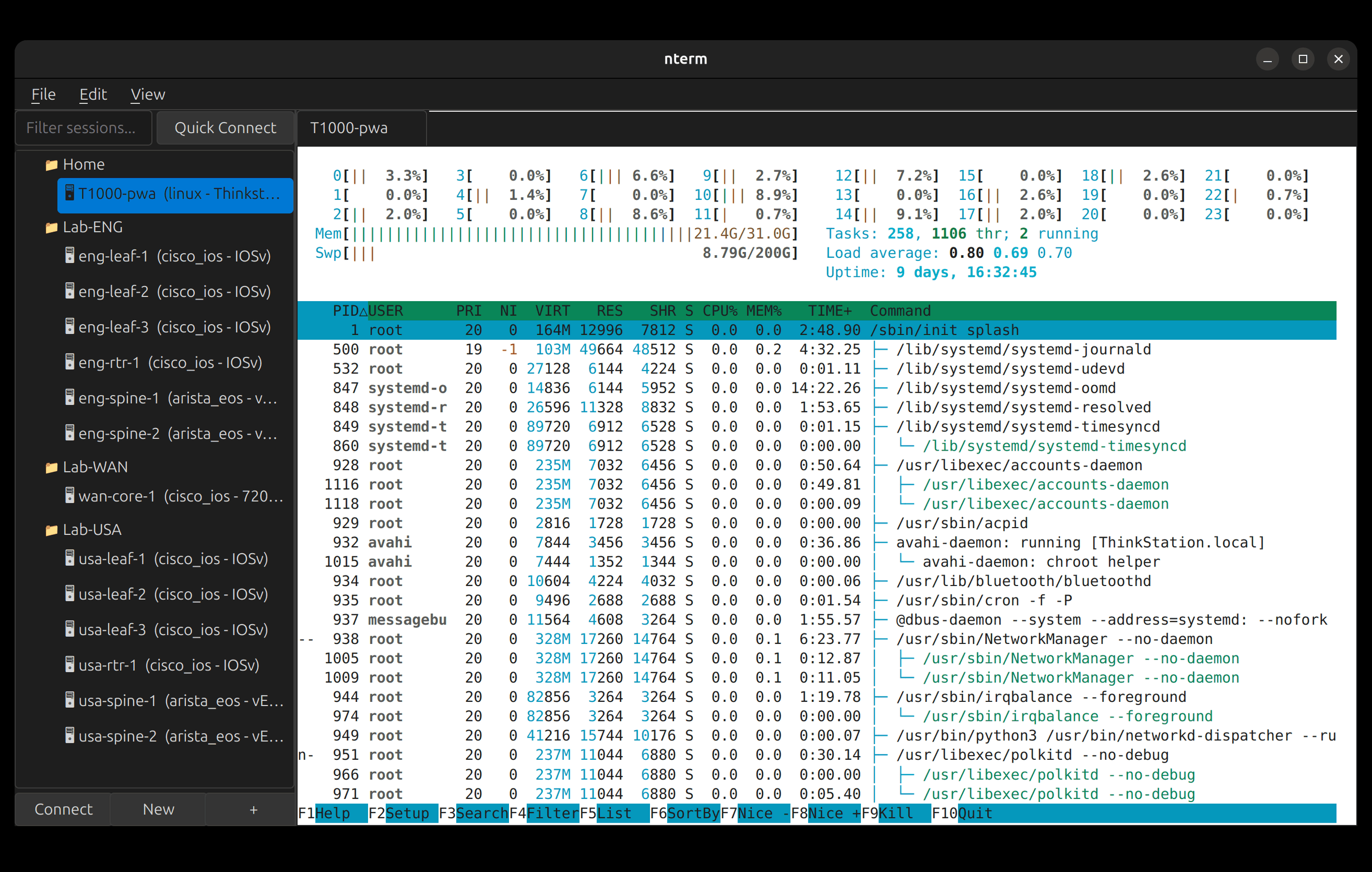

Screenshots

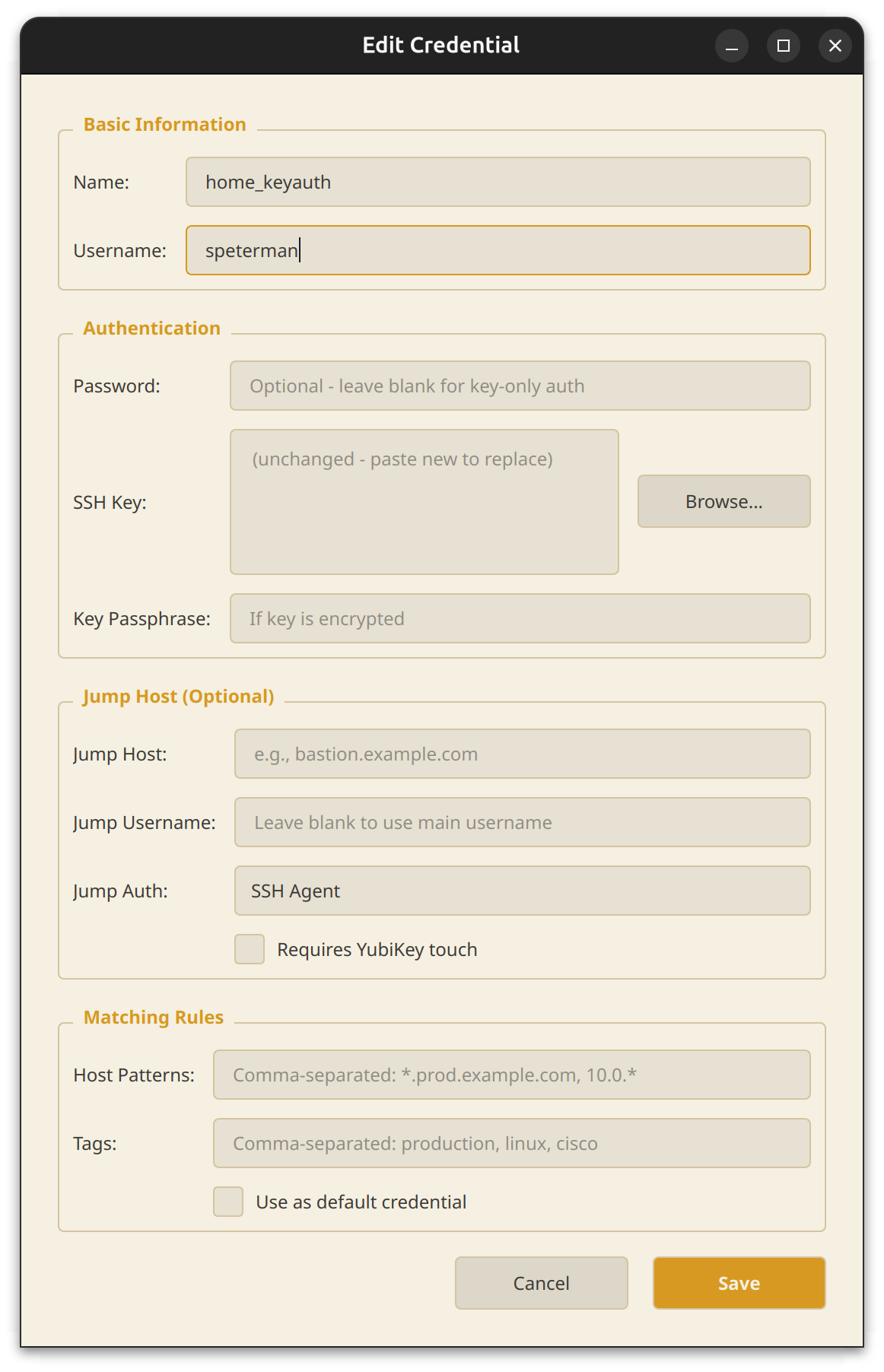

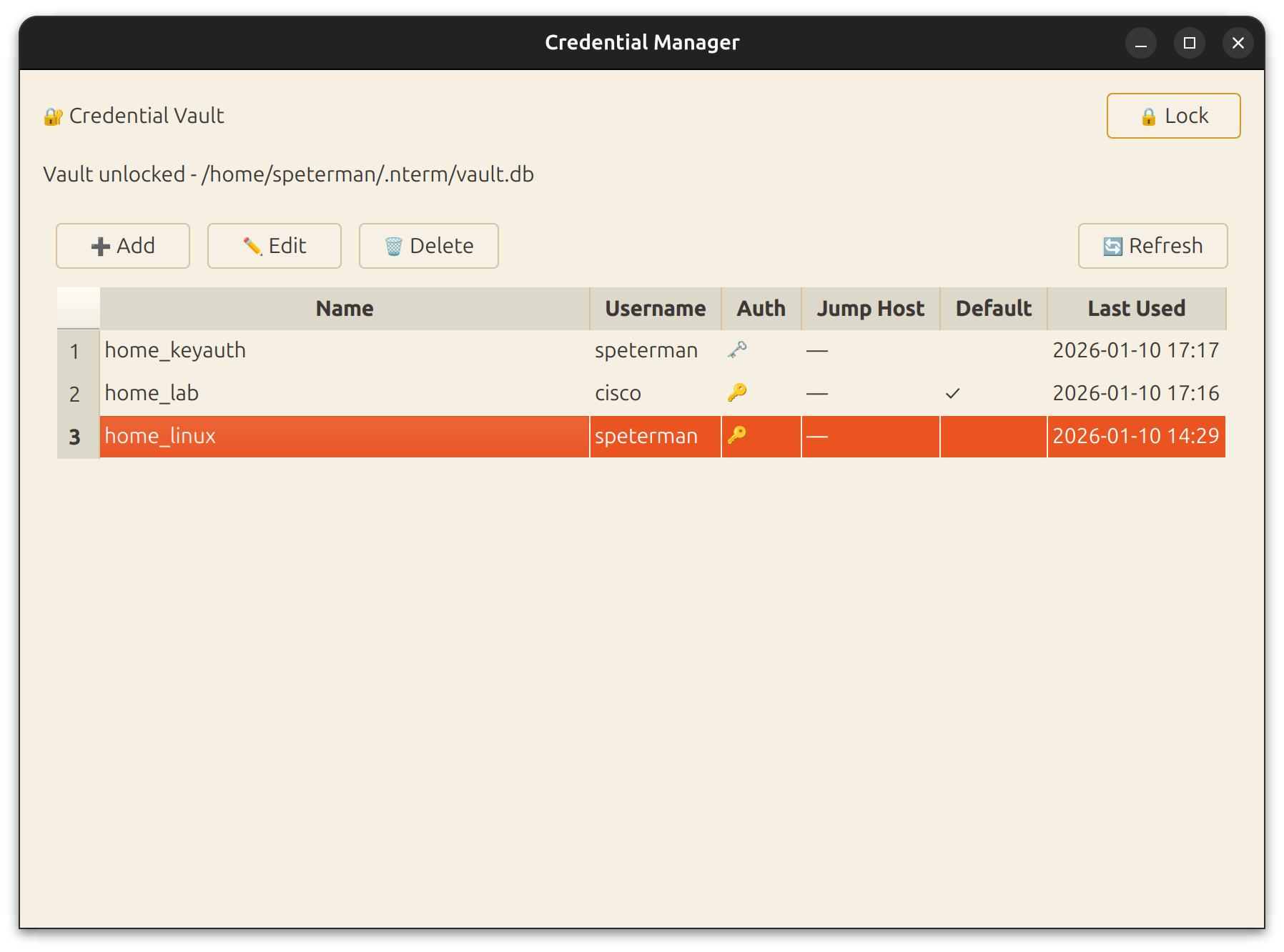

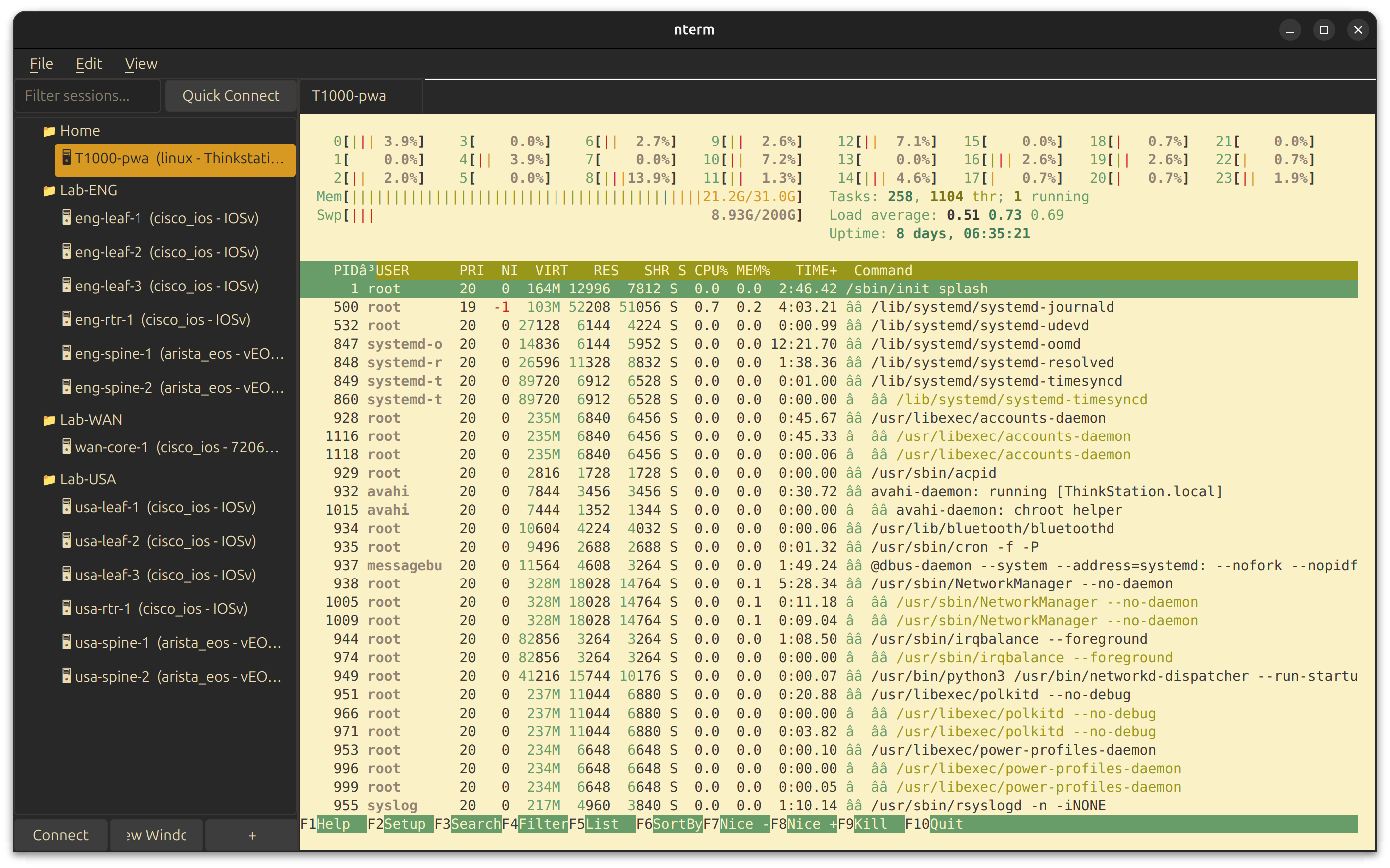

Gruvbox Hybrid Theme	Credential Manager

Connection Dialog	Multi-vendor Support

---

Dev Console

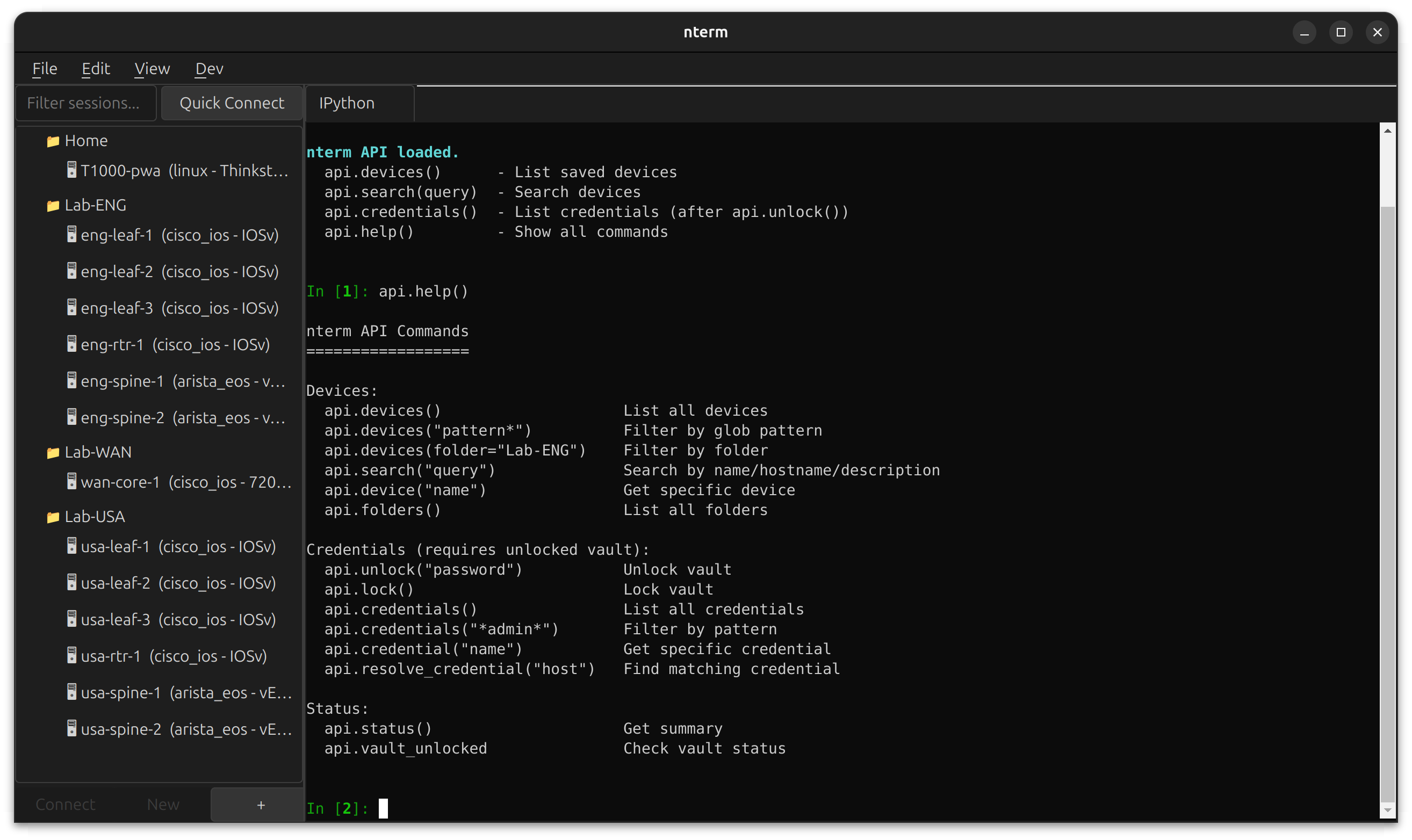

nterm includes a built-in development console accessible via Dev → IPython or Dev → Shell. Open in a tab alongside your SSH sessions, or pop out to a separate window.

The IPython console runs in the same Python environment as nterm, with the scripting API pre-loaded. Query your device inventory, inspect credentials, and prototype automation workflows without leaving the app.

# Available immediately when IPython opens
api.devices()                    # List all saved devices
api.search("leaf")               # Search by name/hostname
api.credentials()                # List credentials (after api.unlock())
api.help()                       # Show all commands

Use cases:

• Debug connection issues with live access to session objects
• Prototype automation scripts against your real device inventory
• Test credential resolution patterns
• Build and test MCP tools interactively

Requires the scripting extra: pip install ntermqt[scripting]

---

Installation

Be aware due to a naming conflict, the pypi package is actually "ntermqt"

From PyPI

https://pypi.org/project/ntermqt/

pip install ntermqt

# With optional scripting support (IPython)
pip install ntermqt[scripting]

# With all optional features
pip install ntermqt[all]

# Run
nterm

From Source

git clone https://github.com/scottpeterman/nterm.git
cd nterm

# Create virtual environment
python -m venv .venv
source .venv/bin/activate  # Linux/macOS
# .venv\Scripts\activate   # Windows

# Install in development mode
pip install -e ".[all]"

# Run
nterm
# or
python -m nterm

Requirements

• Python 3.10+
• PyQt6 with WebEngine
• paramiko
• cryptography
• pyyaml

Platform Support

Platform	PTY	Keychain
Linux	✅ pexpect	Secret Service
macOS	✅ pexpect	macOS Keychain
Windows 10+	✅ pywinpty	Credential Locker

---

Scripting API

nterm includes a full scripting API for programmatic access to your device inventory, credential vault, and network devices. Use it from IPython, CLI, or Python scripts.

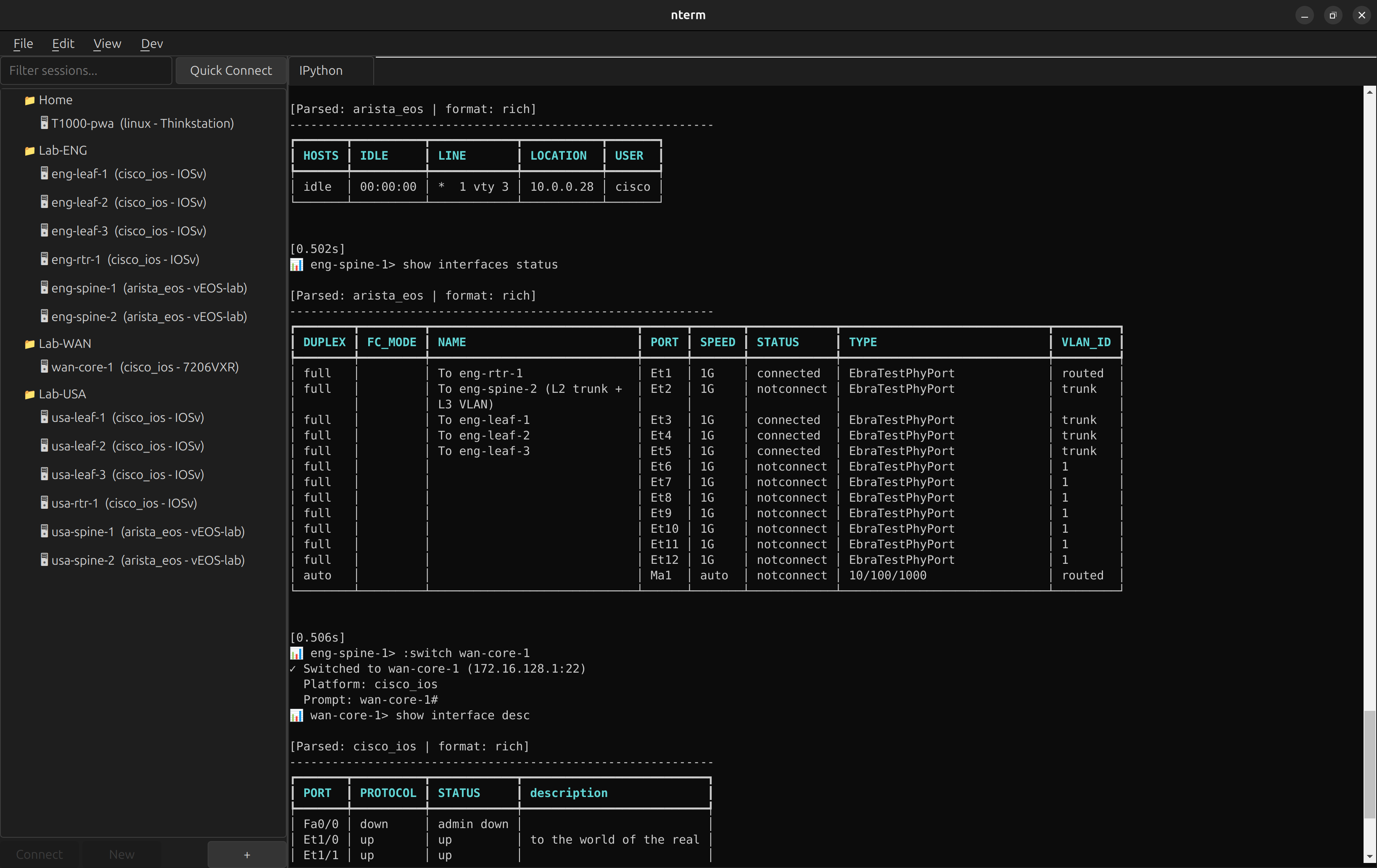

IPython Console

Open Dev → IPython → Open in Tab to get an interactive console with the API pre-loaded:

api.devices()                    # List all saved devices
api.search("leaf")               # Search by name/hostname
api.devices("eng-*")             # Glob pattern filter
api.folders()                    # List all folders

api.unlock("vault-password")     # Unlock credential vault
api.credentials()                # List credentials (metadata only)

# Connect and execute commands
with api.session("usa-leaf-1") as s:
    result = api.send(s, "show version")
    print(result.parsed_data)

api.help()                       # Show all commands

Interactive REPL

Start the REPL for interactive device exploration with platform-aware quick commands:

api.repl()

nterm> :unlock
nterm> :connect usa-leaf-1

📊 usa-leaf-1> :version
──────────────────────────────────────────────────
  Version:  15.2(4.0.55)E
  Hardware: IOSv
  Serial:   9J0PD0QB9W1
  Uptime:   1 week, 4 days, 7 minutes
──────────────────────────────────────────────────

📊 usa-leaf-1> :neighbors
Local Interface      Neighbor                       Remote Port
----------------------------------------------------------------
Gi0/0                usa-spine-2.lab.local          Ethernet1
Gi0/1                usa-spine-1.lab.local          Ethernet1

📊 usa-leaf-1> :interfaces
[Rich formatted interface table]

Quick Commands:

• :version - Structured version info
• :config - Running configuration
• :interfaces - Interface status
• :neighbors - CDP/LLDP neighbors (auto-detects)
• :bgp - BGP summary
• :routes - Routing table

Python Scripts

from nterm.scripting import NTermAPI

api = NTermAPI()
api.unlock("vault-password")

# Context manager for automatic cleanup
for device in api.devices("*spine*"):
    with api.session(device.name) as s:
        # Platform-aware commands - works on Cisco, Arista, Juniper
        result = api.send_platform_command(s, 'version')
        print(f"{device.name}: {result.parsed_data[0].get('VERSION')}")

# Try multiple commands until one works
with api.session("router1") as s:
    result = api.send_first(s, [
        "show cdp neighbors detail",
        "show lldp neighbors detail",
    ])

CLI

nterm-cli devices                     # List all devices
nterm-cli search leaf                 # Search devices
nterm-cli device eng-leaf-1           # Device details
nterm-cli credentials --unlock        # List credentials
nterm-cli --json devices              # JSON output for scripting

Key Features

Feature	Description
Context Manager	with api.session() auto-disconnects
Platform-Aware	send_platform_command() picks correct syntax
Fallback Commands	send_first() tries alternatives
Structured Output	TextFSM parsing to List[Dict]
ANSI Filtering	Clean output, no escape sequences
Paging Detection	Raises error if paging not disabled

See scripting/README_API_IPython.md for full API documentation. See scripting/README_REPL.md for REPL documentation.

---

Quick Start

As a Widget

from PyQt6.QtWidgets import QApplication, QMainWindow
from nterm import ConnectionProfile, AuthConfig, SSHSession, TerminalWidget, Theme

app = QApplication([])

terminal = TerminalWidget()
terminal.set_theme(Theme.gruvbox_hybrid())

profile = ConnectionProfile(
    name="router",
    hostname="192.168.1.1",
    auth_methods=[AuthConfig.password_auth("admin", "secret")],
)

session = SSHSession(profile)
terminal.attach_session(session)
session.connect()

window = QMainWindow()
window.setCentralWidget(terminal)
window.resize(1000, 700)
window.show()

app.exec()

With Credential Vault

from nterm.vault import CredentialStore, CredentialResolver

store = CredentialStore()
store.unlock("master-password")

# Add credential with pattern matching
store.add_credential(
    name="network-devices",
    username="admin",
    password="secret",
    match_hosts=["*.network.corp", "192.168.1.*"],
    match_tags=["cisco", "juniper"],
)

# Auto-resolve credentials by hostname
resolver = CredentialResolver(store)
profile = resolver.resolve_for_device("switch01.network.corp", tags=["cisco"])

session = SSHSession(profile)
session.connect()

---

Themes

nterm includes 12 built-in themes covering dark, light, and hybrid styles.

Built-in Themes

# Dark themes
Theme.default()           # Catppuccin Mocha
Theme.dracula()           # Dracula
Theme.nord()              # Nord
Theme.solarized_dark()    # Solarized Dark
Theme.gruvbox_dark()      # Gruvbox Dark
Theme.enterprise_dark()   # Microsoft-inspired dark

# Light themes
Theme.gruvbox_light()     # Gruvbox Light
Theme.enterprise_light()  # Microsoft-inspired light
Theme.clean()             # Warm paper tones

# Hybrid themes (dark UI + light terminal)
Theme.gruvbox_hybrid()    # Gruvbox dark chrome, light terminal
Theme.nord_hybrid()       # Nord polar night chrome, snow storm terminal
Theme.enterprise_hybrid() # VS Code-style dark/light split

Hybrid themes combine a dark application chrome (menus, tabs, sidebars) with a light terminal for maximum readability — ideal for long sessions reviewing configs or logs.

Custom YAML Themes

# ~/.nterm/themes/my-theme.yaml
name: my-theme

terminal_colors:
  background: "#1a1b26"
  foreground: "#c0caf5"
  cursor: "#c0caf5"
  black: "#15161e"
  red: "#f7768e"
  green: "#9ece6a"
  yellow: "#e0af68"
  blue: "#7aa2f7"
  magenta: "#bb9af7"
  cyan: "#7dcfff"
  white: "#a9b1d6"
  # ... bright variants

# UI chrome (can differ from terminal)
background_color: "#1a1b26"
foreground_color: "#c0caf5"
border_color: "#33467c"
accent_color: "#7aa2f7"

---

Session Capture

Capture session output to a file for documentation, auditing, or extracting config snippets.

Right-click in terminal → Start Capture... to begin recording. Output is saved as clean text with ANSI escape sequences stripped — ready for grep, diff, or pasting into tickets.

• Per-session capture (each tab independent)
• File dialog for save location
• Menu shows active capture filename
• Auto-stops when session closes

---

Jump Hosts

profile = ConnectionProfile(
    name="internal-db",
    hostname="db01.internal.corp",
    auth_methods=[AuthConfig.agent_auth("dbadmin")],
    jump_hosts=[
        JumpHostConfig(
            hostname="bastion.corp.com",
            auth=AuthConfig.agent_auth("youruser"),
            requires_touch=True,
            touch_prompt="Touch YubiKey for bastion...",
        ),
    ],
)

---

Legacy Device Support

nterm automatically handles old network equipment:

• RSA SHA-1 fallback for OpenSSH < 7.2 servers
• Legacy KEX algorithms: diffie-hellman-group14-sha1, group1-sha1
• Legacy ciphers: aes128-cbc, 3des-cbc
• Auto-detection: tries modern crypto first, falls back as needed

Tested with:

• Junos 14.x (2016)
• Cisco IOS 12.2
• Old Arista EOS
• Any device running OpenSSH 6.x

---

Architecture

nterm/
├── connection/        # ConnectionProfile, AuthConfig, JumpHostConfig
├── session/
│   ├── ssh.py         # SSHSession (Paramiko) with legacy fallback
│   ├── interactive_ssh.py   # Native SSH + PTY
│   ├── local_terminal.py    # Local shell/IPython sessions
│   └── pty_transport.py     # Cross-platform PTY
├── terminal/
│   ├── widget.py      # TerminalWidget (PyQt6 + xterm.js)
│   └── bridge.py      # Qt ↔ JavaScript bridge
├── theme/
│   ├── engine.py      # Theme system
│   └── themes/        # YAML theme files
├── vault/
│   ├── store.py       # Encrypted credential storage
│   ├── resolver.py    # Pattern-based resolution
│   └── manager_ui.py  # PyQt6 credential manager
├── manager/           # Session tree, connection dialogs
└── scripting/         # API, REPL, automation support
    ├── api.py             # NTermAPI class
    ├── models.py          # ActiveSession, CommandResult, DeviceInfo
    ├── platform_data.py   # Platform commands and patterns
    ├── platform_utils.py  # Platform detection, extraction helpers
    ├── ssh_connection.py  # Low-level SSH with ANSI filtering
    ├── repl.py            # NTermREPL command router
    └── repl_interactive.py # Interactive REPL display

---

Related Projects

• TerminalTelemetry — PyQt6 terminal with network monitoring
• Secure Cartography — Network discovery and mapping

---

License

GPLv3

---

Contributing

Contributions welcome:

• Additional themes
• Windows testing
• Session recording/playback
• Telnet/serial support
