nvnodetop — NVIDIA Node Cluster Top

Table of Contents

• Features
• Requirements
• Installation
  • Via pip (recommended)
  • Via pipx (isolated)
  • Manual install
• Usage
  • Arguments
  • Key Bindings
• Display Layout
  • GPU Row
  • Summary Row
  • Process Table
• How It Works
• Configuration
• Troubleshooting
• Contributing
• License

Features

• 🖥️ Multi-node, multi-job — cycles through every node assigned to your running SLURM jobs
• 📊 Rich GPU metrics — utilisation, memory (used/total), temperature, power draw/limit, SM & memory clock speeds
• 📈 Sparkline history — rolling utilisation history plotted in-line with Unicode block characters
• ⚡ Asynchronous polling — each node is polled in a dedicated background subprocess; the UI never blocks waiting for SSH
• 🚨 Alert flags — thermal throttle (!THERM), power brake (!PWR), and uncorrected ECC errors are highlighted inline
• 👤 Process table — per-GPU process list showing PID, username, command and GPU memory (toggle with p)
• 📐 Responsive layout — bar widths adapt dynamically to the terminal width
• ♻️ Graceful cleanup — all background SSH pollers and the temporary cache directory are cleaned up on exit

Requirements

Note: nvnodetop only needs to be installed on your login node or local machine. The compute-node side runs a one-liner nvidia-smi query and a tiny inline Python3 snippet over SSH — no remote installation is needed.

Installation

Via pip (recommended)

pip install nvnodetop

This places the nvnodetop command on your PATH.

Via pipx (isolated)

pipx installs the tool into an isolated environment and exposes the command globally — ideal for system-wide HPC environments.

pipx install nvnodetop

Manual install

# Clone
git clone https://github.com/whats2000/nvnodetop.git
cd nvnodetop

# Make executable and add to PATH
chmod +x nvnodetop.sh
cp nvnodetop.sh ~/.local/bin/nvnodetop

Usage

nvnodetop [FETCH_INTERVAL [DISPLAY_INTERVAL]]

Simply run nvnodetop from any terminal on your HPC login node:

nvnodetop          # defaults: poll every 3 s, refresh UI every 1 s
nvnodetop 5        # poll every 5 s, refresh UI every 1 s
nvnodetop 5 2      # poll every 5 s, refresh UI every 2 s

Arguments

Key Bindings

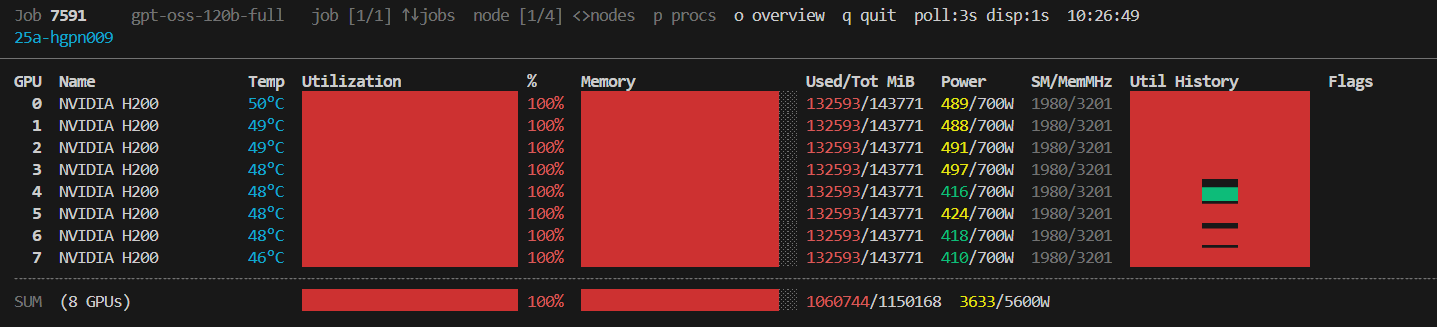

Display Layout

  Job 12345678 my_train_job  job [1/2] ↑↓jobs  node [1/3] <>nodes  p procs  q quit  poll:3s disp:1s
  gpu-node-01                                                                         [stale 12s]
  ────────────────────────────────────────────────────────────────────────────────
  GPU  Name                Temp  Utilization       %  Memory        Used/Tot MiB  Power     SM/MemMHz  Util History  Flags
    0  NVIDIA A100-SXM4   52°C  ████████████████  78%  ████░░░░░    38012/40960  312/400W  1410/1593  ▄▄▅▆▇▇██▇▆▅▆
    1  NVIDIA A100-SXM4   48°C  ████████░░░░░░░░  50%  ██████░░░░   22016/40960  201/400W  1350/1500  ▃▄▄▅▅▄▅▅▄▅▅▄
  ╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌
  SUM  (2 GPUs)                 ████████████░░░░  64%  █████████░   60028/81920  513/800W

GPU Row

Summary Row

Shows the average utilisation, total memory across all GPUs on the node, and total power draw.

Process Table

Toggle with p. Columns: GPU index, PID, username, command name (basename), GPU memory in MiB.

How It Works

Login Node                           Compute Nodes
┌─────────────────────┐              ┌──────────────────────┐
│ nvnodetop           │   SSH poll   │ nvidia-smi query     │
│  ├─ squeue --me ────┼─────────────►│ python3 proc resolve │
│  ├─ background      │◄─────────────┤ stdout → cache file  │
│  │   fetcher/node   │   CSV data   └──────────────────────┘
│  └─ UI render loop  │
└─────────────────────┘

1. Job discovery — squeue --me --states=R is called every 30 seconds to find your running jobs and their assigned nodes.
2. Background pollers — One _node_fetcher_loop subprocess is spawned per unique node. Each loop SSHs into the node, runs nvidia-smi for GPU metrics and an inline Python3 snippet for process info, then writes the result atomically to a temp file (using tmp + mv).
3. UI render loop — The main process reads the latest cached file, updates sparkline history arrays (which must live in the main shell for persistence), renders the frame, then calls read_key with a timeout equal to DISPLAY_INTERVAL.
4. Cleanup — A trap cleanup INT TERM EXIT ensures all background pollers are killed and the cache directory is removed on exit.

Configuration

A small set of constants at the top of the script can be tweaked directly:

These can also be overridden at invocation time via environment variables (future enhancement).

Troubleshooting

No running SLURM jobs found

The script only displays nodes for your running jobs (squeue --me --states=R). Make sure you have at least one job in the R (Running) state.

GPU data shows Waiting for first data…

On first launch, the background SSH poller needs one full FETCH_INTERVAL cycle to collect data. Wait a few seconds.

[stale Xs] warning

The cached data is more than 3× FETCH_INTERVAL old, which usually means the SSH connection to that node is slow or timing out. Check your SSH connectivity to the compute node.

SSH connection refused / hang

Ensure passwordless SSH (BatchMode=yes) is configured for the compute nodes. The script uses ConnectTimeout=5 to avoid hanging.

declare -A / mapfile errors

Your Bash version is older than 4.0. Update Bash:

# On macOS (system bash is 3.2)
brew install bash

Contributing

Contributions, bug reports and feature requests are welcome!

1. Fork the repository
2. Create a feature branch: git checkout -b feat/my-feature
3. Commit your changes with a descriptive message
4. Open a Pull Request

Please ensure your changes are tested against a real SLURM cluster or a mocked environment before submitting.

License

This project is licensed under the MIT License — see the LICENSE file for details.
