octomap-python 1.10.0.0

Python binding of the OctoMap library.

octomap-python

Python binding of OctoMap, the 3D occupancy mapping library.

OctoMap builds a probabilistic 3D occupancy map (an octree) from point clouds: you stream in sensor measurements and query whether any point in space is occupied, free, or still unknown. This package exposes that C++ library to Python with NumPy arrays as the interchange format, so point clouds and queries are plain np.ndarrays.

Install

pip install octomap-python

Or with uv:

uv add octomap-python

Binary wheels are published for Linux (x86_64, aarch64), macOS (Apple Silicon), and Windows (AMD64), CPython 3.10-3.14. Other platforms build from the sdist and need a C++ compiler.

Quick start

import numpy as np
import octomap

# Resolution is the smallest voxel edge length, in meters.
octree = octomap.OcTree(0.1)

# Insert a point cloud measured from a sensor at `origin`.
points = np.random.uniform(-1, 1, size=(1000, 3))
octree.insertPointCloud(
    pointcloud=points,
    origin=np.array([0.0, 0.0, 0.0]),
)

# Query a coordinate: occupied / free / unknown (never observed).
node = octree.search(points[0])
try:
    print("occupied" if octree.isNodeOccupied(node) else "free")
except octomap.NullPointerException:
    print("unknown")

# Bounding box of everything mapped so far.
print(octree.getMetricMin(), octree.getMetricMax())

# Persist to / restore from the OctoMap binary format.
octree.writeBinary("tree.bt")
restored = octomap.OcTree(0.1)
restored.readBinary("tree.bt")

ColorOcTree adds a per-voxel RGB color on top of the same occupancy API:

octree = octomap.ColorOcTree(0.1)
point = np.array([1.0, 2.0, 3.0])
octree.updateNode(point, True)
octree.setNodeColor(point, 255, 0, 0)
octree.updateInnerOccupancy()

print(octree.search(point).getColor())  # (255, 0, 0)

# Color is preserved by the full map format (.ot), not the binary format (.bt).
octree.write("tree.ot")
restored = octomap.ColorOcTree.read("tree.ot")

Examples

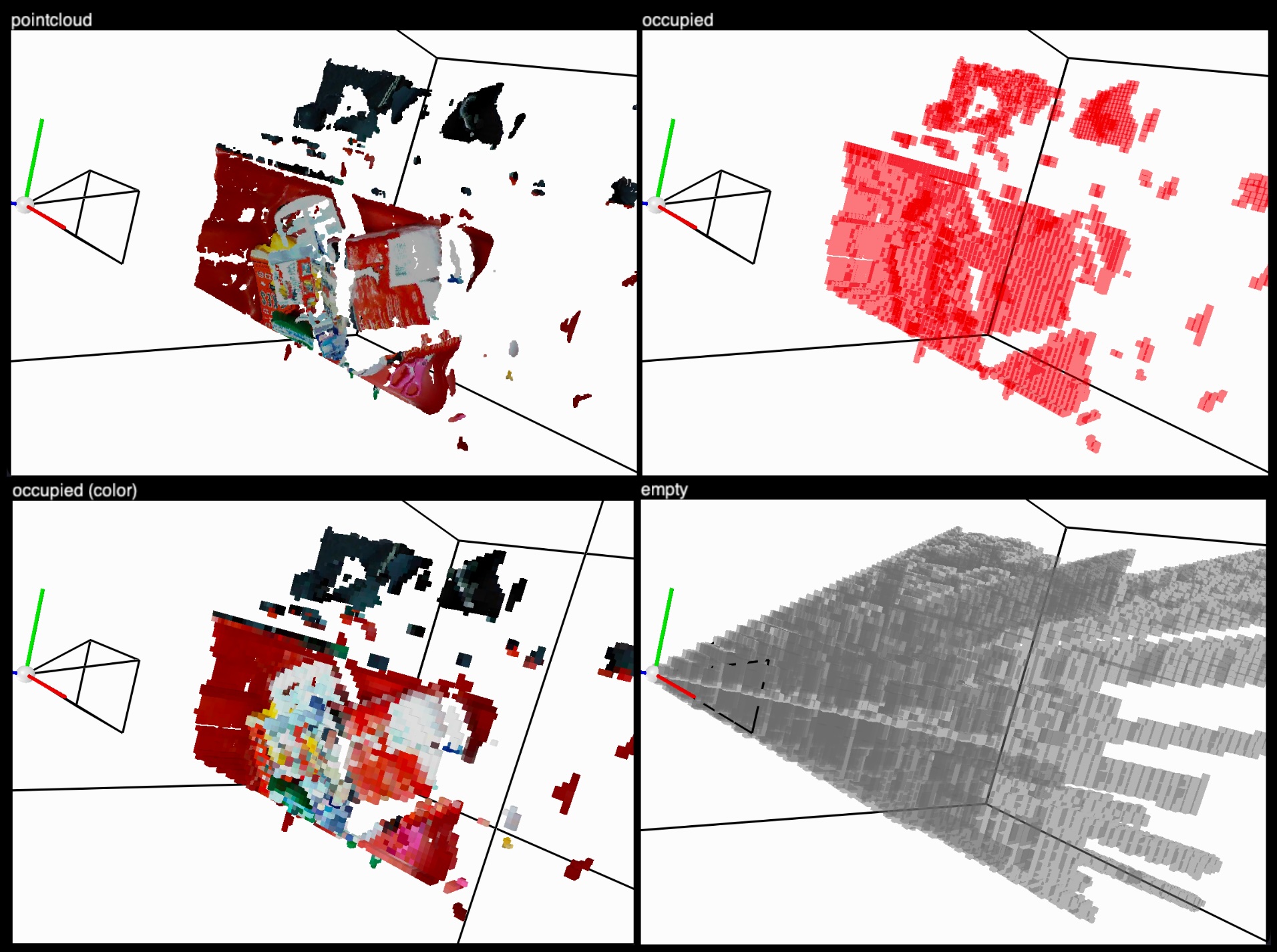

Runnable demos live in examples/; the teaser above combines insertPointCloud.py (pointcloud / occupied / empty) and insertPointCloudColor.py (occupied in color):

git clone --recursive https://github.com/wkentaro/octomap-python.git
cd octomap-python
uv sync --group examples

cd examples
uv run python insertPointCloud.py

insertPointCloudColor.py is the same demo on a ColorOcTree, rendering each occupied voxel in its measured RGB color.

Release

Releases are published to PyPI by the publish workflow, which fires when a GitHub Release is published. It builds the wheel matrix + sdist and uploads via PyPI Trusted Publishing (OIDC, no stored token).

To cut a release:

1. Bump version in pyproject.toml to match the new tag and commit it.
2. Create a GitHub Release with tag vX.Y.Z (e.g. v1.8.0.13).
3. The publish workflow runs and uploads the built distributions to PyPI.

Acknowledgement

This is a fork of neka-nat/python-octomap.

License

BSD-3-Clause (LICENSE)
