ovos-config 0.0.12

ovos-core configuration module

OVOS-config

helper package to interact with mycroft config

Command Line usage

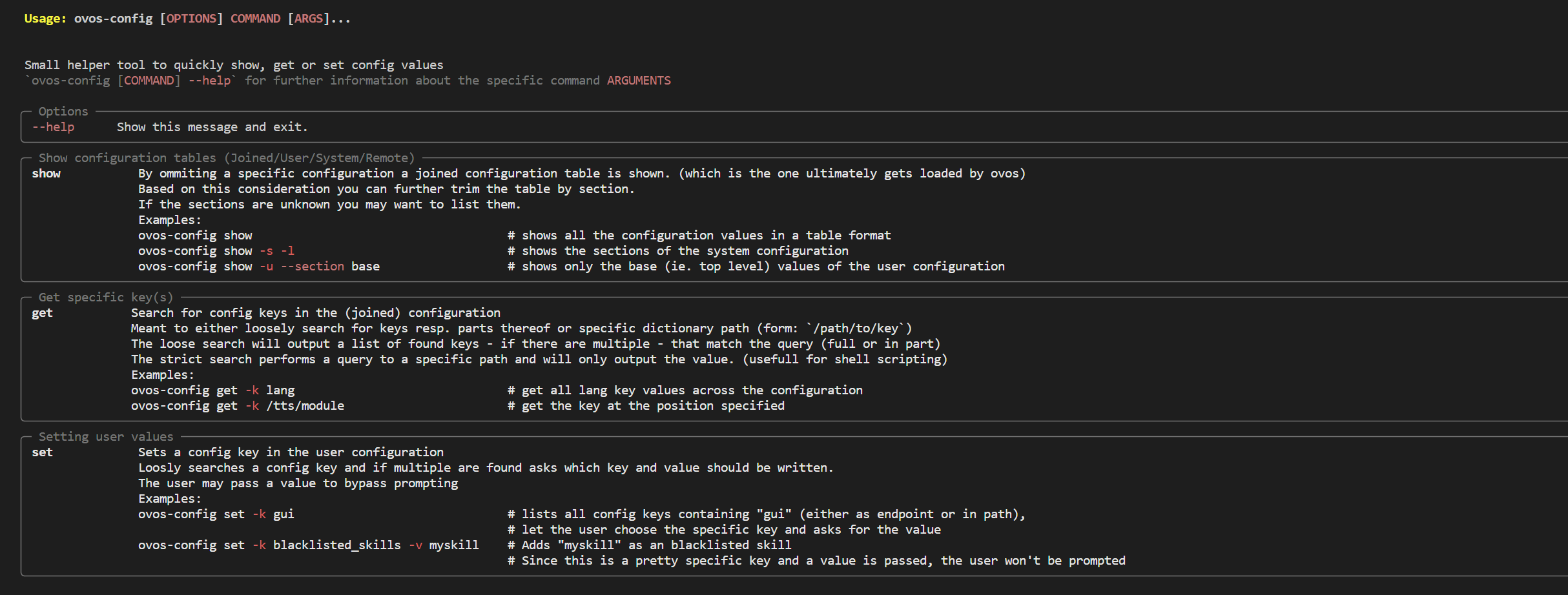

A small helper tool is included to quickly show, get or set config values

Quick rundown (cli):

• ovos-config get

  • Loose search (search a key or parts therof):

    Given an entry of

    {'PHAL': {
            'ovos-PHAL-plugin-system': {
                    'enabled': True
            },
            'ovos-PHAL-plugin-connectivity-events': {
                    'enabled': True
            },
            ...
    }


    ovos-config get -k phal would yield all PHAL entries and present it to the user (and the path where they were found)

  • Strict search (search keys in a distinct location):

    ovos-config get -k /PHAL/ovos-PHAL-plugin-system/enabled

    This will output only the value or exit out if no key is found (root slash indicating a strict search)

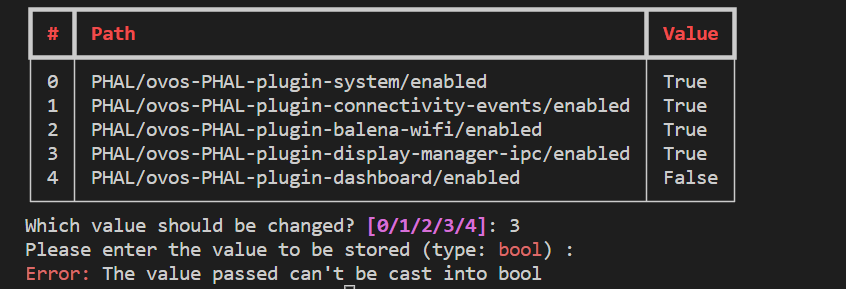

• ovos-config set

  • Searches loosely for keys containing the query string and presents a choice to the user to define a value

    ovos-config set -k phal



    The type is derived from the joined config and thus can be safely cast into the user conf.
    Optionally a value (-v) can be sent as an argument.

• ovos-config show

  • Get a full table of either the joined, user (-u), system (-s) or remote (-r) configuration. This can be further refined by passing a --section, which can be listed with ovos-config show -l





Configuration Structure

ovos.conf

The ovos_config package determines which config files to load based on ovos.conf. get_ovos_config will return default values that load mycroft.conf unless otherwise configured.

ovos.conf files are loaded in the following order, with later files taking priority over earlier ones in the list:

1. /etc/OpenVoiceOS/ovos.conf
2. /etc/mycroft/ovos.conf (Deprecated)
3. XDG_CONFIG_DIRS + /OpenVoiceOS/ovos.conf
4. /etc/xdg/OpenVoiceOS/ovos.conf
5. XDG_CONFIG_HOME (default ~/.config) + /OpenVoiceOS/ovos.conf

A simple ovos_config should have a structure like:

{
"base_folder": "mycroft",
"config_filename": "mycroft.conf",
"default_config_path": "<Absolute Path to Installed Core>/configuration/mycroft.conf",
"module_overrides": {},
"submodule_mappings": {}
}

Note: default_config_path should always be an absolute path. This is generally detected automatically, but any manual override must specify an absolute path to a json or yaml config file.

Non-Mycroft modules may specify alternate config paths. A call to get_ovos_config from neon_core or neon_messagebus will return a configuration like:

{
  "base_folder": "neon",
  "config_filename": "neon.yaml",
  "default_config_path": "/etc/example/config/neon.yaml",
  "module_overrides": {
    "neon_core": {
      "base_folder": "neon",
      "config_filename": "neon.yaml",
      "default_config_path": "/etc/example/config/neon.yaml"
    }
  },
  "submodule_mappings": {
    "neon_core.skills.skill_manager": "neon_core",
    "neon_messagebus": "neon_core",
    "neon_speech": "neon_core",
    "neon_audio": "neon_core",
    "neon_gui": "neon_core"
  }
}

If get_ovos_config was called from mycroft with the same configuration file as the last example, the returned configuration would be:

{
  "base_folder": "mycroft",
  "config_filename": "mycroft.conf",
  "default_config_path": "<Path to Installed Core>/configuration/mycroft.conf",
  "module_overrides": {
    "neon_core": {
      "base_folder": "neon",
      "config_filename": "neon.yaml",
      "default_config_path": "/etc/example/config/neon.yaml"
    }
  },
  "submodule_mappings": {
    "neon_core.skills.skill_manager": "neon_core",
    "neon_messagebus": "neon_core",
    "neon_speech": "neon_core",
    "neon_audio": "neon_core",
    "neon_gui": "neon_core"
  }
}

Configuration

ovos_config.config.Configuration is a singleton object that loads a single config object. The configuration files loaded are determined by ovos.conf as described above. Using the above example, if Configuration() is called from neon_speech, the following configs would be loaded in this order:

1. /etc/example/config/neon.yaml
2. os.environ.get('MYCROFT_SYSTEM_CONFIG') or /etc/neon/neon.yaml
3. os.environ.get('MYCROFT_WEB_CACHE') or XDG_CONFIG_PATH/neon/web_cache.json (unless disable_remote_config == True in earlier config)
4. ~/.neon/neon.yaml (Deprecated)
5. XDG_CONFIG_DIRS + /neon/neon.yaml
6. /etc/xdg/neon/neon.yaml
7. XDG_CONFIG_HOME (default ~/.config) + /neon/neon.yaml

Configuring Configuration

There are a couple of special configuration keys that change the way the configuration stack loads.

• Default config refers to the config specified at default_config_path in ovos.conf (#1 /etc/example/config/neon.yaml in the stack above).
• System config refers to the config at /etc/{base_folder}/{config_filename} (#2 /etc/neon/neon.yaml in the stack above).

protected_keys

A "protected_keys" configuration section may be added to a Default or System Config file (default /etc/mycroft/mycroft.conf). This configuration section specifies other configuration keys that may not be specified in remote or user configurations. Keys may specify nested parameters with . to exclude specific keys within nested dictionaries. An example config could be:

{
  "protected_keys": {
    "remote": [
      "gui_websocket.host",
      "websocket.host"
    ],
    "user": [
      "gui_websocket.host"
    ]
  }
}

This example specifies that config['gui_websocket']['host'] may be specified in user configuration, but not remote. config['websocket']['host'] may not be specified in user or remote config, so it will only consider default and system configurations.

disable_user_config

If this config parameter is set to True in Default or System configuration, no user configurations will be loaded (no XDG configuration paths).

disable_remote_config

If this config parameter is set to True in Default or System configuration, the remote configuration (web_cache.json) will not be loaded.
