p-brain 3.0.1

A modular, cross-platform framework for automated DCE-MRI and diffusion MRI research.

p-Brain — a modular framework for automated DCE-MRI & diffusion research

p-Brain is a cross-platform Python command-line tool. Install it with pip on Linux, macOS, or Windows (Python 3.10–3.12), point pbrain run at a subject's scans, and it produces the full derivatives tree — no notebook, no GUI, no server required. The CLI is the product; an optional macOS desktop app is just one front-end on top of it (see below).

p-Brain takes raw dynamic-contrast-enhanced (and diffusion) MRI through the whole analysis — T1/M0 mapping, arterial-input-function extraction, signal-to-concentration conversion, tissue parcellation, pharmacokinetic and diffusion modelling — and produces standardised voxel-, tissue-, and parcel-level results, fully automatically.

It is two things at once. As shipped it is a validated, ready-to-run pipeline you can point at real scanner data today and get publication-grade maps (Ki, CBF, MTT, CTH, FA, …). And it is a template you extend: each step is a self-contained plug-in, so adding your own kinetic model — or a different AIF, segmentation backend, or whole stage — is a single file and no changes to the core. Drop a model into pbrain/models/, call it with --models yourmodel, and it is run on every subject, aggregated to every anatomical level, written as NIfTI/CSV/JSON, and given diagnostics automatically.

The aim is to let groups stop re-implementing the same plumbing: use it as-is, modify what you need, and extend it to go beyond — while everyone's outputs stay directly comparable.

If you use p-Brain in your research, please cite our paper (Tireli et al.; see Citation).

Author: Edis Devin Tireli, M.Sc., Ph.D. student Affiliations: Functional Imaging Unit, Copenhagen University Hospital – Rigshospitalet; Department of Neuroscience and Department of Clinical Medicine, University of Copenhagen.

---

Contents

1. Why a framework — the idea, and how the pieces fit
2. Install
3. How to run — first steps, the flags explained, quick start
4. Add your own model — it's one file — the headline feature
5. Config files
6. Models — what's shipped, defaults, and every option
7. Diffusion & connectomics
8. Outputs — the standardised result tree
9. Representative output
10. Demo · Repository structure · Citation

---

Why a framework

DCE-MRI analysis is a chain of stages — fit T1, find the artery, convert signal to contrast concentration, segment tissue, fit a kinetic model, summarise. In most labs each of these is bespoke code, so results are hard to compare and a new model means re-plumbing the whole pipeline.

p-Brain makes each stage a plug-in: a single file that declares what it needs and what it produces, discovered automatically at runtime. The orchestrator wires the stages together by those declarations — so:

• adding a method changes one file, never the core;
• every model is run, aggregated, and reported the same way, giving standardised, directly-comparable outputs across groups;
• you can swap any step (a different AIF, your lab's segmentation tool, a new deconvolution) by name on the command line.

There are 12 such plug-points. The full contract and copy-paste templates live in docs/ADDING_PLUGINS.md; the design rationale in docs/ARCHITECTURE.md. Read those two when you want to extend the framework — the rest of this README gets you running first.

---

Install

p-Brain is a normal pip-installable Python package. It runs on Linux, macOS, and Windows with Python 3.10–3.12.

pip install p-brain          # core install — installs the `pbrain` command
pbrain --help

That gives you the pbrain command (and python -m pbrain) plus the light core dependencies — numpy, scipy, matplotlib, nibabel. Everything heavier is an opt-in extra, installed only if you select a plug-in that needs it:

pip install "p-brain[cnn]"        # TensorFlow — CNN arterial-input-function (default AIF)
pip install "p-brain[diffusion]"  # dipy — the diffusion track (DTI/DKI/CSD/…)
pip install "p-brain[dicom]"      # pydicom — DICOM input (see DICOM input below)
pip install "p-brain[all]"        # everything in one go

The default AIF (cnn_sss_shifted) needs the CNN extra and its trained .keras weights (~1.2 GB), archived on Zenodo. Download them once — they cache under ~/.p-brain/AI and every later run finds them automatically:

pbrain setup            # interactive: installs extras + offers to fetch weights & data
pbrain fetch-weights    # just the CNN weights        (Zenodo 10.5281/zenodo.15697443)
pbrain fetch-data       # the example subject sub-01  (Zenodo 10.5281/zenodo.20826857)

To run weights-free, pick a model-free AIF (--aif deterministic, or from_file / manual for your own ROIs/curves), or try python -m pbrain.demo, which needs no weights or data at all.

From source (for development or the bleeding edge):

git clone https://github.com/edtireli/p-brain.git
cd p-brain
pip install -e ".[dev]"           # editable install + test tooling
pytest -q                         # run the test suite

Check your environment. python -m pbrain check-deps verifies the third-party Python deps and offers to install any that are missing; python -m pbrain setup additionally inspects external tooling (dcm2niix, optionally FreeSurfer for segmentation, GPU support) and walks you through it.

DICOM input

p-Brain reads NIfTI (.nii / .nii.gz) and Philips PAR/REC natively. DICOM is supported through dcm2niix, the standard, well-validated DICOM→NIfTI converter: point --dce / --ir / --dwi at a DICOM file or a folder of DICOMs and p-Brain calls dcm2niix under the hood, picking up the reconstructed NIfTI (and, for diffusion, the .bval / .bvec gradient tables it writes).

Install dcm2niix from its own channel — it is a compiled binary, not a pip package:

conda install -c conda-forge dcm2niix     # any OS (recommended)
brew install dcm2niix                      # macOS
sudo apt install dcm2niix                  # Debian / Ubuntu
# Windows: download the release .zip from the dcm2niix GitHub and add it to PATH

pip install "p-brain[dicom]" adds pydicom for header inspection; dcm2niix must be on your PATH for the actual conversion. Run python -m pbrain check-deps to confirm it is found.

Optional macOS app

A native macOS desktop app wraps this CLI in a point-and-click GUI for users who prefer not to touch a terminal. It is entirely optional — the Python CLI above is the product and the canonical interface; the app simply drives it.

---

How to run

A run takes one subject's raw data and produces its full derivatives tree. The first three steps:

1. Point at your data. --dce is the 4-D DCE series (NIfTI, PAR/REC, or DICOM — converted automatically). --ir is the inversion-recovery series used to fit T1/M0; --dwi is an optional diffusion scan. Each of --dce, --t1, --ir accepts a full path, a filename, a protocol-name substring, or auto — so you can write --dce hperf --t1 auto --ir auto once and reuse it across subjects whose scan numbers differ (raw PAR/REC are matched by their Philips Protocol name; --ir auto assembles the TI_* series).
2. Choose your methods. --models patlak,tikhonov selects the kinetic models; --aif, --tissue-roi, --t1m0 select how each upstream step is done. Sensible defaults mean you can omit most of them.
3. Choose your output levels. --aggregations voxelwise,region,parcel controls whether you get whole-brain maps, tissue-class summaries, and/or per-parcel tables.

The flags, explained

flag	meaning	default
--subject-dir	where the derivatives tree is written	(required)
--dce	4-D DCE series (NIfTI / PAR-REC / DICOM)	(required)
--ir	inversion-recovery series for the T1/M0 fit	—
--dwi	diffusion series (for the diffusion track)	—
--t1m0	how T1 & M0 are obtained (inversion_recovery, vfa_spgr, …)	inversion_recovery
--aif	arterial-input-function method	cnn_sss_shifted
--tissue-roi	parcellation source (synthseg, fastsurfer, command, preloaded, …)	voxelwise
--models	comma-list of kinetic models to run	patlak,tikhonov
--diffusion	comma-list of diffusion models, or default/all	(auto when --dwi given)
--aggregations	output levels: voxelwise,region,parcel,slice_wise	voxelwise,parcel,region
--device	cpu / mps / cuda / auto	cpu
--config	read all of the above from a .toml/.yaml file	—

Two niceties: runs are resumable (a finished stage is skipped on re-run; --force recomputes), and every output carries provenance (the pbrain version and exact options that made it). Use --quiet / --verbose / --log-file to control logging.

Quick start

# Minimal: DCE + IR, the default models, all output levels
python -m pbrain run \
    --subject-dir /data/sub-01 \
    --dce dce.nii.gz --ir ir.nii.gz \
    --models patlak,tikhonov \
    --aggregations voxelwise,parcel,region

# With diffusion (FA/MD + tractography) in the same command
python -m pbrain run \
    --subject-dir /data/sub-01 \
    --dce dce.nii.gz --ir ir.nii.gz --dwi dwi.nii.gz \
    --models patlak,tikhonov --diffusion default

See what's available — every plug-in, its inputs/outputs, its diagnostic:

python -m pbrain list             # all plug-points at a glance
python -m pbrain list models      # one plug-point in detail

Run a whole cohort — parallel, resumable, error-isolated:

# ── one flag, raw scanner data: point --cohort at a folder of subjects ──
# Each sub-directory is a subject of raw Philips PAR/REC. Inputs are
# auto-discovered by protocol name (DCE = hperf*; the TI_* saturation-recovery
# series is assembled into an IR; a 3-D T1 anatomical for SynthSeg), then the
# full pipeline runs with ALL kinetic models at tissue (region) + parcel level.
# No config needed. Add --force for a fresh re-run. Pass several roots to run
# patients + controls + follow-ups in one go.
python -m pbrain run-cohort --cohort /data/patients /data/controls --workers 4 --force

#   pick models / levels, or skip known-bad subjects:
python -m pbrain run-cohort --cohort /data/patients --workers 4 \
    --models tikhonov,inverse_gaussian --aggregations region,parcel \
    --exclude 20221003x1            # --voxelwise to fit per-voxel (slower)

# ── config mode, pre-converted NIfTI cohorts: inputs from a shared config ──
python -m pbrain run-cohort --config study.toml --data-dir /data --workers 8
python -m pbrain run-cohort --config study.toml --subjects-glob '/data/sub-*' --workers 8

--cohort is the one-flag "do the whole study" path: it resolves each subject's DCE / IR / T1 itself (scan numbers vary between subjects, so they can't be templated by name) and fits every model at the parcel level by default (average-then-fit — exactly the resolution these models support, and tractable across hundreds of subjects). Use --config mode when inputs are already NIfTI and named consistently.

Override any option with --opt <plug-point>.<plugin>.<key>=<value>, e.g. --opt models.tikhonov.lambda_selection=evidence. Every knob is documented under Models.

---

Add your own

Step-by-step guide: docs/ADDING_PLUGINS.md — templates for models, AIF methods, segmentation backends, diffusion models, and whole pipeline stages. Start there.

A new kinetic model is one file and no core changes. You write the maths; the framework runs it on every voxel/curve, aggregates the result to tissue classes and parcels, writes NIfTI + CSV + JSON, and renders fit diagnostics.

pbrain/models/two_cxm.py:

from dataclasses import dataclass
from typing import Any, ClassVar
import numpy as np
from .base import CurveInputs, ModelResult

@dataclass(frozen=True, slots=True)
class TwoCXM:
    key:         ClassVar[str] = "two_cxm"            # the name you call it by
    name:        ClassVar[str] = "Two-compartment exchange model"
    description: ClassVar[str] = "Fp, PS, vp, ve via 2CXM least-squares."
    outputs:     ClassVar[tuple] = ("fp", "ps", "vp", "ve")
    units:       ClassVar[dict]  = {"fp": "mL/100g/min", "ps": "mL/100g/min",
                                    "vp": "fraction", "ve": "fraction"}

    def fit(self, inputs: CurveInputs, **opts: Any) -> ModelResult:
        ...                                            # your maths → fp, ps, vp, ve
        return ModelResult(maps={"fp": fp, "ps": ps, "vp": vp, "ve": ve},
                           units=dict(self.units))

PLUGIN = TwoCXM()

That's the entire integration. Now:

python -m pbrain run --models two_cxm,patlak ...

runs your model alongside Patlak, produces fp/ps/vp/ve maps, aggregates each to region and parcel level, and draws per-tissue fit plots — automatically.

The step-by-step guide for this and the other 11 plug-points (AIF methods, segmentation backends, diffusion models, whole stages) is docs/ADDING_PLUGINS.md — start there.

---

Config files

For reproducibility, put the whole run in a versioned file — pbrain run --config study.toml (CLI flags still override it):

subject_dir = "/data/sub-01"

[inputs]
dce = "dce.nii.gz"
ir  = "ir.nii.gz"
dwi = "dwi.nii.gz"

[pipeline]
t1m0         = "inversion_recovery"
aif          = "cnn_sss_shifted"
tissue_roi   = "synthseg"
models       = ["patlak", "tikhonov"]
diffusion    = "default"
aggregations = ["region", "parcel"]

[acquisition]
flip_angle_deg = 30.0
tr_s           = 0.01118

[options]                                  # same keys as --opt
"models.tikhonov.lambda_selection" = "evidence"

TOML works out of the box; YAML needs pip install pyyaml.

---

Models

Set any option with --opt models.<key>.<opt>=<value> (or in a config file). Defaults are what you get without setting anything.

patlak — blood–brain-barrier influx Ki and blood volume vp from the Patlak graphical analysis.

option	default	what it does
regression	huber	slope fit: huber (robust to leverage points) or ols.
tail_mode	smart	which late points enter the fit: smart (curvature-detected linear tail) or legacy (fixed upper-2⁄3 window).
aif_min_fraction	0.05	drop AIF samples below this fraction of the peak (avoids a near-zero AIF blowing Ki up).

tikhonov — CBF, MTT, CTH by regularised deconvolution of the residue function.

option	default	what it does
lambda_selection	gcv	regularisation strength: gcv (cross-validation), lcurve, or evidence (marginal likelihood — most robust on smooth curves).
lambda_spacing	log	λ grid spacing (log/linear).
n_lambdas	121	number of λ values searched.
mtt_cth_method	residue_integral	MTT/CTH from the residue integral or the central-volume theorem.

extended_tofts — Ktrans, ve, vp, kep by constrained Levenberg–Marquardt (no tuning needed for the default fit).

You are meant to add to this list — see Add your own.

---

Diffusion

Give a diffusion scan with --dwi (NIfTI, PAR/REC, or DICOM — converted automatically, gradients extracted) and the diffusion track runs in native DWI space and resamples to your parcellation. Select models with --diffusion (dti, a comma-list, default = shell-aware, or all); options via --opt diffusion.<key>.<opt>=<value>.

Which model, when

• dti — the workhorse: FA, MD, AD, RD (+ colour-FA). Any DWI with a b0 and one shell. Start here for FA/MD.
• dki — adds mean/axial/radial kurtosis and KFA. Needs ≥ 2 shells.
• dki_micro — WMTI microstructure (axonal water fraction, tortuosity) and μFA. Multi-shell.
• fwdti — free-water elimination: tissue FA/MD with CSF/oedema removed
  • the free-water fraction. Multi-shell.
• csd — constrained spherical deconvolution: fibre orientations for tractography + GFA. Multi-shell preferred.
• rsi — restriction-spectrum fractions (restricted/hindered/free); needs a high-b shell.
• noddi — neurite density / orientation dispersion; needs AMICO + high-b.

Connectomics (tractography → connectome)

With a fibre-orientation model (csd by default, or the dti tensor) the diffusion track can run tractography and build a structural connectome between parcels:

python -m pbrain run --dwi dwi.nii.gz --diffusion csd --connectome ...

This writes the streamlines (.tck, openable in MRtrix/TrackVis and rendered as a track-density NIfTI for 3-D exploration) and a parcel × parcel connectivity matrix (CSV/JSON) under 09_diffusion/.

---

Outputs

A BIDS-like derivatives tree under <subject-dir>/derivatives/, numbered for natural sort order:

00_diagnostics/                 fit plots + whole-brain map montages
01_load/                        loaded DCE/IR/DWI (+ timing)
02_t1m0/                        T1 map + M0 map  (t1_map.nii.gz, m0_map.nii.gz)
03_aif/                         arterial input function
04_tissue_roi/                  parcellation + tissue region map
05_signal_to_conc/              4-D contrast concentration  (concentration.nii.gz)
    <converter>/diagnostics/      conversion QC plot  (conversion_qc.png)
06_normalisation/               normalised curves
07_kinetic/<model>/             per model:
    voxelwise/                    whole-brain maps  (nii.gz)
    region/  parcel/              tissue & parcel summaries  (nii.gz + csv + json)
    diagnostics/{voxel,tissue,parcel,montage}/   fit plots & map montages
08_summary/                     run summary + QC
09_diffusion/<model>/           FA/MD/… maps, + tractography & connectome

Every model output exists as nii.gz, csv, and json at the region/parcel levels. The T1 map, M0 map, and the 4-D concentration volume are written as NIfTI so you can use them directly. Each stage writes a manifest.json with its provenance and a QC block (physiological-range flags). Per-model diagnostics — the same fit plots shown in the paper — render every run.

---

Representative output

Whole-brain parameter maps for one subject, masked to the brain segmentation (see the paper for the full set and quantitative validation):

Ki — blood–brain-barrier influx (Patlak)

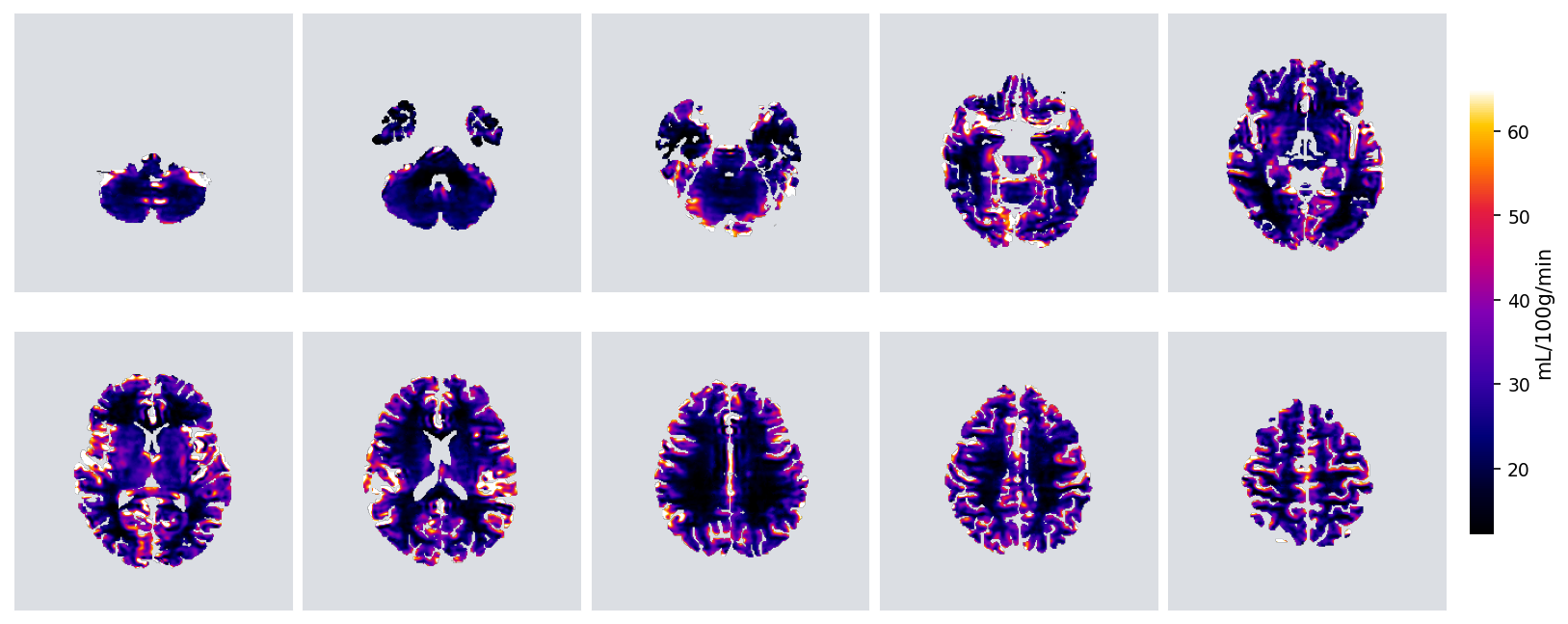

CBF — cerebral blood flow (Tikhonov deconvolution)

FA — fractional anisotropy (DTI)

These montages are produced by the pipeline itself (the diagnostics stage), with data-adaptive slice layout and brain-segmentation masking. Every map is also aggregated to tissue classes and DKT parcels.

---

Demo

python -m pbrain.demo --clean

Synthesises a small phantom (no patient data), runs the entire pipeline end-to-end, and writes parameter-map montages to demo/maps/ — a self-contained way to see the output format and confirm your install works.

---

Repository structure

pbrain/            the framework — everything lives here
  core/            Plugin/Stage contracts, discovery, Config, Pipeline, logging, QC
  io/              loaders (nifti/parrec/dicom/dwi) + output path schemes
  t1_m0/  aif/  tissue_roi/  signal_to_conc/  normalisation/    upstream stages
  models/          kinetic models          diffusion/   diffusion models
  aggregation/     voxel/region/parcel/slice rollups
  diagnostics/     per-model fit plots + the montage generator
  stages/          the pipeline steps (a discoverable, topologically-ordered plug-point)
  cli/  demo/
docs/              ADDING_PLUGINS.md · ARCHITECTURE.md · mkdocs API reference
tests/             the test suite                validation/  cohort runners

---

Documentation

• API reference — a rendered reference generated from the package docstrings (every public class, the plug-in contracts, the kinetic and diffusion models, the pipeline stages, and the QC functions). Build it locally with:

  pip install "p-brain[docs]"
  mkdocs build          # → ./site/   (or `mkdocs serve` for a live preview)


  Entry points: docs/index.md and the contributor architecture overview.

• Extending the framework — docs/ADDING_PLUGINS.md (copy-paste templates) and docs/ARCHITECTURE.md (full design rationale and output layout).

---

Citation

If p-Brain contributes to your work, please cite the accompanying paper (Tireli et al.) and this repository. See LICENSE for terms.
