panda3d-imgui 1.1.0

A Dear ImGui backend for Python-based Panda3D projects with built-in utilities.

panda3d-imgui

A Dear ImGui backend for Python-based Panda3D projects with built-in utilities (based on DIRECT Tools).

This module will allow you to use and create Dear ImGui user interfaces within a Panda3D window, preferbly used to create content creation/debugging tools. (It uses Dear ImGui Bundle which contains not only the Python bindings for Dear ImGui, but with other goodies as well.

It is based on the C++ based project with the similar name. The difference that it is ported to Python for such users to use on their projects.

How to use

You can install the module through pip:

pip install panda3d-imgui

And you can import this module as p3dimgui

import p3dimgui

It has a helper method called init which you can easlily add in your ShowBase class. This will create a ImGuiBackend object into base.imgui and initialize it, along side the built-in ultilities.

from direct.showbase.ShowBase import ShowBase

from imgui_bundle import imgui

import p3dimgui

class MyApp(ShowBase):
    def  __init__(self):
        ShowBase.__init__(self)

        # Install Dear ImGui
        p3dimgui.init()

Once initalized, it will send an event called imgui-new-frame every frame. You can accept this event whenever you want to draw with ImGui:

def draw(self):
   # Show the demo window.
   imgui.show_demo_window()

self.accept('imgui-new-frame', self.draw)

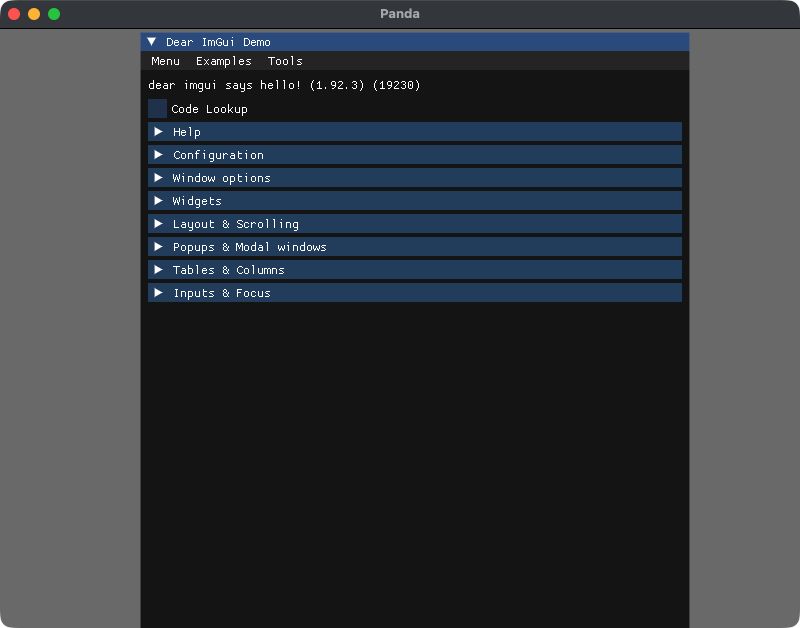

Combine all this and you would have something like this, which will start up a new Panda3D window and shows the Dear ImGui demo window.

from direct.showbase.ShowBase import ShowBase

from imgui_bundle import imgui

import p3dimgui

class MyApp(ShowBase):
    def  __init__(self):
        ShowBase.__init__(self)

        # Install Dear ImGui
        p3dimgui.init()

        self.accept('imgui-new-frame', self.draw)

    def draw(self):
        # Show the demo window.
        imgui.show_demo_window()

app = MyApp()
app.run()

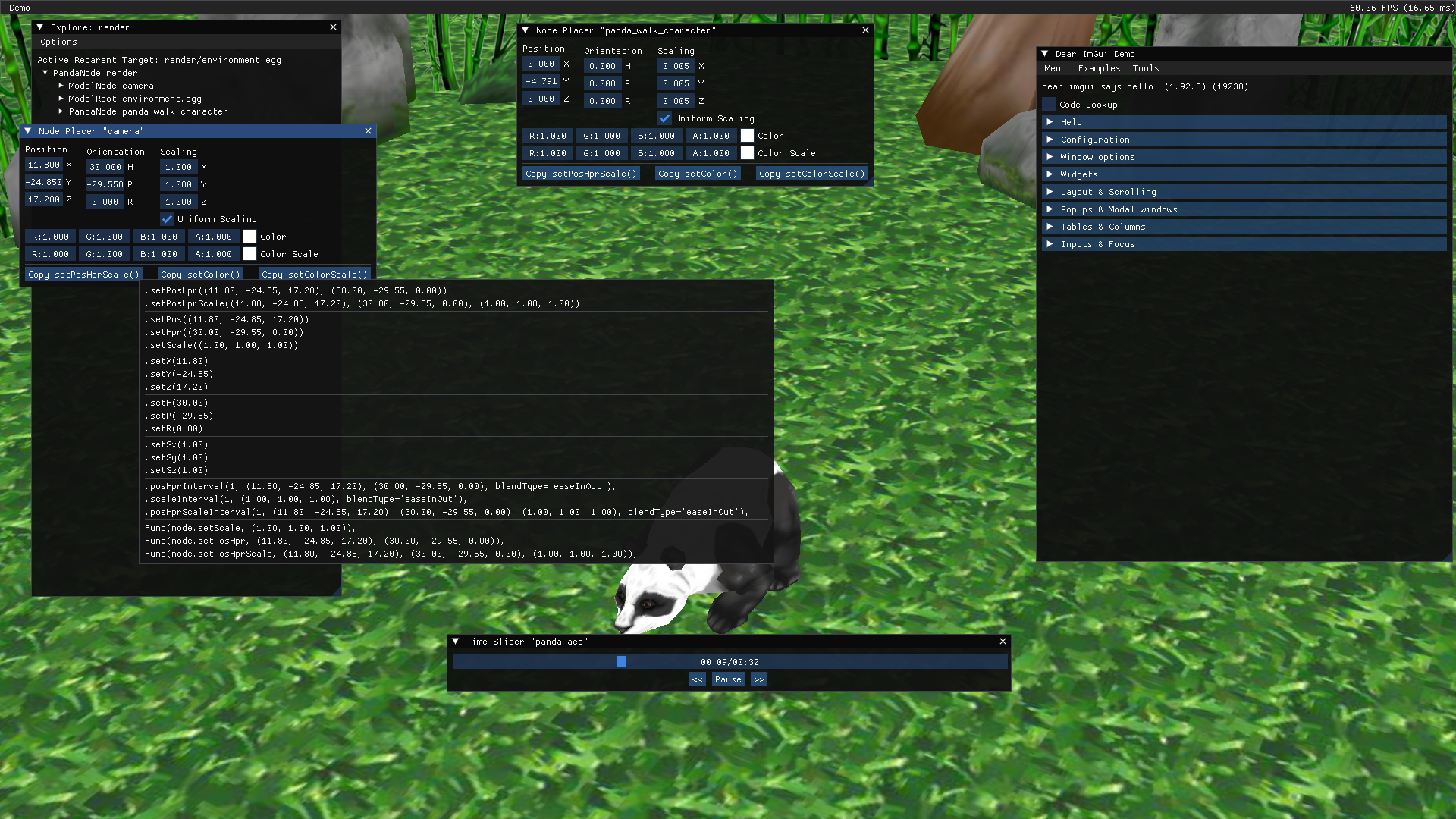

For a more better demo which showcases all the built-in utilities aviliable (like the screenshot at the top), see the demo.py file.
