phaseco 1.0.0

Tools for phase autocoherence analysis with dynamic windowing methods

phaseco

A Python package for phase autocoherence analysis with dynamic windowing methods.

Installation

You can install phaseco directly from PyPI:

pip install phaseco

or from the latest GitHub source:

pip install git+https://github.com/seththepeacock/phaseco.git

Links

• GitHub Repository
• PyPI

Overview

phaseco quantifies the self-coherence in phase of the oscillations in a signal as a function of frequency.

It includes functions for:

• Estimating autocoherence, a spectrum representing stability in phase evolution over a fixed reference time as a function of frequency
• Building colossograms (from coherence-loss-o-gram) for visualization of the decay in autocoherence with increasing reference time
• Extracting time constants representing autocoherence decay for a fixed frequency
• Implementing dynamic windowing methods to deal with issues associated with the time-frequency tradeoff

---

Example use

Import the package:

import phaseco as pc

Define your waveform and its sample rate $f_s$:

wf = []
fs = 44100

The heart of the method is a short-time Fourier transform (STFT) to obtain magnitude and phase estimates as a function of time and frequency. Define $\tau$, the length of each segment in the STFT which (along with the window shape) sets the bandwidth of the effective filter in the filterbank interpretation of the STFT.

tau_s = 0.0745 # 74.5ms corresponds to an effective filter half-power bandwidth of ~50Hz for a flattop window
tau = int(round(tau_s*fs)) # Convert to samples. If this isn't a power of 2, the segments will be zero padded for FFT efficiency.

Another STFT parameter is the hop length; smaller hops allow for more information to be extracted from a given signal length at the cost of longer computation time. The default is $\tau/2$ (50% overlap).

hop_s = 0.01 # 10ms
hop = int(round(hop_s*fs)) # Convert to samples

Using the phase estimates, we will quantify the consistency of each frequency component's phase evolution over the reference time $\xi$.

xi_s = 0.02 # 20ms
xi = int(round(xi_s*fs)) # Convert to samples

Determine whether to use 'power-weights'. pw=False uses only phases from the STFT while True uses magnitude as well by weighting each instance of phase evolution by the product of magnitudes in each segment and its $\xi$-advanced partner.

pw = False

Calculate the autocoherence for a single reference time $\xi$:

f, ac = pc.get_autocoherence(wf, fs, xi, pw, tau, hop=hop) # Frequency array, autocoherence array

We can also calculate how the autocoherence decays over increasing reference time $\xi$. Set the array of these reference times by determining the min, max, and grid spacing (in seconds).

xis = {'xi_min_s':0.001, 'xi_max_s':0.100, 'delta_xi_s':0.001} # 1ms to 100ms in 1ms steps

Note that all frequency bins will show high autocoherence for small reference times relative to window length (i.e. $\xi\ll\tau$).

• This can be understood directly; if $\xi\ll\tau$ each window will contain almost the same set of samples as its $\xi$-advanced partner. Therefore even for random noise, the phase evolution over short $\xi$ (that is, the difference in phase at a given point in time $\phi$ to one $\xi$ samples later $\phi_\xi$) will always be consistently near $\phi_\xi-\phi= \omega\xi$ leading to spuriously high autocoherence.
• This can also be understood as a consequence of the time-frequency tradeoff. Large $\tau$ means the effective filters in the STFT are very narrow; this localization in frequency smears timing information over small timescales $\xi$ so that the phase evolution is always approximately consistent/coherent.

Moreover, for a fixed 'static' window shape of fixed length $\tau$, all frequencies' autocoherence will decay in nearly the same way as $\xi\rightarrow\tau$. This makes it difficult to extract information from this decay at a particular frequency of interest.

To address this, we implement dynamic windowing methods which result in a wider effective filter (broad localization in frequency) for low $\xi$ (when tight localization in time is needed); see "Overview of Windowing Methods."

win_meth = {"method": "rho", "win_type": "flattop", "rho": 1.0}

We can then calculate a "colossogram" (from coherence-loss-o-gram) to track how the autocoherence decays as a function of $\xi$ for all frequency components.

cgram_dict = pc.get_colossogram(wf, fs, xis, pw, tau, hop=hop, win_meth=win_meth)

This dictionary contains the $\xi$ array, frequency array, and autocoherence values themselves:

xis_s = cgram_dict['xis_s']
f = cgram_dict['f']
colossogram = cgram_dict['colossogram']

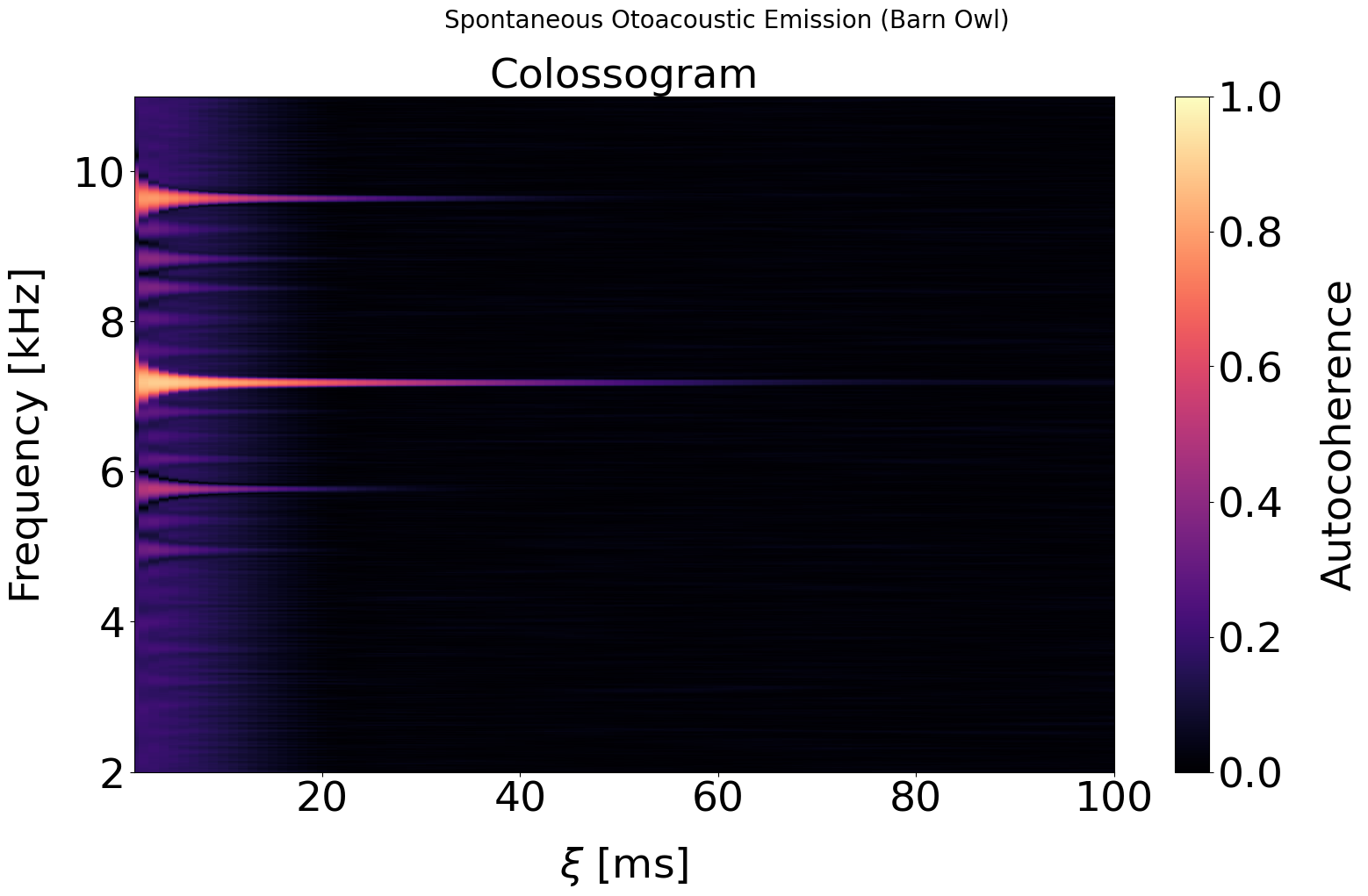

However, the dictionary can be directly passed into a plotting function (based on matplotlib.pyplot):

plt.figure()
pc.plot_colossogram(cgram_dict)
plt.show()

Finally, we can estimate a (nondimensionalized) time constant N_xi representing the rate of decay in autocoherence for a given frequency f0. This is done by fitting an exponential decay $Ae^{t(\xi)/T_\xi}$, where $t(\xi)=\xi/f_s$. The time constant $T_\xi$ is then nondimensionalized as $N_\xi = T_\xi \cdot f_0$, representing the number of cycles a sinusoid at frequency $f_0$ would pass through in $T_\xi$ seconds.

f0 = 1000 # in Hz
N_xi, decay_dict = pc.get_N_xi(cgram_dict, f0)

Again, we can plot this decay and its exponential fit by passing in the dictionary to a built-in plotting function:

plt.figure()
pc.plot_N_xi(decay_dict)
plt.show()

Overview of Windowing Methods

• 'static' — Fixed window defined by win_type.
• 'rho' — Dynamically increases the standard deviation $\sigma$ of a (truncated) Gaussian window $w_\xi[n]$ with $\xi$ so the spurious expected autocoherence for white noise (due to shared samples between a window and its $\xi$-advanced partner) remains low. The final window used is $w[n]=w_\xi[n] \cdot w_0[n]$ where $w_0[n]$ is the fixed "asymptotic window" determined by win_type.
  • Specifically, $\sigma$ is set such that the Gaussian's full width half maximum (FWHM) is rho * xi.
  • Both $w_\xi[n]$ and $w_0[n]$ have fixed length $\tau$.
• 'zeta' — Dynamically sets window length so the (power-weighted) expected autocoherence for white noise remains fixed at zeta. Once the reference time $\xi$ is large enough that dynamically chosen window length would exceed the originally chosen $\tau$ parameter, it remains fixed at that $\tau$ for all larger $\xi$.

Implementing windowing methods

The win_meth dictionary defines dynamic windowing methods used in several phaseco functions.

Structure

win_meth = {
    "method": "rho",
    "win_type": "flattop",
    "rho": 1.0,
}

Keys

Key	Type	Description
method	str	Windowing method: 'static', 'rho', or 'zeta'.
win_type	str or tuple	Window type (passed to scipy.signal.get_window()).
rho	float	FWHM multiplier for Gaussian window (used in 'rho' method).
zeta	float	Controls allowable spurious autocoherence in 'zeta' method.
snapping_rhortle	bool	When True and method='rho', switches to boxcar for all $\xi>\tau$.

More examples

Self-contained example scripts are available here. One script here demonstrates most phaseco functions by analyzing a sinsusoid with brownian phase noise; another script here displays how zeta windowing pins the observed (power-weighted) autocoherence for white noise at $\approx \zeta$.

More info

For more details on each function, see the documented source code for the primary functions funcs.py and for the plotting functions plots.py.
