Pin Header Label Generator

Print a pin-out label, push the pins of your pin header through the paper, and every signal name sits right next to its pin. No more counting pins when you plug in jumper wires.

Features

• Single-row and two-row pin headers with any number of rows and any pitch (2.54 mm, 2.0 mm, 1.27 mm, …)
• Labels fan out automatically with leader lines when the text is taller than the pin pitch
• Per-pin colors (typical jumper wire colors or any custom color), shown as background, text color or frame; GND/VCC can be colored automatically
• Optional pin numbers (zigzag, DIP/U shape, column by column), pin 1 mark, title, header outline and cutting frame
• Exact output: vector PDF in millimeters, PNG with DPI metadata, SVG, or direct printing; several copies per A4 page
• Check rulers on the page and a scale correction for printers that do not print at exactly 100 %
• Pin list import from text and CSV files, plus pasting from the clipboard or a spreadsheet
• Graphical user interface in English and German and a command line version for scripts and automation
• Projects are saved as human-readable JSON

Installation

You need Python 3.11 or newer. The only dependency is PySide6 (Qt for Python), which pip installs automatically.

From PyPI (once published):

pip install pin-header-label-generator

Directly from GitHub:

pip install git+https://github.com/shaag7967/pinHeaderLabelGenerator.git

pipx works too and keeps the tool in its own environment: pipx install pin-header-label-generator.

The package provides two commands:

python -m pin_header_label is the same as pinlabel.

Using the GUI

pinlabel-gui                      # new project
pinlabel-gui my_header.json       # open a project (or create it under this name)
pinlabel-gui --lang de            # German for this session

The window has three parts:

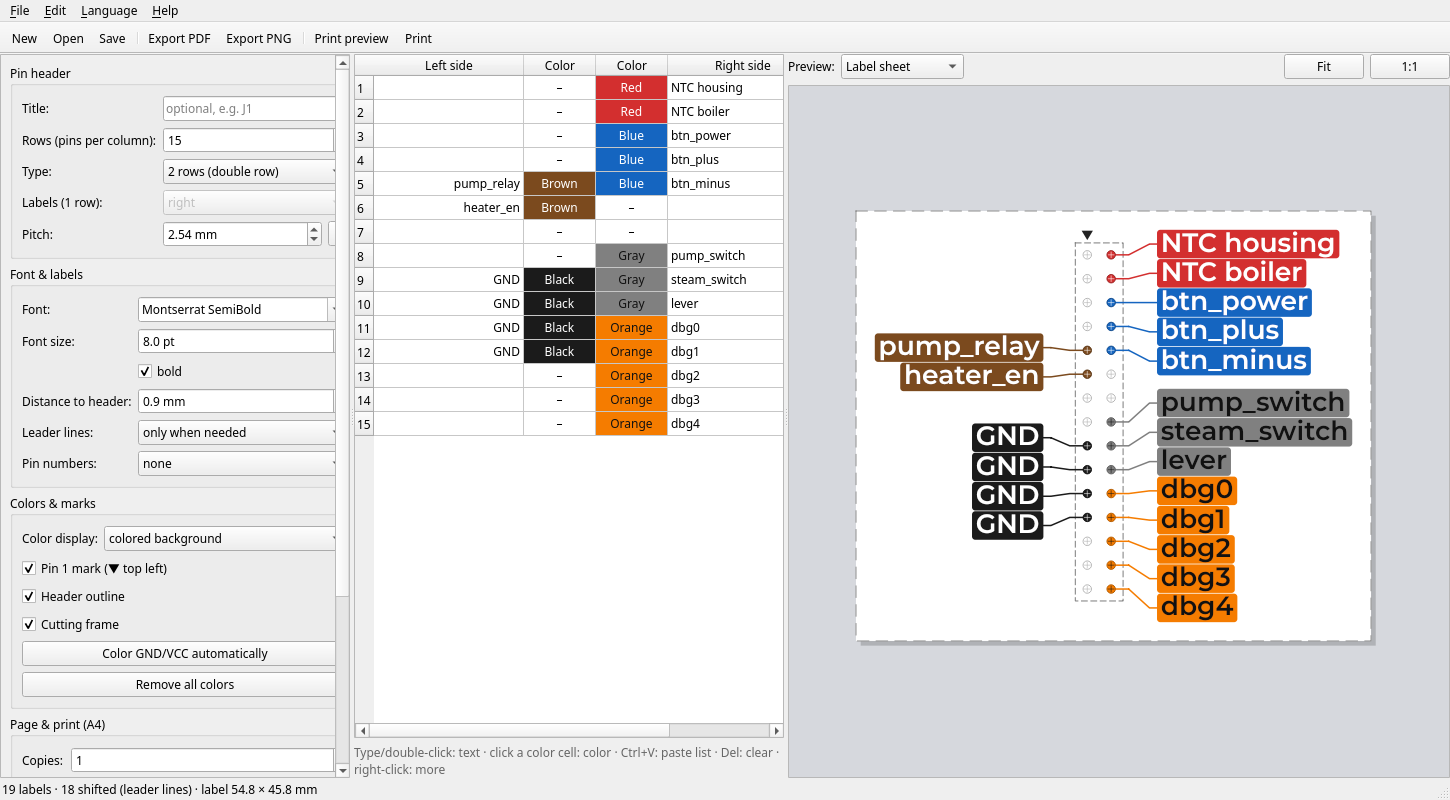

1. Settings (left): header size and pitch, font, label distance, leader lines, pin numbering, color display, marks, copies and printer scale.
2. Pin table (middle): one line per header row. Two-row headers are shown like the real header: left label | color | color | right label.
3. Preview (right): the label or the whole A4 page. Zoom with the mouse wheel, drag to pan, double-click to fit, and use 1:1 for roughly real size.

Editing the pin table:

Language: choose Language → English / Deutsch. The interface switches immediately and the choice is remembered. The texts printed on the page (instructions and footer) follow the selected language too.

Printing

1. Print at 100 % / "Actual size", not "Fit to page".
2. Check the printed 50 mm ruler. If it is not exactly 50 mm, set Scale X / Y to 50 / measured × 100 % (for example 50 / 49.5 × 100 % = 101.01 %).
3. You can also check the pitch ruler: put the real header on it.
4. Cut the label out along the dashed cutting frame and push the pins through the crosses.

Importing pin lists

There are three ways to get pin names into a project.

1. Paste into the table

Copy a column (or two columns) from a spreadsheet, a datasheet or a text editor, click the start cell in the pin table and press Ctrl+V. Each line becomes a row and tab characters separate the left and right side. Rows are added when the list is longer than the header.

2. Paste pin lists… dialog

Edit → Paste pin lists… opens one text box per header side. Enter one pin per line, from top to bottom. A blank line, - or empty/leer marks an unused pin; bullets (*, -, •) at the start of a line are removed. The number of rows can be adjusted to the longest list. Colors are kept.

3. Import a pin list file

File → Import pin list… (Ctrl+I) in the GUI, or on the command line:

pinlabel import pins.csv -o my_header.json
pinlabel export pins.csv --pdf my_header.pdf     # import and export in one step

An import replaces all labels and colors of the project and sets the number of rows to fit the list. All other settings (font, pitch, …) stay as they are. Three file formats are supported:

Text file (.txt): one label per line, in pin number order

GND
CTS
VCC
TXD
RXD
RTS

Line 1 is pin 1, line 2 is pin 2, and so on. Use - for unused pins at the end of the list, because trailing blank lines are ignored.

CSV by pin number (pin, label, optional color)

pin,label,color
1,3V3,orange
2,5V,red
3,GPIO2 SDA,blue
6,GND,black

Lines can be in any order and gaps are allowed. See examples/raspberry_pi_gpio.csv for a complete Raspberry Pi header.

CSV row by row (left, right, optional left_color, right_color)

left;left_color;right;right_color
VCC;red;GND;black
SDA;blue;SCL;blue
INT;yellow;RESET;
-;;LED;green

Each line is one header row, from top to bottom. This always makes a two-row header. For a single-row header use a label column (and optionally color) without a pin column.

How pin numbers are mapped to positions

Pin numbers (text files and pin columns) are placed with the pin numbering selected in the project:

Single-row headers are always numbered from top to bottom. On the command line, choose the layout with --cols and --numbering, or take it from an existing project with --template.

Details

• Column names are case-insensitive. Accepted names: pin (no, nr, number, #), label (name, signal, function, net), color (colour, farbe), left/right (links/rechts), left_color/right_color.
• Without a header line, a file whose first column contains pin numbers (1, P1, Pin 1) is read as pin, label, color. Otherwise every column is a list of labels: one column for a single-row header, two columns for left and right.
• Colors can be hex values (#d32f2f, #f00) or palette names in English or German: black, brown, red, orange, yellow, green, blue, violet, gray, white, light red, light yellow, light green, light blue (schwarz, braun, rot, …).
• Separators (, ; or tab) are detected automatically, and .tsv files always use tabs. Files may be UTF-8 (with or without BOM) or Windows-1252, which Excel writes on German systems.
• Errors name the line number, for example Line 5: unknown color 'plaid'.

Command line

pinlabel [--lang {en,de}] [--version] COMMAND ...

pinlabel export

Exports a project (.json) or a pin list (.txt, .csv, .tsv).

pinlabel export my_header.json --pdf my_header.pdf
pinlabel export my_header.json --png my_header.png --dpi 300
pinlabel export my_header.json --svg label.svg --label-only
pinlabel export pins.csv --template my_header.json --pdf pins.pdf

The export also works on Linux machines without a display (servers, CI): Qt's offscreen platform is selected automatically.

pinlabel import

Creates a project file from a pin list.

pinlabel import pins.txt                          # writes pins.json
pinlabel import pins.txt --cols 1 --pitch 2.0 --title J3
pinlabel import pi.csv -o pi.json --numbering zigzag
pinlabel import pins.csv -o new.json --template old.json --force

pinlabel gui

pinlabel gui [PROJECT] starts the GUI, just like pinlabel-gui.

Exit codes: 0 success, 1 error (message on stderr), 2 invalid arguments.

Project files

Projects are JSON files that you can edit or generate yourself:

{
  "format_version": 1,
  "title": "J1",
  "rows": 4,
  "cols": 2,
  "pitch": 2.54,
  "font_family": "",
  "font_pt": 6.0,
  "numbering": "zigzag",
  "color_style": "fill",
  "pins": [
    [{"label": "VCC", "color": "#d32f2f"}, {"label": "GND", "color": "#1b1b1b"}],
    [{"label": "SDA", "color": ""}, {"label": "SCL", "color": ""}]
  ]
}

Missing settings get their default values and invalid values are corrected when the file is loaded. pins holds one list per row with one entry per pin column. The other settings are side_mode (right, left, alternate), bold, gap_mm, leaders (auto, always), pin1_marker, outline, cut_frame, copies, scale_x, scale_y and scale_bar. examples/ contains complete projects and pin lists.

Development

git clone https://github.com/shaag7967/pinHeaderLabelGenerator.git
cd pinHeaderLabelGenerator
python -m venv .venv && source .venv/bin/activate   # Windows: .venv\Scripts\activate
pip install -e ".[dev]"

pytest                     # unit tests (Qt runs headless on Linux)
ruff check src tests       # lint
ruff format src tests      # format

Code layout:

src/pin_header_label/
├── core/        colors, palette, label cleaning, GND/VCC auto colors (no Qt)
├── model/       Project, Pin, enums and pin numbering (no Qt)
├── layout/      label placement and page geometry in mm (no Qt)
├── importers/   pin list reader for .txt / .csv / .tsv (no Qt)
├── rendering/   Qt painting and export: PDF, PNG, SVG, printer
├── gui/         PySide6 widgets: main window, settings, pin table, preview
├── i18n/        translator and German catalog
└── cli.py       command line interface

Only rendering/ and gui/ use Qt. The layout algorithm measures text through a small TextMetrics protocol, so tests can use predictable fake font metrics.

Translations: UI strings are written in English and wrapped in tr(). German translations live in src/pin_header_label/i18n/catalog_de.py. A test fails if a string is missing from the catalog or its placeholders do not match. To add a language, add it to Language and add a catalog.

Publishing to PyPI

The workflow .github/workflows/publish.yml uses PyPI Trusted Publishing, so no API token has to be stored in GitHub.

One-time setup:

1. On pypi.org add a pending publisher: project pin-header-label-generator, owner shaag7967, repository pinHeaderLabelGenerator, workflow publish.yml, environment pypi.
2. In the GitHub repository go to Settings → Environments and create the environment pypi. Recommended: under Deployment branches and tags allow only tags matching v*. No secrets are needed.

Releasing a version:

1. Update __version__ in src/pin_header_label/__init__.py and CHANGELOG.md.
2. Create a GitHub release with the tag v<version> (for example v0.1.0). The workflow checks that the tag matches the package version, builds the sdist and wheel and uploads them to PyPI.

License

Copyright © 2026 shaag7967

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. See LICENSE.

Everyone may use the tool freely, including for commercial work. If you distribute modified versions, they must also be under the GPL with their source code. The labels you create with the tool are yours: the license does not apply to them.
