Pip-Boy OS

The Pip-Boy OS (or Pip-Boy Operating System) is the 'soul' of the SPC 3000. This is my first ever Python code, so I used a half made base that I found online;

AI Disclaimer

I used Gemini to transcribe human logic to Python code, this is to maximise library use, code optimization and time efficiency (while still learning how those comands work). I also did some direct modifications to the code (to fix some errors)

🚀 Quick Start / Requirements / Installation

All the software requirements are listed in the requirements file You can Install Pip-Boy OS from PyPI / from the dist folder in this repo or you can directly download the source code in the repo. To quickly install and run the code put these 2 lines of code in the terminal:

    pip install pipboy-os
    python -m pip_boy_os.modules.main

Preparations for Running the sourcecode

If you install the source code before running the Pip-Boy OS for the first time locally you'll need to run the file init (init.bash if you are using windows; init.sh if you're using linux) these files create various vital files and folders in the Pip-Boy OS (it generates the 'cache' folder and the 'settings_secret' file). In case init doesn't compile/run: you have to manually add the cache folder with inside 2 folders named 'map' and 'places' and you have to add a Python file inside modules called 'settings_secret' with these lines of code.

    REAL_LOCATION = 'YOUR_LOCATION'
    LONGITUDE = 00.0000
    LATITUDE = 00.000
    GEOAPIFY_KEY = 'YOUR_GEOAPIFY_KEY'

REMEMBER: if you want to see the IRL Map you need to insert in the code above your information (doesn't need to be true) and Create/Insert your Geoapify API Key (at https://www.geoapify.com/get-started-with-maps-api/ in the "Project and API Keys" section); DO NOT insert the URL (it doesn't work).

How To Run Sourcecode

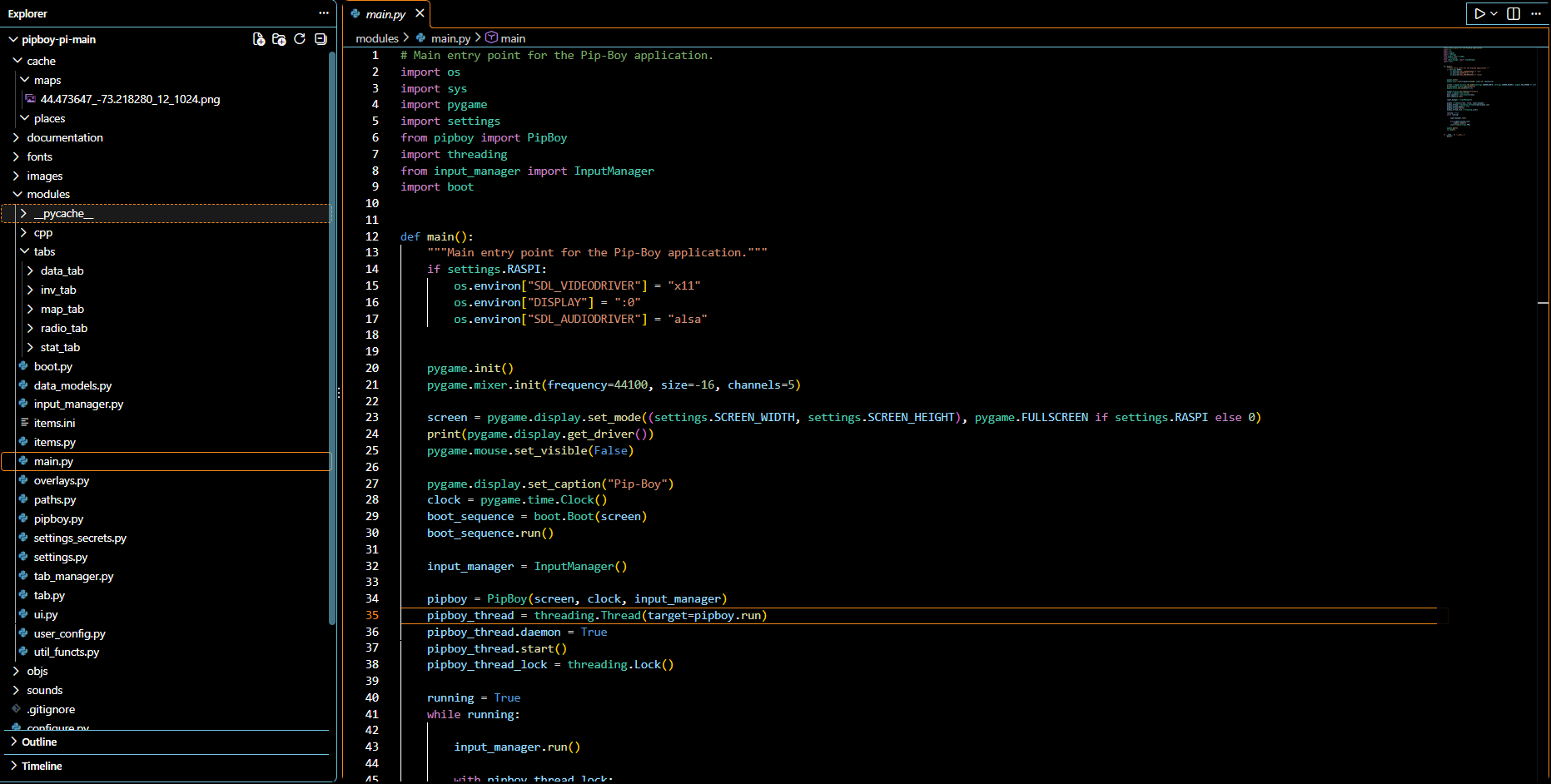

To start the sourcecodecode you need to run main.py, running other codes inside the software will not work. The code works perfectly on PC, give it a try!

Customization

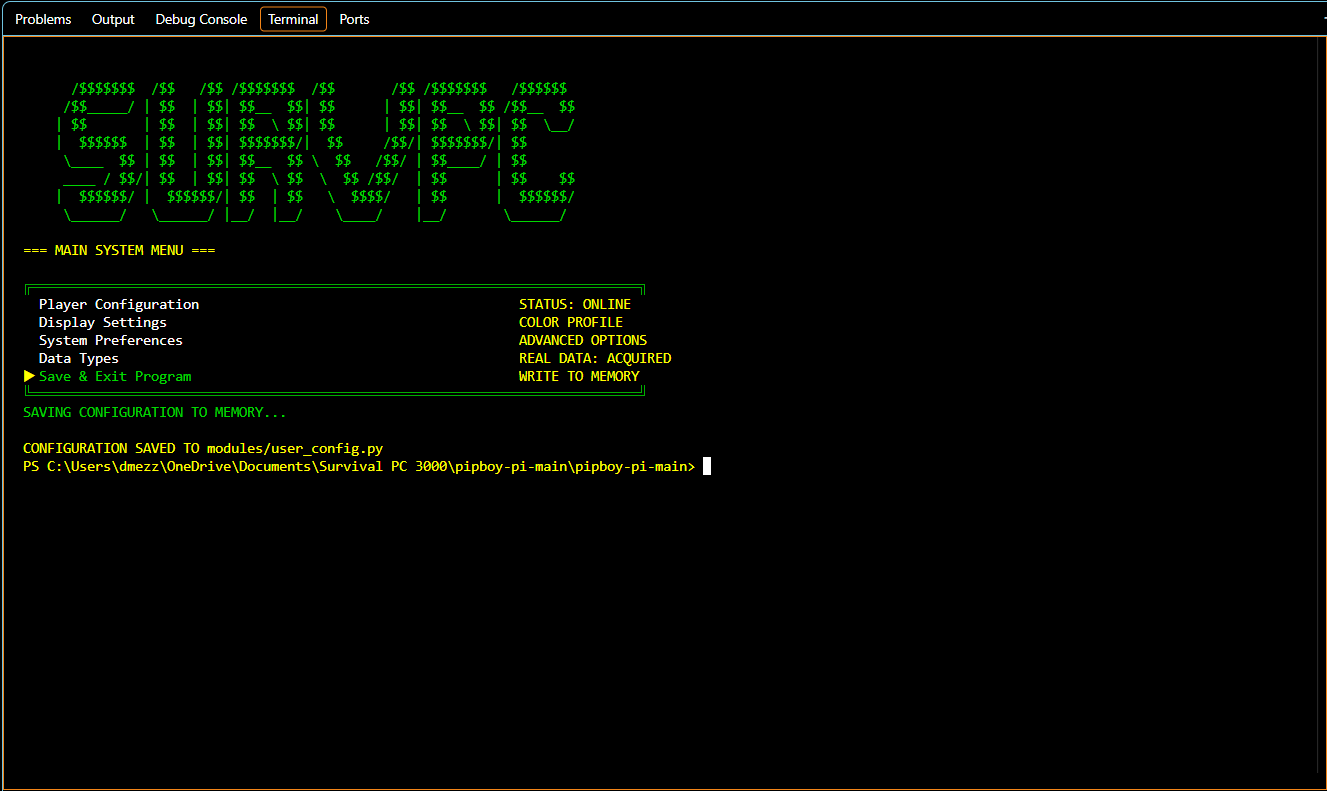

The Pip-Boy OS that you can find in the repo can also be personalized using the configure.py file or by using the settings tab in the running code (the position of the tab changes: in FO4 UI it's located in the DATA Menu, in the FNV UI it's a subtab of the General Tab in STATS). To move in the configure.py UI you use as inputs:

• Numpad 2: to move down
• Numpad 8: to move up
• ENTER: To change/select an option

(Always make sure that the Numlock is ON)

PARTS NOT MINE:

-3d Model of the casing: I used This 3D Pip-Boy case as a base and then heavily modified it to make space for the hardwware

-Pip-Boy menu: I used This Pip-Boy menu on github made by Kelmes1 as a base to develop my code (the code has suffered extreme changes, only a few files remained unchanged)

-Clock Icons: they are taken from the Iconify archive and all have MIT or Apache 2.0 licensing (No attribution required, commercial use is allowed)

-Songs: they are taken from the Internet Archive and are all 78 rpm songs from 1930s/1940s that are in the public domain

-SFXs: inherited from the base open-source repository of Kelmes1 (I don't know the origin of those SFXs; can be removed/replaced if required)

-Images/Icons/2d Animations: most images/icons/animations of the Fallout 4 UI are inherited from Kelmes1's repo (there are a few exceptions, like the fatman animation that I downloaded from sketchfab or the food icon that I downloaded from iconify). Almost all images from the Fallout New Vegas UI are from The Fallout Fandom Wiki (the only exception are the pipboy parts from the CND tab, which I acquired by cropping various online images of the original tab)

Legal Notice:

This Pip-Boy OS is a non-commercial, fan-made software interface inspired by the Fallout universe (Bethesda Softworks). The core software base is inherited from Kelmes1's open-source repository under the MIT License. All official visual assets, iconography, and game elements remain the property of their respective copyright holders (Bethesda Softworks / Microsoft). This repository is published strictly for educational, portfolio, and personal maker purposes with no intent for commercial gain or copyright infringement. If you need more info I left a LICENSE file.

Inputs

The Pip-Boy OS uses for input:

• Left Arrow: to move to the menu to the left
• Right Arrow: to move to the menu to the right
• Up Arrow: to change between the CND/EFF/RAD tabs in the Fallout: New Vegas UI, to move upwards on the lists in the tabs or to zoom in in the MAP tab/menu
• Down Arrow: to change between the CND/EFF/RAD tabs in the Fallout: New Vegas UI, to move downwards on the lists in the tabs or to zoom out in the MAP tab/menu
• A: to change to the tab to the left
• D: to change to the tab to the right
• I: to move up in the MAP tab/menu
• K: to move down in the MAP tab/menu
• J: to move left in the MAP tab/menu
• L: to move right in the MAP tab/menu
• X: to change the area that you are scrolling in Quests and Notes/Misc Tabs in the DATA Menu
• ENTER: To equip/unequip weapons/armor, to activate/disactivate quests, to chenge between the Reputation and General tabs in the Fallout: New Vegas STATS Menu

Important information

• This version might not work on the SPC 3000: As I don't currently have the hardware, I cannot check;
• Not everything from the games is in the code: I don't have enough time to insert all missions/notes/weaons etc... so for the Stardance event I'll just leave some elements from the games and some fallback Images to ease future additions;
• There is NO FIRMWARE: the project uses a raspberry and, because I'm not using custom PCBs, it doesn't need a firmware. The only thing near to a firmware is the hardware_inputs file in Pip-Boy OS, which links the inputs from the GPIO ports of the Raspberry to their repsective PC Button/s (example: knob == A/D key);
