pyclickimage

Description

pyclickimage is a Python package providing a graphical interface to collect 2D coordinates of points on images.

The application supports:

• multiple images in the same annotation session,
• multiple annotation groups,
• floating-point coordinates for subpixel precision,
• CSV or JSON session import/export,
• visualization controls and annotation management.

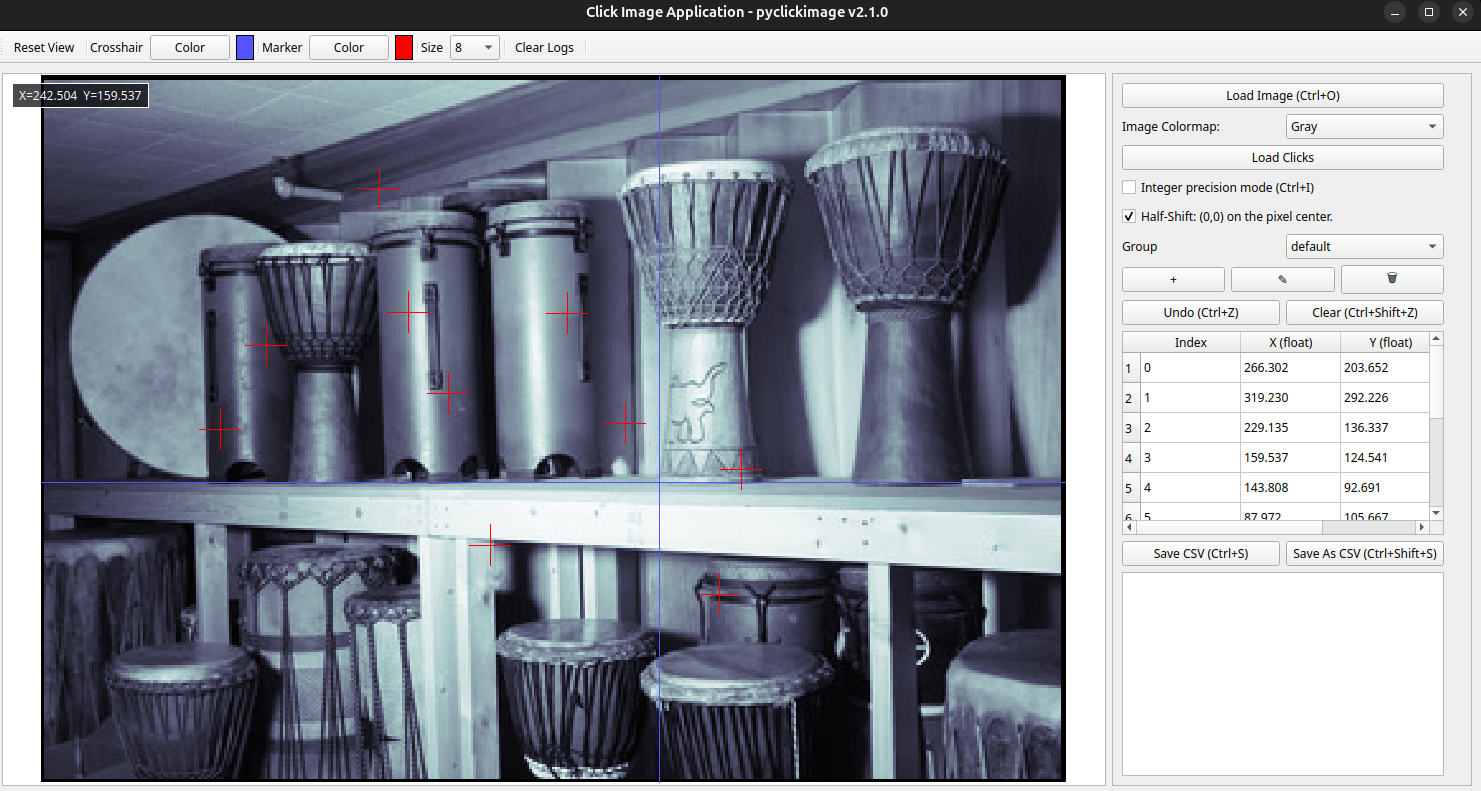

Run the graphical application:

pyclickimage-gui

Annotation sessions

Annotations are stored as complete sessions.

Two file formats are supported:

• JSON: complete session backup and restoration.
• CSV: annotation export.

JSON session format

The JSON format is the recommended format for saving and restoring annotation projects.

It stores the complete state of the annotation session, including:

• image paths,
• annotation groups,
• click coordinates,
• current selections,
• session options.

A JSON session can be loaded later to restore the project exactly as it was saved.

Example:

{
    "precision_mode": "float",
    "current_image_index": 0,
    "current_group_index": 1,
    "groups": [
        "default",
        "Coco"
    ],
    "images": [
        {
            "path": "image_1.png",
            "groups": {
                "default": [
                    [128.5, 102.0],
                    [115.2, 153.7]
                ],
                "Coco": [
                    [201.0, 126.5]
                ]
            }
        }
    ]
}

CSV export format

The CSV format is intended for exporting annotations to external tools such as spreadsheets or data processing pipelines.

The exported CSV file has the following format:

Image,Group,Index,X,Y
image_1.png,default,0,128.5,102.0
image_1.png,default,1,115.2,153.7
image_1.png,Coco,0,201.0,126.5
image_2.png,default,0,80.0,45.3

The CSV columns are:

• Image: image file path.
• Group: annotation group name.
• Index: point index inside the group.
• X: horizontal coordinate.
• Y: vertical coordinate.

Coordinates

The coordinates can be stored either as floating-point values or displayed with integer precision depending on the selected application mode.

X is the horizontal coordinate (column index) and Y is the vertical coordinate (row index), following NumPy image indexing:

image[Y, X]

Empty points can also be stored when a click is intentionally skipped:

Image,Group,Index,X,Y image_1.png,default,2,,

CSV files do not store the complete application state. They are intended for annotation exchange and analysis.

For saving and restoring complete projects, use the JSON format.

Reading sessions

Session files can be loaded directly from Python without opening the GUI.

import pyclickimage

data = pyclickimage.read_session(
    "session.csv"
)

print(data)

The returned dictionary has the following structure:

{
    "image_1.png": {
        "default": [
            (128.5, 102.0),
            (115.2, 153.7),
        ],
        "Coco": [
            (201.0, 126.5),
        ],
    }
}

Authors

• Artezaru artezaru.github@proton.me

Project repository:

• GitHub: https://github.com/Artezaru/pyclickimage

Documentation:

• Online documentation: https://Artezaru.github.io/pyclickimage

Installation

Install directly from GitHub:

pip install git+https://github.com/Artezaru/pyclickimage.git

Or clone the repository:

git clone https://github.com/Artezaru/pyclickimage.git

Requirements and compatibility

This package uses PyQt5 for the graphical interface.

If opencv-python is installed in the same environment, it is recommended to replace it with opencv-python-headless to avoid conflicts between Qt and OpenCV GUI backends.

The package is not compatible with the full opencv-python package.

License

Copyright 2025-2026 Artezaru

Licensed under the GNU General Public License v3.0 or later (GPL-3.0-or-later).

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

See the LICENSE file for more information.
